Your HTC HD7 User guide  Icons used in this guide In this user guide, we use the following symbols to indicate useful and important information: This is a note. It might give extra information that’s only applicable in certain situations. Or explain a specific feature in a bit more detail. This is important info. Stuff you really need to know to accomplish a task or get a feature to work properly. This is a tip. It might provide an alternative way to do something or tell you about a special option you might find useful. This is a safety precaution. Read these carefully to avoid any potential problems when using your phone. Want more info? For other helpful resources, go to www.htc.com/support. Please also read the Safety and regulatory guide that’s included in the box. For additional information about your phone, go to windowsphone.com. Note: Certain Microsoft services/features may not be available in your country or region.  Contents Contents Basics Inside the box 6 Your phone 6 Bottom cover 8 SIM card 9 Battery 10 Switching your phone on or off 11 Entering your PIN 12 Finger gestures 12 Using the kickstand 12 Getting started Setting up your phone for the first time 13 Start screen 13 Accessing apps and settings 14 Hubs 14 Sleep mode 14 Unlocking the screen 15 Changing your lock screen wallpaper 15 Status icons 16 Adjusting the volume 16 Searching 17 Interacting with your phone by speaking 17 Setting up an account 17 Changing the ringtone 18 Changing the theme 18 Phone calls Making calls 19 Receiving calls 0 Using in-call options 0 Using call history  Call services  Turning Flight mode (Airplane mode) on or off  People About the People hub 4 Viewing your contacts list and feeds 4 Adding a new contact 5 Importing contacts from your SIM card 6 Merging contact information 6 Editing, searching, and deleting 6 Your Me tile 7 4 Contents Keyboard Using the onscreen keyboard 9 Entering words with predictive text 0 Changing keyboard settings 0 Messaging About Messaging 1 Sending a text message 1 Sending a picture message  Viewing and replying to a message  Managing message conversations  Email Adding a POP/IMAP email account 4 Adding a Microsoft Exchange Server account 4 Checking your inbox 5 Sending an email message 6 Calendar About Calendar 8 Creating a calendar appointment 8 Changing calendar views 9 Viewing, editing or deleting an appointment 40 Viewing, dismissing, or snoozing appointment reminders 40 Displaying and synchronizing calendars 41 Getting connected Data connection 4 Wi-Fi 4 Using your phone’s web browser 44 Bluetooth 47 Camera Camera basics 49 Taking a photo 50 Capturing a video 50 After capturing 51 Camera settings 51 Pictures About the Pictures hub 5 Viewing photos and videos 5 Touching up your photos 5 Sending your photos 5 Sharing your photos on the Web 54 5 Contents Zune Synchronizing your computer and phone 55 Music + Videos hub 56 Listening to music 56 Watching videos 56 Listening to or watching your podcasts 57 Listening to the radio 57 Maps and location Turning on location services 58 Bing Maps 58 HTC Hub About the HTC Hub 6 More apps Microsoft Office Mobile 010 67 Windows Marketplace 68 Games 68 Security Protecting your SIM card with a PIN 69 Protecting your phone with a password 70 Protecting your phone through the Web 70 Settings Settings on your phone 71 Changing display settings 7 Changing sound settings 7 Checking information about your phone 7 Changing the phone language 7 Update and reset Updating the phone software 74 Restarting or factory resetting your phone 74 Trademarks and copyright 76 Index 77 6 BasicsBasics Basics Inside the box You’ll find the following inside the box: Phone Battery USB cable .5mm stereo headset Power adapter Start here guide Quick guide Your phone Front panel 2 3 1 4 5 7 6 1 Notification LED 2 Touch screen 3 BACK 4 SEARCH 5 START 6 Earpiece 7 POWER        7 BasicsBasics Top panel 2 1 3 1 3.5mm audio jack 2 USB 3 Microphone Right panel 2 1 1 VOLUME UP/DOWN 2 CAMERA Back panel 4 2 3 1 5 1 Dual LED flash 2 Back cover 3 5 megapixel camera 4 Speaker 5 Kickstand 8 BasicsBasics Bottom cover Removing the back cover Remove the back cover to access the battery compartment and SIM card slot. With the phone turned off, hold your phone securely with the front facing down. With your thumb or finger, lift up the back cover from the small notch at the top of the phone. Replacing the back cover Secure the bottom part of the back cover first by aligning the tabs on the back cover into the openings located inside the battery compartment. Press the sides and the top part of the back cover down to lock the cover into place. You will hear a click when the back cover is locked in place. 1. 2. 1. 2. 9 BasicsBasics SIM card The SIM card contains your phone number, service details, and phonebook/message memory. Your phone supports both 1.8V and  V SIM cards. Some legacy SIM cards may not function with your phone. You should consult with your mobile operator for a replacement SIM card. There may be fees for this service. Inserting the SIM card Take the back cover off. See “Removing the back cover.” Take the battery out. See “Battery.” Insert the SIM card with its gold contacts facing down and its cut-off corner facing out. Slide the SIM card all the way in. Removing the SIM card Take the back cover off. See “Removing the back cover.” Take the battery out. See “Battery.” Press down on the SIM card with your finger and slide the SIM card out. 1. 2. 3. 4. 1. 2. 3. 10 BasicsBasics Battery Your phone uses a rechargeable battery. Please use only original batteries and accessories that came with your phone or replacements that we recommend. How long the battery can last before it needs recharging depends on how you use your phone. Among these are the phone features and accessories you use (for example, leaving your Bluetooth connection always on uses more power). Long phone calls and frequent web browsing use up …

Text truncated - open the document above for the full version.

Safety and regulatory guide  Safety and regulatory guide Please read before proceeding THE BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE IT OUT OF THE BOX. DO NOT REMOVE THE BATTERY PACK WHEN THE PHONE IS CHARGING. YOUR WARRANTY IS INVALIDATED IF YOU DISASSEMBLE OR ATTEMPT TO DISASSEMBLE THE DEVICE. Privacy restrictions Some countries require full disclosure of recorded telephone conversations, and stipulate that you must inform the person with whom you are speaking that the conversation is being recorded. Always obey the relevant laws and regulations of your country when using the recording feature of your phone. Disclaimers ANY WEATHER, STOCK, OR OTHER INFORMATION, DATA, OR DOCUMENTATION (“ACCESSED INFORMATION”) ARE PROVIDED “AS IS” AND WITHOUT ANY WARRANTY OR ANY TECHNICAL SUPPORT. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, HTC AND ITS AFFILIATES expressly disclaim any and all representations and warranties, arising by law or otherwise, related to the Accessed Information, including without limitation any express or implied representation or warranty of merchantability, fitness for a particular purpose, non-infringement, quality, accuracy, completeness, effectiveness, reliability, or usefulness. Without limiting the foregoing, it is further understood that HTC and its Affiliates are not responsible for any use of the Accessed Information or the results arising from such use, and that you use such information at your own risk. Safety and regulatory guide  Limitation of damages TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HTC OR ITS AFFILIATES BE LIABLE TO YOU, ANY USER, OR THIRD PARTY FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, INCIDENTAL OR PUNITIVE DAMAGES OF ANY KIND, ARISING IN CONTRACT, TORT, OR OTHERWISE, INCLUDING, BUT NOT LIMITED TO, INJURY, LOSS OF REVENUE, LOSS OF GOODWILL, LOSS OF BUSINESS OPPORTUNITY, LOSS OF DATA, AND/OR LOSS OF PROFITS, REGARDLESS OF THE FORESEEABILITY THEREOF OR WHETHER HTC OR ITS AFFILIATES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. AND IN NO EVENT SHALL THE TOTAL LIABILITY OF HTC OR ITS AFFILIATES EXCEED THE AMOUNT RECEIVED FROM YOU, REGARDLESS OF THE LEGAL THEORY UNDER WHICH THE CAUSE OF ACTION IS BROUGHT. THE FOREGOING DOES NOT AFFECT ANY STATUTORY RIGHTS WHICH MAY NOT BE DISCLAIMED. Important health information and safety precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. Electrical safety This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. Safety precautions for proper grounding installation CAUTION: Connecting to improperly grounded equipment can result in an electric shock to your device. This product is equipped with a USB Cable for connecting with desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate  Safety and regulatory guide outlet which is properly installed and grounded in accordance with all local codes and ordinances. Safety precautions for power supply unit Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product. This product should be operated only with the following designated power supply unit(s). AC Adapter HTC, Model TC U50, TC E50, TC B50, TC C50, TC A50, Handle battery packs carefully This product contains a Lithium-ion polymer or Lithium-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. Do not attempt to open or service the battery pack. Do not disassemble, crush, puncture, short external contacts or circuits, dispose of in fire or water, or expose a battery pack to temperatures higher than 60 ̊C (10 ̊F). WARNING: Danger of explosion if battery is incorrectly replaced. To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts, expose to temperature above 60° C (10° F), or dispose of in fire or water. Replace only with specified batteries. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product. NOTE: This product should be operated only with the following designated Battery Pack(s). HTC, Model BD9100   • Safety and regulatory guide 5 Take extra precautions Keep the battery or device dry and away from water or any liquid as it may cause a short circuit. Keep metal objects away so they don’t come in contact with the battery or its connectors as it may lead to short circuit during operation. The phone should only be connected to products that bear the USB-IF logo or have completed the USB-IF compliance program. Do not use a battery that appears damaged, deformed, or discolored, or the one that has any rust on its casing, overheats, or emits a foul odor. Always keep the battery out of the reach of babies and small children, to avoid swallowing of the battery. Consult the doctor immediately if the battery is swallowed. If the battery leaks: Do not allow the leaking fluid to come in contact with skin or clothing. If already in contact, flush the affected area immediately with clean water and seek medical advic…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 December 3, 2010 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Sporton International Inc. December 3, 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _Sporton International Inc._hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: Smartphone Model name: PD29130 We affirm that between SIEMIC and __Sporton Internationl Inc.___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature: Client’s name / title: Roy Wu Contact information / address: No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyua n Hsien 333, Taiwan, R.O.C.

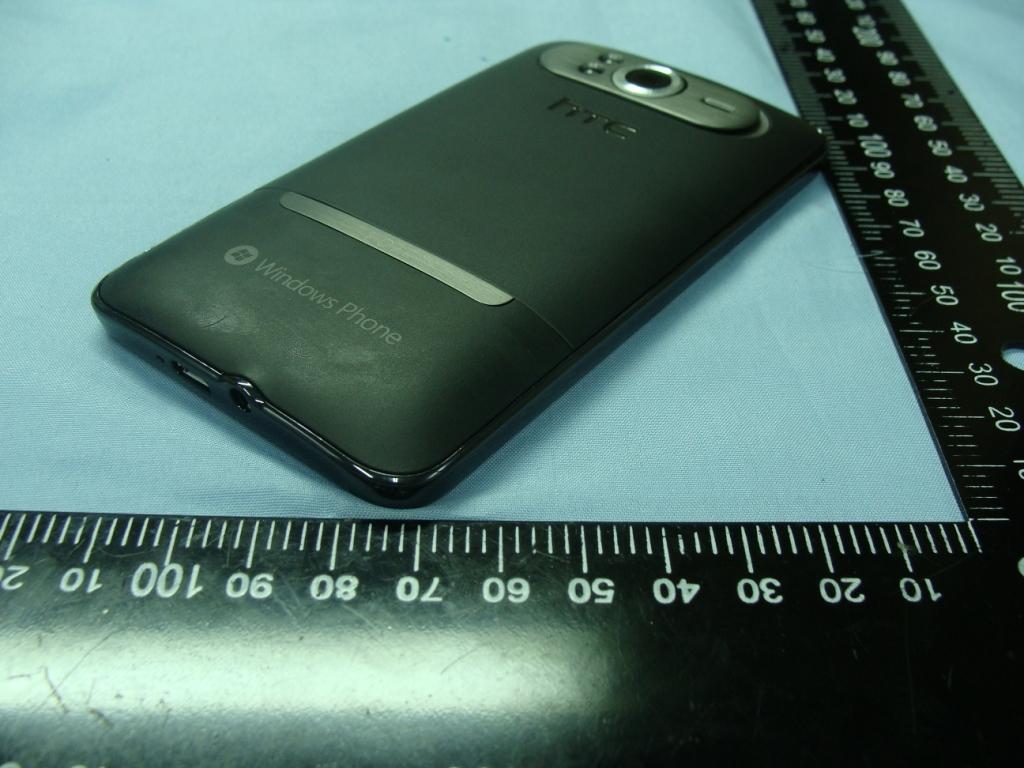

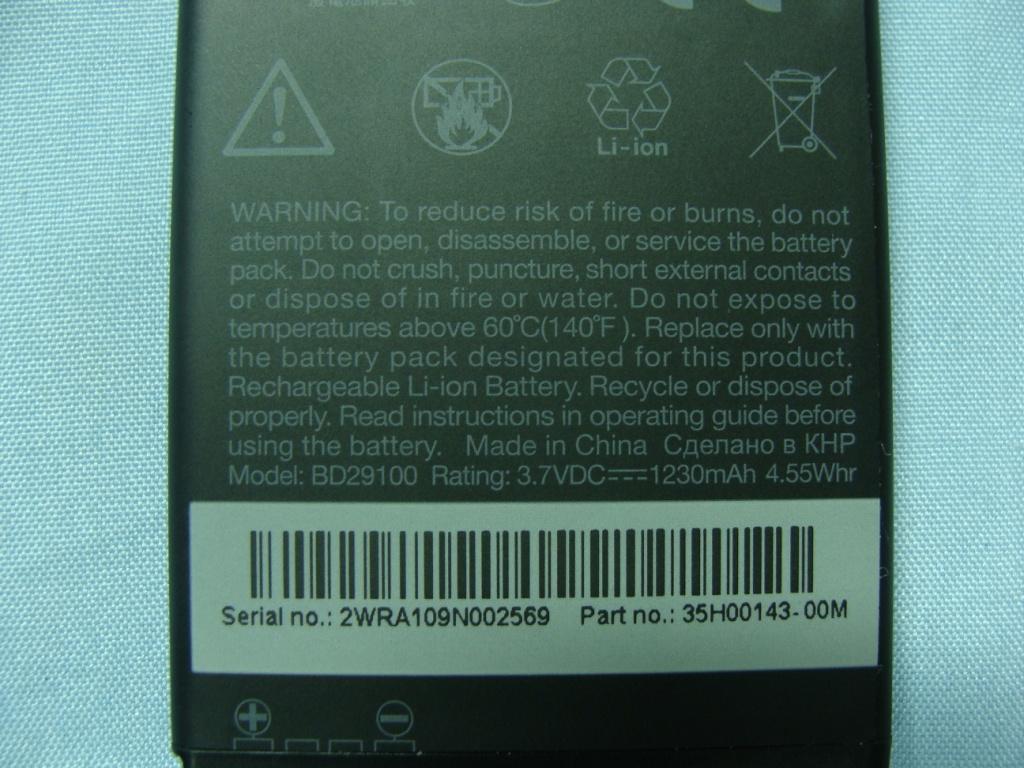

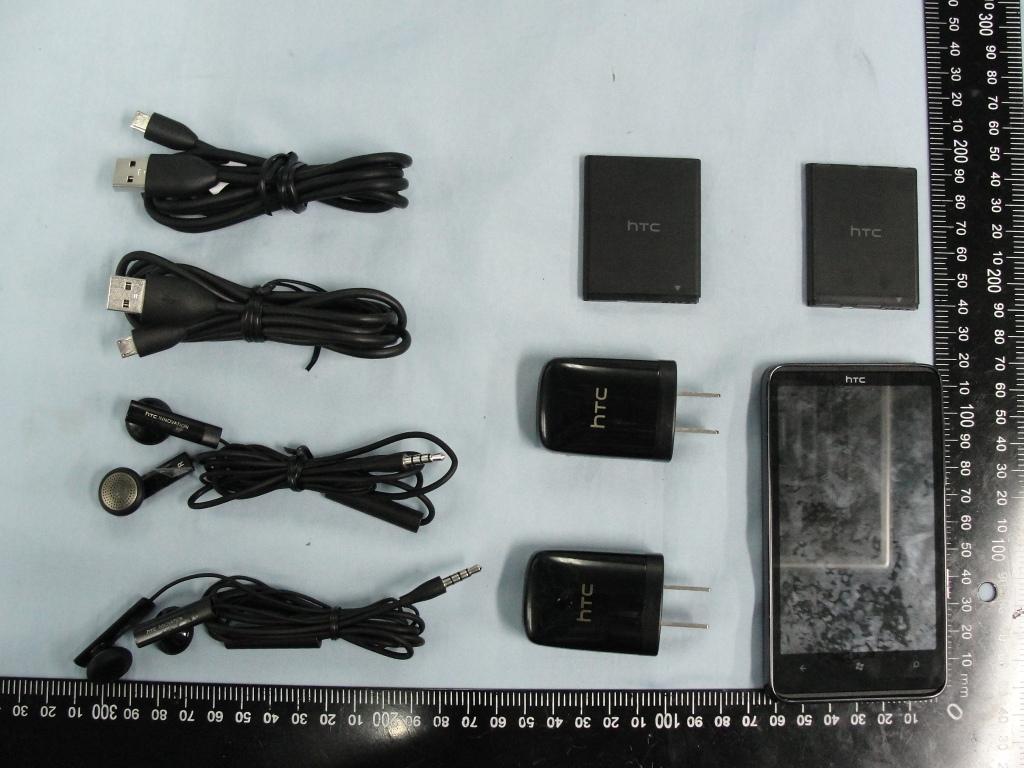

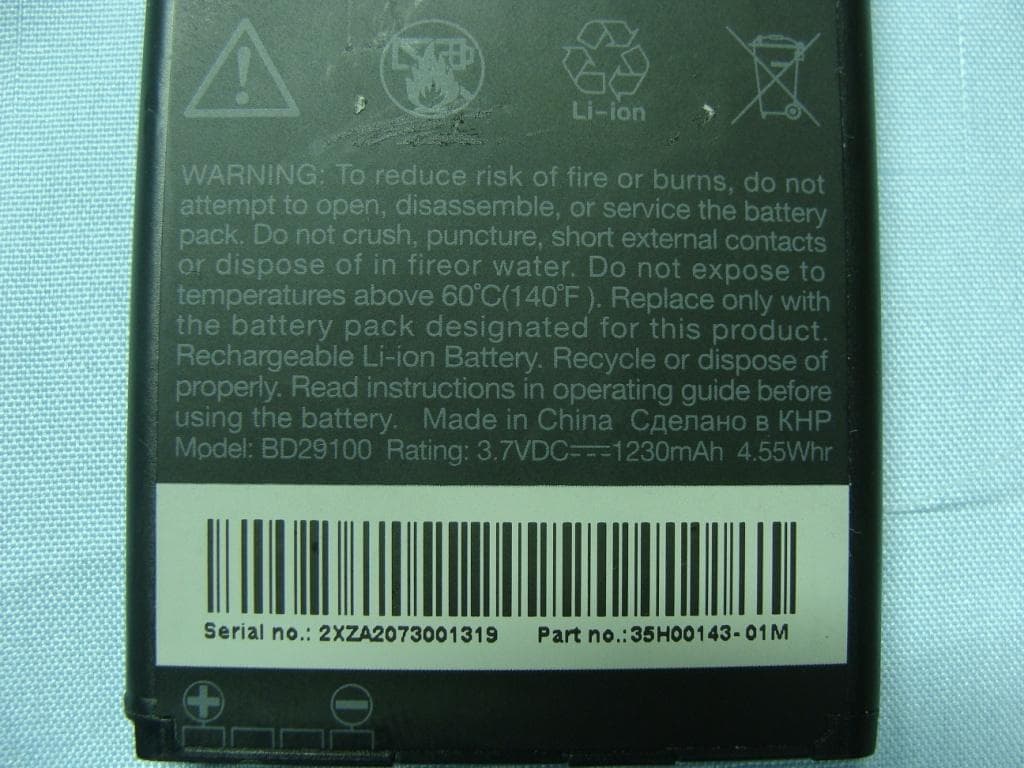

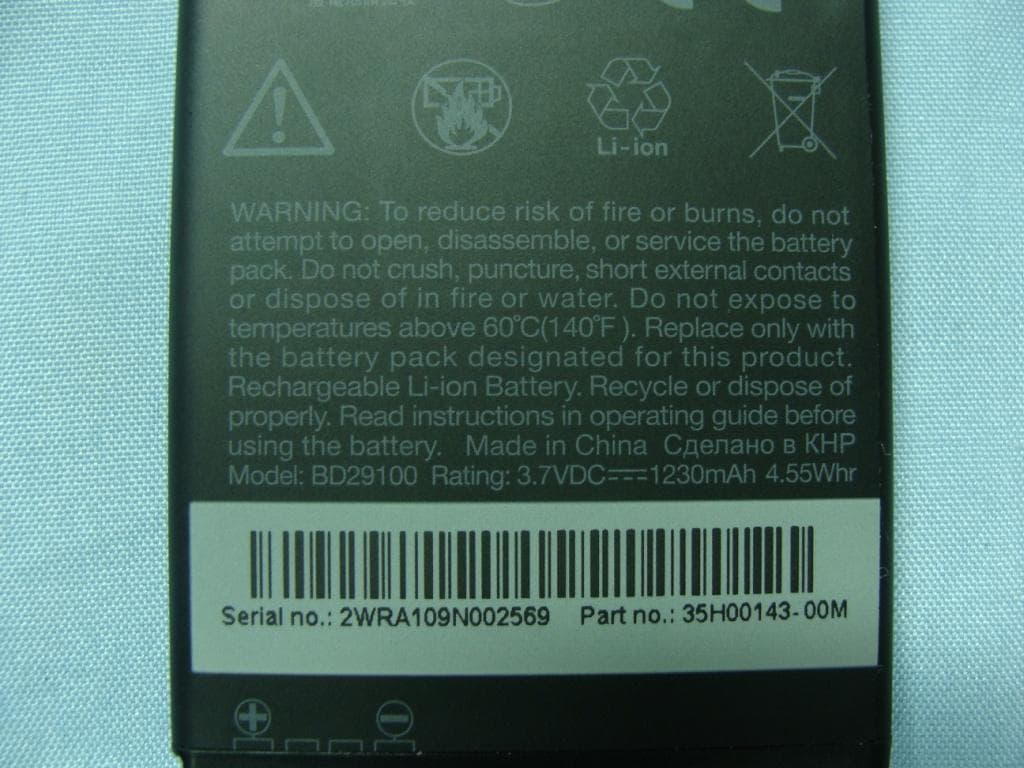

Photographs of EUT Report No.: EP0O2613 Model Name: PD29130 SPORTON INTERNATIONAL INC. Page Number : 1 of 15 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29130 IC : 4115B-PD29130 1. External Photograph of EUT Sample 1 Photographs of EUT Report No.: EP0O2613 Model Name: PD29130 SPORTON INTERNATIONAL INC. Page Number : 2 of 15 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29130 IC : 4115B-PD29130 Photographs of EUT Report No.: EP0O2613 Model Name: PD29130 SPORTON INTERNATIONAL INC. Page Number : 3 of 15 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29130 IC : 4115B-PD29130 Sample 2 Photographs of EUT Report No.: EP0O2613 Model Name: PD29130 SPORTON INTERNATIONAL INC. Page Number : 4 of 15 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29130 IC : 4115B-PD29130 720510 Photographs of EUT Report No.: EP0O2613 Model Name: PD29130 SPORTON INTERNATIONAL INC. Page Number : 5 of 15 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29130 IC : 4115B-PD29130 List of Accessory: Specification of Accessory AC Adapter 1 Brand Name Emerson Model Name TC U250 AC Adapter 2 Brand Name Delta Model Name TC U250 Battery 1 Brand Name HT Model Name BD29100 Battery 2 Brand Name TWS Model Name BD29100 USB Cable 1 Brand Name Coxoc Model Name DC M410 USB Cable 2 Brand Name Foxlink Model Name DC M410 Earphone 1 Brand Name Cotron Model Name HS G400 Earphone 2 Brand Name Merry Model Name HS G400 Camera 1 Brand Name Liteon Model Name 09P1BA503 Camera 2 Brand Name PRIMAX Model Name NBRB76 LCM-Main Brand Name Sharp Model Name LQ043Y1DX02 LCM-2nd Brand Name AUO Model Name H430VL02 V4 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP0O2613 Model Name: PD29130 SPORTON INTERNATIONAL INC. Page Number : 6 of 15 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29130 IC : 4115B-PD29130 Photographs of EUT Report No.: EP0O2613 Model Name: PD29130 SPORTON INTERNATIONAL INC. Page Number : 7 of 15 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29130 IC : 4115B-PD29130 Battery 1 Photographs of EUT Report No.: EP0O2613 Model Name: PD29130 SPORTON INTERNATIONAL INC. Page Number : 8 of 15 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29130 IC : 4115B-PD29130 Battery 2 Photographs of EUT Report No.: EP0O2613 Model Name: PD29130 SPORTON INTERNATIONAL INC. Page Number : 9 of 15 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29130 IC : 4115B-PD29130 AC Adapter 1 Photographs of EUT Report No.: EP0O2613 Model Name: PD29130 SPORTON INTERNATIONAL INC. Page Number : 10 of 15 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29130 IC : 4115B-PD29130 720510 AC Adapter 2

Remark: 1. Cell phones or Cordless phones can have the Identifier in the battery compartment under certain conditions. a) The available label area on the phone is limited because they are relatively small and have many contoured surfaces, keypads, LCD displays, charge contacts and/or other connectors. b) The batteries for these devices are designed for easy removal and that the labels will be visible whenever the batteries are removed for charging or replacement c) The label will be readily visible at the time of purchase because the phone will be marketed without the battery installed.

layer1 : agency label layer2 : barcode label 13mm 15mm 2 3 FCC ID: NM8PD29130 IC: 4115B-PD29130 Use only batteries and power supplies listed in user manual PD29130 5VDC 1A Made in Taiwan

Photographs of EUT Report No.: EP0O2613 Model Name: PD29130 SPORTON INTERNATIONAL INC. Page Number : 11 of 15 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29130 IC : 4115B-PD29130 3. Internal Photograph of EUT Photographs of EUT Report No.: EP0O2613 Model Name: PD29130 SPORTON INTERNATIONAL INC. Page Number : 12 of 15 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29130 IC : 4115B-PD29130 Photographs of EUT Report No.: EP0O2613 Model Name: PD29130 SPORTON INTERNATIONAL INC. Page Number : 13 of 15 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29130 IC : 4115B-PD29130 Bluetooth & WLAN Antenna Photographs of EUT Report No.: EP0O2613 Model Name: PD29130 SPORTON INTERNATIONAL INC. Page Number : 14 of 15 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29130 IC : 4115B-PD29130 GPS Antenna Photographs of EUT Report No.: EP0O2613 Model Name: PD29130 SPORTON INTERNATIONAL INC. Page Number : 15 of 15 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29130 IC : 4115B-PD29130 720510 WWAN Antenna

Antenna location Antenna Distance (cm) WWAN to Bluetooth & WLAN 3 GPS Antenna WWAN Antenna Bluetooth & WLAN Antenna

SPORTON INTERNATIONAL INC. Page Number : 1 of 34 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29130 FCC SAR Test Report Report No. : FA0O2613A FCC SAR Test Report APPLICANT : HTC Corporation EQUIPMENT : Windows Phone MODEL NAME : PD29130 FCC ID : NM8PD29130 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1999 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Oct. 26, 2010 and completely tested on Oct. 30, 2010. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 34 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29130 FCC SAR Test Report Report No. : FA0O2613A Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Applied Standards ............................................................................................................................................ 7 3.3 Device Category and SAR Limits ..................................................................................................................... 7 3.4 Test Conditions ................................................................................................................................................. 7 3.4.1 Ambient Condition .................................................................................................................................. 7 3.4.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 9 4.1 Introduction ....................................................................................................................................................... 9 4.2 SAR Definition .................................................................................................................................................. 9 5. SAR Measurement System .......................................................................................................................................10 5.1 E-Field Probe................................................................................................................................................... 11 5.1.1 E-Field Probe Specification ................................................................................................................... 11 5.1.2 E-Field Probe Calibration .......................................................................................................................12 5.2 Data Acquisition Electronics (DAE) ..................................................................................................................12 5.3 Robot ...............................................................................................................................................................12 5.4 Measurement Server .......................................................................................................................................13 5.5 Phantom ..........................................................................................................................................................14 5.6 Device Holder ..................................................................................................................................................15 5.7 Data Storage and Evaluation ...........................................................................................................................17 5.7.1 Data Storage .........................................................................................................................................17 5.7.2 Data Evaluation .................................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/10/28 System Check_Head_835MHz_101028 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_101028 Medium parameters used: f = 835 MHz; σ = 0.9 mho/m; ε r = 40.8; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.21, 6.21, 6.21); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2010/8/18 - Phantom: SAM - Front; Type: SAM; Serial: TP-1446 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.01 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34.6 V/m; Power Drift = 0.015 dB Peak SAR (extrapolated) = 1.37 W/kg SAR(1 g) = 0.925 mW/g; SAR(10 g) = 0.601 mW/g Maximum value of SAR (measured) = 1 mW/ g 0 dB = 1mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/10/29 System Check_Head_835MHz_101029 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_101029 Medium parameters used: f = 835 MHz; σ = 0.873 mho/m; ε r = 41.1; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.3 °C DASY4 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.23, 6.23, 6.23); Calibrated: 2010/9/21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2010/8/18 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.05 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 36.0 V/m; Power Drift = -0.008 dB Peak SAR (extrapolated) = 1.41 W/kg SAR(1 g) = 0.967 mW/g; SAR(10 g) = 0.632 mW/g Maximum value of SAR (measured) = 1.05 mW/g 0 dB = 1.05mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/10/30 System Check_Body_835MHz_101030 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_101030 Medium parameters used: f = 835 MHz; σ = 0.994 mho/m; ε r = 56; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1788; ConvF(5.99, 5.99, 5.99); Calibrated: 2010/9/21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2010/8/18 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.08 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34.1 V/m; Power Drift = -0.023 dB Peak SAR (extrapolated) = 1.43 W/kg SAR(1 g) = 0.994 mW/g; SAR(10 g) = 0.655 mW/g Maximum value of SAR (measured) = 1.08 mW/g 0 dB = 1.08mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/10/29 System Check_Head_1900MHz_101029 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_101029 Medium parameters used: f = 1900 MHz; σ = 1.46 mho/m; ε r = 39; ρ = 1000 kg/m 3 Ambient Temperature：22.7 °C; Liquid Temperature：21.1 °C DASY4 Configuration: - Probe: ET3DV6 - SN1788; ConvF(5.03, 5.03, 5.03); Calibrated: 2010/9/21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2010/8/18 - Phantom: SAM-Left; Type: QD 000 P40 C; Serial: TP-1477 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 4.78 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 59.2 V/m; Power Drift = 0.003 dB Peak SAR (extrapolated) = 7.09 W/kg SAR(1 g) = 4.01 mW/g; SAR(10 g) = 2.08 mW/g Maximum value of SAR (measured) = 4.56 mW/g 0 dB = 4.56mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/10/30 System Check_Body_1900MHz_101030 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_101030 Medium parameters used: f = 1900 MHz; σ = 1.52 mho/m; ε r = 54.5; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.3 °C DASY4 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.39, 4.39, 4.39); Calibrated: 2010/9/21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2010/8/18 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=100mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 4.52 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference …
