NM8PG06100Smart Phone

9/21/10 User Guide User Guide Consejo:Para encontrar esta guía para usuarios en español, por favor haz clic en Support > Devices. To find this user guide in Spanish, please click Support > Devices. Important Privacy Message – Our policies often do not apply to third-party applications. Third-party applications may access your personal information or require us to disclose your customer information to the third-party application provider. To find out how a third-party application will collect, access, use, or disclose your personal information, check the application provider’s policies, which can usually be found on their website. If you aren’t comfortable with the third-party application’s policies, don’t use the application. Table of Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i Your Device’s Menu . . . . . . . . . . . . . . . . . . . . . . . . i 1A. Setting Up Service . . . . . . . . . . . . . . . . . . . 2 Setting Up Your Device . . . . . . . . . . . . . . . . . . . . . . 2 Activating Your Device . . . . . . . . . . . . . . . . . . . . . . 3 Setting Up Your Voicemail . . . . . . . . . . . . . . . . . . . 3 Account Passwords . . . . . . . . . . . . . . . . . . . . . . . . 4 Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 2A. Device Basics . . . . . . . . . . . . . . . . . . . . . . . 8 Your Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Turning Your Device On and Off . . . . . . . . . . . . . 11 Viewing the Display Screen . . . . . . . . . . . . . . . . . 13 Battery and Charger . . . . . . . . . . . . . . . . . . . . . . . 18 Getting Around Your Device . . . . . . . . . . . . . . . . 20 Displaying Your Phone Number . . . . . . . . . . . . . 22 Making and Answering Calls . . . . . . . . . . . . . . . 22 Speed Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Dialing Services . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Home Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 2B. Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Personalization Settings . . . . . . . . . . . . . . . . . . . . 39 Sound Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Display Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Location Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Messaging Settings . . . . . . . . . . . . . . . . . . . . . . . 46 Airplane Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 TTY Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Security Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Data Synchronization Settings . . . . . . . . . . . . . . 51 Social Network Settings . . . . . . . . . . . . . . . . . . . . 53 Application Settings . . . . . . . . . . . . . . . . . . . . . . . 54 Date & Time Settings . . . . . . . . . . . . . . . . . . . . . . 54 Locale & Text Settings . . . . . . . . . . . . . . . . . . . . . 55 Power-Saving Tips . . . . . . . . . . . . . . . . . . . . . . . . 55 2C. History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Viewing History . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Making a Call From History . . . . . . . . . . . . . . . . . 58 Tip:Looking for something? If you don’t see it in the headings listed here, try the Index on page 293. Saving a Number From History . . . . . . . . . . . . . 58 Prepending a Number From History . . . . . . . . . 59 Erasing History . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 2D. Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 About People . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 Using the People Screen . . . . . . . . . . . . . . . . . . . 61 Adding a New People Entry . . . . . . . . . . . . . . . . 63 Saving a Phone Number . . . . . . . . . . . . . . . . . . 64 Using the Contact Details Screen . . . . . . . . . . . 64 Merging Entries in People . . . . . . . . . . . . . . . . . . 65 Editing an Entry in People . . . . . . . . . . . . . . . . . . 66 Finding Entries in People . . . . . . . . . . . . . . . . . . 69 Backing Up and Importing Entries in People . . 70 Working with Groups . . . . . . . . . . . . . . . . . . . . . . . 71 Using the People Widget . . . . . . . . . . . . . . . . . . . 72 Connecting with Your Social Networks . . . . . . . 74 Using Friend Stream . . . . . . . . . . . . . . . . . . . . . . 77 2E. Calendar & Tools . . . . . . . . . . . . . . . . . . . . 80 Calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80 Calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88 Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89 Quickoffice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94 PDF Viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95 HTC Sync . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96 Updating Your Device . . . . . . . . . . . . . . . . . . . . . 102 2F. Voice Services . . . . . . . . . . . . . . . . . . . . 103 Automatic Speech Recognition (ASR) . . . . . . . 103 Managing Voice Memos . . . . . . . . . . . . . . . . . . 104 2G. microSD Card . . . . . . . . . . . . . . . . . . . . . 107 Your Device’s microSD Card . . . . . . . . . . . . . . . 107 Using the Device’s microSD Card as a USB Drive 110 2H. Camera and Multimedia . . . . . . . . . . . . . 113 Taking Pictures and Shooting Videos . . . . . . . 113 Viewing Pictures and Videos Using Gallery . . 121 Listening to Music . . . . . . . . . . . . . . . . . . . . . . . . 130 Listening to the Radio . . . . . . . . . . . . . . . . . . . . . 135 2I. Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . 138 Using Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . 138 3A. Service: The Basics . . . . . . . . . . . …

Text truncated - open the document above for the full version.

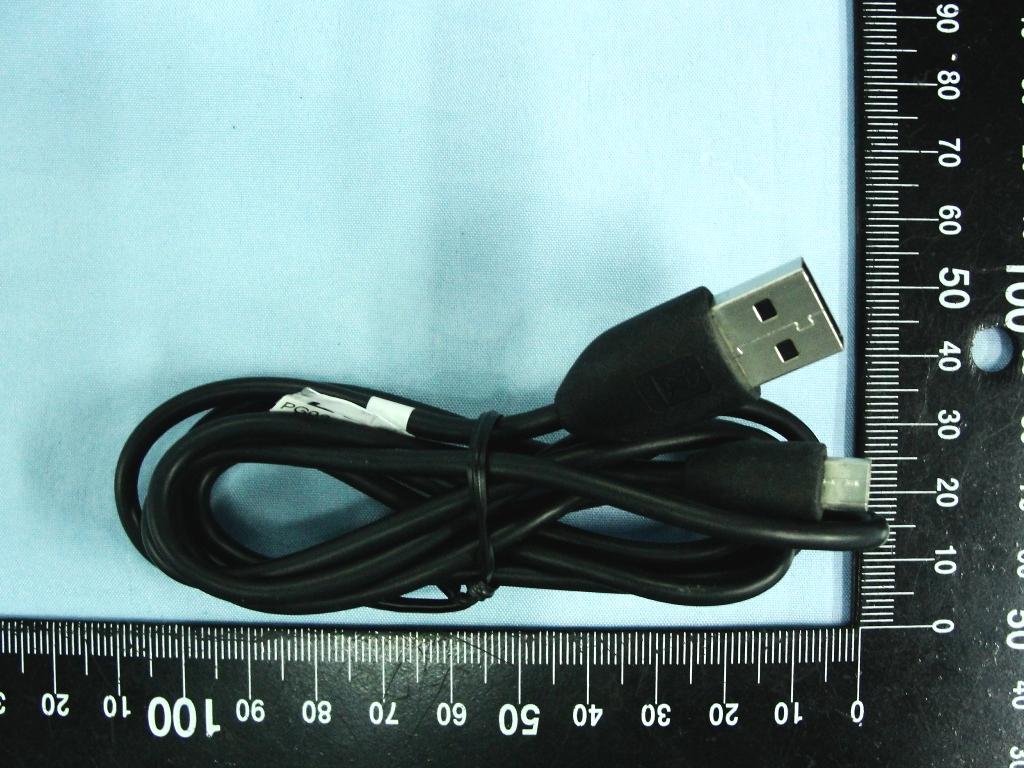

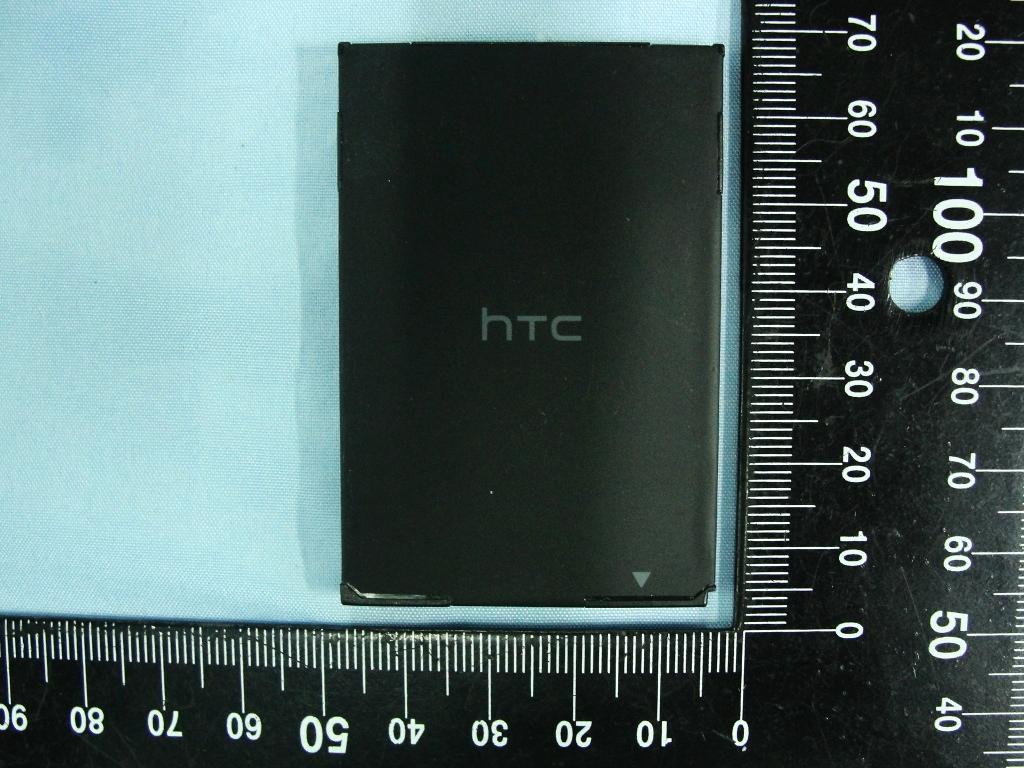

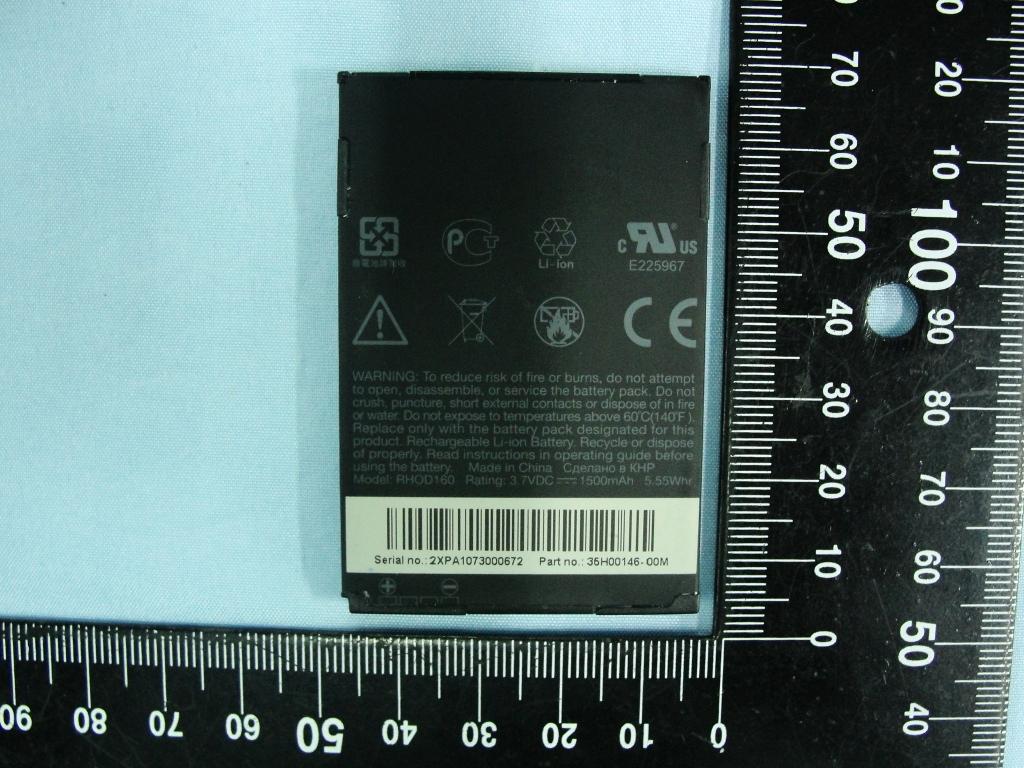

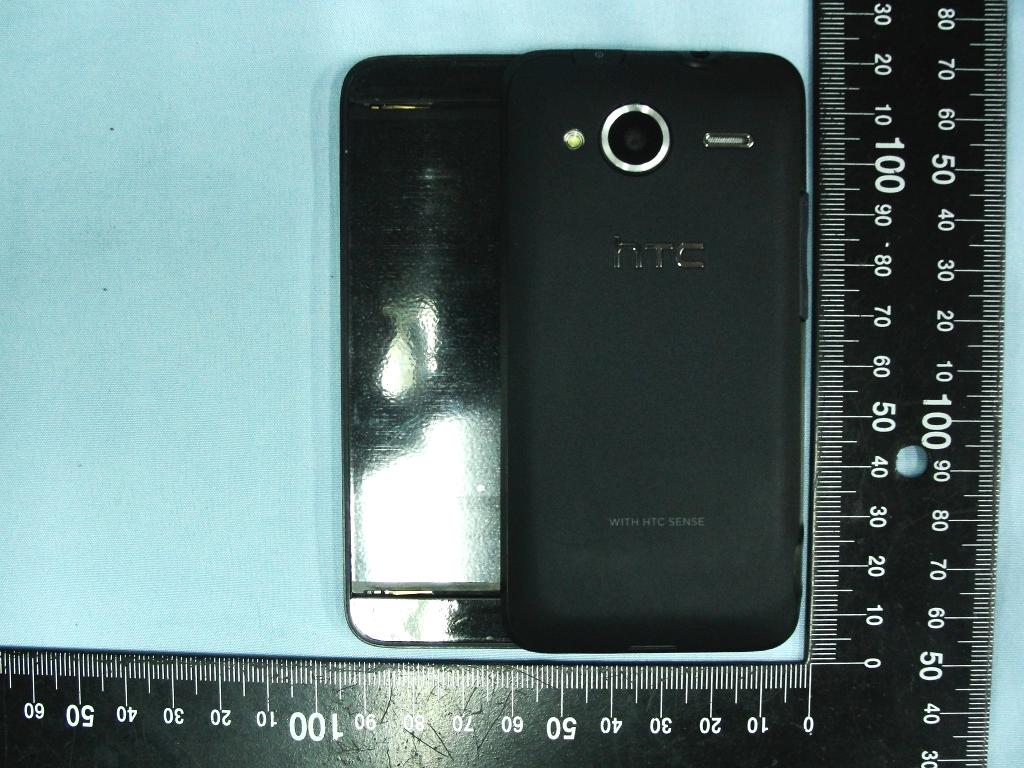

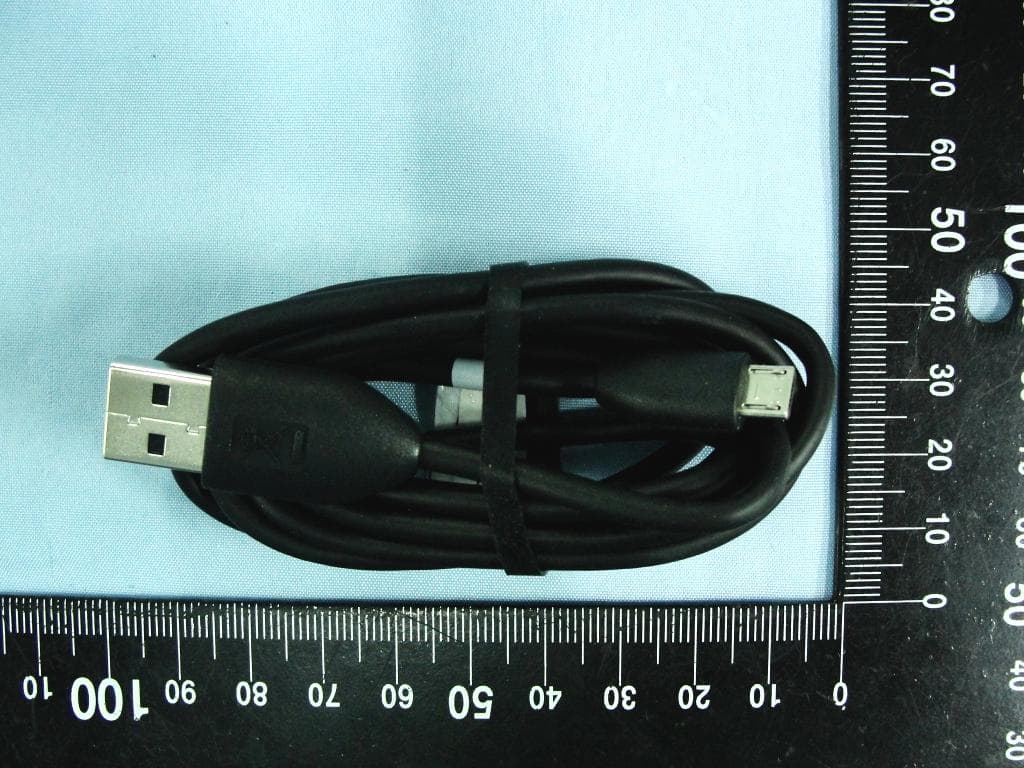

Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 1 of 39 TEL : 886-3-327-3456 Report Issued Date : Sep. 21, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG06100 1. External Photograph of EUT Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 2 of 39 TEL : 886-3-327-3456 Report Issued Date : Sep. 21, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG06100 Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 3 of 39 TEL : 886-3-327-3456 Report Issued Date : Sep. 21, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG06100 Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 4 of 39 TEL : 886-3-327-3456 Report Issued Date : Sep. 21, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG06100 Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 5 of 39 TEL : 886-3-327-3456 Report Issued Date : Sep. 21, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG06100 Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 6 of 39 TEL : 886-3-327-3456 Report Issued Date : Sep. 21, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG06100 Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 7 of 39 TEL : 886-3-327-3456 Report Issued Date : Sep. 21, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG06100 Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 8 of 39 TEL : 886-3-327-3456 Report Issued Date : Sep. 21, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG06100 720510 Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 9 of 39 TEL : 886-3-327-3456 Report Issued Date : Sep. 21, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG06100 List of Accessory: Specification of Accessory AC Adapter 1 Brand Name HTC Manufacturer Emerson Model Name TC U250 AC Adapter 2 Brand Name HTC Manufacturer Delta Model Name TC U250 Battery 1 Brand Name HTC Manufacturer HT Model Name RHOD160 Battery 2 Brand Name HTC Manufacturer Formosa Model Name RHOD160 USB Cable 1 Brand Name Foxlink Model Name DC M410 USB Cable 2 Brand Name MEC Model Name DC M410 USB Cable 3 Brand Name COXOC Model Name DC M410 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 10 of 39 TEL : 886-3-327-3456 Report Issued Date : Sep. 21, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG06100 Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 11 of 39 TEL : 886-3-327-3456 Report Issued Date : Sep. 21, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG06100 Adapter 1 Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 12 of 39 TEL : 886-3-327-3456 Report Issued Date : Sep. 21, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG06100 Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 13 of 39 TEL : 886-3-327-3456 Report Issued Date : Sep. 21, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG06100 Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 14 of 39 TEL : 886-3-327-3456 Report Issued Date : Sep. 21, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG06100 Adapter 2 Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 15 of 39 TEL : 886-3-327-3456 Report Issued Date : Sep. 21, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG06100 Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 16 of 39 TEL : 886-3-327-3456 Report Issued Date : Sep. 21, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG06100 Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 17 of 39 TEL : 886-3-327-3456 Report Issued Date : Sep. 21, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG06100 Battery 1 Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 18 of 39 TEL : 886-3-327-3456 Report Issued Date : Sep. 21, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG06100 Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 19 of 39 TEL : 886-3-327-3456 Report Issued Date : Sep. 21, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG06100 Battery 2 Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 20 of 39 TEL : 886-3-327-3456 Report Issued Date : Sep. 21, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG06100 Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 21 of 39 TEL : 886-3-327-3456 Report Issued Date : Sep. 21, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG06100 USB Cable 1 Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 22 of 39 TEL : 886-3-327-3456 Report Issued Date : Sep. 21, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG06100 USB Cable 2 Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 23 of 39 TEL : 886-3-327-3456 Report Issued Date : Sep. 21, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG06100 720510 USB…

Text truncated - open the document above for the full version.

Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 24 of 39 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PG06100 3. Internal Photograph of EUT Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 25 of 39 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PG06100 Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 26 of 39 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PG06100 Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 27 of 39 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PG06100 Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 28 of 39 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PG06100 Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 29 of 39 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PG06100 Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 30 of 39 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PG06100 Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 31 of 39 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PG06100 Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 32 of 39 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PG06100 Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 33 of 39 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PG06100 Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 34 of 39 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PG06100 WWAN Main Antenna Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 35 of 39 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PG06100 WWAN Aux. Antenna Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 36 of 39 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PG06100 Bluetooth and WLAN Antenna Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 37 of 39 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PG06100 WiMAX Main Antenna Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 38 of 39 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PG06100 WiMAX Aux. Antenna Photographs of EUT Report No.: EP073004 Model Name: PG06100 SPORTON INTERNATIONAL INC. Page Number : 39 of 39 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PG06100 720510 GPS Antenna

SPORTON INTERNATIONAL INC. Page Number : F1 of F6 TEL : 886-3-327-3456 Report Issued Date : Nov. 10, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PG06100 FCC SAR Test Report Report No. : FA073004A Appendix E. FCC 3G SAR Measurement Procedures Conducted Output Power: The EUT was tested according to the requirements of the FCC 3G procedures and the 3.1.2.3.4. A detailed analysis of the output power verification is provided as the table below: Function Type Reverse Traffic Channel Test Mode Radio Configuration Service Option Data Rates (kbps) Power Control Low Ch Mid. Ch High Ch Forward Traffic Channel (Fwd) Reverse Traffic Channel (Rvs) 1013 384 777 CDMA2000 Cellular FCH 1 1 1 55 Full All Up 23.66 23.56 23.61 3 3 3 55 Full All Up 23.68 23.66 23.62 3 3 3 32 Full All Up 23.66 23.64 23.60 FCH+SCH 3 3 3 32 FCH:Full,SCH 9.6 All Up 23.62 23.62 23.53 EVDO Rev.0* Subtype:0/1 RTAP 153.6 All Up 23.61 23.64 23.56 EVDO Rev.A* Subtype:2 RETAP 4096 All Up 23.64 23.62 23.55 Function Type Reverse Traffic Channel Test Mode Radio Configuration Service Option Data Rates (kbps) Power Control Low Ch Mid. Ch High Ch Forward Traffic Channel (Fwd) Reverse Traffic Channel (Rvs) 25 600 1175 CDMA2000 PCS FCH 1 1 1 55 Full All Up 23.69 23.64 23.55 3 3 3 55 Full All Up 23.86 23.72 23.61 3 3 3 32 Full All Up 23.81 23.70 23.58 FCH+SCH 3 3 3 32 FCH:Full,SCH 9.6 All Up 23.74 23.65 23.51 EVDO Rev.0* Subtype:0/1 RTAP 153.6 All Up 23.80 23.66 23.56 EVDO Rev.A* Subtype:2 RETAP 4096 All Up 23.78 23.68 23.56 SPORTON INTERNATIONAL INC. Page Number : F2 of F6 TEL : 886-3-327-3456 Report Issued Date : Nov. 10, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PG06100 FCC SAR Test Report Report No. : FA073004A CDMA2000 Setup Configuration: Setup Configuration 1. The EUT was connected to System Simulator, Agilent 8960. Refer to the drawing of Setup Configuration. 2. The RF path losses were compensated into the measurements. 3. A call was established between EUT and System Simulator with following setting: a. For 1xRTT, set the Radio Configuration and the Service Option b. For 1xEV-DO, set the Protocol Release and Data Rate c. Set the Power Control to All Up Bits 4. The transmitted maximum output power was recorded. 1xRTT setting for Radio Configuration 1 with Service Option 55 SPORTON INTERNATIONAL INC. Page Number : F3 of F6 TEL : 886-3-327-3456 Report Issued Date : Nov. 10, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PG06100 FCC SAR Test Report Report No. : FA073004A 1xRTT setting for Radio Configuration 3 with Service Option 55 1xRTT setting for Radio Configuration 3 with Service Option 32 SPORTON INTERNATIONAL INC. Page Number : F4 of F6 TEL : 886-3-327-3456 Report Issued Date : Nov. 10, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PG06100 FCC SAR Test Report Report No. : FA073004A 1xEV-DO setting for Protocol Release (Rev.0 or Rev.A) 1xEV-DO setting for RTAP data rate SPORTON INTERNATIONAL INC. Page Number : F5 of F6 TEL : 886-3-327-3456 Report Issued Date : Nov. 10, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PG06100 FCC SAR Test Report Report No. : FA073004A 1xEV-DO setting for RETAP data rate SPORTON INTERNATIONAL INC. Page Number : F6 of F6 TEL : 886-3-327-3456 Report Issued Date : Nov. 10, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PG06100 FCC SAR Test Report Report No. : FA073004A Reference: [1] SAR Measurement Procedures for 3G Devices CDMA 2000/Ev-Do/WCDMA/HSDPA, June 2006 Laboratory Division Office of Engineering and Technology Federal Communications Commission [2] 3.1.2.3.4 Maximum RF Output Power 3GPP2 C.S0033-0 Version 2.0, Date: 12 December 2003 Recommended Minimum Performance Standards for cdma2000 High Rate Packet Data Access Terminal

SPORTON INTERNATIONAL INC. Page Number : F1 of F5 TEL : 886-3-327-3456 Report Issued Date : Nov. 10, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PG06100 FCC SAR Test Report Report No. : FA073004C Appendix E. Plots of Duty Cycle The plot below shows the waveform characteristics of the signal used in the SAR measurement. The pulse duration corresponds to a DL:UL symbol ratio of 29:18 and control symbols are not active. The time vector plots are shown as below. The plot A is used to get the frame length of test signal and the plot B is used to get the time of UL data symbols. Since there was no energy in the control symbols, the effective power is only across 15 data symbols. The calculation of duty cycle is as below: Duty Cycle = 15 data symbols UL time / Frame Length x 100 % PUSC, 16QAM 1/2, BW 5MHz, 2593.0 MHz Plot A Plot B Frame Length = Mark 4 – Mark 1 = 24.98 – 19.98 = 5 ms Control Symbols (3 symbols) = Mark 2 – Mark 1 = 30.354 – 29.992 = 0.362 ms UL Data Symbols (15 symbols) = Mark 3 – Mark 2 = 31.922 – 30.354 = 1.568 ms Duty Cycle = 15 data symbols UL time / Frame Length x 100 % = 1.568 / 5 x 100 % = 31.4 % Ref 40 dBmAtt 30 dB * Offset 21.9 dB A LVL * RBW 3 MHz VBW 3 MHz TRG Center 2.593 GHz1 ms/ SWT 10 ms 3DB 1 AP VIEW -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] -31.64 dBm 19.980000 ms 2 Marker 2 [T1 ] 11.74 dBm 20.330000 ms 3 Marker 3 [T1 ] -31.98 dBm 21.910000 ms 4 Marker 4 [T1 ] -31.32 dBm 24.980000 ms TRG -20 dBm Date: 2.AUG.2010 19:58:09 Ref 40 dBmAtt 30 dB * Offset 21.9 dB A LVL * RBW 3 MHz VBW 3 MHz TRG Center 2.593 GHz300 μs/ SWT 3 ms 3DB 1 AP VIEW -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] -32.44 dBm 29.992000 ms 2 Marker 2 [T1 ] 9.23 dBm 30.354000 ms 3 Marker 3 [T1 ] -32.68 dBm 31.922000 ms TRG -20 dBm Date: 2.AUG.2010 19:47:06 SPORTON INTERNATIONAL INC. Page Number : F2 of F5 TEL : 886-3-327-3456 Report Issued Date : Nov. 10, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PG06100 FCC SAR Test Report Report No. : FA073004C PUSC, 16QAM 1/2, BW 10MHz, 2593.0 MHz Plot A Plot B Frame Length = Mark 4 – Mark 1 = 24.98 – 19.98 = 5 ms Control Symbols (3 symbols) = Mark 2 – Mark 1 = 20.357 – 19.992 = 0.365 ms UL Data Symbols (15 symbols) = Mark 3 – Mark 2 = 21.918 – 20.357 = 1.561 ms Duty Cycle = 15 data symbols UL time / Frame Length x 100 % = 1.561 / 5 x 100 % = 31.2 % PUSC, 16QAM 3/4, BW 5MHz, 2593.0 MHz Plot A Plot B Frame Length = Mark 4 – Mark 1 = 24.98 – 19.98 = 5 ms Control Symbols (3 symbols) = Mark 2 – Mark 1 = 30.354 – 29.992 = 0.362 ms UL Data Symbols (15 symbols) = Mark 3 – Mark 2 = 31.922 – 30.354 = 1.568 ms Duty Cycle = 15 data symbols UL time / Frame Length x 100 % = 1.568 / 5 x 100 % = 31.4 % Ref 40 dBmAtt 30 dB * Offset 21.9 dB A LVL RBW 3 MHz TRG Center 2.593 GHz1 ms/ SWT 10 ms 3DB * VBW 3 MHz VIEW 1 AP -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] -32.71 dBm 19.980000 ms 2 Marker 2 [T1 ] 4.37 dBm 20.350000 ms 3 Marker 3 [T1 ] -32.45 dBm 21.910000 ms 4 Marker 4 [T1 ] -31.58 dBm 24.980000 ms TRG -20 dBm Date: 2.AUG.2010 20:06:39 Ref 40 dBmAtt 30 dB * Offset 21.9 dB A LVL RBW 3 MHz TRG * VBW 3 MHz Center 2.593 GHz300 μs/ SWT 3 ms 3DB VIEW 1 AP -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] -32.75 dBm 19.992000 ms 2 Marker 2 [T1 ] 3.16 dBm 20.357000 ms 3 Marker 3 [T1 ] -32.97 dBm 21.918000 ms TRG -20 dBm Date: 2.AUG.2010 20:19:28 Ref 40 dBmAtt 30 dB * Offset 21.9 dB A LVL * RBW 3 MHz VBW 3 MHz TRG Center 2.593 GHz1 ms/ SWT 10 ms 3DB 1 AP VIEW -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] -31.78 dBm 19.980000 ms 2 Marker 2 [T1 ] 12.40 dBm 20.330000 ms 3 Marker 3 [T1 ] -32.36 dBm 21.910000 ms 4 Marker 4 [T1 ] -32.13 dBm 24.980000 ms TRG -20 dBm Date: 2.AUG.2010 19:58:17 Ref 40 dBmAtt 30 dB * Offset 21.9 dB A LVL * RBW 3 MHz VBW 3 MHz TRG Center 2.593 GHz300 μs/ SWT 3 ms 3DB 1 AP VIEW -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] -31.88 dBm 29.992000 ms 2 Marker 2 [T1 ] 7.78 dBm 30.354000 ms 3 Marker 3 [T1 ] -33.27 dBm 31.922000 ms TRG -20 dBm Date: 2.AUG.2010 19:47:16 SPORTON INTERNATIONAL INC. Page Number : F3 of F5 TEL : 886-3-327-3456 Report Issued Date : Nov. 10, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PG06100 FCC SAR Test Report Report No. : FA073004C PUSC, 16QAM 3/4, BW 10MHz, 2593.0 MHz Plot A Plot B Frame Length = Mark 4 – Mark 1 = 24.98 – 19.98 = 5 ms Control Symbols (3 symbols) = Mark 2 – Mark 1 = 20.357 – 19.992 = 0.365 ms UL Data Symbols (15 symbols) = Mark 3 – Mark 2 = 21.918 – 20.357 = 1.561 ms Duty Cycle = 15 data symbols UL time / Frame Length x 100 % = 1.561 / 5 x 100 % = 31.2 % PUSC, QPSK 1/2, BW 5MHz, 2593.0 MHz Plot A Plot B Frame Length = Mark 4 – Mark 1 = 24.98 – 19.98 = 5 ms Control Symbols (3 symbols) = Mark 2 – Mark 1 = 30.354 – 29.992 = 0.362 ms UL Data Symbols (15 symbols) = Mark 3 – Mark 2 = 31.922 – 30.354 = 1.568 ms Duty Cycle = 15 data symbols UL time / Frame Length x 100 % = 1.568 / 5 x 100 % = 31.4 % Ref 40 dBmAtt 30 dB * Offset 21.9 dB A LVL RBW 3 MHz TRG Center 2.593 GHz1 ms/ SWT 10 ms * VBW 3 MHz 3DB 1 AP VIEW -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] -32.86 dBm 19.980000 ms 2 Marker 2 [T1 ] 4.28 dBm 20.350000 ms 3 Marker 3 [T1 ] -31.66 dBm 21.910000 ms 4 Marker 4 [T1 ] -32.01 dBm 24.980000 ms TRG -20 dBm Date: 2.AUG.2010 20:06:55 Ref 40 dBmAtt 30 dB * Offset 21.9 dB A LVL RBW 3 MHz TRG * VBW 3 MHz Center 2.593 GHz300 μs/ SWT 3 ms 3DB 1 AP VIEW -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] -32.42 dBm 19.992000 ms 2 Marker 2 [T1 ] -0.28 dBm 20.357000 ms 3 Marker 3 [T1 ] -32.53 dBm 21.918000 ms TRG -20 dBm Date: 2.AUG.2010 20:19:37 Ref 40 dBmAtt 30 dB * Offset 21.9 dB A LVL * RBW 3 MHz VBW 3 MHz TRG Center 2.593 GHz1 ms/ SWT 10 ms 3DB 1 AP VIEW -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] -31.34 dBm 19.980000 ms 2 Marker 2 [T1 ] 10.54 dBm 20.330000 ms 3 Marker 3 [T1 ] -30.24 dBm 21.910000 ms 4 Marker 4 [T1 ] -31.83 dBm 24.980000 ms TRG -20 dBm Date: 2.AUG.2010 19:58:29 Ref 40 dBmAtt 30 dB…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : 1 of 47 TEL : 886-3-327-3456 Report Issued Date : Nov. 10, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PG06100 FCC SAR Test Report Report No. : FA073004C FCC SAR Test Report APPLICANT : HTC Corporation EQUIPMENT : Smart Phone MODEL NAME : PG06100 FCC ID : NM8PG06100 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1992 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Jul. 30, 2010 and completely tested on Nov. 09, 2010. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 47 TEL : 886-3-327-3456 Report Issued Date : Nov. 10, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PG06100 FCC SAR Test Report Report No. : FA073004C Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 6 3.3 Applied Standards ............................................................................................................................................ 6 3.4 Device Category and SAR Limits ..................................................................................................................... 6 3.5 Test Conditions ................................................................................................................................................. 7 3.5.1 Ambient Condition .................................................................................................................................. 7 3.5.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ...............................................................................................................................14 4.1 Introduction ......................................................................................................................................................14 4.2 SAR Definition .................................................................................................................................................14 5. SAR Measurement System ....................................…

Text truncated - open the document above for the full version.
