NM8PG09410LTE BAND 4/17 TABLET COMPUTER

Your HTC XXXX User guide Only for certification Contents Getting started Inside the box7 HTC Tablet 7 Top cover8 SIM card9 Storage card9 Battery11 Switching the power on or off11 Entering your PIN12 Finger gestures12 Setting up HTC Tablet for the first time 13 Ways of getting contacts into HTC Tablet13 Home screen14 Basics Adjusting the volume15 Sleep mode15 Status and notifications16 Notifications panel18 Switching between recently opened apps 19 Connecting HTC Tablet to a computer19 Copying files to or from the internal storage or storage card20 Copying text, looking up information, and sharing21 Printing22 Personalizing Making HTC Tablet truly yours24 Personalizing HTC Tablet with scenes 24 Changing your wallpaper25 Applying a new skin26 Personalizing your Home screen with widgets26 Adding icons and other shortcuts on your Home screen27 Adding folders on your Home screen28 Rearranging or removing widgets and icons on your Home screen29 Rearranging the Home screen30 Using sound sets30 Rearranging or hiding application tabs32 Customizing the lock screen33 Search and Web browser Searching HTC Tablet and the Web34 Using the web browser35 2Contents Only for certification Downloading apps from the Web37 Private browsing38 Viewing bookmarks and previously visited pages38 Setting browser options39 Tablet pen and fun apps About HTC Scribe40 Choosing your pen type, color, and stroke42 Highlighting and drawing in pen-integrated apps43 About Notes45 Writing a note46 Reviewing a note47 Scribble mode49 Switching to Kid Mode50 Snapbooth and Camera Snapbooth51 Camera52 Photos, videos, and music Gallery59 Music66 Connected Media70 Accounts and sync About online accounts72 Synchronizing with a Google Account72 Adding a social network account73 Managing your online accounts74 Social Facebook for HTC Sense76 Facebook app77 What’s the difference between Facebook app and Facebook for HTC Sense? 78 Twitter for HTC Sense78 Using Friend Stream 79 Tweeting in Friend Stream81 Chatting in Google Talk82 Email Gmail85 Mail87 Calendar About Calendar95 Creating an event95 Changing Calendar views97 Managing Calendar events98 Dismissing or snoozing event reminders 99 3Contents Only for certification Showing or hiding calendars99 Changing Calendar settings99 About the Calendar widget100 Maps and location Location settings101 Google Maps101 People Transferring contacts from your old phone106 About the People app107 Your contacts list108 Setting up your profile109 Importing contacts from your SIM card 109 Adding a new contact109 Searching for a contact110 people Importing a contact from an ActiveSync account - HC110 Merging contact information111 Backing up your contacts to the storage card112 Contact information and conversations112 Sending contact information as a vCard114 Contact groups114 Adding People widgets116 Android Market and other apps Finding and installing apps from Android Market118 Using the Clock120 Checking Weather123 Reading news feeds125 Keeping track of your stocks127 Viewing a PDF128 Watching videos on YouTube128 Sharing games and apps130 Keyboard Using the onscreen keyboard131 Entering words with predictive text 132 Entering text by speaking134 Entering text by tracing134 Editing text135 Adjusting input settings136 Internet connections Data connection137 Wi-Fi 138 About connection widgets139 Connecting to a virtual private network (VPN) 139 Using HTC Tablet as a modem (USB tethering)141 Connecting HTC Tablet to the Internet through a computer (Internet Pass-through)141 Using HTC Tablet as a wireless router141 4Contents Only for certification Bluetooth Bluetooth basics143 Connecting a Bluetooth headset or car kit143 Disconnecting or unpairing from a Bluetooth device144 Sending information using Bluetooth145 Receiving information using Bluetooth147 Security Protecting your SIM card with a PIN148 Protecting HTC Tablet with a screen lock pattern, PIN, or password148 Settings Settings on HTC Tablet150 Changing display settings152 Changing sound settings153 Changing the language153 Optimizing battery life154 Managing memory154 Checking information about HTC Tablet 155 Update and reset Software updates157 Restarting HTC Tablet158 Resetting HTC Tablet158 Trademarks and copyrights Index 5Contents Only for certification Conventions used in this guide In this user guide, we use the following symbols to indicate useful and important information: This is a note. A note often gives additional information, such as what happens when you choose to do or not to do a certain action. A note also provides information that may only be applicable to some situations. This is a tip. A tip gives you an alternative way to do a particular step or procedure, or lets you know of an option that you may find helpful. This indicates important information that you need in order to accomplish a certain task or to get a feature to work properly. This provides safety precaution information, that is, information that you need to be careful about to prevent potential problems. 6Conventions used in this guide Only for certification Getting started Inside the box You will find the following inside the box: §HTC Tablet §12-pin micro-USB cable §Power adapter §Quick guide §Safety and regulatory guide HTC Tablet Front panel 1.Light sensor 2.Front camera 3.Front camera on or off indicator 4.Touch screen Top and bottom panels 1.POWER (with Notification LED) 2.3.5mm headset jack 3.Microphone 4.USB connector 7Getting started Only for certification Back panel 1.Subwoofer 2.Top cover 3.8 megapixel camera 4.Dual LED flash 5.Volume controls 6.Left and right speakers Top cover Removing the top cover Remove the top cover to access the SIM card and storage card slots. 1.Turn off HTC Tablet and hold it securely with the front facing down. 2.Starting from the small opening along the top panel, lift the top cover and remove it completely. Replacing the top cover 1.With HTC Tablet facing down, insert the small tabs of the top cover into the exposed side of H…

Text truncated - open the document above for the full version.

Safety and regulatory guide  Safety and regulatory guide Please read before proceeding THE BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE THE DEVICE OUT OF THE BOX. YOUR WARRANTY IS INVALIDATED IF YOU DISASSEMBLE OR ATTEMPT TO DISASSEMBLE THE DEVICE. Disclaimers ANY WEATHER, STOCK, OR OTHER INFORMATION, DATA, OR DOCUMENTATION (“ACCESSED INFORMATION”) ARE PROVIDED “AS IS” AND WITHOUT ANY WARRANTY OR ANY TECHNICAL SUPPORT. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, HTC AND ITS AFFILIATES expressly disclaim any and all representations and warranties, arising by law or otherwise, related to the Accessed Information, including without limitation any express or implied representation or warranty of merchantability, fitness for a particular purpose, non-infringement, quality, accuracy, completeness, effectiveness, reliability, or usefulness. Without limiting the foregoing, it is further understood that HTC and its Affiliates are not responsible for any use of the Accessed Information or the results arising from such use, and that you use such information at your own risk. Limitation of damages TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HTC OR ITS AFFILIATES BE LIABLE TO YOU, ANY USER, OR THIRD PARTY FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, INCIDENTAL OR PUNITIVE DAMAGES OF ANY KIND, ARISING IN CONTRACT, TORT, OR OTHERWISE, INCLUDING, BUT NOT LIMITED TO, INJURY, LOSS OF REVENUE, LOSS OF GOODWILL, LOSS OF BUSINESS OPPORTUNITY, LOSS OF DATA, AND/OR LOSS OF PROFITS, REGARDLESS OF THE FORESEEABILITY THEREOF OR WHETHER HTC OR ITS AFFILIATES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. AND IN NO EVENT SHALL THE TOTAL LIABILITY OF HTC OR ITS AFFILIATES EXCEED THE AMOUNT RECEIVED FROM YOU, REGARDLESS OF THE LEGAL THEORY UNDER WHICH THE CAUSE OF ACTION IS BROUGHT. THE FOREGOING DOES NOT AFFECT ANY STATUTORY RIGHTS WHICH MAY NOT BE DISCLAIMED. Safety and regulatory guide  Important health information and safety precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. Electrical safety This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. Safety precautions for proper grounding installation CAUTION: Connecting to improperly grounded equipment can result in an electric shock to your device. This product is equipped with a USB Cable for connecting with desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet which is properly installed and grounded in accordance with all local codes and ordinances. Safety precautions for power supply unit Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product. Handle battery packs carefully This product contains a Lithium-ion polymer or Lithium-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. Do not attempt to open or service the battery pack. Do not disassemble, crush, puncture, short external contacts or circuits, dispose of in fire or water, or    Safety and regulatory guide expose a battery pack to temperatures higher than 10 ̊F (60 ̊C) . WARNING: Danger of explosion if battery is incorrectly replaced. To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts, expose to temperature above 10 ̊F (60 ̊C), or dispose of in fire or water. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product. Take extra precautions Keep the device dry and away from water or any liquid as it may cause a short circuit. The device should only be connected to products that bear the USB-IF logo or have completed the USB-IF compliance program. Only use the battery with a charging system that has been qualified with the system per this standard, IEEE-Std-175- 006. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage or other hazard. Avoid dropping the device. If the device is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection. If the battery leaks: Do not allow the leaking fluid to come in contact with skin or clothing. If already in contact, flush the affected area immediately with clean water and seek medical advice. Do not allow the leaking fluid to come in contact with eyes. If already in contact, DO NOT rub; rinse with clean water immediately and seek medical advice. Take extra precautions to keep a leaking battery away from fire as there is a danger of ignition or explosion. Safety precautions for direct sunlight Keep this product away from excessive moisture and extreme temperatures. Do not leave the product inside a vehicle or in places where the temperature may exceed 10 ̊F (60 ̊C), such as on a car dashboard, window sill, or behind a glass that is exposed to direct sunlight or strong ultraviolet light for extended periods of  • • • • • • • • Safety and regulatory guide 5 time. This may damage the product, overheat the battery, or pose a risk to the vehicle. Prevention of …

Text truncated - open the document above for the full version.

Date: July 19, 2011 SUBJECT: FCC Application for FCC ID: NM8PG09410 To Whom It May Concern: Due to confidential issue, we sincerely expect to supersede the label location with new one, which clearly states the same label location. Sincerely yours, Name: Jones Tsai / engineering manager Sporton Tel: 886-3-3273456 ext. 652 Mail: [email protected]

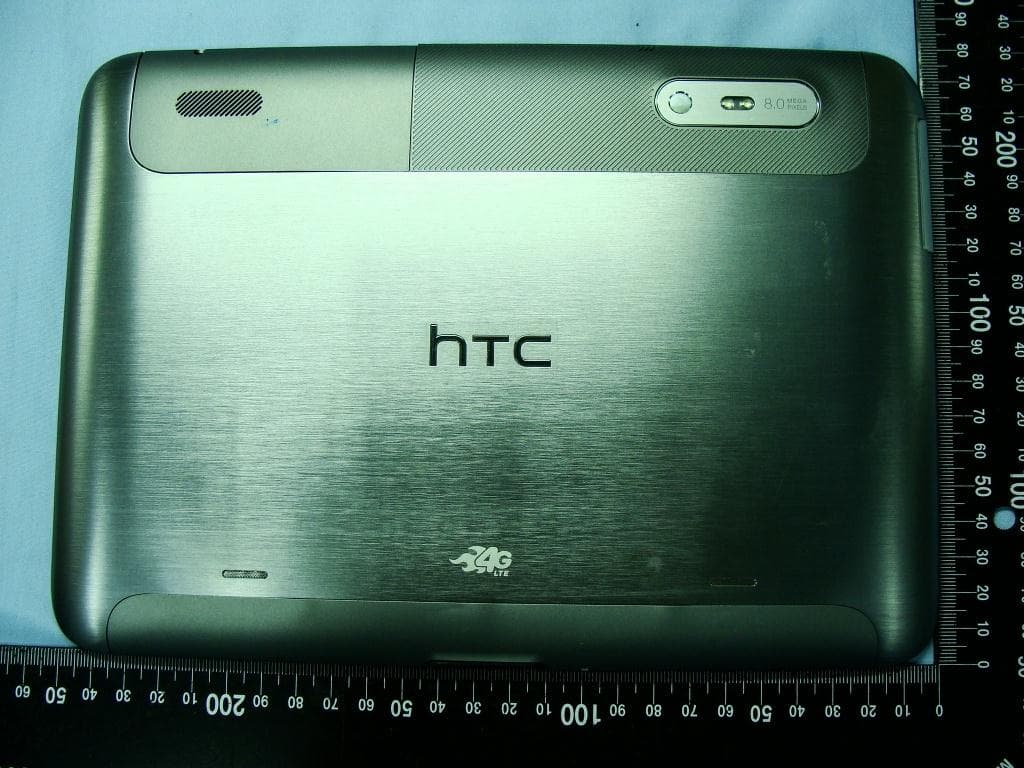

Photographs of EUT Report No.: EP132945 Model Name: PG09410 SPORTON INTERNATIONAL INC. Page Number : 1 of 17 TEL : 886-3-327-3456 Report Issued Date : Jun. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG09410 1. External Photograph of EUT Photographs of EUT Report No.: EP132945 Model Name: PG09410 SPORTON INTERNATIONAL INC. Page Number : 2 of 17 TEL : 886-3-327-3456 Report Issued Date : Jun. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG09410 720510 Photographs of EUT Report No.: EP132945 Model Name: PG09410 SPORTON INTERNATIONAL INC. Page Number : 3 of 17 TEL : 886-3-327-3456 Report Issued Date : Jun. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG09410 List of Accessory: Specification of Accessory AC Adapter Brand Name HTC Manufacturer Delta Model Name EADP-15ZB Battery Brand Name HTC Manufacturer ATL Model Name BG09100 USB Cable Brand Name HTC Manufacturer Foxlink Model Name DC T500 LCD Panel Brand Name AU Model Name B101EW05 V7 Camera 1 Brand Name Liteon Model Name 10P1BA815 Camera 2 Brand Name Liteon Model Name 10P1TF113 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP132945 Model Name: PG09410 SPORTON INTERNATIONAL INC. Page Number : 4 of 17 TEL : 886-3-327-3456 Report Issued Date : Jun. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG09410 Photographs of EUT Report No.: EP132945 Model Name: PG09410 SPORTON INTERNATIONAL INC. Page Number : 5 of 17 TEL : 886-3-327-3456 Report Issued Date : Jun. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG09410 Photographs of EUT Report No.: EP132945 Model Name: PG09410 SPORTON INTERNATIONAL INC. Page Number : 6 of 17 TEL : 886-3-327-3456 Report Issued Date : Jun. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG09410 Photographs of EUT Report No.: EP132945 Model Name: PG09410 SPORTON INTERNATIONAL INC. Page Number : 7 of 17 TEL : 886-3-327-3456 Report Issued Date : Jun. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG09410 Photographs of EUT Report No.: EP132945 Model Name: PG09410 SPORTON INTERNATIONAL INC. Page Number : 8 of 17 TEL : 886-3-327-3456 Report Issued Date : Jun. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG09410 Photographs of EUT Report No.: EP132945 Model Name: PG09410 SPORTON INTERNATIONAL INC. Page Number : 9 of 17 TEL : 886-3-327-3456 Report Issued Date : Jun. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG09410 720510

Photographs of EUT Report No.: EP132945 Model Name: PG09410 SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : Jun. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG09410 LTE Antenna <Tx/Rx> 2.9cm 5.5cm 15.9cm 16.3cm 0.3cm GPS Antenna <Rx> WWAN Antenna <Tx/Rx> 6.3cm 0.1cm 0.3cm 0.3cm 2.9cm WLAN and Bluetooth Antenna <Tx/Rx>

PG09410 PG09410 IC : 4115A-PG09410

Label Camera Rear View

Photographs of EUT Report No.: EP132945 Model Name: PG09410 SPORTON INTERNATIONAL INC. Page Number : 10 of 17 TEL : 886-3-327-3456 Report Issued Date : Jun. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG09410 3. Internal Photograph of EUT Photographs of EUT Report No.: EP132945 Model Name: PG09410 SPORTON INTERNATIONAL INC. Page Number : 11 of 17 TEL : 886-3-327-3456 Report Issued Date : Jun. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG09410 Photographs of EUT Report No.: EP132945 Model Name: PG09410 SPORTON INTERNATIONAL INC. Page Number : 12 of 17 TEL : 886-3-327-3456 Report Issued Date : Jun. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG09410 Photographs of EUT Report No.: EP132945 Model Name: PG09410 SPORTON INTERNATIONAL INC. Page Number : 13 of 17 TEL : 886-3-327-3456 Report Issued Date : Jun. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG09410 Photographs of EUT Report No.: EP132945 Model Name: PG09410 SPORTON INTERNATIONAL INC. Page Number : 14 of 17 TEL : 886-3-327-3456 Report Issued Date : Jun. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG09410 WWAN Antenna <Tx/Rx> Photographs of EUT Report No.: EP132945 Model Name: PG09410 SPORTON INTERNATIONAL INC. Page Number : 15 of 17 TEL : 886-3-327-3456 Report Issued Date : Jun. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG09410 WLAN and Bluetooth Antenna <Tx/Rx> Photographs of EUT Report No.: EP132945 Model Name: PG09410 SPORTON INTERNATIONAL INC. Page Number : 16 of 17 TEL : 886-3-327-3456 Report Issued Date : Jun. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG09410 LTE Antenna <Tx/Rx> Photographs of EUT Report No.: EP132945 Model Name: PG09410 SPORTON INTERNATIONAL INC. Page Number : 17 of 17 TEL : 886-3-327-3456 Report Issued Date : Jun. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG09410 720510 GPS Antenna <Rx>

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/6/11 System Check_Body_750MHz_110611 DUT: Dipole 750 MHz Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: MSL_750_110611 Medium parameters used: f = 750 MHz; σ = 0.97 mho/m; ε r = 54.6; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.81, 8.81, 8.81); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1249; Calibrated: 2011/2/21 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.62 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 49.7 V/m; Power Drift = 0.141 dB Peak SAR (extrapolated) = 3.59 W/kg SAR(1 g) = 2.39 mW/g; SAR(10 g) = 1.57 mW/g Maximum value of SAR (measured) = 2.59 mW/g 0 dB = 2.59mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/6/6 System Check_Body_835MHz_110606 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_110606 Medium parameters used: f = 835 MHz; σ = 0.979 mho/m; ε r = 52.7; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.65, 8.65, 8.65); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1249; Calibrated: 2011/2/21 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.9 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.4 V/m; Power Drift = -0.0072 dB Peak SAR (extrapolated) = 3.96 W/kg SAR(1 g) = 2.68 mW/g; SAR(10 g) = 1.78 mW/g Maximum value of SAR (measured) = 2.88 mW/g 0 dB = 2.88mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/6/8 System Check_Body_835MHz_110608 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_110608 Medium parameters used: f = 835 MHz; σ = 0.986 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.65, 8.65, 8.65); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1249; Calibrated: 2011/2/21 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.92 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.4 V/m; Power Drift = -0.032 dB Peak SAR (extrapolated) = 3.99 W/kg SAR(1 g) = 2.7 mW/g; SAR(10 g) = 1.79 mW/g Maximum value of SAR (measured) = 2.9 mW/g 0 dB = 2.9mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/6/11 System Check_Body_835MHz_110611 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_110611 Medium parameters used: f = 835 MHz; σ = 0.953 mho/m; ε r = 56.3; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.65, 8.65, 8.65); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1249; Calibrated: 2011/2/21 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.82 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.4 V/m; Power Drift = -0.045 dB Peak SAR (extrapolated) = 3.85 W/kg SAR(1 g) = 2.61 mW/g; SAR(10 g) = 1.73 mW/g Maximum value of SAR (measured) = 2.81 mW/g 0 dB = 2.81mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/6/11 System Check_Body_1800MHz_110611 DUT: Dipole 1800 MHz Communication System: CW; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: MSL_1800_110611 Medium parameters used: f = 1800 MHz; σ = 1.56 mho/m; ε r = 52.3; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.41, 7.41, 7.41); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1249; Calibrated: 2011/2/21 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 12.1 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 79.8 V/m; Power Drift = 0.174 dB Peak SAR (extrapolated) = 17.9 W/kg SAR(1 g) = 9.91 mW/g; SAR(10 g) = 5.37 mW/g Maximum value of SAR (measured) = 11.1 mW/ g 0 dB = 11.1mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/6/7 System Check_Body_1900MHz_110607 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_110607 Medium parameters used: f = 1900 MHz; σ = 1.52 mho/m; ε r = 53.6; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.26, 7.26, 7.26); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1249; Calibrated: 2011/2/21 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 10.4 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 77.5 V/m; Power Drift = 0.156 dB Peak SAR (extrapolated) = 17.1 W/kg SAR(1 g) = 9.39 mW/g; SAR(10 g) = 5.09 mW/g Maximum value of SAR (measured) = 10.4 mW/ …

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/6/11 #01 GSM850_GPRS10_Rear Face_1cm_Ch189_Earphone DUT: 132945 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:4 Medium: MSL_850_110611 Medium parameters used: f = 836.4 MHz; σ = 0.954 mho/m; ε r = 56.3; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.65, 8.65, 8.65); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1249; Calibrated: 2011/2/21 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch189/Area Scan (101x141x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.416 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.1 V/m; Power Drift = 0.112 dB Peak SAR (extrapolated) = 0.972 W/kg SAR(1 g) = 0.597 mW/g; SAR(10 g) = 0.355 mW/g Maximum value of SAR (measured) = 0.662 mW/g 0 dB = 0.662mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/6/11 #02 GSM850_GPRS10_Secondary Landscape_1cm_Ch189_Earphone DUT: 132945 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:4 Medium: MSL_850_110611 Medium parameters used: f = 836.4 MHz; σ = 0.954 mho/m; ε r = 56.3; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.65, 8.65, 8.65); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1249; Calibrated: 2011/2/21 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch189/Area Scan (41x141x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.508 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.2 V/m; Power Drift = 0.108 dB Peak SAR (extrapolated) = 1.01 W/kg SAR(1 g) = 0.600 mW/g; SAR(10 g) = 0.345 mW/g Maximum value of SAR (measured) = 0.625 mW/g 0 dB = 0.625mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/6/11 #02 GSM850_GPRS10_Secondary Landscape_1cm_Ch189_Earphone_2D DUT: 132945 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:4 Medium: MSL_850_110611 Medium parameters used: f = 836.4 MHz; σ = 0.954 mho/m; ε r = 56.3; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.65, 8.65, 8.65); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1249; Calibrated: 2011/2/21 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch189/Area Scan (41x141x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.508 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.2 V/m; Power Drift = 0.108 dB Peak SAR (extrapolated) = 1.01 W/kg SAR(1 g) = 0.600 mW/g; SAR(10 g) = 0.345 mW/g Maximum value of SAR (measured) = 0.625 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/6/6 #03 GSM850_GPRS10_Secondary Portrait_0cm_Ch189_Earphone DUT: 132945 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:4 Medium: MSL_850_110606 Medium parameters used: f = 836.4 MHz; σ = 0.98 mho/m; ε r = 52.6; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.65, 8.65, 8.65); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1249; Calibrated: 2011/2/21 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch189/Area Scan (41x101x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.211 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.2 V/m; Power Drift = 0.091 dB Peak SAR (extrapolated) = 0.333 W/kg SAR(1 g) = 0.177 mW/g; SAR(10 g) = 0.100 mW/g Maximum value of SAR (measured) = 0.195 mW/g 0 dB = 0.195mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/6/10 #09 GSM1900_GPRS10_Rear Face_1cm_Ch661_Earphone DUT: 132945 Communication System: PCS; Frequency: 1880 MHz;Duty Cycle: 1:4 Medium: MSL_1900_110610 Medium parameters used: f = 1880 MHz; σ = 1.48 mho/m; ε r = 54.9; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.26, 7.26, 7.26); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1249; Calibrated: 2011/2/21 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch661/Area Scan (101x141x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.644 mW/g Ch661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.42 V/m; Power Drift = -0.025 dB Peak SAR (extrapolated) = 1.33 W/kg SAR(1 g) = 0.786 mW/g; SAR(10 g) = 0.454 mW/g Maximum value of SAR (measured) = 0.824 mW/ g 0 dB = 0.824mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/6/10 #10 GSM1900_GPRS10_Secondary Landscape_1cm_Ch661 DUT: 132945 Communication System: PCS; Frequency: 1880 MHz;Duty Cycle: 1:4 Medium: MSL_1900_110610 Medium parameters used: f = 1880 MHz; σ = 1.48 mho/m; ε r = 54.9; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.26, 7.26, 7.26); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1249; Calibrated: 2011/2/21 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report…
