NM8PG32120Smart phone

Your HTC phone User guide For FCC 2011/01/24  Conventions used in this guide In this user guide, we use the following symbols to indicate useful and important information: This is a note. A note often gives additional information, such as what happens on your phone when you choose to do or not to do a certain action. A note also provides information that may only be applicable to some situations. This is a tip. A tip gives you an alternative way to do a particular step or procedure, or lets you know of an option that you may find helpful. This indicates that something is very important. Important information is something that you need to do in order to accomplish a certain task or to get a phone feature to work properly. This provides safety precaution information, that is, information that you need to be careful about to prevent potential problems when using your phone. For FCC 2011/01/24  Basics Basics Inside the box You will find the following inside the box: Phone Battery (preinstalled) microSD™ card (preinstalled) USB cable .5mm stereo headset Power adapter Quick start guide Safety and regulatory guide Your phone Front panel You’ll see the HOME, MENU, BACK, and SEARCH buttons when your phone is switched on. And when you turn your phone sideways, these buttons rotate along with the screen. 3 8 1 9 2 4567 1 Earpiece 2 Touch screen 3 HOME 4 Microphone 5 MENU 6 BACK 7 SEARCH 8 1.3 megapixel front camera 9 Notification LED         For FCC 2011/01/24  Basics Top panel 2 1 3 1 3.5mm headset jack 2 Microphone 3 POWER Left panel 1 2 3 1 VOLUME UP 2 VOLUME DOWN 3 USB connector Back panel 3 2 1 4 1 8 megapixel camera 2 Dual LED flash 3 Back cover 4 Speaker For FCC 2011/01/24 5 Basics Back cover Removing the back cover Remove the back cover to access the battery compartment, SIM card slot, and storage card slot. With the phone switched off, hold your phone securely with the front facing down. Starting from the small opening at the bottom of the phone, lift the back cover and remove it completely. Replacing the back cover Please handle the back cover with care since your phone’s antennas are placed underneath it. Avoid twisting or bending the back cover. To get the best signal for calls, data connection, or GPS navigation, be sure to secure the back cover tightly to the phone. Align the back cover onto the phone’s top panel. Press all sides of the back cover towards the phone. You’ll hear clicks when the small tabs underneath the back cover are locked in place. 1. 2. 1. 2. For FCC 2011/01/24  Basics SIM card The SIM card contains your phone number, service details, and phonebook/message memory. Your phone supports both 1.8 V and  V SIM cards. Some legacy SIM cards may not function with your phone. You should consult with your mobile operator for a replacement SIM card. There may be fees for this service. Inserting the SIM card Take the back cover off. See “Back cover” for details. 2. Take the battery out. See “Battery” for details. 3. With the SIM card’s gold contacts facing down and its cut-off corner facing out, insert the SIM card all the way into the SIM card slot. Removing the SIM card 1. Take the back cover off. See “Back cover” for details. 2. Take the battery out. See “Battery” for details. 3. Press and hold the SIM card tab, then push the SIM card out from the opposite end. 4. Slide the SIM card out. 1. For FCC 2011/01/24  Basics Storage card Use the microSD card to store your photos, videos, and music. You’ll find the microSD card already inserted in your phone. Inserting the storage card 1. Take the back cover off. See “Back cover” for details. 2. Insert the microSD card into the storage card slot with its gold contacts facing down and push it until it clicks into place. Removing the storage card If your phone is on you must first “unmount” the storage card before removing it to prevent corrupting or damaging the files in the storage card. 1. Take the back cover off. See “Back cover” for details. 2. Push the storage card in to eject it from its slot. 3. Slide the storage card out. Removing the storage card while the phone is on When you need to remove the storage card while the phone is on, unmount the storage card first to prevent corrupting or damaging the files in the storage card. On the Home screen, press MENU, and then tap Settings. Scroll down the screen, and then tap SD & phone storage. Tap Unmount SD card. Remove the storage card by following the steps in “Removing the storage card”. 1. 2. 3. 4. For FCC 2011/01/24 8 Basics Battery Your phone uses a rechargeable battery. Please use only original batteries and accessories that came with your phone or replacements that we recommend. How long the battery can last before it needs recharging depends on how you use your phone. Among these are the phone features and accessories you use (for example, leaving your Bluetooth connection always on uses more power). Long phone calls and frequent web browsing use up much battery. Also, consider your location: poor signal strength from your mobile network and extreme temperature make the battery work harder. Removing the battery When you take your phone out from the box, make sure to peel off the thin film of the battery that’s inside your phone. Pull the flap of the film to release the battery. 1. Take the back cover off. See “Back cover” for details. 2. Lift the battery from the groove at the top of the battery compartment. Inserting the battery 1. Take the back cover off. See “Back cover” for details. 2. Insert the battery (with its exposed copper contacts first) into the battery compartment. 3. Replace the back cover. For FCC 2011/01/24  Basics Charging the battery The battery is partially charged when shipped. Before you turn on and start using your phone, it is recommended that you charge the battery. Some batteries perform best after several full charge/discharge cycles. Only the power adapter and USB sync cable provided with your phone must be used to charge the batte…

Text truncated - open the document above for the full version.

Safety and regulatory guide  Safety and regulatory guide Please read before proceeding THE BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE IT OUT OF THE BOX. DO NOT REMOVE THE BATTERY PACK WHEN THE PHONE IS CHARGING. YOUR WARRANTY IS INVALIDATED IF YOU DISASSEMBLE OR ATTEMPT TO DISASSEMBLE THE DEVICE. Privacy restrictions Some countries require full disclosure of recorded telephone conversations, and stipulate that you must inform the person with whom you are speaking that the conversation is being recorded. Always obey the relevant laws and regulations of your country when using the recording feature of your phone. Disclaimers ANY WEATHER, STOCK, OR OTHER INFORMATION, DATA, OR DOCUMENTATION (“ACCESSED INFORMATION”) ARE PROVIDED “AS IS” AND WITHOUT ANY WARRANTY OR ANY TECHNICAL SUPPORT. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, HTC AND ITS AFFILIATES expressly disclaim any and all representations and warranties, arising by law or otherwise, related to the Accessed Information, including without limitation any express or implied representation or warranty of merchantability, fitness for a particular purpose, non-infringement, quality, accuracy, completeness, effectiveness, reliability, or usefulness. Without limiting the foregoing, it is further understood that HTC and its Affiliates are not responsible for any use of the Accessed Information or the results arising from such use, and that you use such information at your own risk. Safety and regulatory guide  Limitation of damages TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HTC OR ITS AFFILIATES BE LIABLE TO YOU, ANY USER, OR THIRD PARTY FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, INCIDENTAL OR PUNITIVE DAMAGES OF ANY KIND, ARISING IN CONTRACT, TORT, OR OTHERWISE, INCLUDING, BUT NOT LIMITED TO, INJURY, LOSS OF REVENUE, LOSS OF GOODWILL, LOSS OF BUSINESS OPPORTUNITY, LOSS OF DATA, AND/OR LOSS OF PROFITS, REGARDLESS OF THE FORESEEABILITY THEREOF OR WHETHER HTC OR ITS AFFILIATES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. AND IN NO EVENT SHALL THE TOTAL LIABILITY OF HTC OR ITS AFFILIATES EXCEED THE AMOUNT RECEIVED FROM YOU, REGARDLESS OF THE LEGAL THEORY UNDER WHICH THE CAUSE OF ACTION IS BROUGHT. THE FOREGOING DOES NOT AFFECT ANY STATUTORY RIGHTS WHICH MAY NOT BE DISCLAIMED. Important health information and safety precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. Electrical safety This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. Safety precautions for proper grounding installation CAUTION: Connecting to improperly grounded equipment can result in an electric shock to your device. This product is equipped with a USB Cable for connecting with desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet which is properly installed and grounded in accordance with all local codes and ordinances.  Safety and regulatory guide Safety precautions for power supply unit Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product. This product should be operated only with the following designated power supply unit(s). AC Adapter HTC, Model TC U50 Handle battery packs carefully This product contains a Lithium-ion polymer or Lithium-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. Do not attempt to open or service the battery pack. Do not disassemble, crush, puncture, short external contacts or circuits, dispose of in fire or water, or expose a battery pack to temperatures higher than 60 ̊C (10 ̊F). WARNING: Danger of explosion if battery is incorrectly replaced. To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts, expose to temperature above 60° C (10° F), or dispose of in fire or water. Replace only with specified batteries. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product. NOTE: This product should be operated only with the following designated Battery Pack(s). HTC, Model BG100 Take extra precautions Keep the battery or device dry and away from water or any liquid as it may cause a short circuit. Keep metal objects away so they don’t come in contact with the battery or its connectors as it may lead to short circuit during operation.   •  • • Safety and regulatory guide 5 The phone should only be connected to products that bear the USB-IF logo or have completed the USB-IF compliance program. Do not use a battery that appears damaged, deformed, or discolored, or the one that has any rust on its casing, overheats, or emits a foul odor. Always keep the battery out of the reach of babies and small children, to avoid swallowing of the battery. Consult the doctor immediately if the battery is swallowed. If the battery leaks: Do not allow the leaking fluid to come in contact with skin or clothing. If already in contact, flush the affected area immediately with clean water and seek medical advice. Do not allow the leaking flu…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 March 1, 2011 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Sporton International Inc. March 1, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _Sporton International Inc._hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: Smartphone Model name: PG32120 We affirm that between SIEMIC and __Sporton Internationl Inc.___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature: Client’s name / title: Roy Wu Contact information / address: No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C.

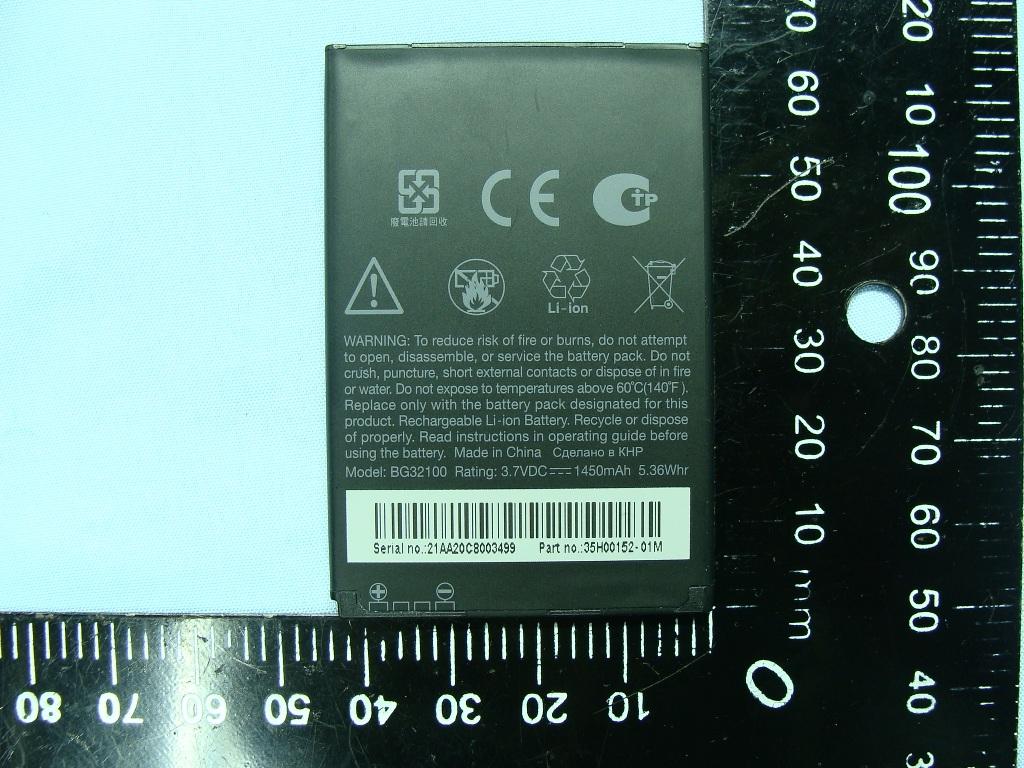

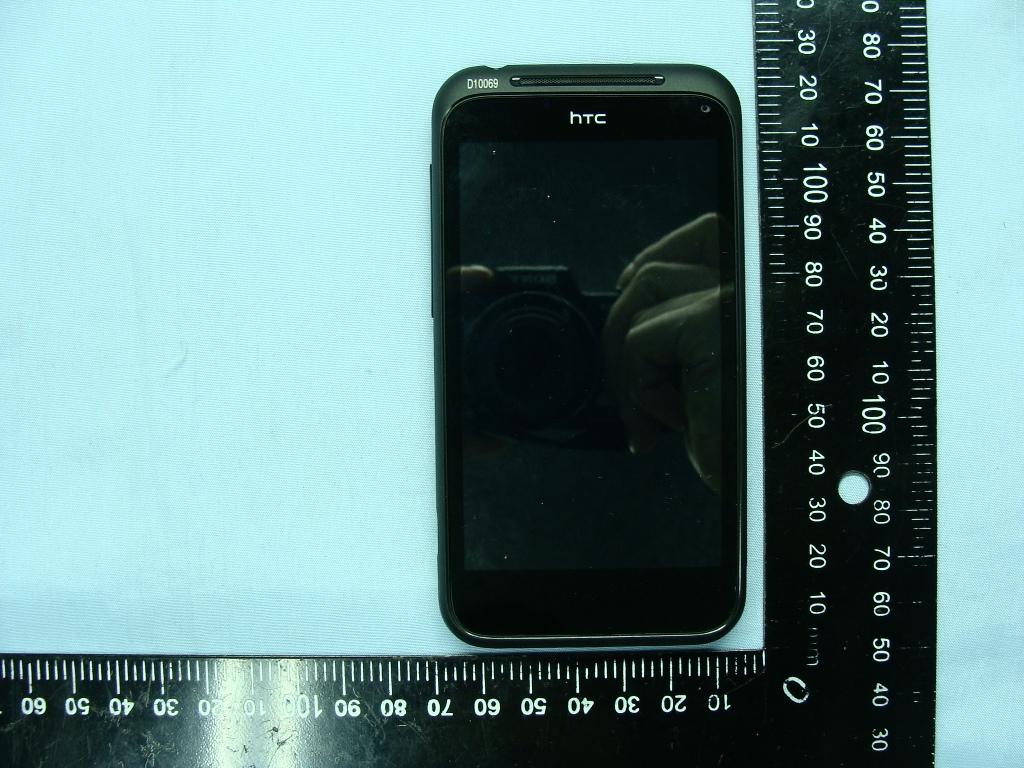

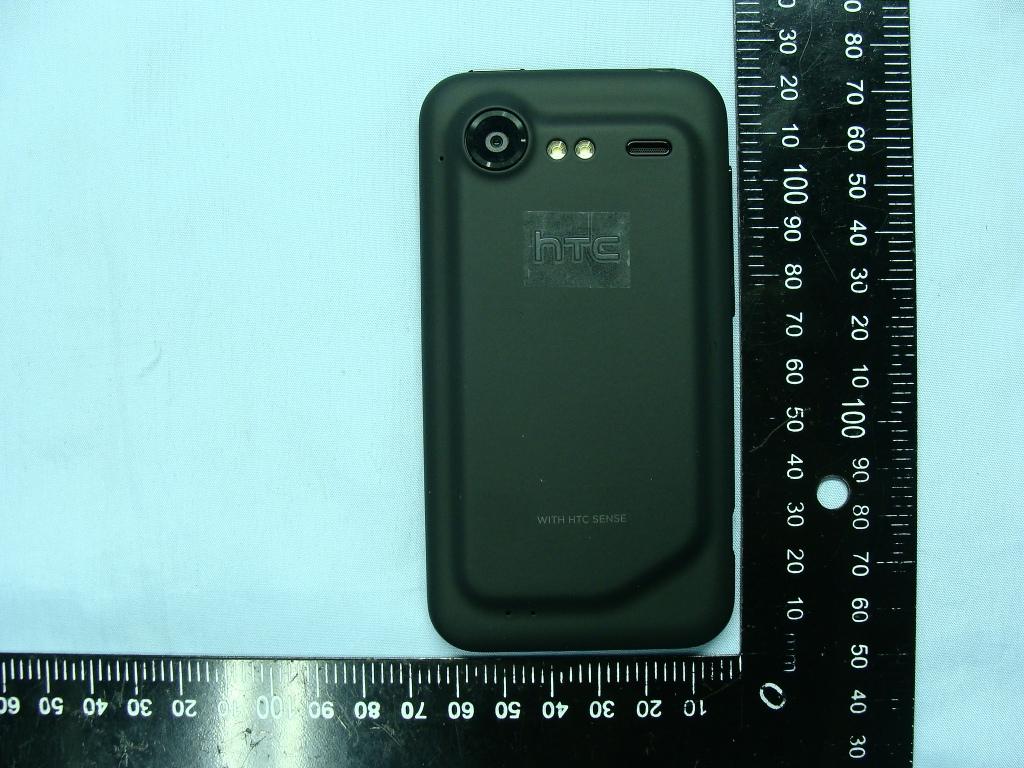

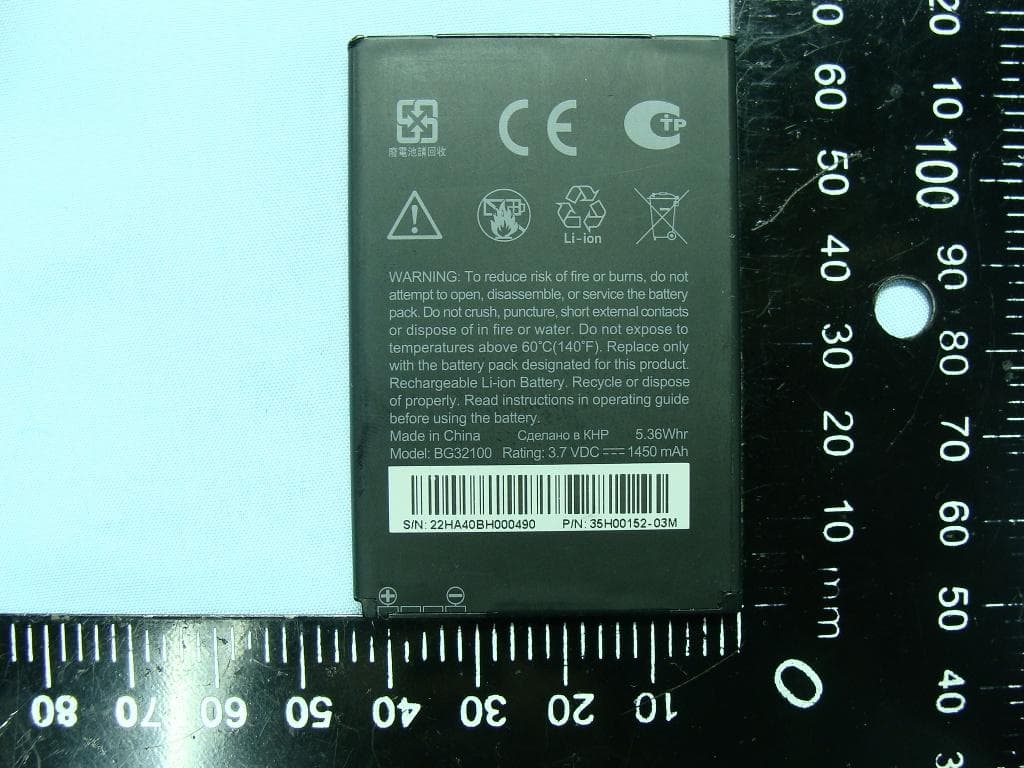

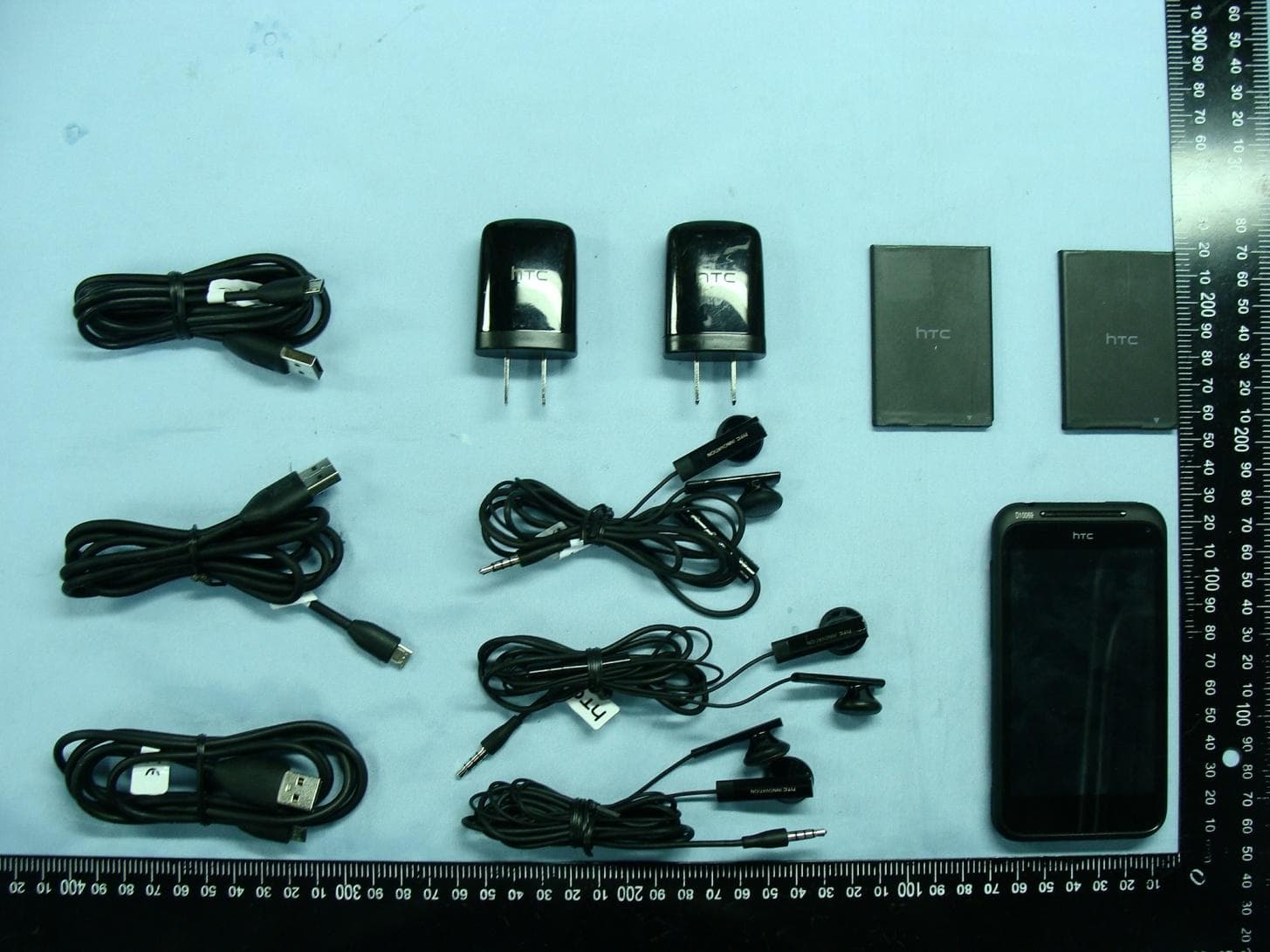

Photographs of EUT Report No.: EP110511-01 Model Name: PG32120 SPORTON INTERNATIONAL INC. Page Number : 1 of 17 TEL : 886-3-327-3456 Report Issued Date : Feb. 25, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 IC : 4115A-PG32120 1. External Photograph of EUT Photographs of EUT Report No.: EP110511-01 Model Name: PG32120 SPORTON INTERNATIONAL INC. Page Number : 2 of 17 TEL : 886-3-327-3456 Report Issued Date : Feb. 25, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 IC : 4115A-PG32120 Photographs of EUT Report No.: EP110511-01 Model Name: PG32120 SPORTON INTERNATIONAL INC. Page Number : 3 of 17 TEL : 886-3-327-3456 Report Issued Date : Feb. 25, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 IC : 4115A-PG32120 Photographs of EUT Report No.: EP110511-01 Model Name: PG32120 SPORTON INTERNATIONAL INC. Page Number : 4 of 17 TEL : 886-3-327-3456 Report Issued Date : Feb. 25, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 IC : 4115A-PG32120 Photographs of EUT Report No.: EP110511-01 Model Name: PG32120 SPORTON INTERNATIONAL INC. Page Number : 5 of 17 TEL : 886-3-327-3456 Report Issued Date : Feb. 25, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 IC : 4115A-PG32120 Photographs of EUT Report No.: EP110511-01 Model Name: PG32120 SPORTON INTERNATIONAL INC. Page Number : 6 of 17 TEL : 886-3-327-3456 Report Issued Date : Feb. 25, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 IC : 4115A-PG32120 Photographs of EUT Report No.: EP110511-01 Model Name: PG32120 SPORTON INTERNATIONAL INC. Page Number : 7 of 17 TEL : 886-3-327-3456 Report Issued Date : Feb. 25, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 IC : 4115A-PG32120 List of Accessory: Specification of Accessory AC Adapter 1 Brand Name HTC Manufacturer Emerson Model Name TC X250 (X=U,E,B,C,A) AC Adapter 2 Brand Name HTC Manufacturer Delta Model Name TC X250 (X=U,E,B,C,A) Battery 1 Brand Name HTC Manufacturer HT Model Name BG32100 Battery 2 Brand Name HTC Manufacturer FORMOSA Model Name BG32100 Earphone 1 Brand Name HTC Manufacturer Cotron Model Name RC E160 Earphone 2 Brand Name HTC Manufacturer Merry Model Name RC E160 Earphone 3 Brand Name HTC Manufacturer Foster Model Name RC E160 USB Cable 1 Brand Name HTC Manufacturer Coxoc Model Name DC M410 USB Cable 2 Brand Name HTC Manufacturer Foxlink Model Name DC M410 USB Cable 3 Brand Name HTC Manufacturer MEC Model Name DC M410 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP110511-01 Model Name: PG32120 SPORTON INTERNATIONAL INC. Page Number : 8 of 17 TEL : 886-3-327-3456 Report Issued Date : Feb. 25, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 IC : 4115A-PG32120 Photographs of EUT Report No.: EP110511-01 Model Name: PG32120 SPORTON INTERNATIONAL INC. Page Number : 9 of 17 TEL : 886-3-327-3456 Report Issued Date : Feb. 25, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 IC : 4115A-PG32120 Adapter 1 Photographs of EUT Report No.: EP110511-01 Model Name: PG32120 SPORTON INTERNATIONAL INC. Page Number : 10 of 17 TEL : 886-3-327-3456 Report Issued Date : Feb. 25, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 IC : 4115A-PG32120 Adapter 2 Photographs of EUT Report No.: EP110511-01 Model Name: PG32120 SPORTON INTERNATIONAL INC. Page Number : 11 of 17 TEL : 886-3-327-3456 Report Issued Date : Feb. 25, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 IC : 4115A-PG32120 Battery 1 Photographs of EUT Report No.: EP110511-01 Model Name: PG32120 SPORTON INTERNATIONAL INC. Page Number : 12 of 17 TEL : 886-3-327-3456 Report Issued Date : Feb. 25, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 IC : 4115A-PG32120 720510 Battery 2

Remark: 1. Cell phones or Cordless phones can have the Identifier in the battery compartment under certain conditions. a) The available label area on the phone is limited because they are relatively small and have many contoured surfaces, keypads, LCD displays, charge contacts and/or other connectors. b) The batteries for these devices are designed for easy removal and that the labels will be visible whenever the batteries are removed for charging or replacement c) The label will be readily visible at the time of purchase because the phone will be marketed without the battery installed.

Photographs of EUT Report No.: EP110511 Model Name: PG32120 SPORTON INTERNATIONAL INC. Page Number : 9 of 13 TEL : 886-3-327-3456 Report Issued Date : Feb. 25, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG32120 3. Internal Photograph of EUT Photographs of EUT Report No.: EP110511 Model Name: PG32120 SPORTON INTERNATIONAL INC. Page Number : 10 of 13 TEL : 886-3-327-3456 Report Issued Date : Feb. 25, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG32120 720510 Photographs of EUT Report No.: EP110511 Model Name: PG32120 SPORTON INTERNATIONAL INC. Page Number : 11 of 13 TEL : 886-3-327-3456 Report Issued Date : Feb. 25, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG32120 WWAN Antenna Photographs of EUT Report No.: EP110511 Model Name: PG32120 SPORTON INTERNATIONAL INC. Page Number : 12 of 13 TEL : 886-3-327-3456 Report Issued Date : Feb. 25, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG32120 WLAN & Bluetooth Antenna Photographs of EUT Report No.: EP110511 Model Name: PG32120 SPORTON INTERNATIONAL INC. Page Number : 13 of 13 TEL : 886-3-327-3456 Report Issued Date : Feb. 25, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG32120 GPS Antenna

Photographs of EUT Report No.: EP110511 Model Name: PG32120 SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Report Issued Date : Feb. 25, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG32120 720510 WWAN Antenna <Tx/Rx> GPS Antenna <Rx> WLAN & Bluetooth Antenna <Tx/Rx> 9.5 cm

SPORTON INTERNATIONAL INC. Page Number : 1 of 35 TEL : 886-3-327-3456 Report Issued Date : Feb. 25, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG32120 FCC SAR Test Report Report No. : FA110511B FCC SAR Test Report APPLICANT : HTC Corporation EQUIPMENT : Smartphone MODEL NAME : PG32120 FCC ID : NM8PG32120 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Jan. 05, 2011 and completely tested on Jan. 12, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 35 TEL : 886-3-327-3456 Report Issued Date : Feb. 25, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG32120 FCC SAR Test Report Report No. : FA110511B Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Applied Standards ............................................................................................................................................ 6 3.3 Device Category and SAR Limits ..................................................................................................................... 6 3.4 Test Conditions ................................................................................................................................................. 7 3.4.1 Ambient Condition .................................................................................................................................. 7 3.4.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ...............................................................................................................................10 4.1 Introduction ......................................................................................................................................................10 4.2 SAR Definition .................................................................................................................................................10 5. SAR Measurement System .......................................................................................................................................11 5.1 E-Field Probe...................................................................................................................................................12 5.1.1 E-Field Probe Specification ...................................................................................................................12 5.1.2 E-Field Probe Calibration .......................................................................................................................13 5.2 Data Acquisition Electronics (DAE) ..................................................................................................................13 5.3 Robot ...............................................................................................................................................................13 5.4 Measurement Server .......................................................................................................................................14 5.5 Phantom ..........................................................................................................................................................15 5.6 Device Holder ..................................................................................................................................................16 5.7 Data Storage and Evaluation ...........................................................................................................................18 5.7.1 Data Storage .........................................................................................................................................18 5.7.2 Data Evaluation .........................................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/1/12 System Check_Head_2450MHz_110112 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_110112 Medium parameters used: f = 2450 MHz; σ = 1.86 mho/m; ε r = 39.2; ρ = 1000 kg/m 3 Ambient Temperature：22.7 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.5, 4.5, 4.5); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 16.2 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 93.2 V/m; Power Drift = -0.082 dB Peak SAR (extrapolated) = 30.2 W/kg SAR(1 g) = 13.3 mW/g; SAR(10 g) = 6.01 mW/g Maximum value of SAR (measured) = 14.9 mW/g 0 dB = 14.9mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/1/12 System Check_Body_2450MHz_110112 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_110112 Medium parameters used: f = 2450 MHz; σ = 1.97 mho/m; ε r = 53.8; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.04, 4.04, 4.04); Calibrated: 2010/9/21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn913; Calibrated: 2010/11/18 - Phantom: SAM - Front; Type: SAM; Serial: TP-1446 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=100mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 16.3 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 90.4 V/m; Power Drift = -0.135 dB Peak SAR (extrapolated) = 33.8 W/kg SAR(1 g) = 14.3 mW/g; SAR(10 g) = 6.56 mW/g Maximum value of SAR (measured) = 15.9 mW/ g 0 dB = 15.9mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/1/12 #97 802.11b_Right Cheek_Ch11_Battery1 DUT: 110511 Communication System: 802.11b ; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: HSL_2450_110112 Medium parameters used: f = 2462 MHz; σ = 1.87 mho/m; ε r = 39.2; ρ = 1000 kg/m 3 Ambient Temperature：22.7 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.5, 4.5, 4.5); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch11/Area Scan (51x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.206 mW/g Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.66 V/m; Power Drift = -0.187 dB Peak SAR (extrapolated) = 0.619 W/kg SAR(1 g) = 0.281 mW/g; SAR(10 g) = 0.119 mW/g Maximum value of SAR (measured) = 0.330 mW/g 0 dB = 0.330mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/1/12 #97 802.11b_Right Cheek_Ch11_Battery1_2D DUT: 110511 Communication System: 802.11b ; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: HSL_2450_110112 Medium parameters used: f = 2462 MHz; σ = 1.87 mho/m; ε r = 39.2; ρ = 1000 kg/m 3 Ambient Temperature：22.7 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.5, 4.5, 4.5); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch11/Area Scan (51x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.206 mW/g Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.66 V/m; Power Drift = -0.187 dB Peak SAR (extrapolated) = 0.619 W/kg SAR(1 g) = 0.281 mW/g; SAR(10 g) = 0.119 mW/g Maximum value of SAR (measured) = 0.330 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/1/12 #98 802.11b_Right Cheek_Ch11_Battery2 DUT: 110511 Communication System: 802.11b ; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: HSL_2450_110112 Medium parameters used: f = 2462 MHz; σ = 1.87 mho/m; ε r = 39.2; ρ = 1000 kg/m 3 Ambient Temperature：22.7 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.5, 4.5, 4.5); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Meas…
