NM8PG41400Tablet

Your HTC Flyer User guide HTC Confidential Conventions used in this guide In this user guide, we use the following symbols to indicate useful and important information: This is a note. A note often gives additional information, such as what happens when you choose to do or not to do a certain action. A note also provides information that may only be applicable to some situations. This is a tip. A tip gives you an alternative way to do a particular step or procedure, or lets you know of an option that you may find helpful. This indicates important information that you need in order to accomplish a certain task or to get a feature to work properly. This provides safety precaution information, that is, information that you need to be careful about to prevent potential problems. 7Conventions used in this guide HTC Confidential Getting started Inside the box You will find the following inside the box: §HTC Flyer §Tablet pen §Tablet pen battery §USB cable §Power adapter §3.5mm stereo headset §Protective case §Quick guide §Safety and regulatory guide §Call center card (hotline card) §Warranty card HTC Flyer Front panel 1.HOME 2.MENU 3.BACK 4.PEN OPTIONS 5.Front camera 6.Front camera on or off indicator 8Getting started HTC Confidential Right panel 1.Microphones 2.VOLUME UP 3.VOLUME DOWN Back panel 1.Top cover 2.5 megapixel camera 3.Speakers 4.USB connector Top panel 1.3.5mm headset jack 2.POWER 3.Notification LED 9Getting started HTC Confidential Top cover Removing the top cover Remove the top cover to access the storage card slots. 1.Turn off HTC Flyer and hold it securely with the front facing down. 2.With your right and left thumbs, push the top cover out to remove it. Replacing the top cover 1.Align the two teeth underneath the top cover (one on each side) with the two notches on the top of HTC Flyer. 2.Place the top cover on HTC Flyer, gently press down on the cover with your thumbs, and then push it in until it clicks and locks into place. 10Getting started HTC Confidential Storage card HTC Flyer comes with an internal storage that you can use to store your photos, videos, and music. If you need more storage space, you can insert a storage card into HTC Flyer. Inserting the storage card 1.Take the top cover off 2.Insert the storage card into the storage card slot with its gold contacts facing down and push it until it clicks into place. Removing the storage card If HTC Flyer is on you must first "unmount" the storage card before removing it to prevent corrupting or damaging the files in the storage card. 1.Take the top cover off 2.Push the storage card in to eject it from its slot. 3.Slide the storage card out from its slot. Unmounting the storage card When you need to remove the storage card while HTC Flyer is on, unmount the storage card first to prevent corrupting or damaging the files in the storage card. 1.From the Home screen, press , and then tap Settings. 2.Tap Storage > Unmount SD card. 12Getting started HTC Confidential Battery HTC Flyer uses a rechargeable battery. How long the battery can last before it needs recharging depends on how you use HTC Flyer. Among these are the features and accessories you use (for example, leaving your Bluetooth ™ connection always on uses more power). Frequent web browsing uses up a lot of battery power. Also, consider your location: poor signal strength from your mobile network and extreme temperature make the battery work harder. Charging the battery The battery is partially charged when shipped. Before you turn on and start using HTC Flyer, it is recommended that you charge the battery. Some batteries perform best after several full charge/discharge cycles. Only the power adapter provided in the box must be used to charge the battery. 1.Plug the power adapter into the USB connector of HTC Flyer. 2.Plug in the power adapter to an electrical outlet to start charging the battery. As the battery is being charged, the notification LED shows a solid orange light. The light turns to solid green when HTC Flyer is fully charged. When you charge the battery while HTC Flyer is on, the charging battery icon is displayed in your tablet’s status bar. After the battery has been fully charged, the charging battery icon turns to a full battery icon . As a safety precaution, the battery stops charging when it overheats. Switching the power on or off Switching the power on Press the POWER button. Easy. When you turn on HTC Flyer for the first time, you’ll need to set it up. 13Getting started HTC Confidential Switching the power off 1.If the display is off, press the POWER button to turn it back on, then unlock the screen. 2.Press and hold the POWER button for a few seconds. 3.When the Power options menu appears, tap Power off. Finger gestures TapWhen you want to type using the keyboard, select items onscreen such as application and settings icons, or press onscreen buttons, simply tap them with your finger. Press and hold To open the available options for an item (for example, a contact or link in a web page), simply press and hold the item. Swipe or slide To swipe or slide means to quickly drag your finger vertically or horizontally across the screen. DragPress and hold your finger with some pressure before you start to drag. While dragging, do not release your finger until you have reached the target position. FlickFlicking the screen is similar to swiping, except that you need to swipe your finger in light, quicker strokes. This finger gesture is always in a vertical direction, such as when flicking the contacts or message list. RotateFor most screens, you can automatically change the screen orientation from portrait to landscape by turning HTC Flyer sideways. When entering text, you can turn HTC Flyer sideways to bring up a bigger keyboard. PinchIn some apps, like Gallery or the web browser, you can “pinch” the screen using two fingers (for example, thumb and index finger) to zoom in or zoom out when viewing a picture or a web page. 14Getting started HTC Con…

Text truncated - open the document above for the full version.

Safety and regulatory guide  Safety and regulatory guide Please read before proceeding THE BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE THE PRODUCT OUT OF THE BOX. YOUR WARRANTY IS INVALIDATED IF YOU DISASSEMBLE OR ATTEMPT TO DISASSEMBLE THE DEVICE. Disclaimers ANY WEATHER, STOCK, OR OTHER INFORMATION, DATA, OR DOCUMENTATION (“ACCESSED INFORMATION”) ARE PROVIDED “AS IS” AND WITHOUT ANY WARRANTY OR ANY TECHNICAL SUPPORT. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, HTC AND ITS AFFILIATES expressly disclaim any and all representations and warranties, arising by law or otherwise, related to the Accessed Information, including without limitation any express or implied representation or warranty of merchantability, fitness for a particular purpose, non-infringement, quality, accuracy, completeness, effectiveness, reliability, or usefulness. Without limiting the foregoing, it is further understood that HTC and its Affiliates are not responsible for any use of the Accessed Information or the results arising from such use, and that you use such information at your own risk. Safety and regulatory guide  Limitation of damages TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HTC OR ITS AFFILIATES BE LIABLE TO YOU, ANY USER, OR THIRD PARTY FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, INCIDENTAL OR PUNITIVE DAMAGES OF ANY KIND, ARISING IN CONTRACT, TORT, OR OTHERWISE, INCLUDING, BUT NOT LIMITED TO, INJURY, LOSS OF REVENUE, LOSS OF GOODWILL, LOSS OF BUSINESS OPPORTUNITY, LOSS OF DATA, AND/OR LOSS OF PROFITS, REGARDLESS OF THE FORESEEABILITY THEREOF OR WHETHER HTC OR ITS AFFILIATES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. AND IN NO EVENT SHALL THE TOTAL LIABILITY OF HTC OR ITS AFFILIATES EXCEED THE AMOUNT RECEIVED FROM YOU, REGARDLESS OF THE LEGAL THEORY UNDER WHICH THE CAUSE OF ACTION IS BROUGHT. THE FOREGOING DOES NOT AFFECT ANY STATUTORY RIGHTS WHICH MAY NOT BE DISCLAIMED. Important health information and safety precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. Electrical safety This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. Safety precautions for proper grounding installation CAUTION: Connecting to improperly grounded equipment can result in an electric shock to your device. This product is equipped with a USB Cable for connecting with desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate  Safety and regulatory guide outlet which is properly installed and grounded in accordance with all local codes and ordinances. Safety precautions for power supply unit Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product. Handle battery packs carefully This product contains a Lithium-ion polymer or Lithium-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. Do not attempt to open or service the battery pack. Do not disassemble, crush, puncture, short external contacts or circuits, dispose of in fire or water, or expose a battery pack to temperatures higher than 60 ̊C (10 ̊F). WARNING: Danger of explosion if battery is incorrectly replaced. To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts, expose to temperature above 60° C (10° F), or dispose of in fire or water. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product. Take extra precautions Keep the battery or device dry and away from water or any liquid as it may cause a short circuit. The device should only be connected to products that bear the USB-IF logo or have completed the USB-IF compliance program. If the battery leaks: Do not allow the leaking fluid to come in contact with skin or clothing. If already in contact, flush the affected area immediately with clean water and seek medical advice.    • • • • Safety and regulatory guide  Do not allow the leaking fluid to come in contact with eyes. If already in contact, DO NOT rub; rinse with clean water immediately and seek medical advice. Take extra precautions to keep a leaking battery away from fire as there is a danger of ignition or explosion. Safety precautions for direct sunlight Keep this product away from excessive moisture and extreme temperatures. Do not leave the product inside a vehicle or in places where the temperature may exceed 60°C (10°F), such as on a car dashboard, window sill, or behind a glass that is exposed to direct sunlight or strong ultraviolet light for extended periods of time. This may damage the product, overheat the battery, or pose a risk to the vehicle. Prevention of hearing loss CAUTION: Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time. NOTE: For France, Earphone (listed below) for this device have been tested to comply with the Sound Pressure Level requirement laid down in the applicable NF EN 0-1:000 and/or NF EN 0-:00 standards as required by French Article L. -…

Text truncated - open the document above for the full version.

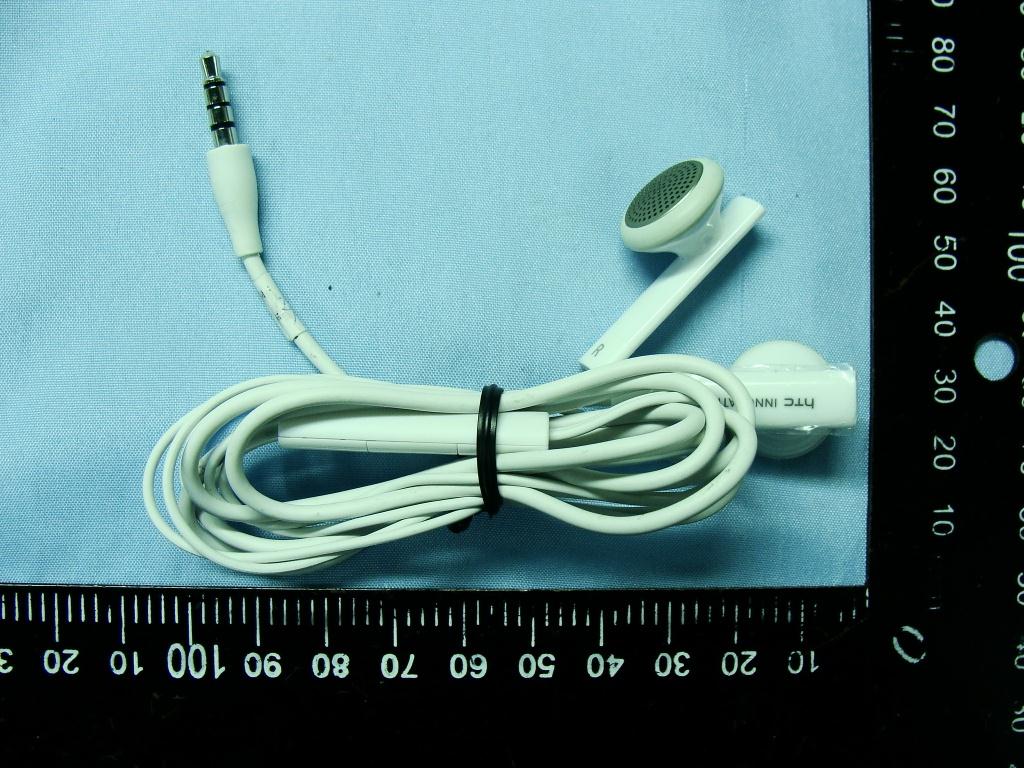

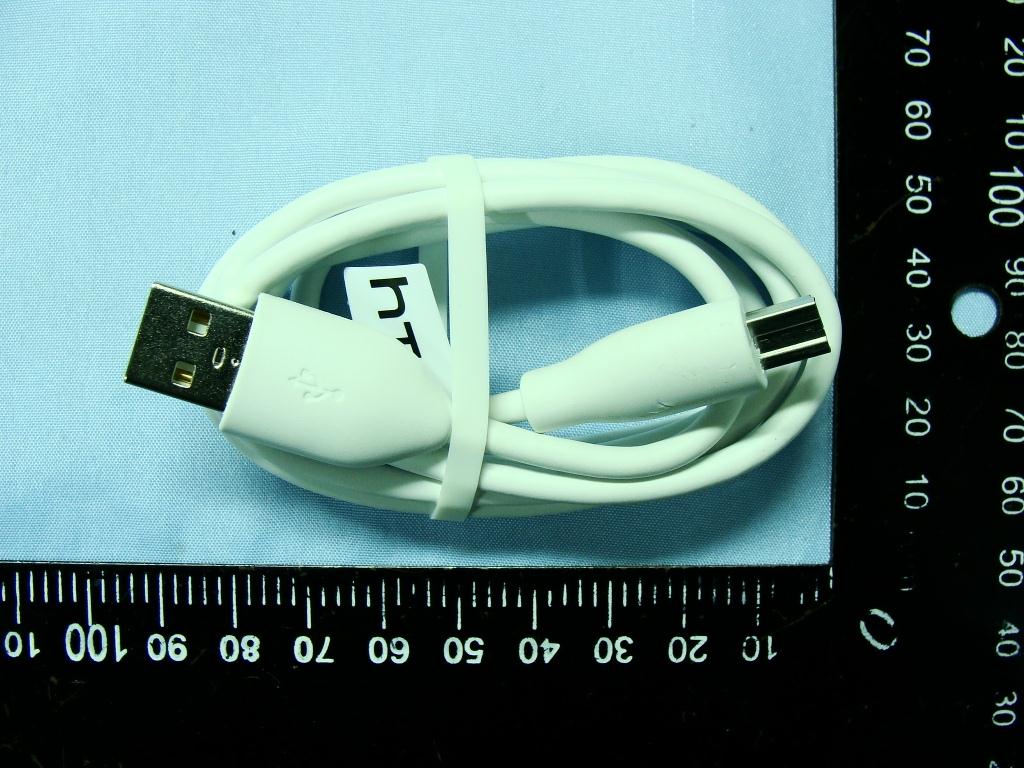

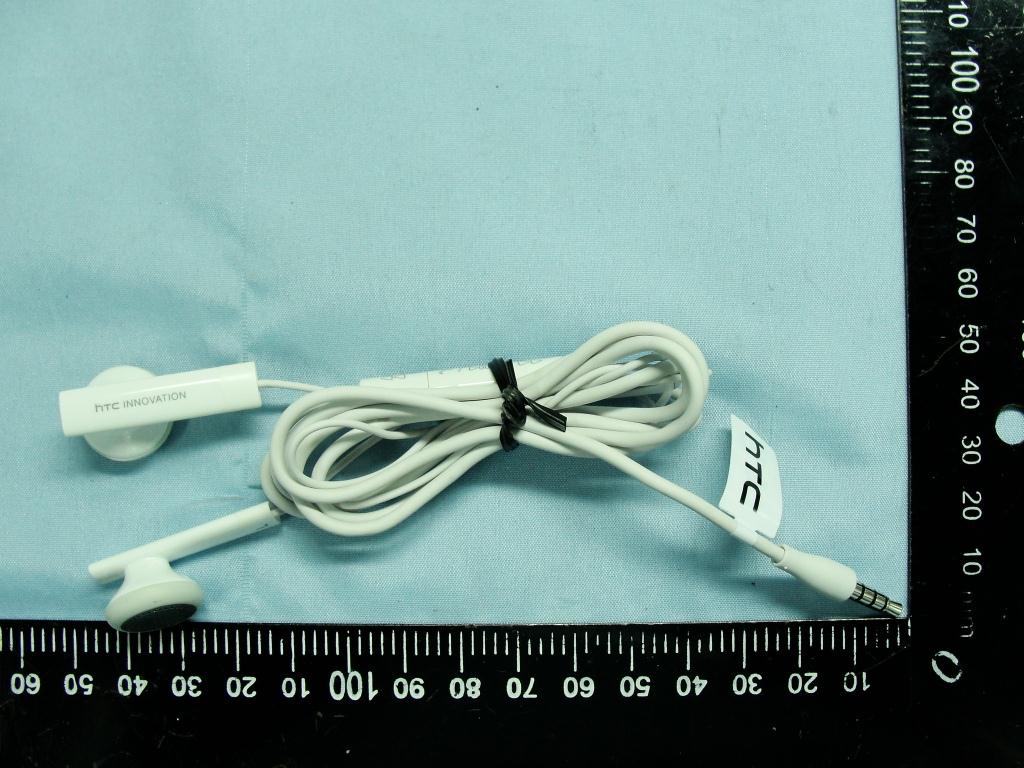

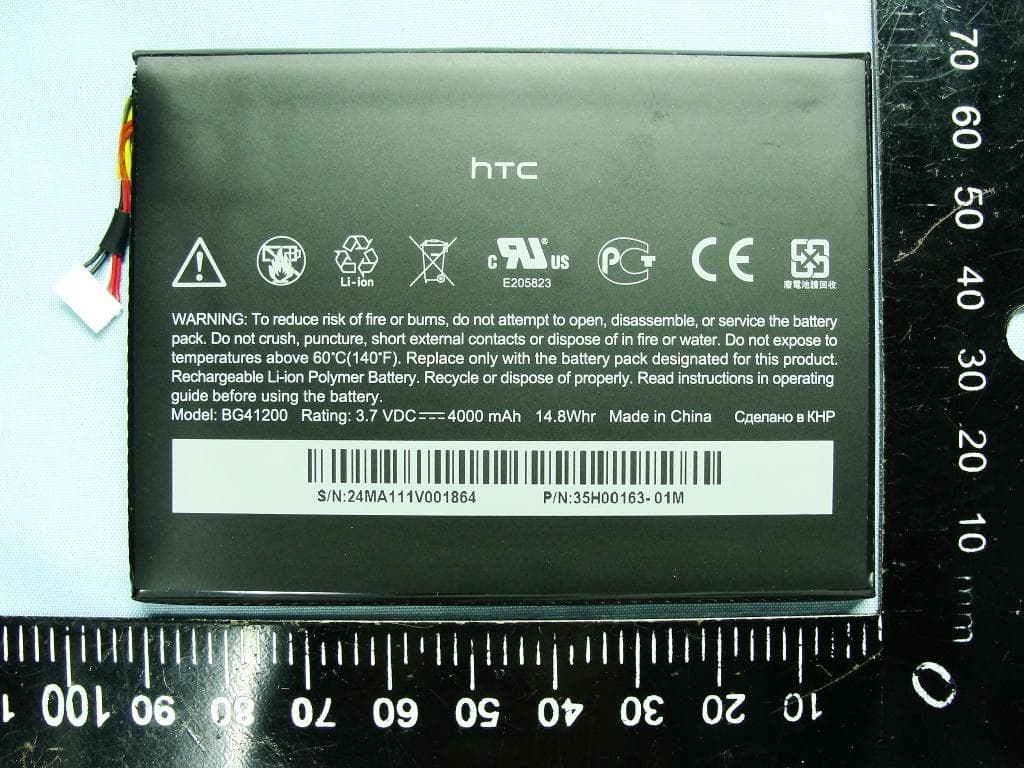

Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 1 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 1. External Photograph of EUT Sample 1 Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 2 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 720510 Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 3 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 Sample 2 Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 4 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 5 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 List of Accessory: Specification of Accessory AC Adapter Brand Name HTC Manufacturer Delta Model Name EADP-15ZB B Battery 1 Brand Name HTC Manufacturer ATL Model Name BG41200 Battery 2 Brand Name HTC Manufacturer Formosa Model Name BG41200 Earphone 1 Brand Name HTC Manufacturer Merry Model Name RC E160 Earphone 2 Brand Name HTC Manufacturer Cotron Model Name RC E160 USB Cable 1 Brand Name HTC Manufacturer Foxlink Model Name DC T500 USB Cable 2 Brand Name HTC Manufacturer Coxco Model Name DC T500 LCD Panel Brand Name LG Model Name LD070WS2-SL01 Photo Camera Brand Name Liteon Model Name 09P1BA510 Video Camera Brand Name Liteon Model Name 10P1TF101 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 6 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 7 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 8 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 Battery 1 Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 9 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 Battery 2 Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 10 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 Earphone 1 Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 11 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 Earphone 2 Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 12 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 USB Cable 1 Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 13 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 USB Cable 2

Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 1 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 1. External Photograph of EUT Sample 1 Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 2 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 720510 Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 3 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 Sample 2 Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 4 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 5 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 List of Accessory: Specification of Accessory AC Adapter Brand Name HTC Manufacturer Delta Model Name EADP-15ZB B Battery 1 Brand Name HTC Manufacturer ATL Model Name BG41200 Battery 2 Brand Name HTC Manufacturer Formosa Model Name BG41200 Earphone 1 Brand Name HTC Manufacturer Merry Model Name RC E160 Earphone 2 Brand Name HTC Manufacturer Cotron Model Name RC E160 USB Cable 1 Brand Name HTC Manufacturer Foxlink Model Name DC T500 USB Cable 2 Brand Name HTC Manufacturer Coxco Model Name DC T500 LCD Panel Brand Name LG Model Name LD070WS2-SL01 Photo Camera Brand Name Liteon Model Name 09P1BA510 Video Camera Brand Name Liteon Model Name 10P1TF101 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 6 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 7 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 8 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 Battery 1 Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 9 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 Battery 2 Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 10 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 Earphone 1 Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 11 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 Earphone 2 Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 12 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 USB Cable 1 Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 13 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 USB Cable 2

12.4mm 33.2 mm 28.2mm FCC ID: NM8PG41400 IC: 4115B-PG41400 Made in Taiwan Model: PG41400 P/N:XXHXXXXX-XX 9VDC 1.67A

Label Location

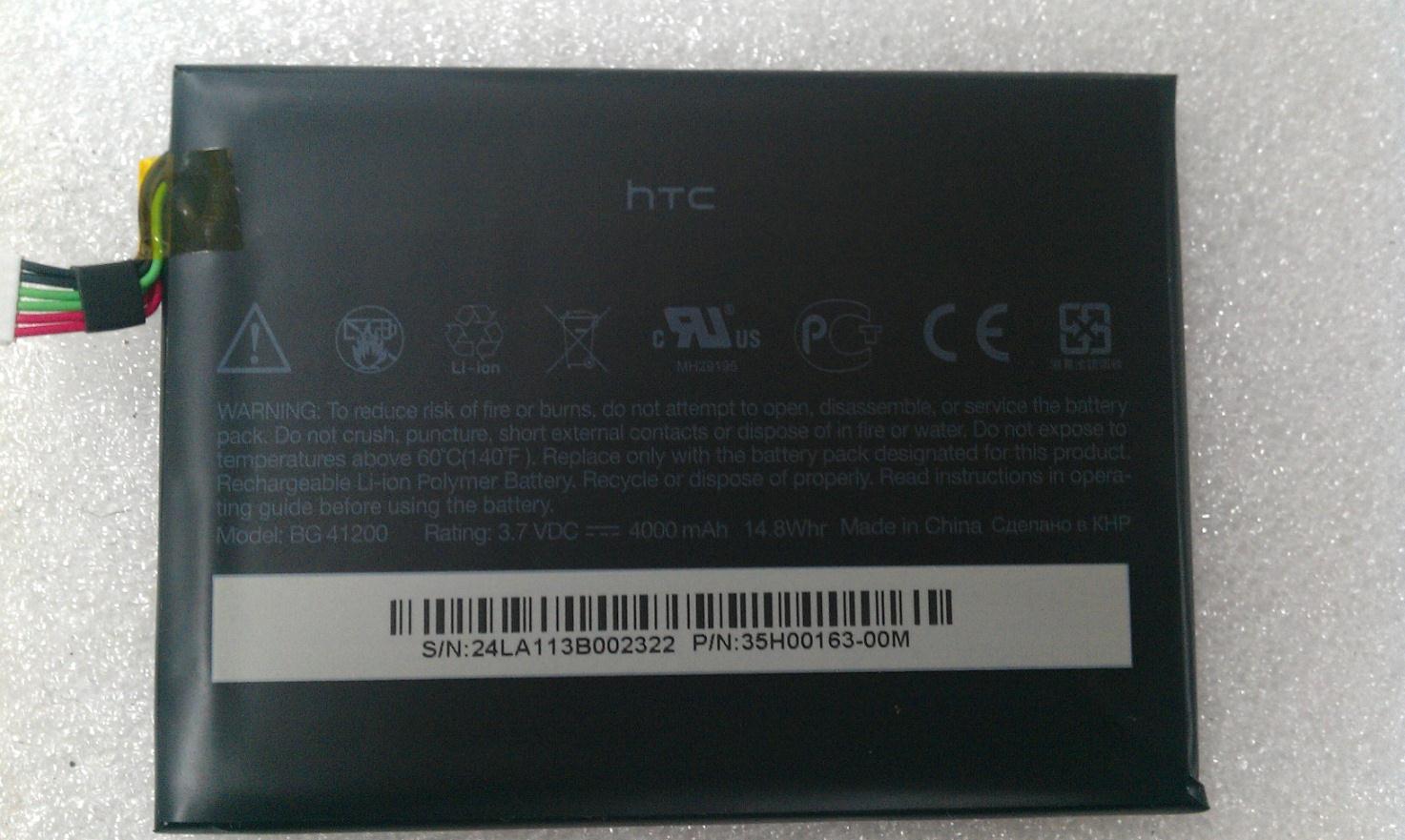

Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 14 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 3. Internal Photograph of EUT Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 15 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 16 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 17 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 18 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 19 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 WLAN & Bluetooth Antenna (Tx / Rx) Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 20 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 720510 3. Internal Photograph of EUT GPS Antenna (Rx)

Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 1 of 2 TEL : 886-3-327-3456 Issued Date : Apr. 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 GPS Antenna <Rx> WLAN & BT Antenna <Tx/Rx> 0.7cm 18.1cm 10.2cm Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 2 of 2 TEL : 886-3-327-3456 Issued Date : Apr. 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 0.7cm 18.1cm 10.2cm GPS Antenna <Rx> WLAN & BT Antenna <Tx/Rx>

Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 14 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 3. Internal Photograph of EUT Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 15 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 16 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 17 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 18 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 19 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 WLAN & Bluetooth Antenna (Tx / Rx) Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 20 of 20 TEL : 886-3-327-3456 Report Issued Date : Apr. 22, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 720510 3. Internal Photograph of EUT GPS Antenna (Rx)

Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 1 of 2 TEL : 886-3-327-3456 Issued Date : Apr. 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 GPS Antenna <Rx> WLAN & BT Antenna <Tx/Rx> 0.7cm 18.1cm 10.2cm Photographs of EUT Report No.: EP133012-01 Model Name: PG41400 SPORTON INTERNATIONAL INC. Page Number : 2 of 2 TEL : 886-3-327-3456 Issued Date : Apr. 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG41400 0.7cm 18.1cm 10.2cm GPS Antenna <Rx> WLAN & BT Antenna <Tx/Rx>

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/4/21 System Check_Body_2450MHz_110421 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_110421 Medium parameters used: f = 2450 MHz; σ = 1.97 mho/m; ε r = 53.8; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.04, 4.04, 4.04); Calibrated: 2010/9/21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 15.3 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 89.6 V/m; Power Drift = -0.014 dB Peak SAR (extrapolated) = 31.7 W/kg SAR(1 g) = 13.6 mW/g; SAR(10 g) = 6.47 mW/g Maximum value of SAR (measured) = 14.7 mW/ g 0 dB = 14.7mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/4/21 #01 802.11b_Rear Face_0.5cm_Ch11_Sample1_Battery1_Earphone1 DUT: PG41400 Communication System: 802.11b ; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_110421 Medium parameters used: f = 2462 MHz; σ = 1.99 mho/m; ε r = 53.8; ρ = 1000 kg/m 3 Ambient Temperature：22.3 °C; Liquid Temperature：21.3°C DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.04, 4.04, 4.04); Calibrated: 2010/9/21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch11/Area Scan (71x111x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.464 mW/g Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.79 V/m; Power Drift = -0.163 dB Peak SAR (extrapolated) = 1.17 W/kg SAR(1 g) = 0.471 mW/g; SAR(10 g) = 0.233 mW/g Maximum value of SAR (measured) = 0.502 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/4/21 #02 802.11b_Front Face_0.5cm_Ch11_Sample1_Battery1_Earphone1 DUT: PG41400 Communication System: 802.11b ; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_110421 Medium parameters used: f = 2462 MHz; σ = 1.99 mho/m; ε r = 53.8; ρ = 1000 kg/m 3 Ambient Temperature：22.3 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.04, 4.04, 4.04); Calibrated: 2010/9/21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch11/Area Scan (71x111x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.749 mW/g Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.66 V/m; Power Drift = 0.182 dB Peak SAR (extrapolated) = 1.49 W/kg SAR(1 g) = 0.603 mW/g; SAR(10 g) = 0.300 mW/g Maximum value of SAR (measured) = 0.629 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date/Time: 2011/4/21 #03 802.11b_Primary Landscape_0.5cm_Ch11_Sample1_Battery1_Earphone1 DUT: PG41400 Communication System: 802.11b ; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_110421 Medium parameters used: f = 2462 MHz; σ = 1.99 mho/m; ε r = 53.8; ρ = 1000 kg/m 3 Ambient Temperature：22.3 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.04, 4.04, 4.04); Calibrated: 2010/9/21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch11/Area Scan (41x91x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.021 mW/g Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.64 V/m; Power Drift = 0.132 dB Peak SAR (extrapolated) = 0.062 W/kg SAR(1 g) = 0.026 mW/g; SAR(10 g) = 0.012 mW/g Maximum value of SAR (measured) = 0.029 mW/ g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date/Time: 2011/4/21 #04 802.11b_Secondary Landscape_0.5cm_Ch11_Sample1_Battery1_Earphone1 DUT: PG41400 Communication System: 802.11b ; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_110421 Medium parameters used: f = 2462 MHz; σ = 1.99 mho/m; ε r = 53.8; ρ = 1000 kg/m 3 Ambient Temperature：22.3 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.04, 4.04, 4.04); Calibrated: 2010/9/21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch11/Area Scan (41x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.302 mW/g Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.51 V/m; Power Drift = -0.033 dB Peak SAR (extrapolated) = 0.728 W/kg SAR(1 g) = 0.312 mW/g; SAR(10 g) = 0.152 mW/g Maximum value of SAR (measured) = 0.332 mW/g Ch11/Zoom Scan (5x5x7)/Cube …

Text truncated - open the document above for the full version.
