NM8PG58110SMARTPHONE

Your HTC Sensation User guide Contents Getting started Inside the box8 HTC Sensation 8 Back cover10 SIM card11 Storage card12 Battery13 Switching the power on or off15 Entering your PIN15 Finger gestures15 Setting up HTC Sensation for the first time16 Ways of getting contacts into HTC Sensation16 Home screen17 Basics Adjusting the volume19 Sleep mode20 Status and notifications21 Notifications panel24 Connecting HTC Sensation to a computer25 Copying files to or from the storage card26 Copying text, looking up information, and sharing27 Printing28 Want some quick guidance on using your phone?29 Personalizing Making HTC Sensation truly yours30 Personalizing HTC Sensation with scenes30 Changing your wallpaper31 Applying a new skin32 Personalizing your Home screen with widgets32 Adding icons and other shortcuts on your Home screen34 Adding folders on your Home screen34 Rearranging or removing widgets and icons on your Home screen35 Rearranging the Home screen36 Using sound sets36 Rearranging or hiding application tabs38 Customizing the lock screen39 Phone calls Different ways of making calls40 Making a call on the Phone dialer screen40 2Contents Using Speed dial41 Calling a phone number in a text message41 Calling a phone number in an email42 Making an emergency call42 Receiving calls43 What can I do during a call?44 Setting up a conference call45 Internet calls46 Using Call history47 Using Home dialing48 Call services48 Turning Airplane mode on or off49 Messages Opening Messages50 Sending a text message (SMS)50 Sending a multimedia message (MMS)51 Resuming a draft message53 Viewing and replying to a message53 Forwarding a message54 Viewing and saving an attachment from a multimedia message55 Push messages55 Managing message conversations56 Setting message options57 Search and Web browser Searching HTC Sensation and the Web59 Using the web browser61 Downloading from the Web63 Viewing bookmarks and previously visited pages64 Setting browser options65 Camera Camera basics67 Taking a photo68 Recording video69 Adding effects70 After capturing70 Changing camera settings70 Camera scenes72 Photos, videos, and music Gallery73 Music81 Connected Media87 HTC services HTC Watch89 HTCSense.com89 3Contents Accounts and sync About online accounts92 Synchronizing with a Google Account92 Adding a social network account93 Managing your online accounts93 People Transferring contacts from your old phone95 About the People app96 Your contacts list97 Setting up your profile98 Importing contacts from your SIM card98 Adding a new contact99 Searching for contacts99 Importing a contact from an Exchange ActiveSync account100 Merging contact information101 Backing up your contacts to the storage card102 Contact information and conversations102 Sending contact information as a vCard104 Contact groups105 Adding People widgets107 Social Facebook for HTC Sense 109 Tweeting on the go using Peep110 Using Friend Stream 112 Chatting in Google Talk115 Email Gmail118 Mail119 Calendar About Calendar127 Creating an event127 Changing Calendar views128 Managing Calendar events129 Accepting or declining a meeting invitation130 Dismissing or snoozing event reminders130 Showing or hiding calendars131 Changing Calendar settings131 About the Calendar widget132 Maps and location Location settings133 Locations133 Google Maps143 4Contents Market and other apps Finding and installing apps from Android Market147 Using the Clock149 Checking Weather152 Reading eBooks153 Reading news feeds156 Keeping track of your stocks158 Working on documents159 Watching videos on YouTube160 Listening to FM Radio161 Recording your voice162 Using Flashlight163 Sharing games and apps164 HTC Sync About HTC Sync165 Installing HTC Sync166 Setting up HTC Sync to recognize HTC Sensation166 Getting to know the workspace167 Setting up synchronization167 Synchronizing HTC Sensation170 Installing an app from your computer to HTC Sensation171 Synchronizing another device with your computer171 Downloading the latest HTC Sync upgrade171 Keyboard Using the onscreen keyboard172 Entering words with predictive text173 Entering text by speaking175 Entering text by tracing176 Editing text176 Adjusting input settings177 Internet connections Data connection179 Wi-Fi180 Connecting to a virtual private network (VPN) 181 Using HTC Sensation as a modem (USB tethering)183 Connecting HTC Sensation to the Internet through a computer (Internet Pass-through)183 Using HTC Sensation as a wireless router183 Bluetooth Bluetooth basics185 Connecting a Bluetooth headset or car kit185 Disconnecting or unpairing from a Bluetooth device186 Sending information using Bluetooth187 Receiving information using Bluetooth189 Security Protecting your SIM card with a PIN190 5Contents Protecting HTC Sensation with a screen lock pattern, PIN, or password190 Settings Settings on HTC Sensation192 Changing display settings193 Changing sound settings195 Changing the language196 Optimizing battery life196 Managing memory197 Checking information about HTC Sensation198 Update and reset Software updates200 Restarting HTC Sensation201 Resetting HTC Sensation201 Trademarks and copyrights Index 6Contents Conventions used in this guide In this user guide, we use the following symbols to indicate useful and important information: This is a note. A note often gives additional information, such as what happens when you choose to do or not to do a certain action. A note also provides information that may only be applicable to some situations. This is a tip. A tip gives you an alternative way to do a particular step or procedure, or lets you know of an option that you may find helpful. This indicates important information that you need in order to accomplish a certain task or to get a feature to work properly. This provides safety precaution information, that is, information that you need to be careful about to prevent potential problems. 7Conventions used in this guide Getting started Inside the box You will find the following…

Text truncated - open the document above for the full version.

Safety and regulatory guide  Safety and regulatory guide Please read before proceeding THE BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE IT OUT OF THE BOX. DO NOT REMOVE THE BATTERY PACK WHEN THE PHONE IS CHARGING. YOUR WARRANTY IS INVALIDATED IF YOU DISASSEMBLE OR ATTEMPT TO DISASSEMBLE THE DEVICE. Privacy restrictions Some countries require full disclosure of recorded telephone conversations, and stipulate that you must inform the person with whom you are speaking that the conversation is being recorded. Always obey the relevant laws and regulations of your country when using the recording feature of your phone. Disclaimers ANY WEATHER, STOCK, OR OTHER INFORMATION, DATA, OR DOCUMENTATION (“ACCESSED INFORMATION”) ARE PROVIDED “AS IS” AND WITHOUT ANY WARRANTY OR ANY TECHNICAL SUPPORT. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, HTC AND ITS AFFILIATES expressly disclaim any and all representations and warranties, arising by law or otherwise, related to the Accessed Information, including without limitation any express or implied representation or warranty of merchantability, fitness for a particular purpose, non-infringement, quality, accuracy, completeness, effectiveness, reliability, or usefulness. Without limiting the foregoing, it is further understood that HTC and its Affiliates are not responsible for any use of the Accessed Information or the results arising from such use, and that you use such information at your own risk. Safety and regulatory guide  Limitation of damages TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HTC OR ITS AFFILIATES BE LIABLE TO YOU, ANY USER, OR THIRD PARTY FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, INCIDENTAL OR PUNITIVE DAMAGES OF ANY KIND, ARISING IN CONTRACT, TORT, OR OTHERWISE, INCLUDING, BUT NOT LIMITED TO, INJURY, LOSS OF REVENUE, LOSS OF GOODWILL, LOSS OF BUSINESS OPPORTUNITY, LOSS OF DATA, AND/OR LOSS OF PROFITS, REGARDLESS OF THE FORESEEABILITY THEREOF OR WHETHER HTC OR ITS AFFILIATES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. AND IN NO EVENT SHALL THE TOTAL LIABILITY OF HTC OR ITS AFFILIATES EXCEED THE AMOUNT RECEIVED FROM YOU, REGARDLESS OF THE LEGAL THEORY UNDER WHICH THE CAUSE OF ACTION IS BROUGHT. THE FOREGOING DOES NOT AFFECT ANY STATUTORY RIGHTS WHICH MAY NOT BE DISCLAIMED. Important health information and safety precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. Electrical safety This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. Safety precautions for proper grounding installation CAUTION: Connecting to improperly grounded equipment can result in an electric shock to your device. This product is equipped with a USB Cable for connecting with desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet which is properly installed and grounded in accordance with all local codes and ordinances.  Safety and regulatory guide Safety precautions for power supply unit Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product. This product should be operated only with the following designated power supply unit(s). AC adapter: HTC, Model TC U50, TC E50, TC B50, TC C50, TC A50, TC K50 Handle battery packs carefully This product contains a Lithium-ion polymer or Lithium-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. Do not attempt to open or service the battery pack. Do not disassemble, crush, puncture, short external contacts or circuits, dispose of in fire or water, or expose a battery pack to temperatures higher than 60 ̊C (10 ̊F). WARNING: Danger of explosion if battery is incorrectly replaced. To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts, expose to temperature above 60° C (10° F), or dispose of in fire or water. Replace only with specified batteries. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product. NOTE: This product should be operated only with the following designated Battery Pack(s). HTC, Model BG58100 Take extra precautions Keep the battery or device dry and away from water or any liquid as it may cause a short circuit.   •  • Safety and regulatory guide 5 Keep metal objects away so they don’t come in contact with the battery or its connectors as it may lead to short circuit during operation. The phone should only be connected to products that bear the USB-IF logo or have completed the USB-IF compliance program. Do not use a battery that appears damaged, deformed, or discolored, or the one that has any rust on its casing, overheats, or emits a foul odor. Always keep the battery out of the reach of babies and small children, to avoid swallowing of the battery. Consult the doctor immediately if the battery is swallowed. If the battery leaks: Do not allow the leaking fluid to come in contact with skin or clothing. If already in contact, flush the affected area immediately with clean water and seek …

Text truncated - open the document above for the full version.

TIMCO ENGINEERING INC. TCB & FCB 849 NW State Road 45 FCC Approvals Newberry, Florida 32669 Industry Canada Approvals http://www.timcoengr.com Notified Body for Europe 888.472.2424 F 352.472.2030 email: [email protected] June 8, 2011 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Phone: +1-301-362-3000 Subject: Justification letter for supersede procedure - FCCID: NM8PG58110 granted on 6/06/2011 To Whom It May Concern: The WLAN SAR report was revised by updating the format by separating body-worn and hotspot modes. Sincerely, TIMCO Engineering, Inc.

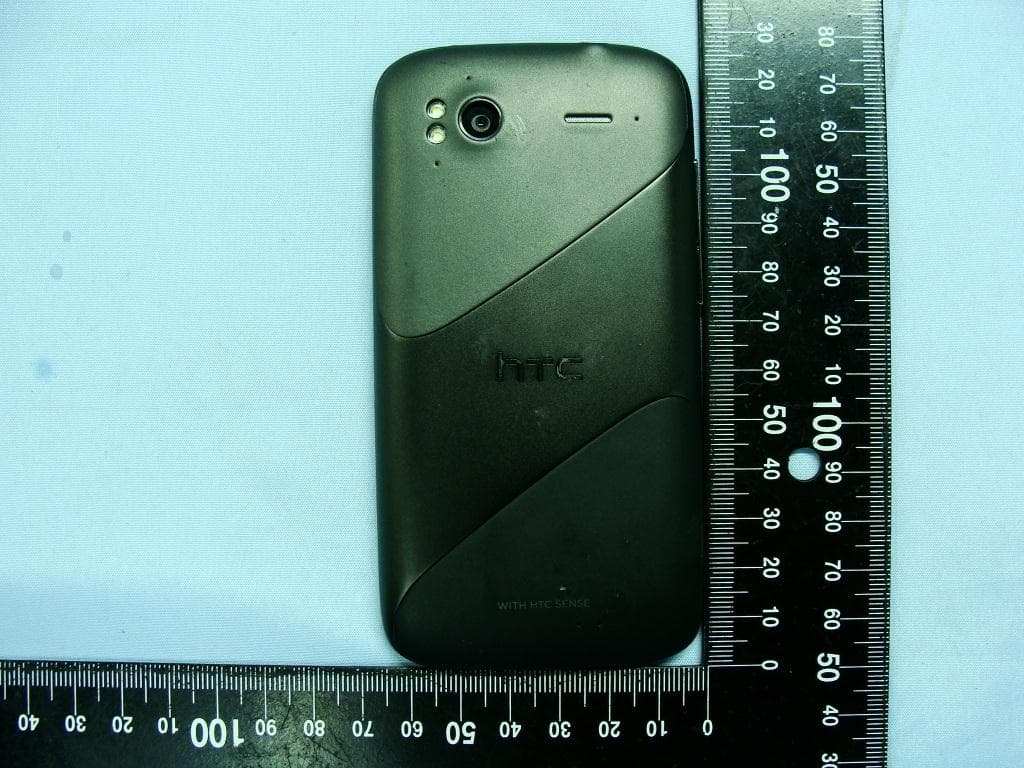

Photographs of EUT Report No.: EP141115-01 Model Name: PG58110 SPORTON INTERNATIONAL INC. Page Number : 1 of 30 TEL : 886-3-327-3456 Report Issued Date : May 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG58110 1. External Photograph of EUT Sample 1 Photographs of EUT Report No.: EP141115-01 Model Name: PG58110 SPORTON INTERNATIONAL INC. Page Number : 2 of 30 TEL : 886-3-327-3456 Report Issued Date : May 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG58110 Sample 1 Photographs of EUT Report No.: EP141115-01 Model Name: PG58110 SPORTON INTERNATIONAL INC. Page Number : 3 of 30 TEL : 886-3-327-3456 Report Issued Date : May 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG58110 Sample 2 Photographs of EUT Report No.: EP141115-01 Model Name: PG58110 SPORTON INTERNATIONAL INC. Page Number : 4 of 30 TEL : 886-3-327-3456 Report Issued Date : May 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG58110 720510 Sample 2 Photographs of EUT Report No.: EP141115-01 Model Name: PG58110 SPORTON INTERNATIONAL INC. Page Number : 5 of 30 TEL : 886-3-327-3456 Report Issued Date : May 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG58110 List of Accessory: Specification of Accessory AC Adapter 1 Brand Name HTC Manufacturer Emerson Model Name TC X250 (X=A, B, C, E, K, U) AC Adapter 2 Brand Name HTC Manufacturer Delta Model Name TC X250 (X=A, B, C, E ,K, U) AC Adapter 3 Brand Name HTC Manufacturer PHIHONG Model Name TC X250 (X=A, B, C, E, K, U) AC Adapter 4 Brand Name HTC Manufacturer Emerson Model Name TC X250 (X=A, B, C, E, K, U) Battery 1 Brand Name HTC Manufacturer HT ENERGY Model Name BG58100 Battery 2 Brand Name HTC Manufacturer TWS Model Name BG58100 Battery 3 Brand Name HTC Manufacturer Samsung SDI Model Name BG58100 Earphone 1 Brand Name HTC Manufacturer FOSTER Model Name RC E160 Earphone 2 Brand Name HTC Manufacturer Cotron Model Name RC E160 Earphone 3 Brand Name HTC Manufacturer Merry Model Name RC E160 USB Cable 1 Brand Name HTC Manufacturer COXOC Model Name DC M410 USB Cable 2 Brand Name HTC Manufacturer Foxlink Model Name DC M410 USB Cable 3 Brand Name HTC Manufacturer MEC Model Name DC M410 2. Photograph of Accessory Photographs of EUT Report No.: EP141115-01 Model Name: PG58110 SPORTON INTERNATIONAL INC. Page Number : 6 of 30 TEL : 886-3-327-3456 Report Issued Date : May 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG58110 Specification of Accessory LCD 1 Brand Name SHARP Model Name LS043T1LX01 LCD 2 Brand Name AUO Model Name H429AL01 Camera 1 Brand Name LiteOn Model Name 10P1BA809 Camera 2 Brand Name PREMIER Model Name CMHT-8AS01D Video Camera 1 Brand Name LiteOn Model Name 10P1BF008 Video Camera 2 Brand Name Foxlink Model Name FM03FF-291H Remark: For accessories equipped with this EUT, please refer to the following photos. Photographs of EUT Report No.: EP141115-01 Model Name: PG58110 SPORTON INTERNATIONAL INC. Page Number : 7 of 30 TEL : 886-3-327-3456 Report Issued Date : May 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG58110 Photographs of EUT Report No.: EP141115-01 Model Name: PG58110 SPORTON INTERNATIONAL INC. Page Number : 8 of 30 TEL : 886-3-327-3456 Report Issued Date : May 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG58110 Adapter 1 Photographs of EUT Report No.: EP141115-01 Model Name: PG58110 SPORTON INTERNATIONAL INC. Page Number : 9 of 30 TEL : 886-3-327-3456 Report Issued Date : May 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG58110 Photographs of EUT Report No.: EP141115-01 Model Name: PG58110 SPORTON INTERNATIONAL INC. Page Number : 10 of 30 TEL : 886-3-327-3456 Report Issued Date : May 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG58110 Photographs of EUT Report No.: EP141115-01 Model Name: PG58110 SPORTON INTERNATIONAL INC. Page Number : 11 of 30 TEL : 886-3-327-3456 Report Issued Date : May 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG58110 Adapter 2 Photographs of EUT Report No.: EP141115-01 Model Name: PG58110 SPORTON INTERNATIONAL INC. Page Number : 12 of 30 TEL : 886-3-327-3456 Report Issued Date : May 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG58110 Photographs of EUT Report No.: EP141115-01 Model Name: PG58110 SPORTON INTERNATIONAL INC. Page Number : 13 of 30 TEL : 886-3-327-3456 Report Issued Date : May 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG58110 Photographs of EUT Report No.: EP141115-01 Model Name: PG58110 SPORTON INTERNATIONAL INC. Page Number : 14 of 30 TEL : 886-3-327-3456 Report Issued Date : May 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG58110 Adapter 3 Photographs of EUT Report No.: EP141115-01 Model Name: PG58110 SPORTON INTERNATIONAL INC. Page Number : 15 of 30 TEL : 886-3-327-3456 Report Issued Date : May 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG58110 Photographs of EUT Report No.: EP141115-01 Model Name: PG58110 SPORTON INTERNATIONAL INC. Page Number : 16 of 30 TEL : 886-3-327-3456 Report Issued Date : May 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG58110 Adapter 4 Photographs of EUT Report No.: EP141115-01 Model Name: PG58110 SPORTON INTERNATIONAL INC. Page Number : 17 of 30 TEL : 886-3-327-3456 Report Issued Date : May 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG58110 Battery 1 Photographs of EUT Report No.: EP141115-01 Model Name: PG58110 SPORTON INTERNATIONAL INC. Page Number : 18 of 30 TEL : 886-3-327-3456 Report Issued Date : May 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG58110 Battery 2 Photographs of EUT Report No.: EP141115-01 Model Name: PG58110 SPORTON INTERNATIONAL INC. Page Number : 19 of 30 TEL : 886-3-327-3456 Report Issued Date : May 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG58110 720510 …

Text truncated - open the document above for the full version.

Photographs of EUT Report No.: EP141115-01 Model Name: PG58110 SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : May 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG58110 GPS Antenna <RX Only> WLAN & Bluetooth Antenna <Tx / RX> WWAN Antenna <Tx / RX> 1.9cm 0.1cm 2.5cm 0.1cm 0.9cm 9.6cm 0.1cm 0.9cm

Model: PG58110 5VDC1A Made in TaiwanUse only batteries and power supplies listed in user manual P/N:XXHXXXXX-XX FCC ID: NM8PG58110 IC: 4115B-PG58110

Remark: 1. Cell phones or Cordless phones can have the Identifier in the battery compartment under certain conditions. a) The available label area on the phone is limited because they are relatively small and have many contoured surfaces, keypads, LCD displays, charge contacts and/or other connectors. b) The batteries for these devices are designed for easy removal and that the labels will be visible whenever the batteries are removed for charging or replacement c) The label will be readily visible at the time of purchase because the phone will be marketed without the battery installed.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/5/17 System Check_Head_835MHz_110517 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_110517 Medium parameters used: f = 835 MHz; σ = 0.925 mho/m; ε r = 43.3; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: EX3DV4 - SN3731; ConvF(8.85, 8.85, 8.85); Calibrated: 2010/9/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/1/13 - Phantom: SAM_Left; Type: SAM; Serial: TP-1150 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.62 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.2 V/m; Power Drift = 0.063 dB Peak SAR (extrapolated) = 3.73 W/kg SAR(1 g) = 2.46 mW/g; SAR(10 g) = 1.6 mW/g Maximum value of SAR (measured) = 2.66 mW/g 0 dB = 2.66mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/5/19 System Check_Head_835MHz_110519 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_110519 Medium parameters used: f = 835 MHz; σ = 0.875 mho/m; ε r = 42; ρ = 1000 kg/m 3 Ambient Temperature：22.7 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/1/13 - Phantom: SAM_Right; Type: SAM; Serial: TP-1303 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.80 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.7 V/m; Power Drift = -0.106 dB Peak SAR (extrapolated) = 3.61 W/kg SAR(1 g) = 2.28 mW/g; SAR(10 g) = 1.48 mW/g Maximum value of SAR (measured) = 2.60 mW/g 0 dB = 2.60mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/5/19 System Check_Head_835MHz_110519 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_110519 Medium parameters used: f = 835 MHz; σ = 0.885 mho/m; ε r = 42; ρ = 1000 kg/m 3 Ambient Temperature：22.2 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ES3DV3 - SN3071; ConvF(5.81, 5.81, 5.81); Calibrated: 2010/6/22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/1/13 - Phantom: SAM_Right; Type: SAM; Serial: TP-1303 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.80 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.7 V/m; Power Drift = -0.106 dB Peak SAR (extrapolated) = 3.61 W/kg SAR(1 g) = 2.41 mW/g; SAR(10 g) = 1.58 mW/g Maximum value of SAR (measured) = 2.60 mW/g 0 dB = 2.60mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/5/17 System Check_Body_835MHz_110517 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_110517 Medium parameters used: f = 835 MHz; σ = 0.997 mho/m; ε r = 56; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY4 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.65, 8.65, 8.65); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/1/13 - Phantom: SAM_Right; Type: SAM; Serial: TP-1303 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.95 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.4 V/m; Power Drift = -0.001 dB Peak SAR (extrapolated) = 4.04 W/kg SAR(1 g) = 2.74 mW/g; SAR(10 g) = 1.81 mW/g Maximum value of SAR (measured) = 2.94 mW/g 0 dB = 2.94mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date:2011/5/18 System Check_Body_850MHz_110518 DUT: Dipole 900 MHz Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: MSL_850_110518 Medium parameters used: f = 900 MHz; σ = 1.06 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.54, 8.54, 8.54); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/1/13 - Phantom: SAM_Right; Type: SAM; Serial: TP-1303 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.94 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 50.5 V/m; Power Drift = 0.164 dB Peak SAR (extrapolated) = 4.01 W/kg SAR(1 g) = 2.68 mW/g; SAR(10 g) = 1.76 mW/g Maximum value of SAR (measured) = 2.90 mW/g 0 dB = 2.90mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/5/17 System Check_Head_1900MHz_110517 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_110517 Medium parameters used: f = 1900 MHz; σ = 1.45 mho/m; ε r = 39.8; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.6 °C DASY4 Configuration: - Probe: EX3DV4 - SN3731; ConvF(7.46, 7.46, 7.46); Calibrated: 2010/9/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/1/13 - Phantom: SAM_Right; Type: SAM; Serial: TP-1303 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/5/17 #01 GSM850_Right Cheek_Ch128_Sample1_Battery1 DUT: 141115-01 Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_110517 Medium parameters used : f = 824.2 MHz; σ = 0.915 mho/m; ε r = 43.4; ρ = 1000 kg/m 3 Ambient Temperature：22.7 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: EX3DV4 - SN3731; ConvF(8.85, 8.85, 8.85); Calibrated: 2010/9/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/1/13 - Phantom: SAM_Left; Type: SAM; Serial: TP-1150 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch128/Area Scan (41x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.314 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.30 V/m; Power Drift = 0.111 dB Peak SAR (extrapolated) = 0.369 W/kg SAR(1 g) = 0.285 mW/g; SAR(10 g) = 0.213 mW/g Maximum value of SAR (measured) = 0.297 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date:2011/5/17 #01 GSM850_Right Cheek_Ch128_Sample1_Battery1_2D DUT: 141115-01 Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_110517 Medium parameters used : f = 824.2 MHz; σ = 0.915 mho/m; ε r = 43.4; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.3 °C DASY4 Configuration: - Probe: EX3DV4 - SN3731; ConvF(8.85, 8.85, 8.85); Calibrated: 2010/9/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/1/13 - Phantom: SAM_Left; Type: SAM; Serial: TP-1150 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch128/Area Scan (41x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.314 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.30 V/m; Power Drift = 0.111 dB Peak SAR (extrapolated) = 0.369 W/kg SAR(1 g) = 0.285 mW/g; SAR(10 g) = 0.213 mW/g Maximum value of SAR (measured) = 0.297 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/5/17 #02 GSM850_Right Tilted_Ch128_Sample1_Battery1 DUT: 141115-01 Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_110517 Medium parameters used : f = 824.2 MHz; σ = 0.915 mho/m; ε r = 43.4; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: EX3DV4 - SN3731; ConvF(8.85, 8.85, 8.85); Calibrated: 2010/9/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/1/13 - Phantom: SAM_Left; Type: SAM; Serial: TP-1150 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch128/Area Scan (41x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.202 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.59 V/m; Power Drift = -0.076 dB Peak SAR (extrapolated) = 0.230 W/kg SAR(1 g) = 0.193 mW/g; SAR(10 g) = 0.150 mW/g Maximum value of SAR (measured) = 0.200 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/5/17 #03 GSM850_Left Cheek_Ch128_Sample1_Battery1 DUT: 141115-01 Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_110517 Medium parameters used : f = 824.2 MHz; σ = 0.915 mho/m; ε r = 43.4; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: EX3DV4 - SN3731; ConvF(8.85, 8.85, 8.85); Calibrated: 2010/9/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/1/13 - Phantom: SAM_Left; Type: SAM; Serial: TP-1150 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch128/Area Scan (41x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.257 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.26 V/m; Power Drift = 0.052 dB Peak SAR (extrapolated) = 0.292 W/kg SAR(1 g) = 0.245 mW/g; SAR(10 g) = 0.193 mW/g Maximum value of SAR (measured) = 0.257 mW/g Test Lab…

Text truncated - open the document above for the full version.
