NM8PG76110Smartphone

Your HTC Wildfire S User guide Only for certification 2011/03/07 Contents Getting started Inside the box8 HTC Wildfire S 8 Back cover10 SIM card10 Storage card13 Battery13 Switching the power on or off15 Entering your PIN16 Finger gestures16 Setting up HTC Wildfire S for the first time17 Ways of getting contacts into HTC Wildfire S17 Home screen18 Basics Adjusting the volume19 Sleep mode20 Status and notifications21 Notifications panel24 Connecting HTC Wildfire S to a computer25 Copying files to or from the storage card26 Copying text, looking up information, and sharing26 Personalizing Making HTC Wildfire S truly yours29 Personalizing HTC Wildfire S with scenes29 Changing your wallpaper30 Applying a new skin31 Personalizing your Home screen with widgets 31 Adding icons and other shortcuts on your Home screen32 Adding folders on your Home screen33 Rearranging or removing widgets and icons on your Home screen33 Rearranging the Home screen34 Using sound sets35 Changing your ringtones and alarms36 Rearranging or hiding application tabs37 Phone calls Different ways of making calls38 Making a call on the Phone dialer screen38 Using Speed dial39 Calling a phone number in a text message39 2Contents Only for certification 2011/03/07 Calling a phone number in an email40 Making an emergency call40 Receiving calls41 What can I do during a call?42 Setting up a conference call44 Internet calls44 Using Call history45 Using Home dialing46 Call services47 Turning Airplane mode on or off48 Messages Opening Messages49 Sending a text message (SMS)49 Sending a multimedia message (MMS)50 Resuming a draft message52 Viewing and replying to a message52 Viewing and saving an attachment from a multimedia message53 Push messages54 Managing message conversations54 Setting message options56 People Transferring contacts from your old phone57 About the People app58 Setting up your profile59 Importing contacts from your SIM card59 Adding a new contact59 Importing a contact from an Exchange ActiveSync account 60 Merging contact information60 Filtering your contacts list61 Backing up your contacts to the storage card62 Contact information and conversations62 Sending contact information as a vCard63 Contact groups64 Adding People widgets66 Email Gmail68 Mail69 Calendar About Calendar77 Creating an event77 Changing Calendar views79 Managing Calendar events80 Dismissing or snoozing event reminders81 Displaying and synchronizing reminders81 Changing Calendar settings82 About the Calendar widget83 3Contents Only for certification 2011/03/07 Search and Web browser Searching HTC Wildfire S and the web84 Using the web browser85 Downloading from the Web88 Viewing bookmarks and previously visited pages88 Setting browser options90 Camera Camera basics91 Taking a photo92 Recording video93 Adding effects94 After capturing94 Changing camera settings94 Photos, videos, and music Gallery96 Music103 Accounts and sync About online accounts108 Synchronizing with a Google Account108 Adding a social network account109 Managing your online accounts109 Social Facebook for HTC Sense 111 Facebook app112 Tweeting on your phone using Peep113 Using Friend Stream 115 Chatting in Google Talk118 Maps and location Location settings121 Google Maps122 Market and other apps Finding and installing apps from Android Market126 Using the Clock128 Checking Weather131 Keeping track of your stocks133 Watching videos on YouTube134 Listening to FM Radio135 Recording your voice136 Sharing games and apps137 HTC Sync About HTC Sync138 4Contents Only for certification 2011/03/07 Installing HTC Sync that came with the storage card139 Setting up HTC Sync to recognize your phone 139 Getting to know the workspace140 Setting up synchronization140 Synchronizing your phone144 Installing an app from your computer to your phone 144 Downloading maps or purchasing services 145 Synchronizing another phone with your computer145 Downloading the latest HTC Sync upgrade146 HTCSense.com Signing up for your HTCSense.com account147 Using HTCSense.com147 Deleting your HTCSense.com account149 Keyboard Using the onscreen keyboard150 Entering words with predictive text151 Entering text by speaking153 Editing text154 Adjusting input settings155 Internet connections Data connection156 Wi-Fi157 About connection widgets159 Connecting to a virtual private network (VPN) 159 Using your phone as a modem (USB tethering) 160 Connecting your phone to the Internet through a computer (Internet Pass-through)161 Using your phone as a wireless router161 Bluetooth Bluetooth basics162 Connecting a Bluetooth headset or car kit162 Disconnecting or unpairing from a Bluetooth device 163 Sending information using Bluetooth164 Receiving information using Bluetooth166 Security Protecting your SIM card with a PIN168 Protecting your phone with a screen lock pattern, PIN or password168 Settings Settings on your phone170 Changing display settings171 Changing sound settings173 Changing the phone language174 Optimizing HTC Wildfire S’s battery life174 Managing memory175 Checking information about your phone 176 5Contents Only for certification 2011/03/07 Update and reset Phone software updates177 Restarting HTC Wildfire S177 Resetting HTC Wildfire S178 Trademarks and copyrights Index 6Contents Only for certification 2011/03/07 Conventions used in this guide In this user guide, we use the following symbols to indicate useful and important information: This is a note. A note often gives additional information, such as what happens when you choose to do or not to do a certain action. A note also provides information that may only be applicable to some situations. This is a tip. A tip gives you an alternative way to do a particular step or procedure, or lets you know of an option that you may find helpful. This indicates important information that you need in order to accomplish a certain task or to get a feature to work properly. This provides safety precaution information, that is, information that you need to be careful ab…

Text truncated - open the document above for the full version.

Safety and regulatory guide  Safety and regulatory guide Please read before proceeding THE BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE IT OUT OF THE BOX. DO NOT REMOVE THE BATTERY PACK WHEN THE PHONE IS CHARGING. YOUR WARRANTY IS INVALIDATED IF YOU DISASSEMBLE OR ATTEMPT TO DISASSEMBLE THE DEVICE. Privacy restrictions Some countries require full disclosure of recorded telephone conversations, and stipulate that you must inform the person with whom you are speaking that the conversation is being recorded. Always obey the relevant laws and regulations of your country when using the recording feature of your phone. Disclaimers ANY WEATHER, STOCK, OR OTHER INFORMATION, DATA, OR DOCUMENTATION (“ACCESSED INFORMATION”) ARE PROVIDED “AS IS” AND WITHOUT ANY WARRANTY OR ANY TECHNICAL SUPPORT. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, HTC AND ITS AFFILIATES expressly disclaim any and all representations and warranties, arising by law or otherwise, related to the Accessed Information, including without limitation any express or implied representation or warranty of merchantability, fitness for a particular purpose, non-infringement, quality, accuracy, completeness, effectiveness, reliability, or usefulness. Without limiting the foregoing, it is further understood that HTC and its Affiliates are not responsible for any use of the Accessed Information or the results arising from such use, and that you use such information at your own risk. Safety and regulatory guide  Limitation of damages TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HTC OR ITS AFFILIATES BE LIABLE TO YOU, ANY USER, OR THIRD PARTY FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, INCIDENTAL OR PUNITIVE DAMAGES OF ANY KIND, ARISING IN CONTRACT, TORT, OR OTHERWISE, INCLUDING, BUT NOT LIMITED TO, INJURY, LOSS OF REVENUE, LOSS OF GOODWILL, LOSS OF BUSINESS OPPORTUNITY, LOSS OF DATA, AND/OR LOSS OF PROFITS, REGARDLESS OF THE FORESEEABILITY THEREOF OR WHETHER HTC OR ITS AFFILIATES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. AND IN NO EVENT SHALL THE TOTAL LIABILITY OF HTC OR ITS AFFILIATES EXCEED THE AMOUNT RECEIVED FROM YOU, REGARDLESS OF THE LEGAL THEORY UNDER WHICH THE CAUSE OF ACTION IS BROUGHT. THE FOREGOING DOES NOT AFFECT ANY STATUTORY RIGHTS WHICH MAY NOT BE DISCLAIMED. Important health information and safety precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. Electrical safety This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. Safety precautions for proper grounding installation CAUTION: Connecting to improperly grounded equipment can result in an electric shock to your device. This product is equipped with a USB Cable for connecting with desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate  Safety and regulatory guide outlet which is properly installed and grounded in accordance with all local codes and ordinances. Safety precautions for power supply unit Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product. This product should be operated only with the following designated power supply unit(s). AC Adapter HTC, Model TC U50, TC E50, TC B50, TC C50, TC A50, TC K50 Handle battery packs carefully This product contains a Lithium-ion polymer or Lithium-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. Do not attempt to open or service the battery pack. Do not disassemble, crush, puncture, short external contacts or circuits, dispose of in fire or water, or expose a battery pack to temperatures higher than 60 ̊C (10 ̊F). WARNING: Danger of explosion if battery is incorrectly replaced. To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts, expose to temperature above 60° C (10° F), or dispose of in fire or water. Replace only with specified batteries. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product. NOTE: This product should be operated only with the following designated Battery Pack(s). HTC, Model BD9100   • Safety and regulatory guide 5 Take extra precautions Keep the battery or device dry and away from water or any liquid as it may cause a short circuit. Keep metal objects away so they don’t come in contact with the battery or its connectors as it may lead to short circuit during operation. The phone should only be connected to products that bear the USB-IF logo or have completed the USB-IF compliance program. Do not use a battery that appears damaged, deformed, or discolored, or the one that has any rust on its casing, overheats, or emits a foul odor. Always keep the battery out of the reach of babies and small children, to avoid swallowing of the battery. Consult the doctor immediately if the battery is swallowed. If the battery leaks: Do not allow the leaking fluid to come in contact with skin or clothing. If already in contact, flush the affected area immediately with clean water and seek medic…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 April 27, 2011 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Sporton International Inc. April 27, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _Sporton International Inc._hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: Smart Phone Model name: PG76110 (FCC ID : NM8PG76110 We affirm that between SIEMIC and __Sporton Internationl Inc.___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature: Client’s name / title: Roy Wu Contact information / address: No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C.

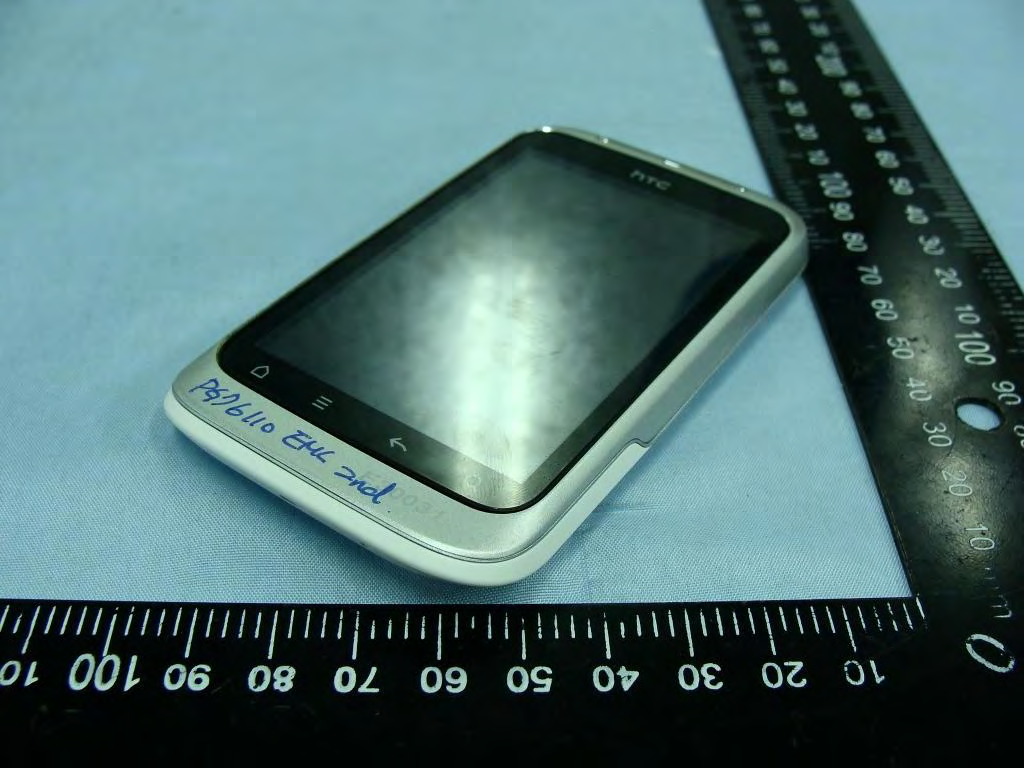

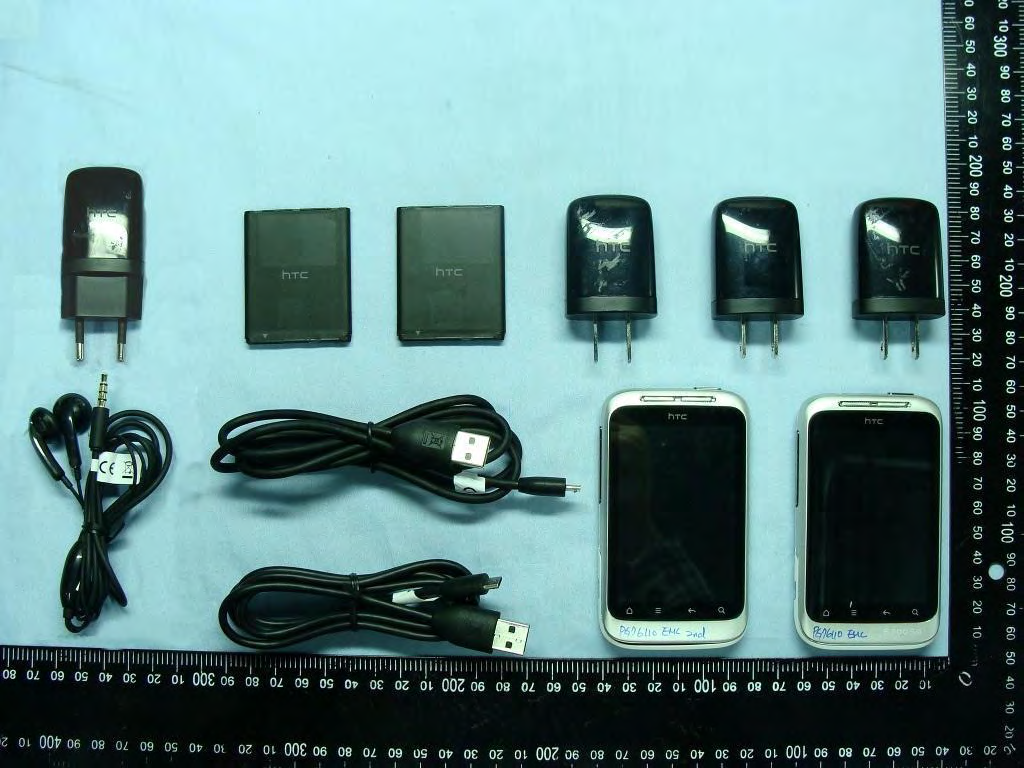

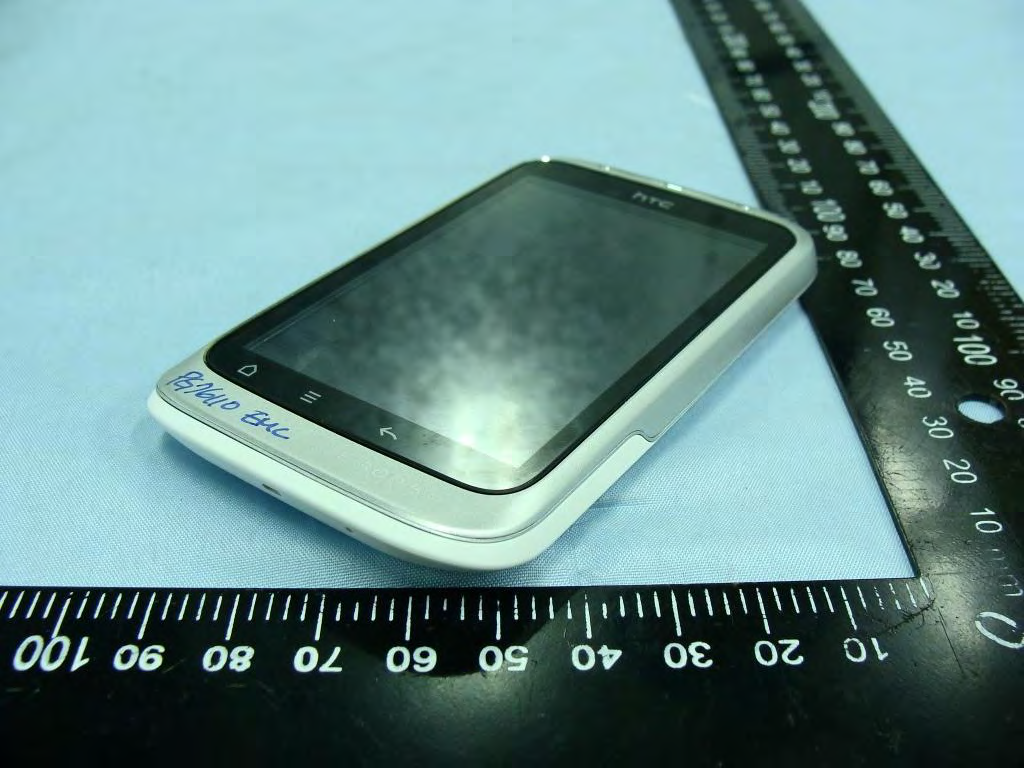

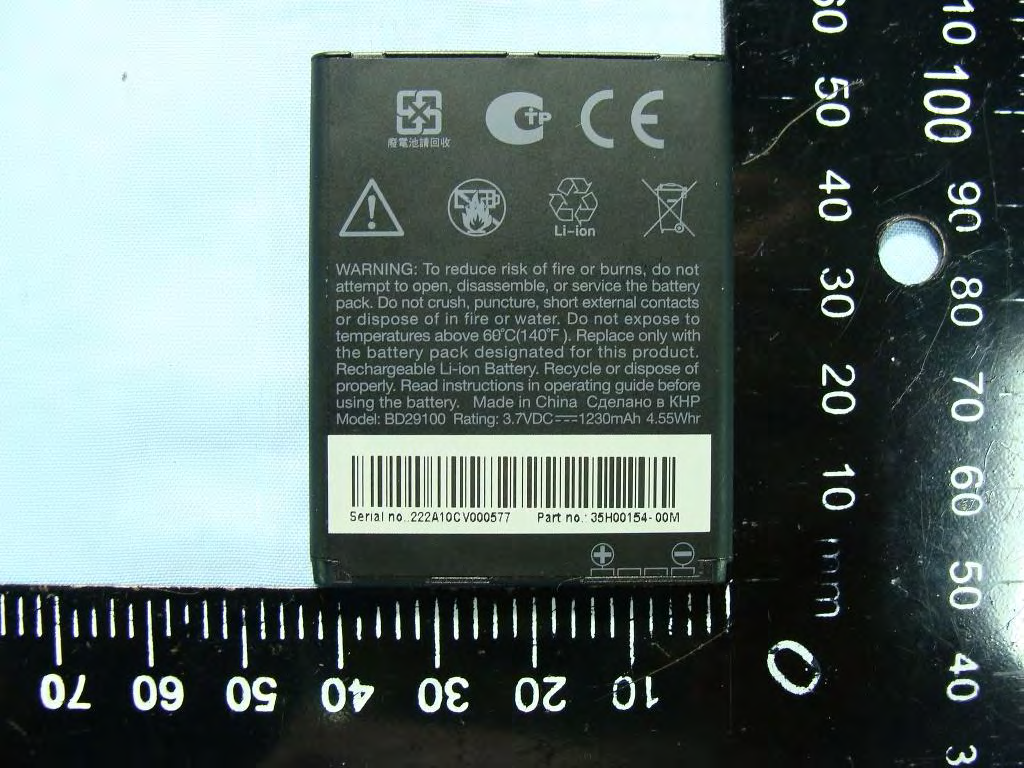

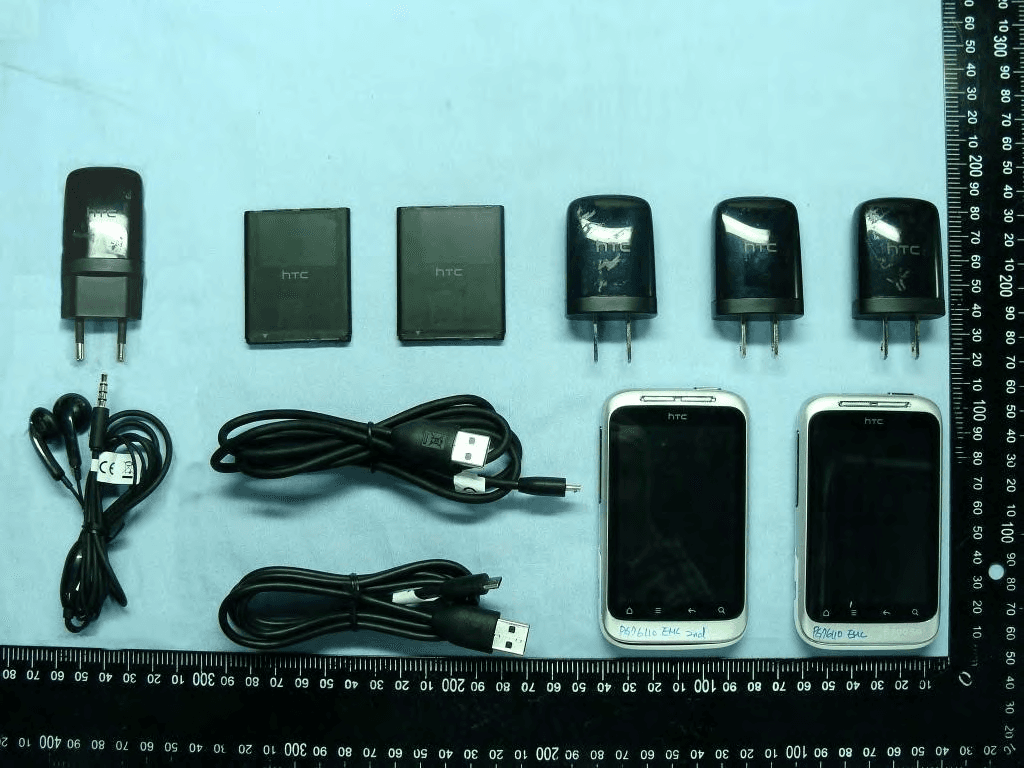

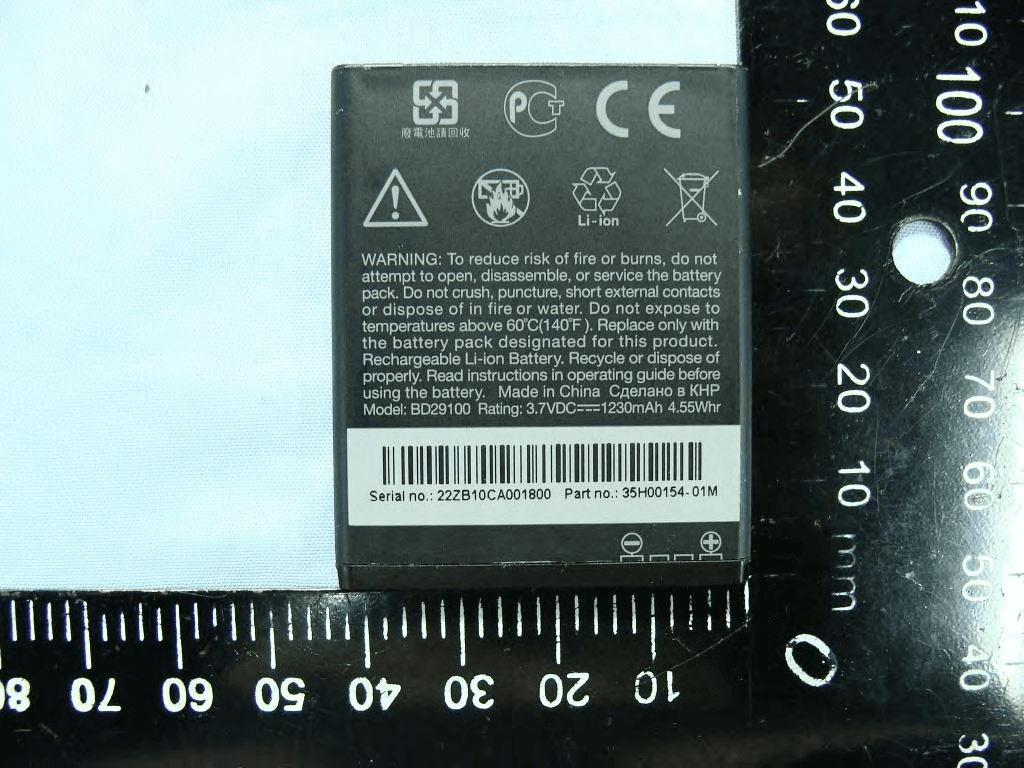

Photographs of EUT Report No.: EP112545 Model Name: PG76110 SPORTON INTERNATIONAL INC. Page Number : 1 of 24 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG76110 1. External Photograph of EUT Sample 1 Photographs of EUT Report No.: EP112545 Model Name: PG76110 SPORTON INTERNATIONAL INC. Page Number : 2 of 24 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG76110 720510 Photographs of EUT Report No.: EP112545 Model Name: PG76110 SPORTON INTERNATIONAL INC. Page Number : 3 of 24 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG76110 Sample 2 Photographs of EUT Report No.: EP112545 Model Name: PG76110 SPORTON INTERNATIONAL INC. Page Number : 4 of 24 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG76110 Photographs of EUT Report No.: EP112545 Model Name: PG76110 SPORTON INTERNATIONAL INC. Page Number : 5 of 24 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG76110 List of Accessory: Specification of Accessory AC Adapter 1 Brand Name HTC Manufacturer Emerson Model Name TC X250 (X=A,B,C,E,U) AC Adapter 2 Brand Name HTC Manufacturer Delta Model Name TC X250 (X=A,B,C,E,U) AC Adapter 3 Brand Name HTC Manufacturer PHIHONG Model Name TC X250 (X=A,B,C,E,U) Battery 1 Brand Name HTC Manufacturer TWS Model Name BD 29100 Battery 2 Brand Name HTC Manufacturer HT Energy Model Name BD 29100 Earphone Brand Name KINGSTATE Model Name HS G325 USB Cable 1 Brand Name HTC Manufacturer COXOC Model Name DC M410 USB Cable 2 Brand Name HTC Manufacturer Foxlink Model Name DC M410 LCM 1 Brand Name AUO Model Name H320QN01 LCM 2 Brand Name LGD Model Name LH320H03-SD01 Camera 1 Brand Name Liteon Model Name 10P1BA516 Camera 2 Brand Name Foxconn Model Name CMHT-5AS07D Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP112545 Model Name: PG76110 SPORTON INTERNATIONAL INC. Page Number : 6 of 24 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG76110 720510 Photographs of EUT Report No.: EP112545 Model Name: PG76110 SPORTON INTERNATIONAL INC. Page Number : 7 of 24 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG76110 Adapter 1 Photographs of EUT Report No.: EP112545 Model Name: PG76110 SPORTON INTERNATIONAL INC. Page Number : 8 of 24 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG76110 Adapter 2 Photographs of EUT Report No.: EP112545 Model Name: PG76110 SPORTON INTERNATIONAL INC. Page Number : 9 of 24 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG76110 Battery 1 Photographs of EUT Report No.: EP112545 Model Name: PG76110 SPORTON INTERNATIONAL INC. Page Number : 10 of 24 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG76110 Battery 2

52.69 24.10 27.14 15.19 42.39 3.68 2.15 2.23 1.70 21.57 front back 16.698 1.70 15.19 42.39 2.23 2.15 24.10 27.14 52.69 3.68 21.57 P/N:XXHXXXXX-XX NOT ADHESIVE AREA adhesive side Model: PG76110 Made in Taiwan 5VDC 1A Use only batteries and power supplies listed in user manual FCC ID : NM8PG76110 IC : 4115B-PG76110

Remark: 1. Cell phones or Cordless phones can have the Identifier in the battery compartment under certain conditions. a) The available label area on the phone is limited because they are relatively small and have many contoured surfaces, keypads, LCD displays, charge contacts and/or other connectors. b) The batteries for these devices are designed for easy removal and that the labels will be visible whenever the batteries are removed for charging or replacement c) The label will be readily visible at the time of purchase because the phone will be marketed without the battery installed.

Photographs of EUT Report No.: EP112545 Model Name: PG76110 SPORTON INTERNATIONAL INC. Page Number : 11 of 24 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG76110 3. Internal Photograph of EUT Sample 1 Photographs of EUT Report No.: EP112545 Model Name: PG76110 SPORTON INTERNATIONAL INC. Page Number : 12 of 24 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG76110 Photographs of EUT Report No.: EP112545 Model Name: PG76110 SPORTON INTERNATIONAL INC. Page Number : 13 of 24 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG76110 Photographs of EUT Report No.: EP112545 Model Name: PG76110 SPORTON INTERNATIONAL INC. Page Number : 14 of 24 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG76110 720510 Photographs of EUT Report No.: EP112545 Model Name: PG76110 SPORTON INTERNATIONAL INC. Page Number : 15 of 24 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG76110 WWAN Antenna Photographs of EUT Report No.: EP112545 Model Name: PG76110 SPORTON INTERNATIONAL INC. Page Number : 16 of 24 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG76110 WLAN & Bluetooth Antenna Photographs of EUT Report No.: EP112545 Model Name: PG76110 SPORTON INTERNATIONAL INC. Page Number : 17 of 24 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG76110 GPS Antenna Photographs of EUT Report No.: EP112545 Model Name: PG76110 SPORTON INTERNATIONAL INC. Page Number : 18 of 24 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG76110 Sample 2 Photographs of EUT Report No.: EP112545 Model Name: PG76110 SPORTON INTERNATIONAL INC. Page Number : 19 of 24 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG76110 Photographs of EUT Report No.: EP112545 Model Name: PG76110 SPORTON INTERNATIONAL INC. Page Number : 20 of 24 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG76110 Photographs of EUT Report No.: EP112545 Model Name: PG76110 SPORTON INTERNATIONAL INC. Page Number : 21 of 24 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG76110 Sample 2 Photographs of EUT Report No.: EP112545 Model Name: PG76110 SPORTON INTERNATIONAL INC. Page Number : 22 of 24 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG76110 WWAN Antenna Photographs of EUT Report No.: EP112545 Model Name: PG76110 SPORTON INTERNATIONAL INC. Page Number : 23 of 24 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG76110 WLAN & Bluetooth Antenna Photographs of EUT Report No.: EP112545 Model Name: PG76110 SPORTON INTERNATIONAL INC. Page Number : 24 of 24 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG76110 GPS Antenna

Photographs of EUT Report No.: EP112545 Model Name: PG76110 SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : Mar. 07, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG76110 GPS Antenna (Rx Only) WLAN & Bluetooth Antenna (Tx / Rx) WWAN Antenna (Tx / Rx) 5.5 cm

SPORTON INTERNATIONAL INC. Page Number : 1 of 39 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG76110 FCC SAR Test Report Report No. : FA112545B FCC SAR Test Report APPLICANT : HTC Corporation EQUIPMENT : Smartphone MODEL NAME : PG76110 FCC ID : NM8PG76110 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Jan. 25, 2011 and completely tested on Feb. 23, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 39 TEL : 886-3-327-3456 Report Issued Date : Mar. 28, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PG76110 FCC SAR Test Report Report No. : FA112545B Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Applied Standards ............................................................................................................................................ 7 3.3 Device Category and SAR Limits ..................................................................................................................... 7 3.4 Test Conditions ................................................................................................................................................. 7 3.4.1 Ambient Condition .................................................................................................................................. 7 3.4.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 9 4.1 Introduction ....................................................................................................................................................... 9 4.2 SAR Definition .................................................................................................................................................. 9 5. SAR Measurement System .......................................................................................................................................10 5.1 E-Field Probe................................................................................................................................................... 11 5.1.1 E-Field Probe Specification ................................................................................................................... 11 5.1.2 E-Field Probe Calibration .......................................................................................................................12 5.2 Data Acquisition Electronics (DAE) ..................................................................................................................12 5.3 Robot ...............................................................................................................................................................12 5.4 Measurement Server .......................................................................................................................................13 5.5 Phantom ..........................................................................................................................................................14 5.6 Device Holder ..................................................................................................................................................15 5.7 Data Storage and Evaluation ...........................................................................................................................17 5.7.1 Data Storage .........................................................................................................................................17 5.7.2 Data Evaluation ....................................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/2/23 System Check_Head_2450MHz_110223 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_110223 Medium parameters used: f = 2450 MHz; σ = 1.84 mho/m; ε r = 38.2; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.35, 4.35, 4.35); Calibrated: 2010/9/21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/1/13 - Phantom: SAM - Front; Type: SAM; Serial: TP-1446 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 17.4 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 97.3 V/m; Power Drift = -0.082 dB Peak SAR (extrapolated) = 32 W/kg SAR(1 g) = 14.3 mW/g; SAR(10 g) = 6.46 mW/g Maximum value of SAR (measured) = 16 mW/ g 0 dB = 16mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/1/29 System Check_Body_2450MHz_110129 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_110129 Medium parameters used: f = 2450 MHz; σ = 2 mho/m; ε r = 54; ρ = 1000 kg/m 3 Ambient Temperature：22.3 °C; Liquid Temperature：21.1 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.03, 4.03, 4.03); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 15.3 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 88.5 V/m; Power Drift = -0.010 dB Peak SAR (extrapolated) = 32.6 W/kg SAR(1 g) = 13.7 mW/g; SAR(10 g) = 6.48 mW/g Maximum value of SAR (measured) = 14.9 mW/g 0 dB = 14.9mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Dat: 2011/2/23 System Check_Body_2450MHz_110223 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_110223 Medium parameters used: f = 2450 MHz; σ = 2.02 mho/m; ε r = 53.9; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.04, 4.04, 4.04); Calibrated: 2010/9/21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/1/13 - Phantom: SAM-Back; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=250mW/Area Scan (91x91x1):…

Text truncated - open the document above for the full version.
