NM8PH44100Smart Phone

User Guide 2011/05/05 for certification review only 41. Device Basics Your Device (page 4) Turning Your Device On and Off (page 7) Viewing the Display Screen (page 9) Battery and Charger (page 14) Getting Around Your Device (page 17) Displaying Your Phone Number (page 20) Making and Answering Calls (page 20) Speed Dialing (page 26) Dialing Sprint Services (page 26) Entering Text (page 27) Home Screen (page 33) Your Device Tip:Device Software Upgrades – Updates to your device’s software may become available from time to time.  Sprint will automatically send critical updates to your device. You can also check for and download updates by pressing > , and then tapping Settings > System updates > Firmware update to search for and download available updates. 1.Device Basics 1 2 10 3 4 5 9 8 7 6 2011/05/05 for certification review only 1. Device Basics5 Device Basics Key Functions 1.Front Indicator Light (LED) shows your device’s status or pending notifications at a glance. 2.Proximity Sensor automatically switches the display screen off when you hold the device near your face during a call. When activated, the proximity sensor does not affect the device’s 3G, 4G, or  Wi-Fi connection. 3.Display Screen displays all the information needed to operate your device, such as the call status, the People list, the date and time, and the signal and battery strength. 4.Menu Key allows you to open a list of actions that you can do on the current screen. 5.Home Key takes you back to the Home screen. When in standby mode, press and hold to open the recently used applications window. 6.Microphone allows other callers to hear you clearly when you are speaking to them. 7.Search Key allows you to search information on the current screen or application. For example, while in People, press to search for a contact. 8.Back Key allows you to go back to the previous screen, or close a dialog box, options menu, the Notifications panel, or onscreen keyboard. 9.Front Camera allows you to take photos and videos or start a video call. 10.Earpiece lets you hear the caller and automated prompts. 11.3.5 mm Headset Jack allows you to plug in either a stereo headset or an optional headset for convenient, hands-free conversations. CAUTION! Inserting an accessory into the incorrect jack may damage the device. 12.Power Button lets you turn the device on or off, turn the screen on or off, restart the device, or switch the device to airplane mode. 1112 2011/05/05 for certification review only 17 13 16 15 14 61. Device Basics 13. Flash helps illuminate subjects in low-light environments when the camera is focusing and capturing a photo or video. 14 .Camera lens allow you to capture high-definition photos and videos. 15.Charger/Accessory Jack allows you to connect the device charger or the USB cable (included). CAUTION! Inserting an accessory into the incorrect jack may damage the device. 16.Volume Buttons allow you to adjust the ringer or media volume or adjust the voice volume during a call. 17.Speaker lets you hear the different ringers and sounds. The speaker also lets you hear the caller’s voice in speakerphone mode. 2011/05/05 for certification review only 1. Device Basics7 Device Basics Turning Your Device On and Off Turning Your Device On Press at the top of the device. Turning Your Device Off 1.Press and hold for about two seconds. 2.On the Power options menu, tap Power off. Restarting Your Device 1.Press and hold for about two seconds. 2.On the Power options menu, tap Restart. 3.In the Restart phone confirmation box, tap Restart. Turning the Screen Off When Not in Use To save battery power, the device automatically turns off the screen after a certain period of time when you leave it idle. You will still be able to receive messages and calls while the device’s screen is off. You can also turn off and lock the screen by pressing . Pressing again or receiving an incoming call will turn on your device screen and show the lock screen. Note:When the screen is locked and you press , it will only turn off the screen and not the device. You will need to unlock the screen first before you press and hold to turn the device off. See “Turning the Screen Off When Not in Use” for details. Note:Restarting the device will close all running apps and will clear all temporary files in the device’s memory. Make sure to save your work before restarting the device. Tip:For information on how to adjust the time before the screen turns off, see “Display Settings” on page 44. 2011/05/05 for certification review only 81. Device Basics Using the Lock Screen Aside from protecting the device’s screen from unwanted taps, the lock screen also displays important information, updates, and messages at a glance, or provide shortcut icons to your favorite applications. To unlock the screen: 1.When the screen is off, press to show the lock screen. 2.Drag the ring up to unlock the screen. When you have an incoming call, dragging the ring up answers the call. – or – Drag a shortcut icon, a photo, or a message board to the ring to unlock the screen and launch the related application. Note:If you have set up a screen lock, you will be prompted to draw the pattern, enter the PIN, or enter the password. For more information on how to create and enable a screen lock, see “Protecting Your Device with a Screen Lock” on page 50. 2011/05/05 for certification review only 1. Device Basics9 Device Basics Viewing the Display Screen Your device’s display screen provides information about notifications and your device’s status. This list identifies the symbols you’ll see on your device’s display screen: Status Bar – Notification Icons New Text or Multimedia Message New Voicemail New Gmail message New Microsoft Exchange ActiveSync or POP3/IMAP email message Problem with Text/Multimedia Message delivery New instant message from Google Talk Upcoming event Music is playing General notification (for example, sync error) Storage card is low on free space Wi-Fi is on a…

Text truncated - open the document above for the full version.

Safety Guide  Important Safety Information Important Safety Information  Important Safety Information  Important Safety Information This section contains important operational and safety information that will help you safely use your device. Failure to read and follow the information provided in this guide may result in serious bodily injury, death, or property damage. Important Health Information and Safety Precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. Electrical Safety This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. Safety Precautions for Proper Grounding Installation CAUTION: Connecting to an improperly grounded equipment can result in an electric shock to your device. This product is equipped with a USB cable for connecting with desktop or notebook computer. Important Safety Information  Important Safety Information  Important Safety Information Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet which is properly installed and grounded in accordance with all local codes and ordinances. Safety Precautions for Power Supply Unit Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product. • This product should be operated only with the following designated power supply unit(s). AC Adapter HTC, Model TC U250 Handle battery packs carefully This product contains a Lithium-ion polymer or Lithium-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. Do not attempt to open or service the battery pack. Do not disassemble, crush, puncture, short external contacts or circuits, dispose of in fire or water, or expose a battery pack to temperatures higher than 140°F (60°C). •  Important Safety Information Important Safety Information  Important Safety Information  WARNING: Danger of explosion if battery is incorrectly replaced. To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts, expose to temperatures above 140°F (60°C), or dispose of in fire or water. Replace only with specified batteries. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product. NOTE: This product should be operated only with the following designated Battery Pack(s). HTC, Model BH11100. Take Extra Precautions Keep the battery or device dry and away from water or any liquid as it may cause a short circuit. Keep metal objects away so they don’t come in contact with the battery or its connectors as it may lead to short circuit during operation. The device should only be connected to products that bear the USB-IF logo or have completed the USB-IF compliance program. Do not use a battery that appears damaged, deformed, or discolored, or the one that has any rust on its casing, overheats, or emits a foul odor. Always keep the battery out of the reach of babies and small children, to avoid swallowing of the battery. Consult the doctor immediately if the battery is swallowed. Only use the battery with a charging system that has been qualified with the system per this standard, IEEE-Std-1725-2006. Use of an unqualified battery • • • • • • Important Safety Information  Important Safety Information  Important Safety Information or charger may present a risk of fire, explosion, leakage or other hazard. Replace the battery only with another battery that has been qualified with the system per this standard, IEEE-Std-1725-2006. Use of an unqualified battery may present a risk of fire, explosion, leakage or other hazard. Avoid dropping the device. If the device is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection. If the battery leaks: Do not allow the leaking fluid to come in contact with skin or clothing. If already in contact, flush the affected area immediately with clean water and seek medical advice. Do not allow the leaking fluid to come in contact with eyes. If already in contact, DO NOT rub; rinse with clean water immediately and seek medical advice. • • • ▪ ▪ Take extra precautions to keep a leaking battery away from fire as there is a danger of ignition or explosion. Safety Precautions for Direct Sunlight Keep this product away from excessive moisture and extreme temperatures. Do not leave the product inside a vehicle or in places where the temperature may exceed 60°C (140°F), such as on a car dashboard, window sill, or behind a glass that is exposed to direct sunlight or strong ultraviolet light for extended periods of time. This may damage the product, overheat the battery, or pose a risk to the vehicle. Prevention of Hearing Loss CAUTION: Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time. ▪  Important Safety Information Important Safety Information  Important Safety Information  Safety in Aircraft Due to the possible interference caused by this product to an aircraft’s navigation system and its communications network, using this devic…

Text truncated - open the document above for the full version.

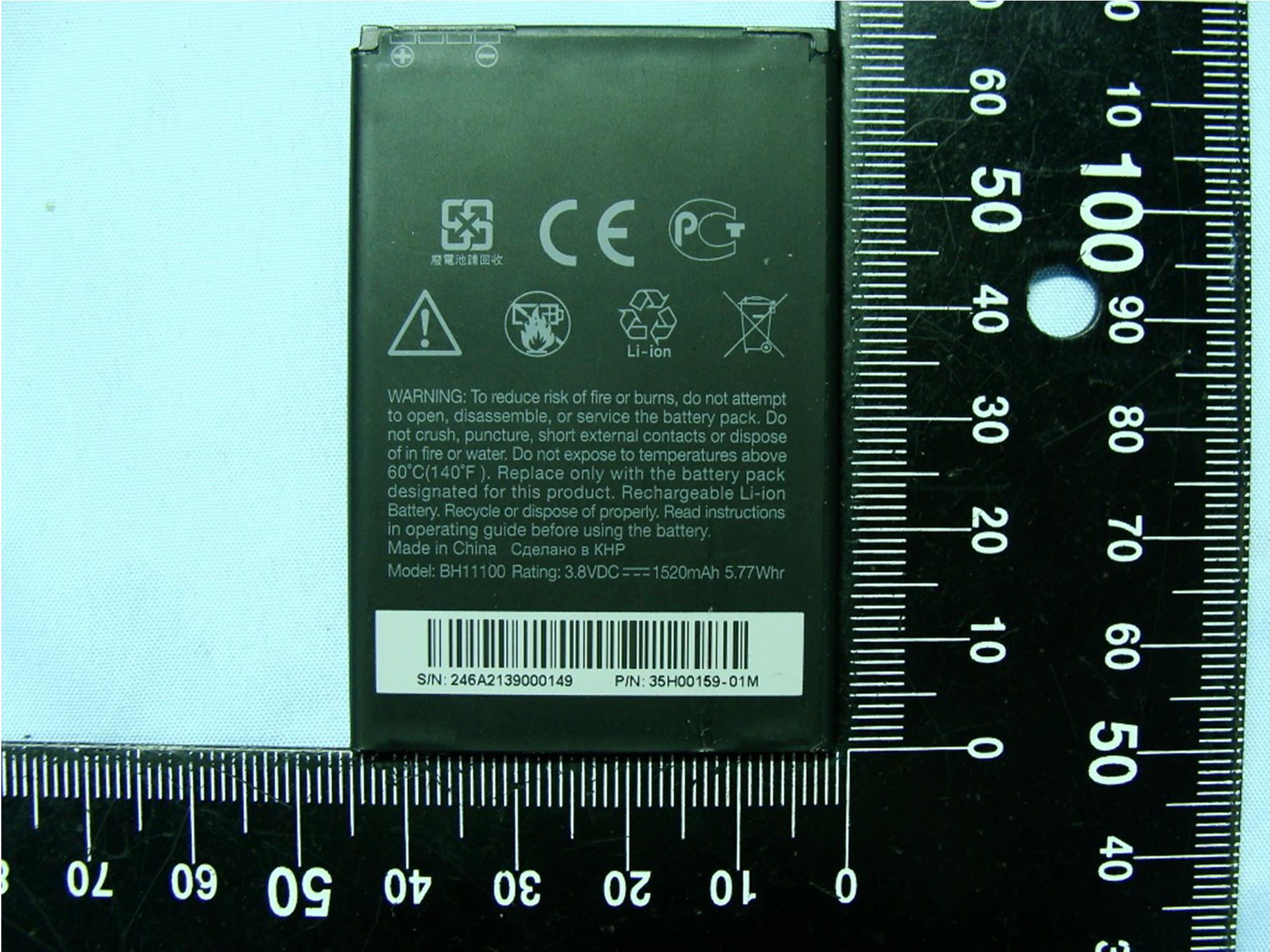

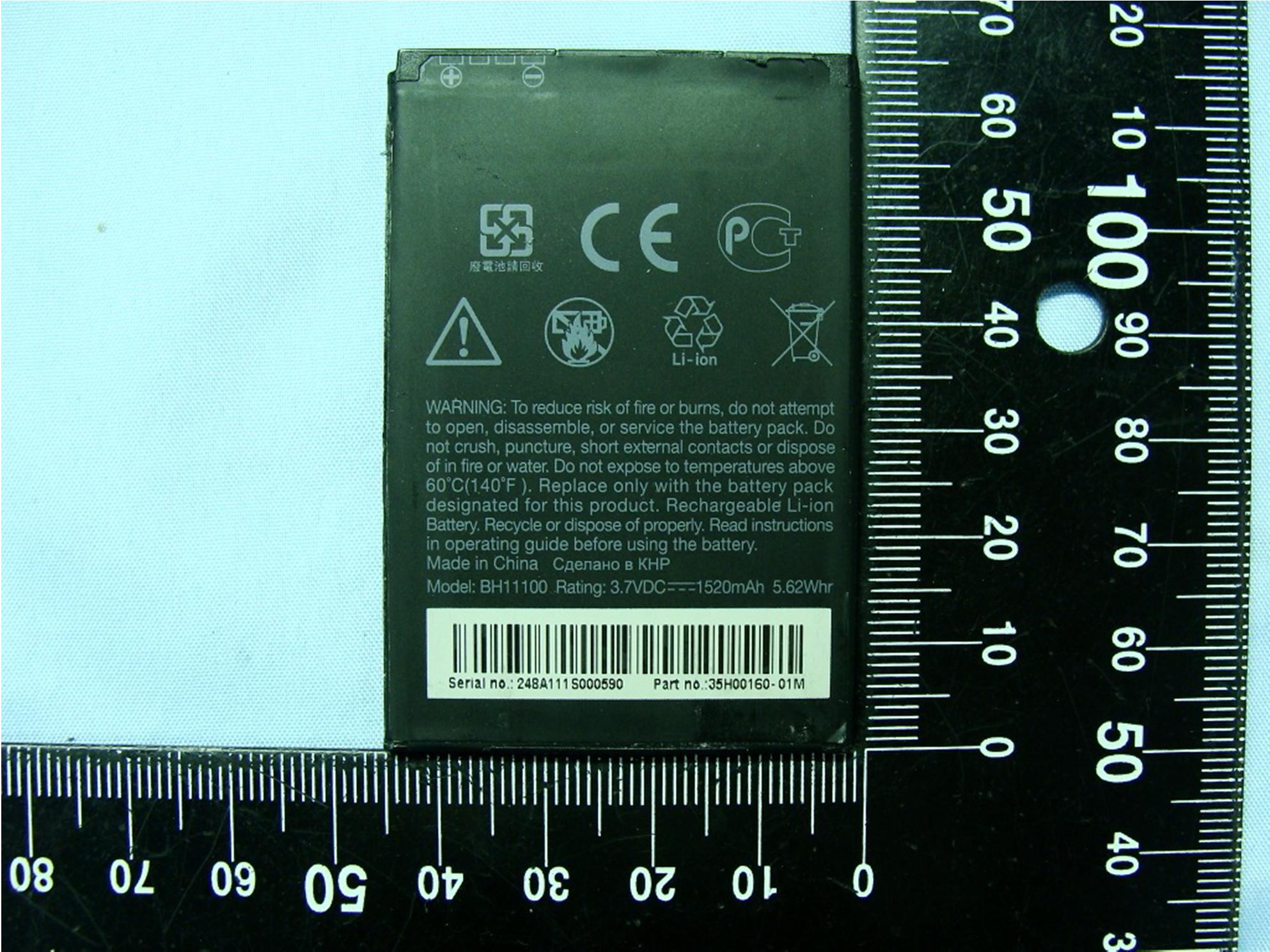

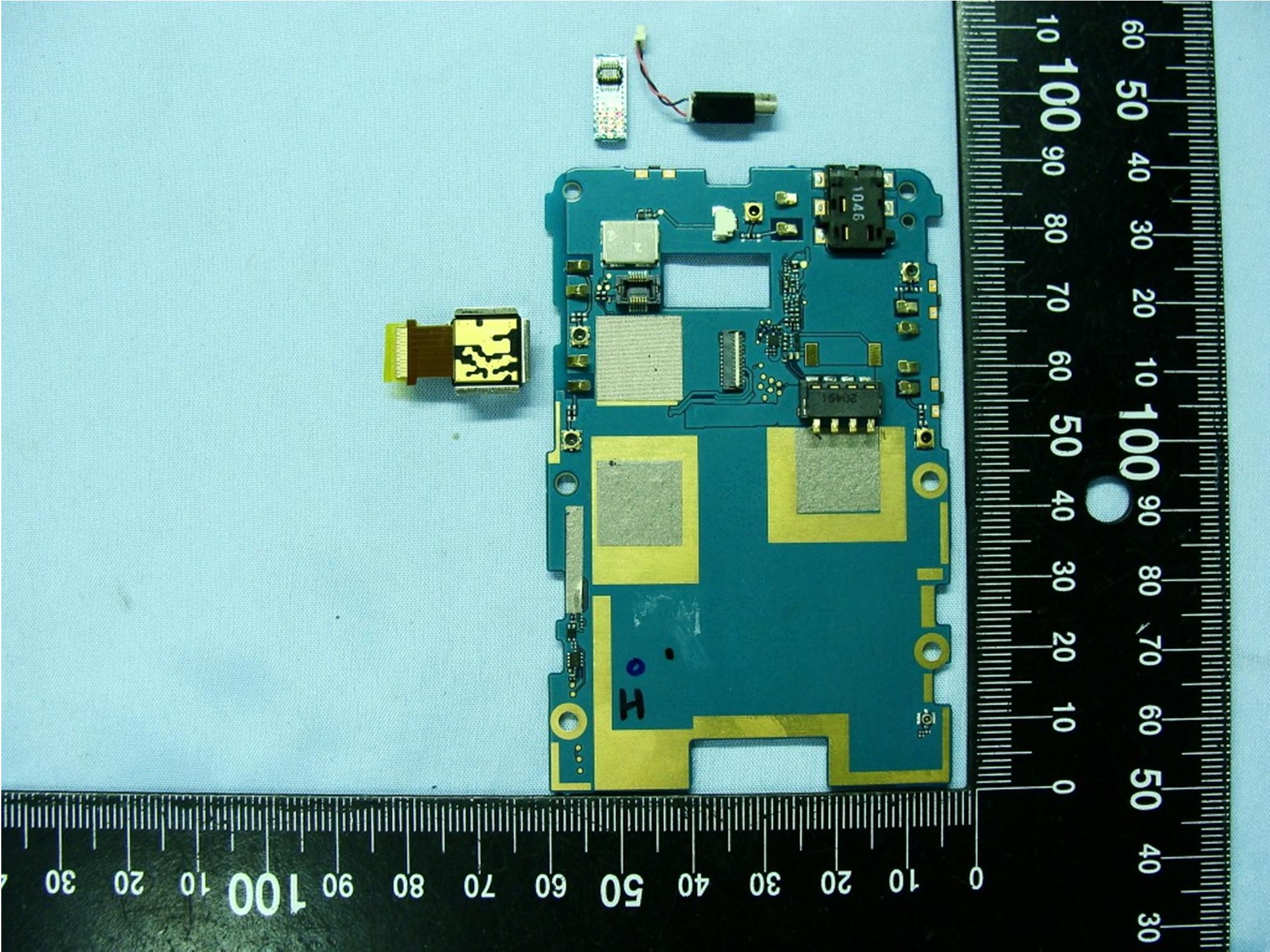

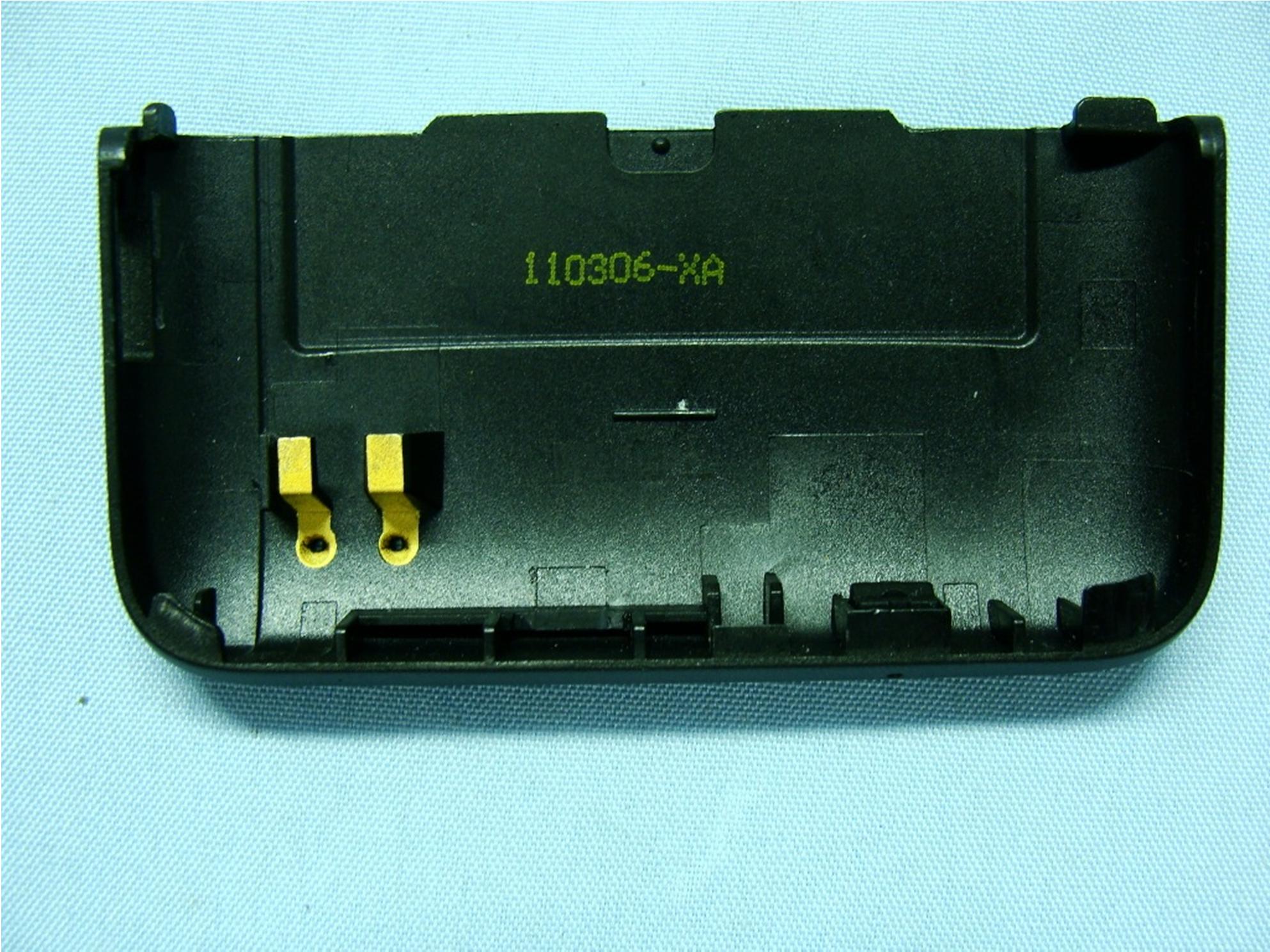

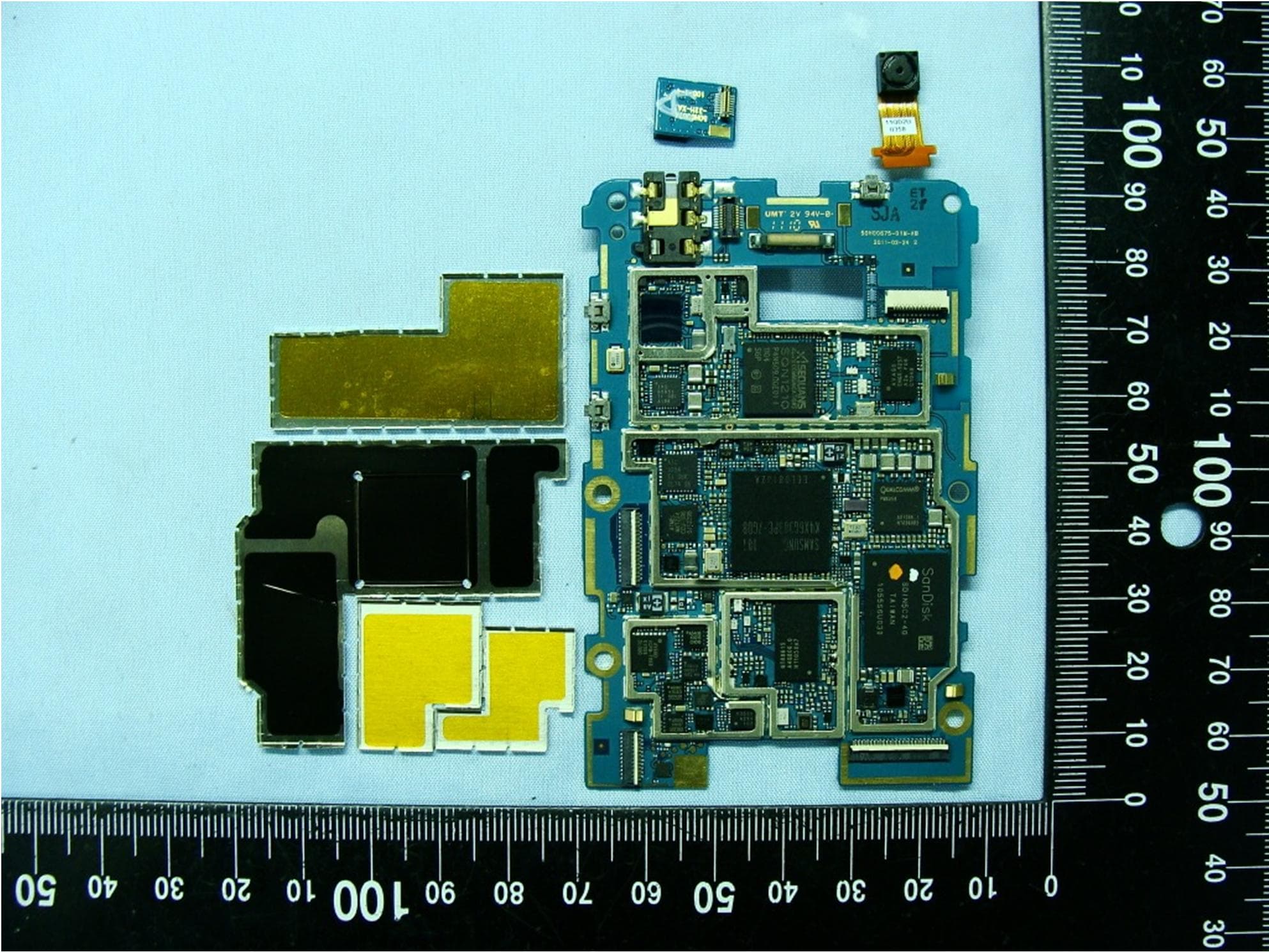

Photographs of EUT Report No.: EP132949 Model Name: PH44100 SPORTON INTERNATIONAL INC. Page Number : 1 of 18 TEL : 886-3-327-3456 Report Issued Date : May 20, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PH44100 1. External Photograph of EUT Photographs of EUT Report No.: EP132949 Model Name: PH44100 SPORTON INTERNATIONAL INC. Page Number : 2 of 18 TEL : 886-3-327-3456 Report Issued Date : May 20, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PH44100 Photographs of EUT Report No.: EP132949 Model Name: PH44100 SPORTON INTERNATIONAL INC. Page Number : 3 of 18 TEL : 886-3-327-3456 Report Issued Date : May 20, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PH44100 List of Accessory: Specification of Accessory AC Adapter 1 Brand Name HTC Manufacturer Emerson Model Name TC U250 AC Adapter 2 Brand Name HTC Manufacturer Phihong Model Name TC U250 Battery 1 Brand Name HTC Manufacturer HT Model Name BH11100 Battery 2 Brand Name HTC Manufacturer Formosa Model Name BH11100 USB Cable 1 Brand Name HTC Manufacturer Foxlink Model Name DC M410 USB Cable 2 Brand Name HTC Manufacturer COXOC Model Name DC M410 USB Cable 3 Brand Name HTC Manufacturer MEC Model Name DC M410 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP132949 Model Name: PH44100 SPORTON INTERNATIONAL INC. Page Number : 4 of 18 TEL : 886-3-327-3456 Report Issued Date : May 20, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PH44100 Photographs of EUT Report No.: EP132949 Model Name: PH44100 SPORTON INTERNATIONAL INC. Page Number : 5 of 18 TEL : 886-3-327-3456 Report Issued Date : May 20, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PH44100 Adapter 1 Photographs of EUT Report No.: EP132949 Model Name: PH44100 SPORTON INTERNATIONAL INC. Page Number : 6 of 18 TEL : 886-3-327-3456 Report Issued Date : May 20, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PH44100 Adapter 2 Photographs of EUT Report No.: EP132949 Model Name: PH44100 SPORTON INTERNATIONAL INC. Page Number : 7 of 18 TEL : 886-3-327-3456 Report Issued Date : May 20, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PH44100 Battery 1 Photographs of EUT Report No.: EP132949 Model Name: PH44100 SPORTON INTERNATIONAL INC. Page Number : 8 of 18 TEL : 886-3-327-3456 Report Issued Date : May 20, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PH44100 Battery 2 Photographs of EUT Report No.: EP132949 Model Name: PH44100 SPORTON INTERNATIONAL INC. Page Number : 9 of 18 TEL : 886-3-327-3456 Report Issued Date : May 20, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PH44100 USB Cable 1 Photographs of EUT Report No.: EP132949 Model Name: PH44100 SPORTON INTERNATIONAL INC. Page Number : 10 of 18 TEL : 886-3-327-3456 Report Issued Date : May 20, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PH44100 USB Cable 2 Photographs of EUT Report No.: EP132949 Model Name: PH44100 SPORTON INTERNATIONAL INC. Page Number : 11 of 18 TEL : 886-3-327-3456 Report Issued Date : May 20, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PH44100 USB Cable 3 Photographs of EUT Report No.: EP132949 Model Name: PH44100 SPORTON INTERNATIONAL INC. Page Number : 12 of 18 TEL : 886-3-327-3456 Report Issued Date : May 20, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PH44100 3. Internal Photograph of EUT Photographs of EUT Report No.: EP132949 Model Name: PH44100 SPORTON INTERNATIONAL INC. Page Number : 13 of 18 TEL : 886-3-327-3456 Report Issued Date : May 20, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PH44100 Photographs of EUT Report No.: EP132949 Model Name: PH44100 SPORTON INTERNATIONAL INC. Page Number : 14 of 18 TEL : 886-3-327-3456 Report Issued Date : May 20, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PH44100 WWAN Main Antenna <Tx/Rx> Photographs of EUT Report No.: EP132949 Model Name: PH44100 SPORTON INTERNATIONAL INC. Page Number : 15 of 18 TEL : 886-3-327-3456 Report Issued Date : May 20, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PH44100 WLAN and Bluetooth Antenna <Tx/Rx> Photographs of EUT Report No.: EP132949 Model Name: PH44100 SPORTON INTERNATIONAL INC. Page Number : 16 of 18 TEL : 886-3-327-3456 Report Issued Date : May 20, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PH44100 Diversity Antenna < Rx Only> Photographs of EUT Report No.: EP132949 Model Name: PH44100 SPORTON INTERNATIONAL INC. Page Number : 17 of 18 TEL : 886-3-327-3456 Report Issued Date : May 20, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PH44100 WiMAX Antenna <Tx/Rx> Photographs of EUT Report No.: EP132949 Model Name: PH44100 SPORTON INTERNATIONAL INC. Page Number : 18 of 18 TEL : 886-3-327-3456 Report Issued Date : May 20, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PH44100 GPS Antenna <Rx>

Remark: 1. Cell phones or Cordless phones can have the Identifier in the battery compartment under certain conditions. a) The available label area on the phone is limited because they are relatively small and have many contoured surfaces, keypads, LCD displays, charge contacts and/or other connectors. b) The batteries for these devices are designed for easy removal and that the labels will be visible whenever the batteries are removed for charging or replacement c) The label will be readily visible at the time of purchase because the phone will be marketed without the battery installed.

Photographs of EUT Report No.: EP132949 Model Name: PH44100 SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : May 20, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PH44100 GPS Antenna <Rx> WWAN Main Antenna <Tx/Rx> WLAN & Bluetooth Antenna <Tx/Rx> WiMAX Antenna <Tx/Rx> WWAN Diversity Antenna <Rx Only> 6.8 cm 4.3 cm 4.3 cm 8.3 cm 0.5 cm 6 cm

SPORTON INTERNATIONAL INC. Page Number : 1 of 44 TEL : 886-3-327-3456 Report Issued Date : Jun. 2, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PH44100 FCC SAR Test Report Report No. : FA132949C FCC SAR Test Report APPLICANT : HTC Corporation EQUIPMENT : Smart Phone MODEL NAME : PH44100 FCC ID : NM8PH44100 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Mar. 29, 2011 and completely tested on May 01, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 44 TEL : 886-3-327-3456 Report Issued Date : Jun. 2, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PH44100 FCC SAR Test Report Report No. : FA132949C Table of Contents Revision History ......................................................................................................................................................... 3 1. Statement of Compliance .................................................................................................................................... 4 2. Administration Data ............................................................................................................................................. 5 2.1 Testing Laboratory ...................................................................................................................................... 5 2.2 Applicant .................................................................................................................................................... 5 2.3 Manufacturer .............................................................................................................................................. 5 2.4 Application Details ...................................................................................................................................... 5 3. General Information ............................................................................................................................................. 6 3.1 Description of Device Under Test (DUT) ...................................................................................................... 6 3.2 Applied Standards ...................................................................................................................................... 6 3.3 Device Category and SAR Limits ................................................................................................................. 6 3.4 Test Conditions ........................................................................................................................................... 7 3.4.1 Ambient Condition ............................................................................................................................. 7 3.4.2 Test Configuration ............................................................................................................................. 7 4. Specific Absorption Rate (SAR) ........................................................................................................................ 12 4.1 Introduction .............................................................................................................................................. 12 4.2 SAR Definition .......................................................................................................................................... 12 5. SAR Measurement System ................................................................................................................................ 13 5.1 E-Field Probe ........................................................................................................................................... 14 5.1.1 E-Field Probe Specification .............................................................................................................. 14 5.1.2 E-Field Probe Calibration ................................................................................................................. 15 5.2 Data Acquisition Electronics (DAE) ............................................................................................................ 15 5.3 Robot ....................................................................................................................................................... 15 5.4 Measurement Server ................................................................................................................................ 16 5.5 Phantom ................................................................................................................................................... 17 5.6 Device Holder ........................................................................................................................................... 18 5.7 Data Storage and Evaluation ..................................................................................................................... 20 5.7.1 Data Storage ................................................................................................................................... 20 5.7.2 Data Evaluation ............................................................................................................................... 20 5.8 Test Equipment List...............................................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/4/22 System Check_Head_2600MHz_110422 DUT: Dipole 2600 MHz Communication System: CW; Frequency: 2600 MHz;Duty Cycle: 1:1 Medium: HSL_2600_110422 Medium parameters used: f = 2600 MHz; σ = 1.97 mho/m; ε r = 38.2; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3731; ConvF(6.88, 6.88, 6.88); Calibrated: 2010/9/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: SAM-Back; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 16.5 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 90.2 V/m; Power Drift = 0.00948 dB Peak SAR (extrapolated) = 34.9 W/kg SAR(1 g) = 14.4 mW/g; SAR(10 g) = 6.12 mW/g Maximum value of SAR (measured) = 16.4 mW/ g 0 dB = 16.4mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/4/29 System Check_Head_2600MHz_110429 DUT: Dipole 2600 MHz Communication System: CW; Frequency: 2600 MHz;Duty Cycle: 1:1 Medium: HSL_2600_110429 Medium parameters used: f = 2600 MHz; σ = 1.96 mho/m; ε r = 38.1; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3731; ConvF(6.88, 6.88, 6.88); Calibrated: 2010/9/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: SAM-Back; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 16.4 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 90.2 V/m; Power Drift = 0.00948 dB Peak SAR (extrapolated) = 34.7 W/kg SAR(1 g) = 14.3 mW/g; SAR(10 g) = 6.09 mW/g Maximum value of SAR (measured) = 16.3 mW/ g 0 dB = 16.3mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date/Time: 2011/4/30 System Check_Body_2600MHz_110430 DUT: Dipole 2600 MHz Communication System: CW; Frequency: 2600 MHz;Duty Cycle: 1:1 Medium: MSL_2600_110430 Medium parameters used: f = 2600 MHz; σ = 2.2 mho/m; ε r = 53.8; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3731; ConvF(6.85, 6.85, 6.85); Calibrated: 2010/9/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 16.4 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 85.7 V/m; Power Drift = -0.019 dB Peak SAR (extrapolated) = 31.2 W/kg SAR(1 g) = 13.9 mW/g; SAR(10 g) = 5.98 mW/g Maximum value of SAR (measured) = 16.1 mW/ g 0 dB = 16.1mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/5/1 System Check_Body_2600MHz_110501 DUT: Dipole 2600 MHz Communication System: CW; Frequency: 2600 MHz;Duty Cycle: 1:1 Medium: MSL_2600_110501 Medium parameters used: f = 2600 MHz; σ = 2.21 mho/m; ε r = 52.8; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3731; ConvF(6.85, 6.85, 6.85); Calibrated: 2010/9/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: SAM-Back; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 16.5 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 85.7 V/m; Power Drift = -0.019 dB Peak SAR (extrapolated) = 31.3 W/kg SAR(1 g) = 14 mW/g; SAR(10 g) = 6 mW/g Maximum value of SAR (measured) = 16.1 mW/ g 0 dB = 16.1mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/4/22 #01 Wimax2600_QPSK1-2_5M_Right Cheek_Ch2_Ant 0_Battery1 DUT: 132949 Communication System: Wimax_2.6G_5M; Frequency: 2687.5 MHz;Duty Cycle: 1:3.24 Medium: HSL_2600_110422 Medium parameters used: f = 2687.5 MHz; σ = 2.06 mho/m; ε r = 37.9; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3731; ConvF(6.88, 6.88, 6.88); Calibrated: 2010/9/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: SAM-Back; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch2/Area Scan (61x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.258 mW/g Ch2/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.7 V/m; Power Drift = -0.046 dB Peak SAR (extrapolated) = 0.552 W/kg SAR(1 g) = 0.263 mW/g; SAR(10 g) = 0.126 mW/g Maximum value of SAR (measured) = 0.291 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/4/22 #02 Wimax2600_QPSK1-2_5M_Right Cheek_Ch2_Ant 0_Battery2 DUT: 132949 Communication System: Wimax_2.6G_5M; Frequency: 2687.5 MHz;Duty Cycle: 1:3.24 Medium: HSL_2600_110422 Medium parameters used: f = 2687.5 MHz; σ = 2.06 mho/m; ε r = 37.9; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3731; ConvF(6.88, 6.88, 6.88); Calibrated: 2010/9/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: SAM-Back; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch2/Area Scan (61x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.258 mW/g Ch2/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.4 V/m; Power Drift = 0.154 dB Peak SAR (extrapolated) = 0.5…

Text truncated - open the document above for the full version.
