Your HTC One V User guide 20120217_Primo UM Draft for certificaiton only 20120217_Primo UM Draft for certification only 20120217_Primo UM Draft for certification only 20120217_Primo UM Draft for certification only 20120217_Primo UM Draft for certification only Contents Unboxing HTC One V6 Bottom cover7 SIM card9 Storage card10 Charging the battery11 Switching the power on or off11 Setting up HTC One V for the first time12 Want some quick guidance on using your phone?12 Your first week with your new phone Home screen13 Finger gestures13 Sleep mode14 Ways of getting contacts into HTC One V16 Making your first call16 Adjusting the volume17 Sending your first text message17 Copying and sharing text18 Switching between recently opened apps19 Notifications19 Getting to know your settings20 Getting the battery to last longer21 Updating the HTC One V software21 Personalizing Making HTC One V truly yours22 Personalizing HTC One V with scenes22 Changing your wallpaper23 Applying a new skin24 Personalizing your Home screen with widgets24 Adding apps and other shortcuts on your Home screen26 Rearranging or removing widgets and icons on your Home screen26 Personalizing the launch bar27 Grouping apps into a folder27 Personalizing with sound sets28 Rearranging application tabs29 Customizing the lock screen style30 Phone calls Making a call with Smart dial31 Using Speed dial31 2Contents 20120217_Primo UM Draft for certificaiton only 20120217_Primo UM Draft for certification only 20120217_Primo UM Draft for certification only 20120217_Primo UM Draft for certification only 20120217_Primo UM Draft for certification only Calling a phone number in a text message32 Calling a phone number in an email32 Calling a phone number in a Calendar event32 Making an emergency call32 Receiving calls32 What can I do during a call?33 Setting up a conference call35 Internet calls35 Call history36 Home dialing37 Call services37 Messages About the Messages app38 Sending a text message (SMS)38 Sending a multimedia message (MMS)38 Resuming a draft message40 Checking your messages40 Replying to a message41 Forwarding a message41 WAP push messages42 Managing message conversations42 Backing up your text messages43 Setting message options44 Search and Web browser Searching HTC One V and the Web45 Browsing the Web45 Private browsing47 Adding and managing your bookmarks47 Viewing your browsing history47 Downloading files and apps48 Setting browser options48 Accounts and sync Adding your social networks, email accounts, and more50 Adding one or more Google Accounts50 Managing your online accounts51 People About the People app52 Your contacts list52 Setting up your profile53 Adding a new contact54 Importing or copying contacts54 Merging contact information55 Contact information and conversations55 Contact groups56 Adding People widgets58 Sending contact information58 Backing up your contacts to the storage card59 3Contents 20120217_Primo UM Draft for certificaiton only 20120217_Primo UM Draft for certification only 20120217_Primo UM Draft for certification only 20120217_Primo UM Draft for certification only 20120217_Primo UM Draft for certification only Email Gmail60 Mail61 Internet connections Data connection67 Wi-Fi68 Connecting to a virtual private network (VPN)69 Using HTC One V as a wireless router70 Trademarks and copyrights Index 4Contents 20120217_Primo UM Draft for certificaiton only 20120217_Primo UM Draft for certification only 20120217_Primo UM Draft for certification only 20120217_Primo UM Draft for certification only 20120217_Primo UM Draft for certification only Conventions used in this guide In this user guide, we use the following symbols to indicate useful and important information: This is a note. A note often gives additional information, such as what happens when you choose to do or not to do a certain action. A note also provides information that may only be applicable to some situations. This is a tip. A tip gives you an alternative way to do a particular step or procedure, or lets you know of an option that you may find helpful. This indicates important information that you need in order to accomplish a certain task or to get a feature to work properly. This provides safety precaution information, that is, information that you need to be careful about to prevent potential problems. 5Conventions used in this guide 20120217_Primo UM Draft for certificaiton only 20120217_Primo UM Draft for certification only 20120217_Primo UM Draft for certification only 20120217_Primo UM Draft for certification only 20120217_Primo UM Draft for certification only Unboxing HTC One V 1.BACK 2.HOME 3.RECENT APPS 4.VOLUME 5.POWER 6.Notification LED 7.3.5mm headset jack 8.Proximity sensor 9.USB connector 6Unboxing 20120217_Primo UM Draft for certificaiton only 20120217_Primo UM Draft for certification only 20120217_Primo UM Draft for certification only 20120217_Primo UM Draft for certification only 20120217_Primo UM Draft for certification only Bottom cover Removing the bottom cover Remove the bottom cover to access the SIM card slot and storage card slot. 1.Securely hold HTC One V with the front facing down. 2.With your thumbs, push the bottom cover out to remove it. 7Unboxing 20120217_Primo UM Draft for certificaiton only 20120217_Primo UM Draft for certification only 20120217_Primo UM Draft for certification only 20120217_Primo UM Draft for certification only 20120217_Primo UM Draft for certification only Replacing the bottom cover Antennas are placed underneath the cover. To get the best signal for calls and data connection, be sure to secure the cover tightly. 1.Align the teeth underneath the bottom cover with the notches on the side of the phone. 2.Press down on the bottom cover with your thumbs, and then push it until it locks into place. You’ll hear a click when the bottom cover is locked in place. 8Unboxing 20120217_Primo UM Draft for certificaiton only 20120217_Primo UM Draft for certification only 20120217_Primo UM Draft for …

Text truncated - open the document above for the full version.

Safety and regulatory guide 2 Safety and regulatory guide Please read before proceeding THE BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE THE DEVICE OUT OF THE BOX. YOUR WARRANTY IS INVALIDATED IF YOU DISASSEMBLE OR ATTEMPT TO DISASSEMBLE THE DEVICE. Privacy restrictions Some countries require full disclosure of recorded telephone conversations, and stipulate that you must inform the person with whom you are speaking that the conversation is being recorded. Always obey the relevant laws and regulations of your country when using the recording feature of your phone. Disclaimers ANY WEATHER, STOCK, OR OTHER INFORMATION, DATA, OR DOCUMENTATION (“ACCESSED INFORMATION”) ARE PROVIDED “AS IS” AND WITHOUT ANY WARRANTY OR ANY TECHNICAL SUPPORT. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, HTC AND ITS AFFILIATES expressly disclaim any and all representations and warranties, arising by law or otherwise, related to the Accessed Information, including without limitation any express or implied representation or warranty of merchantability, fitness for a particular purpose, non-infringement, quality, accuracy, completeness, effectiveness, reliability, or usefulness. Without limiting the foregoing, it is further understood that HTC and its Affiliates are not responsible for any use of the Accessed Information or the results arising from such use, and that you use such information at your own risk. Safety and regulatory guide 3 Limitation of damages TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HTC OR ITS AFFILIATES BE LIABLE TO YOU, ANY USER, OR THIRD PARTY FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, INCIDENTAL OR PUNITIVE DAMAGES OF ANY KIND, ARISING IN CONTRACT, TORT, OR OTHERWISE, INCLUDING, BUT NOT LIMITED TO, INJURY, LOSS OF REVENUE, LOSS OF GOODWILL, LOSS OF BUSINESS OPPORTUNITY, LOSS OF DATA, AND/OR LOSS OF PROFITS, REGARDLESS OF THE FORESEEABILITY THEREOF OR WHETHER HTC OR ITS AFFILIATES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. AND IN NO EVENT SHALL THE TOTAL LIABILITY OF HTC OR ITS AFFILIATES EXCEED THE AMOUNT RECEIVED FROM YOU, REGARDLESS OF THE LEGAL THEORY UNDER WHICH THE CAUSE OF ACTION IS BROUGHT. THE FOREGOING DOES NOT AFFECT ANY STATUTORY RIGHTS WHICH MAY NOT BE DISCLAIMED. Important health information and safety precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. Electrical safety This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. Safety precautions for proper grounding installation CAUTION: Connecting to improperly grounded equipment can result in an electric shock to your device. This product is equipped with a USB Cable for connecting with desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate 4 Safety and regulatory guide outlet which is properly installed and grounded in accordance with all local codes and ordinances. Safety precautions for power supply unit  Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product. This product should be operated only with the following designated power supply unit(s). AC adapter: HTC, Model TC U250  Handle battery packs carefully This product contains a Lithium-ion polymer or Lithium-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. Do not attempt to open or service the battery pack. Do not disassemble, crush, puncture, short external contacts or circuits, dispose of in fire or water, or expose a battery pack to temperatures higher than 60 ̊C (140 ̊F). WARNING: To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts, expose to temperature above 60° C (140° F), or dispose of in fire or water. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product.  Take extra precautions  Keep the device dry and away from water or any liquid as it may cause a short circuit.  The phone should only be connected to products that bear the USB-IF logo or have completed the USB-IF compliance program.  If the battery leaks:  Do not allow the leaking fluid to come in contact with skin or Safety and regulatory guide 5 clothing. If already in contact, flush the affected area immediately with clean water and seek medical advice.  Do not allow the leaking fluid to come in contact with eyes. If already in contact, DO NOT rub; rinse with clean water immediately and seek medical advice.  Take extra precautions to keep a leaking battery away from fire as there is a danger of ignition or explosion. Safety precautions for direct sunlight Keep this product away from excessive moisture and extreme temperatures. Do not leave the product inside a vehicle or in places where the temperature may exceed 60 °C (140°F), such as on a car dashboard, window sill, or behind a glass that is exposed to direct sunlight or strong ultraviolet light for extended periods of time. This may damage the product, overheat the battery, or pose a risk to the vehicle. Prevention of hearing …

Text truncated - open the document above for the full version.

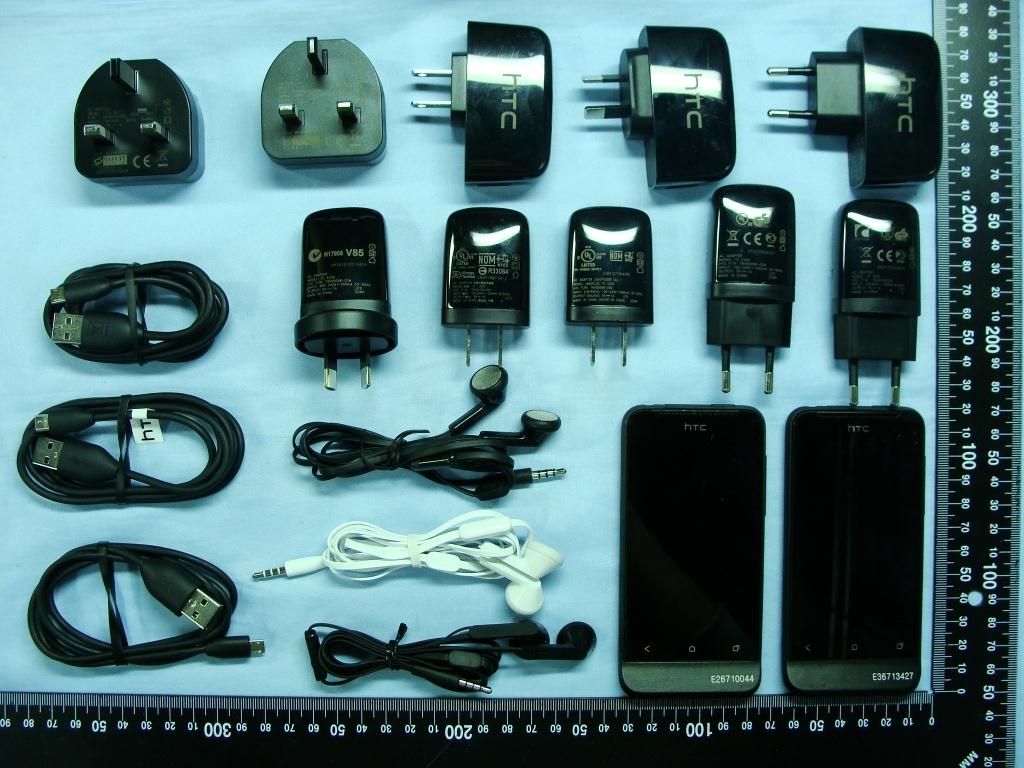

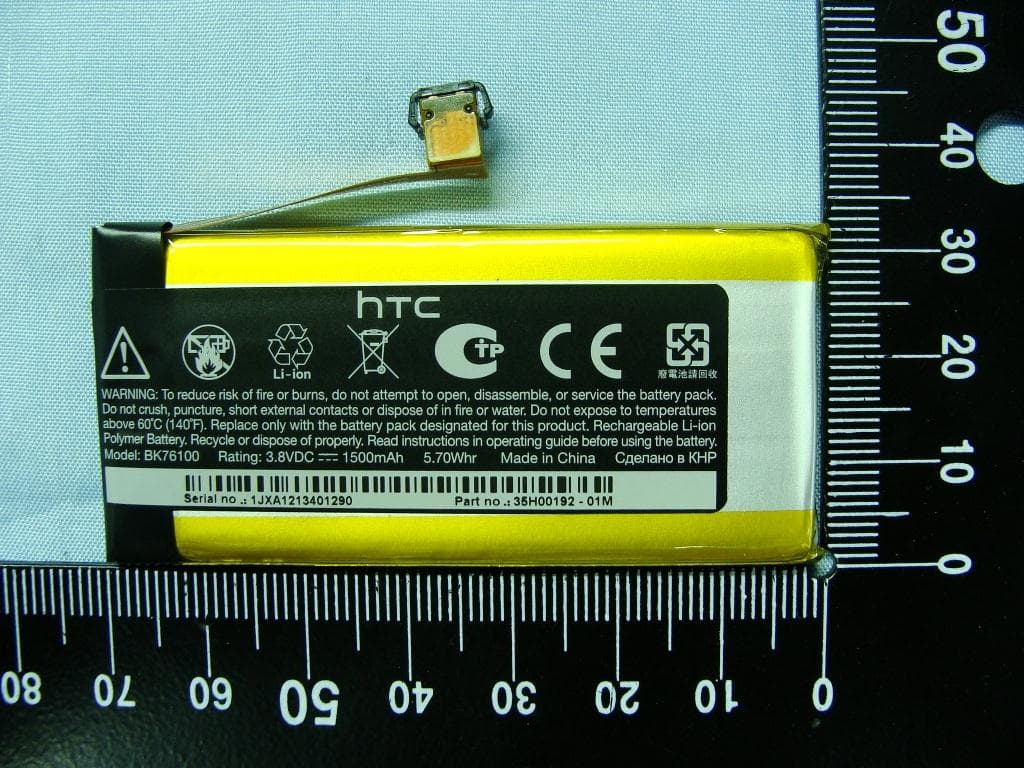

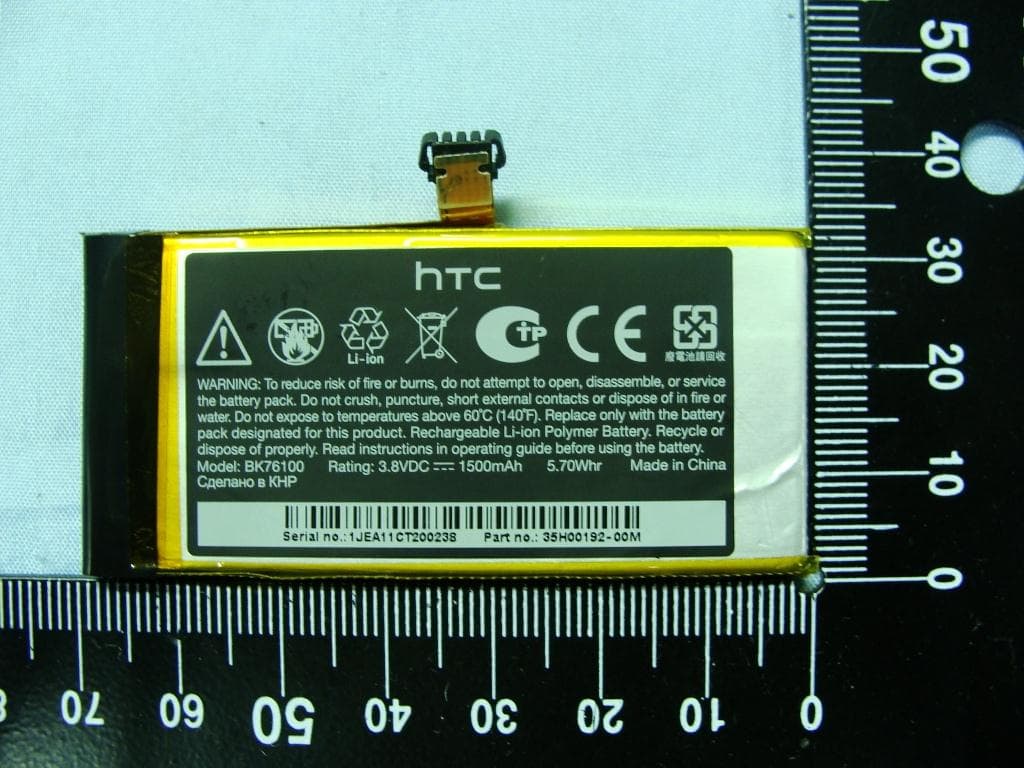

Photographs of EUT Report No.: EP220313 Model Name: PK76110 SPORTON INTERNATIONAL INC. Page Number : 1 of 29 TEL : 886-3-327-3456 Report Issued Date : Mar. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PK76110 720510 1. External Photograph of EUT Sample 1 Photographs of EUT Report No.: EP220313 Model Name: PK76110 SPORTON INTERNATIONAL INC. Page Number : 2 of 29 TEL : 886-3-327-3456 Report Issued Date : Mar. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PK76110 720510 Photographs of EUT Report No.: EP220313 Model Name: PK76110 SPORTON INTERNATIONAL INC. Page Number : 3 of 29 TEL : 886-3-327-3456 Report Issued Date : Mar. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PK76110 720510 Sample 2 Photographs of EUT Report No.: EP220313 Model Name: PK76110 SPORTON INTERNATIONAL INC. Page Number : 4 of 29 TEL : 886-3-327-3456 Report Issued Date : Mar. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PK76110 720510 Photographs of EUT Report No.: EP220313 Model Name: PK76110 SPORTON INTERNATIONAL INC. Page Number : 5 of 29 TEL : 886-3-327-3456 Report Issued Date : Mar. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PK76110 List of Accessory: Specification of Accessory AC Adapter 1 Brand Name HTC Manufacturer Salcomp Model Name TC P450-EU / TC P450-US / TC P450-AU AC Adapter 2 Brand Name HTC Manufacturer PHIHONG Model Name TC B270-UK / TC E250-EU / TC U250-US AC Adapter 3 Brand Name HTC Manufacturer Delta Model Name TC B270-UK / TC E250-EU / TC U250-US / TC A250-AU Battery 1 Brand Name HTC Manufacturer ATL Model Name BK76100 Battery 2 Brand Name HTC Manufacturer WTE Model Name BK76100 Earphone 1 Brand Name HTC Manufacturer MERRY Model Name HS S250 Earphone 2 Brand Name HTC Manufacturer Cotron Model Name HS S250 Earphone 3 Brand Name HTC Manufacturer MERRY Model Name HS S250 USB Cable 1 Brand Name HTC Manufacturer FOXLINK Model Name DC M600 USB Cable 2 Brand Name HTC Manufacturer COXOC Model Name DC M600 USB Cable 3 Brand Name HTC Manufacturer FOXCONN Model Name DC M600 LCM 1 Brand Name HTC Manufacturer LG Model Name LH370WV3 LCM 2 Brand Name HTC Manufacturer Sony Model Name GCX152AMQ-7 Camera 1 Brand Name HTC Manufacturer LiteOn Model Name 11P1BEA501 2. Photograph of Accessory Photographs of EUT Report No.: EP220313 Model Name: PK76110 SPORTON INTERNATIONAL INC. Page Number : 6 of 29 TEL : 886-3-327-3456 Report Issued Date : Mar. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PK76110 Specification of Accessory Camera 2 Brand Name HTC Manufacturer Foxconn Model Name CMHT-5AS09D Remark: For accessories equipped with this EUT, please refer to the following photos. Photographs of EUT Report No.: EP220313 Model Name: PK76110 SPORTON INTERNATIONAL INC. Page Number : 7 of 29 TEL : 886-3-327-3456 Report Issued Date : Mar. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PK76110 Photographs of EUT Report No.: EP220313 Model Name: PK76110 SPORTON INTERNATIONAL INC. Page Number : 8 of 29 TEL : 886-3-327-3456 Report Issued Date : Mar. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PK76110 AC Adapter 1 Photographs of EUT Report No.: EP220313 Model Name: PK76110 SPORTON INTERNATIONAL INC. Page Number : 9 of 29 TEL : 886-3-327-3456 Report Issued Date : Mar. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PK76110 Photographs of EUT Report No.: EP220313 Model Name: PK76110 SPORTON INTERNATIONAL INC. Page Number : 10 of 29 TEL : 886-3-327-3456 Report Issued Date : Mar. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PK76110 Photographs of EUT Report No.: EP220313 Model Name: PK76110 SPORTON INTERNATIONAL INC. Page Number : 11 of 29 TEL : 886-3-327-3456 Report Issued Date : Mar. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PK76110 AC Adapter 2 Photographs of EUT Report No.: EP220313 Model Name: PK76110 SPORTON INTERNATIONAL INC. Page Number : 12 of 29 TEL : 886-3-327-3456 Report Issued Date : Mar. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PK76110 Photographs of EUT Report No.: EP220313 Model Name: PK76110 SPORTON INTERNATIONAL INC. Page Number : 13 of 29 TEL : 886-3-327-3456 Report Issued Date : Mar. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PK76110 Photographs of EUT Report No.: EP220313 Model Name: PK76110 SPORTON INTERNATIONAL INC. Page Number : 14 of 29 TEL : 886-3-327-3456 Report Issued Date : Mar. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PK76110 AC Adapter 3 Photographs of EUT Report No.: EP220313 Model Name: PK76110 SPORTON INTERNATIONAL INC. Page Number : 15 of 29 TEL : 886-3-327-3456 Report Issued Date : Mar. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PK76110 Photographs of EUT Report No.: EP220313 Model Name: PK76110 SPORTON INTERNATIONAL INC. Page Number : 16 of 29 TEL : 886-3-327-3456 Report Issued Date : Mar. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PK76110 Photographs of EUT Report No.: EP220313 Model Name: PK76110 SPORTON INTERNATIONAL INC. Page Number : 17 of 29 TEL : 886-3-327-3456 Report Issued Date : Mar. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PK76110 Photographs of EUT Report No.: EP220313 Model Name: PK76110 SPORTON INTERNATIONAL INC. Page Number : 18 of 29 TEL : 886-3-327-3456 Report Issued Date : Mar. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PK76110 Battery 1 Photographs of EUT Report No.: EP220313 Model Name: PK76110 SPORTON INTERNATIONAL INC. Page Number : 19 of 29 TEL : 886-3-327-3456 Report Issued Date : Mar. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PK76110 720510 Battery 2

Photographs of EUT Report No.: EP220313 Model Name: PK76110 SPORTON INTERNATIONAL INC. Page Number : 20 of 29 TEL : 886-3-327-3456 Report Issued Date : Mar. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PK76110 3. Internal Photograph of EUT 720510 720510 Sample 1 Photographs of EUT Report No.: EP220313 Model Name: PK76110 SPORTON INTERNATIONAL INC. Page Number : 21 of 29 TEL : 886-3-327-3456 Report Issued Date : Mar. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PK76110 720510 Photographs of EUT Report No.: EP220313 Model Name: PK76110 SPORTON INTERNATIONAL INC. Page Number : 22 of 29 TEL : 886-3-327-3456 Report Issued Date : Mar. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PK76110 720510 WWAN Antenna (Tx / Rx) Photographs of EUT Report No.: EP220313 Model Name: PK76110 SPORTON INTERNATIONAL INC. Page Number : 23 of 29 TEL : 886-3-327-3456 Report Issued Date : Mar. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PK76110 720510 WLAN & Bluetooth Antenna (Tx / Rx) Photographs of EUT Report No.: EP220313 Model Name: PK76110 SPORTON INTERNATIONAL INC. Page Number : 24 of 29 TEL : 886-3-327-3456 Report Issued Date : Mar. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PK76110 720510 GPS Antenna (Rx) Photographs of EUT Report No.: EP220313 Model Name: PK76110 SPORTON INTERNATIONAL INC. Page Number : 25 of 29 TEL : 886-3-327-3456 Report Issued Date : Mar. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PK76110 720510 Sample 2 Photographs of EUT Report No.: EP220313 Model Name: PK76110 SPORTON INTERNATIONAL INC. Page Number : 26 of 29 TEL : 886-3-327-3456 Report Issued Date : Mar. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PK76110 720510 Photographs of EUT Report No.: EP220313 Model Name: PK76110 SPORTON INTERNATIONAL INC. Page Number : 27 of 29 TEL : 886-3-327-3456 Report Issued Date : Mar. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PK76110 720510 WWAN Antenna (Tx / Rx) Photographs of EUT Report No.: EP220313 Model Name: PK76110 SPORTON INTERNATIONAL INC. Page Number : 28 of 29 TEL : 886-3-327-3456 Report Issued Date : Mar. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PK76110 720510 WLAN & Bluetooth Antenna (Tx / Rx) Photographs of EUT Report No.: EP220313 Model Name: PK76110 SPORTON INTERNATIONAL INC. Page Number : 29 of 29 TEL : 886-3-327-3456 Report Issued Date : Mar. 02, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PK76110 720510 GPS Antenna (Rx)

SPORTON INTERNATIONAL INC. Page Number : 1 of 44 TEL : 886-3-327-3456 Report Issued Date : Mar. 06, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PK76110 FCC SAR Test Report Report No. : FA220313 FCC SAR Test Report APPLICANT : HTC Corporation EQUIPMENT : Smartphone MODEL NAME : PK76110 FCC ID : NM8PK76110 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Feb. 04, 2012 and completely tested on Feb. 25, 2012. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 44 TEL : 886-3-327-3456 Report Issued Date : Mar. 06, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PK76110 FCC SAR Test Report Report No. : FA220313 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 2.1 Testing Laboratory .................................................................................................................................................. 5 2.2 Applicant ................................................................................................................................................................ 5 2.3 Manufacturer .......................................................................................................................................................... 5 2.4 Application Details .................................................................................................................................................. 5 3. General Information ...................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ................................................................................................................ 6 3.2 Applied Standards .................................................................................................................................................. 7 3.3 Device Category and SAR Limits ........................................................................................................................... 7 3.4 Test Conditions ....................................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................... 8 4.1 Introduction ............................................................................................................................................................ 8 4.2 SAR Definition ........................................................................................................................................................ 8 5. SAR Measurement System ........................................................................................................................................... 9 5.1 E-Field Probe ........................................................................................................................................................10 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot .................................................................................................................................................................... 11 5.4 Measurement Server .............................................................................................................................................12 5.5 Phantom ................................................................................................................................................................12 5.6 Device Holder........................................................................................................................................................13 5.7 Data Storage and Evaluation ................................................................................................................................15 5.8 Test Equipment List ...............................................................................................................................................17 6. Tissue Simulating Liquids ...........................................................................................................................................19 7. Uncertainty Assessment .............................................................................................................................................21 8. SAR Measurement Evaluation ....................................................................................................................................23 8.1 Purpose of System Performance check ................................................................................................................23 8.2 System Setup ..........................................................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/2/5 System Check_Head_835MHz_120205 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_120205 Medium parameters used: f = 835 MHz; σ = 0.886 mho/m; ε r = 41.3; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY4 Configuration: - Probe: EX3DV4 - SN3792; ConvF(8.93, 8.93, 8.93); Calibrated: 2011/6/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2011/11/22 - Phantom: SAM-Left; Type: QD 000 P40 C; Serial: TP-1477 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.58 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.3 V/m; Power Drift = -0.131 dB Peak SAR (extrapolated) = 3.63 W/kg SAR(1 g) = 2.4 mW/g; SAR(10 g) = 1.57 mW/g Maximum value of SAR (measured) = 2.58 mW/g 0 dB = 2.58mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012-02-21 System Check_Head_835MHz_120221 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_120221 Medium parameters used: f = 835 MHz; σ = 0.898 mho/m; ε r = 41.3; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: EX3DV4 - SN3831; ConvF(8.82, 8.82, 8.82); Calibrated: 2012-01-04 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn679; Calibrated: 2011-06-24 - Phantom: SAM_Left; Type: SAM; Serial: TP-1150 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.74 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 56.1 V/m; Power Drift = -0.189 dB Peak SAR (extrapolated) = 3.65 W/kg SAR(1 g) = 2.44 mW/g; SAR(10 g) = 1.59 mW/g Maximum value of SAR (measured) = 2.63 mW/g 0 dB = 2.63mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/2/22 System Check_Head_835MHz_120222 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_120222 Medium parameters used: f = 835 MHz; σ = 0.928 mho/m; ε r = 41.791; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.39, 6.39, 6.39); Calibrated: 2011/5/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2011/4/28 - Phantom: SAM Left; Type: QD000P40CD; Serial: TP:1542 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.646 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 56.056 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 3.4550 SAR(1 g) = 2.45 mW/g; SAR(10 g) = 1.62 mW/g Maximum value of SAR (measured) = 2.656 mW/g 0 dB = 2.660mW/g = 8.50 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/2/4 System Check_Body_835MHz_120204 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_120204 Medium parameters used: f = 835 MHz; σ = 0.963 mho/m; ε r = 54.5; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(6.16, 6.16, 6.16); Calibrated: 2011/9/12 - …
