NM8PL01200SMARTPHONE

Safety and regulatory guide 2 Safety and regulatory guide Please read before proceeding THE BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE IT OUT OF THE BOX. DO NOT REMOVE THE BATTERY PACK WHEN THE PHONE IS CHARGING. Privacy restrictions Some countries require full disclosure of recorded telephone conversations. Important health information and safety precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. Electrical safety This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. Safety precautions for proper grounding installation CAUTION: Connecting to improperly grounded equipment can result in an electric shock to your device. This product is equipped with a USB Cable for connecting with desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet which is properly installed and grounded in accordance with all local codes and ordinances. Safety precautions for power supply unit ƒ Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a Safety and regulatory guide 3 product that operates from battery power or other sources, refer to the operating instructions that are included with the product. This product should be operated only with the following designated power supply unit(s). AC adapter: HTC, Model TC P450-US, TC U250 ƒ Handle battery packs carefully This product contains a Lithium-ion polymer or Lithium-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. Do not attempt to open or service the battery pack. Do not disassemble, crush, puncture, short external contacts or circuits, dispose of in fire or water, or expose a battery pack to temperatures higher than 60 ̊C (140 ̊F). WARNING: Danger of explosion if battery is incorrectly replaced. To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts, expose to temperature above 60° C (140° F), or dispose of in fire or water. Replace only with specified batteries. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product. NOTE: This product should be operated only with the following designated Battery Pack(s). y HTC, Model BL01100 ƒ Take extra precautions y Keep the battery or device dry and away from water or any liquid as it may cause a short circuit. y Keep metal objects away so they don’t come in contact with the battery or its connectors as it may lead to short circuit during operation. y Do not use a battery that appears damaged, deformed, or discolored, or the one that has any rust on its casing, overheats, or emits a foul odor. y If the battery leaks: y Do not allow the leaking fluid to come in contact with skin or clothing. If already in contact, flush the affected area 4 Safety and regulatory guide immediately with clean water and seek medical advice. y Do not allow the leaking fluid to come in contact with eyes. If already in contact, DO NOT rub; rinse with clean water immediately and seek medical advice. y Take extra precautions to keep a leaking battery away from fire as there is a danger of ignition or explosion. Safety precautions for direct sunlight Keep this product away from excessive moisture and extreme temperatures. Do not leave the product or its battery inside a vehicle or in places where the temperature may exceed 60°C (140°F), such as on a car dashboard, window sill, or behind a glass that is exposed to direct sunlight or strong ultraviolet light for extended periods of time. This may damage the product, overheat the battery, or pose a risk to the vehicle. Prevention of hearing loss CAUTION: Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time. Safety in aircraft Due to the possible interference caused by this product to an aircraft’s navigation system and its communications network, using this device’s phone function on board an airplane is against the law in most countries. If you want to use this device when on board an aircraft, remember to turn off your phone by switching to Airplane Mode. Environment restrictions Do not use this product in gas stations, fuel depots, chemical plants or where blasting operations are in progress, or in potentially explosive atmospheres such as fuelling areas, fuel storehouses, below deck on boats, chemical plants, fuel or chemical transfer or storage facilities, and areas where the air contains chemicals or particles, such as grain, dust, or metal powders. Please be aware that sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Explosive atmospheres When in any area with a potentially explosive atmosphere or where flammable materials exist, the product should be turned off and the user should obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or Safety and regulatory guide 5 even death. Users are advised not to use the equipment at refueling points such as service or gas stations, and are reminded of the need to observe restrictions on the use of radio equipment in fuel depots, ch…

Text truncated - open the document above for the full version.

Your HTC Desire C User guide Contents Unboxing HTC Desire C8 Back cover9 Removing the battery10 Storage card10 Charging the battery12 Switching the power on or off12 Setting up HTC Desire C for the first time13 Your first week with your new phone Features you'll enjoy on HTC Desire C14 Home screen15 Touch gestures15 Sleep mode16 Getting contacts into HTC Desire C17 Making your first call18 Sending your first text message18 Getting photos, videos, and music on or off HTC Desire C18 Copying and sharing text19 Capturing the HTC Desire C screen20 Can't find the Menu button?20 Switching between recently opened apps20 Notifications21 Getting to know your settings22 Getting the battery to last longer22 Updating the HTC Desire C software23 Syncing your media and data with HTC Sync Manager23 Camera Camera basics25 Taking a photo26 Recording video26 Camera scenes26 Improving portrait shots26 Shooting in low light27 Changing camera and video settings27 Personalizing Making HTC Desire C truly yours28 2Contents Personalizing HTC Desire C with scenes28 Changing your wallpaper29 Applying a new skin29 Personalizing your Home screen with widgets30 Adding apps and other shortcuts on your Home screen31 Rearranging or removing widgets and icons on your Home screen31 Personalizing the launch bar32 Grouping apps into a folder32 Personalizing with sound sets33 Rearranging application tabs34 Phone calls Making a call with Smart dial35 Using Speed dial35 Calling a phone number in a text message36 Calling a phone number in an email36 Calling a phone number in a Calendar event36 Making an emergency call36 Receiving calls36 What can I do during a call38 Making international calls39 Internet calls39 Call history40 Call services41 Messages About the Messages app42 Sending a text message (SMS)42 Sending a multimedia message (MMS)42 Resuming a draft message44 Checking your messages44 Replying to a message45 Forwarding a message45 WAP push messages46 Managing message conversations46 Backing up your text messages47 Setting message options48 Search and Web browser Searching HTC Desire C and the Web49 Browsing the Web49 Private browsing51 Adding and managing your bookmarks51 Saving web content for later52 Viewing your browsing history53 Downloading files and apps53 Setting browser options54 Photos, videos, and music Gallery55 Music61 3Contents Accounts and sync Adding your social networks, email accounts, and more66 Adding one or more Google Accounts66 Managing your online accounts67 People About the People app68 Your contacts list68 Setting up your profile69 Adding a new contact69 Importing a contact from an Exchange ActiveSync account69 Merging contact information70 Contact information and conversations70 Sending contact information71 Contact groups72 Backing up your contacts to the storage card73 Social Facebook for HTC Sense74 About Friend Stream74 Updating your status in Friend Stream74 Enjoying Facebook in Friend Stream75 Chatting in Google Talk76 Using Google+76 Email Gmail77 Mail78 Calendar About Calendar85 Creating an event85 Viewing the Calendar85 Managing Calendar events86 Accepting or declining a meeting invitation87 Setting reminders for your events88 Dismissing or snoozing event reminders88 Showing or hiding calendars88 Changing Calendar settings88 Online storage and services Dropbox89 SkyDrive93 Travel and maps Location settings96 Google Maps96 4Contents Essential apps Using the Clock100 Checking Weather102 Working on documents103 Completing tasks104 Google Play and other apps Getting apps from Google Play108 Watching videos on YouTube109 Listening to FM Radio110 Recording voice clips110 Sharing games and apps111 Your phone and computer Where apps, data, and files are stored112 Connecting HTC Desire C to a computer112 Copying files to or from the storage card113 HTC Sync Manager basics113 Playing music in HTC Sync Manager116 Viewing photos and videos in HTC Sync Manager117 Setting up HTC Sync Manager to recognize HTC Desire C118 Setting up HTC Desire C to sync with your computer119 Syncing HTC Desire C and your computer122 Importing music from a CD with HTC Sync Manager122 Sharing your mobile data connection by USB tethering123 Connecting to the Internet through a computer124 Internet connections Data connection125 Wi-Fi125 Connecting to a virtual private network (VPN)127 Using HTC Desire C as a wireless router128 Bluetooth Bluetooth basics129 Connecting a Bluetooth headset or car kit129 Disconnecting or unpairing from a Bluetooth device130 Sending information using Bluetooth131 Receiving information using Bluetooth132 Settings and security Choosing which app opens when you tap a data item134 Turning Airplane mode on or off134 Changing display settings134 Changing sound settings136 Changing the display language137 Checking battery usage137 Backing up settings to Google137 Accessibility settings137 5Contents Protecting HTC Desire C with a screen lock138 Encrypting data on HTC Desire C139 Checking information about HTC Desire C139 Managing memory140 Other essentials Status icons142 Using the onscreen keyboard143 Entering words with predictive text144 Entering text by speaking145 Restarting HTC Desire C146 Resetting HTC Desire C146 Trademarks and copyrights Index 6Contents Conventions used in this guide In this user guide, we use the following symbols to indicate useful and important information: This is a note. A note often gives additional information, such as what happens when you choose to do or not to do a certain action. A note also provides information that may only be applicable to some situations. This is a tip. A tip gives you an alternative way to do a particular step or procedure, or lets you know of an option that you may find helpful. This indicates important information that you need in order to accomplish a certain task or to get a feature to work properly. This provides safety precaution information, that is, information that you need to be careful about to prevent potential problems. 7Conventi…

Text truncated - open the document above for the full version.

宏達國際電子股份有限公司 宏達國際電子股份有限公司宏達國際電子股份有限公司 宏達國際電子股份有限公司 HTC Corporation 23 Xinghua Road Taoyuan City, Taoyuan County 330, Taiwan June 22, 2012 Power of Attorney To whom it may concern, Please be notified that I, Wawii Lin, have designated Bureau Daniel Lee of Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan and Sean Shih in HTC Corporation as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan and Sean Shih in HTC Corporation on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: NM8PL01200 If you have any acknowledgement and response, please send it to Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours,

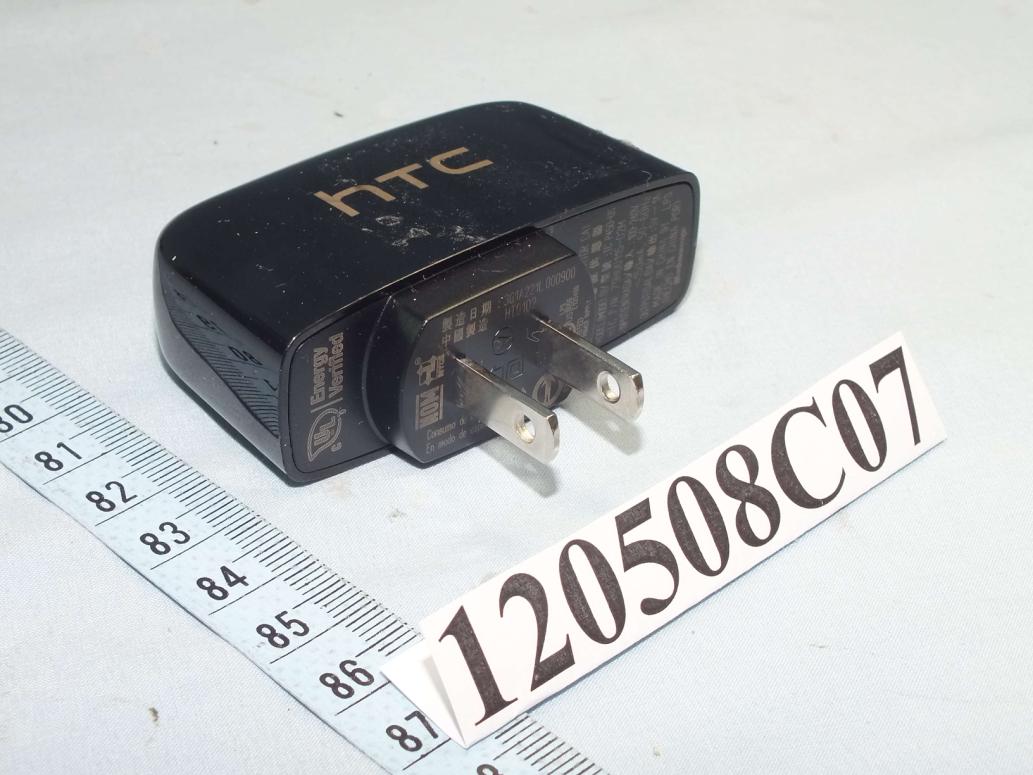

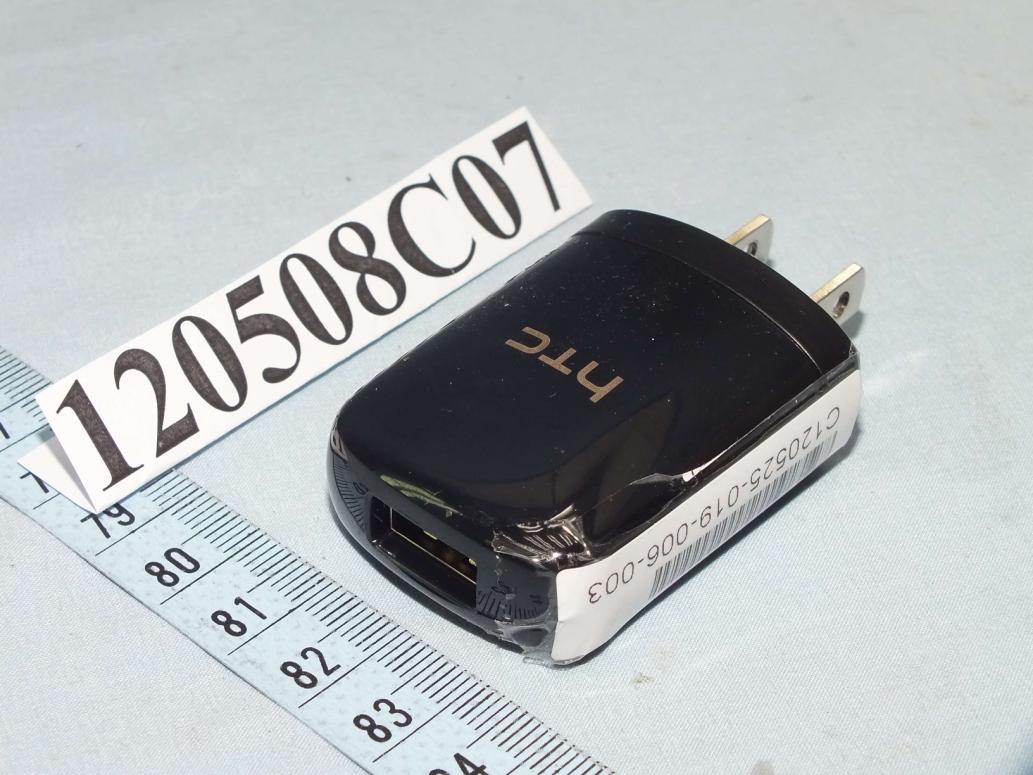

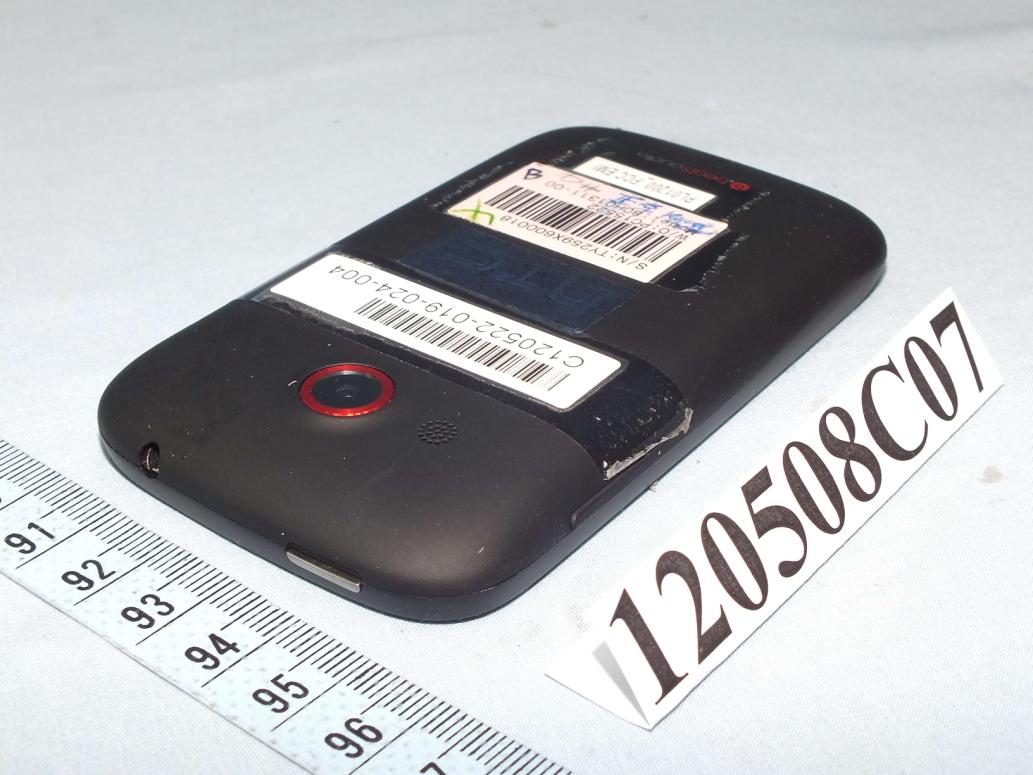

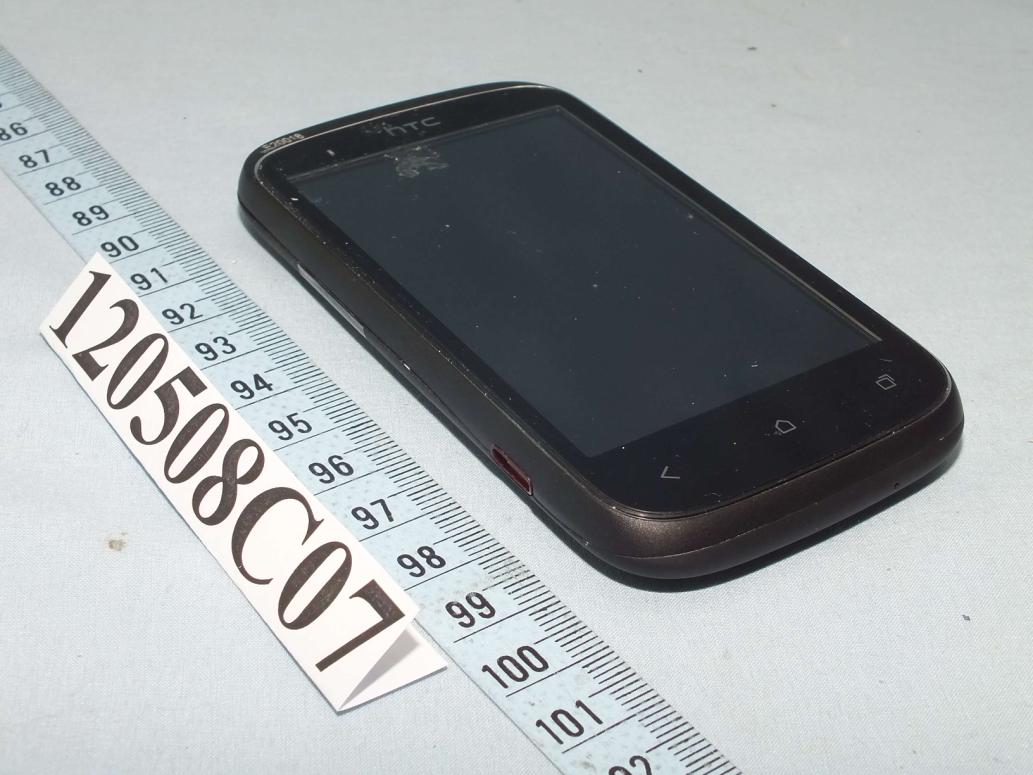

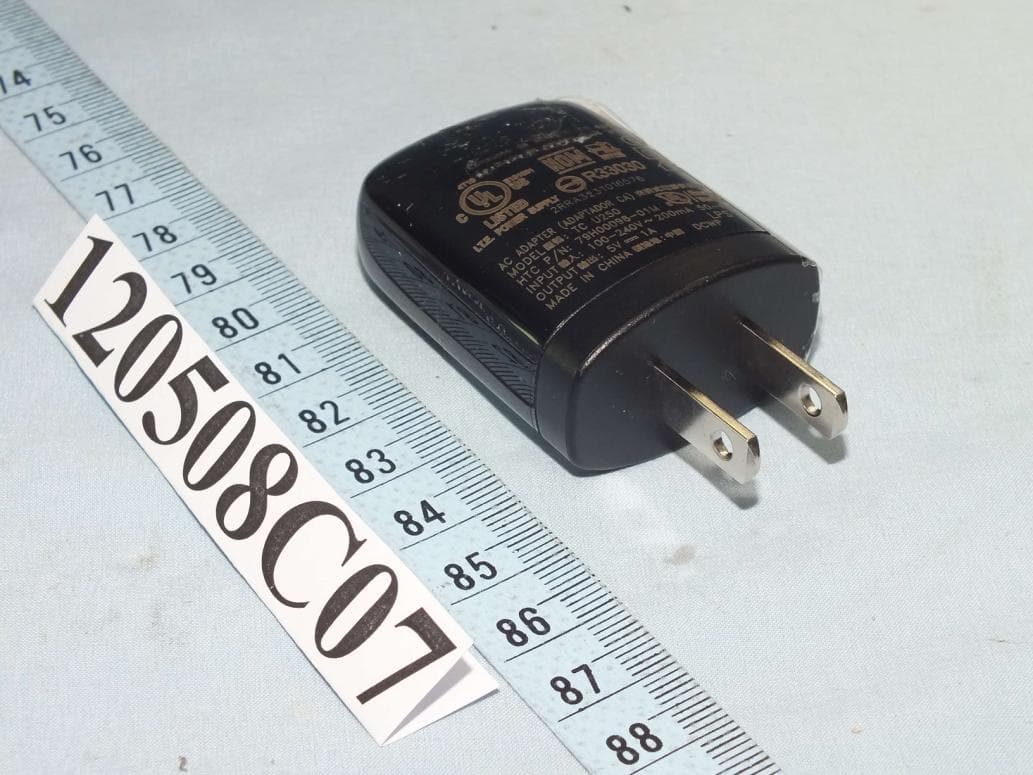

Page 1 CONSTRUCTION PHOTOS OF EUT The EUT has following accessories. NO. PRODUCT BRAND MODEL DESCRIPTION 1 Power Adapter 1 Salcomp TC P450-US I/P: 100-240Vac, 150mA O/P: 5Vdc, 1A 2 Power Adapter 2 Phihong TC U250 I/P: 100-240Vac, 200mA O/P: 5Vdc, 1A 3 Power Adapter 3 Delta TC U250 I/P: 100-240Vac, 200mA O/P: 5Vdc, 1A 4 Battery 1 LG BL01100 Rating: 3.7Vdc, 2000mAh Type: Li-ion 5 Battery 2 TWS BL01100 Rating: 3.7Vdc, 2000mAh Type: Li-ion 6 USB Cable 1 Foxlink DC M600 1m non-shielded cable without core 7 USB Cable 2 Foxconn DC M600 1m non-shielded cable without core 8 LCD Panel AUO H347QAN01.0 --- 9 Camera Primax W505H Page 2 Page 3 Page 4 Page 5 Page 6 Page 7

Label FCC ID: NM8PL01200

Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Jun. 14, 2012 Report No. : SA120508C07 Revision : R01 Appendix A. SAR Plots of System Verification The plots for system verification are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/05/28 System Check_H835_120528 DUT: Dipole 835 MHz; Type: D835V2; SN: 4d021 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: H835_0528 Medium parameters used: f = 835 MHz; σ = 0.893 mho/m; ε r = 41.64; ρ = 1000 kg/m 3 Ambient Temperature：21.9 °C; Liquid Temperature：20.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(9, 9, 9); Calibrated: 2011/07/11; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2012/04/27 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1654 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 3.06 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.194 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 3.612 mW/g SAR(1 g) = 2.39 mW/g; SAR(10 g) = 1.57 mW/g Maximum value of SAR (measured) = 3.05 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/05/29 System Check_B835_120529 DUT: Dipole 835 MHz; Type: D835V2; SN: 4d021 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: B835_0529 Medium parameters used: f = 835 MHz; σ = 0.992 mho/m; ε r = 55.575; ρ = 1000 kg/m 3 Ambient Temperature：21.6 °C; Liquid Temperature：20.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(9.21, 9.21, 9.21); Calibrated: 2011/07/11; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2012/04/27 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1654 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 3.09 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.749 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 3.607 mW/g SAR(1 g) = 2.43 mW/g; SAR(10 g) = 1.61 mW/g Maximum value of SAR (measured) = 3.07 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/06/01 System Check_B835_120601 DUT: Dipole 835 MHz; Type: D835V2; SN: 4d021 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: B835_0601 Medium parameters used: f = 835 MHz; σ = 0.994 mho/m; ε r = 55.999; ρ = 1000 kg/m 3 Ambient Temperature：21.6 °C; Liquid Temperature：20.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(9.21, 9.21, 9.21); Calibrated: 2011/07/11; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2012/04/27 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1654 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 3.09 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.650 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.603 mW/g SAR(1 g) = 2.43 mW/g; SAR(10 g) = 1.61 mW/g Maximum value of SAR (measured) = 3.05 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/05/29 System Check_H1750_120529 DUT: Dipole 1750 MHz; Type: D1750V2; SN: 1055 Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: H1750_0529 Medium parameters used: f = 1750 MHz; σ = 1.357 mho/m; ε r = 40.639; ρ = 1000 kg/m 3 Ambient Temperature：21.9 °C; Liquid Temperature：20.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(7.92, 7.92, 7.92); Calibrated: 2011/07/11; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2012/04/27 - Phantom: SAM Phantom_Left; Type: SAM V4.0; Serial: TP 1652 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 12.8 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 97.348 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 15.927 mW/g SAR(1 g) = 9.05 mW/g; SAR(10 g) = 4.89 mW/g Maximum value of SAR (measured) = 12.7 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/05/29 System Check_B1750_120529 DUT: Dipole 1750 MHz; Type: D1750V2; SN: 1055 Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: B1750_0529 Medium parameters used: f = 1750 MHz; σ = 1.531 mho/m; ε r = 52.593; ρ = 1000 kg/m 3 Ambient Temperature：21.7 °C; Liquid Temperature：20.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(7.63, 7.63, 7.63); Calibrated: 2011/07/11; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2012/04/27 - Phantom: SAM Phantom_Left; Type: SAM V4.0; Serial: TP 1652 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 13.3 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 93.120 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 16.065 mW/g SAR(1 g) = 9.29 mW/g; SAR(10 g) = 4.98 mW/g Maximum value of SAR (measured) = 12.9 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/06/01 System Check_B1750_120601 DUT: Dipole 1750 MHz; Type: D1750V2; SN: 1055 Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: B1750_0601 Medium parameters used: f = 1750 MHz; σ = 1.526 mho/m; ε r = 54.358; ρ = 1000 kg/m 3 Ambient Temperature：21.4 °C; Liquid Temperature：20.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(7.63, 7.63, 7.63); Calibrated: 2…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Jun. 14, 2012 Report No. : SA120508C07 Revision : R01 Appendix B. SAR Plots of SAR Measurement The plots for SAR measurement are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/05/28 P01 CDMA2000 BC0_RC3+SO55_Right Cheek_Ch1013_Battery1 DUT: 120508C07 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: H835_0528 Medium parameters used: f = 825 MHz; σ = 0.882 mho/m; ε r = 41.778; ρ = 1000 kg/m 3 Ambient Temperature：21.8 °C; Liquid Temperature：20.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(9, 9, 9); Calibrated: 2011/07/11; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2012/04/27 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1654 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Ch1013/Area Scan (51x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.296 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.288 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.310 mW/g SAR(1 g) = 0.262 mW/g; SAR(10 g) = 0.202 mW/g Maximum value of SAR (measured) = 0.291 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/05/28 P02 CDMA2000 BC0_RC3+SO55_Right Tilted_Ch1013_Battery1 DUT: 120508C07 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: H835_0528 Medium parameters used: f = 825 MHz; σ = 0.882 mho/m; ε r = 41.778; ρ = 1000 kg/m 3 Ambient Temperature：21.8 °C; Liquid Temperature：20.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(9, 9, 9); Calibrated: 2011/07/11; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2012/04/27 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1654 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Ch1013/Area Scan (51x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.229 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.631 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.226 mW/g SAR(1 g) = 0.178 mW/g; SAR(10 g) = 0.119 mW/g Maximum value of SAR (measured) = 0.208 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/05/28 P03 CDMA2000 BC0_RC3+SO55_Left Check_Ch1013_Battery1 DUT: 120508C07 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: H835_0528 Medium parameters used: f = 825 MHz; σ = 0.882 mho/m; ε r = 41.778; ρ = 1000 kg/m 3 Ambient Temperature：21.8 °C; Liquid Temperature：20.6°C DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(9, 9, 9); Calibrated: 2011/07/11; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2012/04/27 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1654 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Ch1013/Area Scan (51x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.369 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.291 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.371 mW/g SAR(1 g) = 0.314 mW/g; SAR(10 g) = 0.242 mW/g Maximum value of SAR (measured) = 0.332 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/05/28 P04 CDMA2000 BC0_RC3+SO55_Left Tilted_Ch1013_Battery1 DUT: 120508C07 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: H835_0528 Medium parameters used: f = 825 MHz; σ = 0.882 mho/m; ε r = 41.778; ρ = 1000 kg/m 3 Ambient Temperature：21.8 °C; Liquid Temperature：20.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(9, 9, 9); Calibrated: 2011/07/11; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2012/04/27 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1654 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Ch1013/Area Scan (51x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.237 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.021 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 0.238 mW/g SAR(1 g) = 0.185 mW/g; SAR(10 g) = 0.124 mW/g Maximum value of SAR (measured) = 0.222 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/05/28 P07 CDMA2000 BC0_RC3+SO55_Left Cheek_Ch1013_Battery2 DUT: 120508C07 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: H835_0528 Medium parameters used: f = 825 MHz; σ = 0.882 mho/m; ε r = 41.778; ρ = 1000 kg/m 3 Ambient Temperature：21.8 °C; Liquid Temperature：20.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(9, 9, 9); Calibrated: 2011/07/11; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2012/04/27 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1654 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Ch1013/Area Scan (51x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.389 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.136 V/m; Power Drift = 0.17 dB Peak SAR (extrapolated) = 0.394 mW/g SAR(1 g) = 0.283 mW/g; SAR(10 g) = 0.214 mW/g Maximum value of SAR (measured) = 0.352 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/05/28 P08 CDMA2000 BC1_RC3+SO55_Right Cheek_Ch600_Battery1 DUT: 120508C07 Communication System: CDMA2000; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: H1900_0528 Medium parameters used: f = 1880 MHz; σ = 1.388 mho/m; ε r = 40.889; ρ = 1000 kg/m 3 Ambient Temperature：21.9 °C; Liquid Temperature：20.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(7.6, 7.6, 7.6); Calibrated: 2011/07/11; - Sensor-Surface: 2mm…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Jun. 14, 2012 Report No. : SA120508C07 Revision : R01 Appendix C. Calibration Certificate for Probe and Dipole The SPEAG calibration certificates are shown as follows.

FCC SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 28 Report No. : SA120508C07 Issued Date : Jun. 14, 2012 Revision : R01 FCC SAR Test Report Report No. : SA120508C07 Applicant : HTC Corporation Address : No. 23, Xinghua Rd., Taoyuan City, Taiwan Product : Smartphone FCC ID : NM8PL01200 Brand : HTC Model No. : PL01200 Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1991 / IEEE 1528:2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) KDB 248227 D01 v01r02 / KDB 648474 D01 v01r05 KDB 941225 D01 v02 / KDB 941225 D06 v01 Date of Testing : May 28, 2012 ~ Jun. 01, 2012 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch - Taiwan HwaYa Lab, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Ivonne Wu / Senior Specialist Approved By : Roy Wu / Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 28 Report No. : SA120508C07 Issued Date : Jun. 14, 2012 Revision : R01 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR…

Text truncated - open the document above for the full version.
