NM8PL80120SMARTPHONE

Your HTC Phone User guide HTC Confidential FCC Certification Do NOT distribute HTC Confidential FCC Certification Do NOT distribute Contents Unboxing HTC Phone8 Back cover9 SIM card10 Storage card11 Charging the battery13 Switching the power on or off13 Setting up HTC Phone for the first time14 Your first week with your new phone Home screen15 Touch gestures16 Motion gestures20 Sleep mode22 Getting contacts into HTC Phone24 Making your first call24 Sending your first text message24 Getting photos, videos, and music on or off HTC Phone25 Copying and sharing text25 Capturing the HTC Phone screen26 Switching between recently opened apps26 Can't find the Menu button?27 Notifications27 Getting to know your settings28 Getting the battery to last longer29 Updating the HTC Phone software29 Syncing your media and data with HTC Sync Manager30 Camera Camera basics31 Taking a photo32 Recording video32 Taking continuous camera shots33 Camera scenes33 Improving portrait shots33 Taking a group shot34 Taking a panoramic photo34 Using HDR34 Shooting in low light35 Recording videos in slow motion35 2Contents HTC Confidential FCC Certification Do NOT distribute HTC Confidential FCC Certification Do NOT distribute Improving video stability35 Changing camera and video settings36 Personalizing Making HTC Phone truly yours37 Personalizing HTC Phone with scenes37 Changing your wallpaper38 Applying a new skin39 Personalizing your Home screen with widgets39 Adding apps and other shortcuts on your Home screen40 Rearranging or removing widgets and icons on your Home screen41 Personalizing the launch bar42 Grouping apps into a folder42 Rearranging the Home screen43 Personalizing with sound sets44 Rearranging application tabs45 Customizing the lock screen style46 Securing HTC Phone with a personal touch46 Phone calls Making a call with Smart dial47 Using Speed dial47 Calling a phone number in a text message48 Calling a phone number in an email48 Calling a phone number in a Calendar event48 Making an emergency call48 Receiving calls48 What can I do during a call50 Making international calls52 Internet calls52 Call history53 Call services54 Messages About the Messages app55 Sending a text message (SMS)55 Sending a multimedia message (MMS)55 Resuming a draft message57 Checking your messages57 Replying to a message58 Forwarding a message58 WAP push messages59 Managing message conversations59 Backing up your text messages60 Setting message options61 Search and Web browser Searching HTC Phone and the Web62 Browsing the Web62 Private browsing64 Adding and managing your bookmarks64 3Contents HTC Confidential FCC Certification Do NOT distribute HTC Confidential FCC Certification Do NOT distribute Saving web content for later65 Viewing your browsing history66 Downloading files and apps66 Setting browser options67 Photos, videos, and music Gallery68 Music75 Movie Editor78 Wireless Display80 Accounts and sync Adding your social networks, email accounts, and more81 Adding one or more Google Accounts81 Managing your online accounts82 People About the People app83 Your contacts list83 Setting up your profile84 Adding a new contact84 Importing or copying contacts85 Merging contact information86 Contact information and conversations87 Contact groups88 Adding People widgets89 Sending contact information90 Backing up your contacts90 Social Facebook for HTC Sense92 Twitter for HTC Sense92 About Friend Stream92 Updating your status in Friend Stream93 Enjoying Facebook in Friend Stream93 Tweeting in Friend Stream94 Chatting in Google Talk95 Using Google+95 Email Gmail96 Mail97 Calendar About Calendar104 Creating an event104 Viewing the Calendar104 Managing Calendar events105 Accepting or declining a meeting invitation106 4Contents HTC Confidential FCC Certification Do NOT distribute HTC Confidential FCC Certification Do NOT distribute Setting reminders for your events107 Dismissing or snoozing event reminders107 Showing or hiding calendars107 Changing Calendar settings107 Online storage and services Dropbox108 SkyDrive112 HTC Watch114 HTC Car On the road with HTC Car118 Playing music in HTC Car118 Finding your way with HTC Car119 Staying connected to your contacts119 Changing HTC Car settings120 Travel and maps Location settings121 Google Maps121 Essential apps Using the Clock125 Checking Weather127 Viewing a PDF128 Working on documents128 Taking notes130 Keeping track of your tasks133 Keeping track of your stocks136 Google Play and other apps Getting apps from Google Play137 Watching videos on YouTube138 Listening to FM Radio139 Recording voice clips139 Sharing games and apps140 Your phone and computer Where apps, data, and files are stored141 Connecting HTC Phone to a computer142 Copying files to or from the storage card142 HTC Sync Manager basics143 Playing music in HTC Sync Manager146 Viewing photos and videos in HTC Sync Manager147 Setting up HTC Sync Manager to recognize HTC Phone148 Setting up HTC Phone to sync with your computer148 Syncing HTC Phone and your computer152 Importing music from a CD with HTC Sync Manager152 Sharing your mobile data connection by USB tethering153 5Contents HTC Confidential FCC Certification Do NOT distribute HTC Confidential FCC Certification Do NOT distribute Connecting to the Internet through a computer154 Internet connections Data connection155 Wi-Fi155 Connecting to a virtual private network (VPN)157 Using HTC Phone as a wireless router158 Bluetooth Bluetooth basics159 Connecting a Bluetooth headset or car kit159 Disconnecting or unpairing from a Bluetooth device160 Sending information using Bluetooth161 Receiving information using Bluetooth162 Settings and security Choosing which app opens when you tap a data item164 Turning Airplane mode on or off164 Changing display settings164 Changing sound settings166 Changing the display language167 Checking battery usage167 Backing up settings to Google167 Accessibility settings167 Protecting HTC Phone with a screen lock168 Encrypting data on HTC Phone169 C…

Text truncated - open the document above for the full version.

Safety and regulatory guide 2 Safety and regulatory guide Please read before proceeding THE BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE IT OUT OF THE BOX. DO NOT REMOVE THE BATTERY PACK WHEN THE PHONE IS CHARGING. Privacy restrictions Some countries require full disclosure of recorded telephone conversations. Important health information and safety precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. Electrical safety This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. Safety precautions for proper grounding installation CAUTION: Connecting to improperly grounded equipment can result in an electric shock to your device. This product is equipped with a USB Cable for connecting with desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet which is properly installed and grounded in accordance with all local codes and ordinances. Safety precautions for power supply unit ƒ Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a Safety and regulatory guide 3 product that operates from battery power or other sources, refer to the operating instructions that are included with the product. This product should be operated only with the following designated power supply unit(s). AC adapter: HTC, Model TC U250 ƒ Handle battery packs carefully This product contains a Lithium-ion polymer or Lithium-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. Do not attempt to open or service the battery pack. Do not disassemble, crush, puncture, short external contacts or circuits, dispose of in fire or water, or expose a battery pack to temperatures higher than 60 ̊C (140 ̊F). WARNING: Danger of explosion if battery is incorrectly replaced. To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts, expose to temperature above 60° C (140° F), or dispose of in fire or water. Replace only with specified batteries. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product. NOTE: This product should be operated only with the following designated Battery Pack(s). y HTC, Model BM60100 ƒ Take extra precautions y Keep the battery or device dry and away from water or any liquid as it may cause a short circuit. y Keep metal objects away so they don’t come in contact with the battery or its connectors as it may lead to short circuit during operation. y Do not use a battery that appears damaged, deformed, or discolored, or the one that has any rust on its casing, overheats, or emits a foul odor. y If the battery leaks: y Do not allow the leaking fluid to come in contact with skin or clothing. If already in contact, flush the affected area 4 Safety and regulatory guide immediately with clean water and seek medical advice. y Do not allow the leaking fluid to come in contact with eyes. If already in contact, DO NOT rub; rinse with clean water immediately and seek medical advice. y Take extra precautions to keep a leaking battery away from fire as there is a danger of ignition or explosion. Safety precautions for direct sunlight Keep this product away from excessive moisture and extreme temperatures. Do not leave the product or its battery inside a vehicle or in places where the temperature may exceed 60°C (140°F), such as on a car dashboard, window sill, or behind a glass that is exposed to direct sunlight or strong ultraviolet light for extended periods of time. This may damage the product, overheat the battery, or pose a risk to the vehicle. Prevention of hearing loss CAUTION: Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time. Safety in aircraft Due to the possible interference caused by this product to an aircraft’s navigation system and its communications network, using this device’s phone function on board an airplane is against the law in most countries. If you want to use this device when on board an aircraft, remember to turn off your phone by switching to Airplane Mode. Environment restrictions Do not use this product in gas stations, fuel depots, chemical plants or where blasting operations are in progress, or in potentially explosive atmospheres such as fuelling areas, fuel storehouses, below deck on boats, chemical plants, fuel or chemical transfer or storage facilities, and areas where the air contains chemicals or particles, such as grain, dust, or metal powders. Please be aware that sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Explosive atmospheres When in any area with a potentially explosive atmosphere or where flammable materials exist, the product should be turned off and the user should obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or Safety and regulatory guide 5 even death. Users are advised not to use the equipment at refueling points such as service or gas stations, and are reminded of the need to observe restrictions on the use of radio equipment in fuel depots, chemical plant…

Text truncated - open the document above for the full version.

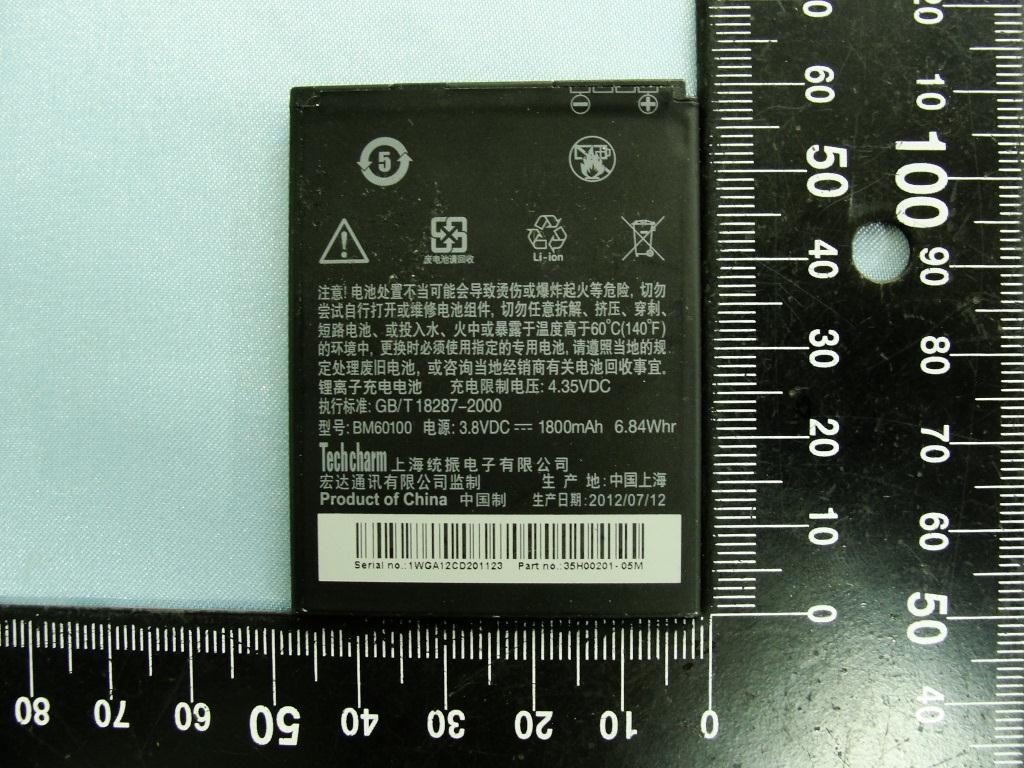

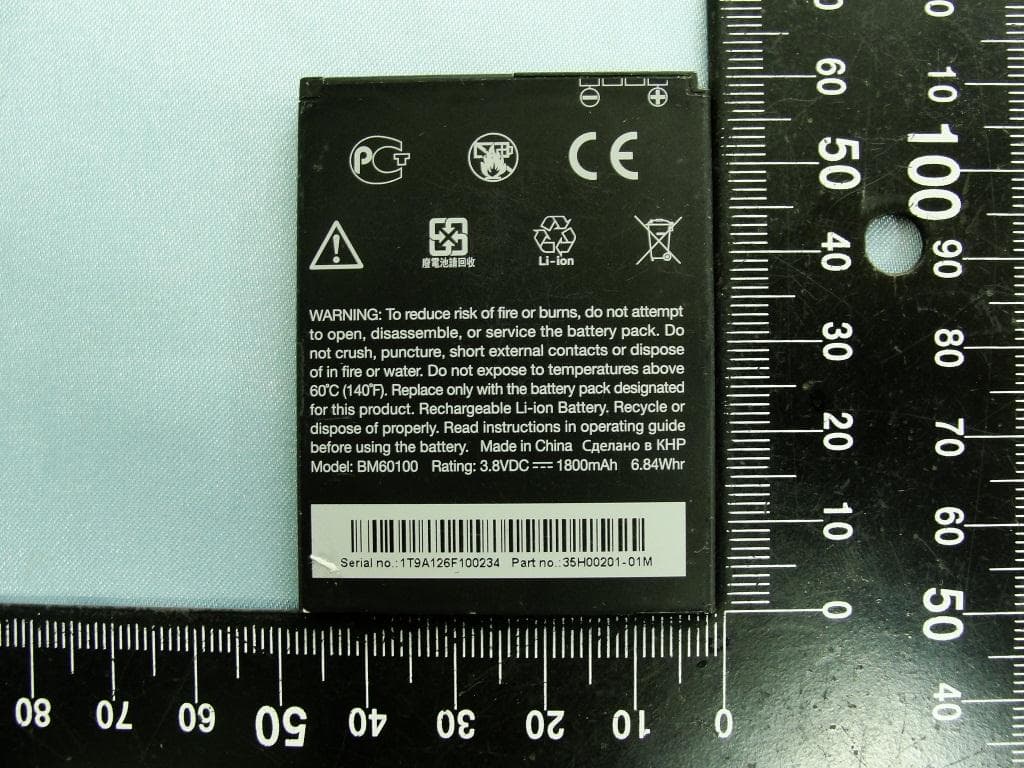

Photographs of EUT Report No.: EP281609 Model Name: PL80120 SPORTON INTERNATIONAL INC. Page Number : 1 of 23 TEL : 886-3-327-3456 Report Issued Date : Oct. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PL80120 720510 1. External Photograph of EUT Sample 1 Photographs of EUT Report No.: EP281609 Model Name: PL80120 SPORTON INTERNATIONAL INC. Page Number : 2 of 23 TEL : 886-3-327-3456 Report Issued Date : Oct. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PL80120 Photographs of EUT Report No.: EP281609 Model Name: PL80120 SPORTON INTERNATIONAL INC. Page Number : 3 of 23 TEL : 886-3-327-3456 Report Issued Date : Oct. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PL80120 720510 Sample 2 Photographs of EUT Report No.: EP281609 Model Name: PL80120 SPORTON INTERNATIONAL INC. Page Number : 4 of 23 TEL : 886-3-327-3456 Report Issued Date : Oct. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PL80120 Photographs of EUT Report No.: EP281609 Model Name: PL80120 SPORTON INTERNATIONAL INC. Page Number : 5 of 23 TEL : 886-3-327-3456 Report Issued Date : Oct. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PL80120 List of Accessory: Specification of Accessory AC Adapter 1 Brand Name HTC Manufacturer Phihong Model Name TC U250 AC Adapter 2 Brand Name HTC Manufacturer Salcomp Model Name TC U250 Battery 1 Brand Name HTC Manufacturer Formosa Model Name BM60100 Battery 2 Brand Name HTC Manufacturer WTE Model Name BM60100 USB Cable 1 Brand Name HTC Manufacturer Foxlink Model Name DC M600 USB Cable 2 Brand Name HTC Manufacturer Foxconn Model Name DC M600 Earphone 1 Brand Name HTC Manufacturer MERRY Model Name HS S250 LCM 1 Brand Name HTC Manufacturer JDI Model Name GCX169AKM-7 LCM 2 Brand Name HTC Manufacturer AUO Model Name H430VVN04.0 Camera Front Brand Name HTC Manufacturer Primax Model Name W111H Main Camera 1 Brand Name HTC Manufacturer LiteOn Model Name 12P1BF127A Main Camera 2 Brand Name HTC Manufacturer Foxconn Model Name CMHT-5AA01D Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP281609 Model Name: PL80120 SPORTON INTERNATIONAL INC. Page Number : 6 of 23 TEL : 886-3-327-3456 Report Issued Date : Oct. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PL80120 720510 Photographs of EUT Report No.: EP281609 Model Name: PL80120 SPORTON INTERNATIONAL INC. Page Number : 7 of 23 TEL : 886-3-327-3456 Report Issued Date : Oct. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PL80120 AC Adapter 1 Photographs of EUT Report No.: EP281609 Model Name: PL80120 SPORTON INTERNATIONAL INC. Page Number : 8 of 23 TEL : 886-3-327-3456 Report Issued Date : Oct. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PL80120 AC Adapter 2 Photographs of EUT Report No.: EP281609 Model Name: PL80120 SPORTON INTERNATIONAL INC. Page Number : 9 of 23 TEL : 886-3-327-3456 Report Issued Date : Oct. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PL80120 Battery 1 Photographs of EUT Report No.: EP281609 Model Name: PL80120 SPORTON INTERNATIONAL INC. Page Number : 10 of 23 TEL : 886-3-327-3456 Report Issued Date : Oct. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PL80120 Battery 2 720510

1. Place the battery on the film and align the battery to the lines. 2. In production line, the thin film will be folded along the dotted-lines 3. When the user purchases the product, the user needs to open the battery cover for the 1 st time use. 4. The user will be able to pull out the thin film by pulling the yellow circle illustrated above.

Mobile Phone (Back) Battery Compartment Label Location

Photographs of EUT Report No.: EP281609 Model Name: PL80120 SPORTON INTERNATIONAL INC. Page Number : 11 of 23 TEL : 886-3-327-3456 Report Issued Date : Oct. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PL80120 3. Internal Photograph of EUT 720510 Photographs of EUT Report No.: EP281609 Model Name: PL80120 SPORTON INTERNATIONAL INC. Page Number : 12 of 23 TEL : 886-3-327-3456 Report Issued Date : Oct. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PL80120 720510 Sample 1 Photographs of EUT Report No.: EP281609 Model Name: PL80120 SPORTON INTERNATIONAL INC. Page Number : 13 of 23 TEL : 886-3-327-3456 Report Issued Date : Oct. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PL80120 720510 Photographs of EUT Report No.: EP281609 Model Name: PL80120 SPORTON INTERNATIONAL INC. Page Number : 14 of 23 TEL : 886-3-327-3456 Report Issued Date : Oct. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PL80120 720510 Photographs of EUT Report No.: EP281609 Model Name: PL80120 SPORTON INTERNATIONAL INC. Page Number : 15 of 23 TEL : 886-3-327-3456 Report Issued Date : Oct. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PL80120 Sample 2 720510 Photographs of EUT Report No.: EP281609 Model Name: PL80120 SPORTON INTERNATIONAL INC. Page Number : 16 of 23 TEL : 886-3-327-3456 Report Issued Date : Oct. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PL80120 720510 Photographs of EUT Report No.: EP281609 Model Name: PL80120 SPORTON INTERNATIONAL INC. Page Number : 17 of 23 TEL : 886-3-327-3456 Report Issued Date : Oct. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PL80120 720510 Photographs of EUT Report No.: EP281609 Model Name: PL80120 SPORTON INTERNATIONAL INC. Page Number : 18 of 23 TEL : 886-3-327-3456 Report Issued Date : Oct. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PL80120 720510 WWAN Antenna <TX / RX> Photographs of EUT Report No.: EP281609 Model Name: PL80120 SPORTON INTERNATIONAL INC. Page Number : 19 of 23 TEL : 886-3-327-3456 Report Issued Date : Oct. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PL80120 720510 Bluetooth & WLAN Antenna <TX / RX> Photographs of EUT Report No.: EP281609 Model Name: PL80120 SPORTON INTERNATIONAL INC. Page Number : 20 of 23 TEL : 886-3-327-3456 Report Issued Date : Oct. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PL80120 720510 GPS Antenna <RX> Photographs of EUT Report No.: EP281609 Model Name: PL80120 SPORTON INTERNATIONAL INC. Page Number : 21 of 23 TEL : 886-3-327-3456 Report Issued Date : Oct. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PL80120 NFC Antenna <TX / RX> Photographs of EUT Report No.: EP281609 Model Name: PL80120 SPORTON INTERNATIONAL INC. Page Number : 22 of 23 TEL : 886-3-327-3456 Report Issued Date : Oct. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PL80120 Band I Diversity Antenna <Rx> Photographs of EUT Report No.: EP281609 Model Name: PL80120 SPORTON INTERNATIONAL INC. Page Number : 23 of 23 TEL : 886-3-327-3456 Report Issued Date : Oct. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PL80120 LTE Antenna <TX / RX>

Photographs of EUT Report No.: 281609 Model Name: PL80120 SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : Dec. 11, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PL80120 DUT Length: 12.6 cm DUT Width: 6.5 cm Antenna Length Width WWAN Antenna <Tx / Rx> 6.3 cm 1.5 cm WLAN & Bluetooth Antenna <Tx / Rx> 3.8 cm 0.8 cm NFC Antenna <Tx / Rx> 7.1 cm 3.7 cm GPS Antenna <Rx> 2.1 cm 1.0 cm Band I Diversity Antenna <Rx> 5.5 cm 0.8 cm LTE Antenna <Tx / Rx> 4.5 cm 4.2 cm The shortest distance between the Tx antennas WWAN Antenna <Tx / Rx> to WLAN & Bluetooth Antenna <Tx / Rx> 2.5 cm WWAN Antenna <Tx / Rx> to LTE Antenna <Tx / Rx> 6.4 cm WLAN & Bluetooth Antenna <Tx / Rx> to LTE Antenna <Tx / Rx> 0.1 cm WLAN & Bluetooth Antenna <Tx / Rx> to NFC Antenna <Tx / Rx> 0.4 cm WWAN Antenna <Tx / Rx> to NFC Antenna <Tx / Rx> 0.6 cm NFC Antenna <Tx / Rx> to LTE Antenna <Tx / Rx> 0.4 cm WLAN & Bluetooth Antenna <Tx / Rx> 8 cm 11 cm WWAN Antenna <Tx / Rx> GPS Antenna <Rx> 2.2 cm Band I Diversity Antenna <Rx> 1.4 cm 4.1 cm 2.2 cm 3.3 cm NFC Antenna <Tx / Rx> LTE Antenna <Tx / Rx> 1.4cm 5.5 cm 4.7 cm 0.1cm 2.5 cm

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 D750V2, serial no. 1012 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D750V2 – serial no. 1012 750 Head 750 Body Date of Measurement Return-Los s (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 6.11.2010 -29.87 53.311 0.0547 -33.584 49.801 -2.0898 6.11.2011 -29.747 0.411 53.047 0.264 -1.395 1.45 -33.442 0.423 50.046 -0.245 -2.131 0.0412 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 <Dipole Verification Data> - D750 V2, serial no. 1012 (Date of Measurement : 6.11.2011) 750 MHz - Head SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 750 MHz – Body SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 D750V2, serial no. 1012 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D750V2 – serial no. 1012 750 Head 750 Body Date of Measurement Return-Los s (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 6.11.2010 -29.87 53.311 0.0547 -33.584 49.801 -2.0898 6.11.2011 -29.747 0.411 53.047 0.264 -1.395 1.45 -33.442 0.423 50.046 -0.245 -2.131 0.0412 6.11.2012 -29.902 -0.107% 50.811 2.5 -0.47838 0.533 -32.916 1.99% 50.328 -0.527 -2.6363 0.547 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 <Dipole Verification Data> - D750 V2, serial no. 1012 (Date of Measurement : 6.11.2012) 750 MHz - Head SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 750 MHz – Body SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 D835V2, serial no. 499 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D835V2 – serial no. 499 835 Head 835 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Los s (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 3.22.2010 -28.352 52.17 -3.2461 -24.664 50.066 -5.8652 3.22.2011 -28.323 0.102 51.095 1.075 -3.5773 0.331 -24.665 -0.004 50.685 -0.619 -1.477 -4.388 Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 <Dipole Verification Data> - D835 V2, serial no. 499 (Date of Measurement : 3.22.2011) 835 MHz - Head SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 835 MHz – Body SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 D835V2, serial no. 499 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D835V2 – serial no. 499 835 Head 835 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Los s (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 3.22.2010 -28.352 52.17 -3.2461 -24.664 50.066 -5.8652 3.22.2011 -28.323 0.102 51.095 1.075 -3.5773 0.331 -24.665 -0.004 50.685 -0.619 -1.477 -4.388 3.22.2012 -28.265 0.307 50.685 1.485 -3.2627 0.0166 -23.821 3.42 50.977 -0.911 -3.2487 -2.6165 Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 <Dipole Verification Data> - D835 V2, serial no. 499 (Date of Measurement : 3.22.2012) 835 MHz - Head SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 835 MHz – Body SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 D1900V2, serial no. 5D041 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D1900V2 – serial no. 5D041 1900 Head 1900 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedanc e (ohm) Delta (ohm) Return-Los s (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginar y Impedan ce (ohm) Delta (ohm) 3.23.2010 -24.549 50.896 5.9141 -23.108 46.342 5.669 3.23.2011 -24.489 0.244 50.921 -0.025 5.9588 -0.045 -23.022 0.372 48.808 -2.466 6.991 -1.322 Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 <Dipole Verification Data> - D1900 …

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : E1 of E27 TEL : 886-3-327-3456 Report Issued Date : Oct. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PL80120 FCC SAR Test Report Report No. : FA281609 Appendix E. Spectrum Plots From RB Size Operation Band Bandwidth Modulation RB Size/Offset OBW99%(MHZ) Band 2 1.4MHz QPSK 1RB / Offset 0 0.28 1RB / Offset 5 0.28 3RB / Offset 2 0.655 6RB / Offset 0 1.092 16QAM 1RB / Offset 0 0.28 1RB / Offset 5 0.285 3RB / Offset 2 0.621 6RB / Offset 0 1.097 3MHz QPSK 1RB / Offset 0 0.408 1RB / Offset 14 0.42 8RB / Offset 4 1.596 15RB / Offset 0 2.736 16QAM 1RB / Offset 0 0.432 1RB / Offset 14 0.42 8RB / Offset 4 1.584 15RB / Offset 0 2.736 5MHz QPSK 1RB / Offset 0 0.5 1RB / Offset 24 0.48 12RB / Offset 6 2.28 25RB / Offset 0 4.52 16QAM 1RB / Offset 0 0.48 1RB / Offset 24 0.48 12RB / Offset 6 2.26 25RB / Offset 0 4.52 10MHz QPSK 1RB / Offset 0 1 1RB / Offset 49 0.96 25RB / Offset 13 4.8 50RB / Offset 0 9.16 16QAM 1RB / Offset 0 0.96 1RB / Offset 49 0.96 25RB / Offset 13 4.8 50RB / Offset 0 9.08 SPORTON INTERNATIONAL INC. Page Number : E2 of E27 TEL : 886-3-327-3456 Report Issued Date : Oct. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PL80120 FCC SAR Test Report Report No. : FA281609 Operation Band Bandwidth Modulation RB Size/Offset OBW99%(MHZ) Band 4 1.4MHz QPSK 1RB / Offset 0 0.291 1RB / Offset 5 0.285 3RB / Offset 2 0.649 6RB / Offset 0 1.103 16QAM 1RB / Offset 0 0.28 1RB / Offset 5 0.296 3RB / Offset 2 0.644 6RB / Offset 0 1.097 3MHz QPSK 1RB / Offset 0 0.42 1RB / Offset 14 0.408 8RB / Offset 4 1.596 15RB / Offset 0 2.724 16QAM 1RB / Offset 0 0.444 1RB / Offset 14 0.432 8RB / Offset 4 1.608 15RB / Offset 0 2.736 5MHz QPSK 1RB / Offset 0 0.48 1RB / Offset 24 0.48 12RB / Offset 6 2.3 25RB / Offset 0 4.5 16QAM 1RB / Offset 0 0.5 1RB / Offset 24 0.48 12RB / Offset 6 2.28 25RB / Offset 0 4.52 10MHz QPSK 1RB / Offset 0 0.96 1RB / Offset 49 1.04 25RB / Offset 13 4.84 50RB / Offset 0 9.12 16QAM 1RB / Offset 0 0.96 1RB / Offset 49 1 25RB / Offset 13 4.88 50RB / Offset 0 9.12 SPORTON INTERNATIONAL INC. Page Number : E3 of E27 TEL : 886-3-327-3456 Report Issued Date : Oct. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PL80120 FCC SAR Test Report Report No. : FA281609 Operation Band Bandwidth Modulation RB Size/Offset OBW99%(MHZ) Band 12 1.4MHz QPSK 1RB / Offset 0 0.274 1RB / Offset 5 0.28 3RB / Offset 2 0.627 6RB / Offset 0 1.103 16QAM 1RB / Offset 0 0.274 1RB / Offset 5 0.268 3RB / Offset 2 0.61 6RB / Offset 0 1.103 3MHz QPSK 1RB / Offset 0 0.42 1RB / Offset 14 0.396 8RB / Offset 4 1.584 15RB / Offset 0 2.736 16QAM 1RB / Offset 0 0.396 1RB / Offset 14 0.384 8RB / Offset 4 1.584 15RB / Offset 0 2.748 5MHz QPSK 1RB / Offset 0 0.46 1RB / Offset 24 0.46 12RB / Offset 6 2.26 25RB / Offset 0 4.5 16QAM 1RB / Offset 0 0.46 1RB / Offset 24 0.42 12RB / Offset 6 2.26 25RB / Offset 0 4.5 10MHz QPSK 1RB / Offset 0 0.96 1RB / Offset 49 0.96 25RB / Offset 13 4.84 50RB / Offset 0 9.16 16QAM 1RB / Offset 0 0.96 1RB / Offset 49 0.96 25RB / Offset 13 4.84 50RB / Offset 0 9.08 SPORTON INTERNATIONAL INC. Page Number : E4 of E27 TEL : 886-3-327-3456 Report Issued Date : Oct. 31, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PL80120 FCC SAR Test Report Report No. : FA281609 Band 2 Bandwidth 1.4M 1RB Size, RB Offset 0, QPSK 1RB Size, RB Offset 0, 16QAM 1RB Size, RB Offset 5, QPSK 1RB Size, RB Offset 5, 16QAM Ref 30 dBmAtt 30 dB RBW 30 kHz VBW 100 kHz SWT 5 ms * * * * Offset 11.7 dB Center1.88 GHzSpan2.8 MHz280 kHz/ 1 RM MAXH A LVL 3DB -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 23.81 dBm 1.879596800 GHz OBW280.000000000 kHz T1 Temp 1 [T1 OBW] 7.95 dBm 1.879412000 GHz T2 Temp 2 [T1 OBW] 7.04 dBm 1.879692000 GHz Date: 19.SEP.2012 …

Text truncated - open the document above for the full version.
