NM8PL83200SMARTPHONE

Safety and regulatory guide Please read before proceeding THE BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE THE DEVICE OUT OF THE BOX. YOUR WARRANTY IS INVALIDATED IF YOU DISASSEMBLE OR ATTEMPT TO DISASSEMBLE THE DEVICE. Privacy restrictions Some countries require full disclosure of recorded telephone conversations, and stipulate that you must inform the person with whom you are speaking that the conversation is being recorded. Always obey the relevant laws and regulations of your country when using the recording feature of your phone. Disclaimers ANY WEATHER, STOCK, OR OTHER INFORMATION, DATA, OR DOCUMENTATION (“ACCESSED INFORMATION”) ARE PROVIDED “AS IS” AND WITHOUT ANY WARRANTY OR ANY TECHNICAL SUPPORT. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, HTC AND ITS AFFILIATES expressly disclaim any and all representations and warranties, arising by law or otherwise, related to the Accessed Information, including without limitation any express or implied representation or warranty of merchantability, fitness for a particular purpose, non-infringement, quality, accuracy, completeness, effectiveness, reliability, or usefulness. Without limiting the foregoing, it is further understood that HTC and its Affiliates are not responsible for any use of the Accessed Information or the results arising from such use, and that you use such information at your own risk. Limitation of damages TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HTC OR ITS AFFILIATES BE LIABLE TO YOU, ANY USER, OR THIRD PARTY FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, INCIDENTAL OR PUNITIVE DAMAGES OF ANY KIND, ARISING IN CONTRACT, TORT, OR OTHERWISE, INCLUDING, BUT NOT LIMITED TO, INJURY, LOSS OF REVENUE, LOSS OF GOODWILL, LOSS OF BUSINESS OPPORTUNITY, LOSS OF DATA, AND/OR LOSS OF PROFITS, REGARDLESS OF THE FORESEEABILITY THEREOF OR WHETHER HTC OR ITS AFFILIATES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. AND IN NO EVENT SHALL THE TOTAL LIABILITY OF HTC OR ITS AFFILIATES EXCEED THE AMOUNT RECEIVED FROM YOU, REGARDLESS OF THE LEGAL THEORY UNDER WHICH THE CAUSE OF ACTION IS BROUGHT. THE FOREGOING DOES NOT AFFECT ANY STATUTORY RIGHTS WHICH MAY NOT BE DISCLAIMED. Important health information and safety precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. Electrical safety This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. Safety precautions for proper grounding installation CAUTION: Connecting to improperly grounded equipment can result in an electric shock to your device. This product is equipped with a USB Cable for connecting with desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet which is properly installed and grounded in accordance with all local codes and ordinances. Safety precautions for power supply unit  Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product. This product should be operated only with the following designated power supply unit(s). AC adapter: HTC, Model TC U250  Handle battery packs carefully This product contains a Lithium-ion polymer or Lithium-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. Do not attempt to open or service the battery pack. Do not disassemble, crush, puncture, short external contacts or circuits, dispose of in fire or water, or expose a battery pack to temperatures higher than 60 ̊C (140 ̊F). WARNING: Danger of explosion if battery is incorrectly replaced. To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts, expose to temperature above 60° C (140° F), or dispose of in fire or water. Replace only with specified batteries. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product.  Take extra precautions  Keep the device dry and away from water or any liquid as it may cause a short circuit.  The phone should only be connected to products that bear the USB-IF logo or have completed the USB-IF compliance program.  Only use the battery with a charging system that has been qualified with the system per this standard, IEEE-Std-1725. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage or other hazard.  Avoid dropping the phone. If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service centre for inspection.  If the battery leaks:  Do not allow the leaking fluid to come in contact with skin or clothing. If already in contact, flush the affected area immediately with clean water and seek medical advice.  Do not allow the leaking fluid to come in contact with eyes. If already in contact, DO NOT rub; rinse with clean water immediately and seek medical advice.  Take extra precautions to keep a leaking battery away from fire as there is a danger of ignition or explosion. Safety precautions for direct sunlight Keep this product away from excessive moisture and extreme tempe…

Text truncated - open the document above for the full version.

Your HTC 6435LVW User guide HTC Confidential for Certifitcation HTC Confidential for Certifitcation Contents Unboxing HTC 6435LVW7 SIM card8 Charging the battery9 Switching the power on or off9 Setting up your phone Setting up HTC 6435LVW for the first time11 Home screen11 Getting contacts into HTC 6435LVW12 Transferring contacts from your old phone through Bluetooth13 Getting photos, videos, and music on or off HTC 6435LVW13 Getting to know your settings14 Updating the HTC 6435LVW software14 Your first week with your new phone Touch gestures16 Motion gestures19 Sleep mode21 Unlocking the screen22 Making your first call22 Sending your first text message23 Notifications23 Copying and sharing text25 Capturing the HTC 6435LVW screen26 Switching between recently opened apps26 Can't find the Menu button?26 Quickly uninstalling an app27 Checking battery usage27 Getting the battery to last longer28 Camera Camera basics31 Taking a photo32 Recording video32 Keeping the camera on standby33 Taking continuous camera shots33 Camera scenes34 Improving portrait shots34 Taking a group shot34 2Contents HTC Confidential for Certifitcation HTC Confidential for Certifitcation Taking a panoramic photo34 Using HDR35 Recording videos in slow motion35 Improving video stability35 Changing camera and video settings36 Personalizing Making HTC 6435LVW truly yours37 Personalizing HTC 6435LVW with scenes37 Changing your wallpaper38 Applying a new skin39 Personalizing your Home screen with widgets39 Adding apps and other shortcuts on your Home screen40 Rearranging or removing widgets and icons on your Home screen41 Personalizing the launch bar42 Grouping apps into a folder42 Rearranging the Home screen44 Personalizing with sound sets45 Rearranging application tabs46 Customizing the lock screen style46 Hiding missed calls and messages on the lock screen47 Securing HTC 6435LVW with a personal touch47 Phone calls Making a call with Smart dial48 Returning a missed call48 Using Speed dial49 Calling a phone number in a text message49 Calling a phone number in an email49 Calling a phone number in a Calendar event49 Making an emergency call50 Receiving calls50 What can I do during a call?51 Setting up a conference call53 Call history53 Internet calls54 Home dialing55 Call services55 Messages About the Messages app56 Sending a text message (SMS)56 Sending a multimedia message (MMS)57 Resuming a draft message58 Checking your messages58 Replying to a message59 Forwarding a message60 WAP push messages61 Managing message conversations61 Backing up your text messages62 Setting message options64 3Contents HTC Confidential for Certifitcation HTC Confidential for Certifitcation Search and Web browser Searching HTC 6435LVW and the Web65 Browsing the Web66 Private browsing68 Adding and managing your bookmarks68 Saving web content for later69 Viewing your browsing history70 Downloading files and apps70 Setting browser options71 Photos, videos, and music Gallery72 Music80 Movie Editor85 Wireless Display87 Sync, backup, and reset Sync88 Backup90 Reset91 Storage and memory Types of storage93 Copying files to or from the phone storage93 Checking how much storage is available93 Making more storage space94 Encrypting data on HTC 6435LVW95 Freeing up RAM space96 People About the People app97 Your contacts list97 Setting up your profile98 Adding a new contact99 Importing or copying contacts99 Merging contact information100 Contact information and conversations101 Contact groups102 Adding People widgets103 Sending contact information104 Backing up your contacts105 Social Facebook106 Twitter for HTC Sense106 About Friend Stream106 Updating your status in Friend Stream107 Enjoying Facebook in Friend Stream107 Tweeting in Friend Stream108 4Contents HTC Confidential for Certifitcation HTC Confidential for Certifitcation Email Gmail110 Mail111 Calendar About Calendar118 Creating an event118 Viewing the Calendar119 Managing Calendar events120 Accepting or declining a meeting invitation121 Setting reminders for your events121 Dismissing or snoozing event reminders122 Showing or hiding calendars122 Changing Calendar settings123 Internet connections Data connection124 Managing your data usage125 Wi-Fi126 Connecting to a virtual private network (VPN)128 Using HTC 6435LVW as a wireless router129 Sharing your mobile data connection by USB tethering129 Connecting to the Internet through a computer130 Bluetooth and NFC Bluetooth basics131 Connecting a Bluetooth headset or car kit131 Disconnecting or unpairing from a Bluetooth device132 Sending information using Bluetooth133 Receiving information using Bluetooth134 Sharing content with Android Beam135 Settings and security Turning Airplane mode on or off137 Changing display settings137 Changing sound settings138 Changing the display language139 Accessibility settings139 Protecting your SIM card with a PIN140 Protecting HTC 6435LVW with a screen lock140 Checking information about HTC 6435LVW141 Trademarks and copyrights Index 5Contents HTC Confidential for Certifitcation HTC Confidential for Certifitcation Conventions used in this guide In this user guide, we use the following symbols to indicate useful and important information: This is a note. A note often gives additional information, such as what happens when you choose to do or not to do a certain action. A note also provides information that may only be applicable to some situations. This is a tip. A tip gives you an alternative way to do a particular step or procedure, or lets you know of an option that you may find helpful. This indicates important information that you need in order to accomplish a certain task or to get a feature to work properly. This provides safety precaution information, that is, information that you need to be careful about to prevent potential problems. 6Conventions used in this guide HTC Confidential for Certifitcation HTC Confidential for Certifitcation Unboxing HTC 6435LVW 1.BACK 2.HOME 3.USB connector 4.RECENT APPS (can be con…

Text truncated - open the document above for the full version.

宏達國際電子股份有限公司 宏達國際電子股份有限公司宏達國際電子股份有限公司 宏達國際電子股份有限公司 No. 23, Xinghua Rd., HTC Corporation Taoyuan City 330, Taiwan August 30, 2012 Power of Attorney To whom it may concern, Please be notified that I, Wawii Lin, have designated Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan and Ray Wang in HTC Corporation as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan and Ray Wang in HTC Corporation on the matters relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. As defined in 47 CFR Ch. 1.2002 (b), we further certify that neither the applicant nor any party to this application is subject to a denial to Federal benefits, including FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: NM8PL83200 If you have any acknowledgement and response, please send it to Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan directly. Should you have any question or comment regarding this matter, please have my best attention. Sincerely yours, Fax: + 886-3-375-3243 Tel: + 886-3-375-3252 Ext.: 36722 E-mail: [email protected]

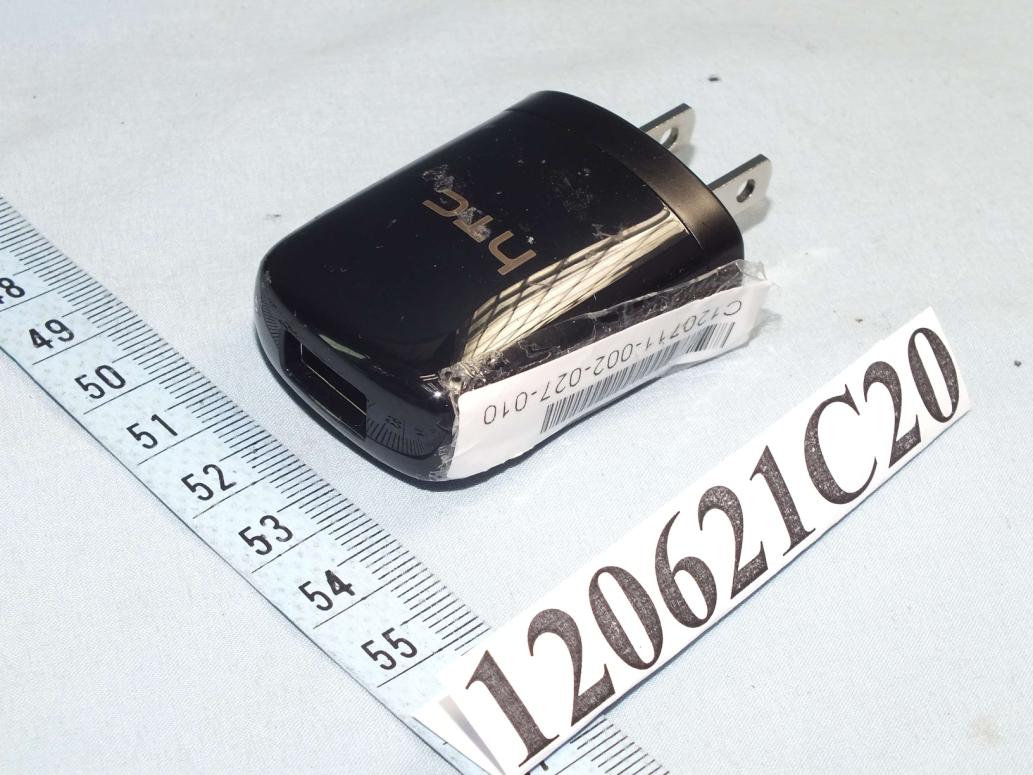

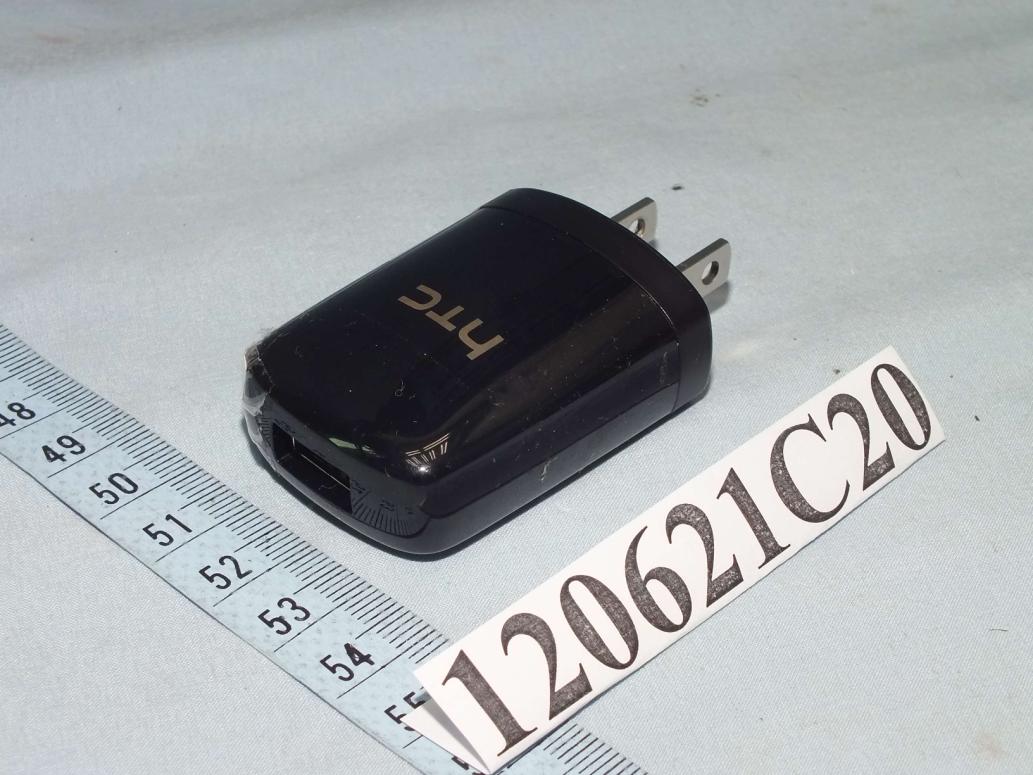

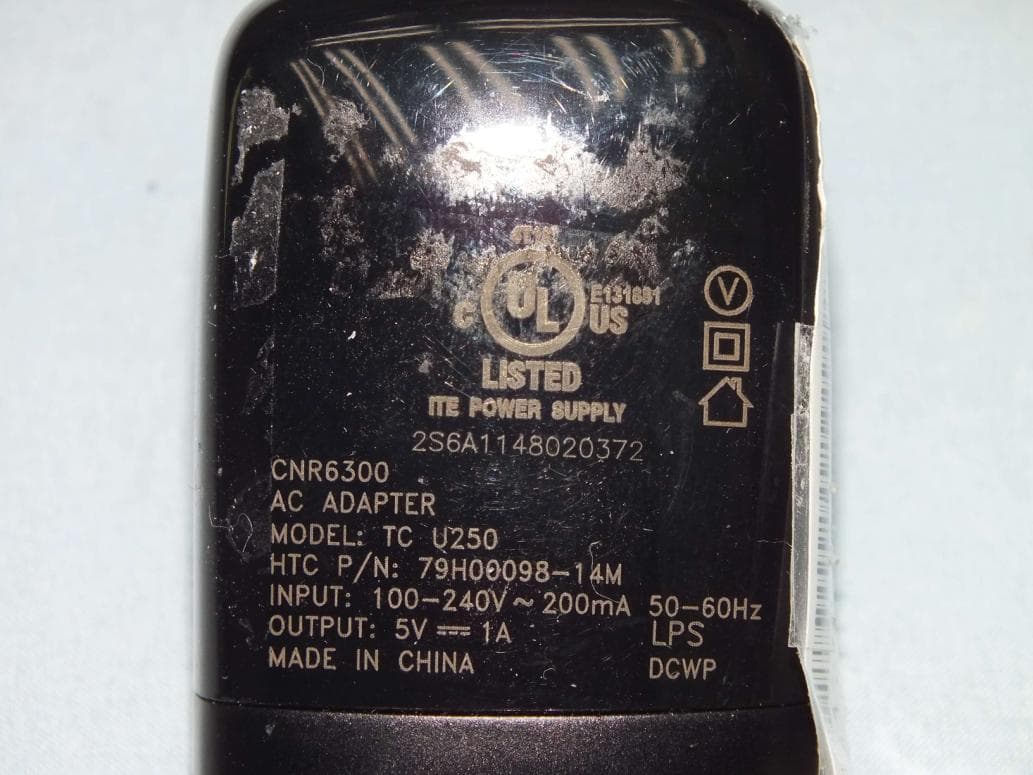

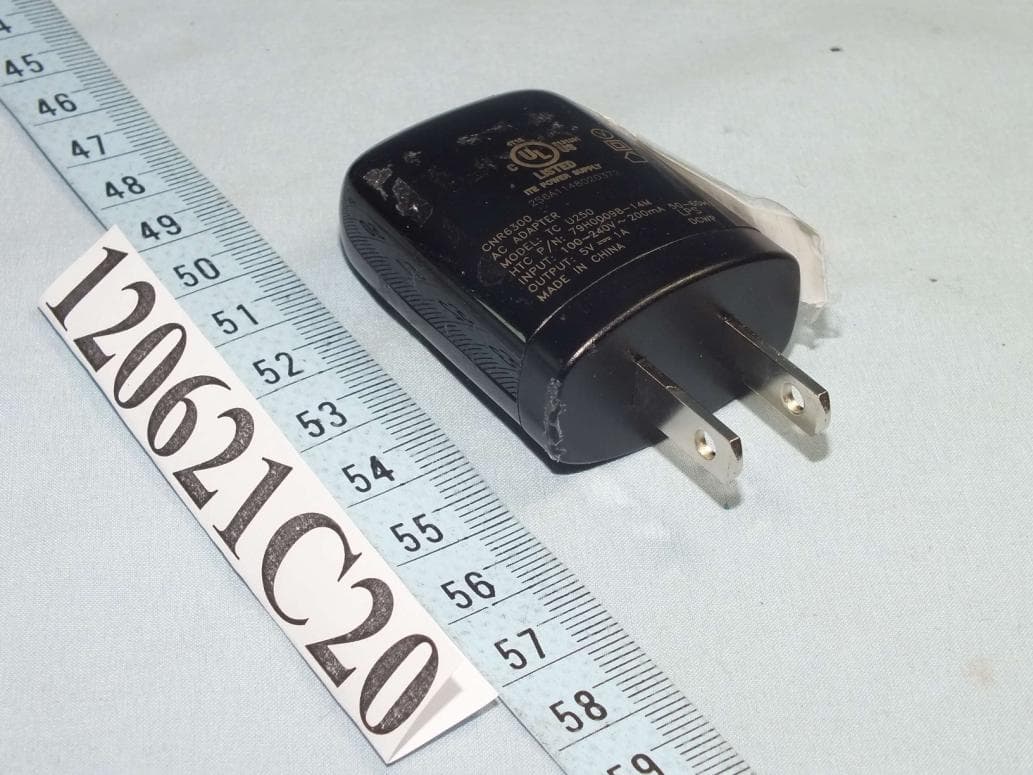

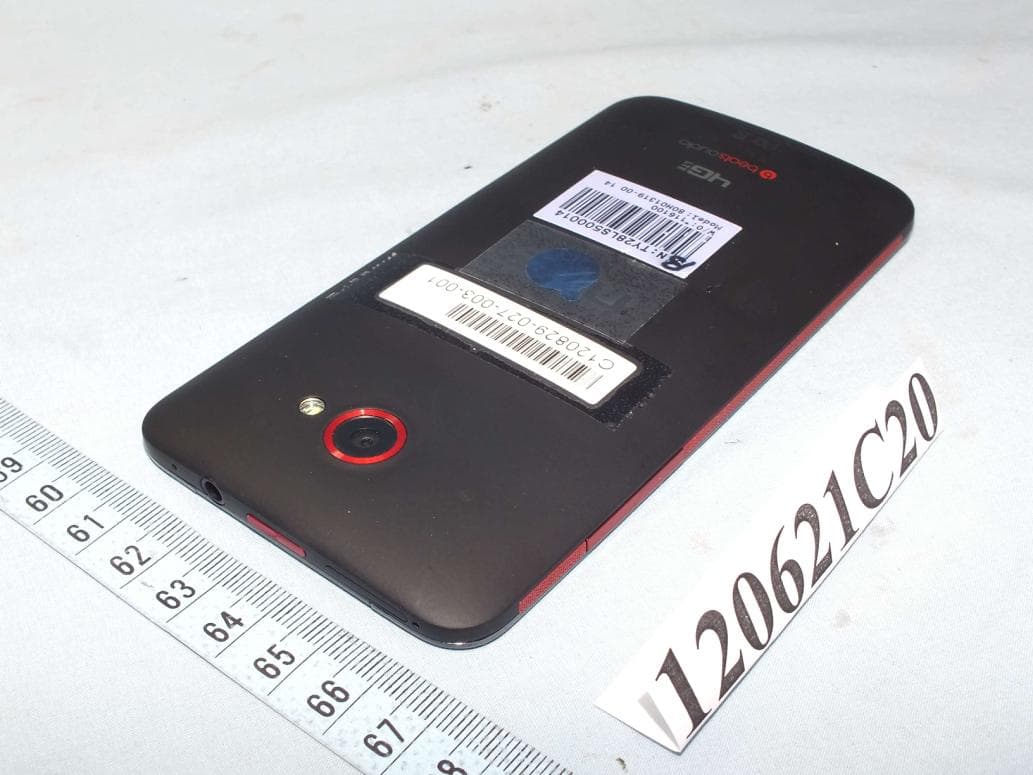

Page 1 CONSTRUCTION PHOTOS OF EUT The EUT has following accessories. No. Product Brand MODEL Description 1 Power Adapter 1 Phihong TC U250 I/P: 100-240Vac, 200mA O/P: 5Vdc, 1A 2 Power Adapter 2 Delta TC U250 I/P: 100-240Vac, 200mA O/P: 5Vdc, 1A 3 Battery 1 WTE BL83100 Rating: 3.8Vdc, 2020mAh Type: Li-ion 4 Battery 1 WTE BTR6435B Rating: 3.8Vdc, 2020mAh Type: Li-ion 5 USB Cable 1 Foxlink DC M430 1m non-shielded cable without core 6 USB Cable 2 Foxconn DC M430 1m non-shielded cable without core 7 LCD Panel SHARP LS050T1SX01 --- 8 Photo Camera LITEON 12P1BEA804 9 Video Camera PRIMAX W204H_2M_FF Page 2 Page 3 Page 4 Page 5

PL83200 FCC ID: NM8PL83200

Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Oct. 24, 2012 Report No. : SA120621C20 Revision : R01 Appendix A. SAR Plots of System Verification The plots for system verification are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/14 System Check_H750_120814 DUT: Dipole 750 MHz; Type: D750V3; SN: 1013 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: H750_0814 Medium parameters used: f = 750 MHz; σ = 0.896 mho/m; ε r = 40.3; ρ = 1000 kg/m 3 Ambient Temperature：22.3 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: EX3DV4 - SN3650; ConvF(9.2, 9.2, 9.2); Calibrated: 2011/10/26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2011/12/07 - Phantom: SAM Phantom_Left; Type: SAM V4.0; Serial: TP 1652 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.82 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.2 V/m; Power Drift = 0.021 dB Peak SAR (extrapolated) = 3.28 W/kg SAR(1 g) = 2.26 mW/g; SAR(10 g) = 1.52 mW/g Maximum value of SAR (measured) = 2.83 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/10/22 System Check_H750_121022 DUT: Dipole 750 MHz; Type: D750V3; SN: 1013 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: H750_1022 Medium parameters used: f = 750 MHz; σ = 0.892 mho/m; ε r = 41.542; ρ = 1000 kg/m 3 Ambient Temperature：21.5 °C; Liquid Temperature：20.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(9.8, 9.8, 9.8); Calibrated: 2012/07/19; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2012/04/27 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1127 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 2.78 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.460 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.249 mW/g SAR(1 g) = 2.19 mW/g; SAR(10 g) = 1.47 mW/g Maximum value of SAR (measured) = 2.76 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/14 System Check_H835_120814 DUT: Dipole 835 MHz; Type: D835V2; SN: 4d021 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: H835_0814 Medium parameters used: f = 835 MHz; σ = 0.913 mho/m; ε r = 42.5; ρ = 1000 kg/m 3 Ambient Temperature：22.3 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: EX3DV4 - SN3650; ConvF(8.87, 8.87, 8.87); Calibrated: 2011/10/26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2011/12/07 - Phantom: SAM Phantom_Left; Type: SAM V4.0; Serial: TP 1652 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 3.05 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 55.9 V/m; Power Drift = -0.017 dB Peak SAR (extrapolated) = 3.53 W/kg SAR(1 g) = 2.41 mW/g; SAR(10 g) = 1.59 mW/g Maximum value of SAR (measured) = 3.04 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/16 System Check_H835_120816 DUT: Dipole 835 MHz; Type: D835V2; SN: 4d021 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: H835_0816 Medium parameters used: f = 835 MHz; σ = 0.913 mho/m; ε r = 42.52; ρ = 1000 kg/m 3 Ambient Temperature：21.8 °C; Liquid Temperature：20.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(9.8, 9.8, 9.8); Calibrated: 2012/07/19; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2011/12/07 - Phantom: SAM with CRP v5.0 Front; Type: QD000P40CD; Serial: TP:1653 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 3.01 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 55.201 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 3.590 mW/g SAR(1 g) = 2.36 mW/g; SAR(10 g) = 1.55 mW/g Maximum value of SAR (measured) = 3.01 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/13 System Check_H1900_120813 DUT: Dipole 1900 MHz; Type: D1900V2; SN: 5d036 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: H1900_0813 Medium parameters used: f = 1900 MHz; σ = 1.43 mho/m; ε r = 39.7; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.7 °C DASY4 Configuration: - Probe: EX3DV4 - SN3650; ConvF(7.4, 7.4, 7.4); Calibrated: 2011/10/26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2011/12/07 - Phantom: SAM Phantom_Left; Type: SAM V4.0; Serial: TP 1652 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 14.9 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 100.8 V/m; Power Drift = 0.019 dB Peak SAR (extrapolated) = 18.9 W/kg SAR(1 g) = 9.92 mW/g; SAR(10 g) = 5.1 mW/g Maximum value of SAR (measured) = 14.4 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/16 System Check_H1900_120816 DUT: Dipole 1900 MHz; Type: D1900V2; SN: 5d036 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: H1900_0816 Medium parameters used: f = 1900 MHz; σ = 1.441 mho/m; ε r = 39.728; ρ = 1000 kg/m 3 Ambient Temperature：21.7 °C; Liquid Temperature：20.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(8.13, 8.13, 8.13); Calibrate…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Oct. 24, 2012 Report No. : SA120621C20 Revision : R01 Appendix B. SAR Plots of SAR Measurement The plots for SAR measurement are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/16 P03 GSM850_GPRS11_Right Cheek_Ch128 DUT: 120621C20 Communication System: GPRS11; Frequency: 824.2 MHz;Duty Cycle: 1:2.66993 Medium: H835_0816 Medium parameters used: f = 824.2 MHz; σ = 0.902 mho/m; ε r = 42.657; ρ = 1000 kg/m 3 Ambient Temperature：21.8 °C; Liquid Temperature：20.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(9.8, 9.8, 9.8); Calibrated: 2012/07/19; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2011/12/07 - Phantom: SAM with CRP v5.0 Front; Type: QD000P40CD; Serial: TP:1653 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch128/Area Scan (51x91x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.0807 W/kg Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.480 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 0.089 mW/g SAR(1 g) = 0.072 mW/g; SAR(10 g) = 0.055 mW/g Maximum value of SAR (measured) = 0.0816 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/16 P04 GSM850_GPRS11_Right Tilted_Ch128 DUT: 120621C20 Communication System: GPRS11; Frequency: 824.2 MHz;Duty Cycle: 1:2.66993 Medium: H835_0816 Medium parameters used: f = 824.2 MHz; σ = 0.902 mho/m; ε r = 42.657; ρ = 1000 kg/m 3 Ambient Temperature：21.8 °C; Liquid Temperature：20.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(9.8, 9.8, 9.8); Calibrated: 2012/07/19; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2011/12/07 - Phantom: SAM with CRP v5.0 Front; Type: QD000P40CD; Serial: TP:1653 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch128/Area Scan (51x91x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.0417 W/kg Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.956 V/m; Power Drift = 0.18 dB Peak SAR (extrapolated) = 0.044 mW/g SAR(1 g) = 0.036 mW/g; SAR(10 g) = 0.028 mW/g Maximum value of SAR (measured) = 0.0400 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/16 P05 GSM850_GPRS11_Left Cheek_Ch128 DUT: 120621C20 Communication System: GPRS11; Frequency: 824.2 MHz;Duty Cycle: 1:2.66993 Medium: H835_0816 Medium parameters used: f = 824.2 MHz; σ = 0.902 mho/m; ε r = 42.657; ρ = 1000 kg/m 3 Ambient Temperature：21.8 °C; Liquid Temperature：20.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(9.8, 9.8, 9.8); Calibrated: 2012/07/19; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2011/12/07 - Phantom: SAM with CRP v5.0 Front; Type: QD000P40CD; Serial: TP:1653 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch128/Area Scan (51x91x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.0792 W/kg Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.802 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 0.088 mW/g SAR(1 g) = 0.071 mW/g; SAR(10 g) = 0.055 mW/g Maximum value of SAR (measured) = 0.0797 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/16 P06 GSM850_GPRS11_Left Tilted_Ch128 DUT: 120621C20 Communication System: GPRS11; Frequency: 824.2 MHz;Duty Cycle: 1:2.66993 Medium: H835_0816 Medium parameters used: f = 824.2 MHz; σ = 0.902 mho/m; ε r = 42.657; ρ = 1000 kg/m 3 Ambient Temperature：21.8 °C; Liquid Temperature：20.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(9.8, 9.8, 9.8); Calibrated: 2012/07/19; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2011/12/07 - Phantom: SAM with CRP v5.0 Front; Type: QD000P40CD; Serial: TP:1653 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch128/Area Scan (51x91x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.0569 W/kg Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.437 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 0.059 mW/g SAR(1 g) = 0.047 mW/g; SAR(10 g) = 0.037 mW/g Maximum value of SAR (measured) = 0.0534 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/16 P09 GSM1900_GPRS11_Right Cheek_Ch661 DUT: 120621C20 Communication System: GPRS11; Frequency: 1880 MHz;Duty Cycle: 1:2.66993 Medium: H1900_0816 Medium parameters used: f = 1880 MHz; σ = 1.42 mho/m; ε r = 39.818; ρ = 1000 kg/m 3 Ambient Temperature：21.7 °C; Liquid Temperature：20.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(8.13, 8.13, 8.13); Calibrated: 2012/07/19; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2011/12/07 - Phantom: SAM with CRP v5.0 Front; Type: QD000P40CD; Serial: TP:1653 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch661/Area Scan (51x91x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.0489 W/kg Ch661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.130 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.054 mW/g SAR(1 g) = 0.035 mW/g; SAR(10 g) = 0.022 mW/g Maximum value of SAR (measured) = 0.0440 W/kg Ch661/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.130 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.043 mW/g SAR(1 g) = 0.029 mW/g; SAR(10 g) = 0.020 mW/g Maximum value of SAR (measured) = 0.0358 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/16 P10 GSM1900_GPRS11_Right Tilted_Ch661 DUT: 120621C20 Communication System: GPRS11; Frequency: 1880 MHz;Duty Cycle: 1:2.66993 Medium: H1900_0816 Med…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Oct. 24, 2012 Report No. : SA120621C20 Revision : R01 Appendix C. Calibration Certificate for Probe and Dipole The SPEAG calibration certificates are shown as follows.

FCC SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 44 Report No. : SA120621C20 Issued Date : Oct. 24, 2012 Revision : R01 FCC SAR Test Report Report No. : SA120621C20 Applicant : HTC Corporation Address : No. 23, Xinghua Rd., Taoyuan City, Taiwan Product : Smartphone FCC ID : NM8PL83200 Brand : HTC Model No. : PL83200 Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1991 / IEEE 1528:2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) KDB 248227 D01 v01r02 / KDB 648474 D01 v01r05 / KDB 941225 D01 v02 KDB 941225 D03 v01 / KDB 941225 D05 v01 / KDB 941225 D06 v01 Date of Testing : Aug. 13, 2012 ~ Oct. 22, 2012 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch - Taiwan HwaYa Lab, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Ivonne Wu / Senior Specialist Approved By : Roy Wu / Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 44 Report No. : SA120621C20 Issued Date : Oct. 24, 2012 Revision : R01 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ......................................................................................................................…

Text truncated - open the document above for the full version.
