NM8PM23100WINDOWS PHONE

Safety and regulatory guide Please read before proceeding THE BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE THE DEVICE OUT OF THE BOX. YOUR WARRANTY IS INVALIDATED IF YOU DISASSEMBLE OR ATTEMPT TO DISASSEMBLE THE DEVICE. Privacy restrictions Some countries require full disclosure of recorded telephone conversations, and stipulate that you must inform the person with whom you are speaking that the conversation is being recorded. Always obey the relevant laws and regulations of your country when using the recording feature of your phone. Disclaimers ANY WEATHER, STOCK, OR OTHER INFORMATION, DATA, OR DOCUMENTATION (“ACCESSED INFORMATION”) ARE PROVIDED “AS IS” AND WITHOUT ANY WARRANTY OR ANY TECHNICAL SUPPORT. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, HTC AND ITS AFFILIATES expressly disclaim any and all representations and warranties, arising by law or otherwise, related to the Accessed Information, including without limitation any express or implied representation or warranty of merchantability, fitness for a particular purpose, non-infringement, quality, accuracy, completeness, effectiveness, reliability, or usefulness. Without limiting the foregoing, it is further understood that HTC and its Affiliates are not responsible for any use of the Accessed Information or the results arising from such use, and that you use such information at your own risk. Limitation of damages TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HTC OR ITS AFFILIATES BE LIABLE TO YOU, ANY USER, OR THIRD PARTY FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, INCIDENTAL OR PUNITIVE DAMAGES OF ANY KIND, ARISING IN CONTRACT, TORT, OR OTHERWISE, INCLUDING, BUT NOT LIMITED TO, INJURY, LOSS OF REVENUE, LOSS OF GOODWILL, LOSS OF BUSINESS OPPORTUNITY, LOSS OF DATA, AND/OR LOSS OF PROFITS, REGARDLESS OF THE FORESEEABILITY THEREOF OR WHETHER HTC OR ITS AFFILIATES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. AND IN NO EVENT SHALL THE TOTAL LIABILITY OF HTC OR ITS AFFILIATES EXCEED THE AMOUNT RECEIVED FROM YOU, REGARDLESS OF THE LEGAL THEORY UNDER WHICH THE CAUSE OF ACTION IS BROUGHT. THE FOREGOING DOES NOT AFFECT ANY STATUTORY RIGHTS WHICH MAY NOT BE DISCLAIMED. Important health information and safety precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. Electrical safety This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. Safety precautions for proper grounding installation CAUTION: Connecting to improperly grounded equipment can result in an electric shock to your device. This product is equipped with a USB Cable for connecting with desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet which is properly installed and grounded in accordance with all local codes and ordinances. Safety precautions for power supply unit ƒ Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product. This product should be operated only with the following designated power supply unit(s). AC adapter: HTC, Model TC U250 ƒ Handle battery packs carefully This product contains a Lithium-ion polymer or Lithium-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. Do not attempt to open or service the battery pack. Do not disassemble, crush, puncture, short external contacts or circuits, dispose of in fire or water, or expose a battery pack to temperatures higher than 60 ̊C (140 ̊F). WARNING: Danger of explosion if battery is incorrectly replaced. To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts, expose to temperature above 60° C (140° F), or dispose of in fire or water. Replace only with specified batteries. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product. ƒ Take extra precautions y Keep the device dry and away from water or any liquid as it may cause a short circuit. y The phone should only be connected to products that bear the USB-IF logo or have completed the USB-IF compliance program. y Only use the battery with a charging system that has been qualified with the system per this standard, IEEE-Std-1725. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage or other hazard. y Avoid dropping the phone. If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service centre for inspection. y If the battery leaks: y Do not allow the leaking fluid to come in contact with skin or clothing. If already in contact, flush the affected area immediately with clean water and seek medical advice. y Do not allow the leaking fluid to come in contact with eyes. If already in contact, DO NOT rub; rinse with clean water immediately and seek medical advice. y Take extra precautions to keep a leaking battery away from fire as there is a danger of ignition or explosion. Safety precautions for direct sunlight Keep this product away from excessive moisture and extreme tempe…

Text truncated - open the document above for the full version.

Your HTC XXXX User guide Contents Getting started Your phone6 SIM card7 Battery 8 Switching the power on or off11 Entering your PIN11 Finger gestures12 Setting up your phone for the first time12 Start screen12 Basics Adjusting the volume14 Sleep mode14 Lock screen15 Changing the ringtone16 Changing the theme16 Account setup16 Switching between apps17 Windows Store18 Using speech on your phone18 Phone calls Making a call20 Receiving calls21 What can I do during a call?21 Starting a conference call22 Call history23 Turning airplane mode on or off24 People Keeping in touch25 Importing contacts from your SIM card25 Adding a new contact25 Jumping to a section in the contacts list26 Filtering your contacts list26 Merging contact profiles26 Searching, editing or deleting27 Sharing with a group of contacts in real-time28 Organizing your contacts into groups29 What is the Me card?31 Posting to social networks31 2Contents Filtering social updates33 Keyboard Using the onscreen keyboard34 Entering words with predictive text35 Changing the keyboard language35 Messaging Texting and chatting in one place36 Sharing picture, video, or ringtone in a message37 Viewing and replying to a message38 Managing conversations39 Email Adding your Windows Live account40 Adding a POP3/IMAP email account40 Adding a Microsoft Exchange ActiveSync account41 Checking email41 Sending email42 Managing email messages43 Changing email account settings44 Camera Camera basics45 Taking a photo46 Recording video47 Camera flash doesn't turn on?47 After capturing48 Taking a panoramic photo48 Taking continuous photo shots49 Photos, videos, and music Pictures50 Music + Videos52 Syncing Why do I need the Zune software?54 Installing and setting up the Zune software54 Syncing pictures, music, and videos55 Setting up wireless sync56 Internet connections Data connection57 Wi-Fi58 Using your phone as a mobile hotspot59 3Contents Conventions used in this guide In this user guide, we use the following symbols to indicate useful and important information: This is a note. A note often gives additional information, such as what happens when you choose to do or not to do a certain action. A note also provides information that may only be applicable to some situations. This is a tip. A tip gives you an alternative way to do a particular step or procedure, or lets you know of an option that you may find helpful. This indicates important information that you need in order to accomplish a certain task or to get a feature to work properly. This provides safety precaution information, that is, information that you need to be careful about to prevent potential problems. 4Conventions used in this guide Other helpful resources For health, safety, and regulatory information, please read the Safety and regulatory guide that’s included in the box. In addition to this user guide, you can find help information, FAQs, and more in www.htc.com/us/support. To learn a lot more about using Windows ® Phone, open Help+Tips on your phone. Or use your web browser and go to windowsphone.com. Certain Windows Phone features or Microsoft ® services may not be available in some countries or regions. 5Other helpful resources Getting started Your phone 1.BACK 2.USB connector 3.START 4.SEARCH 5.Camera button 6.VOLUME 7.Notification LED 8.Proximity sensor 9.POWER 10.3.5mm headset jack 11.Front camera If you want to use a screen protector, please don’t cover and block the proximity sensor. You can purchase the dedicated screen protector for your phone that already has a small opening for the sensor. 6Getting started SIM card The SIM card contains your phone number, service details, and memory for storing phonebook contacts and/or text messages. Inserting the SIM card 1.Insert the SIM eject tool (or a small bent paperclip) into the small hole next to the SIM card tray. 2.Pull the SIM card tray out, and place the SIM card (contacts facing down) into the tray. 3.Insert the SIM card tray into its slot. Removing the SIM card Make sure to switch off your phone before removing your SIM card. 1.Insert the SIM eject tool (or a small bent paperclip) into the small hole next to the SIM card tray. 2.Pull the SIM card tray out and remove the SIM card. 7Getting started Battery Your phone uses a rechargeable, non-removable battery. How long the battery can last before it needs recharging depends on how you use your phone. The features and accessories you use can affect battery life. For example, leaving your Bluetooth ® connection always on uses more power. Long phone calls and frequent web browsing use up a lot of battery power. Also, consider your location: poor signal strength from your mobile network and extreme temperature make the battery work harder. Charging the battery Before you turn on and start using your phone, it is recommended that you charge the battery. Only the power adapter and USB cable provided in the box must be used to charge the battery. 1.Insert the small end of the USB cable into the USB connector. 2.Insert the other end of the USB cable into the power adapter. 3.Plug in the power adapter to an electrical outlet to start charging the battery. As the battery is being charged, the notification LED shows a solid red light. The light turns to solid green when the battery is fully charged. When you charge the battery and the phone is on, the charging battery icon is displayed in the status bar. After the battery has been fully charged, the charging battery icon turns to a full battery icon . As a safety precaution, the battery stops charging when it overheats. 8Getting started Wireless charging for your phone The Wireless charging battery cover funtion lets you conveniently charge your phone’s battery on a compatible wireless charging mat (sold separately, please contact your service provider or retail store for purchasing details). Charging the battery You can start charging your phone using a compatible wireless charging mat. As the battery is being charged, the notifica…

Text truncated - open the document above for the full version.

宏達國際電子股份有限公司 宏達國際電子股份有限公司宏達國際電子股份有限公司 宏達國際電子股份有限公司 HTC Corporation 1F, No. 6-3, Baoqiang Rd., Xindian City, Taipei County 231, Taiwan AGENCY AUTHORIZATION LETTER Date: 7/20/2012 I, the undersigned Wawii Lin of HTC hereby authorize Ray Kwei of HTC or Daniel Lee of BV ADT to act on my behalf in all matters relating to all processes required in FCC Part 15C and any communication needed with the national authority. Any and all acts carried out by Ray Kwei of HTC or Daniel Lee of BV ADT on my behalf shall have the same effects as acts of our own. And I also assigned this authorization is limited to the product of : FCC ID : NM8PM23100 If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours,

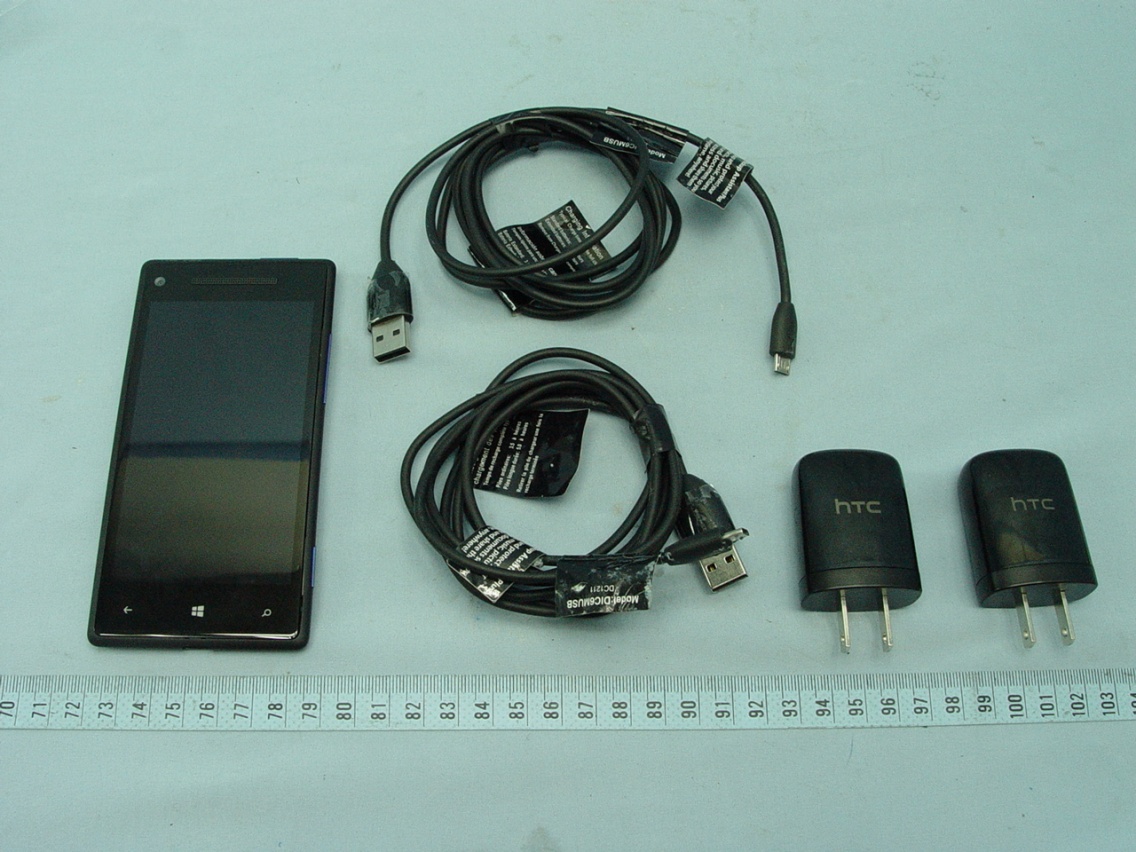

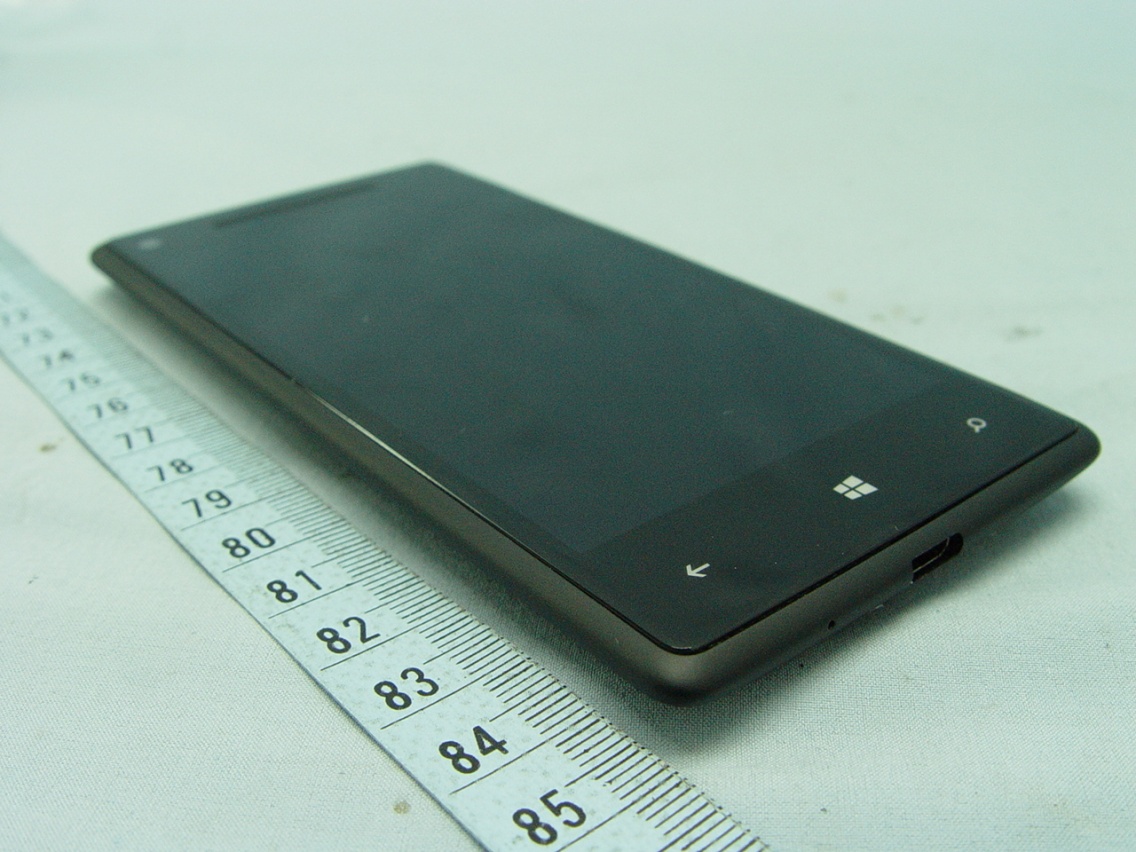

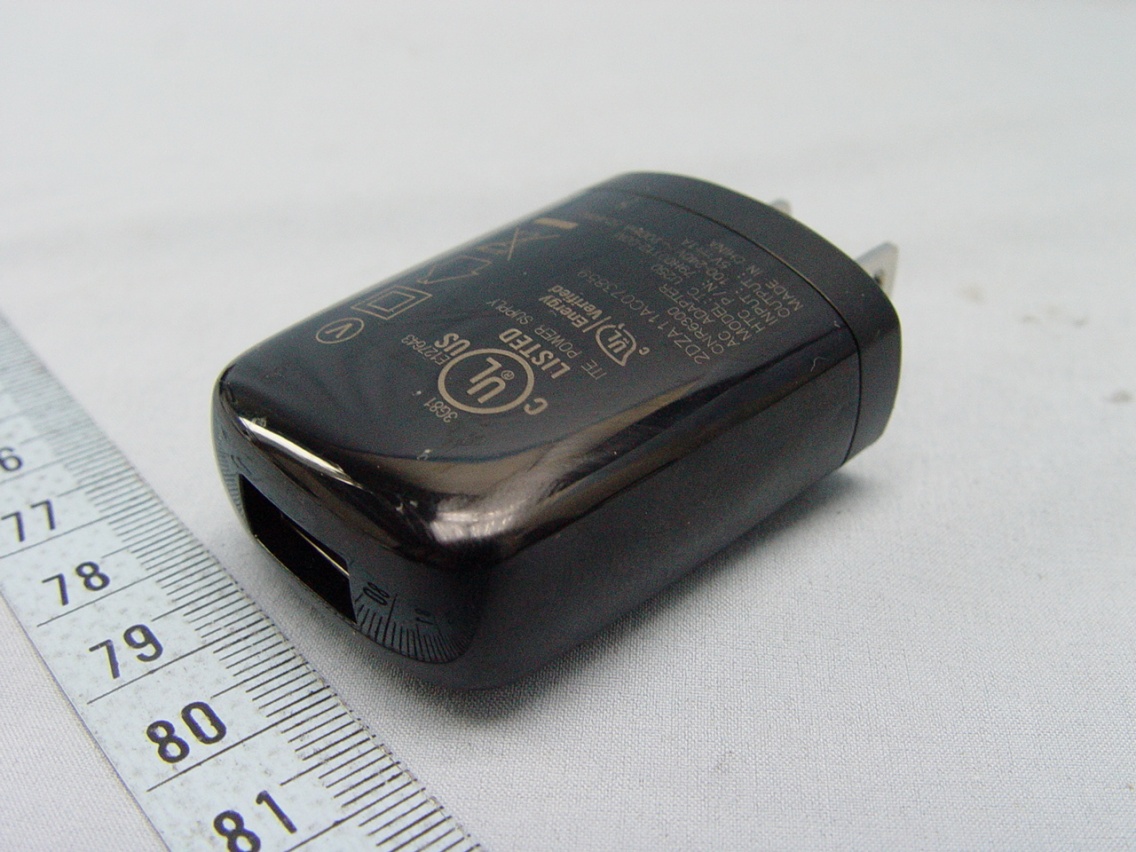

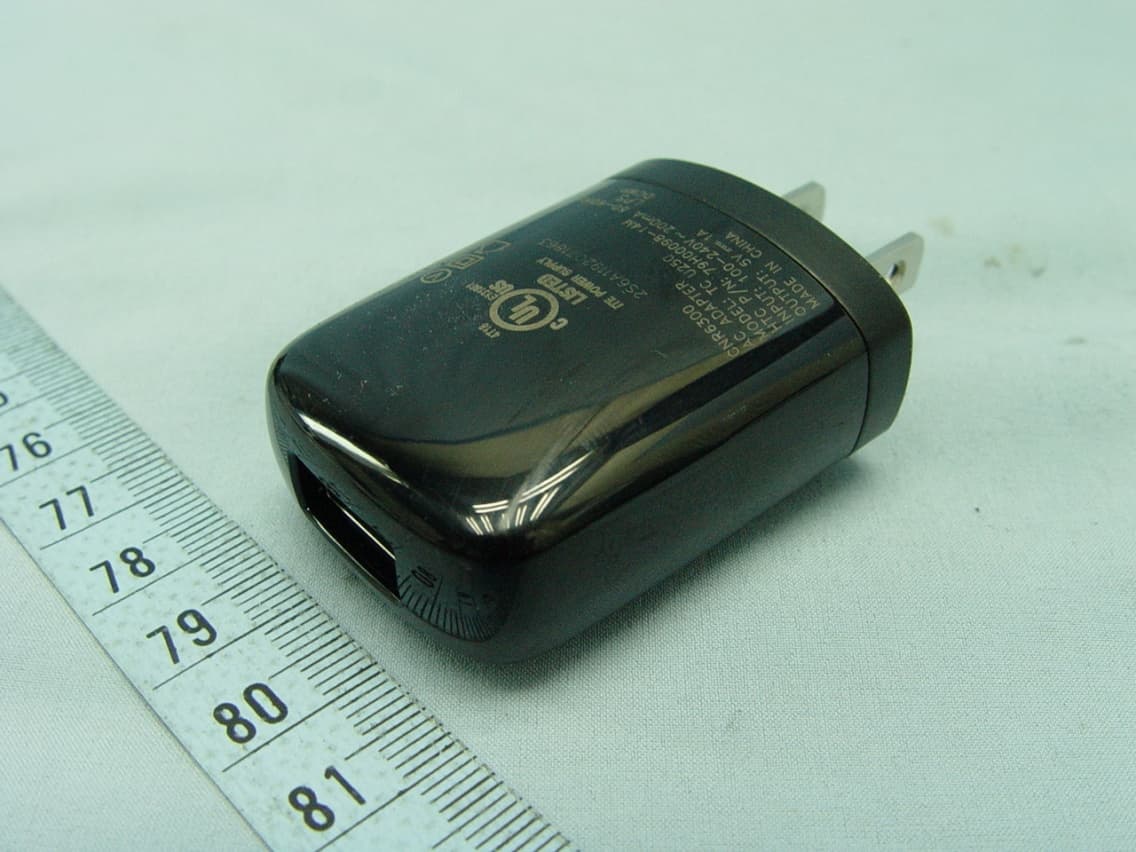

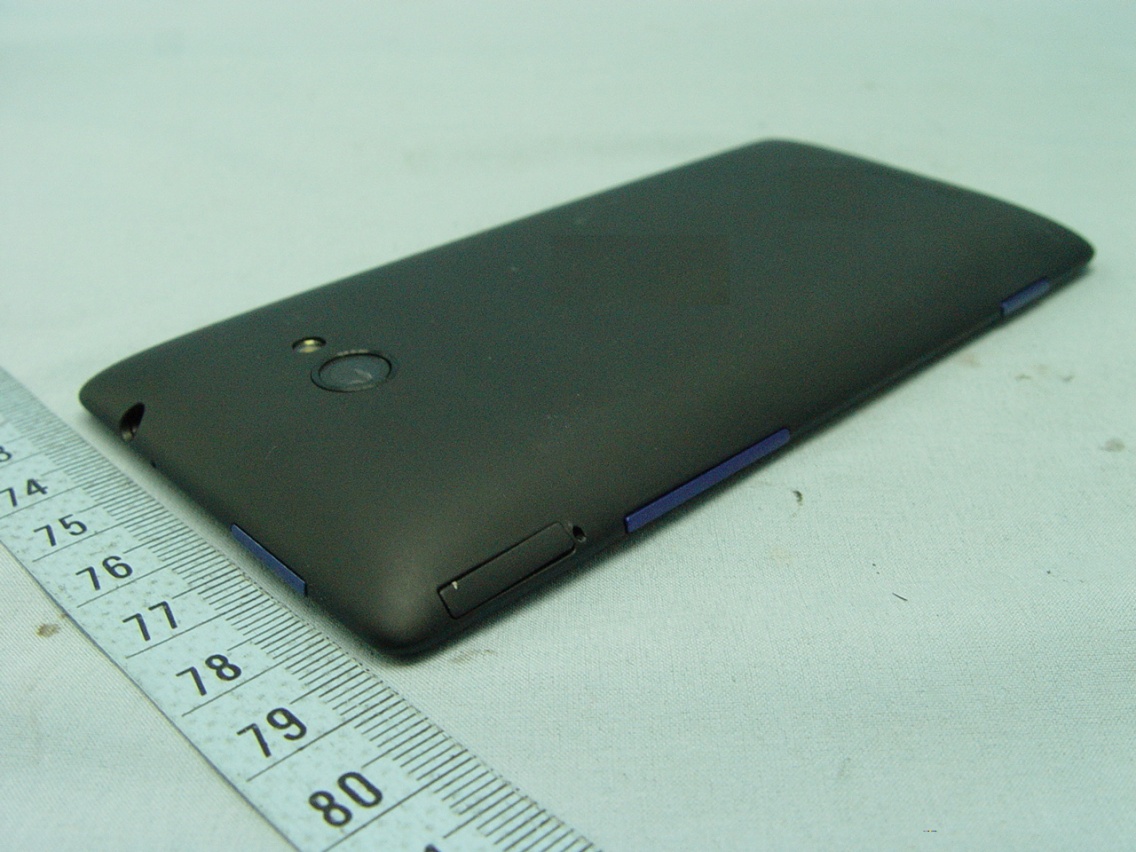

Page 1 CONSTRUCTION PHOTOS OF EUT The EUT has following accessories. No. Product Brand MODEL Description 1 Power Adapter 1 Phihong TC U250 I/P: 100-240Vac, 200mA, 50-60Hz O/P: 5Vdc, 1A 2 Power Adapter 2 Delta TC U250 I/P: 100-240Vac, 200mA, 50-60Hz O/P: 5Vdc, 1A 3 Battery Formosa BM23100, BTR6990B Rating: 3.75Vdc,1800mAh Type: Li-ion 4 USB Cable 1 Foxlink DC M430 1.8m non-shielded cable without core 5 USB Cable 2 Foxconn DC M430 1.8m non-shielded cable without core 6 LCD Panel SHARP LS043K1SX01 --- 7 Photo Camera LiteOn 12P1BEA804 8 Video Camera PRIMAX W204H_2M_FF Page 2 Page 3 Page 4 Page 5 Page 6 Page 7

FCC ID and Label Location Model Name:PJ83100 FCC ID:NM8PJ83100 is placed in the back plated of PJ83100

Page 8       Page 9        Page 10        Page 11        Page 12        Page 13        Page 14        Page 15        Page 16        Page 17

Page 18        Page 19        Page 20        Page 21        Page 22        Page 23        Page 24        Page 25        Page 26        Page 27

FCC SAR Test Report Report Format Version 5.0.0Issued Date : Sep. 28, 2012 Report No. : SA120717C01 Revision : R01 Appendix B. SAR Plots of SAR Measurement The plots for SAR measurement are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/03             Communication System: GPRS12; Frequency: 824.2 MHz;Duty Cycle: 1:1.99986 Medium: H835_0803 Medium parameters used: f = 824.2 MHz;  = 0.906 mho/m;  r = 42.942;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˅ˁ˃ʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁ˄ʳк DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(8.87, 8.87, 8.87); Calibrated: 2011/10/26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2011/12/07 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1654 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469)   ! "# " $ Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.302 mW/g  %&&' ! " "$()  Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.585 V/m; Power Drift = 0.4 dB Peak SAR (extrapolated) = 0.331 mW/g  ! $* + ',- ! $* + ', Maximum value of SAR (measured) = 0.307 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/03     ./        Communication System: GPRS12; Frequency: 824.2 MHz;Duty Cycle: 1:1.99986 Medium: H835_0803 Medium parameters used: f = 824.2 MHz;  = 0.906 mho/m;  r = 42.942;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˅ˁ˃ʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁ˄ʳк DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(8.87, 8.87, 8.87); Calibrated: 2011/10/26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2011/12/07 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1654 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469)   ! "# " $ Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.193 mW/g  %&&' ! " "$()  Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.235 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 0.181 mW/g  ! $* + ',- ! $* + ', Maximum value of SAR (measured) = 0.169 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/03 #    01        Communication System: GPRS12; Frequency: 824.2 MHz;Duty Cycle: 1:1.99986 Medium: H835_0803 Medium parameters used: f = 824.2 MHz;  = 0.906 mho/m;  r = 42.942;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˅ˁ˃ʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁ˄ʳк DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(8.87, 8.87, 8.87); Calibrated: 2011/10/26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2011/12/07 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1654 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469)   ! "# " $ Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.319 mW/g  %&&' ! " "$()  Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.961 V/m; Power Drift = 0.19 dB Peak SAR (extrapolated) = 0.354 mW/g  ! $* +',- ! $* + #', Maximum value of SAR (measured) = 0.320 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/03      01./        Communication System: GPRS12; Frequency: 824.2 MHz;Duty Cycle: 1:1.99986 Medium: H835_0803 Medium parameters used: f = 824.2 MHz;  = 0.906 mho/m;  r = 42.942;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˅ˁ˃ʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁ˄ʳк DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(8.87, 8.87, 8.87); Calibrated: 2011/10/26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2011/12/07 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1654 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469)   ! "# " $ Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.150 mW/g  %&&' ! " "$()  Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.432 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.161 mW/g  ! $* + 2',- ! $* + 3', Maximum value of SAR (measured) = 0.148 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/03   #            Communication System: GPRS12; Frequency: 1850.2 MHz;Duty Cycle: 1:1.99986 Medium: H1900_0803 Medium parameters used: f = 1850.2 MHz;  = 1.382 mho/m;  r = 39.979;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˅ˁ˅ʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁ˄ʳк DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(7.4, 7.4, 7.4); Calibrated: 2011/10/26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2011/12/07 - Phantom: SAM Phantom_Left; Type: SAM V4.0; Serial: TP 1652 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469)   ! "# " $ Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.421 mW/g  %&&' ! " "$()  Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.526 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.460 mW/g  ! $* +# ',- ! $* + ', Maximum value of SAR (measured) = 0.375 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/03 2 #    ./        Communication System: GPRS12; Frequency: 1850.2 MHz;Duty Cycle: 1:1.99986 Medium: H1900_0803 Medium parameters used: f = 1850.2 MHz;  = 1.382 mho/m;  r = 39.979;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˅ˁ˅ʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁ˄ʳк DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(7.4, 7.4, 7.4); Calibrated: 2011/10/26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Ca…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 40 Report No. : SA120717C01 Issued Date : Sep. 28, 2012 Revision : R01 FCC SAR Test Report Report No. : SA120717C01 Applicant : HTC Corporation Address : 23, Xinghua Rd., Taoyuan 330, Taiwan, R.O.C. Product : Windows Phone FCC ID : NM8PM23100 Brand : HTC Model No. : PM23100 Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1991 / IEEE 1528:2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) KDB 248227 D01 v01r02 / KDB 648474 D01 v01r05 / KDB 941225 D01 v02 KDB 941225 D03 v01 / KDB 941225 D05 v01 / KDB 941225 D06 v01 Date of Testing : Aug. 01, 2012 ~ Sep. 26, 2012 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch - Taiwan HwaYa Lab, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Pettie Chen / Senior Specialist Approved By : Roy Wu / Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 40 Report No. : SA120717C01 Issued Date : Sep. 28, 2012 Revision : R01 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ................................................................................................................ 6 3.2 SPEAG DASY System ................................................................................................................................................. 6 3.2.1 Robot .................................................................................................................................................................. 7 3.2.2 Probes ................................................................................................................................................................ 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................... 8 3.2.4 Phantoms ........................................................................................................................................................... 9 3.2.5 Device Holder ................................................................................................................................................... 10 3.2.6 System Validation Dipoles ................................................................................................................................ 10 3.2.7 Tissue Simulating Liquids ................................................................................................................................. 11 3.3 SAR System Verification ............................................................................................................................................ 13 3.4 SAR Measurement Procedure ................................................................................................................................... 14 3.4.1 Area & Zoom Scan Procedure ......................................................................................................................... 14 3.4.2 Volume Scan Procedure ................................................................................................................................... 14 3.4.3 Power Drift Monitoring ...................................................................................................................................... 14 3.4.4 Spatial Peak SAR Evaluation ........................................................................................................................... 15 3.4…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Aug. 13, 2012 Report No. : SA120717C01 Revision : R01 Appendix C. Calibration Certificate for Probe and Dipole The SPEAG calibration certificates are shown as follows.

Report No.: RF120717C01-3 1 of 68 Report Format Version 5.0.0 FCC TEST REPORT (BLUETOOTH) REPORT NO.: RF120717C01-3 MODEL NO.: PM23100 FCC ID: NM8PM23100 RECEIVED: Jul. 17, 2012 TESTED: Jul. 25 ~ Aug. 06, 2012 ISSUED: Aug. 13, 2012 APPLICANT: HTC Corporation ADDRESS: 23, Xinghua Rd., Taoyuan 330, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF120717C01-3 2 of 68 Report Format Version 5.0.0 Table of Contents RELEASE CONTROL RECORD .......................................................................................... 5 1. CERTIFICATION ....................................................................................................... 6 2. SUMMARY OF TEST RESULTS .............................................................................. 7 2.1 MEASUREMENT UNCERTAINTY ........................................................................... 8 3. GENERAL INFORMATION ....................................................................................... 9 3.1 GENERAL DESCRIPTION OF EUT ......................................................................... 9 3.2 DESCRIPTION OF TEST MODES ......................................................................... 10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ......................... 11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................ 14 3.4 DESCRIPTION OF SUPPORT UNITS ................................................................... 15 3.4.1 CONFIGURATION OF SYSTEM UNDER TEST .................................................... 15 4. TEST TYPES AND RESULTS (FOR BLUETOOTH EDR) ...................................... 16 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................. 16 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .............. 16 4.1.2 TEST INSTRUMENTS ........................................................................................... 17 4.1.3 TEST PROCEDURES ............................................................................................ 18 4.1.4 DEVIATION FROM TEST STANDARD .................................................................. 18 4.1.5 TEST SETUP ......…

Text truncated - open the document above for the full version.
