宏達國際電子股份有限公司 宏達國際電子股份有限公司宏達國際電子股份有限公司 宏達國際電子股份有限公司 No. 23, Xinghua Rd., HTC Corporation Taoyuan City 330, Taiwan August 9, 2012 Power of Attorney To whom it may concern, Please be notified that I, Wawii Lin, have designated Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan and Yvonne Lin in HTC Corporation as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan and Yvonne Lin in HTC Corporation on the matters relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. As defined in 47 CFR Ch. 1.2002 (b), we further certify that neither the applicant nor any party to this application is subject to a denial to Federal benefits, including FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: NM8PM23300 If you have any acknowledgement or response, please send it to Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan directly. Should you have any question or comment regarding this matter, please have my best attention. Sincerely yours,

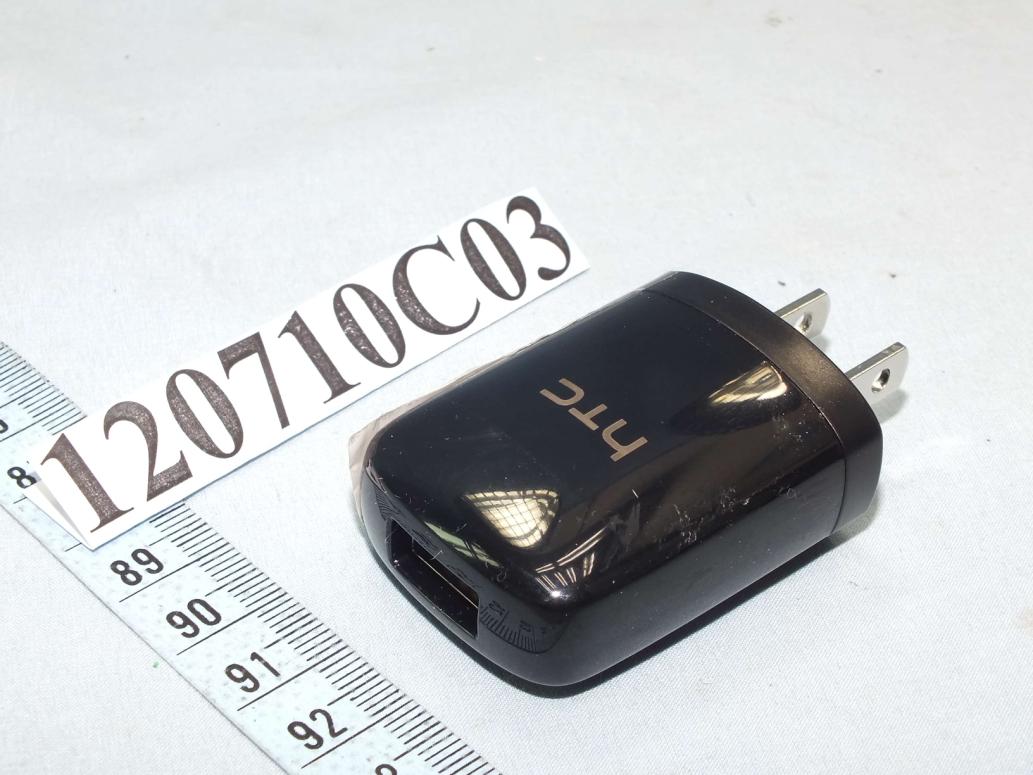

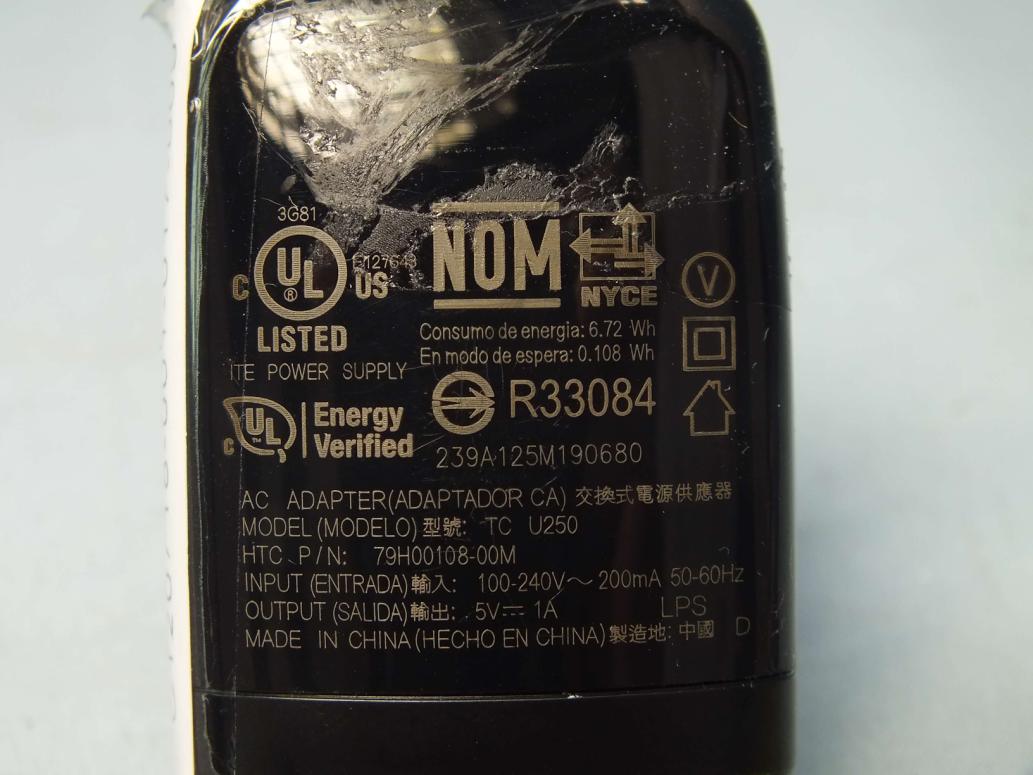

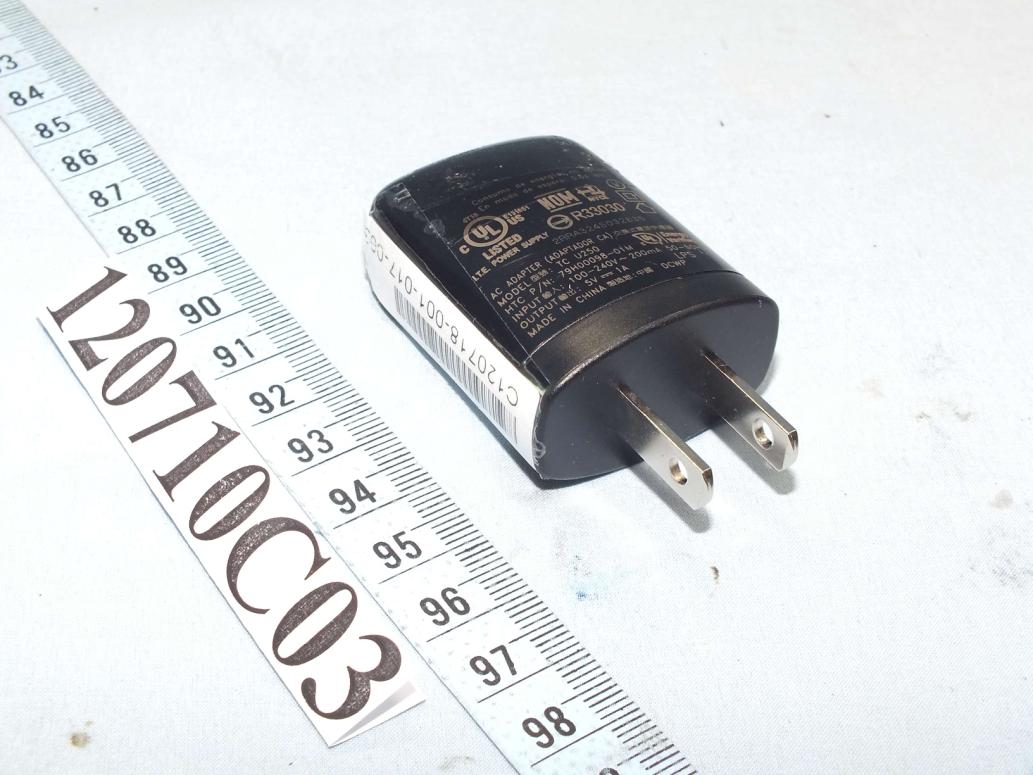

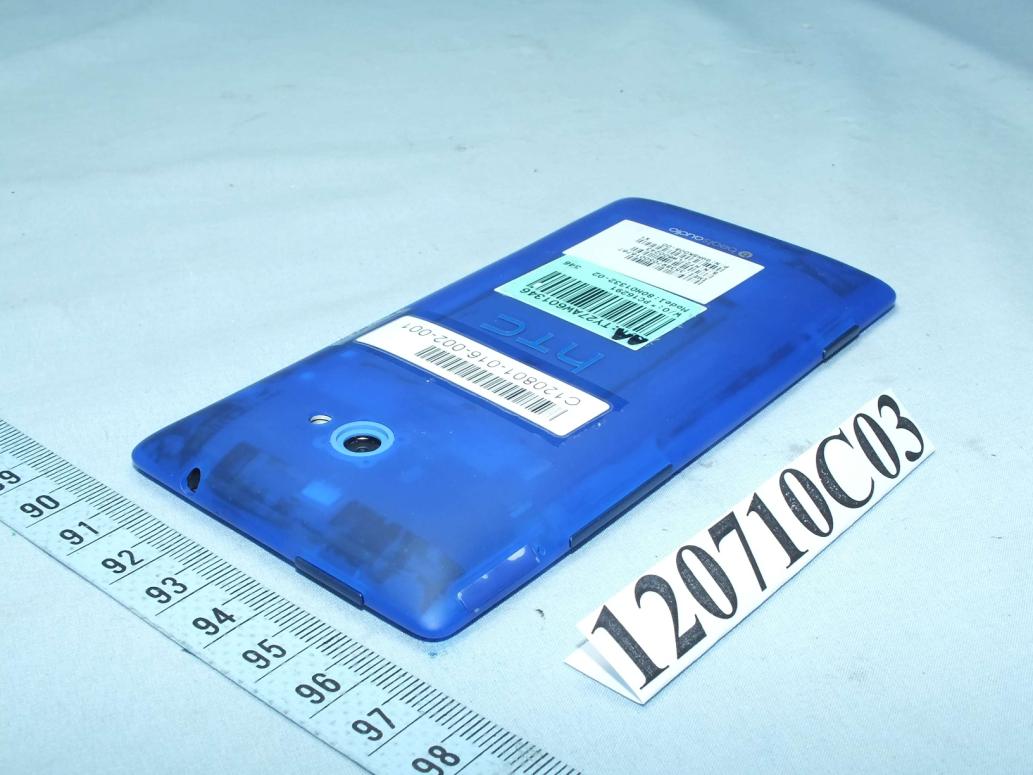

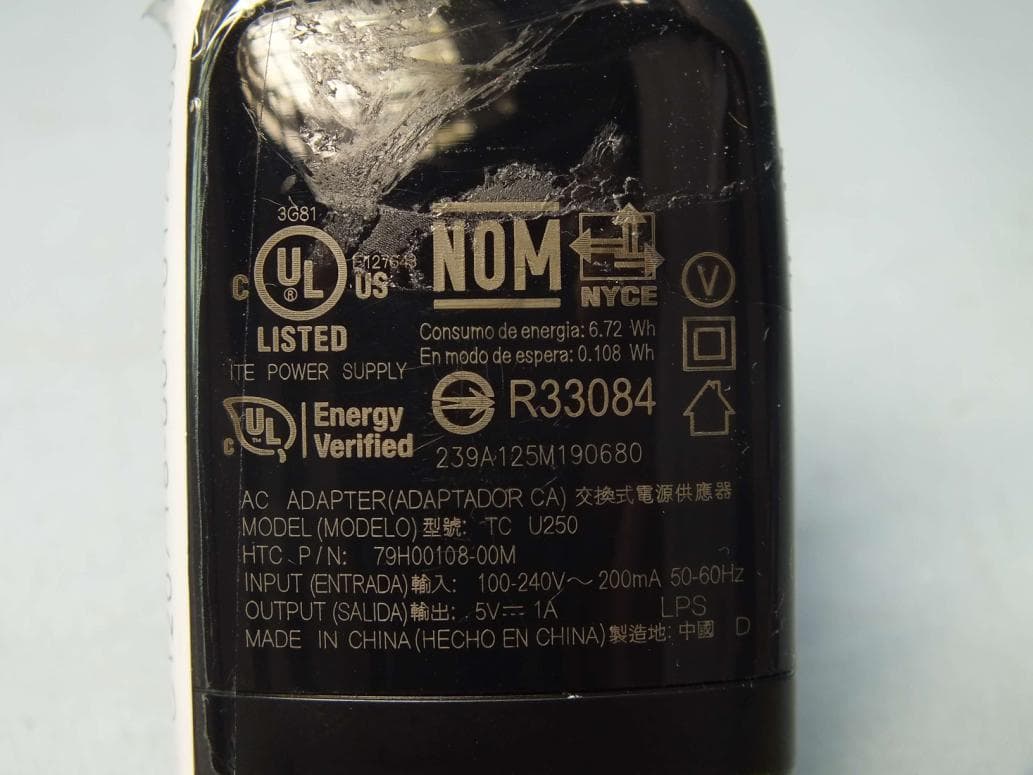

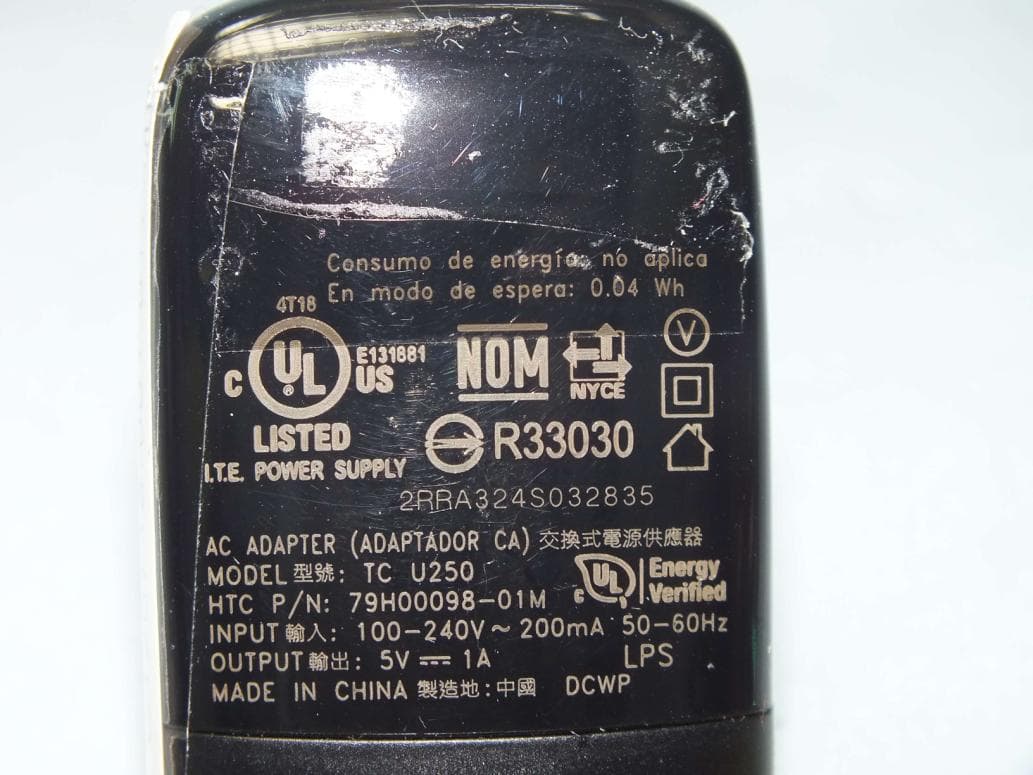

Page 1 CONSTRUCTION PHOTOS OF EUT The EUT has following accessories. No. Product Brand MODEL Description 1 Power Adapter 1 Phihong TC U250 I/P: 100-240Vac, 200mA O/P: 5Vdc, 1A 2 Power Adapter 2 Delta TC U250 I/P: 100-240Vac, 200mA O/P: 5Vdc, 1A 3 Battery FORMOSA BM23100 Rating: 3.75Vdc, 1800mAh Type: Li-ion 4 USB Cable 1 Foxlink DC M600 1m non-shielded cable without core 5 USB Cable 2 Foxconn DC M600 1m non-shielded cable without core 6 LCD Panel SHARP LS043K1SX01 --- 7 Photo Camera LITEON 12P1BEA804 8 Video Camera PRIMAX W204H_2M_FF Page 2 Page 3 Page 4 Page 5

Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Aug. 08, 2012 Report No. : SA120710C03 Revision : R01 Appendix A. SAR Plots of System Verification The plots for system verification are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/07/24      !"! Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: H750_0724 Medium parameters used: f = 750 MHz;  = 0.896 mho/m;  r = 40.3;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˅ˁ˃ʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˆʳк DASY4 Configuration: - Probe: EX3DV4 - SN3590; ConvF(10.62, 10.62, 10.62); Calibrated: 2012/02/23 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn861; Calibrated: 2011/08/29 - Phantom: SAM Phantom_Left; Type: SAM V4.0; Serial: TP 1652 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 #$%&'()* *$+,-,-. Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.78 mW/g #$%&'/ *$+--.' 01 Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.8 V/m; Power Drift = -0.003 dB Peak SAR (extrapolated) = 3.25 W/kg (2+3.%4&'3(2+3.%45&'3 Maximum value of SAR (measured) = 2.78 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/07/24   5!  5!5! "6 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: H835_0724 Medium parameters used: f = 835 MHz;  = 0.897 mho/m;  r = 42.8;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˅ˁ˃ʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˆʳк DASY4 Configuration: - Probe: EX3DV4 - SN3590; ConvF(10.14, 10.14, 10.14); Calibrated: 2012/02/23 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn861; Calibrated: 2011/08/29 - Phantom: SAM Phantom_Left; Type: SAM V4.0; Serial: TP 1652 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 #$%&'()* *$+,-,-. Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 3.00 mW/g #$%&'/ *$+--.' 01 Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 55.3 V/m; Power Drift = 0.003 dB Peak SAR (extrapolated) = 3.54 W/kg (2+3.%4!&'3(2+3.%4&'3 Maximum value of SAR (measured) = 3.00 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/07/24   5!  5!5! "6 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: H835_0724 Medium parameters used: f = 835 MHz;  = 0.918 mho/m;  r = 42.883;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˉʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˃ˁ˅ʳк DASY5 Configuration: - Probe: EX3DV4 - SN3820; ConvF(9.05, 9.05, 9.05); Calibrated: 2011/12/16; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2012/04/27 - Phantom: SAM with CRP v5.0 Front; Type: QD000P40CD; Serial: TP:1653 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) #$%&'()* *$+,-,-. Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.87 mW/g #$%&'/ *$+--.' 01 Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.856 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.359 mW/g (2+3.%4,&'3(2+3.%47&'3 Maximum value of SAR (measured) = 2.87 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/07/26    ,  " Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: H1750_0726 Medium parameters used: f = 1750 MHz;  = 1.34 mho/m;  r = 41.4;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˅ˁ˅ʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁ˄ʳк DASY4 Configuration: - Probe: EX3DV4 - SN3590; ConvF(8.95, 8.95, 8.95); Calibrated: 2012/02/23 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn861; Calibrated: 2011/08/29 - Phantom: SAM Phantom_Left; Type: SAM V4.0; Serial: TP 1652 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 #$%&'()* *$+,-,-. Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 13.5 mW/g #$%&'/ *$+--.' 01 Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 95.6 V/m; Power Drift = 0.033 dB Peak SAR (extrapolated) = 16.5 W/kg (2+3.%74,&'3(2+3.%45&'3 Maximum value of SAR (measured) = 12.8 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/07/24   7  77 "6!, Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: H1900_0724 Medium parameters used: f = 1900 MHz;  = 1.441 mho/m;  r = 39.728;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijIJįķġɗļġġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijıįĴġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3820; ConvF(8.02, 8.02, 8.02); Calibrated: 2011/12/16; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2012/04/27 - Phantom: SAM with CRP v5.0 Front; Type: QD000P40CD; Serial: TP:1653 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) #$%&'()* *$+,-,-. Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 13.4 mW/g #$%&'/ *$+--.' 01 Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 96.307 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 16.845 mW/g (2+3.%74&'3(2+3.%4,&'3 Maximum value of SAR (measured) = 13.0 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/07/25   7  77 "6!, Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: H1900_0725 Medium parameters used: f = 1900 MHz;  = 1.44 mho/m;  r = 39.7;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˅ˁˆʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁ˅ʳк DASY4 Configuration: - Probe: EX3DV4 - SN3590; ConvF(8.8…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Aug. 08, 2012 Report No. : SA120710C03 Revision : R01 Appendix B. SAR Plots of SAR Measurement The plots for SAR measurement are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/07/24 P01 GSM850_GPRS10_Right Cheek_Ch189 DUT: 120710C03 Communication System: GPRS10; Frequency: 836.4 MHz;Duty Cycle: 1:4.00037 Medium: H835_0724 Medium parameters used: f = 836.4 MHz;  = 0.919 mho/m;  r = 42.859;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijIJįķġɗļġġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijıįijġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3820; ConvF(9.05, 9.05, 9.05); Calibrated: 2011/12/16; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2012/04/27 - Phantom: SAM with CRP v5.0 Front; Type: QD000P40CD; Serial: TP:1653 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Ch189/Area Scan (51x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.121 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.169 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 0.159 mW/g SAR(1 g) = 0.111 mW/g; SAR(10 g) = 0.084 mW/g Maximum value of SAR (measured) = 0.140 mW/g Ch189/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.169 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 0.148 mW/g SAR(1 g) = 0.103 mW/g; SAR(10 g) = 0.071 mW/g Maximum value of SAR (measured) = 0.134 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/07/24 P17 GSM850_GPRS10_Right Tilted_Ch189 DUT: 120710C03 Communication System: GPRS10; Frequency: 836.4 MHz;Duty Cycle: 1:4.00037 Medium: H835_0724 Medium parameters used: f = 836.4 MHz;  = 0.919 mho/m;  r = 42.859;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijIJįķġɗļġġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijıįijġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3820; ConvF(9.05, 9.05, 9.05); Calibrated: 2011/12/16; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2012/04/27 - Phantom: SAM with CRP v5.0 Front; Type: QD000P40CD; Serial: TP:1653 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Ch189/Area Scan (51x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.145 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.486 V/m; Power Drift = -0.16 dB Peak SAR (extrapolated) = 0.123 mW/g SAR(1 g) = 0.090 mW/g; SAR(10 g) = 0.061 mW/g Maximum value of SAR (measured) = 0.111 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/07/24 P03 GSM850_GPRS10_Left Cheek_Ch189 DUT: 120710C03 Communication System: GPRS10; Frequency: 836.4 MHz;Duty Cycle: 1:4.00037 Medium: H835_0724 Medium parameters used: f = 836.4 MHz;  = 0.919 mho/m;  r = 42.859;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijIJįķġɗļġġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijıįijġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3820; ConvF(9.05, 9.05, 9.05); Calibrated: 2011/12/16; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2012/04/27 - Phantom: SAM with CRP v5.0 Front; Type: QD000P40CD; Serial: TP:1653 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Ch189/Area Scan (51x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.234 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.154 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 0.249 mW/g SAR(1 g) = 0.196 mW/g; SAR(10 g) = 0.148 mW/g Maximum value of SAR (measured) = 0.226 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/07/24 P04 GSM850_GPRS10_Left Tilted_Ch189 DUT: 120710C03 Communication System: GPRS10; Frequency: 836.4 MHz;Duty Cycle: 1:4.00037 Medium: H835_0724 Medium parameters used: f = 836.4 MHz;  = 0.919 mho/m;  r = 42.859;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijIJįķġɗļġġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijıįijġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3820; ConvF(9.05, 9.05, 9.05); Calibrated: 2011/12/16; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2012/04/27 - Phantom: SAM with CRP v5.0 Front; Type: QD000P40CD; Serial: TP:1653 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Ch189/Area Scan (51x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.141 mW/g Ch189/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.245 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.147 mW/g SAR(1 g) = 0.120 mW/g; SAR(10 g) = 0.093 mW/g Maximum value of SAR (measured) = 0.134 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.245 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.133 mW/g SAR(1 g) = 0.095 mW/g; SAR(10 g) = 0.064 mW/g Maximum value of SAR (measured) = 0.122 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/07/24 P05 GSM1900_GPRS10_Right Cheek_Ch810 DUT: 120710C03 Communication System: GPRS10; Frequency: 1909.8 MHz;Duty Cycle: 1:4.00037 Medium: H1900_0724 Medium parameters used: f = 1910 MHz;  = 1.451 mho/m;  r = 39.689;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijIJįķġɗļġġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijıįĴġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3820; ConvF(8.02, 8.02, 8.02); Calibrated: 2011/12/16; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2012/04/27 - Phantom: SAM with CRP v5.0 Front; Type: QD000P40CD; Serial: TP:1653 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Ch810/Area Scan (51x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.684 mW/g Ch810/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.963 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 0.780 mW/g SAR(1 g) = 0.517 mW/g; SAR(10 g) = 0…

Text truncated - open the document above for the full version.

Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/07/23             Communication System: GPRS10; Frequency: 1909.8 MHz;Duty Cycle: 1:4.00037 Medium: B1900_0723 Medium parameters used: f = 1910 MHz;  = 1.555 mho/m;  r = 52.797;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijijįĵġɗļġġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijIJįIJġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3820; ConvF(8.04, 8.04, 8.04); Calibrated: 2011/12/16; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2012/04/27 - Phantom: ELI v4.0; Type: QDOVA001BA; Serial: TP:1043 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469)   !!"#$$% Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.328 mW/g  &''!"#$$%()  Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.187 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.422 mW/g  #%* +,-. # %* +/- Maximum value of SAR (measured) = 0.345 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/07/23    0''         Communication System: GPRS10; Frequency: 1909.8 MHz;Duty Cycle: 1:4.00037 Medium: B1900_0723 Medium parameters used: f = 1910 MHz;  = 1.555 mho/m;  r = 52.797;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijijįĵġɗļġġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijIJįIJġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3820; ConvF(8.04, 8.04, 8.04); Calibrated: 2011/12/16; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2012/04/27 - Phantom: ELI v4.0; Type: QDOVA001BA; Serial: TP:1043 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469)   !!"#$/$% Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.253 mW/g  &''!"#$$%()  Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.303 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 0.346 mW/g  #%* + /-. # %* +/- Maximum value of SAR (measured) = 0.271 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/07/23 /   1 '"1!   2! 3'"     Communication System: GPRS10; Frequency: 1909.8 MHz;Duty Cycle: 1:4.00037 Medium: B1900_0723 Medium parameters used: f = 1910 MHz;  = 1.555 mho/m;  r = 52.797;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijijįĵġɗļġġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijIJįIJġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3820; ConvF(8.04, 8.04, 8.04); Calibrated: 2011/12/16; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2012/04/27 - Phantom: ELI v4.0; Type: QDOVA001BA; Serial: TP:1043 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469)   !!"#,$$% Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.503 mW/g  &''!"#$$%()  Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.864 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.490 mW/g  #%* + -. # %* + - Maximum value of SAR (measured) = 0.415 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/07/23    ! 1!   2! 3'"     Communication System: GPRS10; Frequency: 1909.8 MHz;Duty Cycle: 1:4.00037 Medium: B1900_0723 Medium parameters used: f = 1910 MHz;  = 1.555 mho/m;  r = 52.797;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijijįĵġɗļġġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijIJįIJġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3820; ConvF(8.04, 8.04, 8.04); Calibrated: 2011/12/16; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2012/04/27 - Phantom: ELI v4.0; Type: QDOVA001BA; Serial: TP:1043 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469)   !!"#,$$% Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.454 mW/g  &''!"#$$%()  Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.526 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.541 mW/g  #%* +-. # %* + ,- Maximum value of SAR (measured) = 0.432 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/07/24 ,-4 +5 1 '"1!  /     Communication System: WCDMA; Frequency: 836.4 MHz;Duty Cycle: 1:1 Medium: B835_0724 Medium parameters used: f = 836.4 MHz;  = 0.981 mho/m;  r = 55.922;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijIJįĹġɗļġġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijıįĶġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3820; ConvF(9.24, 9.24, 9.24); Calibrated: 2011/12/16; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2012/04/27 - Phantom: ELI v4.0; Type: QDOVA001BA; Serial: TP:1043 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) / !!"#,$$% Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.146 mW/g /&''!"#$$%()  Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.167 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 0.172 mW/g  #%* +-. # %* + ,- Maximum value of SAR (measured) = 0.140 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/07/24 -4 +5 ! 1!  /     Communication System: WCDMA; Frequency: 836.4 MHz;Duty Cycle: 1:1 Medium: B835_0724 Medium parameters used: f = 836.4 MHz;  = 0.981 mho/m;  r = 55.922;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijIJįĹġɗļġġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijıįĶġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3820; ConvF(9.24, 9.24, 9.24); Calibrated: 2011/12/16; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2012/04/27 - Phantom: ELI v4.0; Type: QDOVA001BA; Serial: TP:1043 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) /…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Aug. 08, 2012 Report No. : SA120710C03 Revision : R01 Appendix C. Calibration Certificate for Probe and Dipole The SPEAG calibration certificates are shown as follows.

FCC SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 45 Report No. : SA120710C03 Issued Date : Aug. 08, 2012 Revision : R01 FCC SAR Test Report Report No. : SA120710C03 Applicant : HTC Corporation Address : No. 23, Xinghua Rd., Taoyuan City, Taiwan Product : Smartphone FCC ID : NM8PM23300 Brand : HTC Model No. : PM23300 Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1991 / IEEE 1528:2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) KDB 248227 D01 v01r02 / KDB 648474 D01 v01r05 / KDB 941225 D01 v02 KDB 941225 D03 v01 / KDB 941225 D05 v01 / KDB 941225 D06 v01 Date of Testing : Jul. 23, 2012 ~ Jul. 26, 2012 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch - Taiwan HwaYa Lab, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Ivonne Wu / Senior Specialist Approved By : Roy Wu / Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 45 Report No. : SA120710C03 Issued Date : Aug. 08, 2012 Revision : R01 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 7 3.1 Definition of Specific Absorption Rate (SAR) ............................................................................................…
