Your HTC Phone User guide Only for FCC certification Only for FCC certification Only for FCC certification Only for FCC certification Contents Unboxing HTC phone6 SIM card7 Charging the battery9 Switching the power on or off9 Setting up your phone Setting up HTC phone for the first time11 Choosing your default Home screen11 Adding your social networks, email accounts, and more11 Getting to know your settings12 Your first week with your new phone Basics13 Facebook Home screen17 Android Home screen20 Notifications22 Working with text25 Battery27 Camera Facebook Camera30 Android Camera31 Phone calls Making a call34 Returning a missed call34 Making an emergency call35 Answering or rejecting a call35 What can I do during a call?35 Setting up a conference call36 Checking calls in the Call History37 Switching between silent, vibrate, and normal modes37 Messages Facebook Messenger38 Messaging41 Search and web browser Searching HTC phone and the Web44 2Contents Only for FCC certification Only for FCC certification Only for FCC certification Only for FCC certification Getting instant information with Google Now45 Browsing the Web46 Bookmarking a webpage48 Using your browsing history48 Clearing your browsing history48 Storage Types of storage49 Copying files to or from HTC phone49 Encrypting data on HTC phone50 Email Gmail51 Mail52 Internet connections Data connection55 Managing your data usage56 Wi‑Fi57 Connecting to a virtual private network (VPN)58 Using HTC phone as a wireless router59 Sharing your phone's Internet connection by USB tethering60 Bluetooth and NFC Connecting a Bluetooth headset61 Unpairing from a Bluetooth device62 Sharing content with NFC63 Settings and security Turning Airplane mode on or off64 Turning automatic screen rotation off64 Adjusting the time before the screen turns off64 Adjusting the screen brightness manually65 Changing the display language65 Accessibility settings65 Working with certificates66 Protecting your SIM card with a PIN66 Protecting HTC phone with a screen lock67 Trademarks and copyrights Index 3Contents Only for FCC certification Only for FCC certification Only for FCC certification Only for FCC certification Conventions used in this guide In this user guide, we use the following symbols to indicate useful and important information: This is a note. A note often gives additional information, such as what happens when you choose to do or not to do a certain action. A note also provides information that may only be applicable to some situations. This is a tip. A tip gives you an alternative way to do a particular step or procedure, or lets you know of an option that you may find helpful. This indicates important information that you need in order to accomplish a certain task or to get a feature to work properly. This provides safety precaution information, that is, information that you need to be careful about to prevent potential problems. 4Conventions used in this guide Only for FCC certification Only for FCC certification Only for FCC certification Only for FCC certification Important information This device was tested for typical body-worn operations per the FCC's radio frequency (RF) safety requirements. To comply with these RF exposure requirements, use a belt-clip, holster, or similar accessory with this device to maintain a minimum separation distance of 1.0 cm between the user’s body and the handset, with the device oriented with either the front or back of the device facing towards the user’s body. Such accessories should not contain any metallic components. Body-worn accessories that do not meet these requirements may not ensure compliance with FCC RF exposure guidelines and their use should be avoided. 5Important information Only for FCC certification Only for FCC certification Only for FCC certification Only for FCC certification Unboxing HTC phone 1.BACK 2.HOME 3.MENU 4.SIM card tray (with tray eject hole) 5.USB connector 6.Notification LED 7.Proximity / Light sensor 8.POWER 9.3.5mm headset jack 10.Front camera 11.Volume controls If you want to use a screen protector, please don’t cover and block the proximity sensor. You can purchase the dedicated screen protector for HTC phone that already has a small opening for the sensor. 6Unboxing Only for FCC certification Only for FCC certification Only for FCC certification Only for FCC certification SIM card HTC phone uses a microSIM card. The microSIM card contains your phone number, service details, and memory for storing phonebook contacts and/or text messages. Inserting the SIM card 1.Hold the phone face up. 2.Insert the tip of the SIM eject tool into the small hole next to the SIM card tray slot. 3.Push the tip all the way into the hole until the SIM card tray ejects. 4.Pull the SIM card tray out, and place the SIM card (contacts facing down) into the tray. Use a standard microSIM only. Inserting other types (such as nanoSIM with an adapter or a modified SIM) may cause the card to not fit properly or damage the card slot. 5.Insert the SIM card tray back into the slot. 7Unboxing Only for FCC certification Only for FCC certification Only for FCC certification Only for FCC certification Removing the SIM card Make sure to switch off HTC phone before removing your SIM card. 1.Hold the phone face up. 2.Insert the tip of the SIM eject tool into the small hole next to the SIM card tray slot. 3.Push the tip all the way into the hole until the SIM card tray ejects. 4.Pull the SIM card tray out, and remove the SIM card. When removing the SIM card, make sure that you insert the empty SIM card tray back into the slot. 8Unboxing Only for FCC certification Only for FCC certification Only for FCC certification Only for FCC certification Charging the battery Before you turn on and start using HTC phone, it is recommended that you charge the battery. Only the power adapter and USB cable provided in the box must be used to charge the battery. 1.Insert the small end of the USB cable into the USB connector. 2.Insert…

Text truncated - open the document above for the full version.

宏達國際電子股份有限公司 1F, No. 6-3, HTC Corporation Baoqiang Rd., Xindian City, New Taipei City, Taiwan January 14, 2013 Power of Attorney To whom it may concern, Please be notified that I, Lucy Shih, have designated Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan and Jeffrey Chen in HTC Corporation as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan and Jeffrey Chen in HTC Corporation on the matters relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. As defined in 47 CFR Ch. 1.2002 (b), we further certify that neither the applicant nor any party to this application is subject to a denial to Federal benefits, including FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: NM8PM33100 If you have any acknowledgement and response, please send it to Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan directly. Should you have any question or comment regarding this matter, please have my best attention. Sincerely yours, Lucy Shih HTC Corporation Tel: +886 2 8912 4138 #28402 E-mail: [email protected]

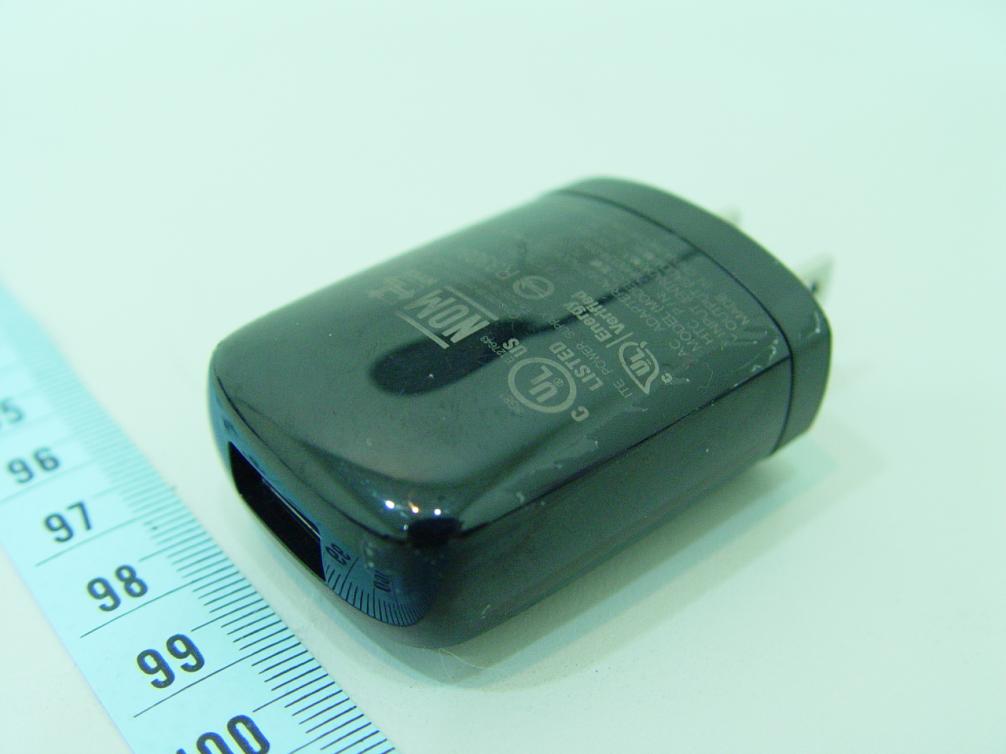

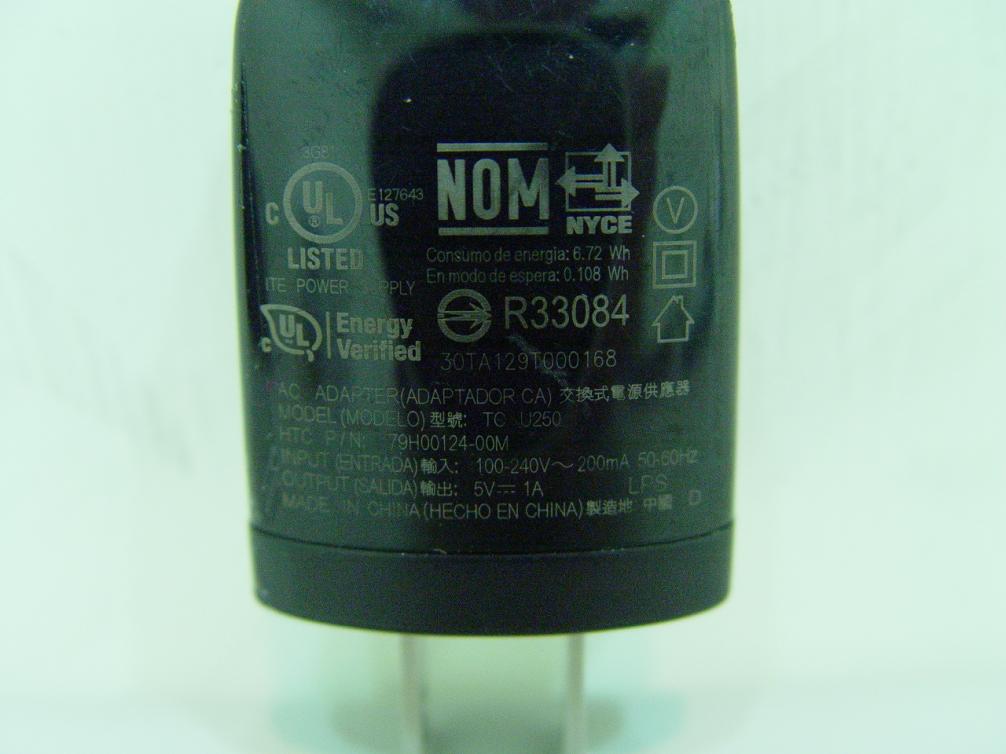

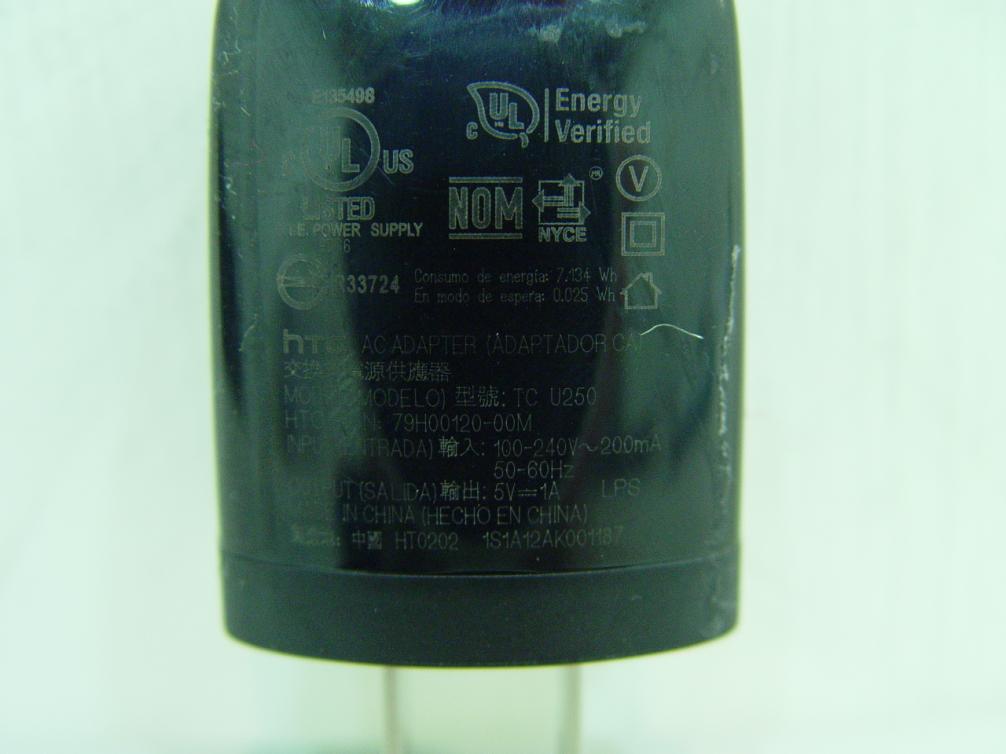

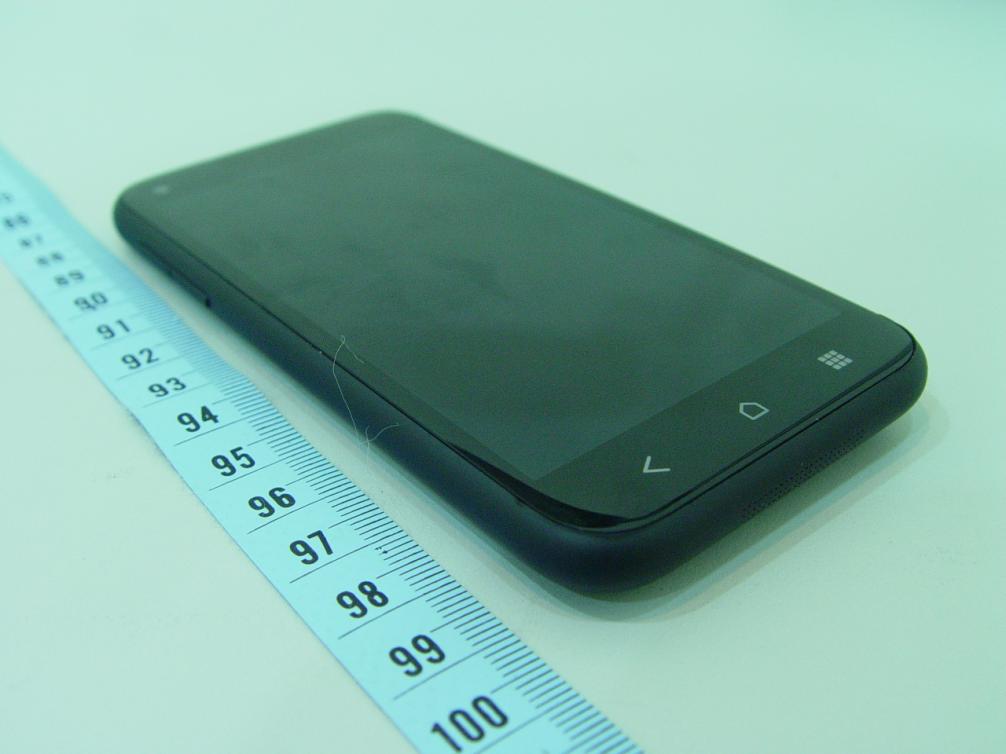

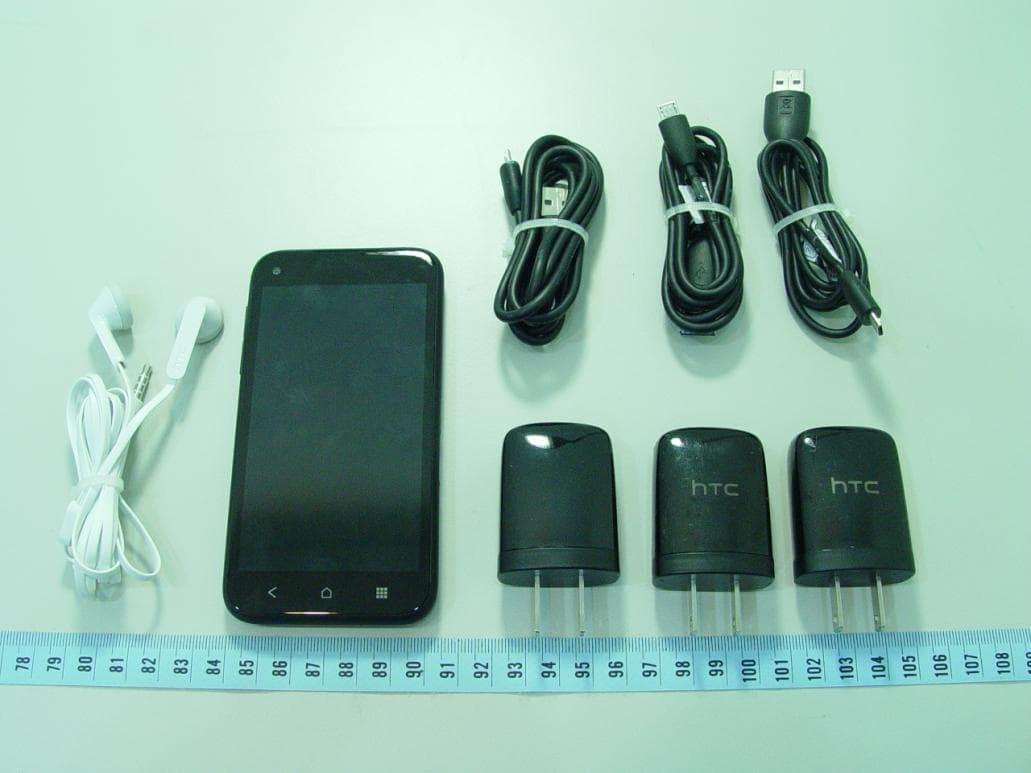

Page 1 CONSTRUCTION PHOTOS OF EUT The EUT has following accessories. Product Brand MODEL Description Power Adapter 1 Salcomp TC X250 (X=U,E) I/P: 100-240Vac, 200mA O/P: 5Vdc, 1A Power Adapter 2 Phihong TC X250 (X=U,E,A) I/P: 100-240Vac, 200mA O/P: 5Vdc, 1A Power Adapter 3 Delta TC X250 (X=U,E,B,A) I/P: 100-240Vac, 200mA O/P: 5Vdc, 1A Battery 1 ATL BN07100 Rating: 3.8Vdc, 2300mAh Type: Li-ion Battery 2 WTE BN07100 Rating: 3.8Vdc, 2300mAh Type: Li-ion Earphone Merry HS S250 1.1m cable USB Cable 1 Foxlink DC M600 1m cable USB Cable 2 Foxconn DC M600 1m cable USB Cable 3 Coxoc DC M600 1m cable LCD Panel Sharp LS043K1SC01 -- Photo Camera 1 LITEON 12P1BEA503 -- Photo Camera 2 Foxconn CMHT-5AA01D Front Camera 1 PRIMAX W113H -- Page 2 Page 3 Page 4 Page 5 Page 6

Page 7 Main Sample Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19 Page 20 2 nd Sample Page 21 Page 22 Page 23 Page 24 Page 25 Page 26 Page 27 Page 28 Page 29 Page 30 Page 31 Page 32

FCC SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 55 Report No. : SA121225C13 Issued Date : Feb. 08, 2013 Revision : R01 FCC SAR Test Report Report No. : SA121225C13 Applicant : HTC Corporation Address : No. 23, Xinghua Rd., Taoyuan City, Taiwan Product : Smartphone FCC ID : NM8PM33100 Brand : HTC Model No. : PM33100 Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1991 / IEEE 1528:2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) KDB 248227 D01 v01r02 / KDB 447498 D01 v05 / KDB 648474 D04 v01 KDB 941225 D01 v02 / KDB 941225 D02 v02r01 / KDB 941225 D03 v01 KDB 941225 D05 v02r01 / KDB 941225 D06 v01 Date of Testing : Jan. 11, 2013 ~ Jan. 22, 2013 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch - Taiwan HwaYa Lab, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Ivonne Wu / Senior Specialist Approved By : Roy Wu / Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 55 Report No. : SA121225C13 Issued Date : Feb. 08, 2013 Revision : R01 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ................................................................................................................ 6 3.2 SPEAG DASY System ................................................................................................................................................. 6 3.2.1 Robot.................................................................................................................................................................. 7 3.2.2 Probes ................................................................................................................................................................ 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................... 8 3.2.4 Phantoms ........................................................................................................................................................... 9 3.2.5 Device Holder ................................................................................................................................................... 10 3.2.6 System Validation Dipoles ................................................................................................................................ 10 3.2.7 Tissue Simulating Liquids ................................................................................................................................. 11 3.3 SAR System Verification ............................................................................................................................................ 13 3.4 SAR Measurement Procedure ................................................................................................................................... 14 3.4.1 Area & Zoom Scan Procedure ......................................................................................................................... 14 3.4.2 Volume Scan Procedure................................................................................................................................... 14 3.4.3 Power Drift Monitoring ...................................................................................................................................... 15 3.4.4 Spatial Peak SAR Evaluation .................................................................................................…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Feb. 08, 2013 Report No. : SA121225C13 Revision : R01 Appendix C. Calibration Certificate for Probe and Dipole The SPEAG calibration certificates are shown as follows.

FCC HAC (T-Coil) Test Report Report Format Version 5.0.0 Page No. : 1 of 20 Report No. : SA121225C13-2 Issued Date : Feb. 08, 2013 Revision : R02 FCC HAC (T-Coil) Test Report Report No. : SA121225C13-2 Applicant : HTC Corporation Address : 23, Xinghua Rd., Taoyuan 330, Taiwan, R.O.C. Product : Smartphone FCC ID : NM8PM33100 Brand : HTC Model No. : PM33100 Standards : FCC 47 CFR Part 20.19 ANSI C63.19-2011 Date of Testing : Jan. 04, 2013 ~ Jan. 21, 2013 Summary M-Rating : T4 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch - Taiwan HwaYa Lab, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s HAC characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Vera Huang / Specialist Approved By : Gordon Lin / Assistant Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC HAC (T-Coil) Test Report Report Format Version 5.0.0 Page No. : 2 of 20 Report No. : SA121225C13-2 Issued Date : Feb. 08, 2013 Revision : R02 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum T-Rating ........................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. HAC RF Emission Measurement System ............................................................................................................................ 6 3.1 SPEAG DASY System ................................................................................................................................................. 6 3.1.1 Robot .................................................................................................................................................................. 7 3.1.2 AM1D Probe ....................................................................................................................................................... 8 3.1.3 Audio Magnetic Calibration Coil (AMCC) ........................................................................................................... 8 3.1.4 Audio Magnetic Measuring Instrument (AMMI) .................................................................................................. 8 3.1.5 Data Acquisition Electronics (DAE) .................................................................................................................... 9 3.1.6 Phantoms ........................................................................................................................................................... 9 3.1.7 Device Holder ..................................................................................................................................................... 9 3.2 System Calibration ..................................................................................................................................................... 10 3.3 EUT Measurements Reference and Plane ................................................................................................................. 11 3.4 HAC T-Coil Measurement Procedure ......................................................................................................................... 12 3.5 Audio Reference Input Level ...................................................................................................................................... 14 4. HAC Measurement Evaluation ............................................................................................................................................ 15 4.1 Measurement Criteria ................................................................................................................................................. 15 4.1.1 Field Intensity ................................................................................................................................................... 15 4.1.2 Frequency Response .......................................................................................................................…

Text truncated - open the document above for the full version.

Report No.: RF121225C13 1 of 51 Report Format Version 5.0.0 FCC TEST REPORT (PART 22) REPORT NO.: RF121225C13 MODEL NO.: PM33100 FCC ID: NM8PM33100 RECEIVED: Dec. 25, 2012 TESTED: Jan. 23, 2013 ~ Jan. 31, 2013 ISSUED: Feb. 08, 2013 APPLICANT: HTC Corporation ADDRESS: 23, Xinghua Rd., Taoyuan 330, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF121225C13 2 of 51 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................ 4 1 CERTIFICATION .......................................................................................................... 5 2 SUMMARY OF TEST RESULTS .................................................................................. 6 2.1 MEASUREMENT UNCERTAINTY .................................................................... 6 2.2 TEST SITE AND INSTRUMENTS .................................................................... 7 3 GENERAL INFORMATION ........................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ................................................................. 8 3.2 CONFIGURATION OF SYSTEM UNDER TEST .............................................. 9 3.3 DESCRIPTION OF SUPPORT UNITS ............................................................. 9 3.4 TEST ITEM AND TEST CONFIGURATION .................................................... 10 3.5 EUT OPERATING CONDITIONS ................................................................... 12 3.6 GENERAL DESCRIPTION OF APPLIED STANDARDS ................................ 12 4 TEST TYPES AND RESULTS .................................................................................... 13 4.1 OUTPUT POWER MEASUREMENT .............................................................. 13 4.1.1 LIMITS OF OUTPUT POWER MEASUREMENT ........................................... 13 4.1.2 TEST PROCEDURES .................................................................................... 13 4.1.3 TEST SETUP .................................................................................................. 14 4.1.4 TEST RESULTS ............................................................................................. 15 4.2 FREQUENCY STABILITY MEASUREMENT .................................................. 24 4.2.1 LIMITS OF FREQUENCY STABILIITY MEASUREMENT .............................. 24 4.2.2 TEST PROCEDURE ....................................................................................... 24 4.2.3 TEST SETUP .................................................................................................. 24 4.2.4 TEST RESULTS ............................................................................................. 25 4.3 OCCUPIED BANDWIDTH MEASUREMENT ................................................. 26 4.3.1 TEST PROCEDURES .................................................................................... 26 4.3.2 TEST SETUP .................................................................................................. 26 4.3.3 TEST RESULTS ............................................................................................. 27 4.4 BAND EDGE MEASUREMENT ...................................................................... 29 4.4.1 LIMITS OF BAND EDGE MEASUREMENT ................................................... 29 4.4.2 TEST SETUP .................................................................................................. 29 4.4.3 TEST PROCEDURES .................................................................................... 29 4.4.4 TEST RESULTS ............................................................................................. 30 4.5 CONDUCTED SPURIOUS EMISSIONS ........................................................ 33 4.5.1 LIMITS OF CONDUCTED SPURIOUS EMISSIONS MEASUREMENT ......... 33 4.5.2 TEST PROCEDURE ....................................................................................... 33 4.5.3 TEST SETUP .................................................................................................. 33 4.5.4 TEST RESULTS ............................................................................................. 34 4.6 RADIATED EMISSION MEASUREMENT ...............…

Text truncated - open the document above for the full version.

Report No.: RF121225C13-1 1 of 54 Report Format Version 5.0.0 FCC TEST REPORT (PART 24) REPORT NO.: RF121225C13-1 MODEL NO.: PM33100 FCC ID: NM8PM33100 RECEIVED: Dec. 25, 2012 TESTED: Jan. 23, 2013 ~ Jan. 31, 2013 ISSUED: Feb. 08, 2013 APPLICANT: HTC Corporation ADDRESS: 23, Xinghua Rd., Taoyuan 330, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF121225C13-1 2 of 54 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................ 4 1 CERTIFICATION .......................................................................................................... 5 2 SUMMARY OF TEST RESULTS .................................................................................. 6 2.1 MEASUREMENT UNCERTAINTY .................................................................... 6 2.2 TEST SITE AND INSTRUMENTS .................................................................... 7 3 GENERAL INFORMATION ........................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ................................................................. 8 3.2 CONFIGURATION OF SYSTEM UNDER TEST .............................................. 9 3.3 DESCRIPTION OF SUPPORT UNITS ............................................................. 9 3.4 TEST ITEM AND TEST CONFIGURATION .................................................... 10 3.5 EUT OPERATING CONDITIONS ..................................................…
