NM8PM35110SMARTPHONE

Your PM35110 User guide Confidential 2012/09/05 for certification review only 2012/09/05 for certification review only 2012/09/05 for certification review only Confidential Conventions used in this guide In this user guide, we use the following symbols to indicate useful and important information: This is a note. A note often gives additional information, such as what happens when you choose to do or not to do a certain action. A note also provides information that may only be applicable to some situations. This is a tip. A tip gives you an alternative way to do a particular step or procedure, or lets you know of an option that you may find helpful. This indicates important information that you need in order to accomplish a certain task or to get a feature to work properly. This provides safety precaution information, that is, information that you need to be careful about to prevent potential problems. 6Conventions used in this guide Confidential 2012/09/05 for certification review only 2012/09/05 for certification review only 2012/09/05 for certification review only Confidential Unboxing  ăĆāāĀ 1.BACK 2.HOME 3.RECENT APPS (can be configured in Settings to open the Menu) 4.VOLUME 5.Proximity sensor 6.Front camera 7.POWER 8.Notification LED 9.3.5mm headset jack 10.USB connector If you want to use a screen protector, please don’t cover and block the proximity sensor. You can purchase the dedicated screen protector for PM35110 that already has a small opening for the sensor. 7Unboxing Confidential 2012/09/05 for certification review only 2012/09/05 for certification review only 2012/09/05 for certification review only Confidential SIM card PM35110 uses a microSIM card. The microSIM card contains your phone number, service details, and memory for storing phonebook contacts and/or text messages. Inserting the SIM card 1.To eject the SIM card tray, insert the SIM eject tool (or a small bent paperclip) into the small hole next to the tray. You should insert it at an angle. 2.Pull the SIM card tray out, and place the SIM card into the tray. 3.Insert the SIM card tray into its slot. Removing the SIM card Make sure to switch off PM35110 before removing your SIM card. 1.To eject the SIM card tray, insert the SIM eject tool (or a small bent paperclip) into the small hole next to the tray. You should insert it at an angle. 2.Pull the SIM card tray out. 3.Take the SIM card from the SIM card tray. 8Unboxing Confidential 2012/09/05 for certification review only 2012/09/05 for certification review only 2012/09/05 for certification review only Confidential Charging the battery Before you turn on and start using PM35110, it is recommended that you charge the battery. Only the power adapter and USB cable provided in the box must be used to charge the battery. 1.Insert the small end of the USB cable into the USB connector. 2.Insert the other end of the USB cable into the power adapter. 3.Plug in the power adapter to an electrical outlet to start charging the battery. As a safety precaution, the battery stops charging if it overheats. Switching the power on or off Switching the power on Press the POWER button. When you turn on PM35110 for the first time, you’ll need to set it up. 9Unboxing Confidential 2012/09/05 for certification review only 2012/09/05 for certification review only 2012/09/05 for certification review only Confidential Switching the power off 1.If the display is off, press the POWER button to turn it back on, then unlock the screen. 2.Press and hold the POWER button for a few seconds. 3.Tap Power off on the options menu. Want some quick guidance on your phone? Learning the basics with Quick Tips After your phone starts, you'll see a transparent overlay of Quick Tips on some screens (such as the Home screen) that will guide you in using PM35110. The tips for a screen won't display again after you've closed them. To view the Quick Tips again, slide the Notifications panel open, and then tap > About > Help > Show all quick tips. Exploring PM35110 Tips & Help lets you get the most out of PM35110 in seconds. §Need to know how to do something right away? Just type in some keywords and get clear, up-to-date answers right on PM35110. §Ever have the feeling that you're not getting the most out of your phone? Browse through the friendly walkthroughs on Tips & Help to learn how. The topics range from intro to advanced and the Tips & Help widget even recommends topics that you might like. To open Tips & Help from the Home screen, tap > Tips & Help. If you haven't downloaded Tips & Help content yet, or if there's updated content available, just tap the download link to get it. To change the sync settings of Tips & Help, tap > Update settings. Searching Tips & Help 1.In Tips & Help, tap , and then enter the words you want to search for. 2.Tap a search result to jump straight to that item. 10Unboxing Confidential 2012/09/05 for certification review only 2012/09/05 for certification review only 2012/09/05 for certification review only Confidential Setting up your phone Setting up  ăĆāāĀ for the first time When you switch on PM35110 for the first time, you’ll be asked to set it up. Walk through the on-device setup to choose your Internet connection, add your accounts, and more. Some features that need to connect to the Internet such as location-based services and auto-sync of your online accounts may incur extra data fees. Don’t worry. You can enable or disable them in Settings later on. Home screen Your Home screen is where you make PM35110 your own. You can add your favorite applications, shortcuts, folders and widgets so they’re always just a tap away. To find out how, see Personalizing on page 36. Extended Home screen As you start to do more things with PM35110, you might find that one Home screen is not enough. No problem. Slide your finger horizontally to the left or right on the screen and you’ll discover more space for adding icons, widgets, and more. Press to return to the main Home screen. 11Setti…

Text truncated - open the document above for the full version.

Safety and regulatory guide 2 Safety and regulatory guide Please read before proceeding THE BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE THE DEVICE OUT OF THE BOX. Privacy restrictions Some countries require full disclosure of recorded telephone conversations. Pictograms and graphic symbols Read this manual’s Safety Information and General Precautions. Do not use while re-fuelling Do not use hand-held while driving This device may produce a bright or flashing light For body-worn operation maintain a separation of 1.5 cm Do not dispose of in a fire Small parts may cause a choking hazard Avoid contact with magnetic media This device may produce a loud sound Avoid extreme temperatures Keep away from pacemakers and other personal medical devices Avoid contact with liquid, keep dry Switch off when instructed in hospitals and medical facilities Do not try and disassemble Switch off when instructed in aircraft and airports Do not rely on this device for emergency communications Safety and regulatory guide 3 Switch off in explosive environments Only use approved accessories Important health information and safety precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. Electrical safety This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. Safety precautions for proper grounding installation CAUTION: Connecting to improperly grounded equipment can result in an electric shock to your device. This product is equipped with a USB Cable for connecting with desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet which is properly installed and grounded in accordance with all local codes and ordinances. Safety precautions for power supply unit  Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product. This product should be operated only with the following designated power supply unit(s). 4 Safety and regulatory guide AC adapter: HTC, Model TC U250, TC E250, TC B270, TC A250  Handle battery packs carefully This product contains a Lithium-ion polymer or Lithium-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. Do not attempt to open or service the battery pack. Do not disassemble, crush, puncture, short external contacts or circuits, dispose of in fire or water, or expose a battery pack to temperatures higher than 60 ̊C (140 ̊F). WARNING: To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts, expose to temperature above 60° C (140° F), or dispose of in fire or water. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product.  Take extra precautions  Keep the device dry and away from water or any liquid as it may cause a short circuit.  The phone should only be connected to products that bear the USB-IF logo or have completed the USB-IF compliance program.  If the battery leaks:  Do not allow the leaking fluid to come in contact with skin or clothing. If already in contact, flush the affected area immediately with clean water and seek medical advice.  Do not allow the leaking fluid to come in contact with eyes. If already in contact, DO NOT rub; rinse with clean water immediately and seek medical advice.  Take extra precautions to keep a leaking battery away from fire as there is a danger of ignition or explosion. Safety precautions for direct sunlight Keep this product away from excessive moisture and extreme temperatures. Do not leave the product inside a vehicle or in Safety and regulatory guide 5 places where the temperature may exceed 60°C (140°F), such as on a car dashboard, window sill, or behind a glass that is exposed to direct sunlight or strong ultraviolet light for extended periods of time. This may damage the product, overheat the battery, or pose a risk to the vehicle. Prevention of hearing loss CAUTION: Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time. NOTE: For France, Earphone (listed below) for this device have been tested to comply with the Sound Pressure Level requirement laid down in the applicable NF EN 50332-1:2000 and/or NF EN 50332-2:2003 standards as required by French Article L. 5232-1.  Earphone, manufactured by HTC, Model HS S250/ HS S255/HS S260 Safety in aircraft Due to the possible interference caused by this product to an aircraft’s navigation system and its communications network, using this device’s phone function on board an airplane is against the law in most countries. If you want to use this device when on board an aircraft, remember to turn off your phone by switching to Airplane Mode. Environment restrictions Do not use this product in gas stations, fuel depots, chemical plants or where blasting operations are in progress, or in potentially explosive atmospheres such as fuelling areas, fuel storehouses, below deck on boats, chemical plants, fuel or chemical transfer or storage facilities, and areas where the air contains…

Text truncated - open the document above for the full version.

Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 1 of 34 TEL : 886-3-327-3456 Report Issued Date : Sep. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM35110 1. External Photograph of EUT Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 2 of 34 TEL : 886-3-327-3456 Report Issued Date : Sep. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM35110 720510 Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 3 of 34 TEL : 886-3-327-3456 Report Issued Date : Sep. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM35110 List of Accessory: Specification of Accessory AC Adapter 1 Brand Name HTC Manufacturer Phihong Model Name TC A250 / TC E250 / TC U250 AC Adapter 2 Brand Name HTC Manufacturer Phihong Model Name TC B270 AC Adapter 3 Brand Name HTC Manufacturer Phihong Model Name TC B270 AC Adapter 4 Brand Name HTC Manufacturer Delta Model Name TC A250 / TC E250 / TC U250 AC Adapter 5 Brand Name HTC Manufacturer Delta Model Name TC B270 AC Adapter 6 Brand Name HTC Manufacturer Salcomp Model Name TC E250 / TC U250 Battery 1 Brand Name HTC Manufacturer ATL Model Name BM35100 Power Rating 3.8VDC, 2040mAh, 7.75Whr (Typical: 3.8VDC, 2100mAh, 7.98Whr) Battery 2 Brand Name HTC Manufacturer Formosa Model Name BM35100 Power Rating 3.8VDC, 2040mAh, 7.75Whr (Typical: 3.8VDC, 2100mAh, 7.98Whr) Earphone 1 Brand Name HTC Manufacturer Merry Model Name HS S250 Earphone 2 Brand Name HTC Manufacturer Merry Model Name HS S255 Earphone 3 Brand Name HTC Manufacturer Merry Model Name HS S260 2. Photograph of Accessory Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 4 of 34 TEL : 886-3-327-3456 Report Issued Date : Sep. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM35110 Specification of Accessory USB Cable 1 Brand Name HTC Manufacturer Foxlink Model Name DC M600 USB Cable 2 Brand Name HTC Manufacturer Foxconn Model Name DC M600 LCM 1 Brand Name HTC Manufacturer Sharp Model Name LS047K1SX01M LCM 2 Brand Name HTC Manufacturer Sony Model Name ACX442AKM-7 Camera Front 1 Brand Name HTC Manufacturer Primax Model Name W112H Camera Front 2 Brand Name HTC Manufacturer LITEON Model Name 12P1BF126A Main Camera 1 Brand Name HTC Manufacturer LITEON Model Name 12P1BEA801 Main Camera 2 Brand Name HTC Manufacturer FOXCONN Model Name CMHT-8AA03D DDR flash memory 1 (32G) Brand Name HTC Manufacturer SAMSUNG Model Name KMK2U000VM-B604 DDR flash memory 2 (32G) Brand Name HTC Manufacturer Hynix Model Name H9TP26A8JDMCQR-KGM DDR flash memory 3 (64G) Brand Name HTC Manufacturer SAMSUNG Model Name KMK1U000VM-BA04 Remark: For accessories equipped with this EUT, please refer to the following photos. Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 5 of 34 TEL : 886-3-327-3456 Report Issued Date : Sep. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM35110 Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 6 of 34 TEL : 886-3-327-3456 Report Issued Date : Sep. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM35110 AC Adapter 1 Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 7 of 34 TEL : 886-3-327-3456 Report Issued Date : Sep. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM35110 Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 8 of 34 TEL : 886-3-327-3456 Report Issued Date : Sep. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM35110 Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 9 of 34 TEL : 886-3-327-3456 Report Issued Date : Sep. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM35110 AC Adapter 2 Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 10 of 34 TEL : 886-3-327-3456 Report Issued Date : Sep. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM35110 AC Adapter 3 Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 11 of 34 TEL : 886-3-327-3456 Report Issued Date : Sep. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM35110 AC Adapter 4 Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 12 of 34 TEL : 886-3-327-3456 Report Issued Date : Sep. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM35110 Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 13 of 34 TEL : 886-3-327-3456 Report Issued Date : Sep. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM35110 Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 14 of 34 TEL : 886-3-327-3456 Report Issued Date : Sep. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM35110 AC Adapter 5 Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 15 of 34 TEL : 886-3-327-3456 Report Issued Date : Sep. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM35110 AC Adapter 6 Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 16 of 34 TEL : 886-3-327-3456 Report Issued Date : Sep. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM35110 Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 17 of 34 TEL : 886-3-327-3456 Report Issued Date : Sep. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC I…

Text truncated - open the document above for the full version.

Label Location Back Cover of EUT

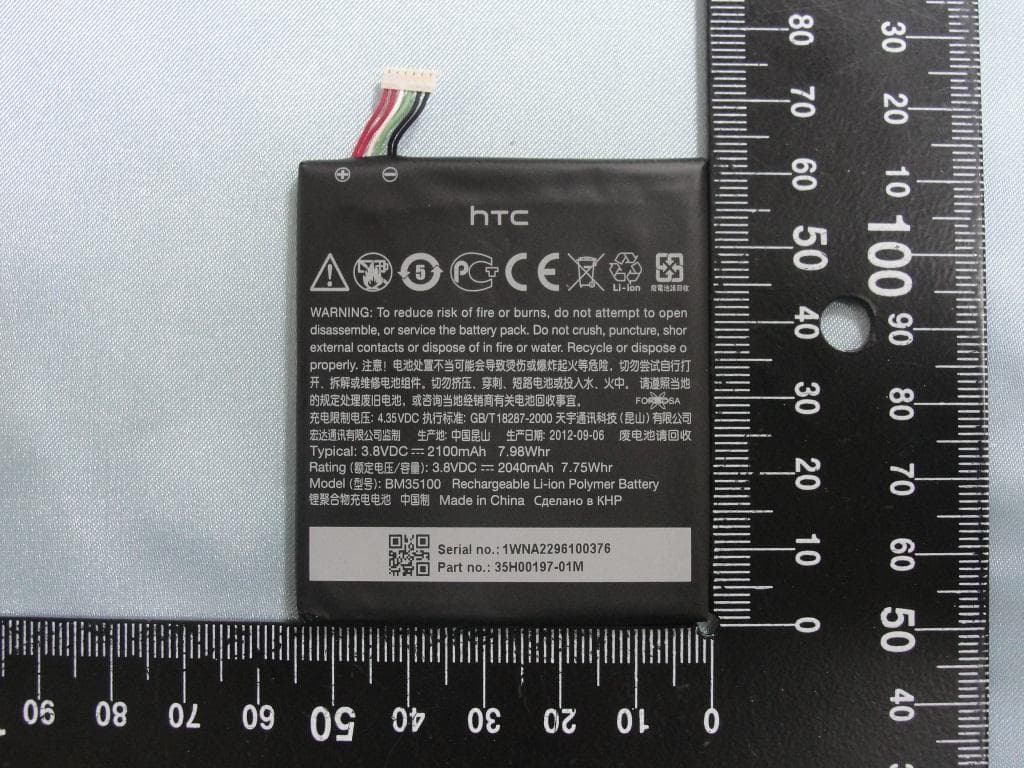

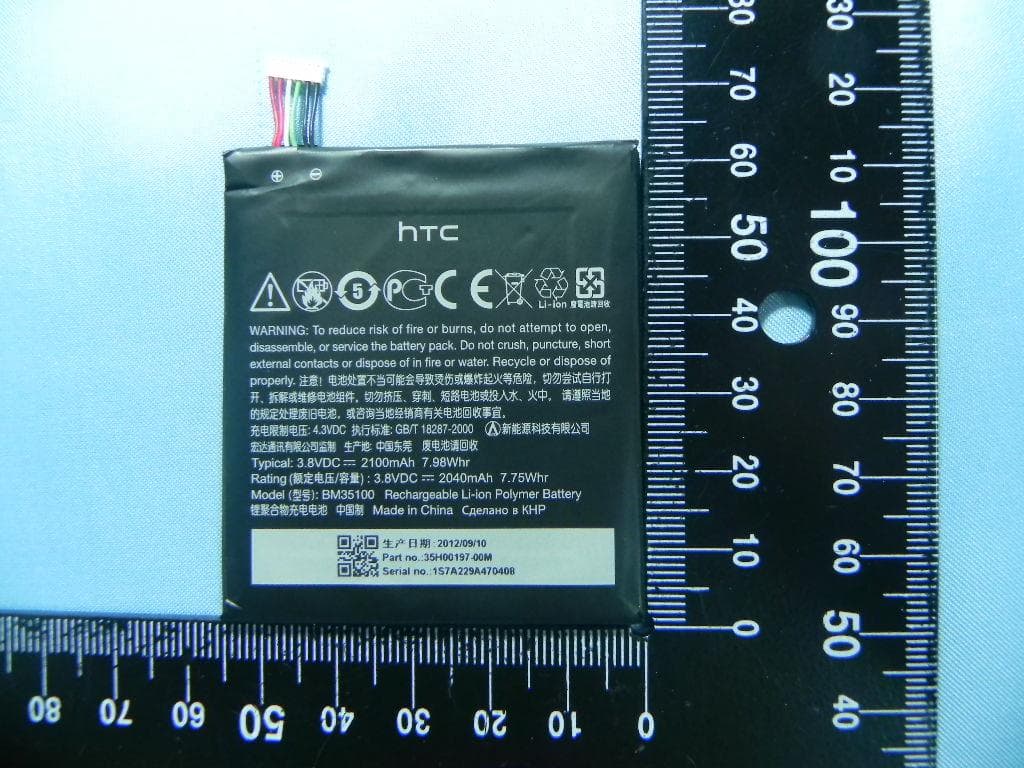

Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 19 of 34 TEL : 886-3-327-3456 Report Issued Date : Sep. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM35110 3. Internal Photograph of EUT Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 20 of 34 TEL : 886-3-327-3456 Report Issued Date : Sep. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM35110 Sample 1 Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 21 of 34 TEL : 886-3-327-3456 Report Issued Date : Sep. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM35110 Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 22 of 34 TEL : 886-3-327-3456 Report Issued Date : Sep. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM35110 Sample 2 Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 23 of 34 TEL : 886-3-327-3456 Report Issued Date : Sep. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM35110 Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 24 of 34 TEL : 886-3-327-3456 Report Issued Date : Sep. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM35110 Sample 3 Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 25 of 34 TEL : 886-3-327-3456 Report Issued Date : Sep. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM35110 Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 26 of 34 TEL : 886-3-327-3456 Report Issued Date : Sep. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM35110 Sample 4 Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 27 of 34 TEL : 886-3-327-3456 Report Issued Date : Sep. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM35110 Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 28 of 34 TEL : 886-3-327-3456 Report Issued Date : Sep. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM35110 Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 29 of 34 TEL : 886-3-327-3456 Report Issued Date : Sep. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM35110 WWAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 30 of 34 TEL : 886-3-327-3456 Report Issued Date : Sep. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM35110 Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 31 of 34 TEL : 886-3-327-3456 Report Issued Date : Sep. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM35110 Bluetooth & WLAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 32 of 34 TEL : 886-3-327-3456 Report Issued Date : Sep. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM35110 GPS Antenna <Rx> Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 33 of 34 TEL : 886-3-327-3456 Report Issued Date : Sep. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM35110 720510 NFC Antenna <Tx / Rx> Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 34 of 34 TEL : 886-3-327-3456 Report Issued Date : Sep. 20, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM35110 WCDMA Band I Diversity Antenna <Rx>

Photographs of EUT Report No.: EP280818-01 Model Name: PM35110 SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : Sep. 24, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM35100 DUT Length: 13.4 cm DUT Width: 7.0 cm Antenna Length Width WWAN Antenna <Tx / Rx> 5.8 cm 1.8 cm WLAN & Bluetooth Antenna <Tx / Rx> 3.9 cm 0.8 cm NFC Antenna <Tx / Rx> 6.6 cm 4.6 cm GPS Antenna <Rx> 3.6 cm 1.0 cm Band I Diversity Antenna <Rx> 2.8 cm 0.9 cm The shortest distance between the Tx antennas WWAN (Tx / Rx) to WLAN & Bluetooth (Tx / Rx) 7.1 cm WWAN (Tx / Rx) to NFC (Tx / Rx) 0.5 cm WLAN & Bluetooth (Tx / Rx) to NFC (Tx / Rx) 0.4 cm WLAN & BT Antenna <Tx / Rx> 9.0 cm 11.5 cm WWAN Antenna <Tx / Rx> GPS Antenna <Rx> 6.1 cm Band I Diversity Antenna <Rx> 4.4 cm 2.4 cm 1.1cm 1.3 cm NFC Antenna <Tx / Rx>

FCC RADIO TEST REPORT Report No. : FR280818-03 SPORTON International Inc. Report Format Version: a FCC RADIO TEST REPORT According to 47 CFR FCC Part 15 Subpart C § 15.225 Equipment : Smartphone Brand Name : HTC Model No. : PM35110 Filing Type : New Application Applicant Manufacturer : HTC Corporation No.23, Xinghua Rd., Taoyuan City, Taoyuan County 330, Taiwan. FCC ID : NM8PM35110 Received Date : Aug. 23, 2012 Final Test Date : Sep. 07, 2012 Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. FCC RADIO TEST REPORT Report No. : FR280818-03 SPORTON International Inc. Page No. : i of ii TEL : 886-3-327-3456 Issued Date : Sep. 26, 2012 FAX : 886-3-327-0973 FCC ID : NM8PM35110 Table of Contents 1. SUMMARY OF THE TEST RESULT .................................................................................................................. 2 2. GENERAL INFORMATION................................................................................................................................ 3 2.1 Product Details ............................................................................................................................................................................................. 3 2.2 Accessories .................................................................................................................................................................................................. 3 2.3 Test Manner ................................................................................................................................................................................................. 4 2.4 Table for Test Modes ................................................................................................................................................................................... 4 2.5 Table for Testing Locations ......................................................................................................................................................................... 4 2.6 Table for Supporting Units ........................................................................................................................................................................... 4 2.7 Test Configurations ...................................................................................................................................................................................... 5 3. TEST RESULT .................................................................................................................................................. 9 3.1 AC Power Line Conducted Emissions Measurement ................................................................................................................................. 9 3.2 Field Strength of Fundamental Emissions and Mask Measurement........................................................................................................ 15 3.3 20dB Spectrum Bandwidth Measurement ................................................................................................................................................ 18 3.4 Radiated Emissions Measurement............................................................................................................................................................ 20 3.5 Frequency Stability Measurement ............................................................................................................................................................. 26 3.6 Antenna Requirements .............................................................................................................................................................................. 28 4. LIST OF MEASURING EQUIPMENTS............................................................................................................. 29 5. TEST LOCATION ............................................................................................................................................ 31 6. TAF CERTIFICATE OF ACCREDITATION ...................................................................................................... 32 APPENDIX A. TEST PHOTOS ............................................................................................................................ A7 APPENDIX B. PHOTOGRAPHS OF EUT .......................................................................................................... B34 FCC RADIO TEST REPORT Report No. : FR280818-03 SPORTON International Inc. Page No. : ii of ii TEL : 886-3-327-3456 Issued Date : Sep. 26, 2012 FAX : 886-3-327-0973 FCC ID : NM8PM35110 History of This Test Report Original Issue Date: Sep. 26, 2012 Report No.: FR280818-03 Ŷ No additional attachment. Ƒ Additional attachment were issued as following record: Attachment No. Issue Date Description 15.205(a) 15.209(a) 47 CFR FCC Part 15 Subpart C Further, this requirement does not apply to intentional radiators that must be professionally installed. FCC RADIO TEST REPORT Report No. : FR280818-03 SPORTON International Inc. Page No. : 1 of 32 TEL : 886-3-327-3456 Issued Date : Sep. 26, 2012 FAX : 886-3-327-0973 FCC ID : NM8PM35110 CERTIFICATE OF COMPLIANCE According to 47 CFR FCC Part 15 Subpart C § 15.225 Equipment : Smartphone Brand Name : HTC Model No. : PM35110 Applicant : HTC Corporation No.23, Xinghua Rd., Taoyuan City…

Text truncated - open the document above for the full version.

FCC RADIO TEST REPORT Report No. : FR280818-03 Page No. : A1 of A8 FCC ID : NM8PM35110 Appendix A. Test Photos FCC RADIO TEST REPORT Report No. : FR280818-03 Page No. : A2 of A8 FCC ID : NM8PM35110 1 Photographs of Conducted Emissions Test Configuration Adapter Mode FRONT VIEW REAR VIEW FCC RADIO TEST REPORT Report No. : FR280818-03 Page No. : A3 of A8 FCC ID : NM8PM35110 SIDE VIEW FCC RADIO TEST REPORT Report No. : FR280818-03 Page No. : A4 of A8 FCC ID : NM8PM35110 USB Mode FRONT VIEW REAR VIEW FCC RADIO TEST REPORT Report No. : FR280818-03 Page No. : A5 of A8 FCC ID : NM8PM35110 SIDE VIEW FCC RADIO TEST REPORT Report No. : FR280818-03 Page No. : A6 of A8 FCC ID : NM8PM35110 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC RADIO TEST REPORT Report No. : FR280818-03 Page No. : A7 of A8 FCC ID : NM8PM35110 For radiated emissions 30MHz~1GHz Adapter Mode FRONT VIEW REAR VIEW FCC RADIO TEST REPORT Report No. : FR280818-03 Page No. : A8 of A8 FCC ID : NM8PM35110 USB Mode FRONT VIEW REAR VIEW
