NM8PM59100WINDOWS PHONE

Windows® Phone 8S by HTC User guide HTC Confidential CE Certification HTC Confidential CE Certification Contents Unboxing Your phone8 Bottom cover9 SIM card10 Storage card11 Battery13 Switching the power on or off14 Setting up your phone Entering your PIN15 Setting up your phone for the first time15 Account setup15 Getting contacts into your phone16 Your first week with your new phone Features you'll enjoy17 Start screen18 Touch gestures19 Motion gestures21 Adjusting the volume22 Sleep mode23 Lock screen23 Changing the ringtone24 Changing the theme25 Taking a screenshot25 Switching between apps25 Windows Store26 Using speech on your phone26 Camera Camera basics28 Taking a photo29 Recording video29 After capturing30 Phone calls Making a call31 Receiving calls32 What can I do during a call?32 2Contents HTC Confidential CE Certification HTC Confidential CE Certification Starting a conference call33 Call history34 Turning airplane mode on or off35 People Keeping in touch36 Importing contacts from your SIM card36 Adding a new contact36 Jumping to a section in the contacts list37 Filtering your contacts list37 Merging contact profiles37 Searching, editing or deleting38 Sharing with a group of contacts in real-time39 Organizing your contacts into groups40 What is the Me tile?42 Posting to social networks42 Filtering social updates43 Keyboard Using the onscreen keyboard44 Entering words with predictive text45 Changing the keyboard language45 Messaging Texting and chatting in one place46 Sharing pictures, videos, and more in a message47 Viewing and replying to a message48 Managing conversations49 Email Adding your Microsoft account50 Adding a POP3/IMAP email account50 Adding a Microsoft Exchange ActiveSync account51 Checking email51 Sending email52 Managing email messages53 Changing email account settings54 Photos, videos, and music Photos55 Music + Videos57 Sync and Backup Keeping things in sync58 Backing up your files58 Internet connections Data connection59 3Contents HTC Confidential CE Certification HTC Confidential CE Certification Wi-Fi60 Using your phone as a mobile hotspot62 Search and Web browser Ways you can search the Web63 Searching for information63 Scanning codes, tags, and text64 Opening and navigating web pages66 Music search67 Maps and location Location services68 Bing Maps68 Local Scout71 Calendar What you can do in Calendar73 Creating a calendar appointment73 Creating a new to-do task74 Displaying and syncing calendars75 More apps What can I do in the HTC hub?76 What's in the Office hub?81 Creating and sharing notes81 Xbox LIVE in the Games hub83 Bluetooth Connecting a Bluetooth accessory84 Disconnecting a Bluetooth accessory84 Unpairing85 Settings Attentive phone features86 Turning Battery Saver on86 Changing display settings87 Changing sound settings87 Changing the language88 Managing apps and storage88 Security Protecting your SIM card with a PIN90 Protecting your phone with a password90 Making your phone safe for kids91 Setting up Children's Corner91 Launching Children's Corner91 Closing and disabling Children's Corner92 4Contents HTC Confidential CE Certification HTC Confidential CE Certification Update and reset How to get and install updates93 Preparing for a software update93 Installing an update94 Factory reset94 Trademarks and copyrights Trademarks and copyrights Index 5Contents HTC Confidential CE Certification HTC Confidential CE Certification Conventions used in this guide In this user guide, we use the following symbols to indicate useful and important information: This is a note. A note often gives additional information, such as what happens when you choose to do or not to do a certain action. A note also provides information that may only be applicable to some situations. This is a tip. A tip gives you an alternative way to do a particular step or procedure, or lets you know of an option that you may find helpful. This indicates important information that you need in order to accomplish a certain task or to get a feature to work properly. This provides safety precaution information, that is, information that you need to be careful about to prevent potential problems. 6Conventions used in this guide HTC Confidential CE Certification HTC Confidential CE Certification Other helpful resources For health, safety, and regulatory information, please read the Safety and regulatory guide that’s included in the box. In addition to this user guide, you can find help information, FAQs, and more in www.htc.com/support. To learn a lot more about using Windows ® Phone, open Help+Tips on your phone. Or use your web browser and go to windowsphone.com. Certain Windows Phone features or Microsoft ® services may not be available in some countries or regions. 7Other helpful resources HTC Confidential CE Certification HTC Confidential CE Certification Unboxing Your phone 1.BACK 2.USB connector 3.START 4.SEARCH 5.Camera button 6.VOLUME 7.Proximity sensor 8.Notification LED 9.POWER 10.3.5mm headset jack If you want to use a screen protector, please don’t cover and block the proximity sensor. You can purchase the dedicated screen protector for your phone that already has a small opening for the sensor. 8Unboxing HTC Confidential CE Certification HTC Confidential CE Certification Bottom cover Removing the bottom cover Remove the bottom cover to access the SIM card slot and storage card slot. 1.Securely hold your phone with the front facing down. 2.With your thumbs, push the bottom cover out to remove it. 9Unboxing HTC Confidential CE Certification HTC Confidential CE Certification Replacing the bottom cover Antennas are placed underneath the cover. To get the best signal for calls and data connection, be sure to secure the cover tightly. 1.Align the teeth underneath the bottom cover with the notches on the side of the phone. 2.Press down on the bottom cover with your thumbs, and then push it until it locks into place. You’ll hear a click when the bottom cover is locked in place. SIM car…

Text truncated - open the document above for the full version.

Safety and regulatory guide 2 Safety and regulatory guide Please read before proceeding THE BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE THE DEVICE OUT OF THE BOX. Privacy restrictions Some countries require full disclosure of recorded telephone conversations. Important health information and safety precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. Electrical safety This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. Safety precautions for proper grounding installation CAUTION: Connecting to improperly grounded equipment can result in an electric shock to your device. This product is equipped with a USB Cable for connecting with desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet which is properly installed and grounded in accordance with all local codes and ordinances. Safety precautions for power supply unit  Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product. Safety and regulatory guide 3 This product should be operated only with the following designated power supply unit(s). AC adapter: HTC, Model TC U250, TC E250, TCA 250, TC B270  Handle battery packs carefully This product contains a Lithium-ion polymer or Lithium-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. Do not attempt to open or service the battery pack. Do not disassemble, crush, puncture, short external contacts or circuits, dispose of in fire or water, or expose a battery pack to temperatures higher than 60 ̊C (140 ̊F). WARNING: To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts, expose to temperature above 60° C (140° F), or dispose of in fire or water. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product.  Take extra precautions  Keep the device dry and away from water or any liquid as it may cause a short circuit.  The phone should only be connected to products that bear the USB-IF logo or have completed the USB-IF compliance program.  If the battery leaks:  Do not allow the leaking fluid to come in contact with skin or clothing. If already in contact, flush the affected area immediately with clean water and seek medical advice.  Do not allow the leaking fluid to come in contact with eyes. If already in contact, DO NOT rub; rinse with clean water immediately and seek medical advice.  Take extra precautions to keep a leaking battery away from fire as there is a danger of ignition or explosion. Safety precautions for direct sunlight Keep this product away from excessive moisture and extreme 4 Safety and regulatory guide temperatures. Do not leave the product inside a vehicle or in places where the temperature may exceed 60°C (140°F), such as on a car dashboard, window sill, or behind a glass that is exposed to direct sunlight or strong ultraviolet light for extended periods of time. This may damage the product, overheat the battery, or pose a risk to the vehicle. Prevention of hearing loss CAUTION: Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time. NOTE: For France, Earphone (listed below) for this device have been tested to comply with the Sound Pressure Level requirement laid down in the applicable NF EN 50332-1:2000 and/or NF EN 50332-2:2003 standards as required by French Article L. 5232-1.  Earphone, manufactured by HTC, Model HS S250,HS S260 Safety in aircraft Due to the possible interference caused by this product to an aircraft’s navigation system and its communications network, using this device’s phone function on board an airplane is against the law in most countries. If you want to use this device when on board an aircraft, remember to turn off your phone by switching to Airplane Mode. Environment restrictions Do not use this product in gas stations, fuel depots, chemical plants or where blasting operations are in progress, or in potentially explosive atmospheres such as fuelling areas, fuel storehouses, below deck on boats, chemical plants, fuel or chemical transfer or storage facilities, and areas where the air contains chemicals or particles, such as grain, dust, or metal powders. Please be aware that sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Explosive atmospheres When in any area with a potentially explosive atmosphere or where flammable materials exist, the product should be turned off and the user should obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Users are advised not to use the equipment at refueling points such as service or gas stations, and are reminded Safety and regulatory guide 5 of the need to observe restrictions on the use of radio equipment in fuel depots, chemical plants, or where blasting operations are in progress. Areas with a potentially explosive atmosphere are often, but not …

Text truncated - open the document above for the full version.

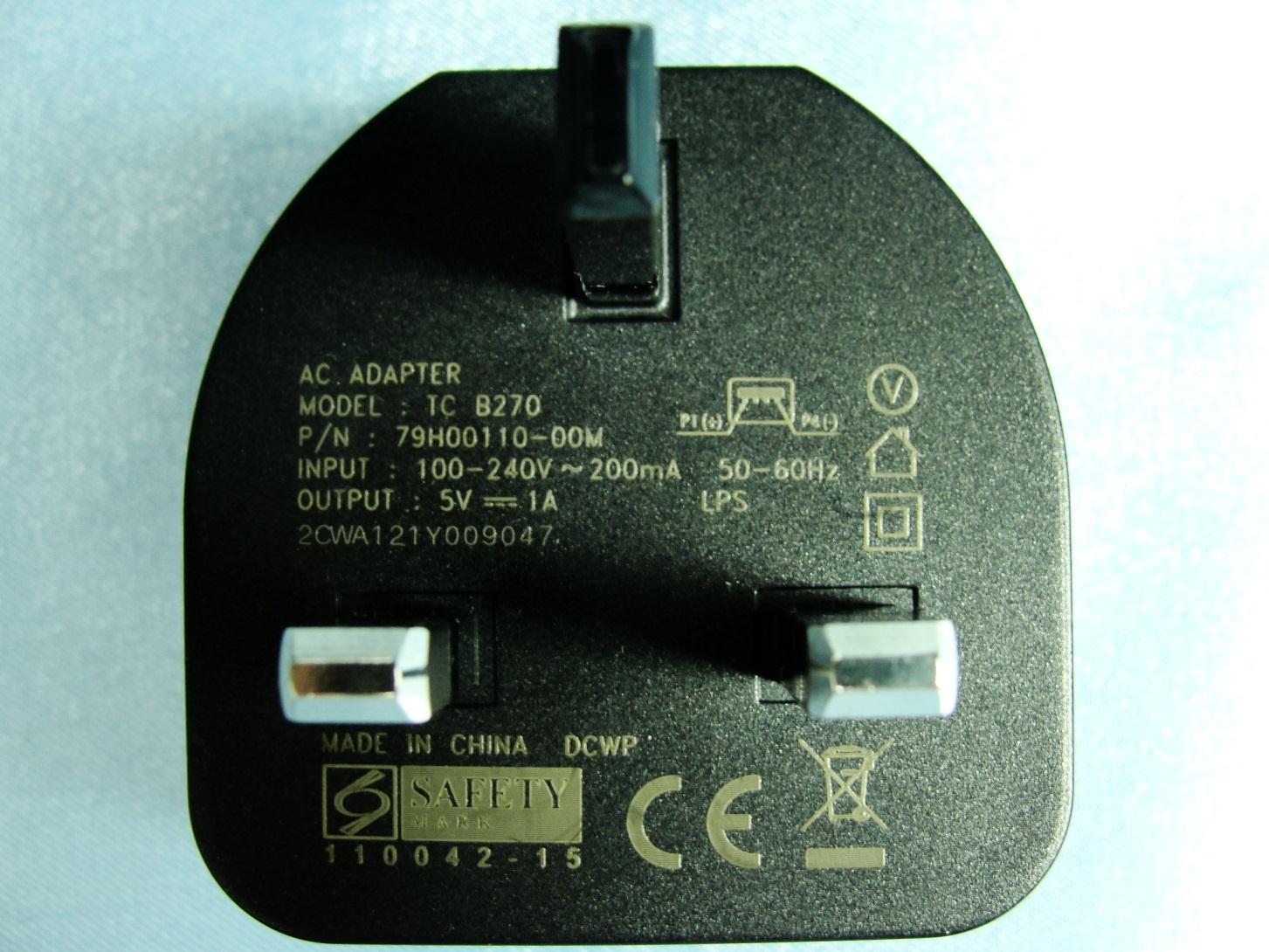

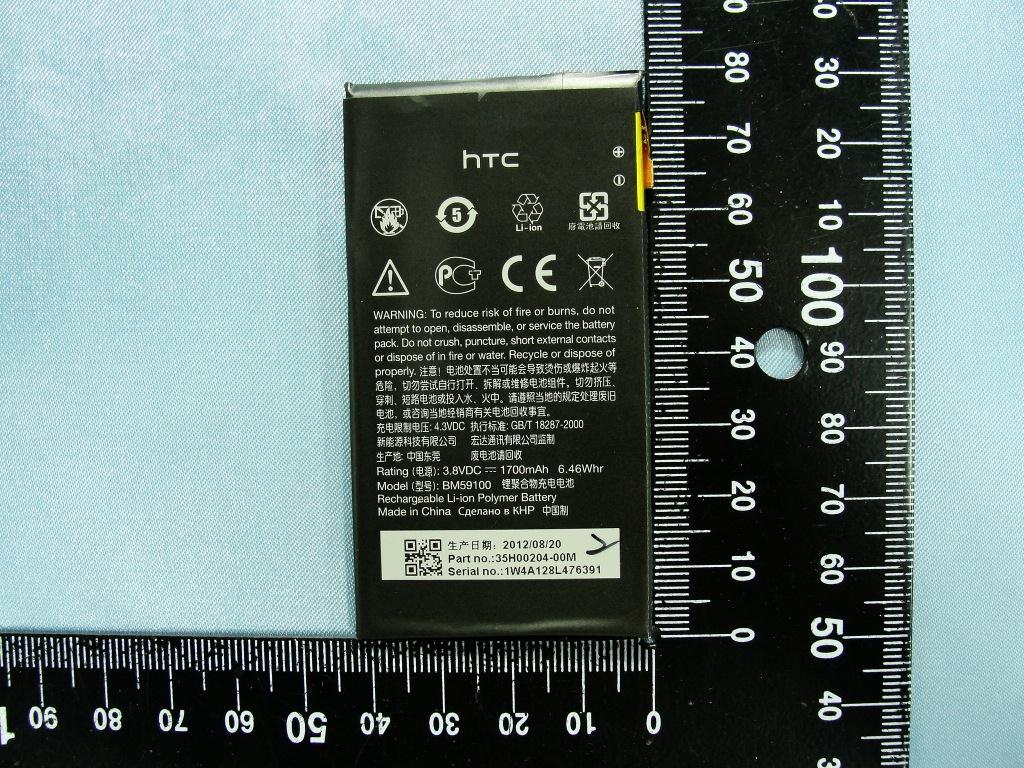

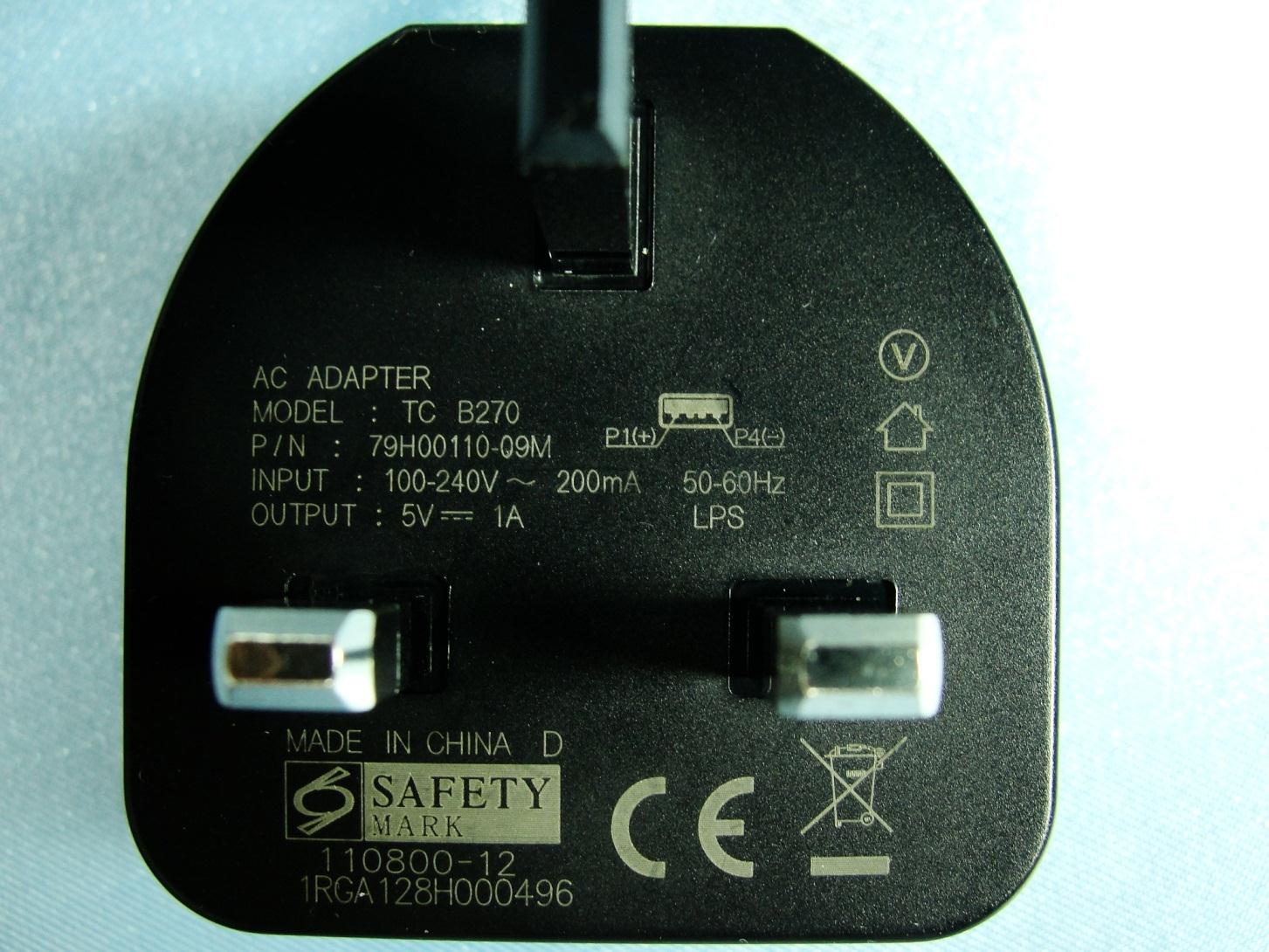

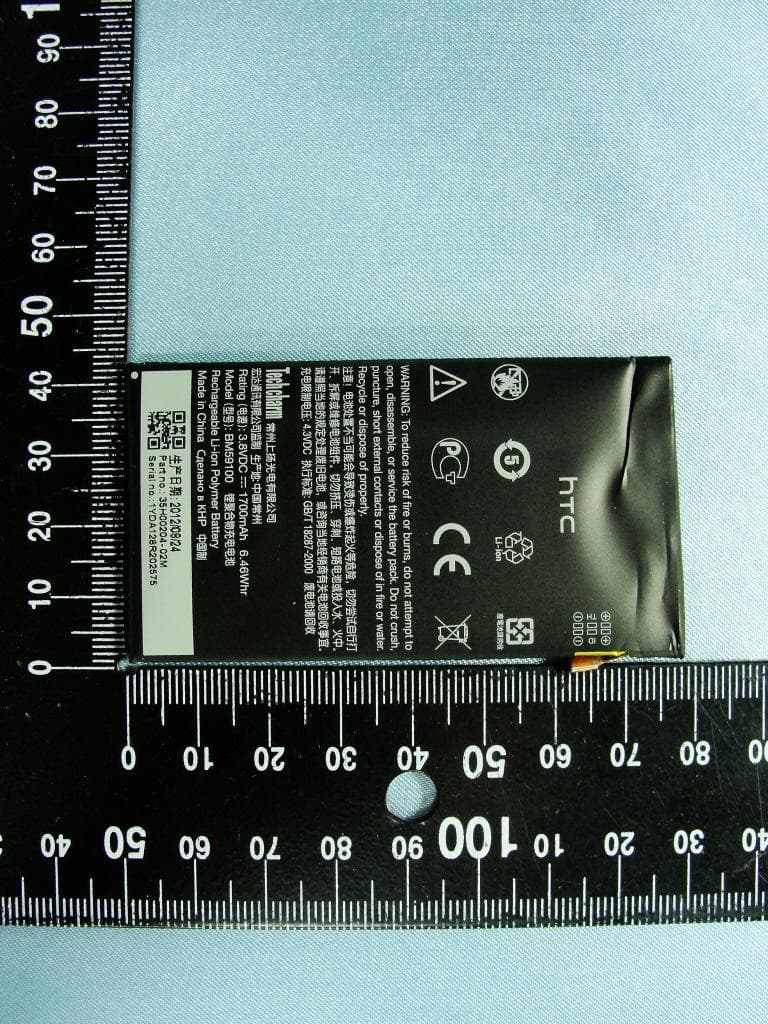

Photographs of EUT Report No.: EP290531-01 Model Name: PM59100 SPORTON INTERNATIONAL INC. Page Number : 1 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 720510 1. External Photograph of EUT Sample 1 Photographs of EUT Report No.: EP290531-01 Model Name: PM59100 SPORTON INTERNATIONAL INC. Page Number : 2 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 Photographs of EUT Report No.: EP290531-01 Model Name: PM59100 SPORTON INTERNATIONAL INC. Page Number : 3 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 Sample 2 Photographs of EUT Report No.: EP290531-01 Model Name: PM59100 SPORTON INTERNATIONAL INC. Page Number : 4 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 Photographs of EUT Report No.: EP290531-01 Model Name: PM59100 SPORTON INTERNATIONAL INC. Page Number : 5 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 List of Accessory: Specification of Accessory AC Adapter 1 Brand Name HTC Manufacturer PHIHONG Model Name TC U250 AC Adapter 2 Brand Name HTC Manufacturer PHIHONG Model Name TC B270 AC Adapter 3 Brand Name HTC Manufacturer DELTA Model Name TC U250 AC Adapter 4 Brand Name HTC Manufacturer DELTA Model Name TC B270 Battery 1 Brand Name HTC Manufacturer ATL Model Name BM59100 Battery 2 Brand Name HTC Manufacturer LG Model Name BM59100 Earphone 1 Brand Name HTC Manufacturer MERRY Model Name HS S250 Earphone 2 Brand Name HTC Manufacturer MERRY Model Name HS S260 USB Cable 1 Brand Name HTC Manufacturer COXOC Model Name DC M600 USB Cable 2 Brand Name HTC Manufacturer FOXLINK Model Name DC M600 USB Cable 3 Brand Name HTC Manufacturer FOXCONN Model Name DC M600 LCM Brand Name HTC Manufacturer LG Display Model Name SD03 Camera 1 Brand Name HTC Manufacturer Liteon Model Name 11P1BA531 Camera 2 Brand Name HTC Manufacturer Foxconn Model Name CMHT-5AS10D Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP290531-01 Model Name: PM59100 SPORTON INTERNATIONAL INC. Page Number : 6 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 720510 Photographs of EUT Report No.: EP290531-01 Model Name: PM59100 SPORTON INTERNATIONAL INC. Page Number : 7 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 Adapter 1 Photographs of EUT Report No.: EP290531-01 Model Name: PM59100 SPORTON INTERNATIONAL INC. Page Number : 8 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 Adapter 2 Photographs of EUT Report No.: EP290531-01 Model Name: PM59100 SPORTON INTERNATIONAL INC. Page Number : 9 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 Adapter 3 Photographs of EUT Report No.: EP290531-01 Model Name: PM59100 SPORTON INTERNATIONAL INC. Page Number : 10 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 Adapter 4 Photographs of EUT Report No.: EP290531-01 Model Name: PM59100 SPORTON INTERNATIONAL INC. Page Number : 11 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 Battery 1 Photographs of EUT Report No.: EP290531-01 Model Name: PM59100 SPORTON INTERNATIONAL INC. Page Number : 12 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 Battery 2

Remove Back Cover Back of EUT (Windows Phone) Label Location

Photographs of EUT Report No.: EP290531-01 Model Name: PM59100 SPORTON INTERNATIONAL INC. Page Number : 13 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 720510 3. Internal Photograph of EUT Sample 1 Photographs of EUT Report No.: EP290531-01 Model Name: PM59100 SPORTON INTERNATIONAL INC. Page Number : 14 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 Photographs of EUT Report No.: EP290531-01 Model Name: PM59100 SPORTON INTERNATIONAL INC. Page Number : 15 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 Photographs of EUT Report No.: EP290531-01 Model Name: PM59100 SPORTON INTERNATIONAL INC. Page Number : 16 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 Photographs of EUT Report No.: EP290531-01 Model Name: PM59100 SPORTON INTERNATIONAL INC. Page Number : 17 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 Photographs of EUT Report No.: EP290531-01 Model Name: PM59100 SPORTON INTERNATIONAL INC. Page Number : 18 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 Photographs of EUT Report No.: EP290531-01 Model Name: PM59100 SPORTON INTERNATIONAL INC. Page Number : 19 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 WWAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP290531-01 Model Name: PM59100 SPORTON INTERNATIONAL INC. Page Number : 20 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 WLAN & Bluetooth Antenna <Tx / Rx> Photographs of EUT Report No.: EP290531-01 Model Name: PM59100 SPORTON INTERNATIONAL INC. Page Number : 21 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 GPS Antenna <Rx> Photographs of EUT Report No.: EP290531-01 Model Name: PM59100 SPORTON INTERNATIONAL INC. Page Number : 22 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 Diversity Antenna <Rx> Photographs of EUT Report No.: EP290531-01 Model Name: PM59100 SPORTON INTERNATIONAL INC. Page Number : 23 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 Sample 2 Photographs of EUT Report No.: EP290531-01 Model Name: PM59100 SPORTON INTERNATIONAL INC. Page Number : 24 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 Photographs of EUT Report No.: EP290531-01 Model Name: PM59100 SPORTON INTERNATIONAL INC. Page Number : 25 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 Photographs of EUT Report No.: EP290531-01 Model Name: PM59100 SPORTON INTERNATIONAL INC. Page Number : 26 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 Photographs of EUT Report No.: EP290531-01 Model Name: PM59100 SPORTON INTERNATIONAL INC. Page Number : 27 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 Photographs of EUT Report No.: EP290531-01 Model Name: PM59100 SPORTON INTERNATIONAL INC. Page Number : 28 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 Photographs of EUT Report No.: EP290531-01 Model Name: PM59100 SPORTON INTERNATIONAL INC. Page Number : 29 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 WWAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP290531-01 Model Name: PM59100 SPORTON INTERNATIONAL INC. Page Number : 30 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 WLAN & Bluetooth Antenna <Tx / Rx> Photographs of EUT Report No.: EP290531-01 Model Name: PM59100 SPORTON INTERNATIONAL INC. Page Number : 31 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 GPS Antenna <Rx> Photographs of EUT Report No.: EP290531-01 Model Name: PM59100 SPORTON INTERNATIONAL INC. Page Number : 32 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 Diversity Antenna <Rx>

Photographs of EUT Report No.: EP290531-01 Model Name: PM59100 SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 DUT Length: 12.1 cm DUT Width: 6.3 cm Antenna location Length Width WWAN Antenna <TX/RX> 5.6 cm 1.3 cm WLAN & Bluetooth Antenna <TX/RX> 2.1 cm 1.3 cm GPS Antenna <RX> 4.0 cm 0.9 cm Diversity Antenna <RX> 5.6 cm 0.8 cm The shortest distance between the TX antennas WWAN Antenna <TX / RX> to WLAN & Bluetooth Antenna <TX / RX> 9.3 cm WLAN & Bluetooth Antenna <Tx / Rx> 10.8 cm WWAN Antenna <Tx / Rx> GPS Antenna <Rx> Diversity Antenna <Rx> 2.1 cm 2.1 cm 10.8 cm

SPORTON INTERNATIONAL INC. Page Number : 1 of 39 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 FCC SAR Test Report Report No. : FA290531-01 FCC SAR Test Report APPLICANT : HTC Corporation EQUIPMENT : Windows Phone MODEL NAME : PM59100 FCC ID : NM8PM59100 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was completely tested on Sep. 29, 2012. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 39 TEL : 886-3-327-3456 Report Issued Date : Oct. 29, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PM59100 FCC SAR Test Report Report No. : FA290531-01 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 2.1 Testing Laboratory .................................................................................................................................................. 5 2.2 Applicant ................................................................................................................................................................ 5 2.3 Manufacturer .......................................................................................................................................................... 5 2.4 Application Details .................................................................................................................................................. 5 3. General Information ...................................................................................................................................................... 6 3.1 Description of Equipment Under Test (EUT) .......................................................................................................... 6 3.2 Applied Standard .................................................................................................................................................... 7 3.3 Device Category and SAR Limits ........................................................................................................................... 7 3.4 Test Conditions ....................................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................... 8 4.1 Introduction ............................................................................................................................................................ 8 4.2 SAR Definition ........................................................................................................................................................ 8 5. SAR Measurement System ........................................................................................................................................... 9 5.1 E-Field Probe ........................................................................................................................................................10 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot .................................................................................................................................................................... 11 5.4 Measurement Server ............................................................................................................................................. 11 5.5 Phantom ................................................................................................................................................................12 5.6 Device Holder........................................................................................................................................................13 5.7 Data Storage and Evaluation ................................................................................................................................14 5.8 Test Equipment List ...............................................................................................................................................16 6. Tissue Simulating Liquids ...........................................................................................................................................17 7. SAR Measurement Evaluation ....................................................................................................................................19 7.1 Purpose of System Performance check ................................................................................................................19 7.2 System Setup ........................................................................................................................................................19 7.3 Validation Results ...................................................................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/09/12 System Check_Head_835MHz_120912 DUT: D835V2-SN:499 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835_120912 Medium parameters used: f = 835 MHz; σ = 0.904 mho/m; ε r = 40.5; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.12, 6.12, 6.12); Calibrated: 2012/5/29 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2012/6/12 - Phantom: SAM_Right; Type: SAM; Serial: TP-1303 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.70 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 57.2 V/m; Power Drift = 0.010 dB Peak SAR (extrapolated) = 3.51 W/kg SAR(1 g) = 2.48 mW/g; SAR(10 g) = 1.64 mW/g Maximum value of SAR (measured) = 2.68 mW/g 0 dB = 2.68mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/9/28 System Check_Head_835MHz_120928 DUT: D835V2-SN:499 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835_120928 Medium parameters used: f = 835 MHz; σ = 0.885 mho/m; ε r = 42; ρ = 1000 kg/m 3 Ambient Temperature：22.2 °C; Liquid Temperature：21.2 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.12, 6.12, 6.12); Calibrated: 2012/5/29 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: SAM_Right; Type: SAM; Serial: TP-1303 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.59 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 56.2 V/m; Power Drift = 0.035 dB Peak SAR (extrapolated) = 3.35 W/kg SAR(1 g) = 2.38 mW/g; SAR(10 g) = 1.58 mW/g Maximum value of SAR (measured) = 2.58 mW/g 0 dB = 2.58mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/9/12 System Check_Body_835MHz_120912 DUT: D835V2-SN:499 Communication System: CW; Frequency: 835 MHz;Duty C…

Text truncated - open the document above for the full version.
