NM8PN07100Smartphone

Safety and regulatory guide 2 Safety and regulatory guide Please read before proceeding THE BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE THE DEVICE OUT OF THE BOX. Privacy restrictions Some countries require full disclosure of recorded telephone conversations. Pictograms and graphic symbols Read this manual’s Safety Information and General Precautions. Do not use while re-fuelling Do not use hand-held while driving This device may produce a bright or flashing light For body-worn operation maintain a separation of 1.5 cm Do not dispose of in a fire Small parts may cause a choking hazard Avoid contact with magnetic media This device may produce a loud sound Avoid extreme temperatures Keep away from pacemakers and other personal medical devices Avoid contact with liquid, keep dry Switch off when instructed in hospitals and medical facilities Do not try and disassemble Safety and regulatory guide 3 Switch off when instructed in aircraft and airports Do not rely on this device for emergency communications Switch off in explosive environments Only use approved accessories Important health information and safety precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. Electrical safety This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. Safety precautions for proper grounding installation CAUTION: Connecting to improperly grounded equipment can result in an electric shock to your device. This product is equipped with a USB Cable for connecting with desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet which is properly installed and grounded in accordance with all local codes and ordinances. Safety precautions for power supply unit  Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, 4 Safety and regulatory guide refer to the operating instructions that are included with the product. This product should be operated only with the following designated power supply unit(s). AC adapter: HTC, Model TC U250, TC E250, TC B250, TC A250  Handle battery packs carefully This product contains a Lithium-ion polymer or Lithium-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. Do not attempt to open or service the battery pack. Do not disassemble, crush, puncture, short external contacts or circuits, dispose of in fire or water, or expose a battery pack to temperatures higher than 60 ̊C (140 ̊F). WARNING: To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts, expose to temperature above 60° C (140° F), or dispose of in fire or water. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product.  Take extra precautions  Keep the device dry and away from water or any liquid as it may cause a short circuit.  The phone should only be connected to products that bear the USB-IF logo or have completed the USB-IF compliance program.  If the battery leaks:  Do not allow the leaking fluid to come in contact with skin or clothing. If already in contact, flush the affected area immediately with clean water and seek medical advice.  Do not allow the leaking fluid to come in contact with eyes. If already in contact, DO NOT rub; rinse with clean water immediately and seek medical advice.  Take extra precautions to keep a leaking battery away from fire as there is a danger of ignition or explosion. Safety and regulatory guide 5 Safety precautions for direct sunlight Keep this product away from excessive moisture and extreme temperatures. Do not leave the product inside a vehicle or in places where the temperature may exceed 60°C (140°F), such as on a car dashboard, window sill, or behind a glass that is exposed to direct sunlight or strong ultraviolet light for extended periods of time. This may damage the product, overheat the battery, or pose a risk to the vehicle. Prevention of hearing loss CAUTION: Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time. NOTE: For France, Earphone (listed below) for this device have been tested to comply with the Sound Pressure Level requirement laid down in the applicable NF EN 50332-1:2000 and/or NF EN 50332-2:2003 standards as required by French Article L. 5232-1.  Earphone, manufactured by HTC, Model Max-300 Safety in aircraft Due to the possible interference caused by this product to an aircraft’s navigation system and its communications network, using this device’s phone function on board an airplane is against the law in most countries. If you want to use this device when on board an aircraft, remember to turn off your phone by switching to Airplane Mode. Environment restrictions Do not use this product in gas stations, fuel depots, chemical plants or where blasting operations are in progress, or in potentially explosive atmospheres such as fuelling areas, fuel storehouses, below deck on boats, chemical plants, fuel or chemical transfer or storage facilities, and areas where the air contains chemicals or par…

Text truncated - open the document above for the full version.

宏達國際電子股份有限公司 宏達國際電子股份有限公司宏達國際電子股份有限公司 宏達國際電子股份有限公司 1F, No. 6-3, HTC Corporation Baoqiang Rd., Xindian City, New Taipei City, Taiwan February 4, 2013 Power of Attorney To whom it may concern, Please be notified that I, Lucy Shih, have designated Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan and Yuju Tai in HTC Corporation as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan and Yuju Tai in HTC Corporation on the matters relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. As defined in 47 CFR Ch. 1.2002 (b), we further certify that neither the applicant nor any party to this application is subject to a denial to Federal benefits, including FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: NM8PN07100 If you have any acknowledgement and response, please send it to Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan directly. Should you have any question or comment regarding this matter, please have my best attention. Sincerely yours, Lucy Shih HTC Corporation Tel: +886 2 8912 4138 #28402 E-mail: [email protected]

宏達國際電子股份有限公司 宏達國際電子股份有限公司宏達國際電子股份有限公司 宏達國際電子股份有限公司 1F, No. 6-3, HTC Corporation Baoqiang Rd., Xindian City, New Taipei City, Taiwan Date: February 4, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia MD2046 Subject: Request for Confidentiality FCC ID: NM8PN07100 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely.
Schematic Diagram
Block Diagram
Part List
Theory of Operation
Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until Aug. 30 th 2013, after the Grant Date of Equipment Authorizations.  External Photos  Internal Photos  Test Setup Photos  User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards,

宏達國際電子股份有限公司 宏達國際電子股份有限公司宏達國際電子股份有限公司 宏達國際電子股份有限公司 1F, No. 6-3, HTC Corporation Baoqiang Rd., Xindian City, New Taipei City, Taiwan Date: February 4, 2013 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: NM8PN07100 To Whom It May Concern: We, HTC Corporation, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours,

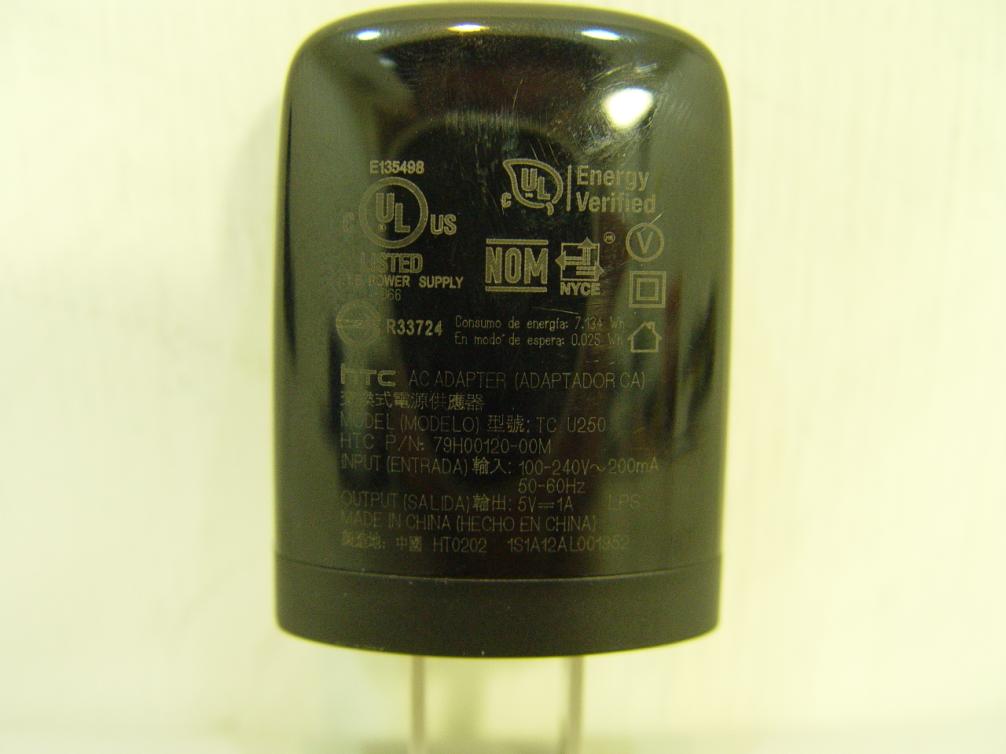

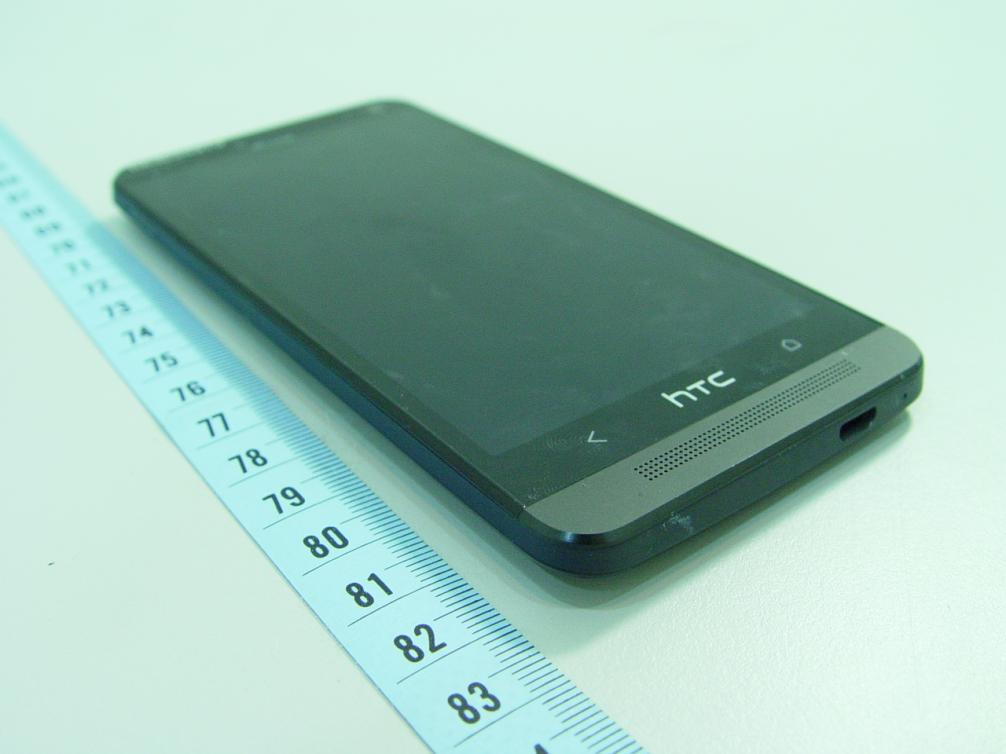

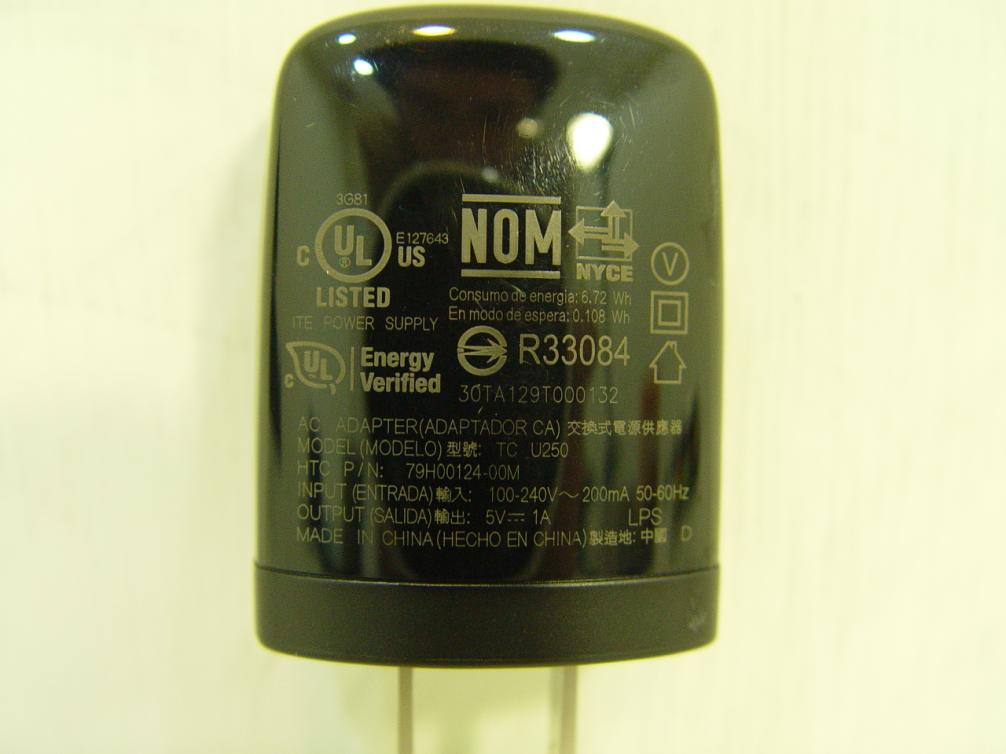

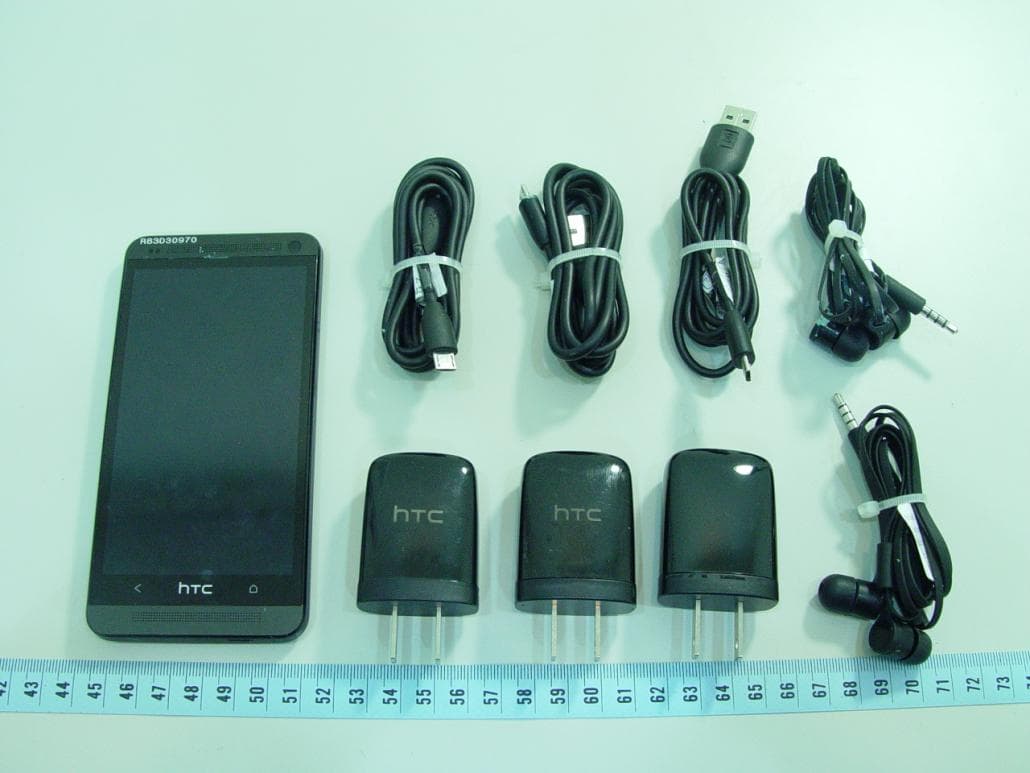

Page 1 CONSTRUCTION PHOTOS OF EUT The EUT has following accessories. Product Brand MODEL Description Power Adapter 1 Salcomp TC X250 (X=U,E) I/P: 100-240Vac, 200mA O/P: 5Vdc, 1A Power Adapter 2 Phihong TC X250 (X=U,E,A) I/P: 100-240Vac, 200mA O/P: 5Vdc, 1A Power Adapter 3 Delta TC X250 (X=U,E,B,A) I/P: 100-240Vac, 200mA O/P: 5Vdc, 1A Battery 1 ATL BN07100 Rating: 3.8Vdc, 2300mAh Type: Li-ion Battery 2 WTE BN07100 Rating: 3.8Vdc, 2300mAh Type: Li-ion Earphone 1 Merry Max 300 1.1m cable Earphone 2 Cotron Max 300 1.1m cable USB Cable 1 Foxlink DC M600 1m cable USB Cable 2 Foxconn DC M600 1m cable USB Cable 3 Coxoc DC M600 1m cable LCM 1 JDI ACX456AKM-7 -- LCM 2 Sharp LS047T1SC01 -- Photo Camera Sharp RJ63RC111 -- Front Camera 1 PRIMAX W205H -- Front Camera 2 LITEON 12plsf216 -- Page 2 Page 3 Page 4 Page 5 Page 6

Page 7 0DLQ6DPSOH Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19 Page 20 Page 21 Page 22 Page 23 Page 24 Page 25  QG 66DPSOH Page 26 Page 27 Page 28 Page 29 Page 30 Page 31 Page 32 Page 33 Page 34 Page 35 Page 36 Page 37 Page 38 Page 39 Page 40 Page 41 Page 42

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Jan. 31, 2013 Report No. : SA121218C06A Revision : R01 Appendix C. Calibration Certificate for Probe and Dipole The SPEAG calibration certificates are shown as follows.

FCC SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 41 Report No. : SA121218C06A Reference : 121222C19 Issued Date : Jan. 31, 2013 Revision : R01 FCC SAR Test Report Report No. : SA121218C06A Applicant : HTC Corporation Address : No. 23, Xinghua Rd., Taoyuan City, Taiwan Product : Smartphone FCC ID : NM8PN07100 Brand : HTC Model No. : PN07100 Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1991 / IEEE 1528:2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) KDB 248227 D01 v01r02 / KDB 447498 D01 v05 / KDB 648474 D04 v01 KDB 941225 D01 v02 / KDB 941225 D02 v02r01 / KDB 941225 D03 v01 KDB 941225 D04 v01 / KDB 941225 D06 v01 Date of Testing : Dec. 27, 2012 ~ Jan. 20, 2013 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch - Taiwan HwaYa Lab, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Ivonne Wu / Senior Specialist Approved By : Roy Wu / Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 41 Report No. : SA121218C06A Reference : 121222C19 Issued Date : Jan. 31, 2013 Revision : R01 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ................................................................................................................ 6 3.2 SPEAG DASY System ................................................................................................................................................. 6 3.2.1 Robot.................................................................................................................................................................. 7 3.2.2 Probes ................................................................................................................................................................ 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................... 8 3.2.4 Phantoms ........................................................................................................................................................... 9 3.2.5 Device Holder ................................................................................................................................................... 10 3.2.6 System Validation Dipoles ................................................................................................................................ 10 3.2.7 Tissue Simulating Liquids ................................................................................................................................. 11 3.3 SAR System Verification ............................................................................................................................................ 12 3.4 SAR Measurement Procedure ................................................................................................................................... 13 3.4.1 Area & Zoom Scan Procedure ......................................................................................................................... 13 3.4.2 Volume Scan Procedure................................................................................................................................... 13 3.4.3 Power Drift Monitoring ...................................................................................................................................... 14 3.4.4 Spatial Peak SAR Evaluation .....................................................…

Text truncated - open the document above for the full version.

Report No.: RF121218C06A 1 of 43 Report Format Version 5.0.0 Reference No.: 121222C19 FCC TEST REPORT (PART 22) REPORT NO.: RF121218C06A MODEL NO.: PN07100 FCC ID: NM8PN07100 RECEIVED: Dec. 22, 2012 TESTED: Jan. 04, 2013 ~ Jan. 19, 2013 ISSUED: Jan. 30, 2013 APPLICANT: HTC Corporation ADDRESS: 23, Xinghua Rd., Taoyuan 330, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF121218C06A 2 of 43 Report Format Version 5.0.0 Reference No.: 121222C19 TABLE OF CONTENTS RELEASE CONTROL RECORD .............................................................................................. 3 1 CERTIFICATION ........................................................................................................ 4 2 SUMMARY OF TEST RESULTS ................................................................................. 5 2.1 MEASUREMENT UNCERTAINTY .............................................................................. 5 2.2 TEST SITE AND INSTRUMENTS ............................................................................... 6 3 GENERAL INFORMATION ......................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ........................................................................... 7 3.2 CONFIGURATION OF SYSTEM UNDER TEST ......................................................... 8 3.3 DESCRIPTION OF SUPPORT UNITS ........................................................................ 8 3.4 TEST ITEM AND TEST CONFIGURATION ................................................................ 9 3.5 EUT OPERATING CONDITIONS .............................................................................. 10 3.6 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................... 10 4 TEST TYPES AND RESULTS................................................................................... 11 4.1 OUTPUT POWER MEASUREMENT ........................................................................ 11 4.1.1 LIMITS OF OUTPUT POWER MEASUREMENT ...................................................... 11 4.1.2 TEST PROCEDURES .............................................................................................. 11 4.1.3 TEST SETUP ........................................................................................................... 12 4.1.4 TEST RESULTS ....................................................................................................... 13 4.2 FREQUENCY STABILITY MEASUREMENT ............................................................ 18 4.2.1 LIMITS OF FREQUENCY STABILIITY MEASUREMENT ......................................... 18 4.2.2 TEST PROCEDURE ................................................................................................. 18 4.2.3 TEST SETUP ........................................................................................................... 18 4.2.4 TEST RESULTS ....................................................................................................... 19 4.3 OCCUPIED BANDWIDTH MEASUREMENT ............................................................ 21 4.3.1 TEST PROCEDURES .............................................................................................. 21 4.3.2 TEST SETUP ........................................................................................................... 21 4.3.3 TEST RESULTS ....................................................................................................... 22 4.4 BAND EDGE MEASUREMENT ................................................................................ 24 4.4.1 LIMITS OF BAND EDGE MEASUREMENT .............................................................. 24 4.4.2 TEST SETUP ........................................................................................................... 24 4.4.3 TEST PROCEDURES .............................................................................................. 24 4.4.4 TEST RESULTS ....................................................................................................... 25 4.5 CONDUCTED SPURIOUS EMISSIONS ................................................................... 27 4.5.1 LIMITS OF CONDUCTED SPURIOUS EMISSIONS MEASUREMENT .................... 27 4.5.2 TEST PROCEDURE .................................…

Text truncated - open the document above for the full version.

Report No.: RF121218C06A-1 1 of 55 Report Format Version 5.0.0 Reference No.: 121222C19 FCC TEST REPORT (PART 24) REPORT NO.: RF121218C06A-1 MODEL NO.: PN07100 FCC ID: NM8PN07100 RECEIVED: Dec. 22, 2012 TESTED: Jan. 04, 2013 ~ Jan. 19, 2013 ISSUED: Jan. 30, 2013 APPLICANT: HTC Corporation ADDRESS: 23, Xinghua Rd., Taoyuan 330, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF121218C06A-1 2 of 55 Report Format Version 5.0.0 Reference No.: 121222C19 TABLE OF CONTENTS RELEASE CONTROL RECORD .............................................................................................. 4 1 CERTIFICATION ........................................................................................................ 5 2 SUMMARY OF TEST RESULTS ................................................................................. 6 2.1 MEASUREMENT UNCERTAINTY .............................................................................. 6 2.2 TEST SITE AND INSTRUMENTS ............................................................................... 7 3 GENERAL INFORMATION ......................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ........................................................................... 8 3.2 CONFIGURATION OF SYSTEM UNDER TEST ......................................................... 9 3.3 DESCRIPTION OF SUPPORT UNITS ........................................................................ 9 3.4 TEST ITEM AND TEST CONFIGURATION .............................................................. 10 3.5 EUT OPERATING CONDITIONS .............................................................................. 11 3.6 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................... 11 4 TEST TYPES AND RESULTS................................................................................... 12 4.1 OUTPUT POWER MEASUREMENT ........................................................................ 12 4.1.1 LIMITS OF OUTPUT POWER MEASUREMENT ...................................................... 12 4.1.2 TEST PROCEDURES .............................................................................................. 12 4.1.3 TEST SETUP ........................................................................................................... 13 4.1.4 TEST RESULTS ....................................................................................................... 14 4.2 FREQUENCY STABILITY MEASUREMENT ............................................................ 23 4.2.1 LIMITS OF FREQUENCY STABILIITY MEASUREMENT ......................................... 23 4.2.2 TEST PROCEDURE ................................................................................................. 23 4.2.3 TEST SETUP ........................................................................................................... 23 4.2.4 TEST RESULTS ....................................................................................................... 24 4.3 OCCUPIED BANDWIDTH MEASUREMENT ............................................................ 26 4.3.1 TEST PROCEDURES .............................................................................................. 26 4.3.2 TEST SETUP ........................................................................................................... 26 4.3.3 TEST RESULTS ....................................................................................................... 27 4.4 PEAK TO AVERAGE RATIO ..................................................................................... 29 4.4.1 LIMITS OF PEAK TO AVERAGE RATIO MEASUREMENT ...................................... 29 4.4.2 TEST SETUP ........................................................................................................... 29 4.4.3 TEST PROCEDURES .............................................................................................. 29 4.4.4 TEST RESULTS ....................................................................................................... 30 4.5 BAND EDGE MEASUREMENT ................................................................................ 32 4.5.1 LIMITS OF BAND EDGE MEASUREMENT .............................................................. 32 4.5.2 TEST SETUP ..........…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Jan. 31, 2013 Report No. : SA121218C06A Revision : R01 Appendix D. Photographs of EUT and Setup FCC SAR Test Report Report Format Version 5.0.0 Report No. : SA121218C06A Reference : 121222C19 Revision : R01 <Photographs of EUT> <Photographs of SAR Setup> Right Cheek Right Tilted Left Cheek Left Tilted FCC SAR Test Report Report Format Version 5.0.0 Report No. : SA121218C06A Reference : 121222C19 Revision : R01 Front Face of EUT with 1.0 cm Gap Rear Face of EUT with 1.0 cm Gap Left Side of EUT with 1.0 cm Gap Right Side of EUT with 1.0 cm Gap Top Side of EUT with 1.0 cm Gap Bottom Side of EUT with 1.0 cm Gap

1 PHOTOGRAPHS OF …

Text truncated - open the document above for the full version.
