NM8PN07310Smartphone

Safety and regulatory guide 1 BC Product Safety & Warranty Information ® 2 Safety and regulatory guide Please read before proceeding THE BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE THE DEVICE OUT OF THE BOX. YOUR WARRANTY IS INVALIDATED IF YOU DISASSEMBLE OR ATTEMPT TO DISASSEMBLE THE DEVICE. Privacy restrictions Some countries require full disclosure of recorded telephone conversations. Important health information and safety precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. Electrical safety This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. Safety precautions for proper grounding installation CAUTION: Connecting to improperly grounded equipment can result in an electric shock to your device. This product is equipped with a USB Cable for connecting with desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the Safety and regulatory guide 3 computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet which is properly installed and grounded in accordance with all local codes and ordinances. Safety precautions for power supply unit  Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product. This product should be operated only with the following designated power supply unit(s). AC adapter: HTC, TC U250  Handle battery packs carefully This product contains a Lithium-ion polymer or Lithium-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. Do not attempt to open or service the battery pack. Do not disassemble, crush, puncture, short external contacts or circuits, dispose of in fire or water, or expose a battery pack to temperatures higher than 60 ̊C (140 ̊F). WARNING: To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts, expose to temperature above 60° C (140° F), or dispose of in fire or water. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product. 4 Safety and regulatory guide  Take extra precautions Ÿ Keep the device dry and away from water or any liquid as it may cause a short circuit. Ÿ The phone should only be connected to products that bear the USB-IF logo or have completed the USB-IF compliance program. Ÿ Only use the battery with a charging system that has been qualified with the system per this standard, IEEE-Std-1725. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage or other hazard. Ÿ Avoid dropping the phone. If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service centre for inspection. Ÿ If the battery leaks: • Do not allow the leaking fluid to come in contact with skin or clothing. If already in contact, flush the affected area immediately with clean water and seek medical advice. • Do not allow the leaking fluid to come in contact with eyes. If already in contact, DO NOT rub; rinse with clean water immediately and seek medical advice. • Take extra precautions to keep a leaking battery away from fire as there is a danger of ignition or explosion. Safety precautions for direct sunlight Keep this product away from excessive moisture and extreme temperatures. Do not leave the product inside a vehicle or in places where the temperature may exceed 60°C (140°F), such as on a car dashboard, window sill, or behind a glass that is exposed to direct sunlight or strong ultraviolet light for extended periods of time. This Safety and regulatory guide 5 may damage the product, overheat the battery, or pose a risk to the vehicle. Prevention of hearing loss CAUTION: Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time. Safety in aircraft Due to the possible interference caused by this product to an aircraft’s navigation system and its communications network, using this device’s phone function on board an airplane is against the law in most countries. If you want to use this device when on board an aircraft, remember to turn off your phone by switching to Airplane Mode. Environment restrictions Do not use this product in gas stations, fuel depots, chemical plants or where blasting operations are in progress, or in potentially explosive atmospheres such as fuelling areas, fuel storehouses, below deck on boats, chemical plants, fuel or chemical transfer or storage facilities, and areas where the air contains chemicals or particles, such as grain, dust, or metal powders. Please be aware that sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Explosive atmospheres When in any area with a potentially explosive atmosphere or where flammable materials exist, the product should be turned off and the user should obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Users are advised not to use the equipment at refueling points such as service or gas stations, and are reminded of the need to observe re…

Text truncated - open the document above for the full version.

Unboxing HTC One 1.BACK 2.USB connector 3.HOME 4.Dual speakers 5.VOLUME 6.Front camera 7.3.5mm headset jack 8.POWER 9.Proximity sensor 10.Notification LED 11.Tray eject hole/SIM card tray If you want to use a screen protector, please don’t cover and block the proximity sensor. You can purchase the dedicated screen protector for HTC One that already has a small opening for the sensor. 8Unboxing HTC Confidential 20130606 For Certification microSIM card HTC One uses a microSIM card. The microSIM card contains your phone number, service details, and memory for storing phonebook contacts and/or text messages. The microSIM card may be preinstalled on HTC One. When you need to remove or replace the microSIM card, refer to the following instructions. Inserting the SIM card Use a standard microSIM only. Inserting other types (such as nanoSIM with an adapter or a modified SIM) may cause the card to not fit properly or damage the card slot. 1.Hold the phone face up. 2.Insert the tip of the SIM eject tool (or a small bent paperclip) into the small hole next to the SIM card tray slot. 3.Push the tip all the way into the hole until the SIM card tray ejects. 4.Pull the SIM card tray out, and place the SIM card (contacts facing down) into the tray. 5.Insert the SIM card tray back into the slot. 9Unboxing HTC Confidential 20130606 For Certification Removing the SIM card Make sure to switch off HTC One before removing your SIM card. 1.Hold the phone face up and the top panel facing you. 2.Insert the tip of the SIM eject tool (or a small bent paperclip) into the small hole next to the SIM card tray slot. 3.Push the tip all the way into the hole until the SIM card tray ejects. 4.Pull the SIM card tray out, and remove the SIM card. After removing the SIM card, make sure that you insert the empty SIM card tray back into the slot. 10Unboxing HTC Confidential 20130606 For Certification Charging the battery Before you turn on and start using HTC One, it is recommended that you charge the battery. Use only the adapter and the USB cable that came with HTC One to charge the battery. 1.Insert the small end of the USB cable into the USB connector. 2.Insert the other end of the USB cable into the power adapter. 3.Plug in the power adapter to an electrical outlet to start charging the battery. As a safety precaution, the battery stops charging if it overheats. Switching the power on or off Switching the power on Press the POWER button. When you turn on HTC One for the first time, you’ll need to set it up. Switching the power off 1.If the display is off, press the POWER button to turn it back on. If your screen is protected with a lock screen, you need to unlock it. 2.Press and hold the POWER button for a few seconds. 3.Tap Power off on the options menu. 11Unboxing HTC Confidential 20130606 For Certification Setting up your phone Setting up your new phone for the first time When you switch on your new phone for the first time, you’ll be asked to set it up. You can enable TalkBack to navigate by spoken feedback before selecting the language. Draw a square in the clockwise direction on the screen and then tap OK. To find out more, see Navigating HTC One with TalkBack on page 167. Walk through the on-device setup to choose your Internet connection, select how you want to set up your new phone, and more. §Select Set up from scratch to set up your accounts and personalize your new phone from your computer using the HTC Get Started service. Your phone shows you the URL of the HTC Get Started site and a pair code. On your computer's web browser, just go to the URL and enter the pair code to start your web setup. You need an HTC Account to save your accounts and settings on the Web and download them to your phone. §If you already finished the HTC Get Started setup before turning on your new phone, just download your web setup. Choose to import content, and then select Apply HTC Get Started setup. §If you have content from an old phone, you can choose to do a direct phone-to- phone transfer. §To make it easier for you to back up and restore content from HTC One to another HTC phone in the future, select Back up phone daily. §To find out more about HTC Get Started and HTC Account, see the Help and FAQ on the HTC Get Started site (www.htcsense.com/help/). §If you transferred content such as wallpaper and ringtone from an old phone, using HTC Get Started to personalize and download the same content types from the Web will change your settings on your new phone. §Some features that need to connect to the Internet such as location-based services and auto-sync of your online accounts may incur extra data fees. To avoid incurring data fees, disable these features under Settings. 12Setting up your phone HTC Confidential 20130606 For Certification Transferring content from an Android phone On your old Android ™ phone, download the HTC Transfer Tool and use it to transfer your content to your new HTC phone. The types of locally stored content on your old phone that the tool can transfer include contacts, messages, calendar events, web bookmarks, music, photos, and videos. Some settings can also be transferred. §You need Android version 2.3 or later to use the HTC Transfer Tool on your old phone. §If your old phone has Android version 2.2 or an earlier version, you need to use Bluetooth ® transfer. For details, see Transferring contacts from your old phone through Bluetooth on page 14. 1.Do one of the following: §If you're setting up your new HTC phone for the first time, choose to transfer content, and then select Transfer from old phone on the Set up phone screen. §Go to Settings, and then tap Transfer content. 2.Choose whether to transfer from an old HTC phone or other Android phone. 3.Tap Full transfer. 4.Follow the steps shown on your new phone to download the HTC Transfer Tool from Google Play ™ to your old phone, install it, and open the tool. 5.When you see a PIN on your old phone, make sure the same PIN also appears on your new ph…

Text truncated - open the document above for the full version.

宏達國際電子股份有限公司 宏達國際電子股份有限公司宏達國際電子股份有限公司 宏達國際電子股份有限公司 1F, 6-3 Baoqiang Road, HTC Corporation Xindian District, New Taipei City, Taiwan 231 Date: June 19, 2013 Federal Communications Commission 7345 Oakland Mills Road Columbia MD21046 Subject: Request for Confidentiality FCC ID: NM8PN07310 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely.
Schematic Diagram
Block Diagram
Parts List
Tune-up Procedure
Operational Description Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days after the Grant Date of Equipment Authorizations.  External Photos  Internal Photos  Test Setup Photos  Users Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards,

宏達國際電子股份有限公司 宏達國際電子股份有限公司宏達國際電子股份有限公司 宏達國際電子股份有限公司 1F, 6-3 Baoqiang Road, HTC Corporation Xindian District, New Taipei City, Taiwan 231 Date: June 19, 2013 Power of Attorney To whom it may concern, Please be notified that I, Lucy Shih, have designated Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan and Joe Liu in HTC Corporation as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan and Joe Liu in HTC Corporation on the matters relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. As defined in 47 CFR Ch. 1.2002 (b), we further certify that neither the applicant nor any party to this application is subject to a denial to Federal benefits, including FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: NM8PN07310 If you have any acknowledgement and response, please send it to Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan directly. Should you have any question or comment regarding this matter, please have my best attention. Sincerely yours,

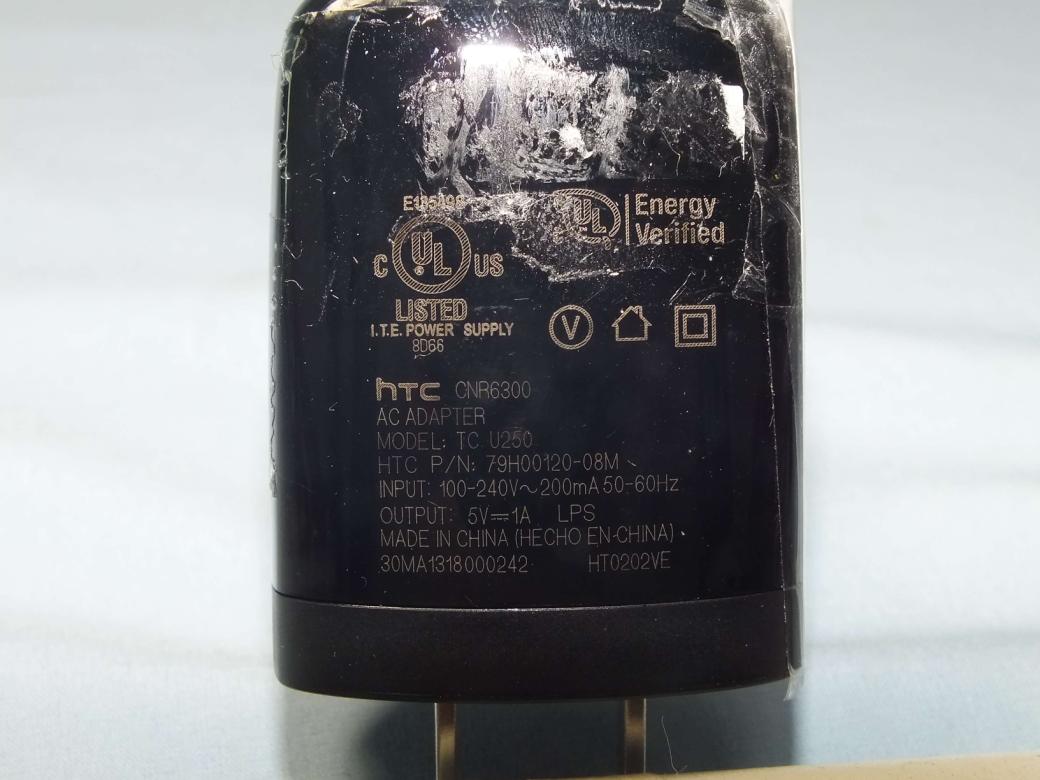

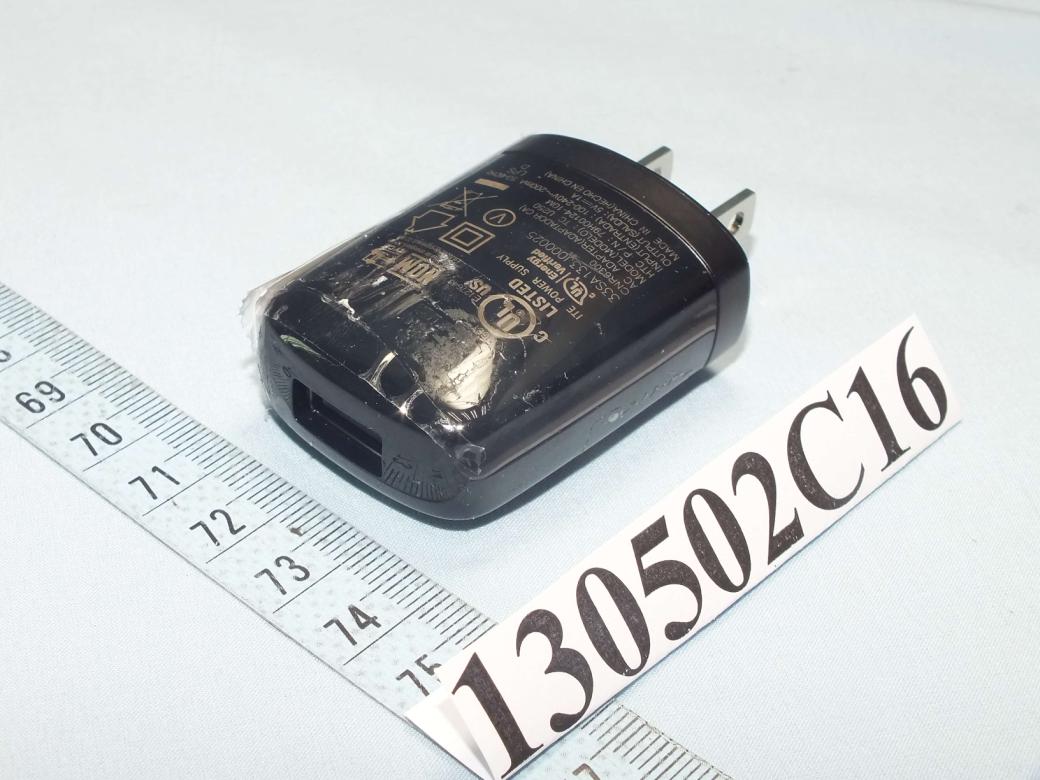

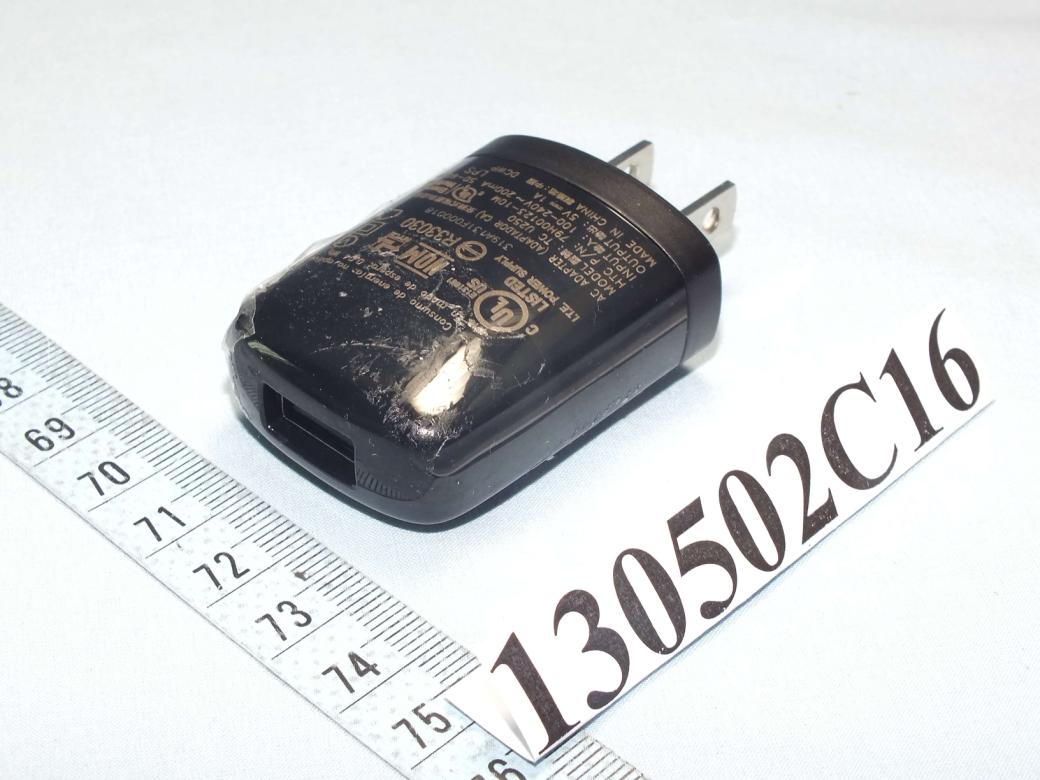

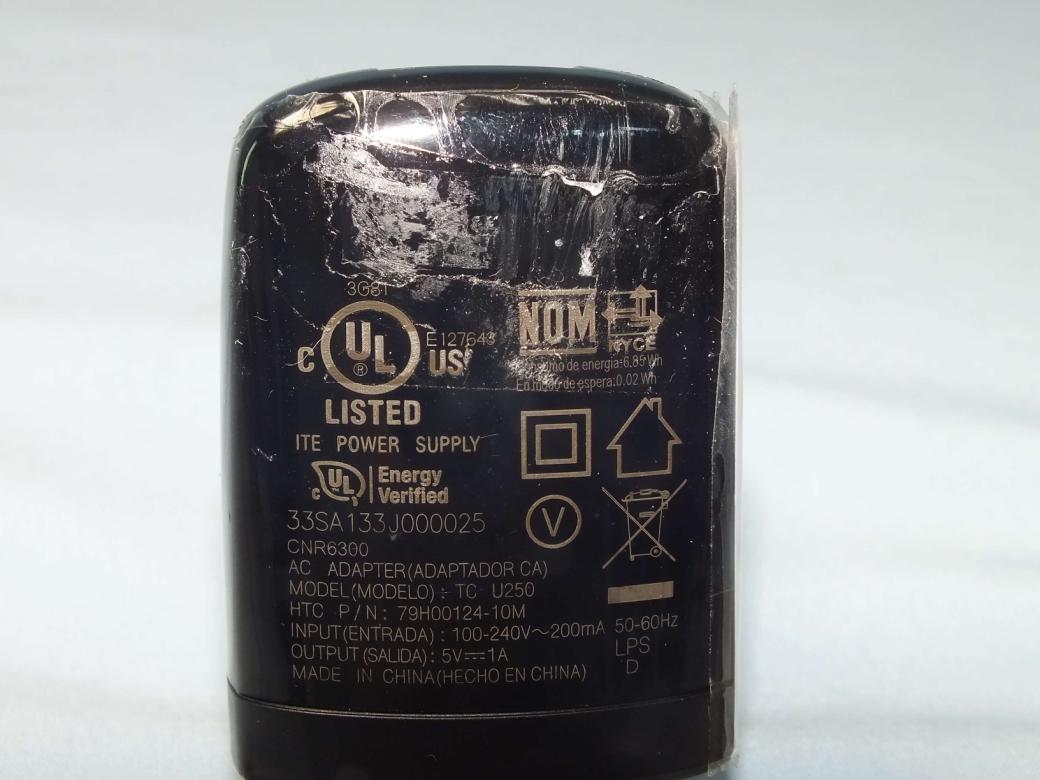

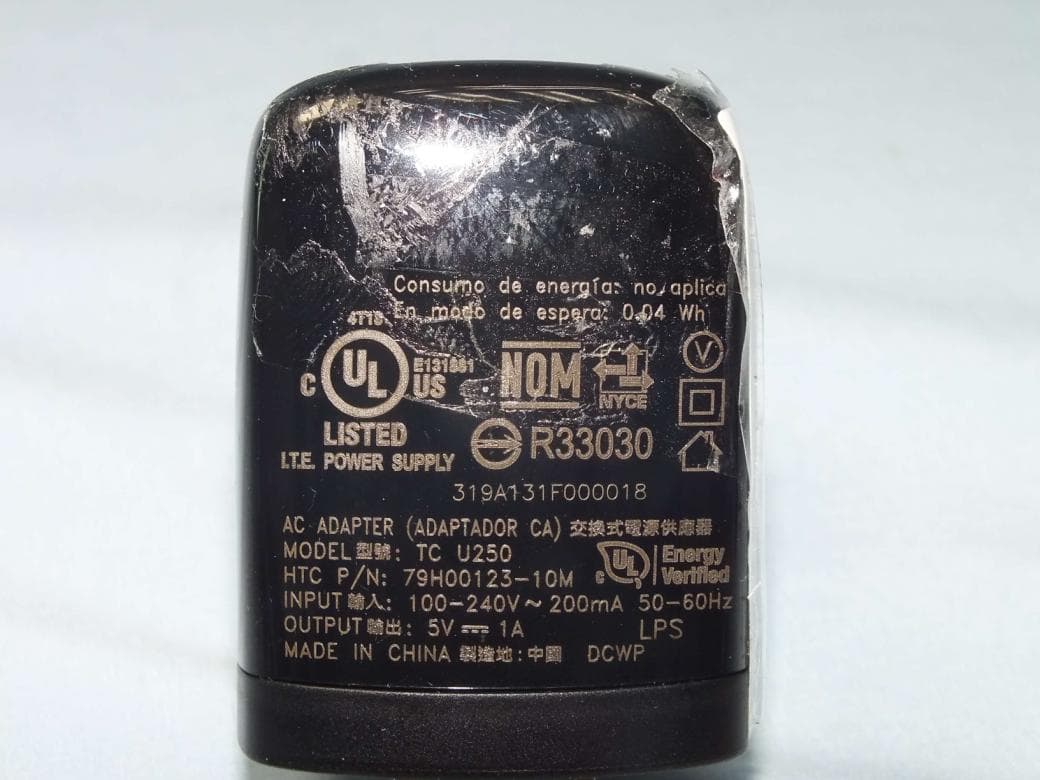

Page 1 CONSTRUCTION PHOTOS OF EUT The EUT has following accessories. Product Brand MODEL Description Power Adapter 1 Phihong TC U250 I/P: 100-240Vac, 200mA O/P: 5Vdc, 1A Power Adapter 2 Salcamp TC U250 I/P: 100-240Vac, 200mA O/P: 5Vdc, 1A Power Adapter 3 Delta TC U250 I/P: 100-240Vac, 200mA O/P: 5Vdc, 1A Battery WTE BN07100 Rating: 3.8Vdc, 2300mAh Type: Li-ion Earphone 1 Merry Max-300 1.1m non-shielded cable without core Earphone 2 Cotron Max-300 1.1m non-shielded cable without core USB Cable 1 Foxlink DC M430 1m non-shielded cable without core USB Cable 2 Foxconn DC M430 1m non-shielded cable without core Page 2 Page 13 Page 14 Page 15 Page 16 Page 17

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Jun. 05, 2013 Report No. : SA130502C16 Revision : R01 Appendix A. SAR Plots of System Verification The plots for system verification with largest deviation for each SAR system combination are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2013/05/25 System Check_H750_130525 DUT: Dipole 750 MHz; Type: D750V3; SN: 1078 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: H750_0525 Medium param eters used: f = 750 MHz; σ = 0.892 S/m; ε r = 41.078; ρ = 1000 kg/m 3 Ambient Temperature：21.5 °C; Liquid Temperature：20.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(9.09, 9.09, 9.09); Calibrated: 2012/06/22; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn861; Calibrated: 2013/03/19 - Phantom: SAM Phantom_Right; Type: QD000P40CC; Serial: TP:1496 - Measurement SW: DASY52, Version 52.8 (4); SEMCAD X Version 14.6.8 (7028) Pin=250mW/Area Scan (61x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.67 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 55.250 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 3.26 W/kg SAR(1 g) = 2.17 W/kg; SAR(10 g) = 1.45 W/kg Maximum value of SAR (measured) = 2.75 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2013/05/22 System Check_H835_130522 DUT: Dipole 835 MHz; Type: D835V2; SN: 4d120 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:2 Medium: H835_0522 Medium parameters used: f = 835 MHz; σ = 0.886 S/m; ε r = 42.271; ρ = 1000 kg/m 3 Ambient Temperature：21.6 °C; Liquid Temperature：20.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(9.8, 9.8, 9.8); Calibrated: 2012/07/19; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2013/04/24 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1127 - Measurement SW: DASY52, Version 52.8 (4); SEMCAD X Version 14.6.8 (7028) Pin=250mW/Area Scan (61x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.02 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 59.330 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 3.68 W/kg SAR(1 g) = 2.41 W/kg; SAR(10 g) = 1.58 W/kg Maximum value of SAR (measured) = 3.08 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2013/05/23 System Check_H1900_130523 DUT: Dipole 1900 MHz; Type: D1900V2; SN: 5d036 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: H1900_0523 Medium parameters used: f = 1900 MHz; σ = 1.43 S/m; ε r = 40.37; ρ = 1000 kg/m 3 Ambient Temperature：21.7 °C; Liquid Temperature：20.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(7.42, 7.42, 7.42); Calibrated: 2012/06/22; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn861; Calibrated: 2013/03/19 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1654 - Measurement SW: DASY52, Version 52.8 (4); SEMCAD X Version 14.6.8 (7028) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 14.1 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 98.721 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 16.8 W/kg SAR(1 g) = 9.49 W/kg; SAR(10 g) = 5 W/kg Maximum value of SAR (measured) = 13.2 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2013/05/24 System Check_H1900_130524 DUT: Dipole 1900 MHz; Type: D1900V2; SN: 5d036 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: H1900_0524 Medium parameters used: f = 1900 MHz; σ = 1.398 S/m; ε r = 39.078; ρ = 1000 kg/m 3 Ambient Temperature：21.2 °C; Liquid Temperature：20.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(7.42, 7.42, 7.42); Calibrated: 2012/06/22; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn861; Calibrated: 2013/03/19 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1654 - Measurement SW: DASY52, Version 52.8 (4); SEMCAD X Version 14.6.8 (7028) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 14.4 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 102.6 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 17.6 W/kg SAR(1 g) = 9.67 W/kg; SAR(10 g) = 5.01 W/kg Maximum value of SAR (measured) = 13.9 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2013/05/26 System Check_H2450_130526 DUT: Dipole 2450 MHz; Type: D2450V2; SN: 737 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: H2450_0526 Medium parameters used: f = 2450 MHz; σ = 1.815 S/m; ε r = 39.084; ρ = 1000 kg/m 3 Ambient Temperature：21.7 °C; Liquid Temperature：20.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3590; ConvF(7.88, 7.88, 7.88); Calibrated: 2013/02/20; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn360; Calibrated: 2013/01/30 - Phantom: SAM Phantom_Left; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY52, Version 52.8 (4); SEMCAD X Version 14.6.8 (7028) Pin=250mW/Area Scan (81x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 19.6 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 105.5 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 27.1 W/kg SAR(1 g) = 12.5 W/kg; SAR(10 g) = 5.66 W/kg Maximum value of SAR (measured) = 19.6 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2013/05/24 System Check_H5200_130524 DUT: Dipole 5 GHz; Type: D5GHzV2; SN: 1019 Communication System: CW; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium: H5G_0524 Medium parameters used: f = 5200 MHz; σ = 4.8 S/m; ε r = 35.629; ρ = 1000 kg/m 3 Ambient Temperature：21.1 °C; Liquid Temperature：20.5 °C D…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Jun. 05, 2013 Report No. : SA130502C16 Revision : R01 Appendix B. SAR Plots of SAR Measurement The SAR plots for highest measured SAR in each exposure configuration, wireless mode and frequency band combination, and measured SAR > 1.5 W/kg are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2013/05/22 P01 GSM850_GPRS12_Right Cheek_Ch251_ANT-1 DUT: 130502C16 Communication System: GPRS12; Frequency: 848.8 MHz;Duty Cycle: 1:2 Medium: H835_0522 Medium parameters used: f = 849 MHz; σ = 0.898 S/m; ε r = 42.111; ρ = 1000 kg/m 3 Ambient Temperature：21.6 °C; Liquid Temperature：20.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(9.8, 9.8, 9.8); Calibrated: 2012/07/19; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2013/04/24 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1127 - Measurement SW: DASY52, Version 52.8 (4); SEMCAD X Version 14.6.8 (7028) Ch251/Area Scan (61x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.53 W/kg Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 29.380 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 2.44 W/kg SAR(1 g) = 1.22 W/kg; SAR(10 g) = 0.715 W/kg Maximum value of SAR (measured) = 1.71 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2013/05/23 P02 GSM1900_GPRS12_Left Cheek_ Ch512_ANT-0 DUT: 130502C16 Communication System: GPRS12; Frequency: 1850.2 MHz;Duty Cycle: 1:2 Medium: H1900_0523 Medium parameters used: f = 1850.2 MHz; σ = 1.367 S/m; ε r = 40.644; ρ = 1000 kg/m 3 Ambient Temperature：21.7 °C; Liquid Temperature：20.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(7.42, 7.42, 7.42); Calibrated: 2012/06/22; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn861; Calibrated: 2013/03/19 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1654 - Measurement SW: DASY52, Version 52.8 (4); SEMCAD X Version 14.6.8 (7028) Ch512/Area Scan (71x131x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.686 W/kg Ch512/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.494 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 0.788 W/kg SAR(1 g) = 0.531 W/kg; SAR(10 g) = 0.336 W/kg Maximum value of SAR (measured) = 0.672 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2013/05/22 P03 CDMA2000_BC0_RC3+SO55_Left Cheek_ Ch777_ANT-1 DUT: 130502C16 Communication System: CDMA2000; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium: H835_0522 Medium parameters used: f = 848.31 MHz; σ = 0.898 S/m; ε r = 42.119; ρ = 1000 kg/m 3 Ambient Temperature：21.6 °C; Liquid Temperature：20.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(9.8, 9.8, 9.8); Calibrated: 2012/07/19; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2013/04/24 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1127 - Measurement SW: DASY52, Version 52.8 (4); SEMCAD X Version 14.6.8 (7028) Ch777/Area Scan (51x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.397 W/kg Ch777/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.434 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 0.430 W/kg SAR(1 g) = 0.347 W/kg; SAR(10 g) = 0.264 W/kg Maximum value of SAR (measured) = 0.389 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2013/05/24 P04 CDMA2000 BC1_RC3+SO55_Rig ht Cheek_Ch1175_ANT-1 DUT: 130502C16 Communication System: CDMA2000; Frequency: 1908.75 MHz;Duty Cycle: 1:1 Medium: H1900_0524 Medium parameters used: f = 1908.8 MHz; σ = 1.408 S/m; ε r = 39.05; ρ = 1000 kg/m 3 Ambient Temperature：21.2 °C; Liquid Temperature：20.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(7.42, 7.42, 7.42); Calibrated: 2012/06/22; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn861; Calibrated: 2013/03/19 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1654 - Measurement SW: DASY52, Version 52.8 (4); SEMCAD X Version 14.6.8 (7028) Ch1175/Area Scan (61x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.33 W/kg Ch1175/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.595 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 1.56 W/kg SAR(1 g) = 0.837 W/kg; SAR(10 g) = 0.434 W/kg Maximum value of SAR (measured) = 1.18 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2013/05/25 P05 LTE13_QPSK_10M_Right Cheek_Ch23230_1 RB_OS24_ANT-1 DUT: 130502C16 Communication System: LTE 13; Frequency: 782 MHz;Duty Cycle: 1:1 Medium: H750_0525 Medium parameters used: f = 782 MHz; σ = 0.905 S/m; ε r = 41.078; ρ = 1000 kg/m 3 Ambient Temperature：21.5 °C; Liquid Temperature：20.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(9.09, 9.09, 9.09); Calibrated: 2012/06/22; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn861; Calibrated: 2013/03/19 - Phantom: SAM Phantom_Right; Type: QD000P40CC; Serial: TP:1496 - Measurement SW: DASY52, Version 52.8 (4); SEMCAD X Version 14.6.8 (7028) Ch23230/Area Scan (61x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.571 W/kg Ch23230/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.766 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.910 W/kg SAR(1 g) = 0.414 W/kg; SAR(10 g) = 0.231 W/kg Maximum value of SAR (measured) = 0.610 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2013/05/26 P06 802.11b_Left Cheek_Ch11 DUT: 130502C16 Communication System: WLAN_2.4G; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: H2450_0526 Medium parameters used: f = 2462 MHz; σ = 1.83 S/m; ε r = 39.047; ρ = 1000 kg/m 3 Ambient Temperature：21.7 °C; Liq…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Jun. 05, 2013 Report No. : SA130502C16 Revision : R01 Appendix C. Calibration Certificate for Probe and Dipole The SPEAG calibration certificates are shown as follows.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Jun. 05, 2013 Report No. : SA130502C16 Revision : R01 Appendix D. Photographs of EUT and Setup

FCC SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 47 Report No. : SA130502C16 Issued Date : Jun. 05, 2013 Revision : R01 FCC SAR Test Report Report No. : SA130502C16 Applicant : HTC Corporation Address : No. 23, Xinghua Rd., Taoyuan City, Taiwan Product : Smart Phone FCC ID : NM8PN07310 Brand : HTC Model No. : PN07310 Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1991 / IEEE 1528:2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) KDB 248227 D01 v01r02 / KDB 447498 D01 v05 / KDB 648474 D04 v01 KDB 941225 D01 v02 / KDB 941225 D03 v01 / KDB 941225 D05 v02r01 KDB 941225 D06 v01 Date of Testing : May 22, 2013 ~ May 28, 2013 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch - Taiwan HwaYa Lab, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Ivonne Wu / Senior Specialist Approved By : Roy Wu / Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only…

Text truncated - open the document above for the full version.
