NM8TANAGERTriband GSM/GPRS Smart Phone

From: Helen Zhao Sent: Tuesday, December 10, 2002 3:14 PM To: Mike Kuo Cc: Steve Cheng; CLIENT ADVOCATES Subject: RE: High Tech Computer, Corp. FCC ID:NM8TANAGER, AN02T2452 Hello Mike, Re your questions, the answers are as below: 1) Please find attached plot of 99% Bandwidth. 2) Please find the revised SAR Report 3) Please find the updated FCC ID Label. Thank you for your review. Helen -----Original Message----- From: Mike Kuo Sent: Tuesday, December 10, 2002 2:03 PM To: CLIENT ADVOCATES Cc: Steve Cheng Subject: FW: High Tech Computer, Corp. FCC ID:NM8TANAGER, AN02T2452 -----Original Message----- From: CERTADM Sent: Tuesday, December 10, 2002 2:02 PM To: '[email protected]' Subject: High Tech Computer, Corp. FCC ID:NM8TANAGER, AN02T2452 Notice_content ------------- Question #1: Emission designator listed on the TCB application form is 240KGXW. Please justify necessary bandwidth by providing supporting data for 240K. Question #2: The FCC ID label listed on the SAR report is different than the one listed on the TCB application form. Please make necessary correction. Question #3: Please indicate the FCC ID label location on the device. The proposed FCC ID label location does not indicate the location. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

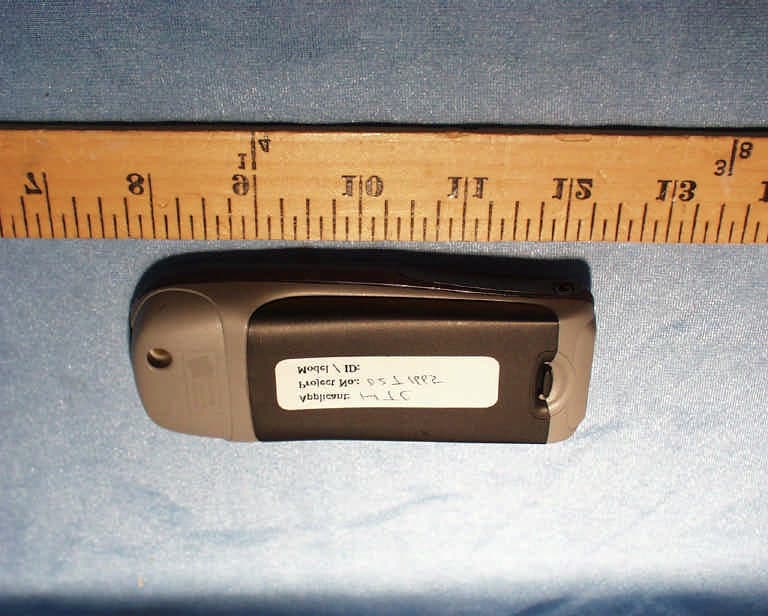

PROPOSED FCC ID LABEL AND LOCATION FCC ID Label High Tech Computer Corp. This device complies with Part 24 of the FCC Rules. FCC ID: NM8TANAGER

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for TRI-BAND SMARTPHONE MODEL: PC20B FCC ID: NM8TANAGER November 23, 2002 REPORT NO: 02T1665-2 Prepared for High Tech Computer Corp 1F, 6-3, Bau-Chian Road Hsin Tien, Taipei Taiwan, R. O. C. Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 REPORT NO: 02T1665-2 DATE: November 23, 2002 FCC ID: NM8TANAGER COMPLIANCE CERTIFICATION SERVICES Page: 2 of 25 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) DATES OF TEST: November 22-23, 2002 REPORT NO: 02T1665-2 APPLICANT: High Tech Computer Corp 1 F, 6-3, Bau-Chian Road Hsin Tien, Taipei, Taiwan, R.O.C. MODEL: PC20B FCC ID: NM8TANAGER DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: GSM+GPRS Operating Mode: Maximum continuous output Tx Frequency: 1850.2 ~ 1909.8 MHz Max. Conducted O/P Power: 29.9 dBm (1909.8 MHz) Max. SAR (1g): 0.372 W/Kg (at 1909.8 MHz; Right head, Touched position) 0.489 W/Kg (at 1909.8 MHz; Body-worn position) Application Type: Certification FCC Rule Part(s): 24 (E) Note: This device contains 900MHz and 1800GSM functions not operational in US territories. This report is only applicable for 1900MHz PCS band. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Steve Cheng EMC Engineering Manager REPORT NO: 02T1665-2 DATE: November 23, 2002 FCC ID: NM8TANAGER COMPLIANCE CERTIFICATION SERVICES Page: 3 of 25 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. EUT DESCRIPTION................................................................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC........................5 3. DOSIMETRIC ASSESSMENT SETUP...................................................................................5 3.1. MEASUREMENT SYSTEM DIAGRAM....................................................................................................................6 3.2. SYSTEM COMPONENTS...........................................................................................................................................7 4. EVALUATION PROCEDURE.................................................................................................9 5. MEASUREMENT UNCERTAINTY.......................................................................................12 6. EXPOSURE LIMIT................................................................................................................13 7. EUT ARRANGEMENT..........................................................................................................14 8. MEASUREMENT RESULTS................................................................................................15 8.1. SYSTEM VALIDATION..............................................................................................................................................15 8.2. TEST LIQUID CONFIRMATION..............................................................................................................................16 8.3. EUT TUNE-UP PROCEDURE.................................................................................................................................17 8.4. EUT SETUP PHOTOS..............................................................................................................................................18 8.5. SAR MEASUREMENT RESULTS...........................................................................................................................21 9. EUT PHOTOS........................................................................................................................22 10. EQUIPMENTS LIST & CALIBRATION INFORMATION.....................................................23 11. REFERENCES......................................................................................................................24 12. ATTACHMANTS...................................................................................................................25 REPORT NO: 02T1665-2 DATE: November 23, 2002 FCC ID: NM8TANAGER COMPLIANCE CERTIFICATION SERVICES Page: 4 of 25 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. EUT DESCRIPTION APPLICANT: High Tech Computer Corp 1 F, 6-3, Bau-Chian Road Hsin Tien, Taipei, Taiwan, R.O.C. MODEL: PC20B FCC ID: NM8TANAGER DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: GSM+GPRS Operating Mode: Maximum continuous output Tx Frequency: 1850.2 ~ 1909.8 MHz Max. Conducted O/P Power: 2…

Text truncated - open the document above for the full version.

System Validation - D1800V2 S/N: 294 (Antenna input power: 250 mW) SAM-2; Flat Probe: ET3DV6 - SN1578; ConvF(5.50,5.50,5.50); Crest factor: 1.0 Head 1800 MHz: σ = 1.42 mho/m ε r = 39.4 ρ = 1.00 g/cm 3 Cube 5x5x7: Peak: 17.3 mW/g, SAR (1g): 9.45 mW/g, SAR (10g): 4.98 mW/g, (Worst-case extrapolation) Penetration depth: 8.4 (8.0, 9.2) [mm] Powerdrift: -0.02 dB Ambient Temperature (degree C): 22.0 Liquid Temperature (degree C): 20.5 SAR Tot [mW/g] 1.03E+0 3.08E+0 5.14E+0 7.20E+0 9.25E+0 11/22/02 COMPLIANCE CERTIFICATION SERVICES System Validation - D1800V2 S/N: 294 (Antenna input power: 250 mW) SAM-2; Probe: ET3DV6 - SN1578; ConvF(5.50,5.50,5.50); Crest factor: 1.0 Head 1800 MHz: σ = 1.42 mho/m ε r = 39.4 ρ = 1.00 g/cm 3 : , , () Penetration depth: 8.3 (7.9, 9.2) [mm] Ambient Temperature (degree C): 22.0 Liquid Temperature (degree C): 20.5 11/22/02 COMPLIANCE CERTIFICATION SERVICES 0 2 4 6 8 10 12 14 16 18 0102030405060708090 SAR tot [mW/g] [mm]

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for TRI-BAND SMARTPHONE MODEL: PC20B FCC ID: NM8CANARY November 23, 2002 REPORT NO: 02T1665-2 Prepared for High Tech Computer Corp 1F, 6-3, Bau-Chian Road Hsin Tien, Taipei Taiwan, R. O. C. Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 REPORT NO: 02T1665-2 DATE: November 23, 2002 FCC ID: NM8CANARY COMPLIANCE CERTIFICATION SERVICES Page: 2 of 25 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) DATES OF TEST: November 22-23, 2002 REPORT NO: 02T1665-2 APPLICANT: High Tech Computer Corp 1 F, 6-3, Bau-Chian Road Hsin Tien, Taipei, Taiwan, R.O.C. MODEL: PC20B FCC ID: NM8CANARY DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: GSM+GPRS Operating Mode: Maximum continuous output Tx Frequency: 1850.2 ~ 1909.8 MHz Max. Conducted O/P Power: 29.9 dBm (1909.8 MHz) Max. SAR (1g): 0.402 W/Kg (at 1909.8 MHz; Right head, Touched position) 0.528 W/Kg (at 1909.8 MHz; Body-worn position) Application Type: Certification FCC Rule Part(s): 24 (E) Note: This device contains 900MHz and 1800GSM functions not operational in US territories. This report is only applicable for 1900MHz PCS band. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Steve Cheng EMC Engineering Manager REPORT NO: 02T1665-2 DATE: November 23, 2002 FCC ID: NM8CANARY COMPLIANCE CERTIFICATION SERVICES Page: 3 of 25 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. EUT DESCRIPTION .................................................................................................... 4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC ...................... 5 3. DOSIMETRIC ASSESSMENT SETUP .......................................................................... 5 3.1. MEASUREMENT SYSTEM DIAGRAM ........................................................................................................6 3.2. SYSTEM COMPONENTS ............................................................................................................................7 4. EVALUATION PROCEDURE ...................................................................................... 9 5. MEASUREMENT UNCERTAINTY .............................................................................. 12 6. EXPOSURE LIMIT .................................................................................................... 13 7. EUT ARRANGEMENT .............................................................................................. 14 8. MEASUREMENT RESULTS ...................................................................................... 15 8.1. SYSTEM VALIDATION ..............................................................................................................................15 8.2. TEST LIQUID CONFIRMATION.................................................................................................................16 8.3. EUT TUNE-UP PROCEDURE....................................................................................................................17 8.4. EUT SETUP PHOTOS ...............................................................................................................................18 8.5. SAR MEASUREMENT RESULTS..............................................................................................................21 9. EUT PHOTOS .......................................................................................................... 22 10. EQUIPMENTS LIST & CALIBRATION INFORMATION ............................................... 23 11. REFERENCES ......................................................................................................... 24 12. ATTACHMANTS ...................................................................................................... 25 REPORT NO: 02T1665-2 DATE: November 23, 2002 FCC ID: NM8CANARY COMPLIANCE CERTIFICATION SERVICES Page: 4 of 25 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. EUT DESCRIPTION APPLICANT: High Tech Computer Corp 1 F, 6-3, Bau-Chian Road Hsin Tien, Taipei, Taiwan, R.O.C. MODEL: PC20B FCC ID: NM8CANARY DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: GSM+GPRS Operating Mode: Maximum continuous output Tx Frequency: 1850.2 ~ 1909.8 MHz Max. Conducted O/P Power: 29.9 dBm (1909.8 MHz) Max. SAR (1g): 0.402 W/Kg (at 1909.8 MHz; Right head, Touched position) 0.528 W/Kg (at 1909.8 MHz; Body-worn position) Application Type: Certification FCC Rule Part(s): 24 (E) A…

Text truncated - open the document above for the full version.

1. MEASUREMENT RESULTS 1.1. SYSTEM VALIDATION Prior to the assessment, the system validation kit was used to test whether the system was operating within its specifications of ±10%. The validation results are tabulated below. And also the corresponding SAR plot is attached as well in the SAR plots files. IEEE P1528 Recommended Reference Value Frequency (MHz) 1 g SAR 10 g SAR Local SAR at surface (Above feed point) Local SAR at surface (y=2cm offset from feed point) 300 3.0 2.0 4.4 2.1 450 4.9 3.3 7.2 3.2 835 9.5 6.2 14.1 4.9 900 10.8 6.9 16.4 5.4 1450 29.0 16.0 50.2 6.5 1800 38.1 19.8 69.5 6.8 1900 39.7 20.5 72.1 6.6 2000 41.1 21.1 74.6 6.5 2450 52.4 24.0 104.2 7.7 3000 63.8 25.7 140.2 9.5 System Validation Results Ambient conduction: Temperature: 24°C; Relative humidity: 41% System Validation Dipole: D1800V2 SN: 294 Date: March 13, 2003 TypeTem p. [°C ]Dipth [cm ] HeadP erm itivity:4039.5-1.25± 10 Conductivity:1.41.3639-2.58± 5 1g SAR:38.135.16-7.72± 10 20.80 Deviation[%] Limited[% ]ParametersTargetMeasured Medium 15.00 1800 MHz REPORT NO: 03U1863-1 DATE: March 11, 2003 FCC ID: IYGRNP2400 COMPLIANCE CERTIFICATION SERVICES Page: 2 of 7 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1.2. TEST LIQUID CONFIRMATION Simulated Tissue Liquid Parameter confirmation The dielectric parameters were checked prior to assessment using the HP85070C dielectric probe kit. The dielectric parameters measured are reported in each correspondent section. IEEE SCC-34/SC-2 P1528 recommended Tissue Dielectric Parameters The head tissue dielectric parameters recommended by the IEEE SCC-34/SC-2 in P1528 have been incorporated in the following table. These head parameters are derived from planar layer models simulating the highest expected SAR for the dielectric properties and tissue thickness variations in a human head. Other head and body tissue parameters that have not been specified in P1528 are derived from the tissue dielectric parameters computed from the 4-Cole-Cole equations and extrapolated according to the head parameters specified in P1528 Target Frequency Head Body (MHz) ε r σ (S/m) ε r σ (S/m) 150 52.3 0.76 61.9 0.80 300 45.3 0.87 58.2 0.92 450 43.5 0.87 56.7 0.94 835 41.5 0.90 55.2 0.97 900 41.5 0.97 55.0 1.05 915 41.5 0.98 55.0 1.06 1450 40.5 1.20 54.0 1.30 1610 40.3 1.29 53.8 1.40 1800-2000 40.0 1.40 53.3 1.52 2450 39.2 1.80 52.7 1.95 3000 38.5 2.40 52.0 2.73 5800 45.3 5.27 48.2 6.00 (ε r = relative permittivity, σ = conductivity and ρ = 1000 kg/m 3 ) Liquid Confirmation Results Ambient conduction – Temperature: 23°C; Relative humidity: 41% Date: March 13, 2003 TypeTemp. [°C] Dipth (cm) HeadPermitivity:4040.41.00± 10 1900 MhzConductivity:1.41.3889-0.79± 5 20.50 Deviation[%] Limited[%]ParametersTargetMeasured Medium 15.00 Ambient conduction – Temperature: 23°C; Relative humidity: 41% Date: March 13, 2003 TypeTemp. [°C] Dipth (cm) MusclePermitivity:53.352.24-1.99± 10 1900 MhzConductivity:1.521.54221.46± 5 20.50 Deviation[%] Limited[%]ParametersTargetMeasured Medium 15.00 REPORT NO: 03U1863-1 DATE: March 11, 2003 FCC ID: IYGRNP2400 COMPLIANCE CERTIFICATION SERVICES Page: 3 of 7 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1.3. EUT SETUP PHOTOS EUT Setup Configuration 1 (Right Head -Touched position) EUT Setup Configuration 2 (Flat/Body-worn position) REPORT NO: 03U1863-1 DATE: March 11, 2003 FCC ID: IYGRNP2400 COMPLIANCE CERTIFICATION SERVICES Page: 4 of 7 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1.4. SAR MEASUREMENT RESULTS Model Name: PC20B Modulation Type: GSM (Duty Cycle = 12.5 %, Crest Factor: 8) EUT Setup Configuration 1 Right Head Depth of liquid: 15.0 cm Date: March 13, 2003 EUT Set-up conditions Frequency Conducted Power [dBm] (Peak) Sep. [cm] Antenna Channel MHz Before After Liquid Temp [°C] SAR (W/kg) Limit (W/kg) With memory card Touched Fixed 810 1909.8 29.8 29.7 20.5 0.388 Without memory card Touched Fixed 810 1909.8 29.8 29.7 20.5 0.377 1.6 EUT Setup Configuration 2: Body/Flat Depth of liquid: 15.0 cm EUT Set-up conditions Frequency Conducted Power [dBm] (Peak) Sep. [cm] Antenna Channel MHz Before After Liquid Temp [°C] SAR (W/kg) *Cube 0 / Cube 1 Limit (W/kg) Without memory card With holster Fixed 810 1909.8 29.8 29.7 20.2 0.421 / 0.352 With memory card With holster Fixed 810 1909.8 29.8 29.7 20.3 0.432 / 0.289 1.6 Note (s): 1. * Cube 0 = primary hot spot; Cube 1 = secondary hot spot 2. Please refer to attachment for the result presentation in plot format. REPORT NO: 03U1863-1 DATE: March 11, 2003 FCC ID: IYGRNP2400 COMPLIANCE CERTIFICATION SERVICES Page: 5 of 7 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. EUT PHOTOS REPORT NO: 03U1863-1 DATE: March 11, 2003 FCC ID: IYGRNP2400 COMPLIANCE CERTIFICATION SERVICES Page: 6 of 7 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 3. EQUIPMENTS LIST & CALIBRATION INFORMATION Calibration Name of Equipment Manufacturer Type/Model Serial Number last cal. due date S-Parameter Network Analyzer Agilent 8753ES MY40001647 8/6/02 8/6/03 Electronic Probe kit Hewlett Packard 85070C N/A N/A…

Text truncated - open the document above for the full version.

Date/Time: 03/13/03 14:42:06 Test Laboratory: Compliance Certification Services File Name: D1800V2 SN 294_8.79mW-2.da4 DUT: Dipole 1800 MHz Type & Serial Number: D1800V2 SN 294 Program: System Validation (ET3DV6 SN 1577); I/P Power 250mW, Air temp. 24deg C, liquid temp. 20.8deg C Communication System: CW_1800 MHz; Frequency: 1800 MHz; Duty Cycle: 1:1 Medium: Head 1800 MHz ( σ = 1.3639 mho/m, ε = 39.5, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.6, 5.6, 5.6); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 1 - TP:1185 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 90.5 V/m Peak SAR = 15.2 mW/g SAR(1 g) = 8.79 mW/g; SAR(10 g) = 4.55 mW/g Power Drift = 0.03 dB Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -17.1 -15.4 -13.7 -12 -10.3 -8.57 -6.86 -5.14 -3.43 -1.71 0

Date/Time: 03/13/03 16:58:20 Test Laboratory: Compliance Certification Services File Name: R-Touch_L-CH_0.388mW_With memory card.da4 DUT: HTC Type & Serial Number: PC20B Program: Right Head - Touched position; Air temp. 23 deg C, liquid temp. 20.5 deg C Communication System: GSM 1900; Frequency: 1850.2 MHz; Duty Cycle: 1:8 Medium: Head 1900MHz ( σ = 1.3889 mho/m, ε = 40.4, ρ = 1000 kg/m3) Phantom section: RightSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.3, 5.3, 5.3); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 14.4 V/m Peak SAR = 0.555 mW/g SAR(1 g) = 0.388 mW/g; SAR(10 g) = 0.242 mW/g Power Drift = 0.01 dB Area Scan (13x9x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -15.5 -14 -12.4 -10.9 -9.32 -7.76 -6.21 -4.66 -3.11 -1.55 0 Date/Time: 03/13/03 17:29:14 Test Laboratory: Compliance Certification Services File Name: R-Touch_L-CH_0.387mW_Without memory card.da4 DUT: HTC Type & Serial Number: PC20B Program: Right Head - Touched position; Air temp. 23 deg C, liquid temp. 20.5 deg C Communication System: GSM 1900; Frequency: 1909.8 MHz; Duty Cycle: 1:8 Medium: Head 1900MHz ( σ = 1.3889 mho/m, ε = 40.4, ρ = 1000 kg/m3) Phantom section: RightSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.3, 5.3, 5.3); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 14.3 V/m Peak SAR = 0.557 mW/g SAR(1 g) = 0.387 mW/g; SAR(10 g) = 0.239 mW/g Power Drift = -0.04 dB Area Scan (13x9x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -15.8 -14.2 -12.6 -11 -9.47 -7.89 -6.31 -4.73 -3.16 -1.58 0 Date/Time: 03/13/03 19:20:30 Test Laboratory: Compliance Certification Services File Name: Body_H-CH_0.421mW_Without memory card.da4 EUT Configuration 2 ( Body/Flat position ) SAR in dB -14.8 -13.3 -11.8 -10.3 -8.86 -7.39 -5.91 -4.43 -2.95 -1.48 0 Date/Time: 03/13/03 19:20:30 Test Laboratory: Compliance Certification Services File Name: Body_H-CH_0.421mW_Without memory card.da4 DUT: HTC Type & Serial Number: PC20B Program: Body - With holster and memory card; Air temp. 23 deg C, liquid temp. 20.2 deg C Communication System: GSM 1900; Frequency: 1909.8 MHz; Duty Cycle: 1:8 Medium: Muscle 1900 MHz ( σ = 1.5422 mho/m, ε = 52.24, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5, 5, 5); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 1 - TP:1185 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 11.4 V/m Peak SAR = 0.713 mW/g SAR(1 g) = 0.421 mW/g; SAR(10 g) = 0.239 mW/g Power Drift = -0.1 dB Area Scan (10x15x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -14.8 -13.3 -11.8 -10.3 -8.86 -7.39 -5.91 -4.43 -2.95 -1.48 0 Date/Time: 03/13/03 19:20:30 Test Laboratory: Compliance Certification Services File Name: Body_H-CH_0.352mW_Without memory card.da4 DUT: HTC Type & Serial Number: PC20B Program: Body - With holster and memory card; Air temp. 23 deg C, liquid temp. 20.2 deg C Communication System: GSM 1900; Frequency: 1909.8 MHz; Duty Cycle: 1:8 Medium: Muscle 1900 MHz ( σ = 1.5422 mho/m, ε = 52.24, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5, 5, 5); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 1 - TP:1185 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 11.4 V/m Peak SAR = 0.605 mW/g SAR(1 g) = 0.352 mW/g; SAR(10 g) = 0.192 mW/g Power Drift = -0.1 dB Area Scan (10x15x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -15 -13.5 -12 -10.5 -8.98 -7.49 -5.99 -4.49 -2.99 -1.5 0 Date/Time: 03/13/03 20:33:02 Test Laboratory: Compliance Certification Services File Name: 4Body_H-CH_0.432mW_With memory card.da4 DUT: HTC Type & Serial Number: PC20B Program: Body - With holster and memory card; Air temp. 23 deg C, liquid temp. 20.3 deg C Communication System: GSM 1900; Frequency: 1909.8 MHz; Duty Cycle: 1:8 Medium: Muscle 1900 MHz ( σ = 1.5422 mho/m, ε = 52.24, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5, 5, 5); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 1 - TP:1185 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 10.8 V/m Peak SAR = 0.729 mW/g SAR(1 g) = 0.432 mW/g; SAR(10 g) = 0.245 mW/g Power Drift = 0.1 dB Area Scan (10x15x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -13.3 -11.9 -10.4 -8.9 -7.41 -5.93 -4.45 -2.97 -1.48 0 Date/Time: 03/13/03 20:34:38 Test Laboratory: Compliance Certification Services File Name: 4Body_H-CH_0.289mW_With memory card.da4 DUT: HTC Type & Serial Number: PC20B Program: Body - With holster and memory card; Air temp. 23 deg C, liquid temp. 20.3 deg C Communication System: GSM 1900; Frequency: 1909.8 MHz; Duty Cycle: 1:8 Medium: Muscle 1900 MHz ( σ = 1.5422 mho/m, ε = 52.24, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5, 5, 5); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 1 - TP:1185 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 2: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 10.8 V/m Peak SAR = 0.404 mW/g SAR(1 g) = 0.289 mW/g; SAR(10 g) = 0.184 mW/g Power Drift = 0.1 dB Ar…

Text truncated - open the document above for the full version.

FCC CFR47 CERTIFICATION PART 24E TEST REPORT FOR SMARTPHONE MODEL: PC20B FCC ID: NM8TANAGER REPORT NUMBER: 02T1665-1 ISSUE DATE: DECEMBER 6, 2002 Prepared for HIGH TECH COMPUTER, CORP. 1F, 6-3, BAU-CHIAN ROAD HSINTIEN, TAIPEI, TAIWAN Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, ROUTE 2 MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 02T1665-1 DATE: DECEMBER 6, 2002 EUT: SMARTPHONE FCC ID: NM8TANAGER Page 2 of 44 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. TEST RESULT CERTIFICATION..........................................................................................3 2. EUT DESCRIPTION...............................................................................................................4 3. FACILITIES, LABORATORY AND ACCREDITATION.......................................................4 3.1. FACILITIES..........................................................................................................................4 3.2. LABORATORY ACCREDITATION............................................................................................4 3.3. LIST OF ACCREDITATIONS....................................................................................................5 4. CALIBRATION, METHODOLOGY AND UNCERTAINTY..................................................6 4.1. EQUIPMENT CALIBRATION....................................................................................................6 4.2. TEST METHODOLOGY...........................................................................................................6 4.3. MEASUREMENT UNCERTAINTY.............................................................................................6 4.4. TEST AND MEASUREMENT EQUIPMENT...........................................…
