NM8TPDual Band GSM/GPRS Smartphone With Bluetooth

Smartphone User Manual Safeguard Smartphone User Manual Contents 2 3 Congratulations on the purchase of your new Windows Mobile™ Smartphone. Please read before operating your device. THE DEVICE IS NOT CHARGED WHEN YOU TAKE IT OUT OF THE BOX. DO NOT REMOVE THE BATTERY PACK WHEN THE DEVICE IS CHARGING. WHEN INSERTING YOUR SIM CARD, MAKE SURE THE DEVICE IS POWERED OFF, AND THAT THE SIM CARD SNAPS INTO THE SOCKET SECURELY. YOUR WARRANTY IS INVALIDATED IF YOU OPEN OR TAMPER WITH THE DEVICE’S OUTER CASING. (For more information, see the enclosed warranty card) EXPLOSIVE ATMOSPHERES When in any area with a potentially explosive atmosphere or where flammable materials exist, the product should be turned off and the user should obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Users are advised not to use the equipment at refueling points such as service or gas stations. Users are reminded of the need to observe restrictions on the use of radio equipment in fuel depots, chemical plants or where blasting operations are in progress. Areas with a potentially explosive atmosphere are often, but not always, clearly marked. These include fuelling areas, below deck on boats, fuel or chemical transfer or storage facilities, and areas where the air contains chemicals or particles, such as grain, dust, or metal powders. Smartphone User Manual Safeguard Smartphone User Manual Contents 2 3 Contents Chapter 1 Getting Started 7 1.1 Knowing your Smartphone 8 1.2 Status indicators 13 1.3 Setting up your Smartphone 14 1.4 Accessories 18 1.5 Navigating 19 1.6 Entering text and numbers 23 1.7 Securing your Smartphone 27 Chapter 2 Using your Smartphone 29 2.1 Making a call 30 2.2 Receiving a call 33 2.3 Photo Caller ID 35 2.4 In-call options 43 2.5 Retrieving a voice mail message 44 2.6 Reviewing your calls 44 2.7 Speed Dials and Voice Tags 46 2.8 Advanced dialing information 50 Smartphone User Manual Contents Smartphone User Manual Contents 4 5 Chapter 3 Using your Camera 53 3.1 Camera mode 54 3.2 Album mode 65 Chapter 4 Personalizing your Smartphone 73 4.1 Customizing phone settings 74 Chapter 5 Getting Connected 83 5.1 Connecting to the Internet 84 5.2 Pocket Internet Explorer 87 5.3 Bluetooth 89 5.4 Modem Link 92 Chapter 6 Messaging Features 93 6.1 Setting up accounts 94 6.2 Managing accounts 96 6.3 Creating E-mail and SMS messages 97 6.4 Receiving E-mail and SMS messages 100 6.5 Viewing message folders 104 6.6 Managing messaging 106 6.7 Instant messaging 109 6.8 MMS messaging 113 Smartphone User Manual Contents Smartphone User Manual Contents 4 5 Chapter 7 Synchronizing 123 7.1 Using ActiveSync 124 7.2 Installing ActiveSync 125 7.3 Server ActiveSync 126 7.4 Other information 129 Chapter 8 Applications 131 8.1 Using Contacts and Beaming 133 8.2 Using Calendar 140 8.3 Using Tasks 143 8.4 Using Voice Notes 144 8.5 Using Windows Media Player 145 8.6 Using Calculator 149 8.7 Using Java MIDlet Manager 150 8.8 Games 154 Chapter 9 Maintaining your Smartphone 157 9.1 Adding and removing programs 158 9.2 File Manager 159 9.3 Task Manager 166 9.4 Space Maker 168 Smartphone User Manual Contents 6 Appendix 173 Regulatory Notices 174 Troubleshooting 183 Specifications 189 Index 191 Chapter 1 Getting Started 1.1Knowing your Smartphone 1.2Status indicators 1.3Setting up your Smartphone 1.4Accessories 1.5Navigating 1.6Entering text and numbers 1.7Securing your Smartphone 8 9 1.1Knowing your Smartphone This section will help you to familiarize yourself with your Smartphone’s hardware, including a basic introduction to the buttons and features found on the top, bottom, front, side and rear of the phone. A brief explanation of the LED indicator is also provided. Top View Bottom View 1. Power button When your Smartphone is turned Off, press and hold the Power button to turn it On, and vice versa. When the phone is On, you can press and quickly release the Power button to display the Quick List, which allows you to change profiles or lock your Smartphone. 2. Infrared port Allows your Smartphone to receive data from another IR-compatible device through Infrared beaming. 3. Earphone plug Plug the earphone jack here to use the handsfree mode or listen to sound or multimedia files. 4. Mini USB connector Attach the mini-USB cable here to synchronize certain data in your phone with desktop or notebook PC; or to charge its battery. 4 Smartphone User Manual 1. Getting Started Smartphone User Manual 1. Getting Started 1 2 3 8 9 Front View Side View 1. LED indicator The LED Indicator notifies you of the battery and network status of your Smartphone. The indicators are described on the next page. 1 2 3 4 5 6 7 9 8 10 11 12 13 Smartphone User Manual 1. Getting Started Smartphone User Manual 1. Getting Started 10 11 LED IndicatorStatus Solid greenBattery is fully charged BlankBattery case is empty Solid AmberBattery is charging Flashing greenNetwork is attached Flashing redBattery very low (less than 4%) Flashing blueBluetooth set to “On” mode or “Discover- able” mode Flashing amberBattery temperature is hotter or colder than the functional limits of 0 to 48 degrees Cel- sius, and has stopped charging Amber / green LED offBattery fault. The “Battery Fault” icon is displayed ( ) In this case, the flashing green LED can be recovered by unplug- ging the AC adaptor. DimNetwork is disconnected. 2. Speaker 3. Display screen The status indicators concerning the current mode, battery strength, the current activity, or active program are displayed in the Title Bar at the top of the display. In the center of the screen is the active menu or program (or incoming live video stream if Camera mode is active). At the bottom of the screen are the menus or commands related to the active program. 4. Left softkey Performs the function shown in the “softkey label” immediately above the button. (When in the Home screen, pressing the Left Softkey opens the Start Menu.) Smartphone User Manu…

Text truncated - open the document above for the full version.

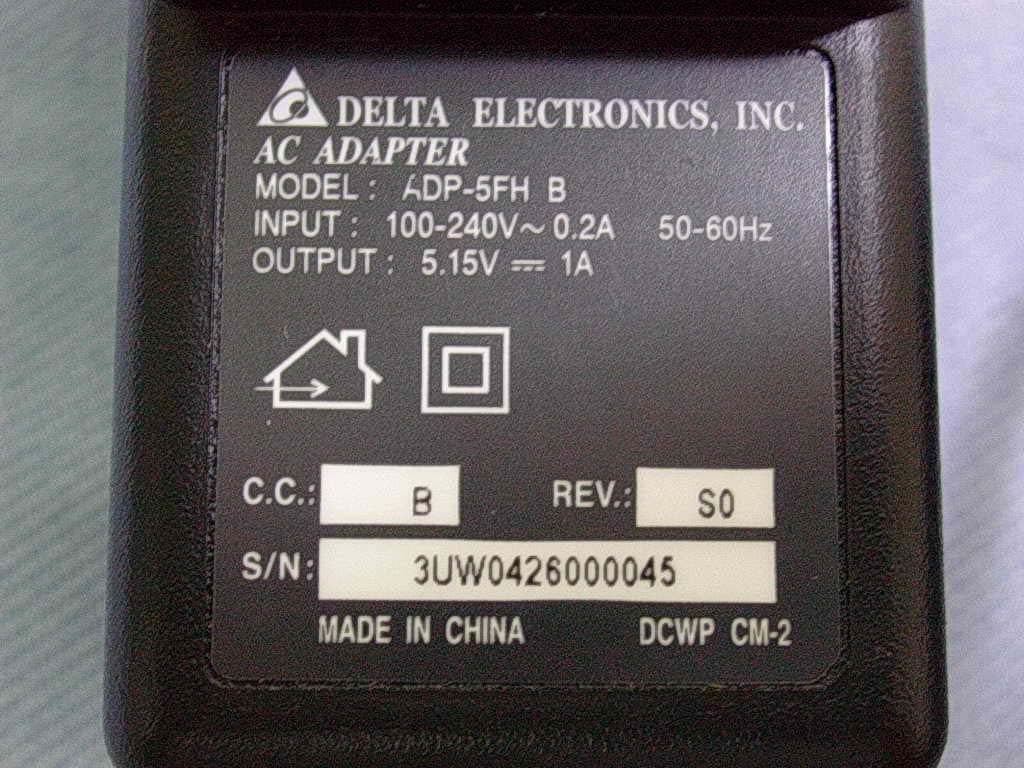

Compliance Certification Services Inc. Report No: 40708423 Date of Issue: July 30, 2004 Page 1 of 10 EXTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: 40708423 Date of Issue: July 30, 2004 Page 2 of 10

Main unit Regulatory label (on the rear housing of main unit) 1.1 Regulation Label 1 HTC P/N: 77H00166-XX Image file name: Main_UNIT_REGULATION Please note: 1. The brand name is shown on Bezel. 2. All bar codes must be code 128 symbology.

Compliance Certification Services Inc. Report No: 40708423 Date of Issue: July 30, 2004 Page 3 INTERNAL PHOTOGRPHS OF EUT GSM Ant. position Compliance Certification Services Inc. Report No: 40708423 Date of Issue: July 30, 2004 Page 4 Compliance Certification Services Inc. Report No: 40708423 Date of Issue: July 30, 2004 Page 5 Compliance Certification Services Inc. Report No: 40708423 Date of Issue: July 30, 2004 Page 6 BT Ant. position Compliance Certification Services Inc. Report No: 40708423 Date of Issue: July 30, 2004 Page 7 Compliance Certification Services Inc. Report No: 40708423 Date of Issue: July 30, 2004 Page 8

Confidential Information Amphenol Mobile T&M Antennas/Shanghai Amphenol Airwave Communication Limited HTC JESSIE 7-850 Tri Band (GSM850/DCS/PCS) 19 July 2004 www.amphenol-tmantennas.com Amphenol Mobile, Amphenol T&M Antennas and Shanghai Amphenol Airwave have possession of proprietary information provided in this presentation and this proprietary information shall be kept in strict confidence and not disclosed to any person or firm without the prior written consent of Amphenol T&M Antennas. Amphenol Confidential Information Amphenol Mobile, Amphenol T&M Antennas and Shanghai Amphenol Airwave have possession of proprietary information provided in this presentation and this proprietary information shall be kept in strict confidence and not disclosed to any person or firm without the prior written consent of Amphenol T&M Antennas. Page 2 1.0 Overview This report summarizes the electrical results of proposed antenna to support the HTC JESSIE 7–850 Project program. 1.1 Specifications 1.2 Antenna Configuration The antenna operates in GSM850, DCS1800, PCS1900 bands, the phone fixture used is shown in Figure 1. Figure 1 : Test Fixture 1.3 Antenna Matching Network 2.0 Electrical Testing 2.1 Voltage Standing Wave Ratio (VSWR) Measurements 2.1.1 Test Setup Amphenol Confidential Information Amphenol Mobile, Amphenol T&M Antennas and Shanghai Amphenol Airwave have possession of proprietary information provided in this presentation and this proprietary information shall be kept in strict confidence and not disclosed to any person or firm without the prior written consent of Amphenol T&M Antennas. Page 3 VSWR measurements (S 11 ) were performed using a Hewlett Packard 8753ES Network Analyzer and previously described test fixture. One setup was used: free space measurement. The complete VSWR plots are provided in Appendix A. 2.1.2 Test Results Table-1 VSWR Performance Summary Freq(MHz) 824 894 1710 1880 1990 VSWR-GSM 2.11 2.79 2.23 1.28 1.61 2.2 Gain Measurement 2.2.1 Test Setup The gain of the antenna was measured in the anechoic chamber. The chamber provides less than –30 dB reflectivity from 800 MHz through 6 GHz and an 18” diameter spherical quite zone. The measurement results are calibrated using both dipole and leaky wave horn standards. A decoupling sleeve is used to reduce feed line radiation. 2.2.2 Test Results Tables 2 provide a summary of the gain measurements in free space using the JESSIE 7-850 . The complete gain plots are provided in Appendix B. Table 2 - Free Space Gain Performance Summary (dBi) H E1 E2 Frequency(MHz) Peak Average Peak Average Peak Average 824 -0.65 -2.02 -1.11 -4.53 -1.07 -4.48 849 -1.51 -2.83 -1.20 -5.19 -2.20 -5.42 869 -0.96 -2.34 -1.47 -5.36 -1.66 -4.98 894 -1.01 -3.00 -0.62 -5.14 -1.36 -4.86 1710 -2.13 -4.91 -1.36 -4.93 -0.93 -5.54 1785 -1.65 -4.07 -2.22 -4.52 -1.06 -5.30 1805 -2.24 -4.36 -3.23 -5.10 -1.64 -6.13 1850 -1.90 -4.62 -4.44 -5.91 -2.58 -7.33 1880 -1.98 -5.06 -3.89 -6.47 -2.82 -7.23 1910 -2.22 -4.77 -3.01 -5.31 -1.56 -6.07 1930 -3.09 -4.97 -2.73 -5.39 -1.74 -6.14 1990 -1.00 -4.87 -0.91 -3.81 -1.11 -4.55 Amphenol Confidential Information Amphenol Mobile, Amphenol T&M Antennas and Shanghai Amphenol Airwave have possession of proprietary information provided in this presentation and this proprietary information shall be kept in strict confidence and not disclosed to any person or firm without the prior written consent of Amphenol T&M Antennas. Page 4 3.0 Summary and Conclusion This report summarizes the electrical performance of Tri band antenna designed for HTC JESSIE 7-850 project. This report describes the antenna design using PIFA approach. The engineering department of Amphenol will continue working on the program to improve the mechanical and electrical characteristics of the antenna. Please let us know if you have any question. Amphenol Confidential Information Amphenol Mobile, Amphenol T&M Antennas and Shanghai Amphenol Airwave have possession of proprietary information provided in this presentation and this proprietary information shall be kept in strict confidence and not disclosed to any person or firm without the prior written consent of Amphenol T&M Antennas. Page 5 Appendix A Return Loss/VSWR Amphenol Confidential Information Amphenol Mobile, Amphenol T&M Antennas and Shanghai Amphenol Airwave have possession of proprietary information provided in this presentation and this proprietary information shall be kept in strict confidence and not disclosed to any person or firm without the prior written consent of Amphenol T&M Antennas. Page 6 Return Loss VSWR Amphenol Confidential Information Amphenol Mobile, Amphenol T&M Antennas and Shanghai Amphenol Airwave have possession of proprietary information provided in this presentation and this proprietary information shall be kept in strict confidence and not disclosed to any person or firm without the prior written consent of Amphenol T&M Antennas. Page 7 Appendix B Radiation Pattern Amphenol Confidential Information Amphenol Mobile, Amphenol T&M Antennas and Shanghai Amphenol Airwave have possession of proprietary information provided in this presentation and this proprietary information shall be kept in strict confidence and not disclosed to any person or firm without the prior written consent of Amphenol T&M Antennas. Page 8 H- Plane E1- Plane E2- Plane

Compliance Certification Services Inc. Date of Issue: August 23, 2004 Report No: 40708423-RP Refer No.: B40412405 FCC ID: NM8TP Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 49 FCC 47 CFR PART 15 SUBPART C TEST REPORT For High Tech Compter Corp. ST20B Model: SMT500 Trade Name: Audiovox Prepared for High Tech Compter Corp. No. 23, Hsin Hua Rd., Taoyuan Hsien 330, Taiwan, R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Date of Issue: August 23, 2004 Report No: 40708423-RP Refer No.: B40412405 FCC ID: NM8TP Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................6 4. INSTRUMENT CALIBRATION........................................................................................................7 5. FACILITIES AND ACCREDITATIONS ..........................................................................................8 5.1 FACILITIES ........ ...............................................................................................................................8 5.2 EQUIPMENT........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.......................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................10 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................10 6.2 SUPPORT EQUIPMENT ...............................................................................................................10 7. FCC PART 15.247 REQUIREMENTS.............................................................................................11 7.1 PEAK POWER....................................................................................................................................11 7.2 BAND EDGES MEASUREMENT ................................................................................................12 7.3 PEAK POWER SPECTRAL DENSITY....................................................................................................15 7.4 FREQUENCY SEPARATION.......................................................................................................22 7.5 NUMBER OF HOPPING FREQUENCY ......................................................................................24 7.6 TIME OF OCCUPANCY (DWELL TIME)...................................................................................25 7.7 RADIO FREQUENCY EXPOSURE........................................................................................................28 7.8 SPURIOUS EMISSIONS ................................................................................................................35 7.9 POWERLINE CONDUCTED EMISSIONS...............................................................................................48 Compliance Certification Services Inc. Date of Issue: August 23, 2004 Report No: 40708423-RP Refer No.: B40412405 FCC ID: NM8TP Page 4 2. EUT DESCRIPTION Product ST20B Trade Name Audiovox Model Number SMT5600 Model Discrepancy N/A Power Supply Model Number: ADP-5FH B I/P: AC 100-240, 0.2A, 50-60Hz O/P: DC 5.15V, 1A Frequency Range 2402 ~ 2480 MHz Transmit Power 0.28 dBm Modulation Technique GFSK Transmit Data Rate 1MHz Number of Channels 79 Channels Antenna Specification Chip Antenna / Gain: -1.16 dBi Note: This submittal(s) (test report) is intended for FCC ID: NM8TP filing to comply with Section 15.207, 15.209 and 15.247 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Date of Issue: August 23, 2004 Report No: 40708423-RP Refer No.: B40412405 FCC ID: NM8TP Page 5 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.247. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the TX frequency that was for the purpose of the measurements. According to its specifications, the EUT must …
