NMAM1YY1021Rugged Industrial PDA

Grayhill DuraMaxH Quick Reference Guide v0.03 Bulletin #NNNN 561 Hillgrove Avenue LaGrange, IL 60525 Phone: (708) 354-1040 Fax: (708) 354-2820 On the Internet: http://www.grayhilloem.com Grayhill Handheld Quick Reference Guide v0.21 © 2006 Grayhill, Inc., Confidential and Proprietary Page 2 Copyright © 2006 Grayhill, Inc. All rights reserved. The information supplied in this manual is believed to be reliable and accurate at the time of its publication. Grayhill, Inc. assumes no responsibility for any errors, omissions, or suitability of its products for a particular application. Warranty Industrial Handheld Computers from Grayhill, Inc., (the “Product”) are warranted against defects in materials and workmanship under normal use, for a period of 1 year from the date of purchase. This warranty does not apply to units that have been abused or stressed beyond the published environmental and electrical specifications. In the event of a product failure due to materials or workmanship, Grayhill will repair or replace the defective product. This warranty is limited to the original purchase price of the unit and does not cover installation, labor or any other contingent costs. For warranty service, return the defective product to Grayhill, shipping prepaid, for prompt repair or replacement. The foregoing sets forth the full extent of Grayhill’s warranties regard the Product. Repair or replacement at Grayhill’s option is the exclusive remedy. THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND GRAYHILL SPECIFICALLY DISCLAIMS ALL WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL GRAYHILL, ITS SUPPLIERS OR LICENSORS BE LIABLE FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, FOR ANY LOSS OF USE, LOSS OF TIME, INCONVENIENCE, COMMERCIAL LOSS, LOST PROFITS OR SAVINGS, OR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT, TO THE FULL EXTENT SUCH MAY BE DISCLAIMED BY LAW. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. THEREFORE, THE FOREGOING EXCLUSIONS MAY NOT APPLY IN ALL CASES. This warranty provides specific legal rights. Other rights which vary from state to state may also apply. Ordering Guide All programs and files on the CD included with this Product are protected by copyright. Grayhill, Inc. authorizes duplication of the contained programs and files as necessary for use by the licensee; however, general distribution of these programs and/or files is strictly forbidden without prior written consent from Grayhill, Inc. Grayhill Grayhill Product Part Number Rugged Mobile Handheld VGA Display 1.3Mpix CameraM1YY1021-1 Rugged Mobile Handheld QVGA Display 1.3Mpix CameraM1YY1021-2 Rugged Mobile Handheld VGA DisplayM1YY1021-3 Rugged Mobile Handheld QVGA Display M1YY1021-4 Handheld Lithium Polymer Battery 21WhrM1YY1020-1 Handheld Lithium Ion Battery 10.5WhrM1YY1020-2 Handheld Lithium Polymer Battery 15.25WhrM1YY1020-3 Charging Cable with USB Host and USB Client Snap VersionM1HH4151-1 Charging Cable with USB Host and USB Client Screw VersionM1HH4151-2 Evaluation Kit – 1 Handheld QVGA Display (M1YY1021-4)DURAMAXEVT35 1 Handheld Lithium Ion Battery (M1YY1020-3), 1 Handheld Product CD, 1 Charging cable (M1HH4152-1) Audience This manual provides a quick reference source for information about the Grayhill Handheld. The information it provides is intended for qualified electrical personnel familiar with installing, programming, and maintaining industrial networks and industrial automation. Grayhill Handheld Quick Reference Guide v0.21 © 2006 Grayhill, Inc., Confidential and Proprietary Page 3 Contents Introduction ................................................................................................................................. 4 Summary of Features......................................................................................................................................4 Typical Uses...................................................................................................................................................4 Handheld Product Components ......................................................................................................................4 Evaluation Kit Contents .................................................................................................................................5 Setting Up the Handheld ............................................................................................................. 5 Charge the Handheld ......................................................................................................................................5 Turn On the Handheld ....................................................................................................................................6 Align the Handheld Touch Screen..................................................................................................................6 Resetting.........................................................................................................................................................6 Using the Handheld ..................................................................................................................... 7 Handheld Buttons ...........................................................................................................................................7 Connectivity ...................................................................................................................................................8 Using the Stylus .............................................................................................................................................8 Task Bar and Start Menu ......................................................................................................................…

Text truncated - open the document above for the full version.

Audio MMC Camera Dock Keypads Battery Charger Battery LCD Compact Flash 802.11b/g (2.401GHz - 2.473GHz) Bluetooth (2.402GHz - 2.480GHz) XTAL 32.768 KHz XTAL 13 MHz XTAL 24.576 MHz RAM FlashBuffers Touch Screen Data IRDA Power Supply PXA270 Microprocessor USB Host USB Client Bluetooth UART Address Address . Data Buffers Address Data Boot Flash

Information Contained in this document is the property of Grayhill Inc. Re-Distribution of information contained in this document is prohibited with out express written consent of Grayhill Inc. 561 Hillgrove Avenue • LaGrange, Illinois • 60525-5997 • U.S.A. Phone: (708) 354-1040 • Fax: (708) 354-2820 • http://www.grayhill.com 10/17/06 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd. Columbia, MD 21046 Fax 301-344-2050 REFERENCE FCC ID: NMAM1YY1021 Organization: Grayhill Inc. Request under 47 C.F.R. 0.459 that materials submitted to the commission be withheld from public inspection. Grayhill Inc. hereby requests that the materials attached here to be withheld from public inspection in accordance with 47 C.F.R. 0.457 & 0.459. Specifically, Grayhill Inc requests that the following materials be withheld from public inspection under 47 C.F.R. 0.459 because the implementation of wireless land devices and bluetooth for use in a ruggedized CE handheld device are considered confidential trade secrets and technical data which customarily would be guarded from competitors: (1) Circuit Schematics. Therefore, in accordance with 47 C.F.R. 0.457 & 0.459, <Your Company Name> requests that the above listed materials, copies of which are here to be withheld from public inspection. Authorized Signature: ______________________ Date __10/17/06____________ Robert Chiocca Program Manager Mobile Computing Grayhill Inc. 561 Hillgrove Ave Lagrange IL 60525 (708) 482 2327 desk (630) 205 8985 cell

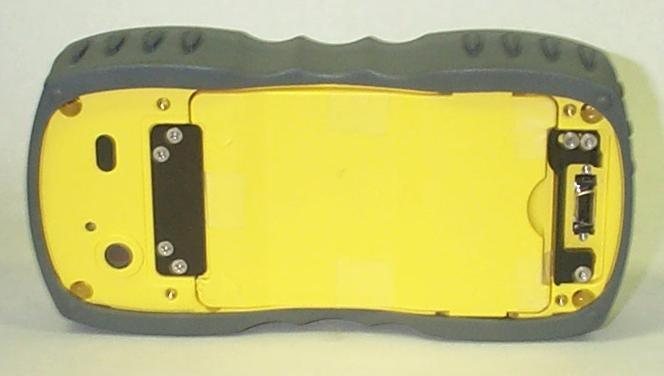

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] External EUT Photographs Photographs of DuramaxH Front Rear Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Photographs of Power Supply Front Back Power Plug

DuraMaxH Label Placement (with UL & CE logos) Label specifications: • Material: Metallized Po lyester (2 mil thick) • Color: Silver with black text • Adhesive: Permanent Acrylic PSA (1 mil thick) Label specifications:• Material: Metallized Po lyester (2 mil thick) • Color: Silver with black text • Adhesive: Permanent Acrylic PSA (1 mil thick) DuraMaxH Label Placement (without UL & CE logos)

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Internal EUT Photographs Photograph of EUT - Top Cover Removed DuraMaxH Wireless Module Transmitter Module; Both sides of PCB are shown. Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Photographs of EUT showing Antenna placement 802.11 Antenna Blue Tooth Antenna

Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Operational Description 1 FCC 15.203 ANTENNA REQUIREMENTS The antennas are internal to the EUT and not readily available to be modified by the end user. They are in a location where there are no user serviceable parts. The antennas are attached to the PCB via unique miniaturized connectors. Therefore, it meets the 15.203 Requirement. 2 PRODUCT DESCRIPTION The Grayhill Industrial Handheld Computer is a rugged handheld computer designed for use in heavy industrial or commercial applications. The Handheld provides wireless connectivity and mobile personal computing for personnel who work in extreme environments. The Handheld computer has a Bluetooth operating from 2402 to 2480 MHz and a Wifi 802.11b transmitter operating from 2412 to 2462 MHz. Summary of Features Environmentally Sealed and Submersible Daylight Viewing Ability 3.5” VGA (640x480) or QVGA (320x240) Transflective Display Ruggedness: Solid frame; industrial-strength high impact touch screen Dimensions: 7.6” x 3.3” x 1.7” Weight: 20oz. with battery Operating System: Windows CE 5.0 Processor: Intel XScale PXA260 416 MHz Long Battery Life: 8 hours at maximum power consumption 64 MB RAM and 64 MB Non-Volatile Flash Memory: No loss of data upon hard reset Auxiliary Storage Capabilities: Secure Digital / Compact Flash Multiple On Board Wireless Options: WiFi (802.11x), Bluetooth Wired Connections: Active Sync and USB via cable Audio: Speakers and Microphone Typical Uses Wireless communications solve difficult industrial and commercial communications problems. Communications using radio waves can be made over long distances, through the heat of blast furnaces and the cold temperatures and precipitation that may be present at outdoor sites. Whether working in construction, manufacturing, mining, or other physically demanding jobs, field personnel will find the Grayhill Handheld useful not only because of its comprehensive communications options, but also because the Handheld can withstand hard knocks, dusty job sites, extreme temperatures, rain, snow, and even submersion in water. Handheld Product Components The portable Handheld product is housed in a 7.6” x 3.3” x 1.7” hard plastic frame that features a rubber boot for added durability , and provides an 3.5” VGA or QVGA display with a rugged 5 wire touch screen. The Handheld has 2 keypads, one for navigation and one for numeric entry. Product items that accompany the Handheld product are a Lithium Ion battery or Lithium Polymer Battery, an AC adapter that includes USB Active Sync and USB Host, and a companion CD with an electronic version of this guide. Grayhill Handheld Quick Reference Guide v0.21 © 2006 Grayhill, Inc., Confidential and Proprietary Page 5

SAR EVALUATION CERTIFICATE OF COMPLIANCE APPLICANT: GrayHill, Inc. EUT: DuraMax Date of Receipt: July 19, 2006 Device Category: WLAN RF exposure environment: Uncontrolled RF exposure category: Portable Power supply: Powered by Battery Antenna: Integrated Antenna Production/prototype: Production Measured Standards: FCC OET 65 SUPPLEMENT C Modulation: QPSK TX Range: 2412-2462 MHz Used TX Channels: Low: Ch 1 2412 MHz Center: Ch 6 2437 MHz High: Ch 11 2462 MHz Maximum RF Power Output: 0.0248 Watts EIRP Maximum SAR Measurement (averaged over: 1g) 0.216 W/kg Body Kevin A. Mehaffey EMC Lab Manager APPLICANT NAME AND ADDRESS: DATE OF TEST: September 18, 2006 GrayHill, Inc. TEST LOCATION: MET LABORATORIES INC. 561 Hillgrove Avenue 914 West Patapsco Ave. LaGrange, IL 60525 Baltimore, Maryland 21230 This wireless portable device has been tested in accordance with the measurement procedures specified in FCC OET 65 SUPPLEMENT C and IEEE Std. 1528- (July 2001), and has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.3 - 2002 I attest to the accuracy of this data. All reported measurements were performed by me, or were made under my supervision, and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. GrayHill, Inc. DuraMax (FCC ID NMAM1YY1021) October 17, 2006 EMC20292-SAR-FCC Copyright 2006, MET Laboratories, Inc. Page 2 of 57 October 17, 2006 GrayHill, Inc. 561 Hillgrove Avenue LaGrange, IL 60525 Reference: DuraMax Dear Mr. Andrew Kolodziej: Enclosed is the EMC SAR Evaluation Report for the GrayHill, Inc. DuraMax. It was tested in accordance with the measurement procedures specified in FCC OET 65 SUPPLEMENT C shown to be capable to be in compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in FCC OET 65 SUPPLEMENT C. Thank you for using the testing services of MET Laboratories. If you have any questions regarding these results or if MET can be of further assistance to you, please feel free to contact me. We appreciate your business and look forward to working with you again soon. Kindest Regards, MET LABORATORIES, INC. Angela D. Brown Documentation Department Enclosures: DOCTEM-23 Jan 04 Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. The Nation’s First Licensed Nationally Recognized Testing Laboratory GrayHill, Inc. DuraMax (FCC ID NMAM1YY1021) October 17, 2006 EMC20292-SAR-FCC Copyright 2006, MET Laboratories, Inc. Page 3 of 57 Dosimetric Assessment Test Report for the GrayHill, Inc. DuraMax Tested and Evaluated In Accordance With FCC OET 65 SUPPLEMENT C MET REPORT: EMC20292-SAR-FCC October 17, 2006 PREPARED FOR: GrayHill, Inc. 561 Hillgrove Avenue LaGrange, IL 60525 PREPARED BY: MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, Maryland 21230-3432 GrayHill, Inc. DuraMax (FCC ID NMAM1YY1021) October 17, 2006 EMC20292-SAR-FCC Copyright 2006, MET Laboratories, Inc. Page 4 of 57 Dosimetric Assessment TEST REPORT for the GrayHill, Inc. DuraMax In Accordance With FCC OET 65 SUPPLEMENT C Prepared for GrayHill, Inc. 561 Hillgrove Avenue LaGrange, IL 60525 Kevin A. Mehaffey EMC LAB MANAGER Report Prepared By Angela D. Brown Documentation Department Report Reviewed By Len Knight TEST ENGINEER Final Review By Kevin A. Mehaffey EMC LAB MANAGER Engineering Statement: The measurements shown in this report were made in accordance with the procedures specified in FCC OET 65 SUPPLEMENT C. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment evaluated is capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.3-2002. GrayHill, Inc. DuraMax (FCC ID NMAM1YY1021) October 17, 2006 EMC20292-SAR-FCC Copyright 2006, MET Laboratories, Inc. Page 5 of 57 Quick Links 1.0 Objective.......................................................................................................................................................................6 2.0 SAR Definition .............................................................................................................................................................6 3.0 Summary for SAR Test Report ..................................................................................................................................7 4.0 Description of Tested Device.......................................................................................................................................8 5.0 Photographs of EUT ....................................................................................................................................................9 6.0 Details of SAR Evaluation.........................................................................................................................................12 GrayHill, Inc. DuraMax (FCC ID NMAM1YY1021) October 17, 2006 EMC20292-SAR-FCC Copyright 2006, MET Laboratories, Inc. Page 6 of 57 1.0 OBJECTIVE The objective of the procedure was to perform a dosimetric assessment on the DuraMax card. The measurements have been carried out with the dosimetric assessment system “SARA2", and were made according to the FCC OET 65 SUPPLEMENT C for evaluating compliance of mobile and portable devices with FCC OET 65 SUPPLEMENT C limits for human exposure in the general population to radio frequency emissions. 2.0 SAR DEFINITION Specific absorption rate (SAR) is the biological relevant parameter describing the effects of electromagne…

Text truncated - open the document above for the full version.

Radiometrics Midwest Corporation (815) 293-0772 – www.radiomet.com Page 1 of 32 Electromagnetic Compatibility Test Report Tests Performed on a Grayhill, Inc. Industrial Handheld Computer, Model DuraMaxH Radiometrics Document RP-5867 Product Detail: FCC ID: NMAM1YY1021 Industry Canada ID: 2972A-M1YY1021 Equipment type: 2.4 GHz Spread Spectrum Transmitter Test Standards: US CFR Title 47, Chapter I, FCC Part 15 Subpart C FCC Part 15 CFR Title 47: 2006 Industry Canada RSS-210, Issue 6 as required for Category I Equipment This report concerns: Original Grant for Certification FCC Part 15.247 Tests Performed For: Test Facility: Grayhill, Inc. 561 Hillgrove Rd. LaGrange, IL 60525 Radiometrics Midwest Corporation 12 East Devonwood Romeoville, IL 60446 Test Date(s): (Month-Day-Year) June 30, July 6, and November 3, 2006 Document RP-5867 Revisions: Rev. Issue Date Affected Pages Revised By 0 November 14, 2006 1 December 5, 2006 1, 12, 17, 21 Joseph Strzelecki RADIOMETRICS MIDWEST CORPORATION - EMC Test Report Testing of the Grayhill, Inc. Industrial Handheld Computer, Model DuraMaxH, RP-5867 Rev. 1 Page 2 of 32 Table of Contents 1 ADMINISTRATIVE DATA ................................................................................................................... 3 2 TEST SUMMARY AND RESULTS .....................................................................................................3 2.1 RF Exposure Compliance Requirements ..................................................................................... 4 3 EQUIPMENT UNDER TEST (EUT) DETAILS .................................................................................... 4 3.1 EUT Description ........................................................................................................................... 4 3.2 Related Submittals ....................................................................................................................... 4 4 TESTED SYSTEM DETAILS .............................................................................................................. 4 4.1 Tested System Configuration ....................................................................................................... 4 4.2 Special Accessories ..................................................................................................................... 5 4.3 Equipment Modifications .............................................................................................................. 5 5 TEST SPECIFICATIONS AND RELATED DOCUMENTS.................................................................. 5 6 RADIOMETRICS’ TEST FACILITIES .................................................................................................6 7 DEVIATIONS AND EXCLUSIONS FROM THE TEST SPECIFICATIONS......................................... 7 8 CERTIFICATION ................................................................................................................................ 7 9 TEST EQUIPMENT TABLE ................................................................................................................ 7 10 TEST SECTIONS ............................................................................................................................. 7 10.1 AC Conducted Emissions; Section 15.207................................................................................. 7 Figure 1. Conducted Emissions Test Setup.................................................................................... 9 10.2 Carrier Frequency Separation (Bluetooth)..................................................................................9 10.3 Number of Hopping Frequencies (Bluetooth) ........................................................................... 11 10.4 Time of Occupancy (Dwell Time for Bluetoth) .......................................................................... 11 10.5 Occupied Bandwidth (802.11) .................................................................................................. 12 10.6 Occupied Bandwidth (Bluetooth) .............................................................................................. 17 10.7 Peak Output Power .................................................................................................................. 20 10.7.1 Output Power (802.11 & Bluetooth) ................................................................................... 20 10.8 Power Spectral Density (802.11).............................................................................................. 21 10.9 Spurious RF Conducted Emissions.......................................................................................... 21 10.9.1 Spurious RF Conducted Emissions (802.11)..................................................................... 22 10.9.2 Spurious RF Conducted Emissions (Bluetooth)................................................................. 22 10.9.3 Band edge emissions (802.11) .......................................................................................... 24 10.9.4 Band edge emissions (Bluetooth) ...................................................................................... 26 10.10 Spurious Radiated Emissions ................................................................................................ 27 10.10.1 Radiated Emissions Field Strength Sample Calculation.................................................. 28 Figure 2. Drawing of Radiated Emissions Setup .......................................................................... 29 10.10.2 Spurious Radiated emissions results above 2 GHz......................................................... 29 10.10.2.1 Spurious Radiated Emissions Test Results (802.11) ................................................ 29 10.10.2.2 Spurious Radiated Emissions Test Results (Bluetooth)............................................ 30 10.10.3 Spurious Radiated Emissions Below 2 GHz (Bluetooth and 802.11) …

Text truncated - open the document above for the full version.

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Test Setup Photographs Photographs of Radiated Emissions Test Setup Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Photograph of Conducted Emissions Test Setup
