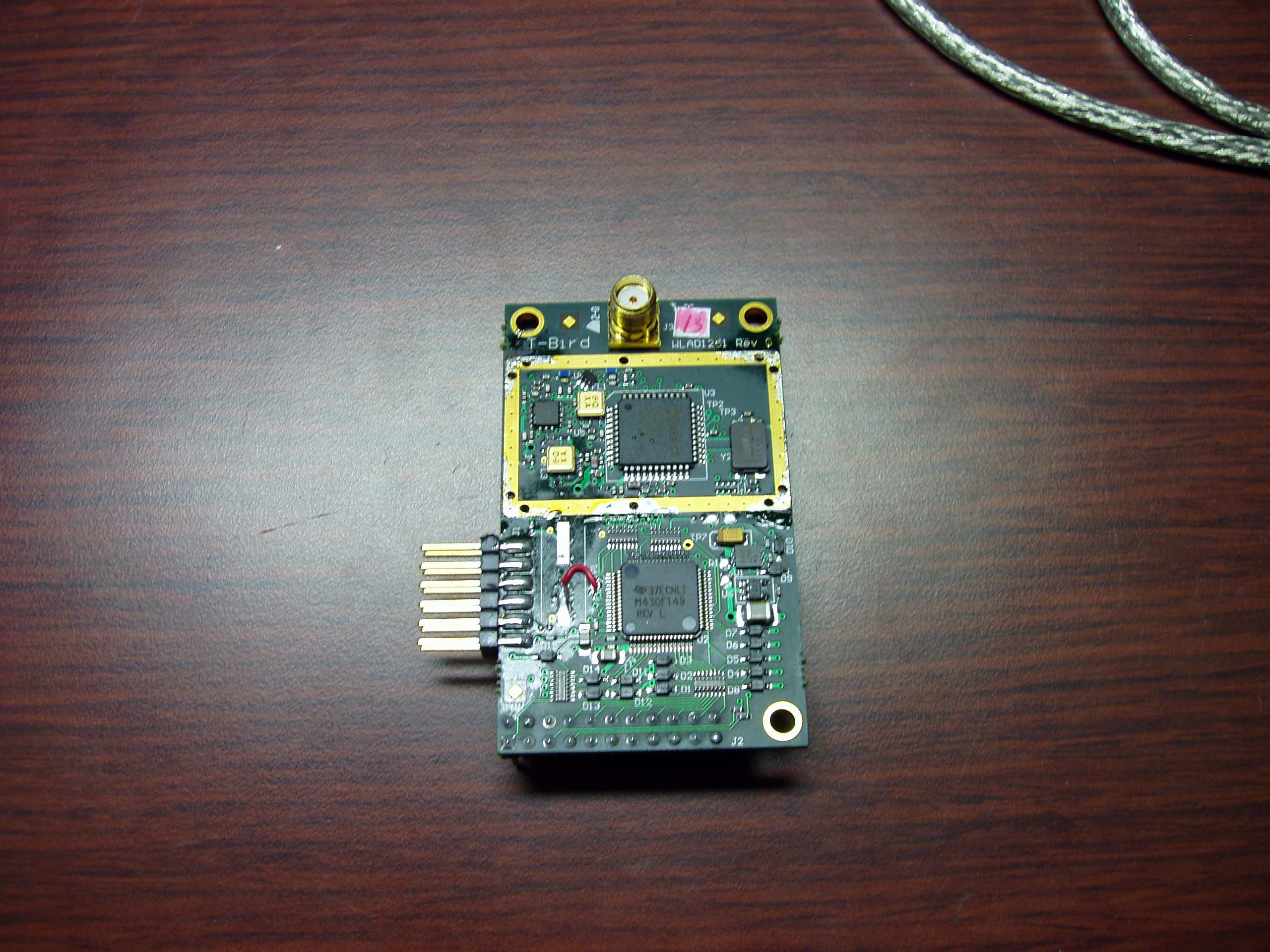

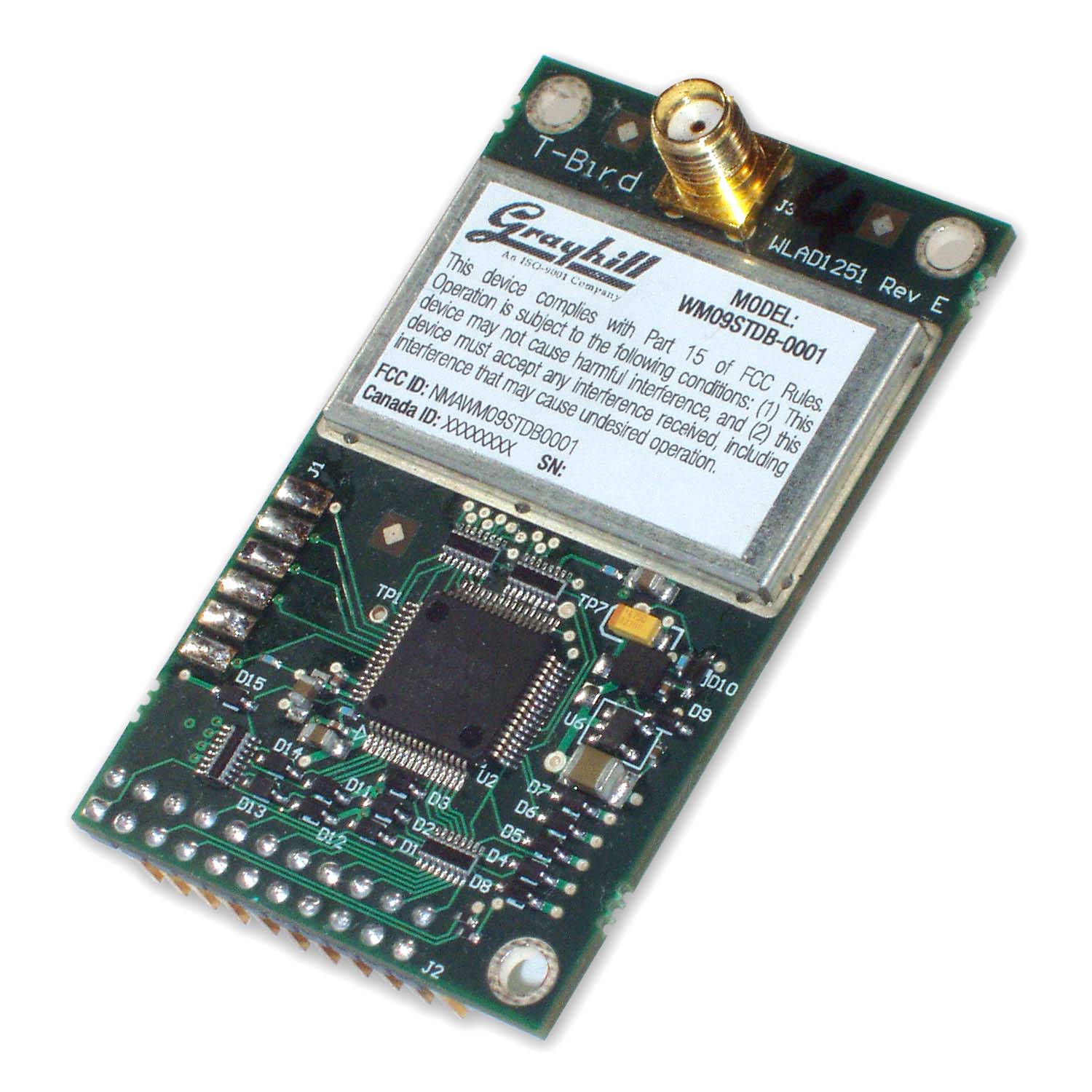

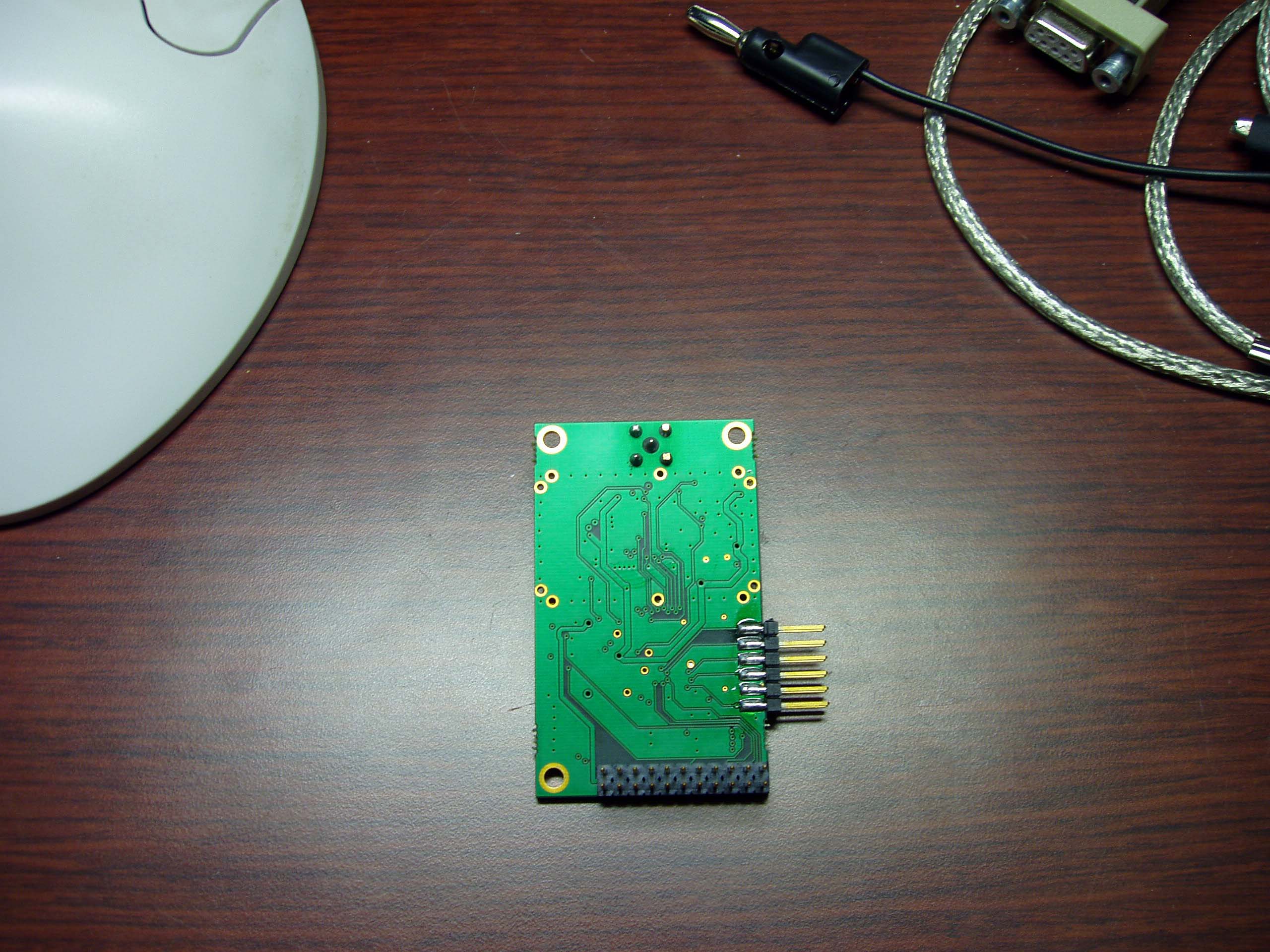

NMAWM09STDB0001Data Radio Module

Thunderbird Radio Product Guide v0.64 (Preliminary) Bulletin #1033 For Grayhill Part Numbers: OEM RF Unit - WM09STDB-0001 CF Card – WM09STDB-0002 561 Hillgrove Avenue LaGrange, IL 60525 Phone: (708) 354-1040 Fax: (708) 354-2820 E-mail: [email protected] On the Internet: http://www.grayhilloem.ccom EZCom Thunderbird Radio – Product Guide v0.64 © 2004 Grayhill, Inc., Confidential and Proprietary Page 2 Copyright © 2004 Grayhill, Inc. All rights reserved. The information supplied in this manual is believed to be reliable and accurate at the time of its publication. Grayhill, Inc. assumes no responsibility for any errors, omissions, or suitability of its products for a particular application. Warranty EZCom Thunderbird radios from Grayhill, Inc., (the “Product”) are warranted against defects in materials and workmanship under normal use, for a period of 1 year from the date of purchase. This warranty does not apply to units that have been abused or stressed beyond the published environmental and electrical specifications. In the event of a product failure due to materials or workmanship, Grayhill will repair or replace the defective product. This warranty is limited to the original purchase price of the unit and does not cover installation, labor or any other contingent costs. For warranty service, return the defective product to Grayhill, shipping prepaid, for prompt repair or replacement. The foregoing sets forth the full extent of Grayhill’s warranties regard the Product. Repair or replacement at Grayhill’s option is the exclusive remedy. THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND GRAYHILL SPECIFICALLY DISCLAIMS ALL WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL GRAYHILL, ITS SUPPLIERS OR LICENSORS BE LIABLE FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, FOR ANY LOSS OF USE, LOSS OF TIME, INCONVENIENCE, COMMERCIAL LOSS, LOST PROFITS OR SAVINGS, OR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT, TO THE FULL EXTENT SUCH MAY BE DISCLAIMED BY LAW. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. THEREFORE, THE FOREGOING EXCLUSIONS MAY NOT APPLY IN ALL CASES. This warranty provides specific legal rights. Other rights which vary from state to state may also apply. Ordering Guide All programs and files on the CD included with this Product are protected by copyright. Grayhill, Inc. authorizes duplication of the contained programs and files as necessary for use by the licensee; however, general distribution of these programs and/or files is strictly forbidden without prior written consent from Grayhill, Inc. EZCom Thunderbird OEM RF Module WM09STDB-0001 EZCom Thunderbird CF Card WM09STDB-0002 Standard Interface Board WLYY4097-1 AC Power Supply for Interface Board WL-PWR-9V Product CD (contains Test File and Product Guide PDF) WL-WRD Evaluation Kit - 2 RF Modules, 2 Standard Interface Boards, 2 DB-9 Cables, 2 AC Adapters, 2 Whip Antennas, 1 CD WLYY4098-1 For antenna options other than a whip antenna, contact Grayhill for the currently available antenna/coax choices. EZCom Thunderbird Radio – Product Guide v0.64 © 2004 Grayhill, Inc., Confidential and Proprietary Page 3 Contents EZCom Thunderbird Introduction............................................................................................ 5 Application Use .......................................................................................................................................5 RF Module Features.................................................................................................................................5 Electrical and Mechanical Interfaces......................................................................................... 6 Connectors and Pinouts............................................................................................................................6 Antennas ..................................................................................................................................................9 Mechanical Interface.............................................................................................................................. 10 RF Module Mechanical Drawings ......................................................................................................... 10 RF Module 3-D Models ......................................................................................................................... 11 Standard Interface Board ......................................................................................................... 11 Setting the J5 Jumper ............................................................................................................................. 11 Connectors and Pinouts.......................................................................................................................... 12 Interface Board Mechanical Drawings ................................................................................................... 12 Interface Board 3-D Models................................................................................................................... 13 Serial Interface ....................................................................................................................................... 13 Configuration ............................................................................................................................. 14 AT Commands ....................................................................................................................................... 14 Binary Commands.................................................................................................................................. 15 Operation................................................................…

Text truncated - open the document above for the full version.

Thunderbird Radio Product Guide v0.70 (Preliminary) Bulletin #1033 For Grayhill Part Numbers: OEM RF Unit - WM09STDB-0001 CF Card – WM09STDB-0002 561 Hillgrove Avenue LaGrange, IL 60525 Phone: (708) 354-1040 Fax: (708) 354-2820 E-mail: [email protected] On the Internet: http://www.grayhilloem.com EZCom Thunderbird Radio – Product Guide v0.68 © 2004 Grayhill, Inc., Confidential and Proprietary Page 2 Copyright © 2004 Grayhill, Inc. All rights reserved. The information supplied in this manual is believed to be reliable and accurate at the time of its publication. Grayhill, Inc. assumes no responsibility for any errors, omissions, or suitability of its products for a particular application. Warranty EZCom Thunderbird radios from Grayhill, Inc., (the “Product”) are warranted against defects in materials and workmanship under normal use, for a period of 1 year from the date of purchase. This warranty does not apply to units that have been abused or stressed beyond the published environmental and electrical specifications. In the event of a product failure due to materials or workmanship, Grayhill will repair or replace the defective product. This warranty is limited to the original purchase price of the unit and does not cover installation, labor or any other contingent costs. For warranty service, return the defective product to Grayhill, shipping prepaid, for prompt repair or replacement. The foregoing sets forth the full extent of Grayhill’s warranties regard the Product. Repair or replacement at Grayhill’s option is the exclusive remedy. THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND GRAYHILL SPECIFICALLY DISCLAIMS ALL WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL GRAYHILL, ITS SUPPLIERS OR LICENSORS BE LIABLE FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, FOR ANY LOSS OF USE, LOSS OF TIME, INCONVENIENCE, COMMERCIAL LOSS, LOST PROFITS OR SAVINGS, OR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT, TO THE FULL EXTENT SUCH MAY BE DISCLAIMED BY LAW. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. THEREFORE, THE FOREGOING EXCLUSIONS MAY NOT APPLY IN ALL CASES. This warranty provides specific legal rights. Other rights which vary from state to state may also apply. Ordering Guide All programs and files on the CD included with this Product are protected by copyright. Grayhill, Inc. authorizes duplication of the contained programs and files as necessary for use by the licensee; however, general distribution of these programs and/or files is strictly forbidden without prior written consent from Grayhill, Inc. Grayhill Grayhill Product Part Number EZCom Thunderbird OEM RF ModuleWM09STDB-0001 EZCom Thunderbird CF CardWM09STDB-0002 Standard Interface BoardWLYY4097-1 AC Power Supply for Interface BoardWL-PWR-9V Product CD (contains Test File and Product Guide PDF)WL-WRD Evaluation Kit - 2 RF Modules, 2 Standard Interface Boards, 2 DB-9 Cables, 2 AC Adapters, 2 Whip Antennas, 1 CD WLYY4098-1 For antenna options other than a whip antenna, contact Grayhill for the currently available antenna/coax choices. Audience This manual provides a source for information about the Grayhill Thunderbird Radio Module. The information it provides is intended for qualified electrical personnel familiar with embedded device integration. EZCom Thunderbird Radio – Product Guide v0.68 © 2004 Grayhill, Inc., Confidential and Proprietary Page 3 Contents EZCom Thunderbird Introduction............................................................................................ 5 Application Use.......................................................................................................................................5 RF Module Features.................................................................................................................................5 Electrical and Mechanical Interfaces......................................................................................... 6 Connectors and Pinouts............................................................................................................................6 Antennas..................................................................................................................................................9 Mechanical Interface.............................................................................................................................. 10 RF Module Mechanical Drawings......................................................................................................... 10 RF Module 3-D Models......................................................................................................................... 11 Standard Interface Board......................................................................................................... 11 Setting the J5 Jumper............................................................................................................................. 11 Connectors and Pinouts.......................................................................................................................... 12 Interface Board Mechanical Drawings................................................................................................... 12 Interface Board 3-D Models................................................................................................................... 13 Serial Interface....................................................................................................................................... 13 Configuration............................................................................................................................. 14 AT Commands.........................................................................................................................…

Text truncated - open the document above for the full version.

561 Hillgrove Avenue • LaGrange, Illinois • 60525-5997 • U.S.A. Phone: (708) 354-1040 • Fax: (708) 354-2820 • http://www.grayhill.com F C C CONFIDENTIALITY Date: 8/7/2004 To: FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Non-disclosure for FCC ID: NMA-WM09STDB0001. To Whom It May Concern: Pursuant to 47 CFR Section 0.459, Grayhill Inc. hereby requests non disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID # NMA-WM09STDB0001. a. Schematic Diagrams b. Operational Description c. Block Diagrams Above materials contain trade secrets, proprietary and technical information which would customarily be guarded from competitors under 47 CFR section 0.457(d)(2). Disclosure or publication of any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Grayhill Inc. understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Sincerely yours, Chris Anderson, Staff RF Engineer Grayhill Inc.

LCR Label and Material Composition Product Data DAIRY LABEL/DL-50/40# FS FACESTOCK FM Litho: A medium gloss bleached hardwood and softwood kraft stock that is super-calendered and coated one side for high internal strength. Basis Weight: 60# per ream + 10% Tensile: MD 27# per inch width {500 sheets 25” x 38”} CD 13# per inch width Caliper: 0.0034 inches + 10% Tear: MD 45 grams per sheet CD 50 grams per sheet ADHESIVE DL-50 is a permanent adhesive specifically formulated and designed for adhesion to HDPE (high density polyethylene) milk jugs and other applications with similar surfaces. Minimum Application Temperature: +25∞F Type: Hot Melt Rubber Service Temperature Range: -65∞F to +160∞F LINER 40# FS: A bleached supercalendered kraft stock featuring high internal strength, toughness and tear resistance. Basis Weight: 41# per ream + 10% Tensile: MD 35# per inch width {500 sheets 24” x 36”} CD 16# per inch width Caliper: 0.0025 inches + 10% Tear: MD 35 grams per sheet CD 45 grams per sheet TOTAL CONSTRUCTION CALIPER: 0.0066 inches + 10% SHELF LIFE: One year when stored at 72∞F/50% R.H. As with all pressure-sensitive materials, this product should be tested thoroughly under end-use conditions to make sure it meets the requirements of the specific application. FCC ID: NMAWM09STDB0001 Canada ID: XXXXXXXX SN: MODEL: WM09STDB-0001 This device complies with Part 15 of FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

1 FCC part 15 testing for Grayhill Inc. Model: WM09STDB-0001 FCC ID: NMA-WM09STDB0001 731 conf # EA173502 • REMITTANCE ID NUMBER: 582457 • AUTHORIZATION NUMBER: 145746 GRANTEE: Grayhill Inc. 561 Hillgrove Avenue LaGrange, IL 60525-5997 FRN: 0004277307 TEST SITE: Grayhill Inc. Radiometrics Midwest Corp. 561 Hillgrove Avenue & 12 E. Devonwood LaGrange, IL 60525-5997 Romeoville, IL 60446 FINAL TEST DATE: September 6 th 2004 REPORT DATE: September 10 th 2004 TEST ENGINEERS: Chris Anderson & Joe Strzelecki 2 RF Exposure Limits The product manual states: “In general antennas used with this radio device must be greater than 20 cm away from human exposure to ensure compliance with FCC RF exposure limitations. Specific antennas as listed in this manual are the only exceptions and only at the distances listed. Other antenna systems may be able to be accommodated but will require analysis and perhaps testing by Grayhill to ensure compliance with FCC RF exposure limitations.” This section demonstrates the Maximum Permissible Exposure (MPE) Calculation required for an Intentional Radiator equipment authorization based on the worst case antenna permitted by the maximum EIRP rule. The following MPE calculation is done assuming the highest gain antenna, the 10.41dBi patch antenna, and a distance of 20 cm Transmitter power: 23.5 dBm Coax loss: 0 dB Max peak power at antenna input terminal: 23.5 dBm Max peak power at antenna input terminal: 223.87 mW Max transmit duty cycle: 50 % (Max peak power)(duty cycle): 111.93 mW Antenna gain: 11.51 dBi Antenna gain: 14.16 numeric Prediction distance: 20 cm Prediction frequency: 915 MHz MPE limit for uncontrolled exposure at prediction frequency: 0.61 mW/cm2 Power density at prediction frequency: 0.315 mW/cm2 Margin of compliance at 20 cm: 17.24 dB For use in small devices which may be closer than 20cm to the human body, only the lower gain antennas are allowed. The worst case of these is the PCB printed dipole with a gain of 2.5dBi. Transmitter power: 23.5 dBm Coax loss: 0 dB Max peak power at antenna input terminal: 23.5 dBm Max peak power at antenna input terminal: 158.49 mW Max transmit duty cycle: 50 % (Max peak power)(duty cycle): 111.93 mW Antenna gain: 2.5 dBi Antenna gain: 1.778 numeric Prediction distance: 5 cm Prediction frequency: 915 MHz MPE limit for uncontrolled exposure at prediction frequency: 0.61 mW/cm2 Power density at prediction frequency: 0.633 mW/cm2 Margin of compliance at 20 cm: 2.17 dB

1 FCC part 15 testing for Grayhill Inc. Model: WM09STDB-0001 FCC ID: NMA-WM09STDB0001 731 conf # EA173502 • REMITTANCE ID NUMBER: 582457 • AUTHORIZATION NUMBER: 145746 GRANTEE: Grayhill Inc. 561 Hillgrove Avenue LaGrange, IL 60525-5997 FRN: 0004277307 TEST SITE: Grayhill Inc. Radiometrics Midwest Corp. 561 Hillgrove Avenue & 12 E. Devonwood LaGrange, IL 60525-5997 Romeoville, IL 60446 FINAL TEST DATE: September 6 th 2004 REPORT DATE: September 10 th 2004 TEST ENGINEERS: Chris Anderson & Joe Strzelecki 2 RF Exposure Limits The product manual states: “In general antennas used with this radio device must be greater than 20 cm away from human exposure to ensure compliance with FCC RF exposure limitations. Specific antennas as listed in this manual are the only exceptions and only at the distances listed. Other antenna systems may be able to be accommodated but will require analysis and perhaps testing by Grayhill to ensure compliance with FCC RF exposure limitations.” This section demonstrates the Maximum Permissible Exposure (MPE) Calculation required for an Intentional Radiator equipment authorization based on the worst case antenna permitted by the maximum EIRP rule. The following MPE calculation is done assuming the highest gain antenna, the 10.41dBi patch antenna, and a distance of 20 cm Transmitter power: 23.5 dBm Coax loss: 0 dB Max peak power at antenna input terminal: 23.5 dBm Max peak power at antenna input terminal: 223.87 mW Max transmit duty cycle: 50 % (Max peak power)(duty cycle): 111.93 mW Antenna gain: 11.51 dBi Antenna gain: 14.16 numeric Prediction distance: 20 cm Prediction frequency: 915 MHz MPE limit for uncontrolled exposure at prediction frequency: 0.61 mW/cm2 Power density at prediction frequency: 0.315 mW/cm2 Margin of compliance at 20 cm: 17.24 dB For use in small devices which may be closer than 20cm to the human body, only the lower gain antennas are allowed. The worst case of these is the PCB printed dipole with a gain of 2.5dBi.

1 FCC part 15 testing for Grayhill Inc. Model: WM09STDB-0001 FCC ID: NMA-WM09STDB0001 731 conf # EA173502 • REMITTANCE ID NUMBER: 582457 • AUTHORIZATION NUMBER: 145746 GRANTEE: Grayhill Inc. 561 Hillgrove Avenue LaGrange, IL 60525-5997 FRN: 0004277307 TEST SITE: Grayhill Inc. Radiometrics Midwest Corp. 561 Hillgrove Avenue & 12 E. Devonwood LaGrange, IL 60525-5997 Romeoville, IL 60446 FINAL TEST DATE: September 6 th 2004 REPORT DATE: September 10 th 2004 TEST ENGINEERS: Chris Anderson & Joe Strzelecki 2 Table of Contents LIST OF TESTED ANTENNA CONFIGURATIONS............................................................................. 3 CONDUCTED AC EMISSION SCAN §15.207(A) ................................................................................ 4 PROVISIONS FOR FREQUENCY HOPPING ...................................................................................... 5 Carrier Frequency Separation: .............................................................................................................................................................. 5 Number of hopping frequencies: ............................................................................................................................................................ 6 Time of Occupancy (Dwell Time):.......................................................................................................................................................... 7 20 dB Bandwidth: .................................................................................................................................................................................... 8 Results ....................................................................................................................................................................................................... 8 CONDUCTED OUTPUT POWER MEASUREMENT §15.247(B)(1)..................................................... 9 CONDUCTED SPURIOUS EMISSIONS .............................................................................................. 9 RADIATED EMISSIONS IN RESTRICTED BANDS 30MHZ – 10GHZ §15.247(C), 15.209(A).......... 11 3 List of Tested Antenna Configurations For the purpose of calculating max EIRP we will assume cable loss = 0dB and the device transmit power 23.5dBm the antenna port. Antenna Type Mfg Mfg PN Gryahill PN Gain (dBd) Gain (dBi) EIRP (dBm) Yagi Maxrad BMOY8905 WL-ANT-Y9A 9 11.51 35.01 Yagi LM BYSS-090-09-01 WL-ANT-Y9LA 9 11.51 35.01 Patch LM BPAS85-090-08-11SW WL-ANT-P9LA 8 10.51 34.01 Patch Maxrad MP8068 WLHH1434-1 7.9 10.41 33.91 Omni Maxrad MFB9157 WL-ANT-MN7A 7 9.51 33.01 Omni Maxrad MFB9153 WLHH1230-1 3 5.51 29.01 Whip Maxrad MEXE902 WL-ANT-W9MA0 2.51 26.01 Whip Grayhill ¼ Wave WLHH1457-1 WLHH1457-1 -2.5 0.01 23.51 PCB Dipole Centurion Revie PRO 01HH5222-2 0 2.51 26.01 The Omni and Patch antennas were selected as being worst case examples of these antenna types. Other antennas tested were to get a good spread of data. Test Setup Description All tests were performed with the radio mounted on an interface board that converted the native 3.3V CMOS serial signals to RS-232 level signals to interface with a laptop computer used to control the radio. The laptop was attached to configure the radio for each test, then removed from the test setup. Power was supplied by a 9V CUI wall mounted transformer. Test Summary FCC Section(s) Test Requirements Compliance(Yes/No) 15.107(a) AC Power Line Conducted Emissions Measurements Yes 15.247(a)(1) & Provisions for Frequency Hopping Yes 15.247(a)(2) 15.247(b) Peak Output Power Yes 15.247(b)(5), RF Exposure Limit Yes 1.1307, 1.1310, 2.1091 & 2.1093 15.247(c) Band-Edge and RF Conducted Spurious Emissions at the Antenna Terminal Yes 15.247(c), 15.209 Transmitter Spurious Radiated Emissions Yes & 15.205 4 Conducted AC Emission Scan §15.207(a) Grayhill Inc. has it’s own conducted emissions test setup accredited by A2LA to ISO17025. The lab is also registered to ISO9001 by BVQI. Figure 1 shows the AC conducted emissions sweep with a PC generating transmit traffic to exercise the radio. Figure 1 Conducted Emissions 5 Provisions for Frequency Hopping Carrier Frequency Separation: The hopping function of the EUT is enabled. Use the spectrum analyzer setting as follows: 1. Span = wide enough to capture the peaks of two adjacent channels 2. RBW = 1% of the span 3. VBW > RBW 4. Sweep = Auto 5. Detector = peak 6. Trace = max hold Figure 2 shows 2 complete and 2 partial modulated signals. The markers have been set at the same point on each modulated signal and as the picture shows, the channels are 393kHz apart. Figure 2 Channel Spacing 6 Number of hopping frequencies: The hopping function of the EUT is enabled. Use the spectrum analyzer setting as follows: 1. Span = the frequency band of operation 2. RBW = 1% of the span 3. VBW > RBW 4. Sweep = Auto 5. Detector = peak 6. Trace = max hold For this frequency plan, the 915MHz ISM band is cut up into 67 channels. The top and bottom channels are not used to avoid interference with adjacent bands. The hopset shown in Figure 3 is the default hopset as the radios are shipped. The hopset is the following channel, in this order: 30, 32, 19, 55, 10, 39, 46, 20, 54, 58, 64, 22, 7, 38, 1, 42, 41, 26, 40, 8, 24, 0, 33, 2, 45 Figure 3 Number of Hop Channels 7 Time of Occupancy (Dwell Time): The hopping function of the EUT is enabled. Use the spectrum analyzer setting as follows: 1. Span = 0 Hz centered on a hopping channel 2. RBW = 1 MHz 3. VBW > RBW 4. Sweep = as necessary to capture the entire dwell time per hopping channel 5. Detector = peak 6. Trace = max hold The max dwell time for this radio is dictated by the max packet size, which is fixed at 35 bytes. Shorter packets can happen but only 1 packet is allowed on a given channel, no matter what length the packet is. The image below shows the longest packet is on channel for 200ms. Each channel in the hopset is used only once each pass…

Text truncated - open the document above for the full version.

Radiometrics Midwest Corporation (815) 293-0772 – www.radiomet.com Page 1 of 21 Electromagnetic Compatibility Test Report Tests Performed on a Grayhill, Inc. Transmitter Module, Model Tbird Radiometrics Document RP-5304 Product Detail: FCC ID: NMA-WM09STDB0001 Equipment type: 903 to 927 MHz Frequency Hopping Transmitter Test Standards: US CFR Title 47, Chapter I, FCC Part 15 Subpart C FCC Part 15 CFR Title 47: 2002 This report concerns: Original Grant for Certification FCC Part 15.247 Tests Performed For: Test Facility: Grayhill, Inc. 561 Hillgrove Ave. La Grange, IL 60525-5997 Radiometrics Midwest Corporation 12 East Devonwood Romeoville, IL 60446 Phone: (815) 293-0772 e-mail: [email protected] Test Date(s): (Month-Day-Year) August 13 through 23, 2004 Document RP-5304 Revisions: Rev. Issue Date Affected Pages Revised By Authorized Signature for Revision 0 September 8, 2004 RADIOMETRICS MIDWEST CORPORATION - EMC Test Report Testing of the Grayhill, Inc., Model Tbird, Transmitter Module RP-5304 Rev. 0 Page 2 of 21 Table of Contents 1 ADMINISTRATIVE DATA ................................................................................................................... 3 2 TEST SUMMARY AND RESULTS .....................................................................................................3 3 EQUIPMENT UNDER TEST (EUT) DETAILS .................................................................................... 3 3.1 EUT Description ........................................................................................................................... 3 3.1.1 FCC Section 15.203 & RSS-210 Section 5.5 Antenna Requirements ................................... 3 3.2 Related Submittals ....................................................................................................................... 4 4 TESTED SYSTEM DETAILS .............................................................................................................. 4 4.1 Tested System Configuration ....................................................................................................... 4 4.2 Special Accessories ..................................................................................................................... 5 4.3 Equipment Modifications .............................................................................................................. 5 5 TEST SPECIFICATIONS AND RELATED DOCUMENTS.................................................................. 5 6 RADIOMETRICS’ TEST FACILITIES .................................................................................................5 7 DEVIATIONS AND EXCLUSIONS FROM THE TEST SPECIFICATIONS......................................... 6 8 CERTIFICATION ................................................................................................................................ 6 9 TEST EQUIPMENT TABLE ................................................................................................................ 6 10 TEST SECTIONS ............................................................................................................................. 7 10.1 Spurious Radiated Emissions .................................................................................................... 7 10.1.1 Radiated Emissions Field Strength Sample Calculation...................................................... 7 Figure 1. Drawing of Radiated Emissions Setup ............................................................................ 8 10.1.2 Spurious Radiated Emissions Test Results (Restricted Band) ............................................ 8 Notice: This report must not be reproduced (except in full) without the written approval of Radiometrics Midwest Corporation. RADIOMETRICS MIDWEST CORPORATION - EMC Test Report Testing of the Grayhill, Inc., Model Tbird, Transmitter Module RP-5304 Rev. 0 Page 3 of 21 1 ADMINISTRATIVE DATA Equipment Under Test: A Grayhill, Inc., Transmitter Module Model: Tbird, Serial Number: e This will be referred to as the EUT in this Report Date EUT Received at Radiometrics: (Month-Day-Year) Test Date(s): (Month-Day-Year) August 12, 2004 August 13 through 23, 2004 Test Report Written By: Test Witnessed By: Joseph Strzelecki Senior EMC Engineer NARTE EMC-000877-NE Chris Anderson Grayhill, Inc. Radiometrics’ Personnel Responsible for Test: Test Report Approved By Joseph Strzelecki Senior EMC Engineer NARTE EMC-000877-NE Chris W. Carlson Director of Engineering NARTE EMC-000921-NE 2 TEST SUMMARY AND RESULTS The EUT (Equipment Under Test) is a Transmitter Module, Model Tbird, manufactured by Grayhill, Inc. The detailed test results are pr…
