NMAM1YY10232Industrial Handheld Computer

Product Reference Guide © 2007 Grayhill, Inc. | Proprietary Content | All Rights Reserved DuraMax-HG Rugged Handheld Quick Reference Guide V 0.05 | Bulletin XXXX | Effective Spring 2007 Grayhill Part Number: M1YY1023 561 Hillgrove Avenue LaGrange, IL 60525 Phone: (708) 354-1040 Fax: (708) 354-2820 On the Internet: http://www.grayhill.com/CustomMobile Product Reference Guide © 2007 Grayhill, Inc. | Proprietary Content | All Rights Reserved Copyright © 2007 Grayhill, Inc. All rights reserved. The information supplied in this manual is believed to be reliable and accurate at the time of its publication. Grayhill, Inc. assumes no responsibility for any errors, omissions, or the suitability of its product(s) for a particular application. Warranty Industrial Handheld Computers from Grayhill, Inc., (i.e., “Product”) are warrantied against defects in materials and workmanship under normal use, for a period of 1 year from the date of purchase. This warranty does not apply to units that have been abused or stressed beyond the published environmental and electrical specifications. In the event of a product failure due to materials or workmanship, Grayhill will repair or replace the defective product. This warranty is limited to the original purchase price of the unit and does not cover installation, labor or any other contingent costs. For warranty service, return the defective product to Grayhill, shipping prepaid, for prompt repair or replacement. The foregoing sets forth the full extent of Grayhill’s warranties regarding the Product. Repair or replacement at Grayhill’s option is the exclusive remedy. THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED; AND GRAYHILL SPECIFICALLY DISCLAIMS ALL WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL GRAYHILL, ITS SUPPLIERS OR LICENSORS BE LIABLE FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT; FOR ANY LOSS OF USE; LOSS OF TIME; INCONVENIENCE; COMMERCIAL LOSS; LOST PROFITS OR SAVINGS; OR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT, TO THE FULL EXTENT SUCH MAY BE DISCLAIMED BY LAW. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. THEREFORE, THE FOREGOING EXCLUSIONS MAY NOT APPLY IN ALL CASES. This warranty provides specific legal rights. Other rights, which vary from state to state, may also apply. Ordering Guide All programs and files on the CD included with this Product are protected by copyright. Grayhill, Inc. authorizes duplication of the contained programs and files as necessary for use by the licensee; however, general distribution of these programs and/or files is strictly forbidden without prior written consent from Grayhill, Inc. Grayhill ProductGrayhill Part Number Rugged Mobile Handheld QVGA Display GPS, BlueTooth, IP67M1YY1023-2 Rugged Mobile Handheld QVGA Display GPS, Barometer, Compass, 802.11, BlueTooth, IP67M1YY1023-3 Handheld Lithium Ion Battery 10.5WhrM1YY1020-8 Handheld Lithium Polymer Battery 15.5WhrM1YY1020-3 Charging Cable with USB Host and USB Client Snap VersionM1HH4151-1 Charging Cable with USB Host, USB Client, and RS-232 Snap VersionM1HH4151-3 Auto Cable01YY5061-2 USB To Serial Adapter01YY5062-1 Evaluation Kit – 1 Handheld QVGA Display (M1YY1023-3) DURAMAXEVT35HG 1 Handheld Lithium Ion Battery (M1YY1020-3) 1 Handheld Product CD 1 Charging cable (M1HH4152-1) 1 Stylus Audience This manual is designed to be a quick reference resource for the Grayhill Handheld. The information it provides is intended for qualified electrical personnel familiar with installing, programming, and maintaining industrial networks and industrial automation. 1 Product Reference Guide © 2007 Grayhill, Inc. | Proprietary Content | All Rights Reserved Table of Contents Warranty .................................................................................................................................................................... 1 Introduction................................................................................................................................................................ 3 Summary of Features .................................................................................................................................................................... 3 Typical Uses.................................................................................................................................................................................. 3 Handheld Product Components ..................................................................................................................................................... 3 Evaluation Kit Contents ................................................................................................................................................................ 5 Setting Up the Handheld ............................................................................................................................................ 4 Charge the Handheld ..................................................................................................................................................................... 4 Turn On the Handheld................................................................................................................................................................... 5 Align the Handheld Touch Screen................................................................................................................................................. 6 Resetting........................................................................................................................................................................................ 6 Using the Handheld................................................................................................................................…

Text truncated - open the document above for the full version.

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] External EUT Photographs 1 FRONT OF EUT 2 BOTTOM OF EUT: COVER OPEN 3 TOP OF EUT: COVER OPEN Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] 4 BACK OF EUT 5 LEFT SIDE OF EUT 6 RIGHT SIDE OF EUT: GPS PORT COVER OPEN

DuraMaxHG M1YY1023-2 Label Placement (with UL & CE logos) Label Specifications: • Material: Metallized Polyester(2 mill thick) • Color: Silver with black text • Adhesive: Permanent Acrylic PSA (1 mil thick) Label Specifications:• Material: Metallized Polyester(2 mill thick) • Color: Silver with black text • Adhesive: Permanent Acrylic PSA (1 mil thick) DuraMaxHG M1YY1023-2 Label Placement (without UL & CE logos)

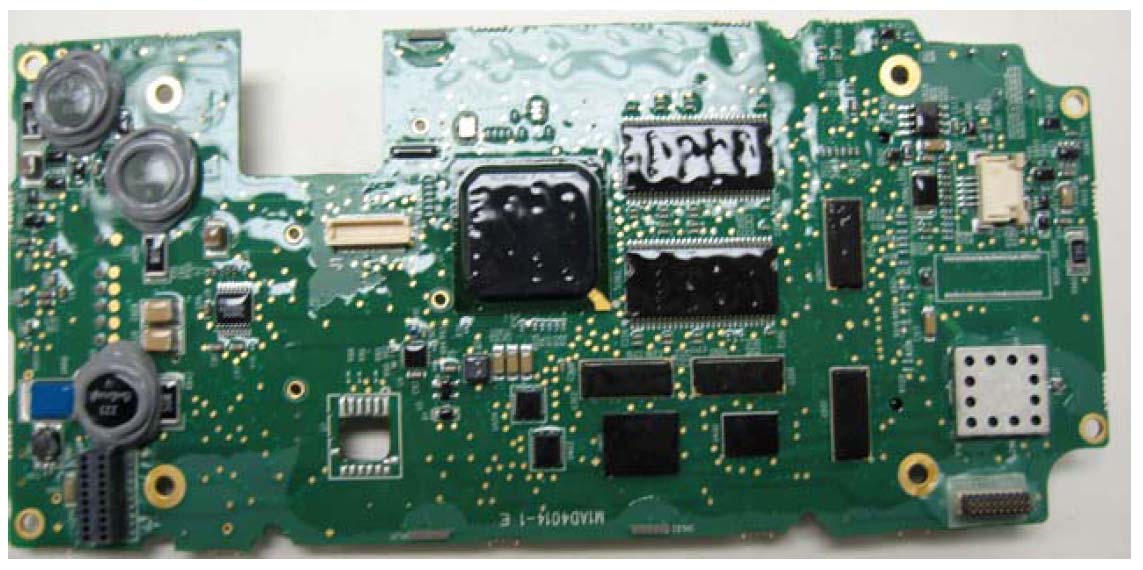

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Internal EUT Photographs Photograph of EUT showing Antenna Placement Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Photographs of Bluetooth Module Photographs of Main Processor Board Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected]

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] RF Exposure This calculation is based on the highest EIRP possible from the Remote or the Base considering maximum power and antenna gain. The following formulas were used: The highest output power of the EUT is 1.7 mW and the gain of the antenna is 0 dBi 1 MINIMUM SEPARATION DISTANCE PER OET 65 The following information provides the minimum separation distance for the EUT, as calculated from FCC OET 65 Appendix B, Table 1B “Guidelines for General Population/Uncontrolled Exposure” SMaximum AntennaMSD Freq.GP limitRF power GainEIRPEIRPd MHzmW/cm^2 dBmdBdBmwattsmeters 248012.402.40.0017 0.0037 GP is the limit for general Population/Uncontrolled Exposure MSD is the minimum Seperation Distance Notes on above table. (S) GP limit is from OET 65 table 1B EIRP = Power in dBm + Antenna Gain in dBi MSD (Minimum Separation Distance) = ((EIRP*30)/3770*S))^0.5 NOTE: For mobile or fixed location transmitters, minimum separation distance is 20 cm, even if calculations indicate MPE distance is less The low threshold for a device operated within 2.5 cm from human body is 60/(f GHz) = 60/2.440 = 24.59 mw Since this device has a power which is lower than 24.59 mw, no SAR is required.

Radiometrics Midwest Corporation (815) 293-0772 – www.radiomet.com Page 1 of 25 Electromagnetic Compatibility Test Report Tests Performed on a Grayhill, Inc. Industrial Handheld Computer, Model M1YY1023-2 Radiometrics Document RP-6142A Product Detail: FCC ID: NMAM1YY10232 Industry Canada ID: 2972A-M1Y10232 Equipment type: 2.4 GHz Spread Spectrum Transmitter Test Standards: US CFR Title 47, Chapter I, FCC Part 15 Subpart C FCC Part 15 CFR Title 47: 2006 Industry Canada RSS-210, Issue 7 as required for Category I Equipment This report concerns: Original Grant for Certification FCC Part 15.247 Tests Performed For: Test Facility: Grayhill, Inc. 561 Hillgrove Rd. LaGrange, IL 60525 Radiometrics Midwest Corporation 12 East Devonwood Romeoville, IL 60446 Test Date(s): (Month-Day-Year) September 13 thru November 8, 2007 Document RP-6142A Revisions: Rev. Issue Date Affected Pages Revised By 0 November 1, 2007 1 November 8, 2007 1 to 7 and 12 to 25 Joseph Strzelecki 2 November 9, 2007 3, 4, and 6 Joseph Strzelecki RADIOMETRICS MIDWEST CORPORATION - EMC Test Report Testing of the Grayhill, Inc. Industrial Handheld Computer, Model M1YY1023-2, RP-6142A Rev. 2 Page 2 of 25 Table of Contents 1 ADMINISTRATIVE DATA ................................................................................................................... 3 2 TEST SUMMARY AND RESULTS .....................................................................................................3 2.1 RF Exposure Compliance Requirements ..................................................................................... 4 3 EQUIPMENT UNDER TEST (EUT) DETAILS .................................................................................... 4 3.1 EUT Description ........................................................................................................................... 4 3.2 Related Submittals ....................................................................................................................... 4 4 TESTED SYSTEM DETAILS .............................................................................................................. 4 4.1 Tested System Configuration ....................................................................................................... 4 4.2 Special Accessories ..................................................................................................................... 5 4.3 Equipment Modifications .............................................................................................................. 5 5 TEST SPECIFICATIONS AND RELATED DOCUMENTS.................................................................. 5 6 RADIOMETRICS’ TEST FACILITIES .................................................................................................5 7 DEVIATIONS AND EXCLUSIONS FROM THE TEST SPECIFICATIONS......................................... 6 8 CERTIFICATION ................................................................................................................................ 6 9 TEST EQUIPMENT TABLE ................................................................................................................ 6 10 TEST SECTIONS ............................................................................................................................. 7 10.1 AC Conducted Emissions; Section 15.207................................................................................. 7 Figure 1. Conducted Emissions Test Setup.................................................................................... 9 10.2 Carrier Frequency Separation .................................................................................................... 9 10.3 Number of Hopping Frequencies .............................................................................................11 10.4 Time of Occupancy .................................................................................................................. 13 10.5 Occupied Bandwidth ................................................................................................................ 14 10.6 Peak Output Power .................................................................................................................. 17 10.6.1 Output Power ..................................................................................................................... 17 10.7 Spurious RF Conducted Emissions.......................................................................................... 18 10.7.1 Spurious RF Conducted Emissions ................................................................................... 18 10.7.2 Band edge emissions......................................................................................................... 20 10.8 Spurious Radiated Emissions .................................................................................................. 21 10.8.1 Radiated Emissions Field Strength Sample Calculation.................................................... 22 Figure 2. Drawing of Radiated Emissions Setup .......................................................................... 23 10.8.2 Spurious Radiated emissions results above 2 GHz........................................................... 24 10.8.3 Spurious Radiated Emissions Below 2 GHz ...................................................................... 25 Notice: This report must not be reproduced (except in full) without the written approval of Radiometrics Midwest Corporation. RADIOMETRICS MIDWEST CORPORATION - EMC Test Report Testing of the Grayhill, Inc. Industrial Handheld Computer, Model M1YY1023-2, RP-6142A Rev. 2 Page 3 of 25 1 ADMINISTRATIVE DATA Equipment Under Test: A Grayhill, Inc., Industrial Handheld Computer Model: M1YY1023-2, Serial Number: M1YY1021-2QVGA This will be referred to as the EUT in this Report Date EUT Received at Radiometrics: (Month-Day-Year) Test Date(s): (Month-Day-Year) September 13…

Text truncated - open the document above for the full version.

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Test Setup Photographs Photograph of Radiated Emissions Test Setup Photographs of Conducted Emissions Test Setup Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected]
