NMTAD202Bike Speed / Cadence Sensor (2.4GHz ANT+)

Bike pod Model: AD202 The AD202 bike pod is equipped with the latest 2.4GHz ANT+ Sports System to achieve reliable transmission linkage with other devices. PACKAGE ITEMS The package should include the following items: • 1 x AD202 bike pod and cushion • 1 x magnet (plastic base) • 1 x magnet (with screw) • 6 x nylon cable ties • 1 x CR2032 3V lithium batteries (already installed in bike pod) SELECT MEASURMENT MODE This bike pod measures speed and cadence. First decide what you wish to measure as the positioning of the bike pod depends on the chosen measurement mode. To select measurement mode (speed / cadence): 1. Use a coin to open the battery compartment lid by turning it anticlockwise. 2. Remove the battery. 3. Slide switch to select SPEED or CADENCE (refer to markings on the unit). 4. Put battery back into place. 5. Secure the lid by turning clockwise. 6. Insert sensor into the provided cushion to help achieve a better grip on the bicycle. INSTALLING THE BIKE POD SPEED 1. Position sensor onto one side of the bicycle fork, with logo visible. 2. Thread a nylon cable tie through each of the holes on the sensor. Loop cable tie around the bicycle fork, then thread the end through the opening and past the ratchet. Pull to secure into place. TIP Cut away unnecessary cable tie to avoid it being caught in the wheel while in motion. 3. Unscrew magnet and press slot onto spoke, with flat magnet surface facing sensor. 4. Using the alignment notch as a guide, position magnet so that it will pass the sensor at the correct position. Screw into place. NOTE Improper alignment may affects sensor’s performance. CADENCE 1. Choose the crank arm which is not on the same side as the chain ring. Place magnet (with plastic base) onto the crank arm of the pedal, making sure the magnet faces the chain ring. 2. Thread a nylon cable tie through each of the holes on the sensor. Loop cable tie around the crank arm then thread the end through the opening and past the ratchet. Pull to secure into place. 3. Using the alignment notch as a guide, position sensor on any bar which is along the magnet’s path. 4. With the battery compartment facing the magnet, thread a nylon cable tie through each hole on the sensor. Loop cable tie around the bar then thread the end through the opening and past the ratchet. Pull to secure into place. NOTE Improper alignment may affects sensor’s performance. TIP Cut away unnecessary cable tie to avoid it being caught in the wheel while in motion. PAIRING DEVICE The AD202 can be paired with your heart rate monitor (watch) or sports accessory to provide speed / cadence readings. The bike pod has a maximum transmission range of about 62.5 centimeters (25 inches). To pair with Oregon Scientific heart rate monitors that use the 2.4GHz ANT+ Sports System, please refer to below pairing instructions. To pair with sports accessories or heart rate monitors of another make, please refer to manufacturer’s instructions. PAIR WITH OREGON SCIENTIFIC SPORTS ACCESSORIES / HEART RATE MONITORS NOTE While pairing, make sure to stay away from other devices and move the device to pair close to the watch. 1. Press MODE repeatedly to select . The watch will show how many and which devices are paired (if any). If no device is paired, the watch will show “0 DEVICE PAIRED”. 2. Press SET to enter “PAIR DEVICE?”. Press SET to start pairing. When the bike pod is paired successfully, the watch will display NOTE If pairing is weak and unstable: • Shorten the distance between the device and watch. • Re-adjust the position of the device. • Check the batteries. Replace them when necessary. If the watch is already paired with a bike pod, you have to first delete the bike pod before you are able to pair with another bike pod. INPUT BIKE WHEEL SIZE NOTE The watch will not show “WHEEL SIZE” if no bike pod is paired. If your watch is paired with bike pod, the watch will prompt you to input the wheel size values. Go directly to step 5. For normal setting procedure, start with step 1. 1. Press MODE repeatedly to select . 2. Press SET. 3. Press ST/LAP/+ repeatedly to select “WHEEL SIZE”. 4. Press SET. 5. Input the bike wheel size by pressing ST/LAP/+ to increase values or -/SP to decrease values. 6. Press SET to confirm. BIKE WHEEL SIZE Match the ETRTO or wheel size diameter printed on the wheel with the wheel size setting at the right hand column of the table below. Input the relevant wheel size setting number after bike pod is paired. ETRTO Wheel size diameter (inches) Wheel size setting (mm) 25-559 26 x 1.0 1884 23-571 650 x 23C 1909 35-559 26 x 1.50 1947 37-622 700 x 35C 1958 47-559 26 x 1.95 2022 20-622 700 x 20C 2051 52-559 26 x 2.0 2054 23-622 700 x 23C 2070 25-622 700 x 25C 2080 28-622 700 x 28 2101 32-622 700 x 32C 2126 42-622 700 x 40C 2189 47-622 700 x 47C 2220 NOTE Wheel sizes on this table are for reference only as wheel size depends on the wheel type and air pressure. REMOVE PAIRED DEVICE NOTE The watch will not show “DEVICE REMOVE” if no device is paired. 1. Press MODE repeatedly to select . 2. Press SET. 3. Press ST/LAP/+ repeatedly to select “DEVICE REMOVE?”. 4. Press SET. 5. Press ST/LAP/+ to select which device to delete. 6. Press SET to confirm selection. REPLACE BATTERY If the watch indicates sensor battery is low, replace batteries promptly as it may affect the accuracy of the readings. To replace the sensor battery: 1. Use a coin to open the battery compartment lid by turning it anticlockwise. 2. Remove the old battery and insert a new CR2032, 3V lithium battery. 3. Secure the lid by turning the coin clockwise. IMPORTANT Remember to pair device after every battery replacement or reset. CARE INSTRUCTIONS • Do not wrap the sensor in a wet towel nor with other wet materials. • Do not place or wash the sensor under running water, instead clean it with a wet cloth. • Do not store the sensor in a hot (about 50°C) and humid (about 90%) environment. WATER RESISTANCE The AD202 is water-resistant up to 10 meters (32.8 fe…

Text truncated - open the document above for the full version.

$' Block Crystal 32768Hz Microcontroller (AXB01) Bike speed&cadence detection with reed switch 2.4GHz Transmission IC (nRF24L01+) Crystal 16MHz Antenna Matching Network Antenna 2.457GHz Revision 1.0Page 9 of 75 nRF24L01+ Preliminary Product Specification 1.2 Block diagram Figure 1. nRF24L01+ block diagram RF Receiver XC1 XC2 ANT1 ANT2 Enhanced ShockBurst Baseband Engine TX FIFOs RX FIFOs Radio Control GFSK Modulator SPI PA LNA TX Filter RX Filter RF SynthesiserPower Management RF TransmitterBaseband CSN SCK MISO MOSI IRQ CE VSS VDD DVDD VDD_PA GFSK Demodulator Register map IREF

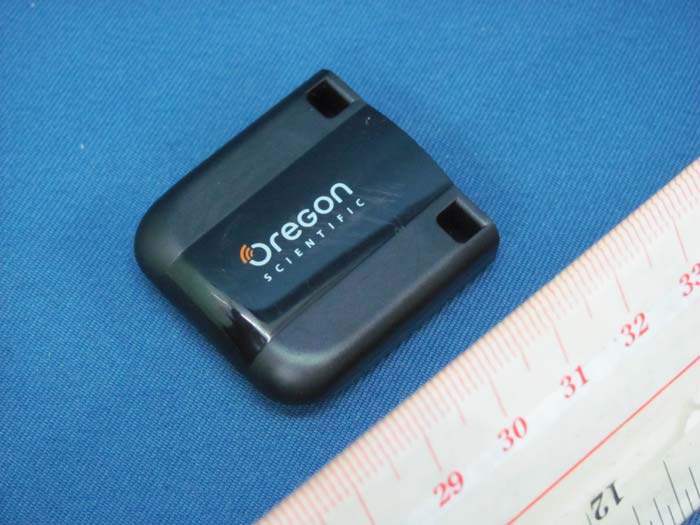

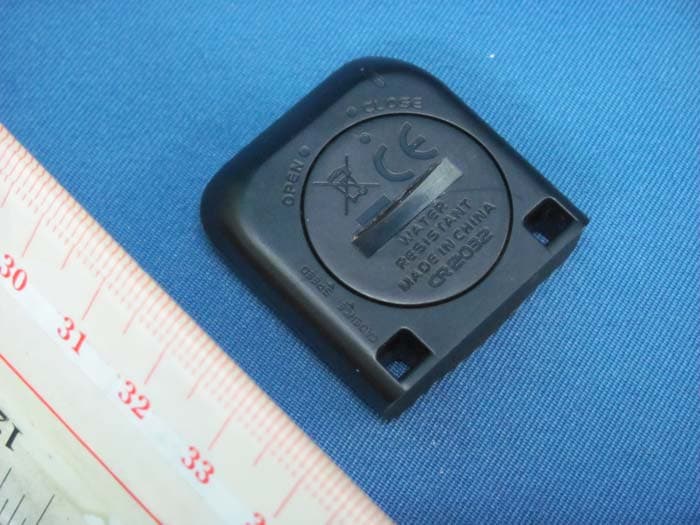

INTERTEK TESTING SERVICE Report No.: HK10050922-1 Equipment Photographs Model : AD202 (External) FCC ID: NMTAD202

BIKE SENSOR 02 ZORY REMARKS: Update 2010/05/10 FRONT CASE TEXTURE: PRINTING:OS LOGO COLOR: INJ. COLOR:PMS BLACK C WATER RESISTANT N E P O :PMS 144C :PMS 427C AREA 1:HIGH GLOSSY OTHERS:YS 200001C FINISH: HIGH GLOSSY AREA 1 BACK CASE TEXTURE: :ENGRAVED INJ. COLOR:PMS BLACK C YS 200001C FINISH:GLOSSY BATTERY DOOR TEXTURE: ARTWOEK:ENGRAVED INJ. COLOR:PMS BLACK C YS 200001C FINISH:GLOSSY RUBBER HOLDER TEXTURE: PRINT: INJ. COLOR:PMS BLACK C YS 200001C NONE Rated Voltage DC3.0V F C C I D : N M T A D 2 0 2 FCC ID:NMTAD202 Rated Voltage DC3.0V PRINTING: COLOR:PMS 427C N E P O A D 2 0 2 AD202 FCC ID:NMTAD202 100% 200% WATER RESISTANT N E P O Rated Voltage DC3.0V AD202 22 mm 1.7mm 18.5mm 3.6mm 6.5mm 1.3mm FCC ID:NMTAD202 WATER RESISTANT N E P O Rated Voltage DC3.0V AD202 22 mm 1.7mm 18.5mm 3.6mm 6.5mm 1.3mm

INTERTEK TESTING SERVICE Report No.: HK10050922-1 Equipment Photographs Model : AD202 (Internal) FCC ID: NMTAD202 INTERTEK TESTING SERVICE Report No.: HK10050922-1 Equipment Photographs Model : AD202 (Internal) FCC ID: NMTAD202

AD202 Technical Description The Bike Speed Sensor is a one way wireless transmitter that operates in conjunction with the Bike Console. The reed switch on the exercise bike detects the rotation of the wheel on the bike. The microcontroller in the bike speed sensor read the signal from the reed switch and activate the nRF24L01+ 2.4GHz transmitter IC to send encoded 2.457 GHz RF signal containing the number of revolution and timing information to the Console and the console will calculate and display speed, distance and energy consumption information on its LCD and may store these information.. The RF output of the nRF24L01+ 2.4GHz transmitter IC is connected to the antenna via an Antenna matching network. This network is used to match the impedance of the antenna to the nRF24L01+ 2.4GHz transmitter IC and suppress unwanted spurious transmission. The data signal is transferred through matching network (L1, L2, L3, L4, L5, C3 and C22) fed to the antenna. All rights reserved. Reproduction in whole or in part is prohibited without the prior written permission of the copyright holder. March 2008 nRF24L01+ Single Chip 2.4GHz Transceiver Preliminary Product Specification v1.0 Key Features •Worldwide 2.4GHz ISM band operation •250kbps, 1Mbps and 2Mbps on air data rates •Ultra low power operation •11.3mA TX at 0dBm output power •13.5mA RX at 2Mbps air data rate •900nA in power down •26μA in standby-I •On chip voltage regulator •1.9 to 3.6V supply range •Enhanced ShockBurst™ •Automatic packet handling •Auto packet transaction handling •6 data pipe MultiCeiver™ •Drop-in compatibility with nRF24L01 •On-air compatible in 250kbps and 1Mbps with nRF2401A, nRF2402, nRF24E1 and nRF24E2 •Low cost BOM •±60ppm 16MHz crystal •5V tolerant inputs •Compact 20-pin 4x4mm QFN package Applications •Wireless PC Peripherals •Mouse, keyboards and remotes •3-in-1 desktop bundles •Advanced Media center remote controls •VoIP headsets •Game controllers •Sports watches and sensors •RF remote controls for consumer electronics •Home and commercial automation •Ultra low power sensor networks •Active RFID •Asset tracking systems •Toys Revision 1.0Page 2 of 75 nRF24L01+ Preliminary Product Specification Liability disclaimer Nordic Semiconductor ASA reserves the right to make changes without further notice to the product to improve reliability, function or design. Nordic Semiconductor ASA does not assume any liability arising out of the application or use of any product or circuits described herein. All application information is advisory and does not form part of the specification. Limiting values Stress above one or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or at any other conditions above those given in the specifications are not implied. Exposure to limiting values for extended periods may affect device reliability. Life support applications These products are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personal injury. Nordic Semiconductor ASA cus- tomers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Nordic Semiconductor ASA for any damages resulting from such improper use or sale. Contact details Visit www.nordicsemi.no for Nordic Semiconductor sales offices and distributors worldwide Main office: Otto Nielsens vei 12 7004 Trondheim Phone: +47 72 89 89 00 Fax: +47 72 89 89 89 www.nordicsemi.no Data sheet status Objective product specificationThis product specification contains target specifications for product development. Preliminary product specification This product specification contains preliminary data; supplementary data may be published from Nordic Semiconductor ASA later. Product specificationThis product specification contains final product specifications. Nordic Semiconductor ASA reserves the right to make changes at any time without notice in order to improve design and supply the best possible product. Revision 1.0Page 3 of 75 nRF24L01+ Preliminary Product Specification Writing Conventions This product specification follows a set of typographic rules that makes the document consistent and easy to read. The following writing conventions are used: •Commands, bit state conditions, and register names are written in Courier. •Pin names and pin signal conditions are written in Courier bold. •Cross references are underlined and highlighted in blue . Revision History Attention! DateVersionDescription March 20081.0 Observe precaution for handling Electrostatic Sensitive Device. Revision 1.0Page 4 of 75 nRF24L01+ Preliminary Product Specification Contents 1Introduction ............................................................................................... 7 1.1Features ............................................................................................... 8 1.2Block diagram ...................................................................................... 9 2Pin Information .......................................................................................... 10 2.1Pin assignment..................................................................................... 10 2.2Pin functions......................................................................................... 11 3Absolute maximum ratings ...................................................................... 12 4Operating conditions ................................................................................ 13 5Electrical specifications ........................................................................... 14 5.1Power consumption.............................................................................. 14 5.2General RF conditions ......................................................................... 15 5.3Transmitter operation ...................................…

Text truncated - open the document above for the full version.

AXB01

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK10050922-1 IDT Technology Limited Application For Certification (Original Grant) (FCC ID: NMTAD202) Transceiver Prepared and Checked by: Approved by: Signed On File Kenneth Wong/sl Engineer Chan Chi Hung, Terry Senior Lead Engineer Date: Aug 14, 2010 INTERTEK TESTING SERVICES Report No.: HK10050922-1 FCC ID: NMTAD202 i GENERAL INFORMATION IDT Technology Limited BRAND NAME: Oregon Scientific, MODEL: AD202 FCC ID: NMTAD202 Grantee: IDT Technology Limited Grantee Address: Block C, 9/F., Kaiser Estate, Phase 1, 41 Man Yue Street, Hunghom, Kowloon, Hong Kong. Contact Person: Thomas Wong Tel: 86-755-2970 1087 Fax: 86-755-2970 9021 e-mail: [email protected] Manufacturer: IDT Technology Limited Manufacturer Address: Block C, 9/F., Kaiser Estate, Phase 1, 41 Man Yue Street, Hunghom, Kowloon, Hong Kong. Brand Name: Oregon Scientific Model: AD202 Type of EUT: Transceiver Description of EUT: Bike Speed/Cadence Sensor (2.4GHz ANT+) Serial Number: N/A FCC ID: NMTAD202 Date of Sample Submitted: May 18, 2010 Date of Test: May 20, 2010 Report No.: HK10050922-1 Report Date: Aug 14, 2010 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK10050922-1 FCC ID: NMTAD202 ii SUMMARY OF TEST RESULT IDT Technology Limited BRAND NAME: Oregon Scientific, MODEL: AD202 FCC ID: NMTAD202 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Antenna Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength 15.227 / RSS-310 3.8 N/A Transmitter Field Strength 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 Pass Transmitter Field Strength and Bandwidth Requirement 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Emissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK10050922-1 FCC ID: NMTAD202 iii Table of Contents 1.0 General Description........................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants............................................................................... 1 1.3 Test Methodology.............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ............................................................................. 2 2.1 Justification ....................................................................................................... 2 2.2 EUT Exercising Software................................................................................... 2 2.3 Special Accessories .......................................................................................... 2 2.4 Equipment Modification ..................................................................................... 2 2.5 Measurement Uncertainty.................................................................................. 2 2.6 Support Equipment List and Description ............................................................ 2 3.0 Emission Results ............................................................................................ 3 3.1 Field Strength…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK10050922-1 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : AD202 FCC ID: NMTAD202 INTERTEK TESTING SERVICE Report No: HK10050922-1 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : AD202 FCC ID: NMTAD202
