NMTBAR218HG-01BLE connected weather station

Model: BAR218HG User Manual BLE connected weather station  EN Model: BAR218HG User Manual TABLE OF CONTENT Introduction-----------------------------------------------------------------3 Overview ---------------------------------------------------------------------3 Front view ----------------------------------------------------------------3 Rear view ----------------------------------------------------------------4 Remote sensor (THGN13 N) ---------------------------------------4 Getting started -------------------------------------------------------------4 Insert batteries ----------------------------------------------------------4 Remote sensor ------------------------------------------------------------5 Sensor data transmission --------------------------------------------5 Clock--------- -----------------------------------------------------------------5 Manually set clock -----------------------------------------------------5 Weather forecast ----------------------------------------------------------6 Weather warning message --------------------------------------------6 Temperature and humidity ---------------------------------------------6 Ice warning --------------------------------------------------------------7 Weather trends ---------------------------------------------------------7 Moon phase-----------------------------------------------------------------7 Backlight---------------------------------------------------------------------7 Reset----- ---------------------------------------------------------------------7 Connect with your mobile device -----------------------------------7 Pairing your weather station ----------------------------------------8 Settings -------------------------------------------------------------------8 View current readings ------------------------------------------------9 View history readings -------------------------------------------------10 Precautions -----------------------------------------------------------------10 Specifications --------------------------------------------------------------11 About Oregon Scientific ------------------------------------------------12 Eu-Declaration of conformity -----------------------------------------12 FCC & IC statement ------------------------------------------------------12 BLE connected weather station EN 3 INTRODUCTION Thank you for selecting our Oregon Scientific TM In addition, it is also carried out the changeable display between indoor and outdoor temperatures. NOTE Please keep this manual handy as you use your new product. It contains practical step-by-step instructions, as well as technical specifications and warnings you should know about. OVERVIEW FRONT VIEW 1. Remote sensor reception indicator and outdoor channel selected . : Outdoor remote sensor battery low 3. : Next 1 hour Weather forecast and pressure trend 4. / / / / : weather warning message 5. Indoor temperature reading (current/MAX/MIN) with temperature trend 6. BLE connection indicator 7. : Main unit battery low 8. Ice alert LED indicator 9. MODE: Change settings / display 10. MEM: View current, maximum and minimum temperature / humidity 1 1. LIGHT: Activate backlight 1. / : Increase / decrease value of the settings; toggle only button to select outdoor channels (1-5); activate / deactivate pairing mode. 13. AM/PM : Morning/afternoon BLE connected weather station 4 EN MD/DM/Yr: Calendar / clock with weekday (hour : minute with second display) 1 4. Indoor humidity reading (current / MAX / MIN) with humidity trend 1 5. Moon phase display 1 6. : Outdoor humidity (current /MAX/MIN) with humidity trend 1 7. Outdoor temperature reading (current/ MAX / MIN ) with temperature trend REAR VIEW 1. °C / °F: Select temperature unit . RESET: Reset the unit to default settings 3. Battery compartment REMOTE SENSOR (THGN132N) 1 2 3 4 5 1. LED status indicator . Wall mount hole 3. Battery compartment 4. RESET hole 5. CHANNEL switch GETTING STARTED INSERT BATTERIES 1. Remove the battery compartment. . Insert the batteries, matching the polarities (+/-). 3. Press RESET after each battery change. EN 5 LOCATION MEANING Clock / alarm areaMain unit batteries low Outdoor temperature areaSensor batteries low REMOTE SENSOR The main unit can collect data from up to 5 sensors. To set up the sensor: 1. Open the battery compartment. . Select a channel then press RESET. 3. Close the battery door. 4. Place the sensor within 98 ft (30 m) of the main unit using the table stand or wall mount. TIP Ideal placements for the sensor would be in any location on the exterior of the home at a height of not more than 5 ft (1.5 m) and which can shield it from direct sunlight or wet conditions for an accurate reading. 1.5 m (5 ft) NOTE Use alkaline batteries for longer usage and consumer grade lithium batteries in temperatures below freezing. SENSOR DATA TRANSMISSION To search for a sensor: Press and hold and MODE at a time. The sensor reception icon in the remote sensor area shows the status: ICONDESCRIPTION Main unit is searching for sensor(s). A channel has been found. The sensor cannot be found. TIP The transmission range may vary depending on many factors. You may need to experiment with various locations to get the best results. CLOCK MANUALLY SET CLOCK 1. Press and hold MODE. . Press or to change the settings. 3. Press MODE to confirm. 6 EN 4. The settings order is: 1/4 hour format, hour, minute, year, calendar format (day-month / month- day), month, day and language. The language options are English (E), German (D), French (F), Italian (I), and Spanish (S). To select display mode: Toggle MODE to choose among clock with seconds / weekday / calendar / moon phase. WEATHER FORECAST This product forecasts the next 1 hours of weather within a 19-31 mile (30-50 km) radius. Sunny Partially Cloudy Cloudy Rainy Snowy WEATHER WARNING MESSAGE The weather warning messages provide indications of probable circumstances that may arise based on the weather station’s calculat…

Text truncated - open the document above for the full version.

IDT Technology Limited Feb.18, 2014 Federal Communications Commission Authorization and Evaluation Division FCC ID：NMTBAR218HG-01 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Signature Name/Title: Alex Chan Applicant: IDT Technology Limited ADDRESS: Block C,9/F., Kaiser Estate,Phase1,41 Man Yue Street, Hunghom, Kowloon , Hong Kong TEL: (852)27647873 FAX : (852)27656620 Email: [email protected]

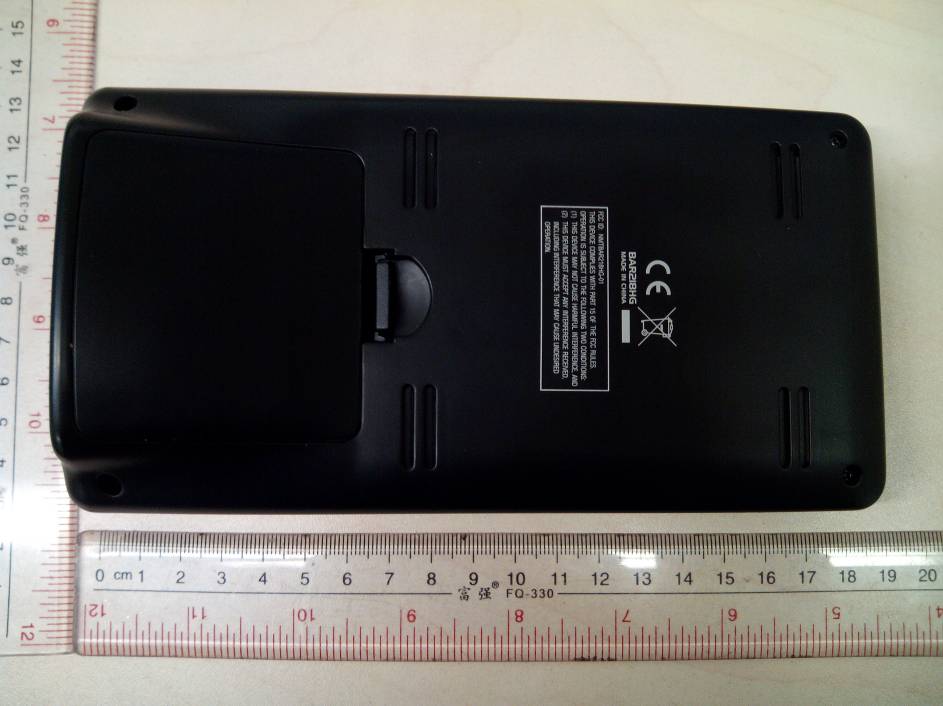

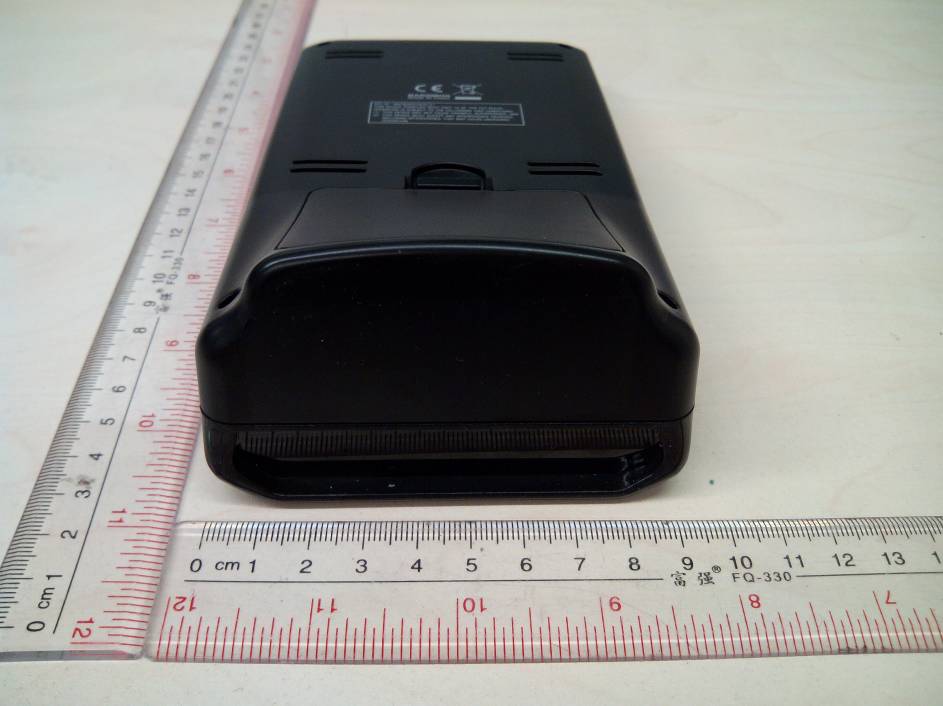

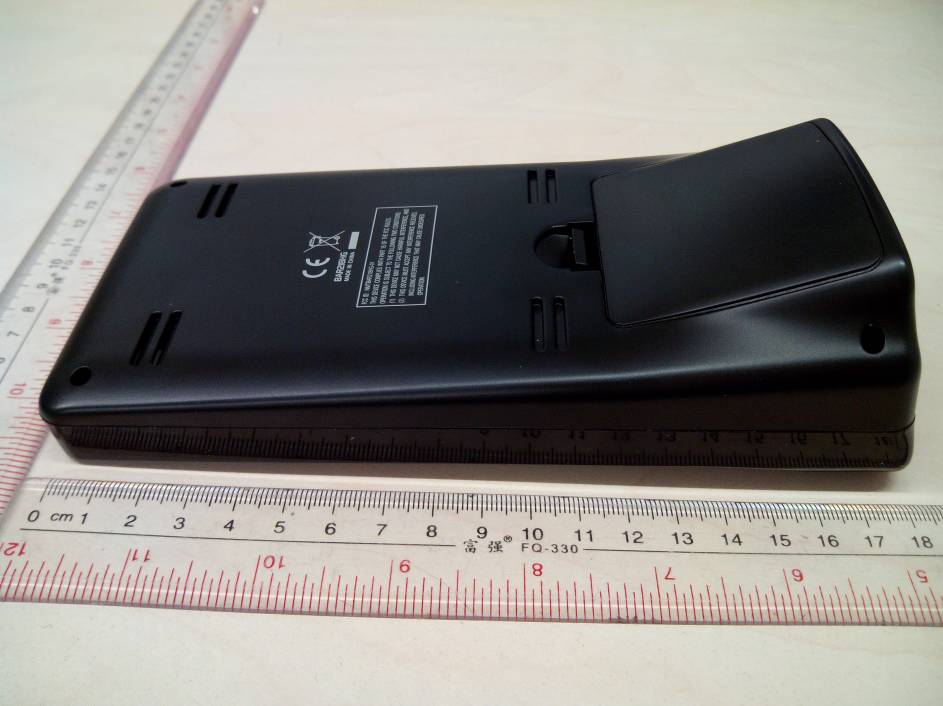

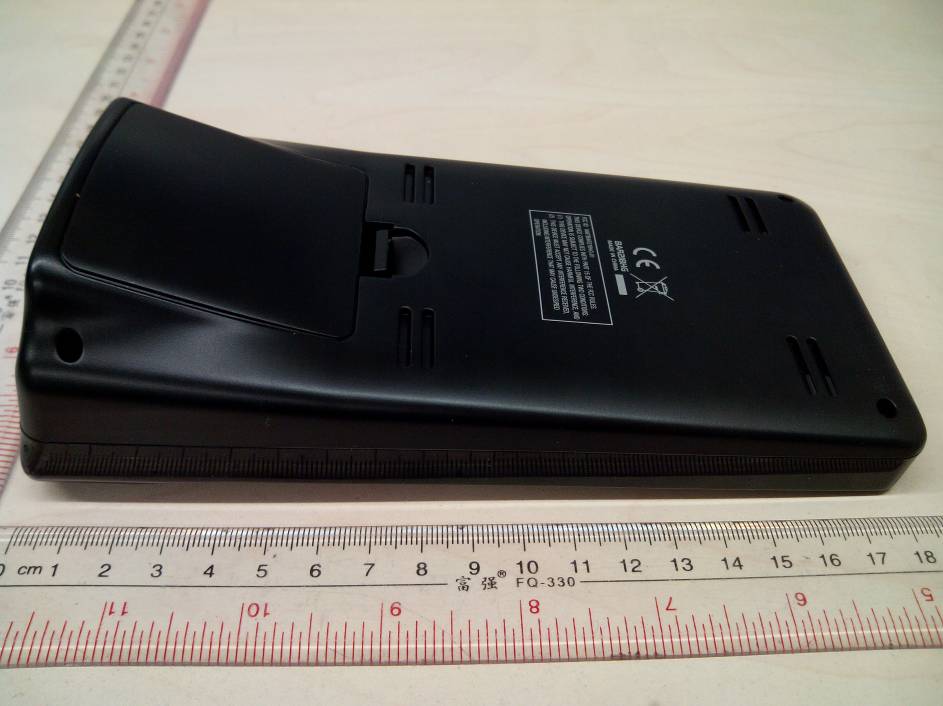

External Photos

Internal Photos BT Antenna 433MHz Rx Antenna

Report No.:60.790.14.002.01 Rev:00 TÜV SÜD HONG KONG LTD. 3/F, West Wing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Page 1 of 11 FCC&IC Cerification - TEST REPORT Report Number : 60.790.14.002.01 Date of Issue: February 13, 2014 Model : BAR218HG Product type : FCC ID: : NMTBAR218HG-01 Applicant : IDT Technology Limited Address : Block C,9/F., Kaiser Estate,Phase1,41 Man Yue Street, Hunghom, Kowloon , Hong Kong Production Facility : IDT Technology Limited Address : Block C,9/F., Kaiser Estate,Phase1,41 Man Yue Street, Hunghom, Kowloon , Hong Kong Test Result :  Positive  Negative Total Pages: 11 TÜV SÜD Hong Kong Ltd. is a subcontractor to TÜV Product Service, GmbH according to the principles outlined in ISO 17025. TÜV SÜD Hong Kong Ltd. reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Hong Kong Ltd. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Hong Kong Ltd. issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. Prepared by: Reviewed by: __________________________________________ __________________________________________ CHAN Kwong Ngai Edmond FUNG BLE connected weather station Report No.:60.790.14.002.01 Rev:00 TÜV SÜD HONG KONG LTD. 3/F, West Wing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Page 2 of 11 TABLE OF CONTENTS 1 General Information ......................................................................................................................................... 3 1.1 Summary of Test Result ................................................................................................................... 3 1.2 Measurement Uncertainty ................................................................................................................ 3 2 EUT Description............................................................................................................................................... 4 3 Test Methodology ............................................................................................................................................ 5 3.1 Decision of Test Mode ...................................................................................................................... 5 3.2 Configuration of Test System Details ............................................................................................... 5 3.3 Test Site Environment ...................................................................................................................... 5 4 Emission Test .................................................................................................................................................. 6 4.1 Conducted Emission Measurement ................................................................................................. 6 4.2 Radiated Interference Measurement ................................................................................................ 7 Report No.:60.790.14.002.01 Rev:00 TÜV SÜD HONG KONG LTD. 3/F, West Wing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Page 3 of 11 1 General Information 1.1 Summary of Test Result FCC Rules IC Rules Description of Test Result Remark FCC§15.107 ICES-003§6.1 AC Line Conducted Emissions NIL Battery operated only FCC§15.109 ICES-003§6.2 Radiated Emission PASS Meet Class B limit The test results of this report relate only to the tested sample(s) identified in this report. Manufacturer or whom it may concern should recognize the pass or fail of the test result. 1.2 Measurement Uncertainty Conducted Emission The measurement uncertainty is evaluated as ± 2.26 dB. Radiated Emission The measurement uncertainty is evaluated as ± 3.19 dB. 1.3 Measurement Uncertainty Details about the Test Laboratory Test site 1 Company name: TÜV SÜD HONG KONG LTD. 3/F, West Wing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin HK. Telephone: 852 2776 1323 Fax: 852 2776 1372 Test site 2 Company name: TMC-Telecommunication Metrology Center of M.I.I.T No 52 Hua Yuanbei Road, Haidian District, Beijing, P.R.China Report No.:60.790.14.002.01 Rev:00 TÜV SÜD HONG KONG LTD. 3/F, West Wing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Page 4 of 11 2 EUT Description Product Model Number BAR218HG Applicant IDT Technology Limited Block C,9/F., Kaiser Estate,Phase1,41 Man Yue Street, Hunghom, Kowloon , Hong Kong Manufacturer IDT Technology Limited Block C,9/F., Kaiser Estate,Phase1,41 Man Yue Street, Hunghom, Kowloon , Hong Kong I/O Port Description： I/O Port Types Q’TY Test Description 1). NIL / / BLE connected weather station Report No.:60.790.14.002.01 Rev:00 TÜV SÜD HONG KONG LTD. 3/F, West Wing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Page 5 of 11 3 Test Methodology 3.1 Decision of Test Mode Pre-Test Mode EMC Mode 1: 433MHz RF receiving 3.2 Configuration of Test System Details Mode 1 Signal Cable Type Signal Cable Description A / / 3.3 Test Site Environment Items Test Item Actual Temperature (C) Conducted Emission 25 Humidity (%RH) 66 Barometric pressure (mbar) 10…

Text truncated - open the document above for the full version.

SET UP Phntos Below 1 GHz Above 1 GHz
