NMTBFF-01BFF Gemz

An Owner’s Guide 2 © 2011 eMotion Group Inc. Contents 1. Getting Started ............................................... 6 2. Gemz Friends ................................................. 10 3. Gemz Messages ............................................... 13 4. Recharging your Gemz ...................................... 16 5. Bffgemz.com: Overview .................................... 17 6. Bffgemz.com: Profile ....................................... 18 © 2011 eMotion Group Inc. 3 7. Girl Power Average(GPA) ................................ 20 8. Create Mode ................................................. 22 9. Top Secret ................................................... 26 10. Your Privacy ................................................ 28 11. Taking Care of Your Gemz ............................... 29 12. Notices ........................................................ 31 13. Contact Us .................................................. 35 4 © 2011 eMotion Group Inc. BFF Gemz pendant (1pc) micro USB cable (1 pc) Your gift should contain the following pieces: © 2011 eMotion Group Inc. 5 System Requirements: - Computer using Windows XP & beyond - USB port - Internet connection Select the friend you want to send a message to Select the color coded message you want to send Press to send Press when you get a message Press & hold for 3 seconds along with your friend to add Gemz friends On/Off 6 © 2011 eMotion Group Inc. 1. Getting Started A) Add friends with your Gemz. These friends become your friends online! On/Off To add friends, you and your friend must press this button at the same time and hold for 3 seconds. The button will light up, meaning you are now friends. © 2011 eMotion Group Inc. 7 B) Share secrets with your friends using your Gemz. Select the friend you want to send a message to Press to send Press when you get a message Select the color coded message you want to send* *There are four default messages that can be modified and added to on bffgemz.com 8 © 2011 eMotion Group Inc. C) Plug your Gemz into a computer with the USB cable to recharge it and to sync it up online to update your friends list and your codes. You will be asked to download and install required software the first time you plug in. © 2011 eMotion Group Inc. 9 D) Sign up at bffgemz.com to in a totally private space! 10 © 2011 eMotion Group Inc. 2. Gemz Friends A) Adding Friends: When you sync your Gemz to add friends with the device, you are now able to do the following: send and receive secret coded messages with each other and interact with each other online after signing up at bffgemz.com! To add friends, do the following: 1. Make sure your device is turned on. 2. You and your friend must each press the user button at the same time and hold for three seconds. Once synced, the button will light up, letting you know © 2011 eMotion Group Inc. 11 that the Gemz are ready to send and receive messages to each other. The color that the light glows corresponds with the friend you’ve just added. Note: Your Gemz allows you to add up to 8 friends. You can add up to 12 friends total by redeeming some of your GPA. For more info, see 7. Girl Power Average (GPA). 3. To become friends online, just plug your Gemz into a computer, log in to your bffgemz.com account, and the rest is magic. B) Selecting Friends: To select a friend you wish to send a coded message to, keep pressing the user button to scroll through the colors until the color matching the desired friend shows up. 12 © 2011 eMotion Group Inc. For example, if your friend Sarah is blue, scroll until you see a blue light. C) Changing Friend Colors: To change your friend’s color on the Gemz, just log on to your account at bffgemz.com. Go to My Profile>My Gemz. You will see the profile pictures of your friends. Select the color border around your friend’s picture and choose the color you wish to assign. All changes you make here will save to your Gemz ONLY if the device is plugged in. D) Deleting Friends: Sometimes stuff happens. Things often have a way of working themselves out. But in case it doesn’t anytime soon, you can unfriend them. Log on to © 2011 eMotion Group Inc. 13 bffgemz.com, and go to My Profile>My Gemz. Simply click on the “Unfriend” button and select the user you wish to remove. You will no longer be friends, meaning there will be no more Gemz messaging or online interaction. The update happens online instantly and on your Gemz as soon as you plug it in to your computer. 3. Gemz Messages A) Selecting Coded Messages: To select your coded messages, simply press the message button until you see the color combination you wish to send. Once you 14 © 2011 eMotion Group Inc. see it, make sure you’ve selected correct recipient. Hit the send button. Note: For the friend to receive your message, the users must be up to 450 feet apart (for example, in your school or mall). B) Changing Coded Messages: To change the color code of your message, plug your Gemz in to the computer and log on to your account at bffgemz.com. Go to My Profile>My Codes. There are icons with colored talk bubbles and text-boxes beside it. You can change the color by clicking on the talk bubbles and selecting the color of your choice. You can click on the text-box to type the meaning of the color codes. The changes are automatically updated to your Gemz when plugged in. © 2011 eMotion Group Inc. 15 Your friends will see you’ve changed that code in their newsfeed. C) Adding message codes: To add a new message code, go online to bffgemz.com. Log in to your account, make sure the Gemz is plugged into your computer, and head over to My Profile>My Codes. You can click on the colors and the text area in the first empty message box you see, make your selection, and the change will be saved to your profile and Gemz. If all the visible boxes are full, click on the “+” sign at the bottom, where it says “Add a Message.” This will result in a new blank message line appearing. Just make sure you can re…

Text truncated - open the document above for the full version.

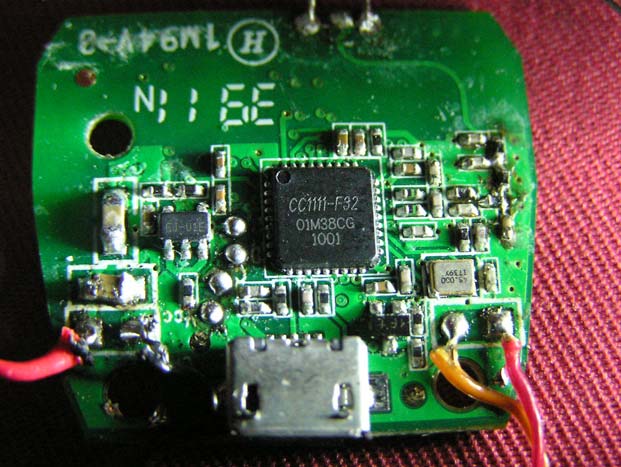

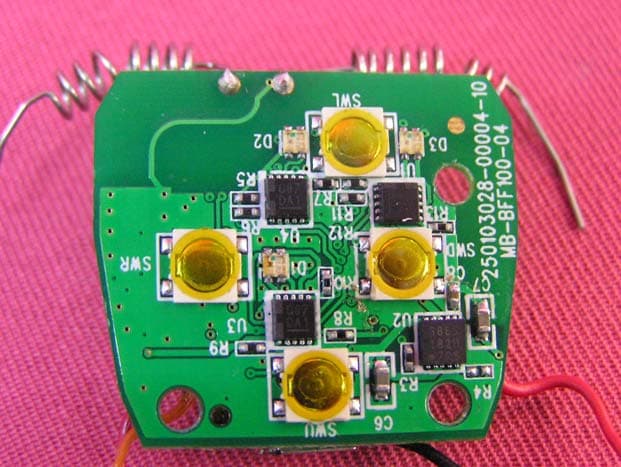

L ED and L ED drive ( D1,D2,D3 , U 1, U3, U4 ) ControlKey(SWL,SWR,SWU,SWD) USB connector & charging circuit (J2 & U2) 48MHzI nternal C lock F requency ( X1) U6 MCU and RF module (L3-L8) 915MHz 3.7V Rechargeable Battery Voltage Regulator (U5)

Label Artwork Label Size: 14mm x 1mm

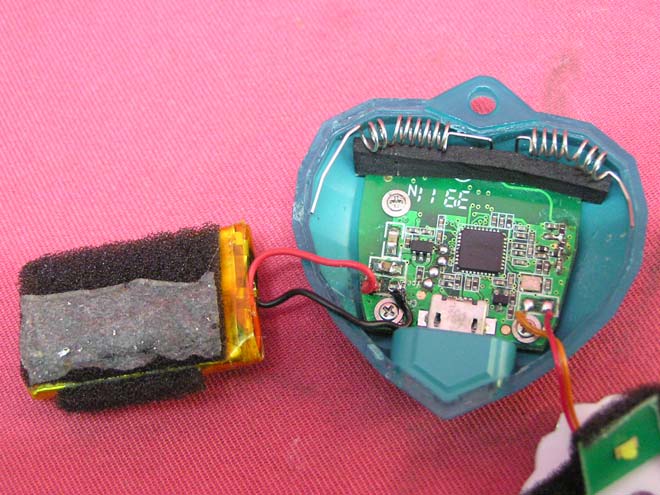

INTERTEK TESTING SERVICE Report No.: HK11100759-3 FCC ID: NMTBFF-01 Equipment Photographs Model: BFF100 (Internal) INTERTEK TESTING SERVICE Report No.: HK11100759-3 FCC ID: NMTBFF-01 Equipment Photographs Model: BFF100 (Internal) INTERTEK TESTING SERVICE Report No.: HK11100759-3 FCC ID: NMTBFF-01 Equipment Photographs Model: BFF100 (Internal) INTERTEK TESTING SERVICE Report No.: HK11100759-3 FCC ID: NMTBFF-01 Equipment Photographs Model: BFF100 (Internal)

Block C, 9/F, Kaiser Estate, Phase 1, 41 Man Yue Street, Hunghom, Kowloon, Hong Kong. Tel (852) 2764 7873 Fax (852) 2765 6620 Email: [email protected] Web Site: http://www.idthk.com Technical description (FCC ID: NMTBFF-01) The brief circuit description is listed as follows: U6 and associated circuit act as MCU and 915MHz RF module (CC1111F32). U1, U3, U4 and D1-D3 associated circuit act as LED drive and LED. X1 associated circuit act as 48MHz clock frequency of U6. L3 - L8 and associated circuit act as Antenna Matching Network. U5 and associated circuit act as voltage regulator. J2, U2 and associated circuit act as USB connector and charging circuit. SWL, SWR, SWU, SWP and associated circuit act as control key. Antenna Used: An internal, integral antenna has been used. Operating Frequency and Type of modulation: 915MHz and 2-FSK

INTERTEK TESTING SERVICES Report No.: HK11100759-3 Sample No.: 4/5 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) A Att 10 dB * PS * RBW 300 kHz VBW 1 MHz SWT 2.5 ms AC Ref -20 dBm Center 906 MHzSpan 20 MHz2 MHz/ 3DB 1 PK VIEW -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 1 Marker 1 [T1 ] -24.81 dB m 914.800000000 MHz 1 Delta 1 [T1 ] -52.67 dB -17.800000000 MHz F1 HK11110426-1(K0426C2, No Load) Date: 18.NOV.2011 14:31:48 A Att 10 dB * PS Ref -20 dBm Center 924 MHzSpan 20 MHz2 MHz/ * RBW 300 kHz VBW 1 MHz SWT 2.5 ms AC 3DB 1 PK VIEW -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 1 Marker 1 [T1 ] -25.23 dB m 914.800000000 MHz 1 Delta 1 [T1 ] -52.77 dB 14.320000000 MHz F1 HK11110426-1(K0426C2, No Load) Date: 18.NOV.2011 14:33:30 Bandedge Plot – Pursuant to FCC Part 15 Section 15. 249 Requirement

Report no.: HK11100759-3 Ctrl No.: 6DB AC 150 kHz30 MHz dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 18.NOV.2011 14:53:52 TX mode Report no.: HK11100759-3 Ctrl No.: EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 208.5 kHz 56.34 N -6.92 2 CISPR Average208.5 kHz 42.47 L1 -10.79 1 Quasi Peak 213 kHz 57.46 N -5.62 2 CISPR Average213 kHz 45.11 N -7.96 1 Quasi Peak 316.5 kHz 47.60 N -12.19 2 CISPR Average321 kHz 33.35 N -16.33 1 Quasi Peak 424.5 kHz 40.96 N -16.39 2 CISPR Average523.5 kHz 33.85 N -12.14 2 CISPR Average631.5 kHz 32.88 L1 -13.11 1 Quasi Peak 636 kHz 38.31 N -17.68 2 CISPR Average843 kHz 23.48 N -22.51 2 CISPR Average1.581 MHz 23.80 N -22.19 Date: 18.NOV.2011 14:53:30 TX mode

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK11100759-3 IDT Technology Limited Application For Certification (Original Grant) (FCC ID: NMTBFF-01) Transceiver and, Class B Personal Computers and Peripherals Prepared and Checked by: Approved by: Signed On File Kung Wing Cheong, Steven Engineer Lau Ching Yu, Benny Lead Engineer Date: November 22, 2011 INTERTEK TESTING SERVICES Report No.: HK11100759-3 FCC ID: NMTBFF-01 i GENERAL INFORMATION IDT Technology Limited BRAND NAME: BFF Gemz, MODEL: BFF100 FCC ID: NMTBFF-01 Grantee: IDT Technology Limited Grantee Address: Block C, 9/F., Kaiser Estate, Phase 1, 41 Man Yue Street, Hunghom, Kowloon, Hong Kong. Contact Person: KF Chan Tel: 852-2765 3763 Fax: 852-2765 6620 e-mail: [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: BFF Gemz Model: BFF100 Type of EUT: Transceiver, Class B Compters and Peripherals Receiver Description of EUT: BFF Gemz Serial Number: N/A FCC ID: NMTBFF-01 Date of Sample Submitted: October 21, 2011 Date of Test: November 18, 2011 Report No.: HK11100759-3 Report Date: November 22, 2011 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK11100759-3 FCC ID: NMTBFF-01 ii SUMMARY OF TEST RESULT IDT Technology Limited BRAND NAME: BFF Gemz, MODEL: BFF100 FCC ID: NMTBFF-01 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Antenna Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.6 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.4 Pass Transmitter Field Strength 15.227 / RSS-310 3.8 N/A Transmitter Field Strength 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 Pass Transmitter Field Strength and Bandwidth Requirement 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Emissions 15.109 / RSS-210 2.5 Pass Digital Device Conducted Emissions 15.107 / ICES-003 Pass Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK11100759-3 FCC ID: NMTBFF-01 iii Table of Contents 1.0 General Description.........................................................................................1 1.1 Product Description ........................................................................................1 1.2 Related Submittal(s) Grants............................................................................1 1.3 Test Methodology ...........................................................................................1 1.4 Test Facility ....................................................................................................1 2.0 System Test Configuration ..............................................................................2 2.1 Justification.....................................................................................................2 2.2 EUT Exercising Software................................................................................2 2.3 Special Accessories .......................................................................................2 2.4 Equipment Modification ..................................................................................2 2.5 Measurement Uncertainty...............................................................................2 2.6 Support Equipment List and Description.........................................................3 3.0 Emission Results .............................................................................................4 3.1 Field Strength Calculation.......................................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK11100759-3 FCC ID: NMTBFF-01 i Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) Model : BFF100 INTERTEK TESTING SERVICE Report No: HK11100759-3 FCC ID: NMTBFF-01 ii Configuration Photographs Worst-Case Line-Conducted Emissions (Back View) Model : BFF100 INTERTEK TESTING SERVICE Report No: HK11100759-3 FCC ID: NMTBFF-01 iii Configuration Photographs Worst-Case Line-Conducted Emissions (Side View) Model : BFF100

INTERTEK TESTING SERVICE Report No: HK11100759-3 FCC ID: NMTBFF-01 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: BFF100 INTERTEK TESTING SERVICE Report No: HK11100759-3 FCC ID: NMTBFF-01 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model: BFF100 Radiated Emission BFF100 HK11100759 A † B 5
