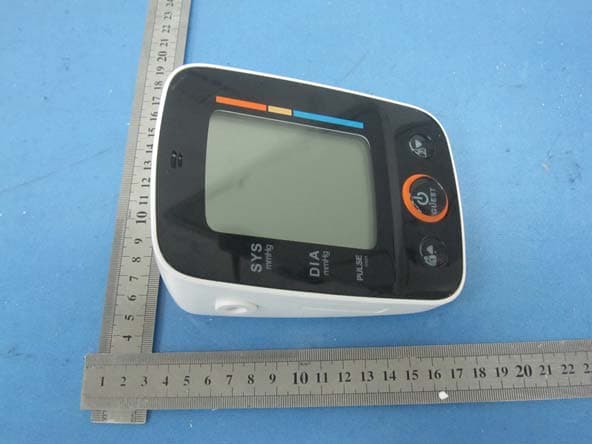

NMTBPU321Blood Pressure Meter

BLE Upper Arm Blood Pressure Monitor Model: BPU321 User Manual CONTENTS Introduction ........................................................ 1 Package contents .............................................. 2 Accessories .............................................. 2 Product view / Key features ............................... 2 Setting up the monitor ........................................ 3 Assemble the unit ..................................... 3 Installing and replacing the batteries ........ 3 Monitor settings .................................................. 3 Positioning the arm cuff................................4 Preparing to take blood pressure measurement.4 Taking a measurement ...................................... 5 Understanding the reading ................................. 5 Display ...................................................... 5 Hypertension ............................................ 6 Irregular heartbeat / Arrhythmia ................ 6 Movement / reading error ......................... 6 Voice announcement ................................ 6 View records ...................................................... 6 Recalling measurements stored in memory ................................................. 7 Clear records ..................................................... 7 Deleting a single record ............................ 7 Deleting all records ................................... 7 Data transmission .............................................. 8 Manually send data .................................. 8 Unique Device ID ..................................... 8 Application.................................................9 Troubleshooting ................................................. 9 Safety and Care Instructions .............................. 9 Useful reference ............................................... 10 About blood pressure .............................. 10 How the blood pressure monitor works ... 11 Specifications ................................................... 11 About Oregon Scientific .................................... 12 Information about the CE Mark ......................... 12 Symbol description(s) ....................................... 12 EU - Declaration of Conformity......................12 FCC Statement.......................................13 Blood Pressure Log Book .......................... ......13 INTRODUCTION Thank you for selecting the Oregon Scientific TM BLE Upper Arm Blood Pressure Monitor (BPU321). The BPU321 features multi-language voice announcement and playback of blood pressure measurements for added convenience and has been designed to provide you with many years of reliable service. The monitor can help you measure and track the following metrics:  Systolic pressure  Diastolic pressure  Average morning / evening blood pressure  Heart rate The monitor is able to store up to 100 measurements per user (maximum 2 users) and equipped with the latest Bluetooth Smart technology to achieve reliable transmission linkage with a mobile device or tablet PC that is with the logo and corresponding application. From now on, you can easily track your health on a daily basis. Readings taken by the blood pressure monitor are equivalent to those obtained by a trained observer using the cuff and stethoscope auscultation method. Clinical performance were successfully done against ANSI/AAMI SP10 and international protocol, and the B.H.S.(British Hypertension Society) has rated this product “recommended for clinical and home use”, the highest grading available for blood pressure monitors. Please keep this manual handy as you use your new product. It contains practical step-by-step instructions, as well as technical specifications and warnings you should know about. PACKAGE CONTENTS This package should include the following items:  1 x BPU321 BLE Upper Arm Blood Pressure Monitor  1 x Cuff wrap  1 x Cuff holder  4 x AA (1.5V) batteries ACCESSORIES – SEPARATE PURCHASE REQUIRED This product comes with below optional accessories which can be purchased separately. For more information, please contact your local retailer.﹡ - Replacement Arm cuff - Storage pouch - 6V adaptor ﹡Features and accessories will not be available in all countries. PRODUCT VIEW / KEY FEATURES A. : start taking blood pressure for user 1; view user 1 measurement records, view additional / older records; increase value of the setting; toggle setting options B. : turn monitor on/off; enter setting mode; confirm settings; start taking measurement for guest (no record stored); cancel measurement; confirm deletion of individual or all data for user (1 or 2). C. : start taking blood pressure for user 2; view user 2 measurement records, view additional / older records; decrease value of the setting; toggle setting options 1. /: indicates which user (1 or 2) has been selected (no icon appears for guest) 2. Pairing status (bLE / Err / donE); Clock; calendar; date and time stamp 3. : Average morning / evening blood pressure 4. : memory is full; memory mode selected 5. Systolic pressure 6. Air outlet 7. Diastolic pressure 8. : monitor battery low 9. : voice activation 10. Synchronizing status indicator light 11. Blood pressure classification bar 12. Heart rate counter 13. : irregular heart beat detected SETTING UP THE MONITOR ASSEMBLE THE UNIT 1. Insert the small end of the air tube into the air outlet on the monitor. 2. Snap cuff holder into place at the back of the monitor. 3. Place cuff into holder. INSTALLING AND REPLACING THE BATTERIES This monitor can work with a 6V adaptor which has to be purchased separately. 1. Slide off the battery cover. 2. Install the batteries by matching the correct polarities. Always use the correct battery 3. Align the cover flat against the battery compartment, and then slide it upwards. Above diagram displays: 1. Adaptor outlet 2. Battery compartment Flashing indicates monitor batteries are low. Replace batteries promptly to ensure accura…

Text truncated - open the document above for the full version.

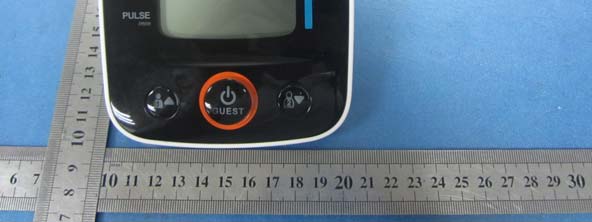

MODEL: VERSION: DATE: TITLE: COLORSPEC PREPARED BY:MARK.YUAN(袁跃伟) PAGE:2 OF 2 BATTERYDOOR -INJ.CORLOR: -FINISHING: YS20001B WHITE(CW-03) S/S COLOR: PMS PROCESS BLACK C S/S COLOR: PMS 286 C -CORLOR: -FINISHING: YS20001B WHITE(CW-03) -S/S CORLOR: PMS425C -SIZE: 29mmx14mm R=1mm (tolerance: 0.5mm) RUBBER FEET -CORLOR: GREY EMBOSS TEXT ICON D E V I C E I D : 0 1 2 3 4 5 6 7 8 9 L O T : 1 2 0 9 BPU321 MAIN UNIT 2012-09-13 Ver 1.5 update FCC ID and alert content marked by this icon BPU321 MAIN UNIT LABEL S/S COLOR: PMS PROCESS BLACK C

MPE TEST REPORT FCC Per 47 CFR 2.1091(b) Report Reference No. ..................... : FCC ID. ............................................ : TRE1204008402 NMTBPU321 Compiled by ( position+printed name+signature) .. : File administrators Tim Zhang Supervised by ( position+printed name+signature) .. : Test Engineer Eric Zhang Approved by ( position+printed name+signature) .. : Manager Wenliang Li Date of issue ..................................... : Sep 12, 2012 Testing Laboratory Name .............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................. : Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name ............................ : IDT Technology Limited Address ............................................. : Chentian Industrial Estate, Xixiang , Bao An, Shenzhen, PRC Test specification: Standard ........................................... : FCC Per 47 CFR 2.1091(b) TRF Originator .................................. : Shenzhen Huatongwei International Inspection CO., Ltd Master TRF ....................................... : Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Blood Pressure Meter Trade Mark ....................................... : / Model/Type reference ....................... : BPU321 Listed Models .................................. : / Operation Frequency ........................ : From 2400MHz to 2483.5MHz Result ................................................ : Positive Report No.: TRE1204008402 Page 2 of 6 Issued:2012-09-12 MPE T E S T R E P O R T Test Report No. : TRE1204008402 Sep 12, 2012 ______________________________________________________________________________________________ Date of issue Equipment under Test : Blood Pressure Meter Model /Type : BPU321 Listed Models : / Applicant : IDT Technology Limited Address : Chentian Industrial Estate, Xixiang , Bao An, Shenzhen, PRC Manufacturer IDT Technology Limited Address : Chentian Industrial Estate, Xixiang , Bao An, Shenzhen, PRC The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TRE1204008402 Page 3 of 6 Issued:2012-09-12 Contents 1. SUMMARY ............................................................................. 4 1.1. EUT configuration 4 1.2. NOTE 4 2. TEST ENVIRONMENT ............................................................... 5 2.1. Address of the test laboratory 5 2.2. Environmental conditions 5 2.3. Statement of the measurement uncertainty 5 3. METHOD OF MEASUREMENT .................................................... 5 3.1. Applicable Standard 5 3.2. Limit 6 3.3. MPE Calculation Method 6 4. CONCLUSION ........................................................................ 6 Report No.: TRE1204008402 Page 4 of 6 Issued:2012-09-12 1. SUMMARY 1.1. EUT configuration The following peripheral devices and interface cables were connected during the measurement: ● - supplied by the manufacturer ○ - supplied by the lab ○ Power Cable Length (m) : / Shield : / Detachable : / ○ Multimeter Manufacturer : / Model No. : / 1.2. NOTE 1. The EUT is a Blood Pressure Meter,The functions of the EUT listed as below: Test Standards Reference Report Bluetooth 4.0 FCC Part 15 Subpart C (Section15.247) TRE1204008401 MPE REPORT FCC Per 47 CFR 2.1091(b) TRE1203008402 2. The frequency bands used in this EUT are listed as follows: Frequency Band(MHz) 2400-2483.5 5150-5350 5470-5725 5725-5850 Bluetooth √ － － － 3. The EUT provides one completed transmitter and receiver. Modulation Mode TX Function Bluetooth 1TX Report No.: TRE1204008402 Page 5 of 6 Issued:2012-09-12 2. TEST ENVIRONMENT 2.1. Address of the test laboratory Shenzhen Huatongwei International Inspection Co., Ltd Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Phone: 86-755-26715686 Fax: 86-755-26748089 The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 (2009) and CISPR Publication 22. 2.2. Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 950-1050mbar 2.3. Statement of the measurement uncertainty The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities. The measurement uncertainty was calculated for all measurements listed in this test report acc. to TR-100028-01” Electromagnetic compatibility and Radio spectrum Matters (ERM);Uncertainties in the measurement of mobile radio equipment characteristics; Part 1” and TR-100028-02 “Electromagnetic compatibility and Radio spectrum Matters (ERM);Uncertainties in the measurement of mobile radio equipment characteristics; Part 2 “ and is documented in the Shenzhen Huatongwei International Inspection Co., Ltd quality system acc. to DIN EN ISO/IEC 17025. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer has the sole responsibility of continued compliance of the device. Hereafter the best measurement capability for Shenzhen Huatongwei laboratory is reported: Test Items Measurement Uncertainty Notes Transmitter power conducted 0.57 dB (1) (1) This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level u…
