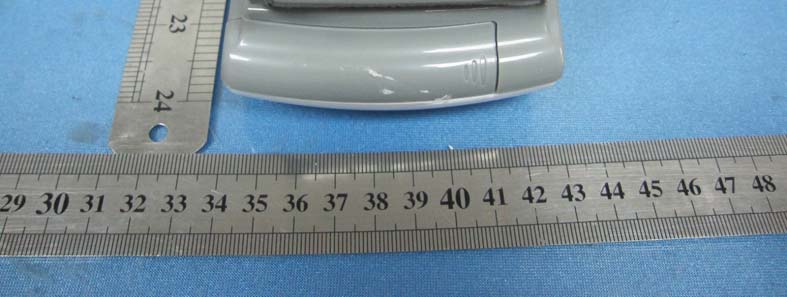

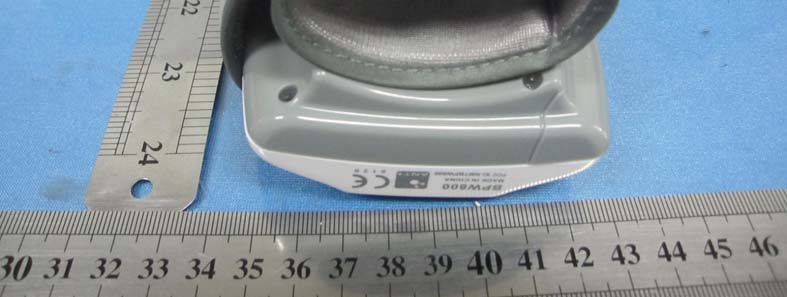

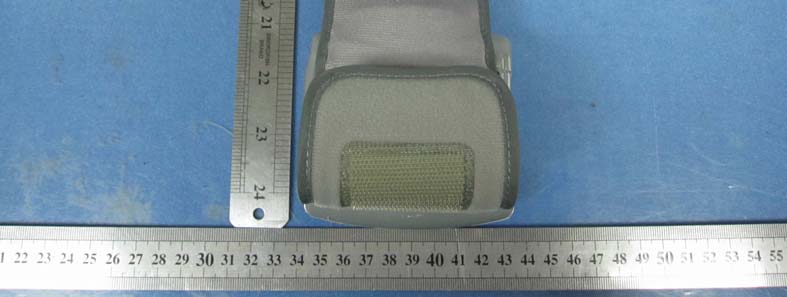

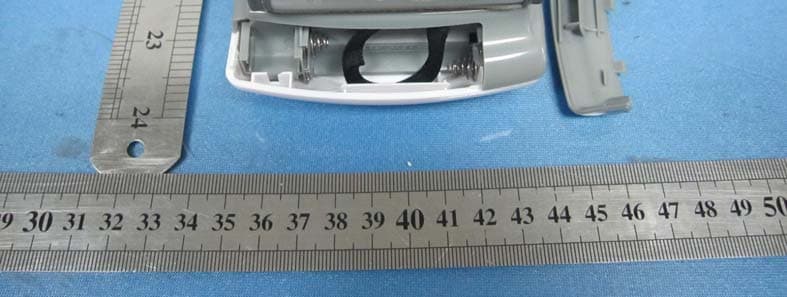

NMTBPW800Blood Pressure Wrist

User Manual Talking Blood Pressure Monitor Model: BPW800 使用指南 語音腕式電子血壓計 型號: BPW800 EN  Talking Blood Pressure MoniTor Model: BPW800 user Manual ConTenTs introduction ....................................................................2 key features ................................................................... 2 Front view ..................................................................2 Rear view .................................................................. 3 LCD symbols ............................................................. 3 safety and care instructions ......................................... 4 Safety precautions .................................................... 4 Caring for your blood pressure monitor .....................4 about blood pressure .................................................... 4 How the blood pressure monitor works ......................6 getting started ............................................................... 6 Installing and replacing the batteries .........................6 Setting date and time ................................................ 7 Positioning the wrist cuff ........................................... 7 Preparing to take blood pressure measurement ........8 Taking a measurement ..................................................8 Voice announcement .................................................9 Memory .........................................................................10 Recalling measurements stored in memory ............0 Clear records ................................................................10 Deleting a single record ..........................................0 Deleting all records ..................................................  data transmission ........................................................ 11 Unique device ID .....................................................2 Troubleshooting ...........................................................12 Technical specifications ..............................................13 About Oregon Scientific ..............................................14 information about the Ce mark .................................. 14 symbol description(s) ................................................. 14 Blood pressure log book .............................................14 FCC statement ..............................................................15 BPW800_EN_R8.indd 12011/6/8 7:06:51 PM EN 2 inTroduCTion Thank you for selecting the Oregon Scientific TM Talking Wrist Type Blood Pressure Monitor (BPW800). The BPW800 features voice announcement and playback of blood pressure measurements for added convenience and has been designed to provide you with many years of reliable service. The unit can help you measure and track the following metrics: • Systolic pressure • Diastolic pressure • Mean arterial pressure • Pulse rate • Historic record of up to 30 measurements per user (maximum 2 users) Readings taken by the blood pressure monitor are equivalent to those obtained by a trained observer using the cuff and stethoscope auscultation method. Clinical performance were successfully done against ANSI/AAMI SP0 and international protocol, and the B.H.S.( British Hypertension Society) has rated this product “recommended for clinical and home use”, the highest grading available for blood pressure monitors. Please refer to BHS website http://www.bhsoc.org/bp_monitors/automatic_wrist.stm This manual contains important safety and care information, and provides step-by-step instructions for using the product. Read the manual thoroughly before using the product. keY FeaTures FronT VieW 1 2 3 5 4 6 7 . Talk / VoluMe button 2. LCD 3. on / oFF and guesT button 4. Speaker 5. user 1 / uP arroW button 6. user 2 / doWn arroW button 7. seT button BPW800_EN_R8.indd 22011/6/8 7:06:53 PM EN 3 rear VieW 2 1 . Wrist cuff 2. Battery compartment 3 3. Unique Device ID lCd sYMBols sYMBol desCriP- Tion eXPlanaTion Systolic pressure The highest blood pressure measured Diastolic pressure The lowest blood pressure measured Time (hour: minutes) Current time Mean arterial pressure Average blood pressure measured (see “What is Mean Arterial Pressure (MAP)?” for more information) PulsePulse rate per minute User Shows which user profile (1 or 2 is being displayed) Memory If “MEM” shows, the displayed measurement value is from the memory and not necessarily from the last reading. If “MEM” flashes, there are 24 or more records per user which have not been uploaded. User is reminded to upload the data to the network to prevent records being erased. Weak battery Batteries are low and need to be replaced Inflating Unit is inflating with air to obtain the needed level of pressure Deflating Wrist cuff air is exhausting or deflating BPW800_EN_R8.indd 32011/6/8 7:06:59 PM EN 4 Millimeter(s) of mercury Measurement unit for blood pressure Voice activation Voice announcing your blood pressure measured saFeTY and Care insTruCTions saFeTY PreCauTions Please observe the following safety precautions when setting up and using your blood pressure monitor. • This device is intended for adult use only. • This device is intended for non-invasive measuring and monitoring of arterial blood pressure. It is not intended for use on extremities other than the wrist or for functions other than obtaining a blood pressure measurement. • Do not confuse self-monitoring with self-diagnosis. This unit allows you to monitor your blood pressure. Do not begin or end medical treatment based solely on the measurements of this device. Consult a physician for treatment advice. • If you are taking medication, consult your physician to determine the most appropriate time to measure your blood pressure. Never change a prescribed medication without consulting your physician. • This unit is not suitable for continuous monitoring during medical emergencies or operations. • If the cuff pressure exceeds 40 kPa (300 mmHg), the unit will autom…

Text truncated - open the document above for the full version.

MODEL: BPW 800 TITLE: COLOR SP. VERSION: 1 REV.: 1 REMARK: PAGE 1 OF 1 PREPARED BY: Mark FILE: APPROVED BY PMGT MKTR CU DATE: 2011-04-01 V.A. SIZE: 48X43 (mm) K L A T E M U L O V REAR CAB & BATTERY DOOR: -INJ. COLOR:PMS424C -TEXTURE:GLOSS -S/S COLOR: NIL TALK KEY: -INJ. COLOR:PMS424C -TEXTURE:GLOSS -S/S COLOR: WHITE LENS: -INJ. COLOR:CLEAR -TEXTURE:HIGH GLOSS -S/S COLOR ON LENS BACK: BACKGROUND: COOL GREY 5C PMS144C PMS425C FRONT CAB: -INJ. COLOR:RS WHITE -TEXTURE:GLOSS -S/S COLOR: NIL SIDE KEY x 3: -INJ. COLOR:RS WHITE -TEXTURE:GLOSS -PRINT COLOR: SEE BELOW POWER KEY : -INJ. COLOR:CLEAR -TEXTURE:HIGH GLOSS -PRINT BACKGROUND COLOR:PMS021C -PRINT TEXT COLOR: :WHITE ALL PRINT COLOR: PMS424C PRODUCT ID LABEL -COLOR:TRANSPARENT -S/S TEXT COLOR:BLACK -S/S COLOR:PMS424C

FCC TEST REPORT 47 CFR FCC Part 15.249 Report Reference No......................: FCC ID..............................................: WE11070023 NMTBPW800 Compiled by ( position+printed name+signature)..: File administrators Wenliang Li Supervised by ( position+printed name+signature)..: Test Engineer Tim Zhang Approved by ( position+printed name+signature)..: Manager Jeffrey Lu Date of issue.....................................: Aug 03, 2011 Testing Laboratory Name..............: Shenzhen Huatongwei International Inspection Co., Ltd Address.............................................: Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name............................: IDT Technology Limited Address.............................................: Block C, 9/F.,Kaiser Estate, Phase 1, 41 Man Yue Street,Hunghom, Kowloon, Hong Kong Manufacturer’s name.....................: IDT Technology Limited Address.............................................: Chentian Industrial Estate,Xixiang,Bao An,Shenzhen, PRC Test specification: Standard..........................................: 47 CFR FCC Part 15 Subpart C & 15.249 ANSI C63.10: 2009 TRF Originator ..................................: Shenzhen Huatongwei International Inspection CO., Ltd Master TRF.......................................: Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment Under Test ..................: Blood Pressure Wrist Trade Mark .......................................: / Model/Type reference.......................: BPW800 Listed Models ..................................: / Result................................................: Complied V1.0 Page 2 of 29 Report No.: WE11070023 FCC ID:NMTBPW800 Shenzhen Huatongwei International Inspection Co., Ltd T E S T R E P O R T Test Report No. : WE11070023 Aug 03, 2010 ______________________________________________________________________________________________ Date of issue Equipment under Test : Blood Pressure Wrist Model /Type : BPW800 Listed Models : / Applicant : IDT Technology Limited. Address : Block C, 9/F.,Kaiser Estate, Phase 1, 41 Man Yue Street,Hunghom, Kowloon, Hong Kong Manufacturer : IDT Technology Limited. Address : Chentian Industrial Estate,Xixiang,Bao An,Shenzhen, PRC Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 29 Report No.: WE11070023 FCC ID:NMTBPW800 Shenzhen Huatongwei International Inspection Co., Ltd Contents 1. TEST STANDARDS .................................................................. 4 2. SUMMARY............................................................................. 5 2.1. General Remarks 5 2.2. Equipment Under Test 5 2.3. Short description of the Equipment under Test (EUT) 5 2.4. EUT operation mode 5 2.5. Related Submittal(s) / Grant (s) 5 2.6. Modifications 5 3. TEST ENVIRONMENT............................................................... 6 3.1. Address of the test laboratory 6 3.2. Test Facility 6 3.3. Statement of the measurement uncertainty 7 3.4. Summary of standards and result 7 3.5. Environmental conditions 8 3.6. Equipments Used during the Test 8 4. TEST CONDITIONS AND RESULTS ............................................. 9 4.1. ANTENNA REQUIREMENT 9 4.2. Conducted Emissions Test 10 4.3. Radiated Emission Test 11 4.4. Out of band emissions 16 4.5. 20dB Bandwidth Measurement 18 5. TEST SETUP PHOTOS OF THE EUT .......................................... 19 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 21 V1.0 Page 4 of 29 Report No.: WE11070023 FCC ID:NMTBPW800 Shenzhen Huatongwei International Inspection Co., Ltd 1. TEST STANDARDS The tests were performed according to following standards: 47 CFR FCC Rules Part 15.249: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz. ANSI C63.10: 2009 – American National Standard for Teating Unlicensed Wireless Devices V1.0 Page 5 of 29 Report No.: WE11070023 FCC ID:NMTBPW800 Shenzhen Huatongwei International Inspection Co., Ltd 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Jul 21, 2011 Testing commenced on : Jul 21, 2011 Testing concluded on : Aug 03, 2011 2.2. Equipment Under Test Power supply system utilised Power supply voltage : ○ 120V / 60 Hz ○ 115V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC 3V from Battery 2.3. Short description of the Equipment under Test (EUT) 2.45GHz (Transmitter) For more details, refer to the user’s manual of the EUT. Serial number: Prototype 2.4. EUT operation mode The EUT has been tested under typical operating condition. 2.5. Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for FCC ID: NMTBPW800 filing to comply with Section 15.249 of the FCC Part 15, Subpart C Rules. 2.6. Modifications No modifications were implemented to meet testing criteria. V1.0 Page 6 of 29 Report No.: WE11070023 FCC ID:NMTBPW800 Shenzhen Huatongwei International Inspection Co., Ltd 3. TEST ENVIRONMENT 3.1. Address of the test laboratory Shenzhen Huatongwei International Inspection Co., Ltd Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Phone: 86-755-26715686 Fax: 86-755-26748089 The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 (2009) and CISPR Publication 22. 3.2…
