NMTET211EFind One, Find All Locator

Your keyfinder comes with two CR 2032 battery (uninstalled). 1. Pull out the battery tray. 2. Place the new battery on the tray, with the positive (+) side up. 3. Push the battery tray back in. Your keyfinder beeps and goes directly into setup mode. The LED flashes for about 50 seconds until you press a button. Follow the steps in Programming the Keyfinder to program your settings. Battery Notes: • Use only fresh batteries of the required size and recommended type. • If you do not use the keyfinder for a month or more, remove the battery. • Dispose of the old battery promptly and properly. Do not burn or bury it. • Keep button-cell batteries away from children. Swallowing a button-cell battery can be fatal. Your Find One, Find All Keyfinder comes in a set of two and helps you find up to six items within a range of up to 30 feet. Just attach the keyfinder to objects that are easily lost, such as keys, TV remote controls, or cell phones. Buttons on each key correspond to everyday household items. 63-1220 find one, find all keyfinder Please read this user’s guide before installing, setting up and using your new product. www.radioshack.com installing your battery You can compose six sets of keyfinder systems. In each system, you can program up to six items. Each item must have a separate keyfinder attached to it. 1. Press a button on the keyfinder to program the set number. The keyfinder beeps and the LED flashes quickly. 2. Press a button to program the item number. The LED flashes and the keyfinder beeps to confirm your settings. For example, if you programmed your keyfinder as Set 1 and Item 2, the keyfinder will beep once, pause, and then beep twice. • When the keyfinder stops working properly or the LED indicator dims, replace the battery. Your settings will be lost, so you must program the keyfinder again. • If you do not program the keyfinders and press any key on the unit, all unprogrammed units may respond. If keyfinder units are placed too close together and you press a key on the keyfinder unit, you may receive a false beep from the other keyfinder. • Do not attach the keyfinder closely to objects that contain large metal. • Do not set both remotes with the same number for an object. They will not work properly. For example: If you set 1 on your wallet remote, you must select a different number on your keyfob. changing your keyfinder 1. Press and hold 1 and 3 on your keyfinder for about three seconds to enter the setup mode. The keyfinder gives a warble beep and the LED flashes continuously. 2. Repeat Steps 1 and 2 under “programming your keyfinder.” checking your setup You can check the set numbers and item numbers on each keyfinder at any time. Press and hold 5 and 6 at the same time. The LED flashes and a set of continuous beeps sound with a pause between each one. The first beep is the set number and identifies which keyfinder set you have. The last beep indicates the item number programmed for that keyfinder. For example: If the keyfinder gives two beeps with an interval, and then one beep, the keyfinder belongs to Set 2 and Item 1. programming your keyfinder Each keyfinder comes in a set. Use the supplied plastic cord or the supplied double-sided tape to attach one keyfinder to an object you don’t want to misplace. Keep the other keyfinder to use when searching for lost objects. Loop the plastic cord through the opening at the top of your cell phone and then slide the plastic cord onto the keyring of the keyfinder. attaching your keyfinder To find a lost object, press the button on the keyfinder that corresponds to the lost object. The LED flashes as the search signal is transmitted. If the object is within range, the keyfinder beeps and the LED flashes. Move around the area and follow the sound until you find the lost object. The keyfinder attached to the object you are searching for emits a cluster of beeps, while the LED flashes continuously. You can use any keyfinder within the same set to search for lost objects. This includes keyfinders that are already attached to an item, such as your car keys or cell phone. If you lose your keyfinders, you can borrow someone else’s keyfinder. Program the keyfinder to your set to locate your lost keyfinders. finding lost objects • For the best results, hold the keyfinder unit with the LED pointing away from you. • Walk around your house while you repeatedly press the number associated with the item you are searching for in order to get a clear search signal. • Keep the keyfinder away from large metal objects and other radio sources that might reduce its range. • To avoid confusion, use only one keyfinder to search for the object you desire. • Reduce or eliminate noises so you can identify the beeping sound from the object you are looking for. hints and tips • Keep your keyfinders dry; if they gets wet, wipe them dry immediately. • Use and store your keyfinders only in room temperature environments. • Handle your keyfinders carefully. Do not drop them. • Keep your keyfinders away from dust and dirt. • Wipe the keyfinder with a damp cloth occasionally to keep it looking new. caring for your keyfinders NOTE This product is warranted by RadioShack against manufacturing defects in material and workmanship under normal use for one (1) year from the date of purchase from RadioShack companyowned stores and authorized RadioShack franchisees and dealers. For complete warranty details and exclusions, check with your local RadioShack store. RadioShack Customer Relations 300 RadioShack Circle, Fort Worth, TX 76102 04/04 liPited one\eDU ZDUUDnt\ This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmf…

Text truncated - open the document above for the full version.

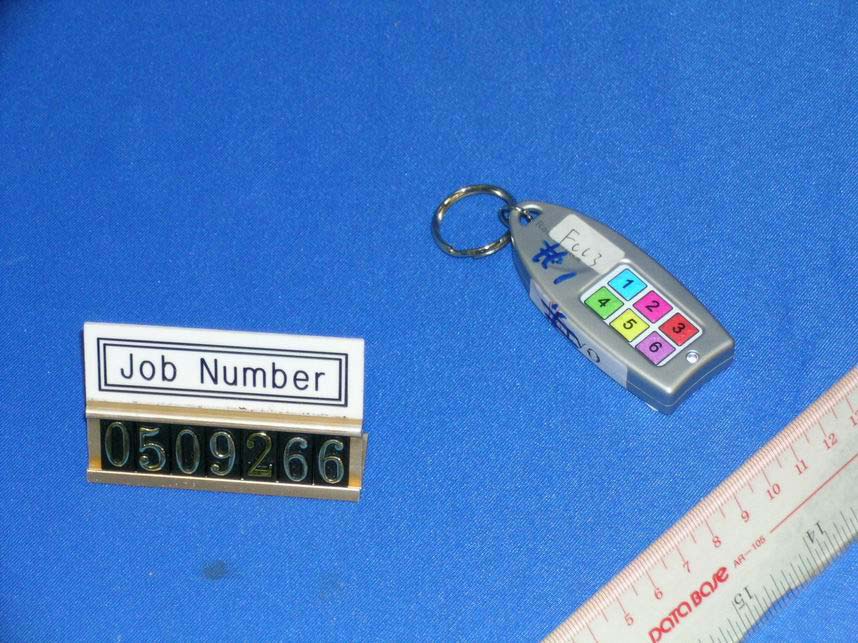

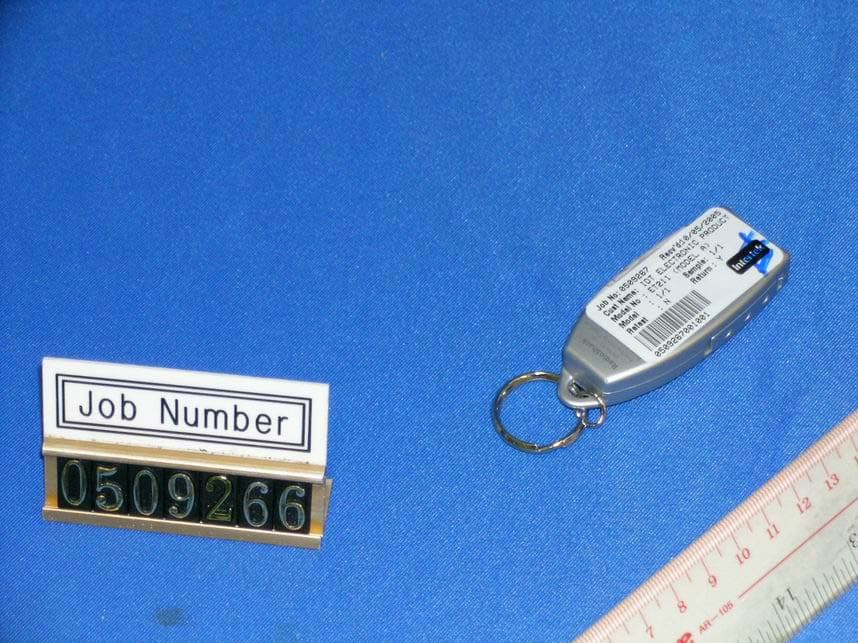

Test Setup FCC ID : NMTET211E External Photo - Front External Photo - Rear

MMAYY

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com IDT Technology Limited Application For Certification (FCC ID: NMTET211E) Transmitter 0509266 DL/ Sandy Lee June 15, 2005 INTERTEK TESTING SERVICES FCC ID: NMTET211E i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information EXHIBIT 9 : Confidentiality Request INTERTEK TESTING SERVICES FCC ID: NMTET211E ii MEASUREMENT/TECHNICAL REPORT IDT Technology Limited - MODEL: 63-1220 ET211E FCC ID: NMTET211E June 15, 2005 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [12-08-03 Edition] provision. Report prepared by: Derek Leung Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8539 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: NMTET211E iii Table of Contents 1.0 General Description..............................................................................................2 1.1 Product Description ..............................................................................................2 1.2 Related Submittal(s) Grants .................................................................................2 1.3 Test Methodology.................................................................................................3 1.4 Test Facility ..........................................................................................................3 2.0 System Test Configuration ...................................................................................5 2.1 Justification ..........................................................................................................5 2.2 EUT Exercising Software .....................................................................................5 2.3 Special Accessories .............................................................................................5 2.4 Equipment Modification ........................................................................................6 2.5 Measurement Uncertainty ....................................................................................6 2.6 Support Equipment List and Description ..............................................................6 3.0 Emission Results ..................................................................................................8 3.1 Field Strength Calculation ....................................................................................9 3.2 Radiated Emission Configuration Photograph ....................................................11 3.3 Radiated Emission Data.....................................................................................12 4.0 Equipment Photographs .....................................................................................15 5.0 Product Labelling ................................................................................................17 6.0 Technical Specifications ....................................................................................19 7.0 Instruction Manual ..............................................................................................21 8.0 Miscellaneous Information .................................................................................23 8.1 Measured Bandwidth .........................................................................................24 8.2 Discussion of Pulse Desensitization ...................................................................25 8.3 Calculation of Average Factor ............................................................................26 8.4 Emissions Test Procedures................................................................................27 9.0 Confidentiality Request ......................................................................................30 INTERTEK TESTING SERVICES FCC ID: NMTET211E iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Timing Diagram timing.pdf Cover Letter Confidentiality Request request.pdf INTERTEK TESTING SERVICES FCC ID: NMTET211E 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: NMTET211E 2 1.0 General Description 1.1 Product Description The Equipment Under Test (EUT) is a Transmitter Portion of a Transcei…

Text truncated - open the document above for the full version.

Duty Cycle = 50% Average Factor = -6.0 dB Pulse Width: 0.5 or 1 ms Transmission duration: 4.84s

Test Setup FCC ID : NMTET211E Radiated Photo - Front Radiated Photo - Rear RADIATED Model: 63-1220 Job No.: 0509266 RADIATED Model: 63-1220 Job No.: 0509266
