NMTNR868A-01Remote Nightlight with Motion Sensor

EN 1 INTRODUCTION Thank you for selecting the Oregon Scientific TM "Genoa" Motion Activated Clock This device is designed to give you many years of reliable service, including the following conveniences:
Atomic Calendar Clock
Temperature Display
Nightlight with Motion Sensor
Sensor or Manual Activated Backlight
US time zone selection
2-Minute Crescendo Alarm
Hourly Chime Function
Day of the Week in 1 of 5 Languages
Wall Mount and Table Stand Keep this manual handy as you use your new product. It contains practical step-by-step instructions, as well as technical specifications and warnings you should know. CONTENTS Introduction.......................................................... 1 Key Features - Main Unit..................................... 2 Front View / LCD Symbols................................ 2 Back View.......................................................... 2 Table Stand........................................................ 3 Key Features - Nightlight with Motion Sensor...................................................... 3 Front View.......................................................... 3 Back View.......................................................... 3 Safety and Care.................................................... 4 Safety Precautions............................................. 4 Caring for this Product....................................... 4 Getting Started..................................................... 4 How Your Clock Works with the Nightlight - Overview................................... 4 Package Contents.............................................. 4 Batteries............................................................. 4 AC Adaptor......................................................... 5 About Atomic Clock Reception..........................5 Turning the Atomic Clock Reception ON / OFF ....5 Clock / Calendar................................................... 6 Clock / Calendar Display................................... 6 Setting the Clock / Calendar.............................. 6 Hourly Chime..................................................... 6 Temperature....................................................... 6 Alarm...................................................................... 6 Alarm Display..................................................... 6 Setting the Alarm............................................... 6 Activating / Deactivating the Alarm................... 7 Alarm Sound...................................................... 7 Turning the Alarm Sound Off............................. 7 Clock Backlight.................................................... 7 To Manually Turn the Backlight On................... 7 To Activate the Backlight Using the Motion / Light Sensor......................................... 7 To Enable / Disable the Remote-Controlled Clock Backlight.................. 7 Nightlight............................................................... 7 Activating the Nightlight Using the Mode Button................................................. 7 Activating the Clock Backlight Using the Control Button.............................................. 8 The Code Switch................................................ 8 The Channel Switch........................................... 8 + Light - Rotary Knob......................................... 8 Reset Button...................................................... 8 Technical Specifications..................................... 9 Troubleshooting................................................... 10 About Oregon Scientific...................................... 11 FCC Statement......................................................11 Declaration of Conformity.................................. 11 "Genoa" Motion Activated Clock Model: JMR868A / NR868A USER MANUAL JMR868A_EN_R509/17/2004, 14:521 2 EN KEY FEATURES - MAIN UNIT FRONT VIEW / LCD SYMBOLS BACK VIEW 1. Channel 1 / 2
Ch.1 or Ch.2 will appear when the related remote nightlight sensor has been activated. 2. Alarm On Icon
Appears when the alarm is enabled. 3. AL
Appears when you are in the Alarm Display Mode. 4. Alarm / Calendar (DD / MM)
Shows alarm time.
Shows the date in DD / MM or MM / DD format. 5. Time
HH / MM, 12 / 24 Hour, AM / PM. 6.Atomic Clock Reception Icon
Shows the strength of the reception signal. 7. Start
Start-time for the remotely controlled backlight by nightlight with motion sensor. 8. Hourly Chime
Appears when the hourly chime is enabled. 9. Stop
Stop-time for the remotely controlled backlight by nightlight with motion sensor. 10. Battery Low Icon
Appears when the 2 clock batteries are low. 11.Time Zone Offset / Day of the Week
Offsets the atomic time when you are in a different US time zone.
Name of the day in 1 of 5 languages. 12. Temperature
̊C / ̊F. 13. Light Icon with Battery Low Icon
Appears when the 2 main backlight batteries are low. 1. Wall Mount Hole 2. Table Stand 3. Battery Compartment
Uses 4 x UM-3 / AA 1.5V batteries. 4. LIGHT button
Press to activate the clock backlight for 5 seconds. 5. MODE button
Press to toggle between 3 clock displays.
Press and hold to enter Clock Setting Mode - US time zone offset, 12- / 24-hour format, hour, minute, year, DD / MM or MM / DD format, month, day, day-of-the-week language and hourly chime on / off. 6. ARROW UP and ARROW DOWN buttons
Press to increase / decrease the value of a setting (in any setting mode).
Press and hold to activate / deactivate the atomic clock reception (in normal Display Mode).
Press to activate / deactivate the alarm function when the respective alarm is selected. 7. ALARM button
Press to toggle between 3 alarm displays.
Press and hold in the respective Alarm Display Mode to enter its Setting Mode for the daily alarm, clock Code for the remote nightlight sensor or, the remote-controlled backlight start and stop time. 8. ̊C / ̊F - Temperature
Slide to select between ̊C / ̊F display format. 9…

Text truncated - open the document above for the full version.

NR868A BLOCK DIAGRAM PAGE 1 OF 1 MCU MSM64160 D-843 32.768KHz Modulator NIGHTLIGHT CDS CIRCUIT MLG4406 POWER 4.5V 3V VREG R/G LED Red=Lowbat Green=Normal Orange=Tx Indicator PIR CIRCUIT RE200B LIGHT ON/LINK /RESET BUTTON 3V VREG CODE/CHANNEL MODEON/OFF/AUTO SLIDE SWITCH +LIGHT-

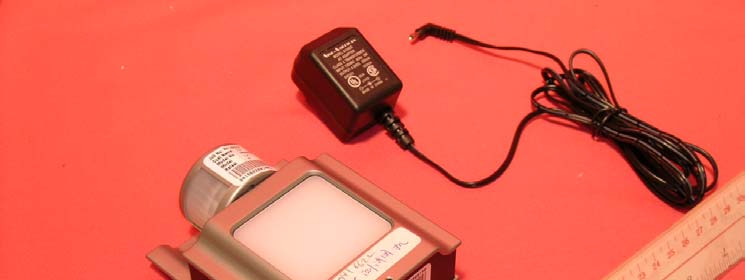

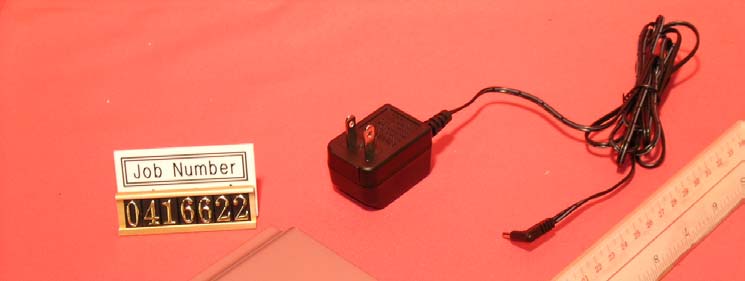

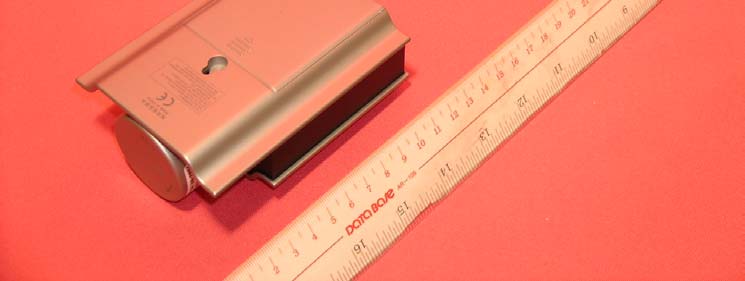

Test Setup FCC ID : NMTNR868A-01 External Photo - front External Photo - rear

"AA" UM3 1.5V "AA" UM3 1.5V "AA" UM3 1.5V Reset Light Mode Clock Control On Off TEXT EMBOSS MODEL: NR868A TITLE: COLOR SP. VERSION: REV.: 1 REMARK: PAGE 2 OF 2 PREPARED BY: FILE: NR868A COLOR SPEC 1 DATE: APPROVED BY PMGT MKTR CU DATE: 05-07-2004 On Off Auto Code Made in China NR868A Channel 4 3 REAR CAB COLOR IN DS-01 (DARK SILVER) INJECTION COLOR IN PMS COOL GRAY 4C PRINT TEXT & GRAPHIC COLOR IN PMS 425C (DARK GRAY) INLAY COLOR IN DS-01 (DARK SILVER) PRINT TEXT COLOR IN LIGHT GRAY PMS 427C KEY COLOR IN PMS COOL GRAY 4C CAB COLOR IN DS-01 (DARK SILVER) INJECTION COLOR IN PMS COOL GRAY 4C Made in China NR868A FCC ID: NMTNR868A-01 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC ID: NMTNR868A-01 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

Test Setup FCC ID : NMTNR868A-01 Internal Photo - 1 Internal Photo - 2 Test Setup FCC ID : NMTNR868A-01 Internal Photo – 3 Internal Photo – 4 Test Setup FCC ID : NMTNR868A-01 Internal Photo – 5 Internal Photo – 6 Test Setup FCC ID : NMTNR868A-01 Internal Photo – 7 Internal Photo – 8 Test Setup FCC ID : NMTNR868A-01 Internal Photo – 9 Internal Photo – 10 Test Setup FCC ID : NMTNR868A-01 Internal Photo – 11 Internal Photo – 12 Test Setup FCC ID : NMTNR868A-01 Internal Photo – 13 Internal Photo – 14 Test Setup FCC ID : NMTNR868A-01 Internal Photo – 15

IDT Technology Limited 9/F Kaiser Estate, 41 Man Yue Street, Hunghom, Kowloon, Hong Kong. Tel 2764 7873 Fax 2765 6620 Cable IDTRAYMOND Telex 36567-IDTHK HX NR868A Technical Description Introduction The unit NR868A is a passive infrared motion detector.It can detect a infrared radiation by person moving at night, then generate an nightlight signal and transmit a alarm signal to the main unit JMR868A through RF carrier in the frequency 433.94 MHz. The main unit receive the signal, then display the sign at LCD and drive backlight. MCU IC U4, OKI brand MSM64160 can process the CDS data and the PIR data , and transmit RF signal and drive nightlight. It can process the battery level signal and drive the corresponding LED indicating. When it transmit RF sign, it drive orange LED indicating. It’s clock frequency is 32768Hz. PIR DETECT Pyroelectric passive infrared sensor generate a signal when detect a infrared motion object,the signal be U201(LPV324MT) amplified and compared.and then the signal be processed by U4. Low Battery Detection The IC U4 detects low battery signal with the switching circuitry Q5,Q6andQ7.
