Wireless Outdoor Temperature and Humidity Sensor (Model #: PS-R01) User Manual EN PS R01A English Cover r710/17/03, 6:29 PM1 1 EN TABLE OF CONTENTS About Oregon Scientific ............................................ 1 About this guide ....................................................... 2 Product overview ....................................................... 3 Getting started .......................................................... 4 Set up ................................................................. 4 Change channel .................................................. 5 Comfort zone ...................................................... 6 Trends ................................................................. 6 Low battery warning ............................................ 7 Reset system ............................................................. 7 Safety and care ........................................................ 7 Warnings ................................................................... 7 Troubleshooting ........................................................ 8 Specifications ............................................................ 9 FCC Notice ............................................................. 10 ABOUT OREGON SCIENTIFIC Visit our website (www.oregonscientific.com) to learn more about other Oregon Scientific TM products such as digital cameras, projection clocks, health and fitness gear, and weather stations. The website also includes contact information for our customer service department, in case you need to reach us. PS R01A English r710/17/03, 6:29 PM1 2 EN ABOUT THIS GUIDE Congratulations on your selection of the Philippe Starck with Oregon Scientific Wireless Outdoor Temperature and Humidity Sensor (PS-R01). This sensor is compatible with a wide variety of weather monitoring tools, and can be used with any STARCK / Oregon Scientific Weather Stations. Keep this manual handy as you use your new product. It contains practical step-by-step instructions, as well as technical specifications and warnings you should know. In this box, you will find: •Remote unit •Batteries PS R01A English r710/17/03, 6:29 PM2 3 EN PRODUCT OVERVIEW DESCRIPTIONS 1.Temperature / Trend display 2.Low battery icon 3.Humidity / Trend / Comfort Level display 4.°F/°C switch 5.Channel switch 6.Reset button 7.Battery compartment 8.Wall mount hole 9.Battery compartment lid 5 4 6 7 8 9 1 2 3 PS R01A English r710/17/03, 6:29 PM3 4 EN SET UP 1.Place remote unit as close as possible to the main unit. 2.Remove the battery compartment lid. (You will need a small Phillips screwdriver.) 3.Assign a Channel Number. If you are using more than one remote unit, select a different channel number for each unit. 4.Set the measurement unit. 5.Insert the batteries. Match the polarity, as shown in the battery compartment. 6.Press RESET with the point of a blunt object (such as a ball point pen). GETTING STARTED This product can be used with up to 2 remote units to transmit outdoor temperature and humidity data to a main (indoor) unit. The measurement unit (°F or °C) and channel number (1, 2, or 3) switches are located in the battery compartment, and should be set prior to installation. Additional remote units sold separately. NOTE PS R01A English r710/17/03, 6:29 PM4 5 EN 7.Replace the battery compartment lid. Secure. 8.Mount the remote unit on a flat surface using the recess hole on the back of the unit. For best results: • Place the unit out of direct sunlight and moisture. • Do not place the remote unit more than 60 - 90 feet (20 - 30 meters) from the main (indoor) unit. • Position the unit so that it faces the main (indoor) unit. Minimize obstructions such as doors, walls, and furniture. You may need to experiment with various locations to get the best reception. 9.Once the batteries are in place, the sensor will transmit signals approximately every 40 seconds. The readings shown on the main unit depend on which remote sensor (1, 2, or 3) is selected. Refer to the main unit User Manual for more information. CHANGE CHANNEL Repeat the Set Up procedure ( pg.4). In Step 3, select a different Channel Number. PS R01A English r710/17/03, 6:29 PM5 6 EN Comfort 68 - 77 °F (20 - 25 °C) 40 - 70% Wet Any>70% Any Dry <40% COMFORT ZONE The outdoor comfort zones are shown under the following conditions. TRENDS The trend arrow for the last 30 minutes always displays. Outdoor temperature and humidity trends are shown separately. ZoneTemperatureRelative Humidity +0.9 °F > + 3% Steady Steady -0.9 °F < -3% TemperatureRelative Humidity Trend PS R01A English r710/17/03, 6:29 PM6 7 EN LOW BATTERY WARNING Replace the batteries whenever the low battery signal ( ) shows on the remote unit, or on the remote unit area of the main unit. Do not use rechargeable batteries. Properly dispose used batteries by taking them to an authorized disposal station. RESET SYSTEM The RESET button is located in the battery compartment. Press it with the point of a blunt object (such as a ball point pen) whenever you change the batteries, or whenever performance is not behaving as expected (e.g., unable to establish radio frequency link with main unit). Refer to the User Manual for the main unit for more information. SAFETY AND CARE Wash the unit with a slightly damp cloth and mild detergent. Avoid dropping the unit or placing it in direct sunlight or in damp or high-traffic locations. WARNINGS This product is designed to give you years of service if handled properly. Observe the following guidelines: •Never immerse the unit in water. This can cause electrical shock and damage the unit. NOTE PS R01A English r710/17/03, 6:29 PM7 8 EN Check location ( pg.5) Check batteries ( pg.4, 7) •Do not subject the main unit to extreme force, shock, or fluctuations in temperature or humidity. •Do not tamper with the internal components. •Do not mix new and old batteries or batteries of different types. Do not use rechargeable batteries with this pro…
Text truncated - open the document above for the full version.
SENSOR2.sch-1 - Mon Dec 22 11:46:25 2003

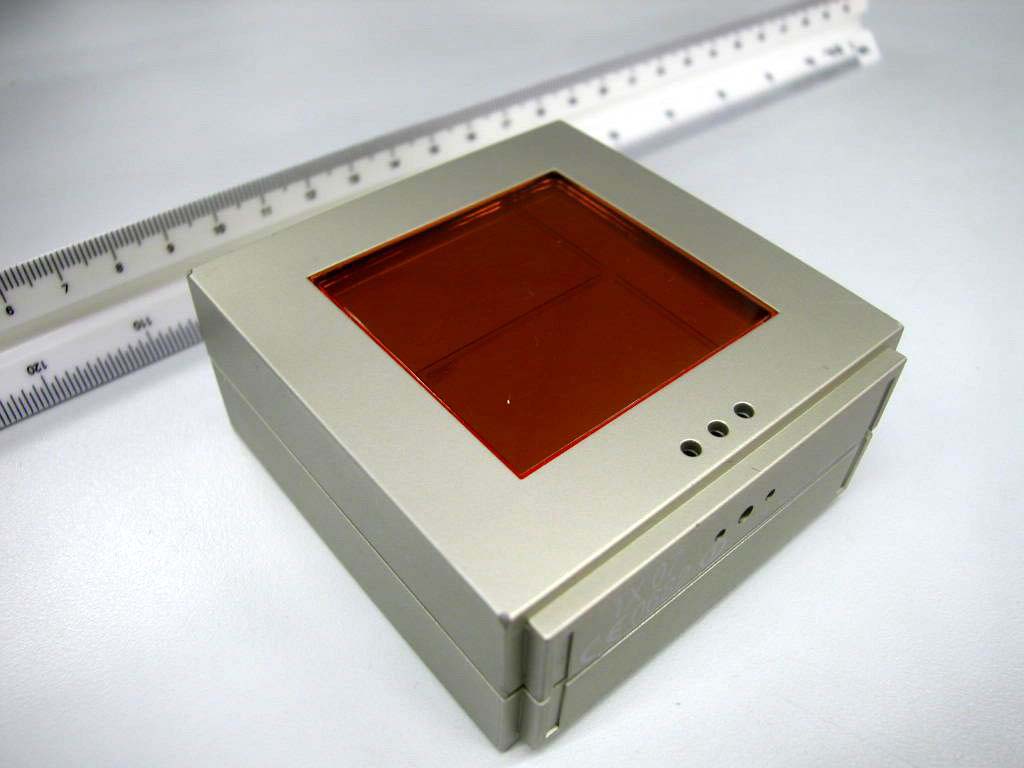

Test Setup FCC ID : NMTPSR01-01 External Photo -front External Photo – rear
PSR01-Y MADE IN CHINA Cab. color: injection: PMS Warm Gray 2C spray: Champagne Gold (Kai Tai 831119) W/UV coating Silkscreen color: Silver (New Tech 94-124) IDT TECHNOLOGY LTD. APPROVAL MKTR: Emily Lee WOL: 0309016 MODEL: CU: TITLE: PREPARED BY: PAUL LAU DATE: FILE: (Mac.) F/O: P/N: PSR01-Y OS-USA fnt cab. 07.11.03 51-2744X04 AW (PDD) DATEDATEDATE TEX (ENG)TRANS AW (CU) DATEDATEDATE TEX (P MGR)A/W (SUP) FCC ID: NMTPSR01-01 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED. INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC ID: NMTPSR01-01 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED. INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC ID: NMTPSR01-01 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED. INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. 175% OF ORIGINAL PSR01-G MADE IN CHINA PSR01-G 51-2744X06
Test Setup FCC ID : NMTPSR01-01 Internal Photo – 1 Internal Photo – 2 Test Setup FCC ID : NMTPSR01-01 Internal Photo – 3 Internal Photo – 4 Test Setup FCC ID : NMTPSR01-01 Internal Photo – 5 Internal Photo – 6
IDT Technology Limited F A C S I M I L E C O M M U N I C A T I O N 9/F Kaiser Estate, 41 Man Yue Street, Hunghom, Kowloon, Hong Kong. Tel 2764 7873 Fax 2765 6620 Cable IDTRAYMOND Telex 36567-IDTHK HX Technical description of PS-R01 PS-R01 is a transmitter, which it operated at 433.92Mhz at the center frequency with integral antenna. The EUT powered by 3V DC ( 2 X UM-3 or “AA” size 1.5V batteries ).When the batteries supplied to the unit, the MCU (U1) start to collect all relative data from the sensing devices, (eg TEMP, Humidity, Channel and C/F setting ). After the conversion by MCU U1, all data have be converted to serial signal and display the actual value on the LCD display , which the signal of that data should be OOK format. The X102 as the SAW filter, it used to control the OSC frequency at 433.92Mhz , the OOK signal have be amplified by Q101 and radiated from interal antenna.
• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com IDT Technology Limited Application For Certification (FCC ID: NMTPSR01-01) Transmitter 0318775 DL/ Sandy December 22, 2003 INTERTEK TESTING SERVICES FCC ID: NMTPSR01-01 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: NMTPSR01-01 ii MEASUREMENT/TECHNICAL REPORT IDT Technology Limited - MODEL: Remote Thermo Hygro PS-R01 FCC ID: NMTPSR01-01 December 22, 2003 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [08-20-02 Edition] provision. Report prepared by: Derek Leung Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG. Phone: 852-2173-8504 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: NMTPSR01-01 iii Table of Contents 1.0 General Description...............................................................................................2 1.1 Product Description...............................................................................................2 1.2 Related Submittal(s) Grants...................................................................................2 1.3 Test Methodology..................................................................................................3 1.4 Test Facility...........................................................................................................3 2.0 System Test Configuration ....................................................................................5 2.1 Justification ...........................................................................................................5 2.2 EUT Exercising Software .......................................................................................5 2.3 Special Accessories ..............................................................................................5 2.4 Equipment Modification .........................................................................................6 2.5 Measurement Uncertainty......................................................................................6 2.6 Support Equipment List and Description................................................................6 3.0 Emission Results ...................................................................................................8 3.1 Field Strength Calculation......................................................................................9 3.2 Radiated Emission Configuration Photograph ......................................................11 3.3 Radiated Emission Data ......................................................................................12 4.0 Equipment Photographs ......................................................................................15 5.0 Product Labelling.................................................................................................17 6.0 Technical Specifications ......................................................................................19 7.0 Instruction Manual ................................................................................................21 8.0 Miscellaneous Information...................................................................................23 8.1 Measured Bandwidth...........................................................................................24 8.2 Discussion of Pulse Desensitization .....................................................................25 8.3 Calculation of Average Factor..............................................................................26 8.4 Emissions Test Procedures.................................................................................27 INTERTEK TESTING SERVICES FCC ID: NMTPSR01-01 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Timing Diagram timing.pdf INTERTEK TESTING SERVICES FCC ID: NMTPSR01-01 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: NMTPSR01-01 2 1.0 General Description 1.1 Product Description The Equipment Under Test (EUT) is a transmitter unit operating at 433MHz. The EUT is powered by 3.0V d.c. (2 x UM-4 or “AAA” size 1.5V alkaline batteries). There are two switches (channel selector 1/2/3 and temperature s…
Text truncated - open the document above for the full version.
v IDT Technology Limited 9/F Kaiser Estate, 41 Man Yue Street, Hunghom, Kowloon, Hong Kong. Tel 2764 7873 Fax 2765 6620 Cable IDTRAYMOND Telex 36567-IDTHK HX 3, Random ID Generation • ID is generated after hardware reset. • If the random number is generated to be either H’00 or H’FF, software will re- generate until the number is not these two value. 4, 433MHz RF Data Encoding 1/2048 sec 1/2048 sec 1/2048 sec 1/2048 sec Logic ‘1’ Logic ‘0’ 5, Temperature / Humidity Trend The Temperature / Humidity Trends are updated for every 30 minutes. The Temperature Trend is rising if the change of temperature is more than 0.5ºC. It is falling if the change of temperature is less than -0.5ºC. Otherwise, it is steady. The Humidity Trend is rising if the change of humidity is more than 3%. It is falling if the change of humidity is less than –3%. Otherwise, it is steady. 6, Data Format Version Data TH T Bit 0 1 1 Bit 1 1 1 Bit 2 1 1 Bit 3 1 1 Bit 0 1 1 Bit 1 1 1 Bit 2 1 1 Preample Bit 3 1 1 Bit 0 1 1 Bit 1 1 1 Bit 2 1 1 Bit 3 1 1 Bit 0 1 1
