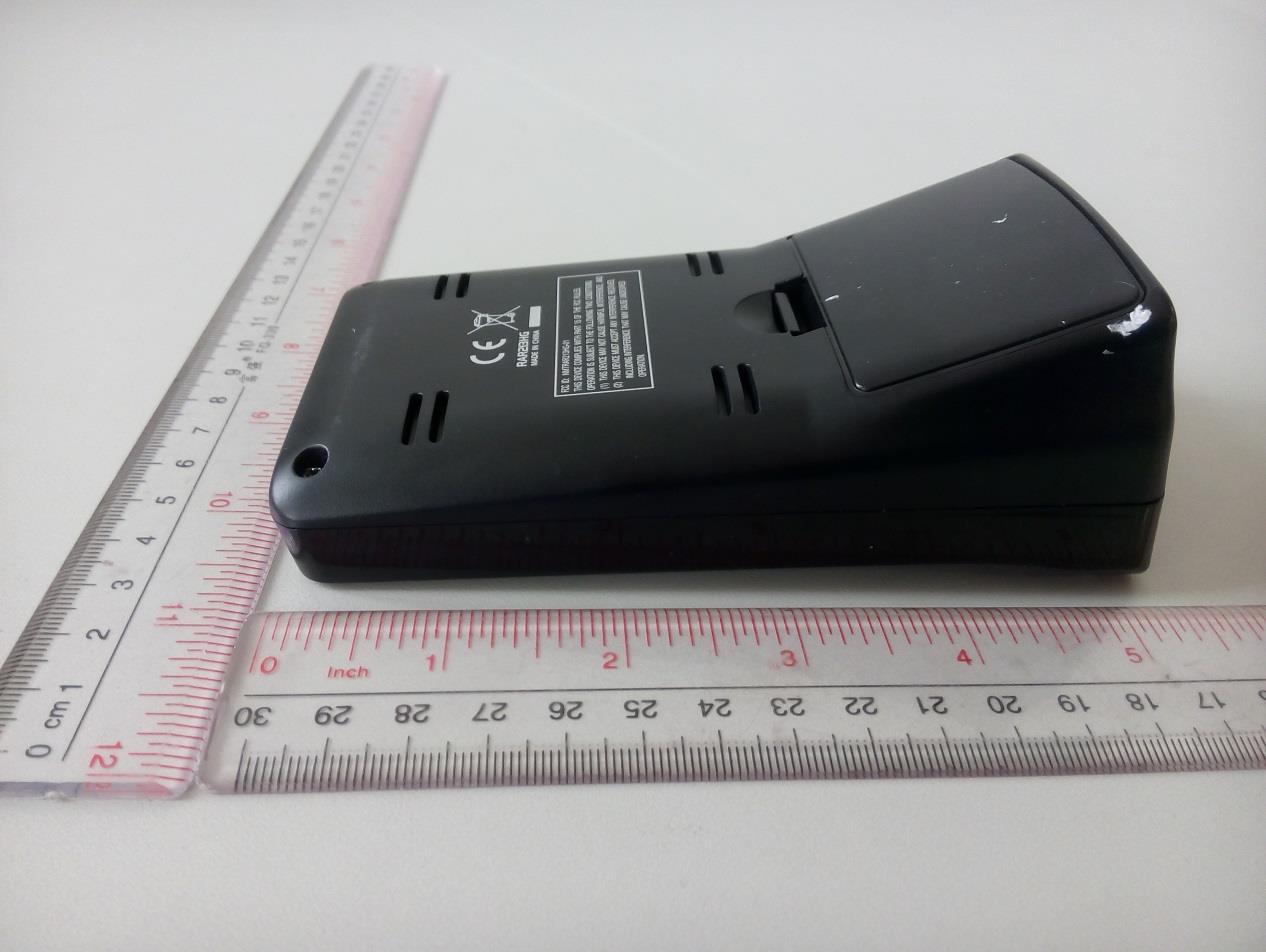

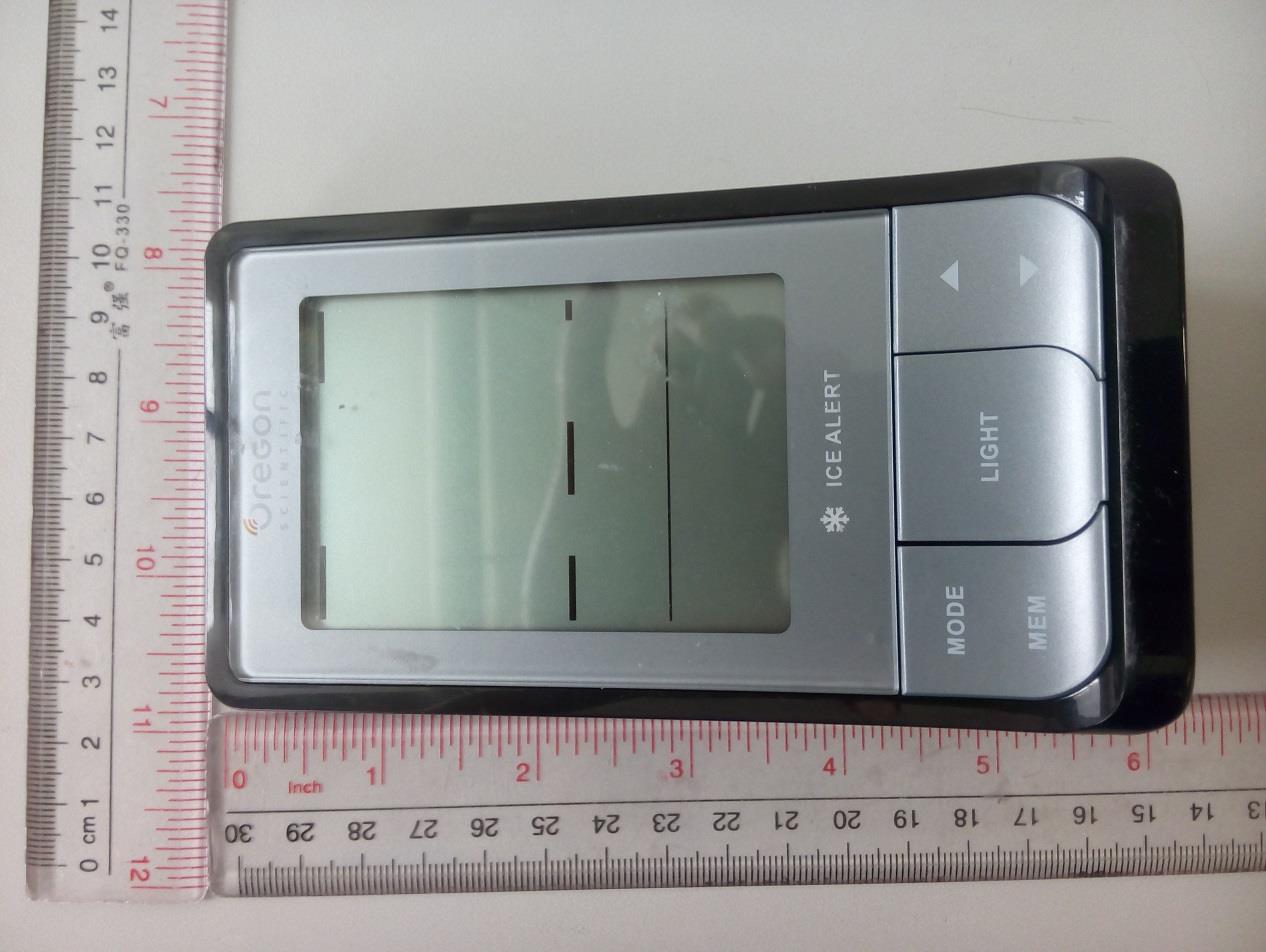

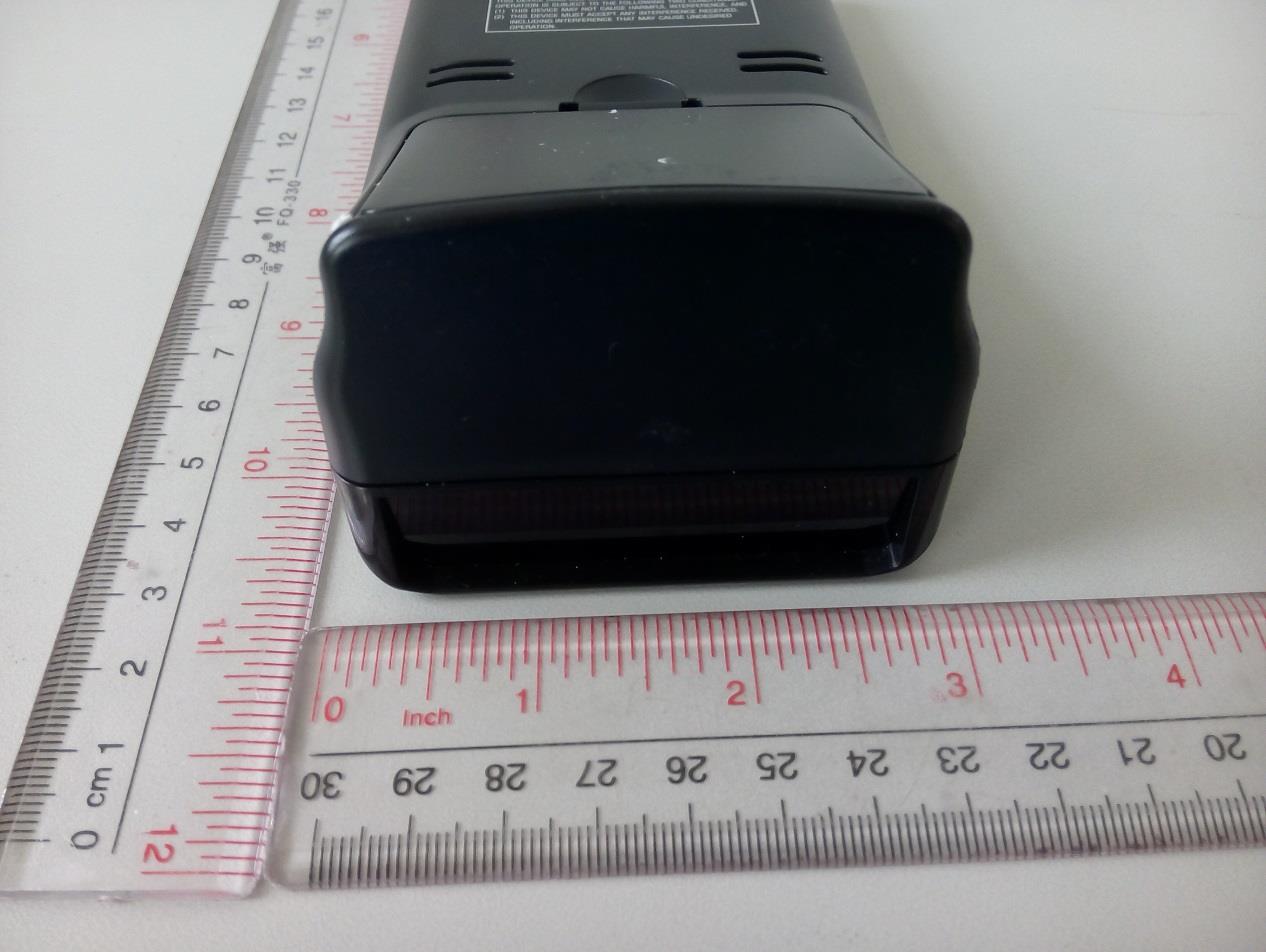

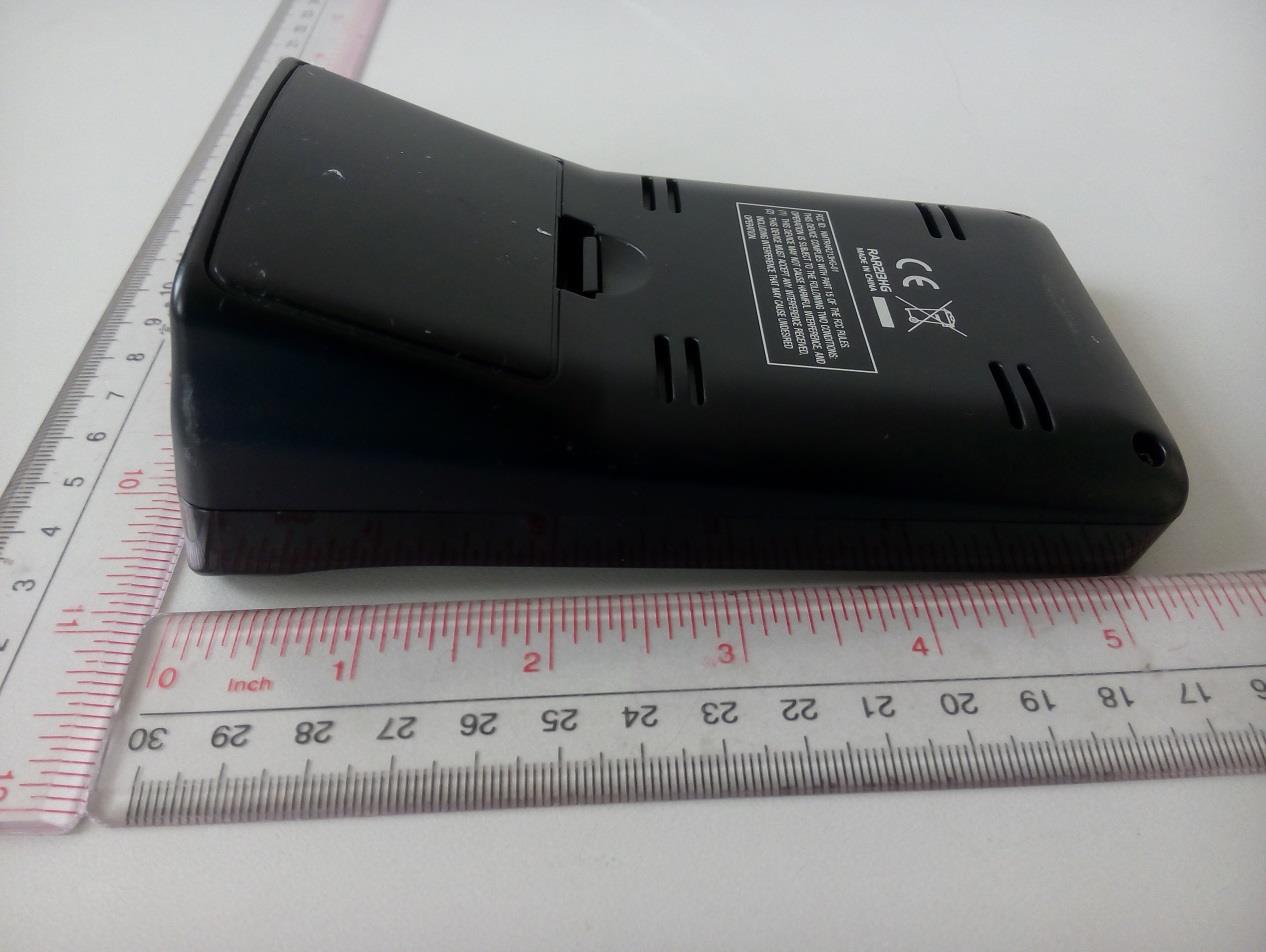

NMTRAR213HG-01BLE connected IN/out thermo-hygrometer with clock

Model: RAR213HG USER MANUAL BLE connected IN/out thermo-hygrometer with clock  EN Model: RAR213HG USER MANUAL CoNTENTS Introduction-----------------------------------------------------------------3 overview ---------------------------------------------------------------------3 Front view ----------------------------------------------------------------3 Rear view - battery compartment ----------------------------------4 Remote sensor (THN13N ) -----------------------------------------4 Getting started -------------------------------------------------------------4 Remote sensor – set up ---------------------------------------------4 Main unit – insert batteries ------------------------------------------5 Main unit – changeable display ------------------------------------5 Sensor data transmission --------------------------------------------6 Manually set clock--------------------------------------------------------6 Temperature ----------------------------------------------------------------6 Ice alert (channel 1 only) ---------------------------------------------7 Reset----- ---------------------------------------------------------------------7 Precautions -----------------------------------------------------------------7 Specifications --------------------------------------------------------------8 About Oregon Scientific ------------------------------------------------8 EU-Declaration of conformity-----------------------------------------9 FCC & IC statement ------------------------------------------------------9 BLE connected IN/out thermo-hygrometer with clock EN 3 INTRoDUCTIoN Thank you for selecting our Oregon Scientific TM Weather@Home Thermo Plus Bluetooth-enabled Thermo-Hygro Monitor, which has changeable display on indoor and outdoor temperatures and humidity. NOTE Please keep this manual handy as you use your new product. It contains practical step-by-step instructions, as well as technical specifications and warnings you should know about. oVERVIEW FRoNT VIEW 1. Outdoor channel selected . : remote sensor reception indicator 3. : outdoor remote sensor battery low 4. Outdoor humidity reading (current / MAX / MIN) 5. Indoor temperature reading (current / MAX / MIN) 6. : BLE connection indicator 7. : main unit battery low 8. Ice alert LED indicator 9. MoDE : change settings / display; search remote sensor 10. MEM: view current, maximum and minimum temperature / humidity 11. LIGHT: activate backlight for 5 seconds 1. : decrease value of the settings; select outdoor channels; deactivate pairing mode 13. : increase value of the settings; select outdoor channels; activate pairing mode 14. AM/PM : morning/afternoon MD/DM/Yr: calendar / clock with weekday (hour : minute with second display) 4 EN 15. Indoor humidity reading (current / MAX / MIN) 16. Outdoor temperature reading (current / MAX / MIN) REAR VIEW RESET C0F 1. RESET: reset the unit to default settings . °C / °F: select temperature unit 3. Battery compartment REMoTE SENSoR (THGN132N) 1 2 3 4 5 1. LED status indicator . Wall mount hole 3. Battery compartment 4. RESET hole 5. CHANNEL switch USEFUL REFERENCE Other supported sensors include the following models: THGN13N, THN13N, THGN38N, THGR38N, BTHGN19, THN318N GETTING STARTED INSERT BATTERIES 1. Remove the battery compartment. . Insert the batteries, matching the polarities ( +/-). 3. Press RESET after each battery change. EN 5 LoCATIoNMEANING Clock areaMain unit batteries low Outdoor temperature areaSensor batteries low REMoTE SENSoR The main unit can collect data from up to 5 sensors. To set up the sensor: 1. Open the battery compartment. . Select a channel then press RESET. 3. Close the battery door. 4. Place the sensor within 98 ft (30 m) of the main unit using the table stand or wall mount. TIP Ideal placements for the sensor would be in any location on the exterior of the home at a height of not more than 5 ft (1.5 m) and which can shield it from direct sunlight or wet conditions for an accurate reading. 1.5 m (5 ft) NOTE Use alkaline batteries for longer usage and consumer grade lithium batteries in temperatures below freezing. SENSoR DATA TRANSMISSIoN To search for a sensor: • Press and hold and MoDE at the same time for  seconds. To auto-scan among sensors: The main unit can search for the sensor(s) automatically. The temperatures will be displayed automatically in sequential order. The sensor reception icon in the remote sensor area shows the status: ICoNDESCRIPTIoN Main unit is searching for sensor(s). A channel has been found. The sensor cannot be found. TIP The transmission range may vary depending on many factors. You may need to place the sensor(s) in different locations to get the best result(s). 6 EN CLoCK MANUALLY SET CLoCK 1. Press and hold MoDE for  seconds to enter the setting mode. . The settings order is: 1/4 hour format, hour, minute, year, calendar format (day-month / month-day), month, day and language. 3. Press or to change the settings. 4. Press MoDE to confirm. The language options are English (E), German (D), French (F), Italian (I), and Spanish (S). To select display mode: Toggle MoDE to choose among clock with seconds / clock with weekday / calendar. TEMPERATURE AND HUMIDITY To select temperature unit: 1. Open the battery compartment. . Select °C or °F for temperature readings by a pin or the top of a pen. 3. Close the battery door. To select an outdoor sensor’s reading: • Toggle or to select your desired sensor channel. To auto-scan among sensors: 1. Press and hold and MEM at a time for  seconds to enable auto-scan function for all 5 channels. The temperature will be displayed automatically in sequential order for 3 seconds each. . To end, press or . To display current, minimum and maximum records of the day from a selected sensor: • Toggle MEM. To clear the records: • Press and hold MEM for  seconds. NOTE The record will also be cleared once the batteries are removed from the main unit. ICE WARNING If the channel 1 sensor f…
