NMTRM382PA-01Induction Charger

EN 1 TimeSphere Wireless Projection Clock Model No: RM382P / RM382PA USER MANUAL CONTENTS Introduction .............................................................. 2 Overview ................................................................... 2 Front View ............................................................. 2 Base View ............................................................. 3 LCD Display .......................................................... 3 Getting Started ........................................................ 3 Power .................................................................... 3 Clock Display Modes ............................................ 4 Clock Reception ...................................................... 4 Reception Signal .................................................. 5 Clock Settings ......................................................... 5 Alarm ......................................................................... 5 Projector .................................................................. 6 Temperature ............................................................. 7 Reset ......................................................................... 7 Precautions .............................................................. 7 Specifications .........................................................8 About Oregon Scientific ........................................ 9 EU-Declaration of Conformity ...........................9 FCC Statement ........................................................ 9 Declaration of Conformity ................................... 10 RM382P_M_EN_OP_REVISED1.indd 14/19/06 5:51:28 PM EN 2 1 2 3 4 5 6 7 8 INTRODUCTION Thank you for selecting the Oregon Scientific™ projection clock (RM382P / RM382PA). NOTE Please keep this manual handy as you use your new product. It contains practical step-by-step instructions, as well as technical specifications and warnings you should know about. OVERVIEW FRONT VIEW 1. Projection ball: Projects time on the wall or ceiling. (Twist the closed projection unit to adjust the focus.) 2. Charging pad 3. SNOOZE / PROJECTION: Activates 8-minute snooze; turns the continuous projection function ON / OFF 4. AL ON / OFF: Activates / deactivates the alarm(s) 5. : Increases setting; enables clock radio reception signal 6. MODE: Toggles between different clock displays; enters clock setting mode 7. ALARM: Toggles between alarm 1, alarm 2 and calendar mode; enters alarm setting mode 8. : Decreases setting; disables clock radio reception signal RM382P_M_EN_OP_REVISED1.indd 24/19/06 5:51:33 PM EN 3 1 2 3 4 5 6 7 BASE VIEW 1. Charging base circles: Position the unit to project the time vertically at 3 different angles 2. Indoor temperature sensor 3. Ventilation holes 4. Adapter slot 5. °C / °F: Selects temperature unit 6. EU / UK switch (RM382P only): Slide to select your nearest radio signal base 7. RESET: Press to reset 8. Rechargeable battery compartment 9. RESET: Press to reset 10. : Press to turn projector ON / OFF 11. Light sensor: Control the brightness of backlight LCD DISPLAY 1. Time 2. Clock radio reception signal 3. Rechargeable battery icon 4. Indoor temperature reading 5. Time zone / day of the week 6. Alarm 1 / 2 is activated 7. Alarm time / calendar GETTING STARTED POWER MAIN UNIT Plug in the AC adapter. 1 8 9 10 11 2 3 4 5 6 7 RM382P_M_EN_OP_REVISED1.indd 34/19/06 5:51:44 PM EN 4 PROJECTION UNIT Insert rechargeable batteries (2 x AAA 1.5V) before first use, matching the polarity (+ and -): 1. Twist the ball counter-clockwise until it loosens. 2. Pull the top half upwards. 3. Lift up the battery compartment cover. 4. Slide the battery in. 5. Insert the plastic plug into the slot. 6. Press to turn the projector ON. NOTE Make sure it is fully charged before first use. NOTE When opening or closing the ball you will hear a click signifying that it has opened or closed. Do not keep 1 2 3 4 5 6 twisting beyond the click noise or you may break the unit. NOTE appears with the projected time when the projection unit batteries are low. To charge the projection unit, place it on the main unit, making sure that 1 of its 3 base circles is in contact with the main unit, charging pad. Charge the projection unit for 12 hours the first time and 8 hours from then on. This will provide the projection unit with 10 hours continuous projection time. is animated during charging and static when full. CLOCK DISPLAY MODES Press MODE to toggle between the clock displays: • Clock with seconds • Clock with weekday • Clock with time zone offset and weekday NOTE The light sensor at the back of the clock will detect the light level in the room and adjust the clock display accordingly. Do not position the back of the clock close to a wall or other object, otherwise the light may not function. CLOCK RECEPTION This product is designed to synchronize its calendar clock automatically once it is brought within range of a radio signal: RM382P_M_EN_OP_REVISED1.indd 44/19/06 5:51:58 PM EN 5 RM382P: • DCF-77 generated from Frankfurt, Germany for Central Europe • MSF-60 generated from Rugby, England The radio signal range is 1500 km (932 miles). RM382PA: • WWVB-60 generated from the atomic clock in Fort Collins, Colorado The radio signal range is 3219 km (2000 miles). RM382P only – slide the EU / UK switch to the appropriate setting based on your location. Press RESET whenever you change the selected setting. RECEPTION SIGNAL STRONG WEAK NO SIGNAL The reception icon will blink when it is searching for a signal. If the radio signal is weak, it can take up to 24 hours to get a valid signal reception. For best reception, place the clock away from metal objects and electrical appliances and place near a window. To enable / disable the clock radio reception: Press and hold / . NOTE When the main unit synchronizes with the radio signal, it will temporarily turn the projection charging function off. CLOCK SETTINGS You only need to …

Text truncated - open the document above for the full version.

RM382PA-BLK.sch-1 - Thu Apr 13 09:49:31 2006

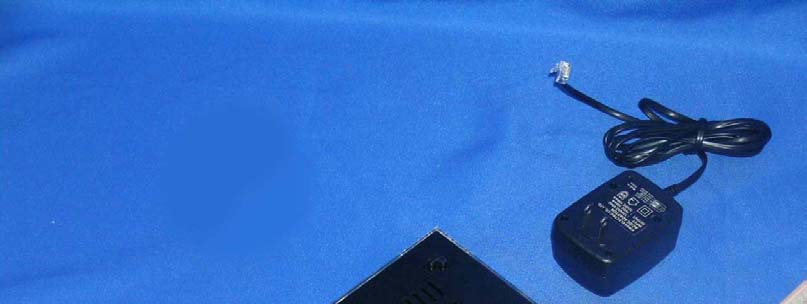

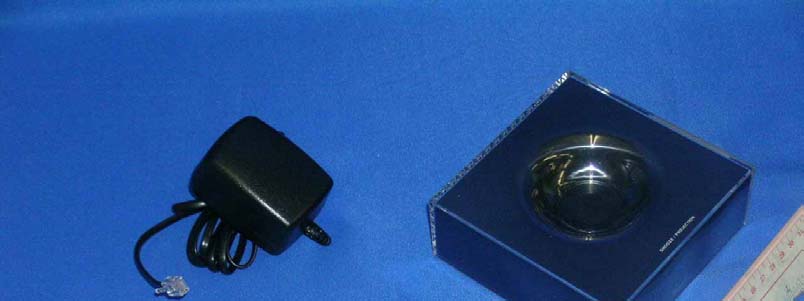

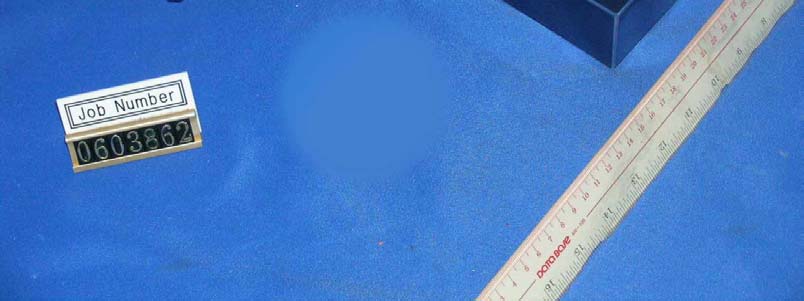

External Photo FCC ID : NMTRM382PA-01 External Photo - front External Photo - rear

RM382PA (BASE) CU:OSI-USA SUNNY (XX-ART) / JOHNNY 13 APR 060

Internal Photo FCC ID : NMTRM382PA-01 Charging base Internal Photo - 1 Internal Photo - 2 Internal Photo FCC ID : NMTRM382PA-01 Internal Photo - 3 Internal Photo – 4 Internal Photo FCC ID : NMTRM382PA-01 Internal Photo - 5 Internal Photo - 6 Internal Photo FCC ID : NMTRM382PA-01 Internal Photo - 7 Internal Photo - 8 Internal Photo FCC ID : NMTRM382PA-01 Internal Photo - 9 Internal Photo - 10 Internal Photo FCC ID : NMTRM382PA-01 Internal Photo - 11 Internal Photo - 12 Internal Photo FCC ID : NMTRM382PA-01 Internal Photo - 13 Internal Photo - 14 Internal Photo FCC ID : NMTRM382PA-01 Internal Photo - 15 Internal Photo - 16 Internal Photo - 17 Internal Photo FCC ID : NMTRM382PA-01

IDT Technology Limited 9/F Kaiser Estate, 41 Man Yue Street, Hunghom, Kowloon, Hong Kong. Tel 2764 7873 Fax 2765 6620 Cable IDTRAYMOND Telex 36567-IDTHK HX Technical Description Induction Charging - The projector can acquest power to rechargeable battery charge thru a induction charging control circuit between main unit and projector. The induction charging circuit of main unit be consisted by 20kHz switching circuit (consist of Q2,Q10), power driving (consist of Q3, Q4,Q9,Q11) and antenna (L1).

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com IDT Technology Limited Application For Certification (FCC ID: NMTRM382PA-01) Induction charger 06038621 BC/ Sandy Lee August 17, 2006 INTERTEK TESTING SERVICES FCC ID: NMTRM382PA-01 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: NMTRM382PA-01 ii MEASUREMENT/TECHNICAL REPORT IDT Technology Limited - MODEL: Oregon Scientific RM382PA FCC ID: NMTRM382PA-01 August 17, 2006 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Induction charger Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 18.123? Yes No X If no, assumed Part 18 for induction charger - the new 47 CFR Part 18 [10-01-04 Edition] provision. Report prepared by: Chow Chi Ming, Billy Intertek Testing Services Hong Kong Ltd. 2/F., Garment Center, 576, Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8528 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: NMTRM382PA-01 iii Table of Contents 1.0 General Description............................................................................................ 2 1.1 Product Description ............................................................................................ 2 1.2 Related Submittal(s) Grants ............................................................................... 2 1.3 Test Methodology............................................................................................... 3 1.4 Test Facility........................................................................................................ 3 2.0 System Test Configuration ................................................................................. 5 2.1 Justification ........................................................................................................ 5 2.2 EUT Exercising Software.................................................................................... 5 2.3 Special Accessories ........................................................................................... 5 2.4 Equipment Modification ...................................................................................... 6 2.5 Measurement Uncertainty .................................................................................. 6 2.6 Support Equipment List and Description ............................................................. 6 3.0 Emission Results ................................................................................................ 8 3.1 Field Strength Calculation................................................................................... 9 3.2 Radiated Emission Configuration Photograph................................................... 11 3.3 Radiated Emission Data ................................................................................... 12 3.4 Conducted Emission Configuration Photograph................................................ 14 3.5 Conducted Emission Data .....................................................................................15 4.0 Equipment Photographs................................................................................... 17 5.0 Product Labelling.............................................................................................. 19 6.0 Technical Specifications................................................................................... 21 7.0 Instruction Manual ............................................................................................ 23 8.0 Miscellaneous Information ............................................................................... 25 8.1 Dicussion of Pulse Desensitization ................................................................... 26 8.2 Calculation of Average Factor........................................................................... 27 8.3 Emission Test Procedures................................................................................ 28 INTERTEK TESTING SERVICES FCC ID: NMTRM382PA-01 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Setup Photo Conducted Emission conducted photos.doc Test Report Conducted Emission Test Result conducted.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: NMTRM382PA-01 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: NMTRM382PA-01 2 1.0 General Description 1.1 Product Description The Equipment Under Test (EUT) is an induction charger for wireless projection clock. The EUT is powered by AC/DC adaptor (AC…

Text truncated - open the document above for the full version.

Report No.: 06038621 Charging Mode Ctrl No.: N/A PAGE 1 Tested By:Hong, Report No.:06038621 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 2 1 9k 30M EW0699 12 9k 30M EW0192 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30 110 F18CQ F18CA Report No.: 06038621 Charging Mode Ctrl No.: N/A Tested By:Hong, Report No.:06038621 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: no Results

Test Setup FCC ID : NMTRM382PA-01 Radiated - front Radiated - rear

Test Setup FCC ID : NMTRM382PA-01 Conducted - front Conducted - rear Test Setup FCC ID : NMTRM382PA-01 Conducted - side
