NMTRMR939PA-01RF Projection Clock with Remote Motion Sensor

POLERMO Projection Clock with Motion Alert Model: RMR939PA / MSR939A USER MANUAL RMR939PA English Cover R710/20/04, 10:34 AM1 EN 1 CONTENTS Introduction .............................................................. 2 Product Overview .................................................... 3 Front View.............................................................. 3 Back View .............................................................. 5 LCD Display ........................................................... 6 Remote Motion Sensor (MSR939A) - Front View .. 8 Remote Motion Sensor (MSR939A) - Back View .. 9 Safety and Care ...................................................... 10 Safety Precautions............................................... 10 Caring for this Product ......................................... 10 Getting Started ....................................................... 10 Package Contents ............................................... 10 Batteries............................................................... 11 AC Adaptor .......................................................... 12 About Atomic Clock Reception............................ 12 Turning the Atomic Clock Signal ON / OFF ......... 13 Clock / Calendar ..................................................... 13 Clock / Calendar Display ..................................... 13 Setting the Clock / Calendar ................................ 14 Backlight ................................................................. 14 Temperature............................................................ 14 Alarm .......................................................................15 Alarm Display ......................................................15 Setting the Alarm(s) ............................................. 15 Activating / Deactivating the Alarm(s) .................. 15 Alarm Sound ........................................................ 15 Snooze / Turning the Alarm OFF ......................... 15 Motion Alarm .......................................................... 16 Motion Alarm Setting Display ............................... 16 Setting the Motion Alarm...................................... 16 Turning the Motion Alarm OFF ............................ 17 Sleep Timer ............................................................. 17 Projection Unit ....................................................... 18 Motion Sensor (MSR939A).................................... 18 Setup Sensor ....................................................... 18 Wake-Up Vibration Alarm - VR101A (Optional).... 19 Resetting the Clock ............................................... 19 Warnings ................................................................. 20 Troubleshooting ..................................................... 20 Technical Specifications ....................................... 21 POLERMO Projection Clock with Motion Alert Model: RMR939PA / MSR939A USER MANUAL RMR939PA English R710/20/04, 10:34 AM1 EN 2 INTRODUCTION Thank you for selecting the Oregon Scientific TM POLERMO Projection Clock with Motion Alert. This device is designed to give you many years of reliable service, including the following conveniences: •US Atomic Calendar Clock •Optional Wireless Vibration Alarm with 8-Minute Snooze Function (Wake-Up Vibrating Alarm VR101A can be purchased separately) •Sleep Function with 6 Soothing Sounds •5 Alarm Melodies with 2 Volume Levels •2-Minute Dual Alarm with 8-Minute Snooze Function •Time / Alarm Status Projection Unit •Security Alarm / Motion Sensor Unit •Indoor Temperature Display •Day of the Week in 1 of 5 Languages •Time Zone Hour Offset Function •Backlight for Clock Keep this manual handy as you use your new product. It contains practical step-by-step instructions, as well as technical specifications and warnings you should know. Notices .................................................................... 23 Statement of Responsibility ................................. 23 About Oregon Scientific ........................................ 23 FCC Statement ....................................................... 24 Declaration of Conformity .................................... 23 RMR939PA English R710/20/04, 10:34 AM2 EN 3 1 2 3 5 4 8 7 6 1.SOUND / SLEEP button •Press to turn the soothing sound ON. •Press to wrap around the sleep timer setting as follows: 0 120 90 60 30 15 0 minutes. •Press and hold for 2 seconds to choose 1 of 6 soothing sounds. 2.SNOOZE / LIGHT button •Press to activate the 8-minute snooze function. •Press and hold for 2 seconds to turn snooze OFF and reset the alarm for the next day. •Press to activate the backlight and projection for 5 seconds. 3.LCD display 4.CLOCK ALARM button •Press to toggle between alarm 1 and alarm 2 - ON / OFF. •Press and hold for 2 seconds to enter the Alarm Time Setting Mode. 5.MOTION ALARM button •Press to enter the Motion Alarm Mode; press again to toggle between motion alarm ON / OFF. PRODUCT OVERVIEW FRONT VIEW RMR939PA English R710/20/04, 10:34 AM3 EN 4 •Press and hold for 2 seconds to enter: -Motion Sensor Code. -Motion Alarm Setting Mode for motion alarm period and alarm type. 6.Projector Projects time and alarm status. 7.CLOCK button •Press to toggle between the following display modes: -Clock with seconds and calendar. -Clock with weekday and calendar. -Clock with time zone hour offset and calendar. •Press and hold for 2 seconds to enter the Clock Setting Mode - US time zone hour offset, 12- / 24-hour format, hour, minute, year, MM / DD or DD / MM format, month, day and day of the week language. 8. UP / DOWN button •Press to increase or decrease a setting. •Press and hold for 2 seconds to activate or deactivate atomic clock. •Press to increase or decrease the soothing sound volume. RMR939PA English R710/20/04, 10:34 AM4 EN 5 1 2 3 4 5 6 7 8 1.Projector FOCUS knob • Twist to focus the projected image. 2.Projector IMAGE ROTATION knob • Twist to get the best viewing an…

Text truncated - open the document above for the full version.

block diagram.sch-1 - Thu Sep 16 09:33:02 2004

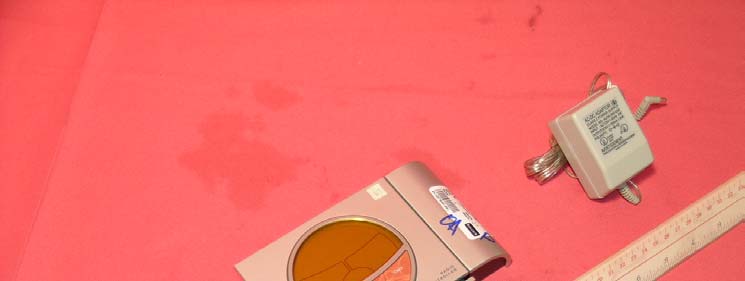

Test Setup FCC ID : NMTRMR939PA-01 External Photo - Front External Photo - Rear Job No.: 0416577 Job No.: 0416577

     6(3 FCC Label Location 1:1

Test Setup FCC ID : NMTRMR939PA-01 Internal Photo - 1 Internal Photo - 2 Test Setup FCC ID : NMTRMR939PA-01 Internal Photo - 3 Internal Photo - 4 Test Setup FCC ID : NMTRMR939PA-01 Internal Photo - 5 Internal Photo - 6 Test Setup FCC ID : NMTRMR939PA-01 Internal Photo - 7 Internal Photo - 8 Test Setup FCC ID : NMTRMR939PA-01 Internal Photo - 9 Internal Photo - 10 Test Setup FCC ID : NMTRMR939PA-01 Internal Photo - 11 Internal Photo - 12 Test Setup FCC ID : NMTRMR939PA-01 Internal Photo - 13 Internal Photo - 14 Test Setup FCC ID : NMTRMR939PA-01 Internal Photo - 15 Internal Photo - 16 Test Setup FCC ID : NMTRMR939PA-01 Internal Photo - 17

IDT Technology Limited F A C S I M I L E C O M M U N I C A T I O N Technical Description Desktop dual-band Radio Controlled Projection Clock with remote PIR (Passive Infrared) motion sensor • Radio Controlled Clock function • Polyphonic alarm sound • Projects time and alarm status on ceiling or vertical wall • Indoor Temperature display • Receive signal from remote motion sensor • Soothing Sound function • Optional feature for wireless wake-up vibrator • Package includes: 1 x clock unit (receiver) 1 x remote motion sensor (sender) The RMR939PA is powered by 6V d.c. (4 x “AA” battery). In circuit diagram of RMR939PA, U1(SIC63666) is MCU, it perform indoor temperature and data to transmit RF signal and drive alarm detection and handling function. U4(TRS5H120), U5(4051), U14(4051) and U7(2073) is melody circuit. U8(MSM64162A) is a the projection of MCU. it perform the data to transmit and drive LCD display. U4(msm64164c) and U1(6011) is RF clock receive IC , it perform the data handling function for RF clock. The RF receive circuit of RMR939PA is a super-regenerative type. It’s centre frequency is 433.95MHz, U1-A is a an envelope detector and U1-B is a comparator. Q1, Q2 is a LNA. L5,C5,C2,C7 is to matching between antenna & LNA of the super-generative receive module. The transmitter is made of a Colipittis Oscillator, with a 433.92 MHz SAW resonator (X1) to guarantee the carrier center frequency. The transmitting power will be controlled by adjusting the value of a matching network (L6, C43, L10, C33, C31, L12 and C44) and an attenuator (R23). 9/F Kaiser Estate, 41 Man Yue Street, Hunghom, Kowloon, Hong Kong. Tel 2764 7873 Fax 2765 6620 Cable IDTRAYMOND Telex 36567-IDTHK HX

rmr939p2.sch-1 - Thu Sep 16 09:36:27 2004

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com IDT Technology Limited Application For Certification (FCC ID: NMTRMR939PA-01) Transmitter 0416577 DL/ Sandy Lee November 26, 2004 INTERTEK TESTING SERVICES FCC ID: NMTRMR939PA-01 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: NMTRMR939PA-01 ii MEASUREMENT/TECHNICAL REPORT IDT Technology Limited - MODEL: Oregon Scientific RMR939PA FCC ID: NMTRMR939PA-01 November 26, 2004 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [12-08-03 Edition] provision. Report prepared by: Derek Leung Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8539 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: NMTRMR939PA-01 iii Table of Contents 1.0 General Description..............................................................................................2 1.1 Product Description ..............................................................................................2 1.2 Related Submittal(s) Grants .................................................................................2 1.3 Test Methodology.................................................................................................3 1.4 Test Facility ..........................................................................................................3 2.0 System Test Configuration ...................................................................................5 2.1 Justification ..........................................................................................................5 2.2 EUT Exercising Software .....................................................................................5 2.3 Special Accessories .............................................................................................5 2.4 Equipment Modification ........................................................................................6 2.5 Measurement Uncertainty ....................................................................................6 2.6 Support Equipment List and Description ..............................................................6 3.0 Emission Results ..................................................................................................8 3.1 Field Strength Calculation ....................................................................................9 3.2 Radiated Emission Configuration Photograph ....................................................11 3.3 Radiated Emission Data.....................................................................................12 3.4 Conducted Emission Configuration Photograph .................................................14 3.5 Conducted Emission Data.......................................................................................15 4.0 Equipment Photographs .....................................................................................17 5.0 Product Labelling ................................................................................................19 6.0 Technical Specifications ....................................................................................21 7.0 Instruction Manual ..............................................................................................23 8.0 Miscellaneous Information .................................................................................25 8.1 Measured Bandwidth .........................................................................................26 8.2 Discussion of Pulse Desensitization ...................................................................27 8.3 Calculation of Average Factor ............................................................................28 8.4 Emissions Test Procedures................................................................................29 INTERTEK TESTING SERVICES FCC ID: NMTRMR939PA-01 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Setup Photo Conducted Emission conducted photos.doc Test Report Conducted Emission Test Result conducted.pdf Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Timing Diagram timing.pdf INTERTEK TESTING SERVICES FCC ID: NMTRMR939PA-01 1 EXHIBIT 1…
