NMTSTC300-01Ultra-precision Professional Weather System

1 EN INTRODUCTION Thank you for selecting the Oregon Scientific™ Ultra-precision Professional Weather System (WMR300 / WMR300A). This system can provide you with weather information through several sensors with high level of accuracy. All sensors are cabled to a transmitter box which is battery and solar powered operated for wirelessly communicating and displaying the data on an indoor LCD main unit. This system remembers the data for a time range for you to monitor and analyze the weather status. You can also export the data to PC by cable and manage and analyze the data systematically. The system can expand up to 8 thermometer & humidity sensors and be compatible with other weather sensors. To purchase additional sensors, please contact your local retailer.
Please keep this manual handy as you use your new product. It contains practical step-by-step instructions, as well as technical specifications and warnings you should know about. PACKAGING CONTENTS DISPLAY UNIT 1 x Main unit 1 x USB cable1 x Power adapter 3 x C 1.5V battery SOLAR TRANSMITTER 1 x Solar transmitter (STC300/300A) 1 x Mounting insert 1 x AA 1.2V rechargeable battery RAIN GAUGE 1 x Rain collector 1 x Plastic debris filter 1 x Rain gauge (PCR300) 1 x Backing metal plate 1 x U-bolt (with 2 x lock washer & 2 x flat washer & 2 x hex nut) Ultra-precision Professional Weather System Model: WMR300 / WMR300A USER MANUAL CONTENTS Introduction ....................................................................................................... 1 Packaging Contents ......................................................................................... 1 Display Unit ................................................................................................... 1 Solar Transmitter ........................................................................................... 1 Rain Gauge ................................................................................................... 1 Temperature & Humidity Sensor .................................................................... 2 Wind Sensor .................................................................................................. 2 Assembly Part ............................................................................................... 2 Accessories - Sensors ..................................................................................... 2 Overview ............................................................................................................ 2 Main Unit ........................................................................................................ 2 Transmitter Box .............................................................................................. 2 Rain Gauge .................................................................................................... 3 Temperature & Humidity Sensor .................................................................... 3 Wind Sensor .................................................................................................. 3 Detailed LCD Display ........................................................................................ 3 LCD Display .................................................................................................... 3 Indoor Temperature & Humidity ..................................................................... 3 Outdoor Temperature & Humidity .................................................................. 4 Dew Point / Heat Index / Wind Chill .............................................................. 4 Sunrise / Sunset ............................................................................................ 4 Wind Speed / Wind Direction ........................................................................ 4 Clock / Alarm / Weather Forecast / Moon Phase ............................................ 4 Bar Chart ....................................................................................................... 4 Barometer ...................................................................................................... 5 Rainfall ........................................................................................................... 5 Installation ......................................................................................................... 5 Set up Rain Sensor & Thermo / Hygro Sensor ................................................ 5 Set up Wind Sensor ...................................................................................... 5 Set up Transmitter Box ................................................................................ 5 Cable Connections ........................................................................................ 5 Transmitter Box-Battery Installation ............................................................... 6 Channel Setting ............................................................................................. 6 Remove Setting ............................................................................................. 6 LED Light Indicator ......................................................................................... 6 Sensors Installation ....................................................................................... 6 Main Unit-Batteries Installation ......................................................................... 7 Pairing Sensors / Remove Sensors ............................................................... 7 Clock .................................................................................................................. 7 Manually Set Clock ........................................................................................ 7 Clock Reception ............................................................................................ 8 Alarm Clock ............................................................…

Text truncated - open the document above for the full version.

8 EN
You need to input latitude and longitude of your location. Please refer to your local weather observatory website. The latitude and longitude input affects the sunrise/sunset time.
Excepting the latitude and longitude, AUTO/DST (Daylight saving time)/ST (Standard time) settings also affect the sunrise/sunset time. If AUTO is set, the sunrise/sunset time follows the DST/ST setting of the RF clock data. If ST is set, the sunrise/sunset time assumes standard time. If DST is set, the sunrise/sunset time assumes daylight saving time. To select clock display mode: Press area repeatedly to toggle among: • Clock with seconds • Clock with weekday • Date with year CLOCK RECEPTION This product is designed to synchronize its clock automatically with a clock signal. WMR300: Slide switch to EU / UK to select the desired signal and manually set clock by selecting time zone between -12 and +12. • EU: DCF-77 signal: within 1500km (932 miles) of Frankfurt, Germany. • UK: MSF-60 signal: within 1500km (932 miles) of Anthorn, England.
Press RESET whenever you change EU / UK setting. WMR300A: • WWVB-60 signal: within 3200km (2000 miles) of Fort Collins Colorado. Manually set clock to select time zone Pacific (P) / Mountain (M) / Central (C) / Eastern (E). The icons below indicate the status of the clock reception signal. IconMeaning Time is synchronized, but not updated once during the last 48 hours. Flashing Receiving signal is weak. Time is synchronized and updated at least once during the last 48 hours. Flashing Receiving signal is strong
Reception takes 4-10 minutes for synchronizing. To enable / disable signal reception: Press and hold a place within area to enable / disable signal reception. A beep will sound to confirm action. ALARM CLOCK To set the daily alarm: 1. Press area to activate. displays next to the area and the tool bar displays at the below of the screen. 2. Press . • Press to turn on the daily alarm. and displays. • Press to turn off the daily alarm. disappears. 3. Press to change the time display between 12hr/24hr format. 4. Press and hold to enter editing mode. 5. Press or to edit and press to confirm editing. 6. Press anywhere not in area to exit. MOON PHASE In the Northern hemisphere, the moon waxes (amount of moon we see that grows after the New moon) from the right. So, the sunlit part of the moon moves from right to left in the Northern hemisphere while in the Southern hemisphere, it moves from left to right. The direction depends on the latitude of the person observing it. Below are two tables which diagrammatically illustrate how the moon will appear on the main unit . Northern hemisphere New MoonFull Moon Waxing CrescentWaning Gibbous First quarterThird quarter Waxing GibbousWaning Crescent Southern hemisphere New MoonFull Moon Waxing CrescentWaning Gibbous First quarterThird quarter Waxing GibbousWaning Crescent To view moon phase: 1. Press clock area to activate. 2. Press or to view moon phase for specific dates. WEATHER FORECAST This product forecasts the next 12 to 24 hours of weather within a 30-50 km (19-31 mile) radius (US – with a 75% accuracy). IconMeaning Sunny Partly cloudy Cloudy Rainy Snowy TEMPERATURE AND HUMIDITY To view temperature area: • Press INDOOR / OUTDOOR temperature area. displays on top of the temperature reading. To change channel (outdoor temperature only): • Press to change channel. To select the temperature measurement unit: • Press to select °C / °F.
The unit of all temperature related displays will be changed simultaneously. To view humidity readings: • Press INDOOR / OUTDOOR humidity area. displays on top of the humidity reading. To view temperature and humidity trend: The temperature and humidity trend icons are based on recent sensor readings. The trend lines are shown next to the temperature and humidity readings. The trend is shown as follows: RisingSteadyFalling DEWPOINT / HEAT INDEX / WIND CHILL To view dew point: • Press area repeatedly until DEWPOINT displays. To view heat index: • Press area repeatedly until HEAT INDEX displays. Temperature RangeWarningMeaning 27°C to 32°C (80°F to 89°F) CautionPossibility of heat exhaustion 32°C to 40°C (90°F to 104°F) Extreme Caution Possibility of heat dehydration 41°C to 54°C (105°F to 129°F) DangerHeat exhaustion likely 54°C to 92°C (130°F to 151°F) Extreme danger Strong risk of dehydration / sun stroke 9 EN
Heat index is only calculated when temperature is 80° F / 27°C or above. To view wind chill: • Press area repeatedly until WIND CHILL displays. SUNRISE / SUNSET
Make sure you input latitude and longitude of your location in area, which affects the sunrise/sunset time.
Excepting the latitude and longitude, daylight saving time setting also affects sunrise and sunset (See Manually Set Clock). You can view the sunrise or sunset time in area. • Press SUNRISE/SUNSET area. displays on the top of the time display. • Press to change the time display between 12hr/24hr format. WIND DIRECTION CALIBRATION Before pairing a wind sensor, make sure the head of the wind vane of that sensor point to the north while pressing KEY for 2 seconds in the transmitter box to calibrate the direction. If the calibration is successful, red light flashes once. You can use a compass to look for an accurate direction of north if necessary. However, if you are the user in North America, there are already 15°(degree) variations existing between the true north and a compass reading of north. You can consult your local observatory about this issue. If it is difficult to control the wind vane after installation, you can calibrate through setting on main unit. 1. Make a compass approach to the wind vane. 2. Calculate the angle between the current direction and the north direction. 3. Press wind area to activate. 4. Press and hold , and then press or to calibrate the angle value. 5. Press again to confirm setting. For example, inputting the angle value that you want to set as north. If curre…

Text truncated - open the document above for the full version.

(U1) (X1)(U4) (U3) 910MHz - 925MHz 26MHz Power control Data 915MHz Module CC1101 (U101) Antenna Matching Network

Engineering Manager IDT Technology Limited

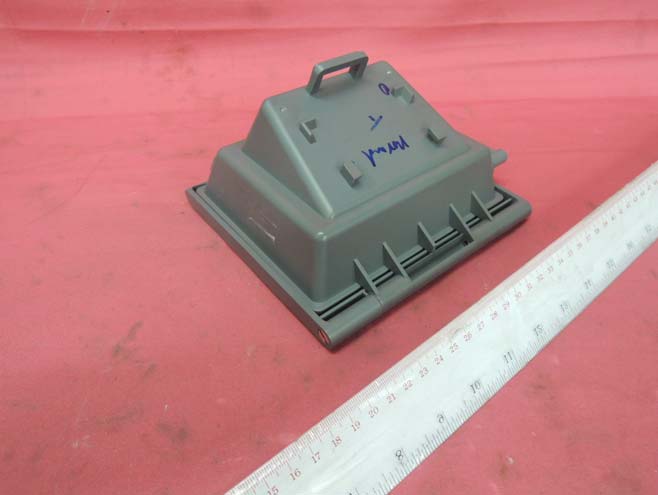

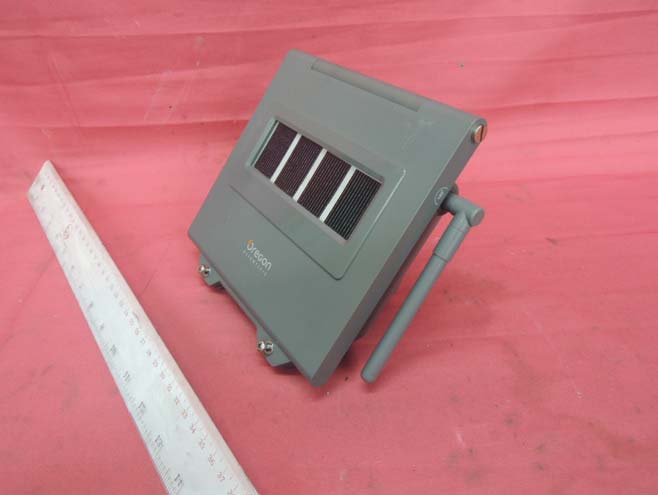

INTERTEK TESTING SERVICE Report No.: 13030575HKG-003 FCC ID: NMTSTC300-01 Equipment Photographs Model: STC300A (External) INTERTEK TESTING SERVICE Report No.: 13030575HKG-003 FCC ID: NMTSTC300-01 Equipment Photographs Model: STC300A (External)

01 STC300A (868MHZ) 24 SEP2012 1 OF 1 A1 FRONT CAB / 270112057-11001-10 INJ. COL: COOL GREY 10C SPRAY COL: NIL S/S LOGO COL: PMS144C/PMS427C TEXTURE: GLOSSY YS20038B REAR CAB- INJ. COL: COOL GREY 10C SPRAY COL: NIL S/S TEXT & ICON COL: PMS427C TEXTURE: YS20038B ANTENNA- INJ. COL: COOL GREY 10C TEXTURE: YS20038B RUBBER- INJ. COL: COOL GREY 10C TEXTURE: YS20038B RUBBER CAP- INJ. COL: PMS BLACK 7C TEXTURE: YS20038B REAR CASE/270112056-11002-10 S/S TEXT & ICON COL: PMS427C 26.5mm 20.3mm NMTSTC300-01 BATT COMPARTMENT-. INJ.COL:COOLGREY10C SPRAY COL: NIL S/S COL: NIL TEXTURE: NIL EMBOSS TEXT AND GRAPHIC 1 8 0 S/S COL: PMS427C LLM/JELL XX-ART

INTERTEK TESTING SERVICE Report No.: 13030575HKG-003 FCC ID: NMTSTC300-01 Equipment Photographs Model: STC300A (Internal) INTERTEK TESTING SERVICE Report No.: 13030575HKG-003 FCC ID: NMTSTC300-01 Equipment Photographs Model: STC300A (Internal) INTERTEK TESTING SERVICE Report No.: 13030575HKG-003 FCC ID: NMTSTC300-01 Equipment Photographs Model: STC300A (Internal) INTERTEK TESTING SERVICE Report No.: 13030575HKG-003 FCC ID: NMTSTC300-01 Equipment Photographs Model: STC300A (Internal) INTERTEK TESTING SERVICE Report No.: 13030575HKG-003 FCC ID: NMTSTC300-01 Equipment Photographs Model: STC300A (Internal) INTERTEK TESTING SERVICE Report No.: 13030575HKG-003 FCC ID: NMTSTC300-01 Equipment Photographs Model: STC300A (Internal)

Technical Description The equipment under test (EUT) is the transmitter of a weather sensor operating at 910MHz-925MHz with 51 channels. The EUT is powered by 1.2VDC (1X 1.2V "AA" rechargeable battery) and/or 120VAC. The EUT connects corresponding sensor and it will transmit RF signal to the corresponding receiver and the receiver will display the humidity, temperature, wind speed and rainfall on the screen of receiver. 915MHz Tx Module: Modulation Type: GFSK Frequency Range: 910MHz - 925MHz, 51 channels Antenna Type: External integral antenna Antenna Gain: 0dBi Nominal rated field strength: 87.6dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The functions of main ICs are mentioned below. MCU U1 (PIC16F1947)acts as MCU. The 32.768kHz crystal (X1) provides system clock for MCU Tx module U101 (CC1101) acts as the 910MHz radio core of Tx module X101 provides system clock (oscillation frequency 26MHz) L109, C112, C111 act as antenna matching network. Power Management portion: U4 id 1.5V voltage regulator U3 is 3.3V voltage regulator and acts as 3.3V DC supply for Tx module USA VERSION // Base frequency=910MHz // Channel spacing=300k // Data rate=38.4k // Modulation format=GFSK test mode: 910 917.5 925 Normal mode:Normal mode: number channel numberFrequencynumberchannel numberFrequency 109104125917.5 27912.14232919.6 314914.24339921.7 421916.34446923.8 528918.4452910.6 635920.5469912.7 742922.64716914.8 849924.74823916.9 95911.54930919 1012913.65037921.1 1119915.75144923.2 1226917.8 1333919.9 1440922 1547924.1 163910.9 1710913 1817915.1 1924917.2 2031919.3 2138921.4 2245923.5 231910.3 248912.4 2515914.5 2622916.6 2729918.7 2836920.8 2943922.9 3050925 316911.8 3213913.9 3320916 3427918.1 3534920.2 3641922.3 3748924.4 384911.2 3911913.3 4018915.4 CC1101 SWRS061G Page 1 of 98 Low-Power Sub-1 GHz RF Transceiver Applications  Ultra low-power wireless applications operating in the 315/433/868/915 MHz ISM/SRD bands  Wireless alarm and security systems  Industrial monitoring and control  Wireless sensor networks  AMR – Automatic Meter Reading  Home and building automation  Wireless MBUS Product Description CC1101 is a low-cost sub-1 GHz transceiver designed for very low-power wireless appli- cations. The circuit is mainly intended for the ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency bands at 315, 433, 868, and 915 MHz, but can easily be programmed for operation at other frequencies in the 300-348 MHz, 387-464 MHz and 779-928 MHz bands. The RF transceiver is integrated with a highly configurable baseband modem. The modem supports various modulation formats and has a configurable data rate up to 600 kbps. CC1101 provides extensive hardware support for packet handling, data buffering, burst transmissions, clear channel assessment, link quality indication, and wake-on-radio. The main operating parameters and the 64- byte transmit/receive FIFOs of CC1101 can be controlled via an SPI interface. In a typical system, the CC1101 will be used together with a microcontroller and a few additional passive components. The CC1190 850-950 MHz range extender [21] can be used with CC1101 in long range applications for improved sensitivity and higher output power. 67891 0 2 0 1 9 1 8 1 7 1 6 1 2 3 4 5 15 14 13 12 11 CC1101 This product shall not be used in any of the following products or systems without prior express written permission from Texas Instruments: (i) implantable cardiac rhythm management systems, including without limitation pacemakers, defibrillators and cardiac resynchronization devices, (ii) external cardiac rhythm management systems that communicate directly with one or more implantable medical devices; or (iii) other devices used to monitor or treat cardiac function, including without limitation pressure sensors, biochemical sensors and neurostimulators. Please contact [email protected] if your application might fall within the category described above. CC1101 SWRS061G Page 2 of 98 Key Features RF Performance  High sensitivity o -116 dBm at 0.6 kBaud, 433 MHz, 1% packet error rate o -112 dBm at 1.2 kBaud, 868 MHz, 1% packet error rate  Low current consumption (14.7 mA in RX, 1.2 kBaud, 868 MHz)  Programmable output power up to +12 dBm for all supported frequencies  Excellent receiver selectivity and blocking performance  Programmable data rate from 0.6 to 600 kbps  Frequency bands: 300-348 MHz, 387-464 MHz and 779-928 MHz Analog Features  2-FSK, 4-FSK, GFSK, and MSK supported as well as OOK and flexible ASK shaping  Suitable for frequency hopping systems due to a fast settling frequency synthesizer; 75 μs settling time  Automatic Frequency Compensation (AFC) can be used to align the frequency synthesizer to the received signal centre frequency  Integrated analog temperature sensor Digital Features  Flexible support for packet oriented systems; On-chip support for sync word detection, address check, flexible packet length, and automatic CRC handling  Efficient SPI interface; All registers can be programmed with one “burst” transfer  Digital RSSI output  Programmable channel filter bandwidth  Programmable Carrier Sense (CS) indicator  Programmable Preamble Quality Indicator (PQI) for improved protection against false sync word detection in random noise  Support for automatic Clear Channel Assessment (CCA) before transmitting (for listen-before-talk systems)  Support for per-package Link Quality Indication (LQI)  Optional automatic whitening and de- whitening of data Low-Power Features  200 nA sleep mode current consumption  Fast startup time; 240 μs from sleep to RX or TX mode (measured on EM reference design [1] and [2])  Wake-on-radio functionality for automatic low-power RX polling  Separate 64-byte RX and TX data FIFOs (enables burst mode data transmission) General  Few external components; Completely on- chip frequency synthesizer, no external filters or RF switch needed  Green package: R…

Text truncated - open the document above for the full version.

Analysis Report Report No.: 13030575HKG-003 The equipment under test (EUT) is the transmitter of a weather sensor operating at 910MHz- 925MHz (51 channels). The EUT is powered by 1.2VDC (1X 1.2V "AA" rechargeable battery) and/or 120VAC. The EUT connects corresponding sensor and it will transmit RF signal to the corresponding receiver and the receiver will display the humidity, temperature, wind speed and rainfall on the screen of receiver. Antenna Type: External, Integral Antenna Gain: 0dBi Nominal rated field strength: 87.6dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 90.6dBμV/m at 3m in frequency 925MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.344mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.344mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (0.925) mW = 15.60 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

ˏ˗̅˴̊́ʳ˕̌ˑ ˏ˖˻˸˶˾˸˷ʳ˕̌ˑ ˏˤ˖ʳ˕̌ˑ ˏ˥˸˿˸˴̆˸˷ʳ˕̌ˑ ˏ˗̅˴̊́ʳ˗˴̇˸ˑˏ˖˻˸˶˾˸˷ʳ˗˴̇˸ˑˏˤ˖ʳ˗˴̇˸ˑˏ˥˸˿˸˴̆˸ʳ˗˴̇˸ˑ ˏ˖̂̀̃˴́̌ʳˡ˴̀˸ˑ ˏ˧˼̇˿˸ˑ ˏ˖̂˷˸ˑ ˕ ˏ˗̅˴̊˼́˺ʳˡ̈̀˵˸̅ˑ ˏ˥˸̉˼̆˼̂́ˑ ˏ˦˶˴˿˸ˑ ˄ ˄ ˥ ̆˩ˍ ˦ ̃˭ ̆ˍ ˖ˢ˗ ̆ˍ ˗˥˔˪ˡˍ ˗˔˧ ̆˗ˍ ˗˔˧ ̆˗ˍ ˖ ̨ ̆˖˞ ̆˗ˍˤ˨˔˟ ̃˧ˬʳ˖ˢˡ˧˥ˢ˟ˍ ˗˔˧ ̆˗ˍ ˗˔˧ ̆˗ˍ ˥ ̆˟ ̆˔˦ ̆˗ˍ ˖ˢˠˣ˔ˡˬˍ˧ ̃˧˟ ̆ˍ ˗˥˔˪ ̃ˡ ̊ʳˡˢˍ ˦ ̨ ̆ ̆˧ˍʳʳʳʳʳˢ ̇ ˦˖˔˟ ̆ˍ ˥ ̆˩ ̃˦ ̃ˢˡʳ˥ ̆˖ˢ˥˗ ˔ˣˣ˥ˢ˩ ̆˗ˍ ̆˖ˢʳˡˢˍ ˔˕˗ ˗˔˧ ̆ˍ ˄ ˅ ˆ ˇ ˈ ˉ ˗˖˔˕ ˖ ˟˧˥  6&/.  62*'2  *'2  '9''  '&283/  *'2  &61  ;26&B4  $9''  ;26&B4  $9''  5)B3  5)B1  $9''  $9''  *1'  5%,$6  '*8$5'  *1'  6,  *1' 8 && 5 ˈˉ˞ʳʾˀ˄ʸ & Q) &Q) & S) &S) & S) / Q+ / Q+ / Q+ & S) & S) / Q+ & S) / Q+ / Q+ & S) & S) & S) / Q+ &Q) &Q) &Q) &Q) &X) / "Q+ & S) / "Q+ & "S) & S) ------- ; 0+] $17 - 6, 6&/. 62 &61 5)B9'' 5)B9'' 6, 6&/. 62&61 1.8pF NC NC

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13030575HKG-003 i FCC ID: NMTSTC300-01 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION IDT Technology Limited BRAND NAME: Oregon Scientific, MODEL: STC300A FCC ID: NMTSTC300-01 Grantee: IDT Technology Limited Grantee Address: 9/F, Kaiser Estate, 41 Man Yue Street, Hunghom, Kowloon, Hong Kong. Contact Person: Alex Chan Tel: (86)755-29701082 Fax: (86)755-29709021 e-mail: [email protected] Manufacturer: IDT Technology Limited Manufacturer Address: 32 Block, Chentian Industrial Est., Xixian Town, Bao An County, Shenzhen, China. Brand Name: Oregon Scientific Model: STC300A Type of EUT: Transmitter Description of EUT: Ultra-precision Professional Weather System Serial Number: N/A FCC ID: NMTSTC300-01 Date of Sample Submitted: March 14, 2013 Date of Test: May 19, 2013 to June 03, 2013 Report No.: 13030575HKG-003 Report Date: June 28, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13030575HKG-003 ii FCC ID: NMTSTC300-01 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT IDT Technology Limited BRAND NAME: Oregon Scientific, MODEL: STC300A FCC ID: NMTSTC300-01 TEST SPECIFICATION REFERENCE RESULTS Transmitter Power Line Conducted Emissions 15.207 Pass Transmitter Field Strength and Bandwidth Requirement 15.249 Pass Digital Device Radiated Emissions 15.109 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2011 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13030575HKG-003 iii FCC ID: NMTSTC300-01 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 2 2.3 Special Accessories...................................................................................... 2 2.4 Equipment Modification................................................................................. 2 2.5 Measurement Uncertainty ............................................................................. 3 2.6 Support Equipment List and Description........................................................ 3 3.0 Emission Results ........................................................................................... 4 3.1 Field Strength Calculation ............................................................................. 4 3.2 Radiated Emission Configuration Photograph ............................................... 5 3.3 Radiated Emission Data ............................................................................... 5 3.4 Conducted Emission Configuration Photograph ............................................ 5 3.5 Conducted Emission Data............................................................................. 5 4.0 Equipment Photographs .............................................................................. 15 5.0 Product Labelling......................................................................................... 15 6.0 Technical Specifications .............…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 13030575HKG-003 FCC ID: NMTSTC300-01 i Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) Model: STC300A INTERTEK TESTING SERVICE Report No: 13030575HKG-003 FCC ID: NMTSTC300-01 ii Configuration Photographs Worst-Case Line-Conducted Emissions (Rear View) Model: STC300A INTERTEK TESTING SERVICE Report No: 13030575HKG-003 FCC ID: NMTSTC300-01 iii Configuration Photographs Worst-Case Line-Conducted Emissions (Side View) Model: STC300A

INTERTEK TESTING SERVICE Report No: 13030575HKG-003 FCC ID: NMTSTC300-01 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: STC300A Radiated Emission STC300A 13030575HKG-003 A  B  INTERTEK TESTING SERVICE Report No: 13030575HKG-003 FCC ID: NMTSTC300-01 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: STC300A Radiated Emission STC300A 13030575HKG-003 A  B 
