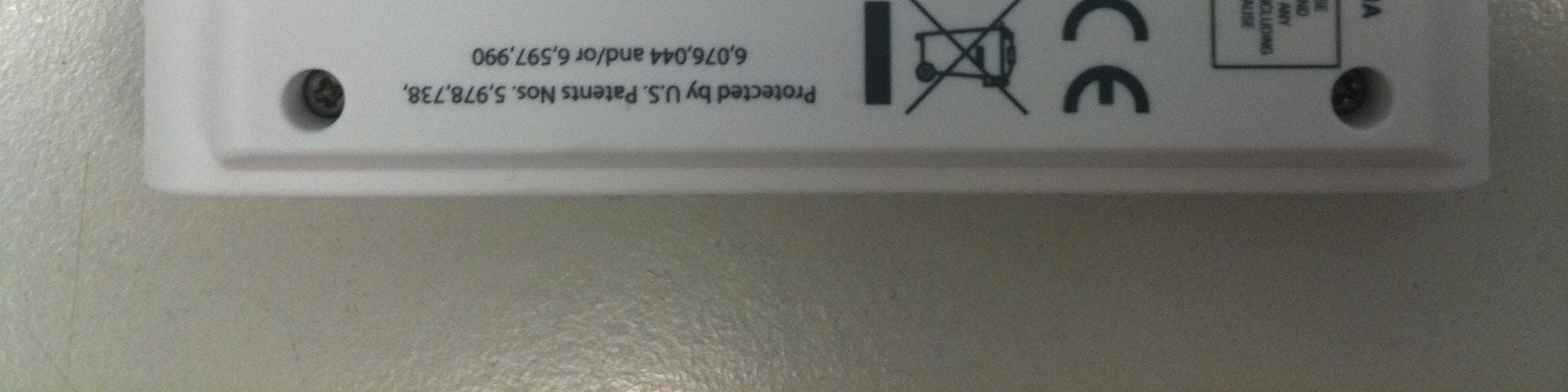

NMTTHGN132ES3 Channel Remote Sensor with Solar Panel

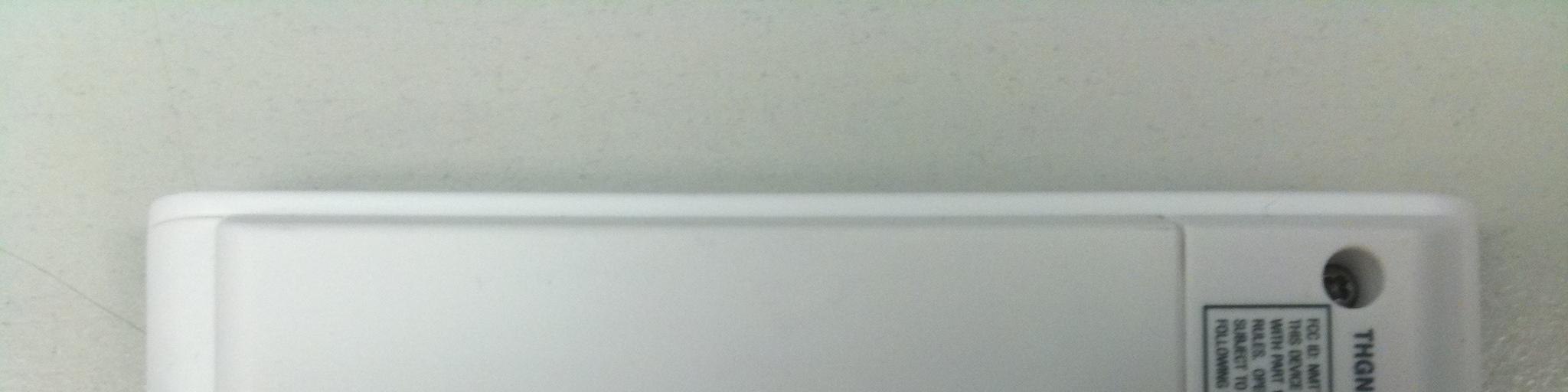

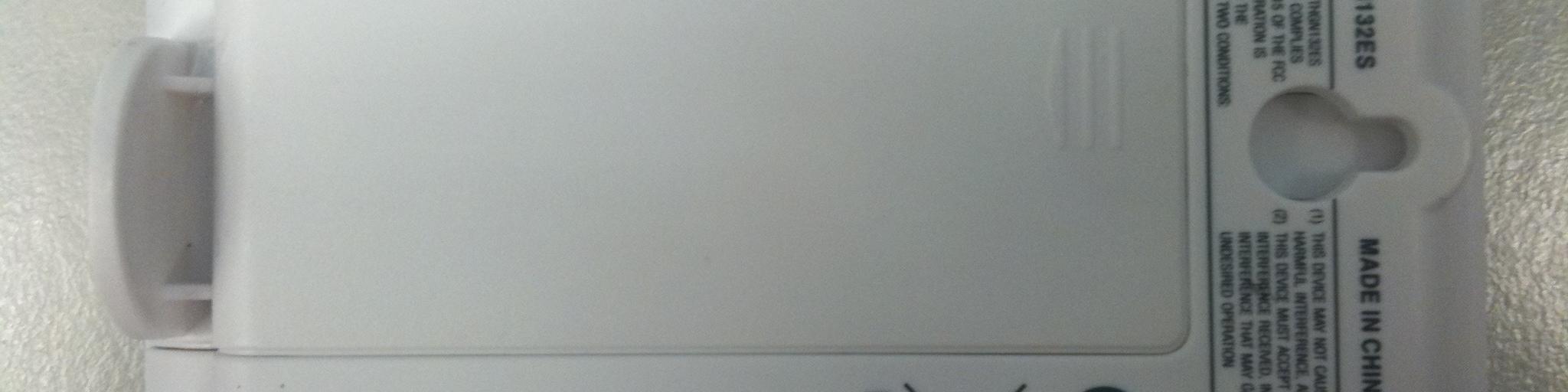

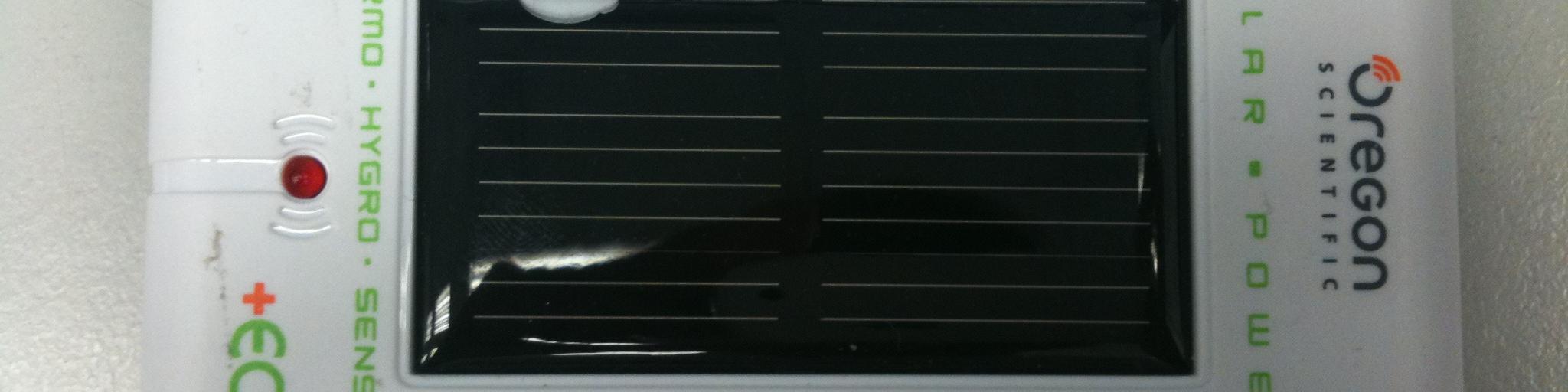

DE FR IT EN Remote Sensor with solar panel (Thermo / Thermo-Hygro) Model: THN132ES / THGN132ES USER MANUAL OVERVIEW FRONT VIEW 1 2 1. Solar panel 2. LED status indicator: blinks when transmitting a reading BACK VIEW 1 2 3 5 4 RESET TEST 1 2 3 CH A NNEL 1. Wall mount hole 2. RESET: Reset unit to default settings 3. TEST: determines if solar panel is receiving an optimal amount of sunlight 4. Battery compartment 5. CHANNEL switch GETTING STARTED SENSOR SET UP This product uses 1 AAA rechargeable battery which should be charged via the solar panel. IMPORTANT Place ONLY NiMH type rechargeable batteries in the solar panel battery compartment. Do not charge non-rechargeable batteries. NOTE Install battery in the remote sensor before the main unit. To set up the remote sensor: 1. Slide open the battery door. 2. Slide channel switch to select a channel (1, 2, 3). Ensure you use a different channel for each sensor. 3. Insert the battery, matching the polarities (+/-). 4. Press RESET after each battery change. TIP To keep battery in best condition, it is strongly advised to charge it for at least 12 hours before first use. 5. Initiate a sensor search on the main unit to start receiving temperature (and humidity - THGN132ES only) data from the sensor. IDEAL LOCATIONS FOR REMOTE SENSOR The sensor’s solar panel does not require direct sunlight. The ambient or reflective light of the sun will provide enough light to effectively charge the batteries. Ideal placements for the sensor would be in any location on the exterior of the home at a height of not more than 1.5m (5 ft) and which can shield it from direct sunlight or wet conditions for an accurate reading. 1.5 m (5 ft) To check if there is sufficient sunlight at selected location: Press TEST located in the battery compartment. Green LED (directly above TEST) will light up to indicate battery is being charged. For best results: • Place the sensor within 30 m (100 ft) of the main unit. • Place the sensor out of direct sunlight and moisture. • Position the sensor so that it faces the main (indoor) unit, minimizing obstructions such as doors, walls and furniture. • Place the sensor in a location with a clear view to the sky, away from metallic / electronic objects. • Position the sensor close to the main unit during cold winter months as below-freezing temperatures may affect battery performance and signal transmission. TIP The transmission range may vary depending on many factors. You may need to experiment with various locations to get the best results. Solar panel: • Direct solar panel as follows: Solar panel facing:If you reside in the: NorthSouthern hemisphere SouthNorthern hemisphere • Do not scratch the solar panel’s surface or wipe it with strong detergent. • Do not expose the solar panel to rain, snow or moisture. • The duration of the rechargeable battery’s charging or operating time is determined by either the intensity of sunlight or the position of the solar panel towards the sun. • Do not overcharge the batteries. Securing the sensor: • Secure the sensor in the desired location. Each 4 hour charge in optimal conditions generates enough power to operate the unit for 1 week when weather conditions are not ideal. CHANGING CHANNELS To change channels once channel has been assigned: 1. Slide channel switch to desired channel. 2. Press RESET. 3. Initiate a sensor search on the main unit to start receiving temperature (and humidity – THGN132ES only) data from the sensor. RESET Press RESET to return to the default settings. TROUBLE SHOOTING PROBLEMSYMPTOMREMEDY Remote sensor Abnormal / strange readings Press RESET Cannot locate remote sensor Check battery Check location Cannot change channel Check sensors. Only one sensor is working Data does not match main unit Initiate a manual sensor search PRECAUTIONS • Do not subject the unit to excessive force, shock, dust, temperature or humidity. • Do not cover the ventilation holes with any items such as newspapers, curtains etc. • Do not immerse the unit in water. If you spill liquid over it, dry it immediately with a soft, lint-free cloth. • Do not clean the unit with abrasive or corrosive materials. • Do not tamper with the unit’s internal components. This invalidates the warranty. • Only use fresh batteries. Do not mix new and old batteries. • Images shown in this manual may differ from the actual display. • When disposing of this product, ensure it is collected separately for special treatment and not as household waste. • Placement of this product on certain types of wood may result in damage to its finish for which Oregon Scientific will not be responsible. Consult the furniture manufacturer's care instructions for information. • The contents of this manual may not be reproduced without the permission of the manufacturer. • Do not dispose old batteries as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. • Please note that some units are equipped with a battery safety strip. Remove the strip from the battery compartment before first use. NOTE The technical specifications for this product and the contents of the user manual are subject to change without notice. NOTE Features and accessories will not be available in all countries. For more information, please contact your local retailer. SPECIFICATIONS TYPEDESCRIPTION L x W x H 60 x 105 x 22 mm (2.36 x 4.13 x 0.86 in) Weight 241 g (8.5 oz) without battery Temperature range -20°C to 60°C (-4°F to 140°F) Humidity range25% - 95% (THGN132ES only) Signal frequency 433 MHz Transmission range30 m (100 ft) unobstructed No. of channels3 Power 1 x UM-4 (AAA) 1.2 V rechargeable battery ABOUT OREGON SCIENTIFIC Visit our website (www.oregonscientific.com) to learn more about Oregon Scientific products. If you're in the US and would like to contact our Customer Care department directly, please visit: www2.oregonscientific. com/service/support.asp For international inquiries, please visit: www2.oregonscientific.com/a…

Text truncated - open the document above for the full version.

Report Number: 60/760.10.122.01Page 1 of 1 TÜVSÜD HONG KONG LTD., 3/F, W est W ing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Rev. no.: 2.0

MODEL:THGN132ES 2010-04-09 FRONT CAB: -INJ.COLOR:WHITE(CW-03) -SPRAY COLOR:NIL -FINISHING:MATT(YS20002C) H IGH GLOSSY(grey area) -S/S COLOR: PMS144C PMS425C PMS144C PMS368C REAR CAB & BATTERY DOOR: -INJ.COLOR:WHITE(CW-03) -SPRAY COLOR:NIL -S/S COLOR:PMS425C -FINISHING:MATT(YS20002C) G LOSSY(grey area) TEST KEY: -INJ.COLOR:WHITE(CW-03) -SPRAY COLOR:NIL -S/S COLOR:PMS425C -FINISHING:YS20002C HIGH GLOSSY AREA EMBOSSY TEXT&ICON HIGH GLOSSY

Report Number: 60/760.10.122.01Page 1 of 3 TÜVSÜD HONG KONG LTD., 3/F, W est W ing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Rev. no.: 2.0 Report Number: 60/760.10.122.01Page 2 of 3 TÜVSÜD HONG KONG LTD., 3/F, W est W ing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Rev. no.: 2.0 Report Number: 60/760.10.122.01Page 3 of 3 TÜVSÜD HONG KONG LTD., 3/F, W est W ing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Rev. no.: 2.0

Report Number: 60/760.10.122.01Page 1 of 32 TÜVSÜD HONG KONG LTD., 3/F, W est W ing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Rev. no.: 2.0 FCC – Test report Report Number:60/760.10.122.01Date of Issue: 05 July 2010 Model:THGN132ES, THN132ES Product Type:3 Channel Remote Sensor with Solar Panel Applicant:IDT Technology Limited Address:Block C, 9/F, Kaiser Estate, Phase 1, 41 Man Yue Street, Hunghom, Kowloon, Hong Kong Production Facility:IDT Technology Limited Address:Block C, 9/F, Kaiser Estate, Phase 1, 41 Man Yue Street, Hunghom, Kowloon, Hong Kong Test Result: „Positive†Negative Total pages including Appendices: 32 TÜV SÜD Hong Kong Ltd. is a subcontractor to TÜV Product Service, GmbH according to the principles outlined in ISO 17025. TÜV SÜD Hong Kong Ltd. reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Hong Kong Ltd. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Hong Kong Ltd. issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. Report Number: 60/760.10.122.01Page 2 of 32 TÜVSÜD HONG KONG LTD., 3/F, W est W ing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Rev. no.: 2.0 1 Table of Contents 1 Table of Contents.............................................................................................. 2 2 Details about the Test Laboratory......................................................................... 3 3 Description of the Equipment Under Test................................................................ 4 4 Summary of Test Standards/ Results..................................................................... 5 5 General Remarks.............................................................................................. 6 6 Emission Test Results........................................................................................ 7 6.1 Radiated Emission Test.............................................................................. 7 6.2 20dB Bandwidth measurement.................................................................... 14 6.3 Deactivation Time measurement................................................................... 18 6.4 Bandwidth measurement........................................................................... 20 7 Appendix A....................................................................................................... 25 Photographs of EUT 8 Appendix B....................................................................................................... 29 Photographs of Test Set Up 9 Appendix C....................................................................................................... 32 Product Information Report Number: 60/760.10.122.01Page 3 of 32 TÜVSÜD HONG KONG LTD., 3/F, W est W ing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Rev. no.: 2.0 2 Details about the Test Laboratory Details about the Test Laboratory Company name: TÜV SÜD HONG KONG LTD. 3/F, West Wing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin HK. Telephone:852 2776 1323 Fax:852 2776 1372 Company name: Neutron Engineering Inc. 3,Jinshagang 1st Road, ShiXia, Dalang Town, DongGuan, China FCC Registered Test Site Number 319330 Report Number: 60/760.10.122.01Page 4 of 32 TÜVSÜD HONG KONG LTD., 3/F, W est W ing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Rev. no.: 2.0 3 Description of the Equipment Under Test Description of the Equipment Under Test Product:3 Channel Remote Sensor with Solar Panel Model no.:THGN132ES, THN132ES Serial number:NIL Options and accessories: NIL Rated Voltage:1.5 VDC Rated Current:NIL Rated Power:NIL Frequency:NIL Description of the EUT: Operate by battery only (1 x 1.5VDC AAA size battery) Operated Frequency:433.92MHz Report Number: 60/760.10.122.01Page 5 of 32 TÜVSÜD HONG KONG LTD., 3/F, W est W ing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Rev. no.: 2.0 4 Summary of Test Standards and Results Emission Tests Test Condition Test Requirement Test MethodPagesTest Result PassFailN/A Radiated Emission (Fundamental & Spurious Emission) FCC Part 15 Section 15.231 & 15.209 ANSI C63.4:2003 7-24 Conducted Emission on AC 150kHz to 30MHz FCC Part 15 Section 15.207 ANSI C63.4:2003 NIL Report Number: 60/760.10.122.01Page 7 of 32 TÜVSÜD HONG KONG LTD., 3/F, W est W ing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Rev. no.: 2.0 6 Emission Test Results 6.1Radiated Emission Test (Fundamental) Date of test: 26 June 2010Test Result Passed Test requirement : FCC Part 15 Section 15.231 Not Passed Test method: ANSI C63.4:2003 Operating mode : On mode Antenna polarity : Horizontal Remarks: NIL Freq.Ant.Pol.A nt. /CF Average factorPeakAVPeakAV ( MHz)H/VCF(dB)(dB)(dBuV/m) (dBuV/m) (dBuV/m) (dBuV/m) 433.93H12.087.1766.3059.1392.8772.87 78.38 ReadingAct.L i m it Peak (dBuV/m) Remark:The EUT was placed on the top of the turntable in test site area. The resolution bandwidth setting on the test receiver was 120 KHz , Detector function peak (30 MHzД1000MHz). The re…

Text truncated - open the document above for the full version.

Report Number: 60/760.10.122.01Page 1 of 3 TÜVSÜD HONG KONG LTD., 3/F, W est W ing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Rev. no.: 2.0 Radiated Emission Test Set Up 9kHz-30MHz 9kHz-30MHz Report Number: 60/760.10.122.01Page 2 of 3 TÜVSÜD HONG KONG LTD., 3/F, W est W ing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Rev. no.: 2.0 Radiated Emission Test Set Up 30MHz-1GHz 30MHz-1GHz Report Number: 60/760.10.122.01Page 3 of 3 TÜVSÜD HONG KONG LTD., 3/F, W est W ing, Lakeside 2, 10 Science Park West Avenue, Science Park, Shatin, HK. Tel: +852-2776 1323 Fax: +852-2776 1206 Rev. no.: 2.0 Radiated Emission Test Set Up 1GHz above 1GHz above
