THGN132N FIG. 1 FIG. 2 EN Remote Thermo-Hygro Sensor Model: THGN132N USER MANUAL OVERVIEW FRONT VIEW (FIG 1) 1. LED status indicator: blinks when transmitting a reading. BACK VIEW (FIG 2) 1. Wall mount hole 2. Battery compartment 3. RESET: Reset unit to default settings 4. Channel Switch 5. Table stand COMPATIBLE UNITS The THGN132N is compatible with a variety of multi-channel units. NOTE If unsure about the compatibility, please consult your dealer. GETTING STARTED SENSOR SET UP 1. Slide open the battery door. 2. Insert the battery, matching the polarities (+ / -). See FIG 2. 3. PressRESETafter each battery change. NOTEInstall battery in the remote sensor before the main unit. 4. Slide channel switch to select a channel (1, 2, 3). Ensure you use a different channel for each sensor. 5. Press RESET. 6. Close the battery door. 7. Initiate a sensor search on the main unit to start receiving temperature / humidity data from the sensor. 8. Secure the sensor in the desired location using the wall mount or table stand. For best results: xPlace the sensor within 30 m (100 ft) of the main unit. xPlace the sensor out of direct sunlight and moisture. xPosition the sensor so that it faces the main (indoor) unit, minimizing obstructions such as doors, walls and furniture. xPlace the sensor in a location with a clear view to the sky, away from metallic / electronic objects. xPosition the sensor close to the main unit during cold winter months as below-freezing temperatures may affect battery performance and signal transmission. TIPThe transmission range may vary depending on many factors. You may need to experiment with various locations to get the best results. NOTEUse alkaline batteries for longer usage and consumer grade lithium batteries in temperatures below freezing. CHANGING CHANNELS To change channels once channel has been assigned: Remove battery and repeat above procedure. RESET PressRESET to return to the default settings. TROUBLE SHOOTING PROBLEM SYMPTOM REMEDY Remote sensor Abnormal / strange readings Press RESET Cannot locate remote sensor Check battery Check location Cannot change channel Check sensors. Only one sensor is working Data does not match main unit Initiate a manual sensor search PRECAUTIONS xDo not subject the unit to excessive force, shock, dust, temperature or humidity xDo not cover the ventilation holes with any items such s newspapers, curtains etc. xDo not immerse the unit in water. If you spill liquid over it, dry it immediately with a soft, lint-free cloth. xDo not clean the unit with abrasive or corrosive materials. xDo not tamper with the unit ’s internal components. This invalidates the warranty. xOnly use fresh batteries. Do not mix new and old batteries. xImages shown in this manual may differ from the actual display. xWhen disposing of this product, ensure it is collected separately for special treatment. xPlacement of this product on certain types of wood may result in damage to its finish for which Oregon Scientific will not be responsible. Consult the furniture manufacturer's care instructions for information. xThe contents of this manual may not be reproduced without the permission of the manufacturer. xDo not dispose old batteries as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. xPlease note that some units are equipped with a battery safety strip. Remove the strip from the battery compartment before first use. NOTE The technical specifications for this product and the contents of the user manual are subject to change without notice. SPECIFICATIONS TYPE DESCRIPTION REMOTE UNIT L x W x H 117 x 80 x 171 mm (4.78 x 3.27 x 6.98 in) Weight 241 g (8.5 oz) without battery Temperature range -20°C to 60°C (-4°F to 140°F) Resolution 0.1°C (0.2°F) Humidity range 25% - 95% Humidity resolution 1% Signal frequency 433 MHz Transmission range 30 m (98 ft) unobstructed No. of channels 3 Signal transmission Channel 1 Every 39 seconds Channel 2 Every 41 seconds Channel 3 Every 43 seconds Power 1 x UM-3 (AA) 1.5 V batteries ABOUT OREGON SCIENTIFIC Visit our website (www.oregonscientific.com) to learn more about Oregon Scientific products. If you're in the US and would like to contact our Customer Care department directly, please visit: www2.oregonscientific.com/service/support OR Call 1-800-853-8883. For international inquiries, please visit: www2.oregonscientific.com/about/international INDUSTRY CANADA STATEMENT Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. IC number: 3277A-THGN132N EU-DECLARATION OF CONFORMITY Hereby, Oregon Scientific, declares that this Wireless Weather Station (model: THGN132N) is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the signed and dated Declaration of Conformity is available on request via our Oregon Scientific Customer Service. FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that…

Text truncated - open the document above for the full version.

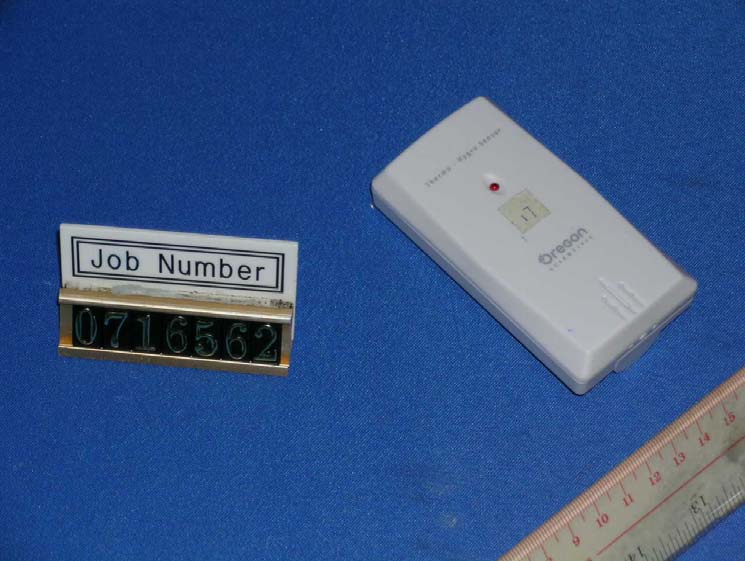

External Photo FCC ID : NMTTHGN132N-01 External Photo - front External Photo - rear
