NMTTHGN801-01Remote Thermo-Hygro Sensor (433.9MHz Tx)

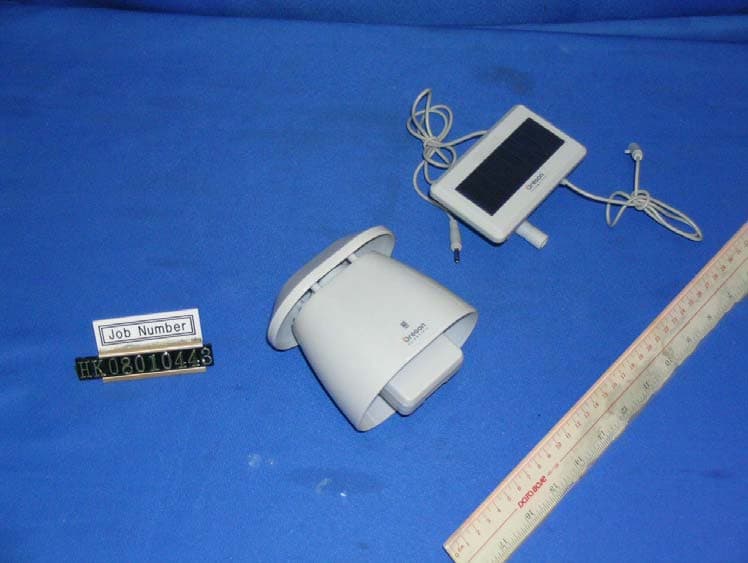

External Photo FCC ID : NMTTHGN801-01 External Photo - front External Photo - rear 0722159 0722159

15-6-07 PATRICK MAK THGN 801 THGN 801 NMTTHGN801-01 4 4 S O L A R D C 3 . 6 V ALL PLASTICS GLOSS FINISHING EMBOSS ALL COLOR PMS420C GREY (SENSOR) EMBOSS

Internal Photo FCC ID : NMTTHGN801-01 Internal Photo - 1 Internal Photo - 2 Internal Photo FCC ID : NMTTHGN801-01 Internal Photo - 3 Internal Photo - 4 Internal Photo FCC ID : NMTTHGN801-01 Internal Photo - 5 Internal Photo - 6 Internal Photo FCC ID : NMTTHGN801-01 Internal Photo - 7 Internal Photo - 8

IDT Technology Limited 9/F Kaiser Estate, 41 Man Yue Street, Hunghom, Kowloon, Hong Kong. Tel 2764 7873 Fax 2765 6620 Cable IDTRAYMOND Telex 36567-IDTHK HX Technical Description of THGN801 The THGN801 is outdoor integrated wind sensor with wind speed, wind direction, temperature and humidity. It is operated by 2 pieces of size AAA batteries (DC 3V). The voltage suppied to MCU (MSM64162A) is regulated to DC1.5V, so that the performance of the product can be guaranteed before the battery voltage drops to 1.5V. Also, it can THGN801 is a remote transmitter. It converts wake up measurement into OOK signal format and transmits through the RF channel of 433.9MHz. It is consisted of 2 parts: Control part and transmitter part. The MCU outputs the digital data, then this data will be modulated into the Colipittis oscillator, where the SAW Y1(433.92MHz) are used to adjust the operating frequency to 433.9MHz. The transistor Q3, with its fT greater than 6GHz, provide a good frequency response to the oscillator circiutry. The data signal is transfered through matching network(C9 C10 C11 C12 C13 C14 L4 L5) and Pi-network attenuator(R8 R9 R10).

- The test report only allows to be revised within three years from its original issued date unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com IDT Technology Limited Application For Certification (FCC ID: NMTTHGN801-01) Transmitter 0722159 BH/ sl February 20, 2008 INTERTEK TESTING SERVICES FCC ID: NMTTHGN801-01 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: NMTTHGN801-01 ii MEASUREMENT/TECHNICAL REPORT IDT Technology Limited - MODEL: THGN801 FCC ID: NMTTHGN801-01 February 20, 2008 This report concerns (check one:) Original Grant X Class II Change Equipment Type: DSC - Part 15 Security Remote Control Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [05-04-07 Edition] provision. Report prepared by: Ho Wai Kin, Ben Intertek Testing Services Hong Kong Ltd. 2/F., Garment Center, 576, Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8505 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: NMTTHGN801-01 iii Table of Contents 1.0 General Description............................................................................................ 2 1.1 Product Description ............................................................................................ 2 1.2 Related Submittal(s) Grants ............................................................................... 2 1.3 Test Methodology............................................................................................... 3 1.4 Test Facility........................................................................................................ 3 2.0 System Test Configuration ................................................................................. 5 2.1 Justification ........................................................................................................ 5 2.2 EUT Exercising Software.................................................................................... 5 2.3 Special Accessories ........................................................................................... 5 2.4 Equipment Modification ...................................................................................... 6 2.5 Measurement Uncertainty .................................................................................. 6 2.6 Support Equipment List and Description ............................................................. 6 3.0 Emission Results ................................................................................................ 8 3.1 Field Strength Calculation................................................................................... 9 3.2 Radiated Emission Configuration Photograph................................................... 10 3.3 Radiated Emission Data ................................................................................... 11 4.0 Equipment Photographs ................................................................................... 14 5.0 Product Labelling.............................................................................................. 16 6.0 Technical Specifications................................................................................... 18 7.0 Instruction Manual ............................................................................................ 20 8.0 Miscellaneous Information ............................................................................... 22 8.1 Measured Bandwidth........................................................................................ 23 8.2 Discussion of Pulse Desensitization.................................................................. 24 8.3 Calculation of Average Factor........................................................................... 25 8.4 Emissions Test Procedures .............................................................................. 26 INTERTEK TESTING SERVICES FCC ID: NMTTHGN801-01 iv List of attached file Exhibit type File Description filename Cover Letter Letter of Agency letter.pdf Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block…

Text truncated - open the document above for the full version.

Job No.: 0722159

Job No.: 0722159 Duty Cycle = [ 19(1.0) + 64(0.5) ] / 100 = 51/ 100 = 0.51 Average Factor = 20 log (0.51) = -5.8 dB Job No.: 0722159 Job No.: 0722159 1ms 0.5ms Job No.: 0722159

Test Setup FCC ID : NMTTHGN801-01 Radiated - front Radiated - rear
