NMTTHN802-01Remote Rain Gauge with Outdoor Thermometer

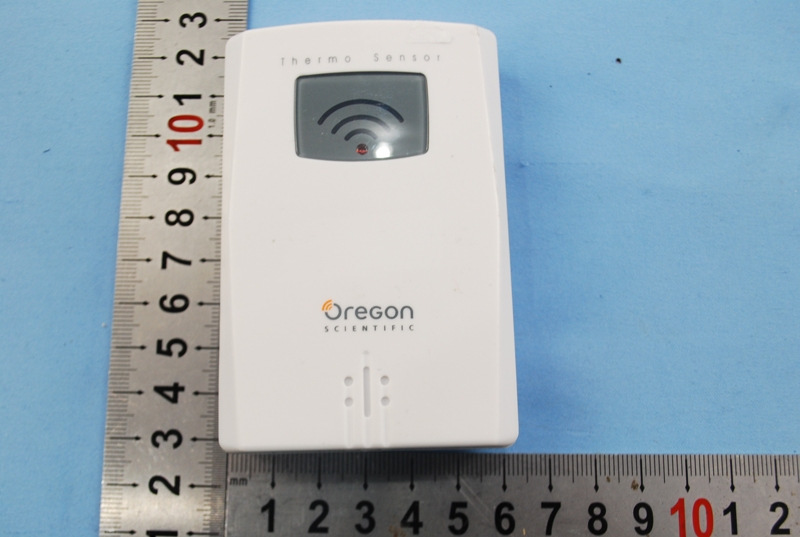

EN  Remote Rain Gauge with Outdoor Thermometer Model: RGR126N USER MANUAL CONTENTS Packaging contents ................................................. 2 Introduction .............................................................. 2 Overview ................................................................... 2 Front View ............................................................2 Rear View ............................................................3 LCD display .........................................................3 Remote sensor (THN802) ...................................4 Rain gague (PCR800) .........................................5 Getting started ......................................................... 5 Main unit - batteries installation ..........................5 Remote sensor - Insert batteries ........................6 Remote sensor ........................................................ 6 Sensor data transmission ...................................6 Rain gauge ............................................................... 7 Signals .................................................................8 Clock ........................................................................ 8 Manually set clock ...............................................8 Rainfall ..................................................................... 8 Rainfall history .................................................... 8 Total rainfall ....... ...................................................9 Rainfall alert ..........................................................9 Temperature ............................................................. 9 Reset ....................................................................... 9 Precautions ............................................................ 10 Specifications ........................................................ 10 About Oregon Scientific .........................................11 EU - Declaration of Conformity ............................. 11 FCC Statement .........................................................11 Declaration of Conformity ......................................12 RGR126N_UM_EN_R7.indd 12014/8/21 11:16:16 AM EN 2 PACkAGING CONTENTS Main UnitRain Gauge Thermo SensorThermo Sensor Table Stand INTRODUCTION Thanks for purchasing the Oregon Scientific TM Remote Rain Gauge with Outdoor Thermometer (RGR26N). NOTE Please keep this manual handy as you use your new product. It contains practical step-by-step instructions, as well as technical specifications and warnings you should know about. OvERvIEw FRONT vIEw . Four-line LCD display: for displaying the total rainfall, current rainfall or rainfall history, indoor/ outdoor temperature and clock/calendar. 2. UP: increase setting values; press and hold for rapid increase; 3. HIST: toggle between rainfall history and daily rainfall 4. SINCE: press to review the date when the measurement started and the total annual rainfall. Press and hold to clear the previous rainfall start time and reset the rainfall counter to start again. 1 2 3 4 5 6 7 8 RGR126N_UM_EN_R7.indd 22014/8/21 11:16:21 AM EN 3 5. SEARCH: press and hold to enforce a search for the rain gauge and remote thermo sensor 6. MODE: change setting/clock display 7. DOwN: decrease setting values: press and hold for rapid decrease 8. Removable table stand: for securing the main unit on a flat surface REAR vIEw . Antenna: receives radio signal from rain gauge and remote thermo sensor 2. Wall mount hole 3. RAIN ALERT: an alert for excessive rain In/mm: inch/millimeter (rain rate unit) ̊C/ ̊F: temperature unit 4. Battery compartment 5. RESET: reset the unit to default settings LCD DISPLAy . TODAy: today’s rainfall indicator 2. Indicates on which previous day (-9) is the displayed data recorded 1 2 35 4 1 11 12 13 14 15 16 17 2 3 4 5 6 7 8 9 10 RGR126N_UM_EN_R7.indd 32014/8/21 11:16:22 AM EN 4 3. Rainfall alert indicator 4. : remote rain gauge sensor battery low 5. : rain gauge RF reception status 6. TOTAL: rainfall indicator 7. : outdoor thermo RF reception status 8. : outdoor remote sensor battery low 9. AM/PM 0. : main unit battery low . mm/in: millimeter/inch (rain rate unit) 2. Today’s rainfall 3. mm /in: millimeter/inch (rain rate unit) 4. Total rainfall 5. Outdoor temperature 6. SINCE: start date of the accumulated rainfall yr: year 7. Time display; M:D (month: day); D:M (day: month); calendar REMOTE SENSOR (THN802) . LED status indicator 2. Wall mount hole 3. RESET hole 4. CHANNEL switch (1,2,3) 5. Battery compartment 1 2 3 4 5 RGR126N_UM_EN_R7.indd 42014/8/21 11:16:25 AM EN 5 RAIN GAGUE (PCR800) . Rain gauge 2. Battery compartment 3. RESET button . Funnel 2. Indicator GETTING STARTED Position the main unit, rain gauge, and thermo sensor within effective range: • Rain gauge – 00 meters/329 feet • Thermo sensor – 00 meters/329 feet IMPORTANT It is recommended that you follow the sequence below while setting up the units: . Set up the main unit. 2. Set up the rain gauge, then press and hold SEARCH on the main unit and wait until you receive a signal. 3. Set up the thermo sensor, then press and hold SEARCH on the main unit and wait until you receive a signal. 4. In the event that you do not obtain a signal from a remote unit please repeat the process above. MAIN UNIT - bATTERIES INSTALLATION 1 2 3 1 2 1 2 3 RGR126N_UM_EN_R7.indd 52014/8/21 11:16:29 AM EN 6 . Insert the batteries, matching the polarity (+/-) as shown in the battery compartment. 2. Press RESET, or press and hold SEARCH on the main unit to initiate operation. The reception icons ( and ) on the main unit will blink while it is searching for the sensor or rain gauge. NOTE The main unit returns to default settings in each battery replacement. REMOTE SENSOR - INSERT bATTERIES . Remove the battery compartment cover by screw driver. 2. Insert the batteries, matching the polarities ( +/-). 3. Press RESET after each battery change. LOCATIONMEANING Rain…
