NMTTHWR800-01Water Thermo Sensor (433.9MHz Tx)

IDT Technology Limited
Water Thermo Sensor (433.9MHz Tx) - FCC ID NMTTHWR800-01 - IDT Technology Limited
Click to zoom

Application Details

Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
Date of Grant
Apr 13, 2008
Application Purpose
Original Equipment
Date of Application
Apr 13, 2008
Equipment Note
Water Thermo Sensor (433.9MHz Tx)
Frequency Range
433.90000000 - 433.90000000
Company
IDT Technology Limited
Country
Hong Kong

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

Schematics

Test Report

↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Water Thermo Sensor Model: THWR800 / THWR800A USER MANUAL EN FRONT VIEW 1. LED indicator BACK VIEW 1. Tubular casing 2. RESET button 3. String hole SCREEN DISPLAY 1. Channel indicator 2. Low battery indicator 3. Temperature display INTRODUCTION This sensor is compatible with various weather station products that carry this logo . GETTING STARTED The battery compartment resides in the tubular casing, and the switches for selecting channels and temperature unit are located on the inside of the main lid. 1. Twist the main lid to (unlock position), then pull it apart from the tubular casing. 2. Remove the battery compartment lid and insert 2 x UM-3 / AA 1.5V batteries, matching the polarity. Replace the battery compartment lid. NOTE Standard Alkaline batteries contain a significant amount of water. Because of this they will freeze in low temperatures of approximately 10°F (-12°C). Disposable Lithium batteries have a much lower threshold for temperature with an estimated freezing range of below -40°F (-40°C). IMPORTANT Do not use rechargeable batteries. WARNING While you may use Lithium batteries to power the sensor, and although the sensor can withstand low temperatures, it is not recommended to use it in temperatures below 32°F (0°C). Placing the sensor in frozen water may damage the unit. 3. The diagram below is the inside of the main lid. Select a channel from Channel switch (1). If using more than one remote unit, select a different channel number for each unit. Select the temperature unit from °C / °F switch (2). 4. Place the main lid back on the tubular casing and twist it to (lock position). 5. Press RESET . USING THE SENSOR 1. The sensor has a string to loop through the hole at the base of the tubular casing. This can allow you to hang the unit while you immerse it in water. 2. Place the sensor in the water and make sure that it is within the effective transmission range (328 feet / 100 metres) from the main unit. TIP Press RESET whenever the sensor is not performing as expected (e.g. unable to establish radio frequency link with the main unit). TIP Place the sensor as closely as possible to the main unit. Otherwise, minimise obstructions such as doors, walls and furniture between the main unit and sensor if the sensor cannot be placed close to the main unit. You may need to experiment with various locations to get the best results. NOTE With adequate power, the Liquid Crystal Display in outdoor temperatures will remain operational up to -20°F (-28°C). NOTE Wireless ranges can be impacted by a variety of factors such as extremely cold temperatures. Extreme cold may temporarily reduce the effective range between the sensor and the main unit. If the unit’s performance fails due to low temperature, the unit will resume proper functioning as the temperature rises to within the normal temperature range. No permanent damage will occur to the unit due to low temperatures. BATTERY REPLACEMENT Replace the batteries whenever the low battery icon shows on the remote sensor, or on the remote sensor area of the main unit. Press RESET after every battery replacement. PRECAUTIONS • Do not subject the unit to excessive force, shock, dust, temperature or humidity. • Do not cover the ventilation holes with any items such as newspapers, curtains etc. • Do not clean the unit with abrasive or corrosive materials. • Do not tamper with the unit’s internal components. This invalidates the warranty. • Only use fresh batteries. Do not mix new and old batteries. • Images shown in this manual may differ from the actual display. • When disposing of this product, ensure it is collected separately for special treatment and not as normal household waste. • Placement of this product on certain types of wood may result in damage to its finish for which Oregon Scientific will not be responsible. Consult the furniture manufacturer's care instructions for information. • The contents of this manual may not be reproduced without the permission of the manufacturer. • Do not dispose old batteries as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. • Please note that some units are equipped with a battery safety strip. Remove the strip from the battery compartment before first use. NOTE The technical specifications for this product and the contents of the user manual are subject to change without notice. SPECIFICATIONS TYPE DESCRIPTION Dimension 100 mm (D) x 180 mm (H) Weight 174 g Operating range in water 32°F (0°C) to 122°F (50°C) Operating range in room temperature -22°F (-30°C) to 185°F (85°C) Temperature resolution 0.2°F (0.1°C) Number of channels 3 Data transfer - Channel 1: approximately every 53 seconds - Channel 2: approximately every 59 seconds - Channel 3: approximately every 61 seconds Transmission range 328 ft (100 m) Transmission frequency 433 MHz Batteries 2 x UM-3 / AA 1.5V Remote sensor waterproof Up to 1 m (3.28 ft) ABOUT OREGON SCIENTIFIC Visit our website (www.oregonscientific.com) to learn more about Oregon Scientific products. If you're in the US and would like to contact our Customer Care department directly, please visit: www2.oregonscientific.com/service/support OR Call 1-800-853-8883. For international inquiries, please visit: www2.oregonscientific.com/about/international EU-DECLARATION OF CONFORMITY Hereby, Oregon Scientific, declares that this Water Thermo Sensor (model: THWR800 / THWR800A) is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the signed and dated Declaration of Conformity is available on request via our Oregon Scientific Customer Service. FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING Changes or modifications not expressly appr…

Text truncated - open the document above for the full version.

External Photos

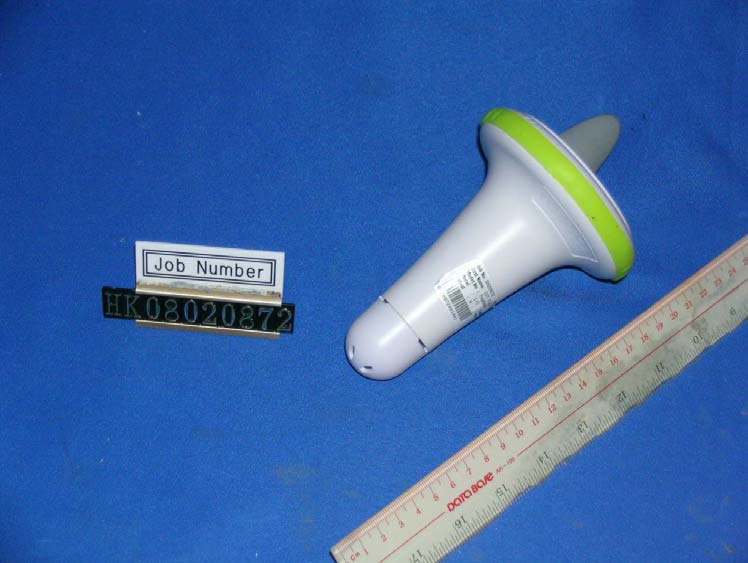

External Photo FCC ID : NMTTHWR800-01 External Photo - front External Photo - rear Job Number HK08020874 Job Number HK08020874

ID Label/Location Info

MODEL: THWR800A TITLE: COLOR SP . VERSION: REV.: REMARK: P AGE 1 OF 2 PREPARED BY : IRIS / JOHNNY FILE: THWR800A COLOR SPEC DATE: APPROVED BY PMGT MKTR CU DATE: 14 MAR 08 RUBBER PAD COLOR IN PMS 382C (BRIGHT GREEN) FINE MATT REAR CAB COLOR IN RS WHITE TEXTURE IN FINE MATT LENS COLOR IN PMS COOL GRAY 7C PRINT TEXT COLOR IN PMS 427C (LIGHT GRAY) PRINT COLOR IN PMS 144C (ORANGE) PRINT COLOR IN PMS 427C (LIGHT GRAY) (ALL COLOR PRINT IN LENS REAR) RUBBER CAB COLOR IN PMS COOL GRAY 7C LENS COLOR IN RS WHITE PRINT ICON COLOR IN PMS COOL GRAY 7C (ALL COLOR PRINT IN LENS REAR) TRANSPARENT LEN REAR CAB COLOR IN RS WHITE TEXTURE IN FINE MATT MODEL: THWR800A FULL SEGMENT V.A SIZE: 63mm x 28mm DATE: 20 SEPT 2004 VERSION: 3 FILE: THWR800 COLOR SPEC 1.CDR T H W R 8 0 0 A T H W R 8 0 0 A 48mm 16.7mm

Internal Photos

Internal Photo FCC ID : NMTTHWR800-01 Internal Photo - 1 Internal Photo - 2 Internal Photo FCC ID : NMTTHWR800-01 Internal Photo - 3 Internal Photo - 4 Internal Photo FCC ID : NMTTHWR800-01 Internal Photo - 5 Internal Photo - 6 Internal Photo FCC ID : NMTTHWR800-01 Internal Photo - 7 Internal Photo - 8 Internal Photo FCC ID : NMTTHWR800-01 Internal Photo - 9

Operational Description

Block C, 9/F, Kaiser Estate, Phase 1, 41 Man Yue Street, Hunghom, Kowloon, Hong Kong. Tel (852) 2764 7873 Fax (852) 2765 6620 Email: [email protected] Web Site: http://www.idthk.com Technical Description of THWR800A THWR800A(Main MCU MSM64162A) is a Remote Thermo Sensor and transmit data by using 433.92MHz .After every time of Thermo measurement. The data will be transfer to the receiver unit through 433.92MHz frequency. It composes a controller part and a transmitter part. The transmitter is basically a Colippttis oscillator, where XT1, the 433.93MHz SAW resonator provides the center frequency, C5,C6,C7,L1 perform as the matching network, and R8,R9,R10 perform the attenuator, C28, C12 for matching 50 Ohm antenna , C1,C2,R4,C3 perform RC filtering circuitry.

Test Report

- The test report only allows to be revised within three years from its original issued date unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com IDT Technology Limited Application For Certification (FCC ID: NMTTHWR800-01) Transmitter HK08020874-1 BH/ sl April 03, 2008 INTERTEK TESTING SERVICES FCC ID: NMTTHWR800-01 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: NMTTHWR800-01 ii MEASUREMENT/TECHNICAL REPORT IDT Technology Limited - MODEL: THWR800A FCC ID: NMTTHWR800-01 April 03, 2008 This report concerns (check one:) Original Grant X Class II Change Equipment Type: DSC - Part 15 Security Remote Control Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [05-04-07 Edition] provision. Report prepared by: Ho Wai Kin, Ben Intertek Testing Services Hong Kong Ltd. 2/F., Garment Center, 576, Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8505 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: NMTTHWR800-01 iii Table of Contents 1.0 General Description............................................................................................ 2 1.1 Product Description ............................................................................................ 2 1.2 Related Submittal(s) Grants ............................................................................... 2 1.3 Test Methodology............................................................................................... 3 1.4 Test Facility........................................................................................................ 3 2.0 System Test Configuration ................................................................................. 5 2.1 Justification ........................................................................................................ 5 2.2 EUT Exercising Software.................................................................................... 5 2.3 Special Accessories ........................................................................................... 5 2.4 Equipment Modification ...................................................................................... 6 2.5 Measurement Uncertainty .................................................................................. 6 2.6 Support Equipment List and Description ............................................................. 6 3.0 Emission Results ................................................................................................ 8 3.1 Field Strength Calculation................................................................................... 9 3.2 Radiated Emission Configuration Photograph................................................... 10 3.3 Radiated Emission Data ................................................................................... 11 4.0 Equipment Photographs ................................................................................... 14 5.0 Product Labelling.............................................................................................. 16 6.0 Technical Specifications................................................................................... 18 7.0 Instruction Manual ............................................................................................ 20 8.0 Miscellaneous Information ............................................................................... 22 8.1 Measured Bandwidth........................................................................................ 23 8.2 Discussion of Pulse Desensitization.................................................................. 24 8.3 Calculation of Average Factor........................................................................... 25 8.4 Emissions Test Procedures .............................................................................. 26 INTERTEK TESTING SERVICES FCC ID: NMTTHWR800-01 iv List of attached file Exhibit type File Description filename Cover Letter Letter of Agency letter.pdf Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block…

Text truncated - open the document above for the full version.

Test Report

Job No.: HK08020874

Test Report

Job No.: HK08020874 Duty Cycle = 62 x 0.46 + 15 x 0.94 100 = 0.426 Average Factor = 20 log 0.426 = -7.4 dB Job No.: HK08020874 Job No.: HK08020874 Job No.: HK08020874 Job No.: HK08020874

Test Setup Photos

Test Setup FCC ID : NMTTHWR800-01 Radiated - front Radiated - rear THWR800A HK08020874 THWR800A HK08020874
