NMTTHX1X8R-01REMOTE THERMOMETER

www.tuv.com Appendix 5 Prüfbericht - Nr.: Test Report No. 14011260 001 Seite 6 von 6 Page 6 of 6

www.tuv.com Appendix 5 Prüfbericht - Nr.: Test Report No. 14011260 001 Seite 3 von 6 Page 3 of 6

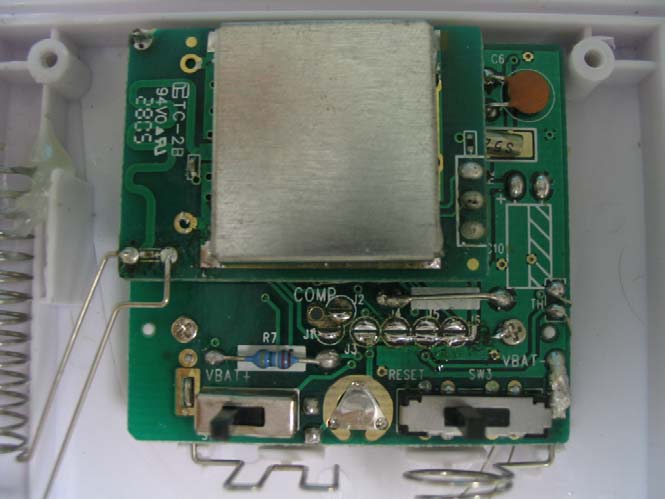

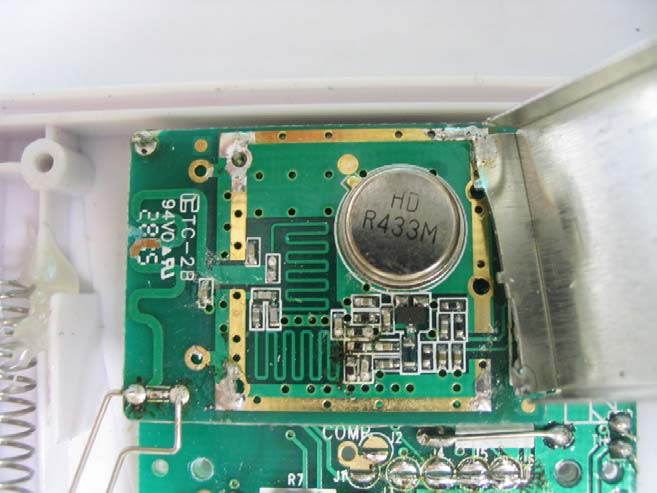

www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No. 14011260 001 Seite 1 von 4 Page 1 of 4 Transmitter Transmitter www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No. 14011260 001 Seite 2 von 4 Page 2 of 4 Transmitter Transmitter www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No. 14011260 001 Seite 3 von 4 Page 3 of 4 Transmitter Transmitter www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No. 14011260 001 Seite 4 von 4 Page 4 of 4 Transmitter

www.tuv.com Test Report No.: 14011260 001 Date: 14.11.2005 Page 2 of 13 Test Summary Periodic Operation Device Result: Pass Radiated Emission of Carrier Frequency Result: Pass Spurious Radiated Emissions Result: Pass Bandwidth Measurement Result: Pass www.tuv.com Test Report No.: 14011260 001 Date: 14.11.2005 Page 3 of 13 Contents List of Test and Measurement Instruments.........................................................4 General Product Information ................................................................................5 Product Function and Intended Use.............................................................................................5 Circuit Description .........................................................................................................................5 Ratings and System Details ..........................................................................................................5 Independent Operation Modes......................................................................................................6 Submitted Documents ...................................................................................................................6 Related Submittal(s) Grants ..........................................................................................................6 Test Set-up and Operation Mode..........................................................................7 Principle of Configuration Selection ............................................................................................7 Test Operation and Test Software ................................................................................................7 Special Accessories and Auxiliary Equipment ...........................................................................7 Countermeasures to achieve EMC Compliance..........................................................................7 Test Methodology ..................................................................................................8 Radiated Emission .........................................................................................................................8 Field Strength Calculation .............................................................................................................8 Test Results ...........................................................................................................9 Periodic Operation Device Section 15.231(a) ...........................................................................9 Radiated Emission of Carrier Frequency Section 15.231(b) .................................................10 Spurious Radiated Emissions Section 15.231(b)...................................................................11 Bandwidth Measurement Section 15.231(c)...........................................................................13 Appendix 1: Test Results Appendix 2: Test Setup Appendix 3: EUT External Photo Appendix 4: EUT Internal Photo Appendix 5: FCCID Label, Block Diagram, Schematics and User manual. www.tuv.com Test Report No.: 14011260 001 Date: 14.11.2005 Page 4 of 13 List of Test and Measurement Instruments Kind of Equipment Manufacturer Type S/N Test Receiver Rohde & Schwarz ESVS30 842807/009 Biconical Antenna Rohde & Schwarz HK116 841489/015 Log.-Periodic Antenna Rohde & Schwarz HL223 841516/017 Double Ridge Horn Antenna EMCO 3115 9002-3351 Double Ridge Horn Antenna EMCO 3115 9002-3347 Signal Generator Rohde & Schwarz SMY 01 844146/024 Signal Generator Rohde & Schwarz SMY 01 844146/023 Spectrum Analyzer Rohde & Schwarz FSP30 1093.4495K30 www.tuv.com Test Report No.: 14011260 001 Date: 14.11.2005 Page 5 of 13 General Product Information Product Function and Intended Use The equipment under test (EUT) is a transmitter for a weather station operating at 433.92 MHz. The EUT senses the temperature and humidity level and then transmit this information to the associated weather station. A transmitter transmits signal for every 30.24 seconds, and the signal on period is about 0.143s. It activated automatically shall cease transmission within 5 seconds after activation. FCC ID: NMTTHX122NR-01 Models Product descriptions THR138, THR138R Water Resistant Remote Sensor with LCD Display THN138, THN138R Water Resistant Remote Sensor The models THN138, THN138R are identical in construction including PCB layout to the model THR138R, except the change in housing design and removed LCD display. For those models with suffix “R”, they are re-engineering models and are used for internal reference only. They are totally identical to the models without suffix “R”. For the above multiple models, due to the model THR138R is the most complex and integrated, the model THR138R was chosen as a representative model for testing. Circuit Description THR138R is a remote thermometer sensor and transmit data by using 433.92MHz. After every time of thermometer measurement, the data will be transfer to the receiver unit through 433.92MHz. It composes of a controller part and a transmitter part. The transmitter is basically a Colippttis oscillator, where C5, C6 and Y1 are used to determinate the resonant frequency that is 433.92MHz. Transistor Q3 whose fT is greater than 6GHz, provides a good frequency response to the circuit. There is a filtering circuitry, use L1, that is used to suppress harmonics of the oscillator. Capacitance C12, C13, C14 are employed to match the impedance of the antenna. Ratings and System Details Transmitter Operated Frequency : 433.92 MHz Number of channels : 1 Type of antenna : Integral antenna Power supply : Battery operated 3.0V Ports : none Protection Class : III Equipment Class : B www.tuv.com Test Report No.: 14011260 001 Date: 14.11.2005 Page 6 of 13 Independent Operation Modes The basic operation modes are: - Transmitting weather information. For further information refer to User Manual Submitted Documents The submitted docume…

Text truncated - open the document above for the full version.

www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14011260 001 Seite 1 von 5 Page 1 of 5 Ref -20 dBm 30.24 s Att 10 dB 30.24 s RBW 3 MHz 30.24 s VBW 10 MHz 30.24 s A 30.24 s Center 433.9 MHz 30.24 s 6 s/ 30.24 s SWT 60 s 30.24 s SGL 30.24 s MAXH 30.24 s 30.24 s 30.24 s 30.24 s 30.24 s 30.24 s 30.24 s 30.24 s 30.24 s 30.24 s 1 PK 30.24 s -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 30.24 s Marker 1 [T1] -47.15 dBm 2.520000 s Delta 2 [T1] -0.09 dB 30.240000 s 1 2 DELTA MARKER 2 30.24 s Date: 8.NOV.2005 13:58:53 The above data graph shows that the EUT automatically transmits signal after 30.24 seconds from the previous transmitted signal. Ref -20 dBm 143.4 ms Att 10 dB 143.4 ms RBW 3 MHz 143.4 ms VBW 10 MHz 143.4 ms CLRWR 143.4 ms A 143.4 ms SGL 143.4 ms Center 433.9 MHz 143.4 ms 30 ms/ 143.4 ms SWT 300 ms 143.4 ms 1 AP 143.4 ms 143.4 ms 143.4 ms 143.4 ms 143.4 ms 143.4 ms 143.4 ms 143.4 ms 143.4 ms 143.4 ms -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 143.4 ms Marker 1 [T1] -51.76 dBm 58.200000 ms Delta 2 [T1] 0.03 dB 143.400000 ms 1 2 DELTA MARKER 2 143.4 ms Date: 8.NOV.2005 13:34:06 The data packet has the length of 143.4ms. The automatic transmission signal meets part 15.231 (a)(2) requirement. www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14011260 001 Seite 2 von 5 Page 2 of 5 Ref -20 dBm 7.4 kHz Att 10 dB 7.4 kHz A 7.4 kHz Center 433.9122 MHz 7.4 kHz Span 100 kHz 7.4 kHz 10 kHz/ 7.4 kHz RBW 3 kHz 7.4 kHz VBW 10 kHz 7.4 kHz SWT 15 ms 7.4 kHz 1 PK 7.4 kHz MAXH 7.4 kHz 7.4 kHz 7.4 kHz 7.4 kHz 7.4 kHz 7.4 kHz 7.4 kHz 7.4 kHz 7.4 kHz 7.4 kHz -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 7.4 kHz Delta 2 [T1] -20.02 dB -9.200000000 kHz Marker 1 [T1] -51.25 dBm 433.912200000 MHz Delta 3 [T1] -20.72 dB 7.400000000 kHz 2 1 3 DELTA MARKER 3 7.4 kHz Date: 8.NOV.2005 12:26:23 Bandwidth measurement. www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14011260 001 Seite 3 von 5 Page 3 of 5 Ref -20 dBm 143.4 ms Att 10 dB 143.4 ms RBW 3 MHz 143.4 ms VBW 10 MHz 143.4 ms CLRWR 143.4 ms A 143.4 ms SGL 143.4 ms Center 433.9 MHz 143.4 ms 30 ms/ 143.4 ms SWT 300 ms 143.4 ms 1 AP 143.4 ms 143.4 ms 143.4 ms 143.4 ms 143.4 ms 143.4 ms 143.4 ms 143.4 ms 143.4 ms 143.4 ms -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 143.4 ms Marker 1 [T1] -51.76 dBm 58.200000 ms Delta 2 [T1] 0.03 dB 143.400000 ms 1 2 DELTA MARKER 2 143.4 ms Date: 8.NOV.2005 13:34:06 - The graph shows the pattern of coding during the signal transmission. - Within the pulse train, there are 32 short, 5 medium short and 1 long ‘on’ signals. www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14011260 001 Seite 4 von 5 Page 4 of 5 RBW 3 MHz 5.52 ms VBW 10 MHz 5.52 ms CLRWR 5.52 ms A 5.52 ms Ref -20 dBm 5.52 ms Att 10 dB 5.52 ms SGL 5.52 ms Center 433 MHz 5.52 ms 2 ms/ 5.52 ms SWT 20 ms 5.52 ms 1 AP 5.52 ms 5.52 ms 5.52 ms 5.52 ms 5.52 ms 5.52 ms 5.52 ms 5.52 ms 5.52 ms 5.52 ms -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 5.52 ms Marker 1 [T1] -36.81 dBm 1.480000 ms Delta 2 [T1] -0.21 dB 5.520000 ms 1 2 DELTA MARKER 2 5.52 ms Date: 14.NOV.2005 11:41:05 - The graph shows the duration of long ‘on’ signal, from marker 1 to marker 2 indicates 5.52ms. www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14011260 001 Seite 5 von 5 Page 5 of 5 Ref -20 dBm 3.26 ms Att 10 dB 3.26 ms RBW 3 MHz 3.26 ms VBW 10 MHz 3.26 ms CLRWR 3.26 ms A 3.26 ms SGL 3.26 ms Center 433.9 MHz 3.26 ms 1 ms/ 3.26 ms SWT 10 ms 3.26 ms 1 AP 3.26 ms 3.26 ms 3.26 ms 3.26 ms 3.26 ms 3.26 ms 3.26 ms 3.26 ms 3.26 ms 3.26 ms -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 3.26 ms Marker 1 [T1] -51.46 dBm 260.000000 μs Marker 2 [T1] -51.82 dBm 3.260000 ms Marker 3 [T1] -51.46 dBm 6.160000 ms Marker 4 [T1] -51.95 dBm 7.660000 ms 1 2 3 4 MARKER 2 3.26 ms Date: 8.NOV.2005 13:37:17 - The graph shows the duration of medium short ‘on’ signal, from marker 1 to marker 2 indicates 3ms. - The graph shows the duration of short ‘on’ signal, from marker 3 to marker 4 indicates 1.5ms. - Therefore, the total signal ‘on’ time of one successful period is (5.52ms x 1) + (3ms x 5) + (1.5ms x 32) = 68.52ms . Average factor: 20 log (68.52 / 100) = -3.28dB .

www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 14011260 001 Seite 1 von 1 Page 1 of 1 Set-up for Radiation Emission (Transmitter)
