NOG123Electronic Energy Saving Lamp

U SER ’ S M ANUAL This device complies with Part 18 of the FCC Rules. 1. Use only on 120 V, 60Hz. 2. Never disassemble or modify – any changes could void the user’s authority to operate this device. 3. Not for use in totally enclosed fixtures. 4. Risk of fire, do not install the lamp as following: a. in luminaries fixtures controlled by a dimmer b. in emergency exit lamps used DC current c. in totally enclosed lamps and lanterns 5. Use in dry condition, risk of electric shock – do not use where directly exposed to water. 6. This product could produce interference when used near a TV, radio, wireless remote control or maritime safety communications equipment or other critical navigation of communication equipment operating between 0.45-30MHz. If interference would occur, move the lamp away from the appliance a distance of three feet or more. Or, plug the lamp or the appliance into a different outlet. 7. To prevent burns, do not touch the bulb during operating or immediately after switching off. 8. Not for use with dimmers, electronic timer or photocell devices or occupancy sensor. 9. It doesn’t start up when placed below –15°C.

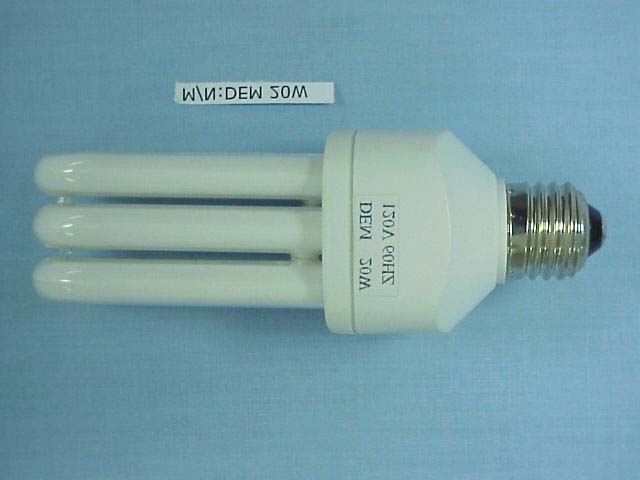

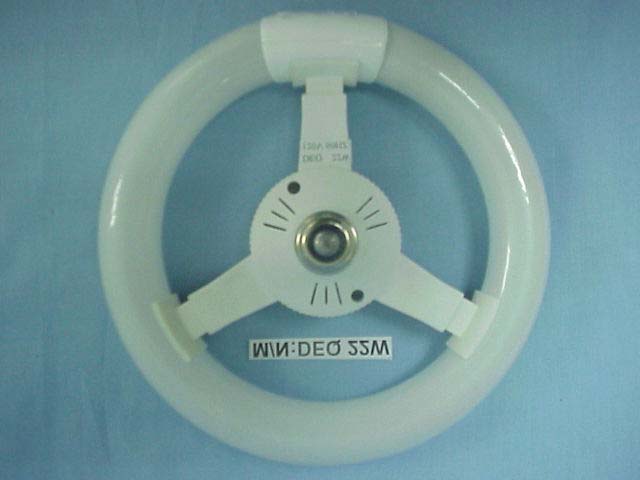

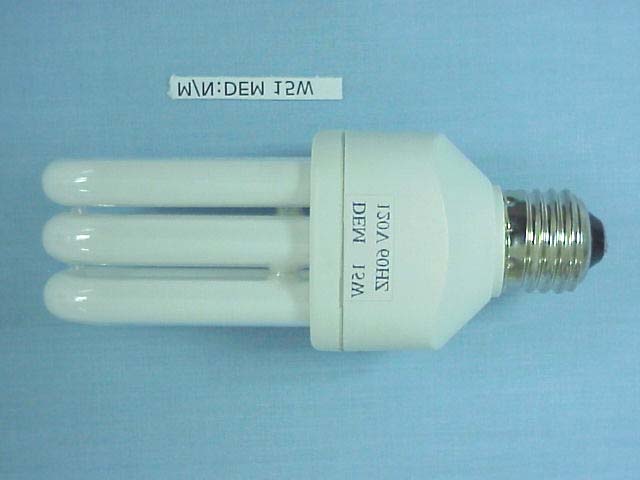

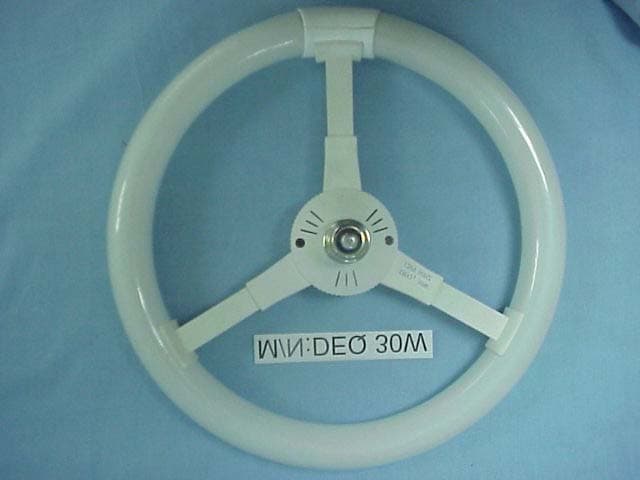

F IGURE 1 E LECTRONIC ENERGY SAVING LAMP (M/N: DEC3B 13W) G ENERAL A PPEARANCE F IGURE 2 E LECTRONIC E NERGY S AVING L AMP (M/N: DEC3B 15W) GENERAL APPEARANCE F IGURE 3 E LECTRONIC ENERGY SAVING LAMP (M/N: DEM 15W) G ENERAL A PPEARANCE F IGURE 4 E LECTRONIC E NERGY S AVING L AMP (M/N: DEM 20W) GENERAL APPEARANCE F IGURE 5 E LECTRONIC ENERGY SAVING LAMP (M/N: DEM 25W) G ENERAL A PPEARANCE F IGURE 6 E LECTRONIC E NERGY S AVING L AMP (M/N: DEQ 22W) GENERAL APPEARANCE F IGURE 7 E LECTRONIC ENERGY SAVING LAMP (M/N: DEQ 30W) G ENERAL A PPEARANCE

Label Drawing LEDESHI DEC3B 13W 120Vac 60Hz 0.20A FCC ID: NOG123 LEDESHI DEC3B 15W 120Vac 60Hz 0.23A FCC ID: NOG123 LEDESHI DEM 15W 120Vac 60Hz 0.23A FCC ID: NOG123 LEDESHI DEM 20W 120Vac 60Hz 0.31A FCC ID: NOG123 LEDESHI DEM 25W 120Vac 60Hz 0.38A FCC ID: NOG123 LEDESHI DEQ 22W 120Vac 60Hz 0.34A FCC ID: NOG123 LEDESHI DEQ 30W 120Vac 60Hz 0.49A FCC ID: NOG123

Label Location Information Refer to the below red arrow: (for example)

Ningbo Ledeshi Electrical Equipment Co., Ltd. FCC ID: NOG123 Page 1 of 36 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F02033 Application for FCC Certificate On Behalf of Ningbo Ledeshi Electrical Equipment Co., Ltd. Electronic Energy Saving Lamp Model No.: DEC3B 13W DEC3B 15W DEM 15W DEM 20W DEM 25W DEQ 22W DEQ 30W FCC ID: NOG123 Prepared For : Ningbo Ledeshi Electrical Equipment Co., Ltd. 438# Youngor Rd, Ningbo City, Zhejiang, China Prepared By : Audix Technology (Shanghai) Co., Ltd. 3F 34Bldg 680 Guiping Rd, Caohejing Hi-Tech Park, Shanghai, China 200233 Tel : +86-21-64955500 Fax : +86-21-64955491 Report No. : ACI-F02033 Date of Test : Feb 27 ~ Mar 14, 2002 Date of Report : Apr 01, 2002 Ningbo Ledeshi Electrical Equipment Co., Ltd. FCC ID: NOG123 Page 2 of 36 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F02033 TABLE OF CONTENTS Page 1 GENERAL INFORMATION.......................................................................................................... 4 1.1 Description of Equipment Under Test........................................................................................4 1.2 Description of Test Facility ........................................................................................................ 4 1.3 Measurement Uncertainty .......................................................................................................... 4 2 AC POWERLINE CONDUCTED EMISSION TEST ................................................................. 5 2.1 Test Equipment........................................................................................................................... 5 2.2 Block Diagram of Test Setup ..................................................................................................... 5 2.3 Conducted Emission Limits ....................................................................................................... 5 2.4 Test Configuration...................................................................................................................... 6 2.5 Operating Condition of EUT ...................................................................................................... 6 2.6 Test Procedures .......................................................................................................................... 6 2.7 Test Results ................................................................................................................................ 7 3 FIELD STRENGTH TEST ........................................................................................................... 14 3.1 Test Equipment......................................................................................................................... 14 3.2 Block Diagram of Test Setup ................................................................................................... 14 3.3 Test Configuration.................................................................................................................... 14 3.4 Operating Condition of EUT .................................................................................................... 14 3.5 Test Procedure .......................................................................................................................... 15 3.6 Test Result ................................................................................................................................ 15 Ningbo Ledeshi Electrical Equipment Co., Ltd. FCC ID: NOG123 Page 3 of 36 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F02033 TEST REPORT FOR FCC CERTIFICATE Applicant : Ningbo Ledeshi Electrical Equipment Co., Ltd. Manufacturer : Ningbo Ledeshi Electrical Equipment Co., Ltd. EUT Description : Electronic Energy Saving Lamp (A) Model No.: DEC3B 13W DEC3B 15W DEM 15W DEM 20W DEM 25W DEQ 22W DEQ 30W (B) Serial No.: E022101 E022102 E022103 E022104 E022105 E022106 E022107 (C) Power Supply: 120V/60Hz Test Procedure Used: FCC RULES AND REGULATIONS PART 18 CONSUMER DEVICES (2000) AND MP-5/1986 The device described above is tested by Audix Technology (Shanghai) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 18 RF Lighting Device limits both conducted emissions and field strength. The test results are contained in this test report and Audix Technology (Shanghai) Co., Ltd. is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT to be technically compliant with the FCC official limits. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Audix Technology (Shanghai) Co., Ltd. This report must not be used by the applicant to claim product endorsement by NVLAP or any agency of the U.S. Government. Date of Test : Feb 27 ~ Mar 14, 2002 Prepared by : Test Engineer : CASPER LEI (Supervisor) LORENZO CHEN (Engineer) Reviewer : Approved Signatory : BYRON KWO (Supervisor) ALEX CHIU (Assistant Manager) Ningbo Ledeshi Electrical Equipment Co., Ltd. FCC ID: NOG123 Page 4 of 36 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F02033 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test Description : Electronic Energy Saving Lamp Type of EUT : ; Production … Pre-product … Pro-type Model Number : DEC3B 13W DEC3B 15W DEM 15W DEM 20W DEM 25W DEQ 22W DEQ30W Applicant : Ningbo Ledeshi Electrical Equipment Co., Ltd. 438# Youngor Rd, Ningbo City, Zhejiang, China Manufacturer : Ningbo Ledeshi Electrical Equipment Co., Ltd. 438# Youngor Rd, Ningbo City, Zhejiang, China M/N Apparent Power (VA) Real Power (W) DEC3B 13W 19.2 11.2 DEC3B 15W 20.2 12.0 DEM 15W 22.5 11.4 DEM 20W 31.1 15.0 DEM 25W 37.6 19.7 DEQ 22W 29.4 16.1 DEQ 30W 35.0 18.0 1.2 Description of Test Facility Site Description : Sept. 17, 1998 file on (Semi-Anechoic Chamber) Federal Communications Commission FCC Engin…
