NOG369Job Light

User’s Manual This light device has been tested and found to comply with the limits for Consumer RF Lighting device, pursuant to Part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. 1 Use only on 120 volt, 60 hertz. 2 Never disassemble or modify - any changes could void the user's authority to operate this device. 3 Risk of electric shock - do not use where directly exposed to water. 4 This device is not intended for use with emergency exit fixtures or emergency exit lights. 5 This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45-30MHz 6 To prevent burns, do not touch the bulb during operation or immediately after switching off. 7 Not for use with dimmers, electronic timer or photocell devices or occupancy sensor.

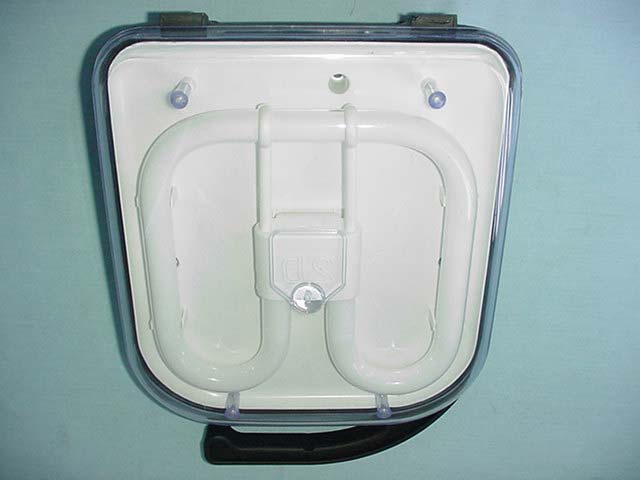

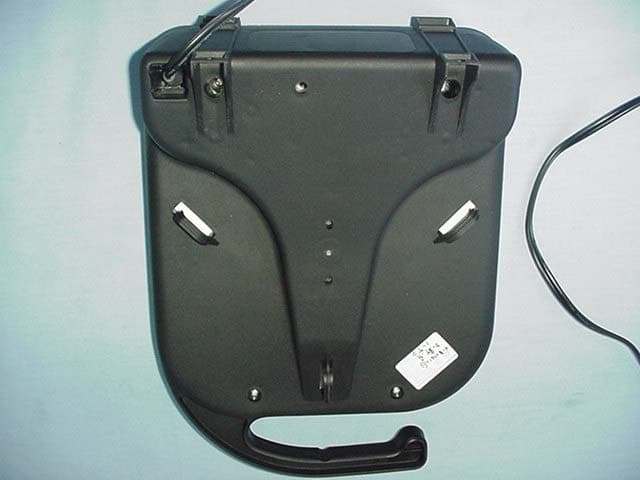

F IGURE 1 Job Light (M/N: ST-1) G ENERAL A PPEARANCE (F RONT V IEW ) FIGURE 2 Job Light (M/N: ST-1) GENERAL APPEARANCE (BACK VIEW)

Label Drawing LEDESHI ST-1 28W 120Vac 60Hz 500mA FCC ID: NOG369

Label Location Information Refer to the below red arrow: (For example)

FIGURE 1 Job Light (M/N: ST-1) COVER REMOVED 1 F IGURE 2 Job Light (M/N: ST-1) COVER REMOVED 2 FIGURE 3 Job Light (M/N: ST-1) MAIN BOARD (COMPONENT SIDE) F IGURE 4 Job Light (M/N: ST-1) MAIN BOARD (SOLDERED SIDE)

1 2 3 4 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 2-Dec-2002 Sheet of File: D:\CPROTEL\LYG\SCH\ 忒枑腑埻 .SCH Drawn By: FUSE L3 C7 D1D2 D3D4 C1 R1 R2 C2 D5 C3Z T1 T2 R5R6 D6D7 R3 R4 C4 L2 C5 V C6 C1' C5' L1 D9D9 LAMP

NINGBO LEDESHI ELECTRICAL EQUIPMENT CO., LTD. FCC ID: NOG369 Page 1 of 12 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F02111 Application for FCC Certificate On Behalf of NINGBO LEDESHI ELECTRICAL EQUIPMENT CO., LTD. Job Light Model No.: ST-1 FCC ID: NOG369 Prepared For : Ningbo Ledeshi Electrical Equipment Co., Ltd. 438#Youngor Rd Ningbo City Zhejiang Prepared By : Audix Technology (Shanghai) Co., Ltd. 3F 34Bldg 680 Guiping Rd, Caohejing Hi-Tech Park, Shanghai, China 200233. Tel : +86-21-64955500 Fax : +86-21-64955491 Report No. : ACI-F02111 Date of Test : Nov 25, 2002 Date of Report : Nov 28, 2002 NINGBO LEDESHI ELECTRICAL EQUIPMENT CO., LTD. FCC ID: NOG369 Page 2 of 12 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F02111 TABLE OF CONTENTS Page 1 GENERAL INFORMATION.......................................................................................................... 4 1.1 Description of Equipment Under Test........................................................................................4 1.2 Description of Test Facility ........................................................................................................ 4 1.3 Measurement Uncertainty .......................................................................................................... 4 2 AC POWERLINE CONDUCTED EMISSION TEST ................................................................. 5 2.1 Test Equipment........................................................................................................................... 5 2.2 Block Diagram of Test Setup ..................................................................................................... 5 2.3 Conducted Emission Limits ....................................................................................................... 5 2.4 Test Configuration...................................................................................................................... 6 2.5 Operating Condition of EUT ...................................................................................................... 6 2.6 Test Procedures .......................................................................................................................... 6 2.7 Test Results ................................................................................................................................ 7 3 FIELDSTRENGTH TEST ..............................................................................................................8 3.1 Test Equipment........................................................................................................................... 8 3.2 Block Diagram of Test Setup ..................................................................................................... 8 3.3 Test Configuration...................................................................................................................... 8 3.4 Operating Condition of EUT ...................................................................................................... 8 3.5 Test Procedure ............................................................................................................................ 9 3.6 Test Result .................................................................................................................................. 9 NINGBO LEDESHI ELECTRICAL EQUIPMENT CO., LTD. FCC ID: NOG369 Page 3 of 12 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F02111 TEST REPORT FOR FCC CERTIFICATE Applicant : Ningbo Ledeshi Electrical Equipment Co., Ltd. Manufacturer : Ningbo Ledeshi Electrical Equipment Co., Ltd. EUT Description : Job Light (A) Model No.: ST-1 (B) Serial No.: E112101-1 (C) Power Supply: 120V/60Hz Test Procedure Used: FCC RULES AND REGULATIONS PART 18 CONSUMER DEVICES (2000) AND MP-5/1986 The device described above is tested by Audix Technology (Shanghai) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 18 RF Lighting Device limits both conducted emissions and field strength. The test results are contained in this test report and Audix Technology (Shanghai) Co., Ltd. is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT to be technically compliant with the FCC official limits. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Audix Technology (Shanghai) Co., Ltd. This report must not be used by the applicant to claim product endorsement by NVLAP or any agency of the U.S. Government. Date of Test : Nov 25, 2002 Prepared by : Test Engineer : CATHRIN YIN (Assistant) RIVER FU (Engineer) Reviewer : Approved Signatory : BYRON KWO (Supervisor) ALEX CHIU (Assistant Manager) NINGBO LEDESHI ELECTRICAL EQUIPMENT CO., LTD. FCC ID: NOG369 Page 4 of 12 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F02111 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test Description : Job Light Type of EUT : ; Production … Pre-product … Pro-type Model Number : ST-1 Applicant : Ningbo Ledeshi Electrical Equipment Co., Ltd. 438#Youngor Rd Ningbo City Zhejiang Manufacturer : Ningbo Ledeshi Electrical Equipment Co., Ltd. 438#Youngor Rd Ningbo City Zhejiang Test Model Apparent Power (V ̇ A) Real Power (W) ST-1 41.44 23.75 1.2 Description of Test Facility Site Description : Sept. 17, 1998 file on (Semi-Anechoic Chamber) Federal Communications Commission FCC Engineering Laboratory 7435 Oakland Mills Road Columbia, MD 21046, USA Name of Firm : Audix Technology (Shanghai) Co., Ltd. Site Location : 3F 34Bldg 680 Guiping Rd, Caohejing Hi-Tech Park, Shanghai, China 200233. NVLAP Lab Code : 200371-0 1.3 Measurement Uncertainty Conducted Emission Uncertainty : U = ±2.66dB NINGBO LEDESHI ELECTRICAL EQUIPMENT CO., LTD. FCC ID: NOG369 Page 5 of 12 Audix Technology (Shanghai) Co., Ltd…

Text truncated - open the document above for the full version.

Test Set-Up Photos 1. Conducted Emission Test M/N: ST-1 2. Field Strength Test M/N: ST-1
