NOG246Electronic Energy Saving Lamp

User’s Manual This device complies with part 18 of the FCC rules. 1 Use only on 120V/60HZ. 2 Never disassemble or modify - any changes could void the user's authority to operate this device. 3 Not for use in totally enclosed fixtures. 4 Risk of electric shock-do not use with where directly exposed to water.. 5 This device is not intended for use with emergency exit lights. 6 This product could produce interference when used near a TV, radio, wireless remote control or maritime safety communications or other critical navigation or communication equipment operating between 0.45-30 MHZ. If interference should occur, move the lamp away from the appliance a distance of three feet or more. Or, plug the lamp or the appliance into a different outlet. 7 To prevent burns, do not touch the bulb during operation or immediately after switching off 8 Not for use with dimmers, electronic timer or photocell devices or occupancy sensor. 9 It dose not start up when placed below -15°C. 10 “Added weight any cause instability of free –standing portable lamps. Use only with portable lamps in which the distance from the bottom of the base to the top of the lamp holder does not exceed three (3) times minimum base width. Use only with portable table lamps which are provided with lamp shades.”

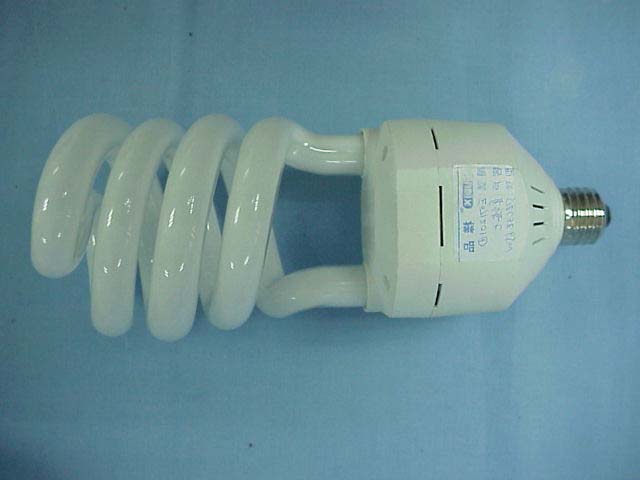

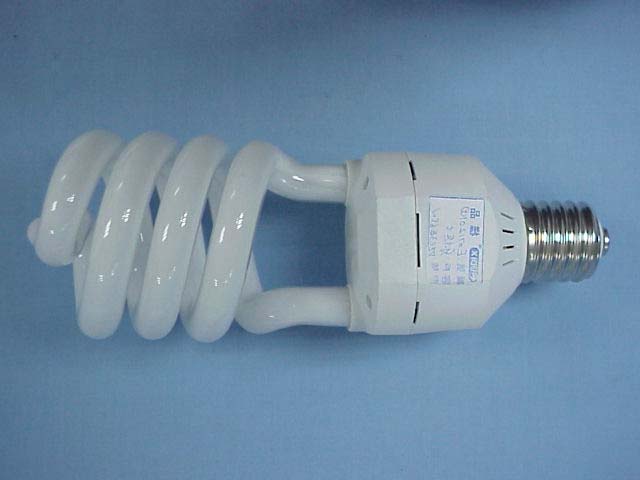

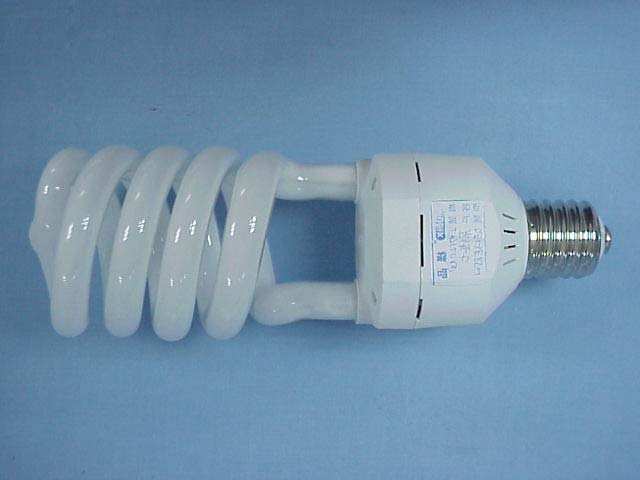

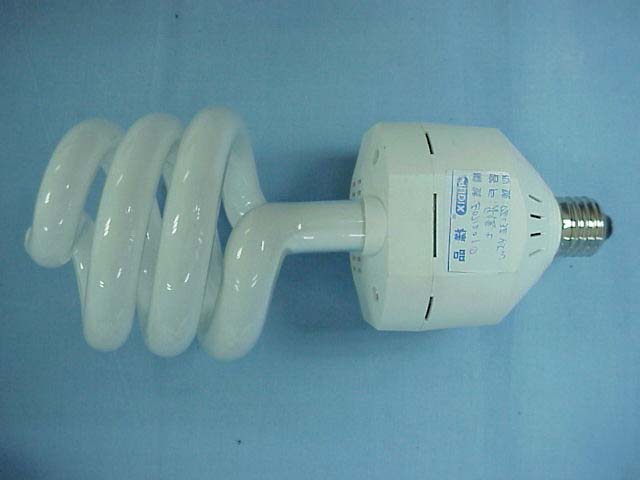

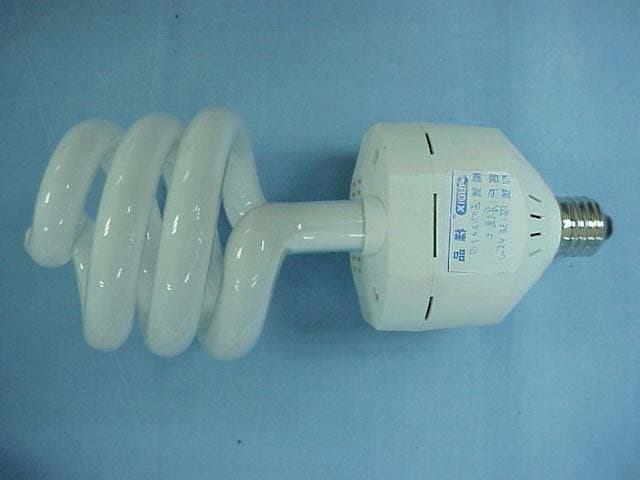

F IGURE 1 E LECTRONIC E NERGY S AVING L AMP (M/N: DEC 3E26 45W) G ENERAL A PPEARANCE FIGURE 2 ELECTRONIC ENERGY SAVING LAMP (M/N: DEC 3E26 65W) GENERAL APPEARANCE F IGURE 3 E LECTRONIC E NERGY S AVING L AMP (M/N: DEC 3E26 85W) G ENERAL A PPEARANCE FIGURE 4 ELECTRONIC ENERGY SAVING LAMP (M/N: DEC 3E39 45W) GENERAL APPEARANCE F IGURE 5 E LECTRONIC E NERGY S AVING L AMP (M/N: DEC 3E39 65W) G ENERAL A PPEARANCE FIGURE 6 ELECTRONIC ENERGY SAVING LAMP (M/N: DEC 3E39 85W) GENERAL APPEARANCE

Label Drawing LEDESHI DEC 3E26 45W 120Vac 60Hz 550mA FCC ID: NOG246 LEDESHI DEC 3E39 45W 120Vac 60Hz 550mA FCC ID: NOG246 LEDESHI DEC 3E39 65W 120Vac 60Hz 650mA FCC ID: NOG246 LEDESHI DEC 3E26 65W 120Vac 60Hz 650mA FCC ID: NOG246 LEDESHI DEC 3E26 85W 120Vac 60Hz 980mA FCC ID: NOG246 LEDESHI DEC 3E39 85W 120Vac 60Hz 980mA FCC ID: NOG246

Label Location Information Refer to the below red arrow: (for example) DEC 3E26 45W Refer to the below red arrow: (for example) DEC 3E26 65W Refer to the below red arrow: (for example) DEC 3E26 85W Refer to the below red arrow: (for example) DEC 3E39 45W Refer to the below red arrow: (for example) DEC 3E39 65W Refer to the below red arrow: (for example) DEC 3E39 85W

FIGURE 1 ELECTRONIC ENERGY SAVING LAMP (M/N: DEC 3E26 45W) COVER REMOVED FIGURE 2 ELECTRONIC ENERGY SAVING LAMP (M/N: DEC 3E26 45W) MAIN BOARD (COMPONENT SIDE) F IGURE 3 ELECTRONICS ENERGY SAVING LAMP (M/N: DEC 3E26 45W) MAIN BOARD (SOLDERED SIDE) FIGURE 4 ELECTRONIC ENERGY SAVING LAMP (M/N: DEC 3E26 65W) COVER REMOVED FIGURE 5 ELECTRONIC ENERGY SAVING LAMP (M/N: DEC 3E26 65W) MAIN BOARD (COMPONENT SIDE) F IGURE 6 ELECTRONICS ENERGY SAVING LAMP (M/N: DEC 3E26 65W) MAIN BOARD (SOLDERED SIDE) FIGURE 7 ELECTRONIC ENERGY SAVING LAMP (M/N: DEC 3E26 85W) COVER REMOVED FIGURE 8 ELECTRONIC ENERGY SAVING LAMP (M/N: DEC 3E26 85W) MAIN BOARD (COMPONENT SIDE) F IGURE 9 ELECTRONICS ENERGY SAVING LAMP (M/N: DEC 3E26 85W) MAIN BOARD (SOLDERED SIDE) FIGURE 10 ELECTRONIC ENERGY SAVING LAMP (M/N: DEC 3E39 45W) COVER REMOVED FIGURE 11 ELECTRONIC ENERGY SAVING LAMP (M/N: DEC 3E39 45W) MAIN BOARD (COMPONENT SIDE) F IGURE 12 ELECTRONICS ENERGY SAVING LAMP (M/N: DEC 3E39 45W) MAIN BOARD (SOLDERED SIDE) FIGURE 13 ELECTRONIC ENERGY SAVING LAMP (M/N: DEC 3E39 65W) COVER REMOVED FIGURE 14 ELECTRONIC ENERGY SAVING LAMP (M/N: DEC 3E39 65W) MAIN BOARD (COMPONENT SIDE) F IGURE 15 ELECTRONICS ENERGY SAVING LAMP (M/N: DEC 3E39 65W) MAIN BOARD (SOLDERED SIDE) FIGURE 16 ELECTRONIC ENERGY SAVING LAMP (M/N: DEC 3E39 85W) COVER REMOVED FIGURE 17 ELECTRONIC ENERGY SAVING LAMP (M/N: DEC 3E39 85W) MAIN BOARD (COMPONENT SIDE) F IGURE 18 ELECTRONICS ENERGY SAVING LAMP (M/N: DEC 3E39 85W) MAIN BOARD (SOLDERED SIDE)

Schematics

NINGBO LEDESHI ELECTRICAL EQUIPMENT CO., LTD. FCC ID: NOG246 Page 1 of 32 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F02083 Application for FCC Certificate On Behalf of NINGBO LEDESHI ELECTRICAL EQUIPMENT CO., LTD. Electronic energy saving lamp Model No.: DEC 3E26 45W; DEC 3E39 45W; DEC 3E26 65W; DEC 3E39 65W ; DEC 3E26 85W; DEC 3E39 85W. FCC ID: NOG246 Prepared For : NINGBO LEDESHI ELECTRICAL EQUIPMENT CO., LTD. 438#YOUNGOR RD NINGBO CITY ZHEJIANG Prepared By : Audix Technology (Shanghai) Co., Ltd. 3F 34Bldg 680 Guiping Rd, Caohejing Hi-Tech Park, Shanghai, China 200233. Tel : +86-21-64955500 Fax : +86-21-64955491 Report No. : ACI-F02083 Date of Test : Jul 25~30, 2002 Date of Report : Jul 30, 2002 NINGBO LEDESHI ELECTRICAL EQUIPMENT CO., LTD. FCC ID: NOG246 Page 2 of 32 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F02083 TABLE OF CONTENTS Page 1 GENERAL INFORMATION.......................................................................................................... 4 1.1 Description of Equipment Under Test........................................................................................4 1.2 Description of Test Facility ........................................................................................................ 4 1.3 Measurement Uncertainty .......................................................................................................... 4 2 AC POWERLINE CONDUCTED EMISSION TEST ................................................................. 5 2.1 Test Equipment........................................................................................................................... 5 2.2 Block Diagram of Test Setup ..................................................................................................... 5 2.3 Conducted Emission Limits ....................................................................................................... 5 2.4 Test Configuration...................................................................................................................... 6 2.5 Operating Condition of EUT ...................................................................................................... 6 2.6 Test Procedures .......................................................................................................................... 6 2.7 Test Results ................................................................................................................................ 7 3 FIELDSTRENGTH TEST ..............................................................................................................8 3.1 Test Equipment......................................................................................................................... 13 3.2 Block Diagram of Test Setup ................................................................................................... 13 3.3 Test Configuration.................................................................................................................... 13 3.4 Operating Condition of EUT .................................................................................................... 13 3.5 Test Procedure .......................................................................................................................... 14 3.6 Test Result ................................................................................................................................ 14 NINGBO LEDESHI ELECTRICAL EQUIPMENT CO., LTD. FCC ID: NOG246 Page 3 of 32 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F02083 TEST REPORT FOR FCC CERTIFICATE Applicant : NINGBO LEDESHI ELECTRICAL EQUIPMENT CO., LTD. Manufacturer : NINGBO LEDESHI ELECTRICAL EQUIPMENT CO., LTD. EUT Description : Electronic energy saving lamp (A) Model No.: DEC 3E26 45W; DEC 3E26 65W; DEC 3E26 85W DEC 3E39 45W; DEC 3E39 65W; DEC 3E39 85W (B) Serial No.: E071201-1 E071201-6 E071201-9 E071201-2 E071201-5 E071201-8 (C) Power Supply: 120V/60Hz Test Procedure Used: FCC RULES AND REGULATIONS PART 18 CONSUMER DEVICES (2000) AND MP-5/1986 The device described above is tested by Audix Technology (Shanghai) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 18 RF Lighting Device limits both conducted emissions and field strength. The test results are contained in this test report and Audix Technology (Shanghai) Co., Ltd. is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT to be technically compliant with the FCC official limits. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Audix Technology (Shanghai) Co., Ltd. This report must not be used by the applicant to claim product endorsement by NVLAP or any agency of the U.S. Government. Date of Test : Jul 25~30, 2002 Prepared by : Test Engineer : YOLANDA LIU (Assistant) LORENZO CHEN (Engineer) Reviewer : Approved Signatory : BYRON KWO (Supervisor) ALEX CHIU (Assistant Manager) NINGBO LEDESHI ELECTRICAL EQUIPMENT CO., LTD. FCC ID: NOG246 Page 4 of 32 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F02083 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test Description : Electronic energy saving lamp Type of EUT : ; Production … Pre-product … Pro-type Model Number : DEC 3E26 45W; DEC 3E26 65W; DEC 3E26 85W DEC 3E39 45W; DEC 3E39 65W; DEC 3E39 85W Applicant : NINGBO LEDESHI ELECTRICAL EQUIPMENT CO., LTD. 438#YOUNGOR RD NINGBO CITY ZHEJIANG Manufacturer : NINGBO LEDESHI ELECTRICAL EQUIPMENT CO., LTD. 438#YOUNGOR RD NINGBO CITY ZHEJIANG Test Model Apparent Power (V ̇ A) Real Power (W) DEC 3E26 45W 65.6 29 DEC 3E26 65W 80 35.3 DEC 3E26 85W 85.7 40.2 DEC 3E39 45W 67.6 30.4 DEC 3E39 65W 73.8 34.1 DEC 3E39 85W 78.7 42.6 1.2 Description of Test Facility Site Description : Sept. 17, 1998 file on (Semi-Anechoic Chamb…

Text truncated - open the document above for the full version.

Test Set-Up Photos 1. Conducted Emission Test M/N: DEC 3E26 45W; DEC 3E26 65W; DEC 3E26 85W M/N: DEC 3E39 45W; DEC 3E39 65W; DEC 3E39 85W 2. Field Strength Test M/N: DEC 3E26 45W; DEC 3E26 65W; DEC 3E26 85W M/N: DEC 3E39 45W; DEC 3E39 65W; DEC 3E39 85W
