NOGDEF18-20WENERGY SAVING LAMP

User Manual Operating instruction 1. Electronic Energy Saving Lamp Input Volt: 120VAC, 60Hz 2. Never disassemble or modify-any changes could void the user’ authority to operate this device. 3. Not for use in totally enclosed fixtures. 4. Risk of electric shock-do not use with where directly exposed to water. 5. This device is not intended for use with emergency exit lights. 6. This product could produce interference when used near a TV, radio, wireless remote control or maritime safety communications or other critical navigation or communication equipment operating between 0.15-30MHZ if interference should occur, move the lamp away from the appliance a distance of three feet or more, Or, plug the lamp or the appliance into a different outlet. 7. To prevent burns, do not touch the bulb buring operation or immediately after switching off. 8. Not for use with dimmers, electronic timer or photocell devices or occupancy sensor. 9. It does not start up when placed below -15 ̊C. 10. “Added weight any cause instability of free- standing portable lamps. Use only with portable lamps in which the distance from the bottom of the base to the top of the lamp holder does not exceed three (3) times minimum base width. Use only with portable table lamps which are provided with lamp shades Warning Label WARNING Not for use with dimmers. FCC NOTE The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.150-30 MHz FCC Warning Statement for FCC ID Label/DoC Label Requirements This device complies with part 18 of the FCC rules. Operation is subject to the following two conditions (1) This device may not cause harmful interferenceand (2) This device must accept any interference receivedincluding interference that may cause undesired operation.

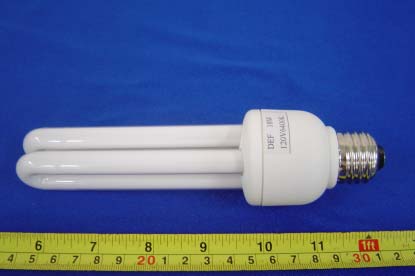

External Photos DEF18W_External Photos DEF20W _External Photos

FCC ID Label/Location Info Proposed FCC Label Format FCC ID: NOGDEF18-20W Proposed Label Location on EUT For Home or Office Use

Internal Photos DEF18W__Internal Photos For Component View DEF18W _Internal Photos For Solder View DEF20W__Internal Photos For Component View DEF20W _Internal Photos For Solder View

FCC TEST REPORT FCC ID : NOGDEF18-20W Applicant : Ningbo Ledeshi Electrical Equipment Co.,Ltd. 438 Youngor Rd Shiqi Town Ningbo Zhejiang, China Equipment Under Test (EUT) : Product description : Energy Saving Lamp Model No. : DEF-U18W, DEF-U20W Standards : FCC Part18 Date of Test : October 26, 2004 Test Engineer : Jimmy Lee Reviewed By : PERPARED BY: Shenzhen Huatongwei International Inspection Co., Ltd Keji S,12th,Road, Hi-tech Industrial Park, Shenzhen, Guangdong, China FCC Registration Number: 662850 Page 1 of 15 Ningbo Ledeshi Electrical Equipment Co.,Ltd. FCC ID: NOGDEF18-20W 2 Contents Page 1 COVER PAGE..........................................................................................................................................................1 2 CONTENTS..............................................................................................................................................................2 3 TEST SUMMARY....................................................................................................................................................3 4 GENERAL INFORMATION..................................................................................................................................4 4.1 CLIENT INFORMATION............................................................................................................................................4 4.2 GENERAL DESCRIPTION OF E.U.T...........................................................................................................................4 4.3 DETAILS OF E.U.T..................................................................................................................................................4 4.4 DESCRIPTION OF SUPPORT UNITS...........................................................................................................................4 4.5 STANDARDS APPLICABLE FOR TESTING..................................................................................................................4 4.6 TEST METHODOLOGY.............................................................................................................................................4 4.7 TEST FACILITY........................................................................................................................................................5 4.8 TEST LOCATION......................................................................................................................................................5 5 EQUIPMENT USED DURING TEST...................................................................................................................6 6 CONDUCTED EMISSION TEST..........................................................................................................................7 6.1 TEST EQUIPMENT....................................................................................................................................................7 6.2 TEST PROCEDURE...................................................................................................................................................7 6.3 CONDUCTED TEST SETUP.......................................................................................................................................8 6.4 EUT OPERATING CONDITION.................................................................................................................................8 6.5 CONDUCTED EMISSION LIMITS...............................................................................................................................9 6.6 SPECTRUM ANALYZER............................................................................................................................................9 6.7 FREQUENCY RANGE OF MEASUREMENTS.............................................................................................................10 6.8 CONDUCTED EMISSION TEST RESULT...................................................................................................................10 6.8.1 Measurement Data.....................................................................................................................................10 6.8.2 Conducted Emissions Test Data for DEF-U18W.......................................................................................13 6.8.3 Conducted Emissions Test Data for DEF-U20W.......................................................................................13 7 PHOTOGRAPHS OF TESTING..........................................................................................................................14 7.1 CONDUCTED EMISSION TEST VIEW FOR DEF-U18W...........................................................................................14 7.2 CONDUCTED EMISSION TEST VIEW FOR DEF-U20W...........................................................................................14 8 FCC ID LABEL......................................................................................................................................................15 Page 2 of 15 Ningbo Ledeshi Electrical Equipment Co.,Ltd. FCC ID: NOGDEF18-20W 3 Test Summary Test Test RequirementTest Method Class / SeverityResult Radiated Emission (30MHz to 1GHz) FCC PART 18: 2003ANSI C63.4:1992 Class B N/A Conducted Emission (150KHz to 30MHz) FCC PART 18: 2003ANSI C63.4:1992 Class B PASS Page 3 of 15 Ningbo Ledeshi Electrical Equipment Co.,Ltd. FCC ID: NOGDEF18-20W 4 General Information 4.1 Client Information Applicant: Ningbo Ledeshi Electrical Equipment Co.,Ltd. Address of Applicant: 438 Youngor Rd Shiqi Town Ningbo Zhejiang, China 4.2 General Description of E.U.T. Product description: Energy Saving Lamp Model No.: DEF-U18W, DEF-U20W 4.3 Details of E.U.T. Power Supply: 120VAC / 60Hz 4.4 Description of Support Units The EUT has been tested as an independent unit. 4.5 Standards Applicable for Testing The custo…

Text truncated - open the document above for the full version.

Test Setup Photos Conducted Emission Test Setup View for DEF-18W Conducted Emission Test Setup View for DEF-20W
