NOO-F0688-011InterReach Fusion 700 MHz (Upper C) LTE, 850 MHz and high power 1900 MHz Multi-Band

ADCP-77-042 x Issue 5 x November 2012 D-620610-0-20 Rev G InterReach Fusion ® Installation, Operation, and Reference Manual COPYRIGHT © 2012, TE Connectivity All Rights Reserved REVISION HISTORY ISSUEDATEREASON FOR CHANGE 17/2008First ADC release 212/2008Update compliance section 31/2011Add Fusion 700 UC/850/1900 product content 46/2012Add Fusion 700 ABC/850/1900 product content 511/2012Add Fusion 700 ABC/850/1900 HP and Fusion 700 UC/850/1900 HP product content LIST OF CHANGES The technical changes incorporated into this issue are listed below. PAGEIDENTIFIERDESCRIPTION OF CHANGE Add Fusion 700 ABC/850/1900 HP and Fusion 700 UC/1850/1900 HP product content TRADEMARK INFORMATION TE is a registered trademark and InterReach, InterReach Unison, InterReach Fusion, WAVEXchange, FlexWave are registered trademarks and trademarks of TE Connectivity. All other products, company names, service marks, and trademarks mentioned in this document or website are used for identification purposes only and may be owned by other companies. DISCLAIMER OF LIABILITY Contents herein are current as of the date of publication. TE reserves the right to change the contents without prior notice. In no event shall TE be liable for any damages resulting from loss of data, loss of use, or loss of profits and TE further disclaims any and all liability for indirect, incidental, special, consequential or other similar damages. This disclaimer of liability applies to all products, publications and services during and after the warranty period. This publication may be verified at any time by contacting TE’s Technical Support Team at 1-800-530-9960 (in U.S.A. or Canada) or +1-952-917-0761 (outside U.S.A. and Canada), or visit www.te.com/WirelessSupport. ADC Telecommunications, Inc. P.O. Box 1101, Minneapolis, Minnesota 55440-1101 In U.S.A. and Canada: 1-800-366-3891 Outside U.S.A. and Canada: (952) 938-8080 Fax: (952) 917-1717 TE Connectivity 541 E. Trimble Road, San Jose, California 95131-1224 USA In U.S.A. and Canada: 1-800-530-9960 Outside U.S.A. and Canada: +1-952-917-0761 InterReach Fusion Installation, Operation, and Reference Manualiii D-620610-0-20 Rev GCONFIDENTIAL Table of Contents SECTION 1 General Information . . . . . . . . . . . . . . . . . . . . . . 1-1 1.1 Firmware Release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 1.2 Purpose and Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 1.3 Conventions in this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 1.4 Standards Conformance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 1.5 Related Publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 SECTION 2 InterReach Fusion System Description 2-1 2.1 System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 2.2 System Hardware Description . . . . . . . . . . . . . . . . . . . . . . . . 2-3 2.3 System OA&M Capabilities Overview . . . . . . . . . . . . . . . . . 2-5 2.3.1 System Monitoring and Reporting . . . . . . . . . . . . . . . . . . . . . 2-6 2.3.2 Using Alarm Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6 2.4 System Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7 2.5 System Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8 2.6 System Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9 2.6.1 RF End-to-End Performance . . . . . . . . . . . . . . . . . . . . . . . . . 2-12 SECTION 3Fusion Main Hub . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 3.1 Fusion Main Hub Overview . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 3.2 Fusion Main Hub Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . 3-4 3.2.1 Optical Fiber Uplink/Downlink Ports . . . . . . . . . . . . . . . . . . . 3-5 3.2.2 Communications RS-232 Serial Connector . . . . . . . . . . . . . . . 3-5 3.2.3 Main Hub LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5 3.3 Fusion Main Hub Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . 3-8 3.3.1 Fusion Main Hub Rear Panel Connectors . . . . . . . . . . . . . . . . 3-8 3.3.1.1 9-pin D-sub Connector . . . . . . . . . . . . . . . . . . . . . . . . . 3-8 3.3.1.2 N-type Female Connectors . . . . . . . . . . . . . . . . . . . . . . 3-9 3.4 Main Hub Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10 3.5 Faults, Warnings, and Status Messages . . . . . . . . . . . . . . . . 3-11 CONFIDENTIAL ivInterReach Fusion Installation, Operation, and Reference Manual D-620610-0-20 Rev G 3.5.1 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11 3.5.2 View Preference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12 SECTION 4Fusion Expansion Hub . . . . . . . . . . . . . . . . . . . . 4-1 4.1 Expansion Hub Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 4.2 Expansion Hub Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3 4.2.1 75 Ohm Type F Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4 4.2.2 Manufacturing RS-232 Serial Connector . . . . . . . . . . . . . . . . . 4-4 4.2.3 Optical Fiber Uplink/Downlink Connectors . . . . . . . . . . . . . . 4-4 4.2.4 LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5 4.3 Expansion Hub Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7 4.4 Faults, Warnings, and Status Messages . . . . . . . . . . . . . . . . . . 4-9 4.5 Expansion Hub Specifications . . . . . . . . . . . . . . . . . . . . . . . 4-10 SECTION 5 Remote Access Unit . . . . . . . . . . . . . . . . . . . . . . 5-1 5.1 RAU Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1 5.2 Remote Access Unit Connectors . . . . . . . . . . . . . . . . . . . . . . . 5-6 5.2.1 50 Ohm Type-N Connector . .…

Text truncated - open the document above for the full version.

Mailing Address: P.O. Box 1101, Minneapolis, Minnesota 55440-1101 World Headquarters: Minneapolis, Minnesota USA +1.952.938.8080 www.adc.com FCC ID label: L*W: 3 inch×1 inch P/N label: FCC ID:NOO-F0688-011 740688-0 FSN-2-758519-1-HP 758519-1-HP Mailing Address: P.O. Box 1101, Minneapolis, Minnesota 55440-1101 World Headquarters: Minneapolis, Minnesota USA +1.952.938.8080 www.adc.com FCC ID label location P/N label location This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference.

FCC1.1307(b)(1) &2.1091-RF EXPOSURE 1. Applicable Standard According to11310 and2.1091 (Mobile Devices)RF exposure is calculated. Frequency Range(Mhz) Electric Field Stength(V/m) Magnetic Field Stength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f²) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f=frequency in MHz *=Plane-wave equivalent power density 2.Prediction of MPE limit at given distance, equations from OET Bulletin 65, Edition 9701: S = (1.64 * P * G) / (4 * π * R²) (where PG = ERP) S = (P * G) / (4 * π * R²) (where PG = EIRP) Where: S = power density P= power input to antenna G= numeric gain of the antenna R= distance to the center of radiation of the antenna 700MHz Band: Maximum peak output power at antenna input terminal (dBm): 18 Maximum peak output power at antenna input terminal (mW): 63.1 Prediction distance (cm): 40 Prediction frequency (MHz): 752 Maximum antenna gain (dBd): 13.6 Maximum antenna gain (numeric): 22.9 Maximum RF output power (ERP, mW): 1450 Power density at predication frequency and distance (mW/cm²): 0.12 MPE limit for uncontrolled exposure at predication frequency (mW/ cm²): 0.50 850MHz Band: Maximum peak output power at antenna input terminal (dBm): 26 Maximum peak output power at antenna input terminal (mW): 398.1 Prediction distance (cm): 40 Prediction frequency (MHz): 881.6 Maximum antenna gain (dBd): 5.6 Maximum antenna gain (numeric): 3.63 Maximum RF output power (ERP, mW): 1450 Power density at predication frequency and distance (mW/cm²): 0.12 MPE limit for uncontrolled exposure at predication frequency (mW/ cm²): 0.59 1900MHz Maximum peak output power at antenna input terminal (dBm): 26 Maximum peak output power at antenna input terminal (mW): 398.1 Prediction distance (cm): 40 Prediction frequency (MHz): 1962.6 Maximum antenna gain (dBi): 7.75 Maximum antenna gain (numeric): 5.96 Maximum RF output power (EIRP, mW): 2372 Power density at predication frequency and distance (mW/cm²): 0.12 MPE limit for uncontrolled exposure at predication frequency (mW/ cm²): 1 According to the following formula 850 MPE value / 850 MPE limit + 1900 MPE value / 1900 MPE limit + 700 MPE value / 700 MPE limit < = 1, get 0.12/0.59+0.12/1+0.12/0.50=0.58 3. Test Results The device is compliant with the requirement MPE limit for uncontrolled exposure.

TEST REPORT Report No.: EM201200834 Application No.: ZJ00024603 Client: ADC Telecommunications, INC Address: P.O. Box 1101, Minneapolis, Minnesota Sample Description: InterReach Fusion® 700 MHz (Upper C) LTE 850 MHz and high power 1900 MHz Multi-Band Model: FSN-2-758519-1-HP Test Location: EMC Laboratory of Guangzhou GRG Metrology and Test Co., Ltd. Test Specification: FCC PART 22& FCC PART 24& FCC PART 27 Test Date: 2012-12-21 to 2013-01-28 Issue Date: 2012-01-28 Test Result: Pass. Prepared By: Reviewed By: Approved By: David Li/ Test Engineer Jane Cao / Engineer Gavin Wu / Manager Date:2013-01-28 Date:2013-01-28 Date:2013-01-28 Other Aspects: None Abbreviations: ok / P = passed; fail / F = failed; n.a. / N = not applicable The test result in this test report refers exclusively to the presented test sample. This report shall not be reproduced except in full, without the written approval of GRGT. GRG Metrology and Test Co., Ltd. Address: 163, Pingyun Road, West of Huangpu Avenue, Guangzhou, Guangdong, P.R. China Tel:+86-20-38699960 Fax:+86-20-38695185 Email: [email protected] http://www.grgtest.com Ver.:2.0/ 01. Jan. 2011 Report No.: EM201200834 Application No.: ZJ00024603 Page 2 of 122 FCC IDNOO-F0688-011 DIRECTIONS OF TEST 1. This station carries out test task according to the national regulation of verifications which can be traced to National Primary Standards and BIPM. 2. The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. 3. If there is any objection concerning the test, the client should inform the laboratory within 15 days from the date of receiving the test report. Report No.: EM201200834 Application No.: ZJ00024603 Page 3 of 122 FCC IDNOO-F0688-011 TABLE OF CONTENTS 1TEST SUMMARY .................................................................................................................................................... 4 2GENERAL INFORMATION .................................................................................................................................. 5 2.1 CLIENT INFORMATION ..................................................................................................................................... 5 2.2 MANUFACTURER ............................................................................................................................................... 5 2.3 BASIC DESCRIPTION OF EUT ........................................................................................................................... 5 2.4 STANDARDS APPLICABLE FOR TESTING...................................................................................................... 5 2.5 TEST LOCATION ................................................................................................................................................. 6 2.6 ACCREDITATION ................................................................................................................................................ 6 2.7 OTHER INFORMATION REQUESTED BY THE CUSTOMER ......................................................................... 6 3EQUIPMENTS USED DURING TEST .................................................................................................................. 7 FILTER .................................................................................................................................................................... 7 4. TEST RESULTS ......................................................................................................................................................... 8 4.1 EUT OPERATION ................................................................................................................................................. 8 4.2 TEST PROCEDURE & MEASUREMENT DATA ............................................................................................. 11 4.2.1 RF OUTPUT POWER .................................................................................................................................. 11 4.2.1.1 MEASUREMENT RECORD ............................................................................................................................... 13 4.2.2 CONDUCTED SPURIOUS EMISSIONS ...................................................................................................... 18 4.2.2.1 MEASUREMENT RECORD ................................................................................................................................. 21 4.2.3 BAND EDGE ................................................................................................................................................ 41 4.2.3.1 MEASUREMENT RECORD ................................................................................................................................. 43 4.2.4 RADIATED SPURIOUS EMISSIONS ........................................................................................................... 63 4.2.4.1 MEASUREMENT RECORD ................................................................................................................................. 67 4.2.5 OCCUPIED BANDWIDTH .......................................................................................................................... 68 4.2.5.1 MEASUREMENT RECORD ................................................................................................................................. 70 4.2.6 INTERMODULATION ................................................................................................................................. 90 4.2.6.1 MEASUREMENT RECORD ............................................................................................................................... 92 4.2.7 OUT OF BAND REJECTION .....................................................................................................…

Text truncated - open the document above for the full version.

Report No.: EM201200834 Application No.: ZJ00024603 Page 81 of 122 FCC IDNOO-F0688-011 850MHz-LTE-10M downlink (middle frequency)-Input 850MHz-LTE -10M downlink (middle frequency)- Output Report No.: EM201200834 Application No.: ZJ00024603 Page 82 of 122 FCC IDNOO-F0688-011 1900MHz-GSM downlink (middle frequency)-Input 1900MHz-GSM downlink (middle frequency)- Output Report No.: EM201200834 Application No.: ZJ00024603 Page 83 of 122 FCC IDNOO-F0688-011 1900MHz-EDGE downlink (middle frequency)-Input 1900MHz-EDGE downlink (middle frequency)- Output Report No.: EM201200834 Application No.: ZJ00024603 Page 84 of 122 FCC IDNOO-F0688-011 1900MHz-CDMA2000 downlink (middle frequency)-Input 1900MHz-CDMA2000 downlink (middle frequency)- Output Report No.: EM201200834 Application No.: ZJ00024603 Page 85 of 122 FCC IDNOO-F0688-011 1900MHz-WCDMA downlink (middle frequency)-Input 1900MHz-WCDMA downlink (middle frequency)- Output Report No.: EM201200834 Application No.: ZJ00024603 Page 86 of 122 FCC IDNOO-F0688-011 1900MHz-LTE-1.4M downlink (middle frequency)-Input 1900MHz-LTE -1.4M downlink (middle frequency)-Output Report No.: EM201200834 Application No.: ZJ00024603 Page 87 of 122 FCC IDNOO-F0688-011 1900MHz-LTE-3M downlink (middle frequency)-Input 1900MHz-LTE-3M downlink (middle frequency)- Output Report No.: EM201200834 Application No.: ZJ00024603 Page 88 of 122 FCC IDNOO-F0688-011 1900MHz-LTE-5M downlink (middle frequency )-Input 1900MHz-LTE-5M downlink (middle frequency)- Output Report No.: EM201200834 Application No.: ZJ00024603 Page 89 of 122 FCC IDNOO-F0688-011 1900MHz-LTE-10M downlink (middle frequency)-Input 1900MHz-LTE-10M downlink (middle frequency)- Output Report No.: EM201200834 Application No.: ZJ00024603 Page 90 of 122 FCC IDNOO-F0688-011 4.2.6 INTERMODULATION Test Date: 28 December, 2012 Test Method: 2-11-04/EAB/RF Test Requirement: FCC part 22.917(a)& FCC part 24.238(a) &FCC 27.53 22.917(a): The power of any emission outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43 + 10log (P) dB. 24.238(a) The power of any emission outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43 + 10log(P) dB. EUT Operation: Status The output power of EUT be set to maximum value,the gain of EUT be set to maximum value by software through the manufacture Conditions Normal Application 700MHz Downlink and Uplink ports 850MHz Downlink and Uplink ports 1900MHz Downlink and Uplink ports Test configuration Fig.1 Down Link Intermodulation Report No.: EM201200834 Application No.: ZJ00024603 Page 91 of 122 FCC IDNOO-F0688-011 Fig.2 Up Link Intermodulation Test Procedure: 1. Connect the equipment as illustrated, 2. Test the background noise level with all the test facilities 3. Keep one transmitting path, all other connectors shall be connected by normal power or RF leads 4. Select the attenuator to avoid the test receiver or spectrum analyzer being destroyed 5. Keep the EUT continuously transmitting in max power 6. Keep two signal generator produce two signal are same in modulation type and level 7. Measurement the 3 order intermodulated produced by the EUT (the sum of the two unwanted signal should be rated power) 8. Correct for all losses in the RF path 9. Read the conducted spurious emission of the EUT antenna port. CW signal rather than typical signal is acceptable(for FM) At maximum drive level, for each modulation:one test with three tones, or two tests(high, low-band edge)with two tones Limit usually is -13dBm conducted Not need for signal channel systems Combination of modulation types not needed Report No.: EM201200834 Application No.: ZJ00024603 Page 92 of 122 FCC IDNOO-F0688-011 4.2.6.1 MEASUREMENT RECORD 700MHz 700MHz-LTE-1.4M downlink-Lower Edge 700MHz-LTE-1.4M downlink-Upper Edge Report No.: EM201200834 Application No.: ZJ00024603 Page 93 of 122 FCC IDNOO-F0688-011 700MHz-LTE-3M downlink-Lower Edge 700MHz-LTE-3M downlink-Upper Edge Report No.: EM201200834 Application No.: ZJ00024603 Page 94 of 122 FCC IDNOO-F0688-011 700MHz-LTE-5M downlink-Lower Edge 700MHz-LTE-5M downlink-Upper Edge Report No.: EM201200834 Application No.: ZJ00024603 Page 95 of 122 FCC IDNOO-F0688-011 850MHz 850MHz-GSM downlink-Lower Edge 850MHz-GSM downlink-Upper Edge Report No.: EM201200834 Application No.: ZJ00024603 Page 96 of 122 FCC IDNOO-F0688-011 850MHz-EDGE downlink-Lower Edge 850MHz-EDGE downlink-Upper Edge Report No.: EM201200834 Application No.: ZJ00024603 Page 97 of 122 FCC IDNOO-F0688-011 850MHz-CDMA2000 downlink-Lower Edge 850MHz-CDMA2000 downlink-Upper Edge Report No.: EM201200834 Application No.: ZJ00024603 Page 98 of 122 FCC IDNOO-F0688-011 850MHz-WCDMA downlink-Lower Edge 850MHz-WCDMA downlink-Upper Edge Report No.: EM201200834 Application No.: ZJ00024603 Page 99 of 122 FCC IDNOO-F0688-011 850MHz-LTE-1.4M downlink-Lower Edge 850MHz-LTE-1.4M downlink-Upper Edge Report No.: EM201200834 Application No.: ZJ00024603 Page 100 of 122 FCC IDNOO-F0688-011 850MHz-LTE-3M downlink-Lower Edge 850MHz-LTE-3M downlink-Upper Edge Report No.: EM201200834 Application No.: ZJ00024603 Page 101 of 122 FCC IDNOO-F0688-011 850MHz-LTE-5M downlink-Lower Edge 850MHz-LTE-5M downlink-Upper Edge Report No.: EM201200834 Application No.: ZJ00024603 Page 102 of 122 FCC IDNOO-F0688-011 1900MHz 1900MHz-GSM downlink-Lower Edge 1900MHz-GSM downlink-Upper Edge Report No.: EM201200834 Application No.: ZJ00024603 Page 103 of 122 FCC IDNOO-F0688-011 1900MHz-EDGE downlink-Lower Edge 1900MHz-EDGE downlink-Upper Edge Report No.: EM201200834 Application No.: ZJ00024603 Page 104 of 122 FCC IDNOO-F0688-011 1900MHz-CDMA2000 downlink-Lower Edge 1900MHz-CDMA2000 downlink-Upper Edge Report No.: EM201200834 Application No.: ZJ00024603 Page 105 of 122 FCC IDNOO-F0688-011 1900MHz-WCDMA downlink-Lower Edge 1900MHz-WCDMA downlink-Upper Edge Report No.: EM201200834 Application No.: ZJ00024603 Page 106 of 122 FCC IDNOO-…

Text truncated - open the document above for the full version.

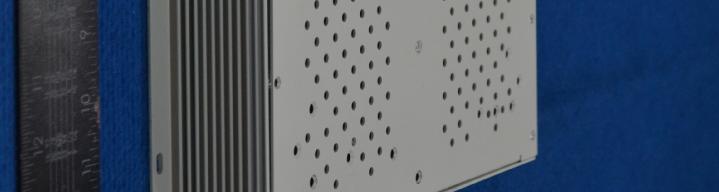

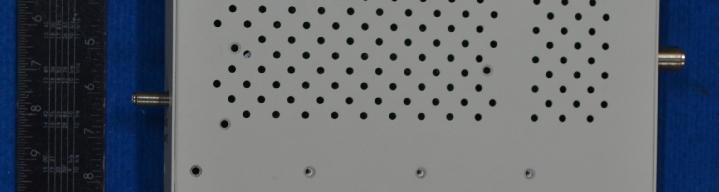

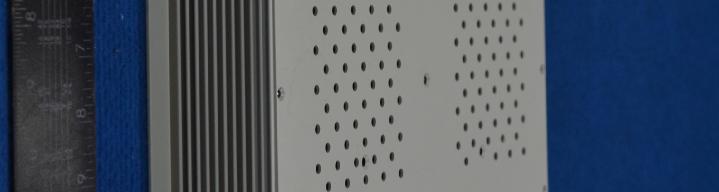

TEST SETUP PHOTOS
