FCC Compliance Opinion 2015-1-14 TECO0024 Information about the Applicant Grantee (Company Name) ADC Telecommunications FCC Contact Person Joshua Wittman Address 501 Shenandoah Drive City, State, Zip Shakopee, MN 55379 Job Number TECO0024 Model SPT-S3-2323-12-HP FCC ID NOO-S2782-011 Agent Approval Type Original Equipment Class B2I Part 20 Industrial Booster (CMRS) Rule Part Part 27 Overview The model SPT-S3-2323-12-HP, also known as Spectrum 2300WCS MIMO SRAU, consists of a main remote antenna unit and up to 2 secondary remote antenna units (SRAU), wich are part of the Spectrum Band System. The main function of the unit is to receive and transmit signals from and to mobile units. Confidentiality requested for allowed files. Request is properly addressed and referenced. Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. Signature Dave Tolman, TCB Committee 3/19/2015

Mailing Address: 501 Shenandoah Drive, Shakopee, Minnesota 55379 www.te.com March 17, 2015 Attention: Reviewing Engineering Type of Certification: Original - FCC Part 27 Applicant: ADC Telecommunications Inc. Equipment: InterReach™ Spectrum – 2300 MHz WCS MIMO SRAU Model #: SPT-S3-2323-12-HP FCC ID: NOO-S2782-011 Dear Sir/Madam: Enclosed please find a signed FR410 TCB Application for certification of the above mentioned RF module. Further details and supporting documents have been uploaded to the Northwest EMC CTS system. Should you have any questions, please feel free to contact the undersigned. Sincerely, Joshua J. Wittman Compliance Engineer Tele: 952 403-8322 Fax: 952 403-8858 Email: [email protected]

1(1) Attention: Application Examiner Re: Request for Confidentiality Applicant: ADC Telecommunications, Inc. FCC ID: NOO-S2782-011 To whom it may concern, Permanent Confidentiality Request is hereby submitted by ADC Telecommunications, Inc. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential:  Schematics  Detailed Block diagrams  Detailed Operational/Functional Description Rationale for request for confidentiality: ADC Telecommunications, Inc. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Sincerely, Joshua J. Wittman Compliance Engineer ADC Telecommunications, Inc.

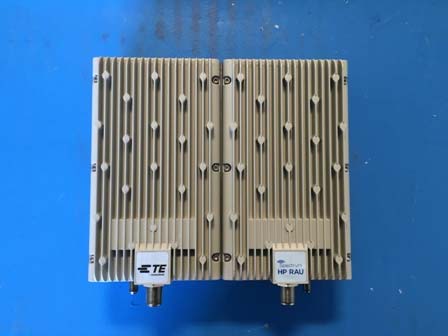

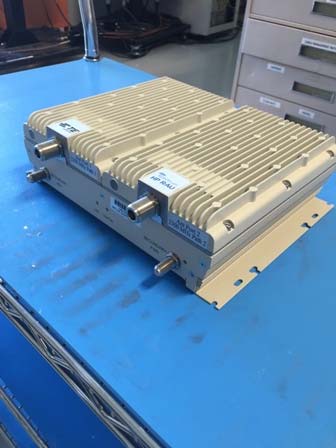

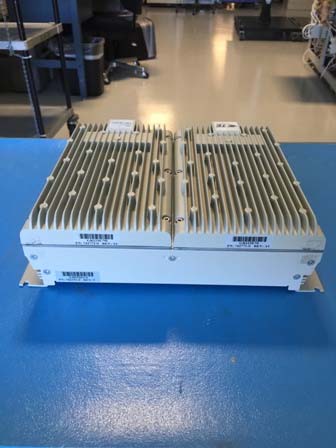

Spectrum 2300 MIMO SRAU External Photos Front/Side View Front/Side View Rear View Top View Bottom View

FCC and Industrial Signal Booster Locations FCC ID will be located here Industrial Signal Booster Warning Label

Spectrum 2300 WCS SRAU Internal Pictures IF Board Top View IF Board Top Left Side View IF Board Top Right Side View IF Board Bottom Left Side View IF Board Bottom Right Side View IF Board Bottom Right Side View (Shielded – one shield missing) Path 1 RF Board Top View Path 1 RF Board Top View (Shielded) Path 1 RF Board Bottom View Path 1 RF Board Bottom View (Shielded) Path 2 RF Board Top View Path 2 RF Board Top View (Shielded) Path 2 RF Board Bottom View Path 2 RF Board Bottom View (Shielded)

This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. This Report may only be duplicated in its entirety TE Connectivity / ADC Telecommunications Spectrum 2300 MHz WCS Secondary RAU FCC 27:2015 Report # TECO0024 NVLAP Lab Code: 200881-0 CERTIFICATE OF TEST 2014-12-10 Product compliance is the responsibility of the client; therefore, the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. Last Date of Test: February 25, 2015 TE Connectivity / ADC Telecommunications Model: Spectrum 2300 MHz WCS Secondary RAU Radio Equipment Testing Standards Specification Method FCC 27:2015, FCC 2.1046 ANSI/TIA/EIA-603-C-2004 FCC 27:2015, FCC 2.1049 FCC 27:2015, FCC 2.1051 FCC 27:2015, FCC 2.1053 FCC 27:2015, FCC 2.1055 Results Test Description Applied Results Comments Equivalent Isotropic Radiated Power (EIRP) Yes Pass Emissions Bandwidth Yes Pass Spurious Conducted Emissions Yes Pass Band Edge Compliance Yes Pass Intermodulation Yes Pass Frequency Stability Yes Pass Field Strength of Spurious Emissions Yes Pass Peak to Average Ratio Yes Pass Deviations From Test Standards None Approved By: Tim O'Shea, Operations Manager Report No. TECO00242/53 REVISION HISTORY REV 2014.10.14 Revision Number Description Date Page Number 00 None Report No. TECO00243/53 ACCREDITATIONS AND AUTHORIZATIONS REV 2015.2.19 United States FCC - Designated by the FCC as a Telecommunications Certification Body (TCB). Certification chambers, Open Area Test Sites, and conducted measurement facilities are listed with the FCC. A2LA - Accredited by A2LA to ISO / IEC 17065 as a product certifier. This allows Northwest EMC to certify transmitters to FCC and IC specifications. NVLAP - Each laboratory is accredited by NVLAP to ISO 17025 Canada IC - Recognized by Industry Canada as a Certification Body (CB). Certification chambers and Open Area Test Sites are filed with IC. European Union European Commission – Validated by the European Commission as a Conformity Assessment Body (CAB) under the EMC directive and as a Notified Body under the R&TTE Directive. Australia/New Zealand ACMA - Recognized by ACMA as a CAB for the acceptance of test data. Korea MSIP / RRA - Recognized by KCC’s RRA as a CAB for the acceptance of test data. Japan VCCI - Associate Member of the VCCI. Conducted and radiated measurement facilities are registered. Taiwan BSMI – Recognized by BSMI as a CAB for the acceptance of test data. NCC - Recognized by NCC as a CAB for the acceptance of test data. Singapore IDA – Recognized by IDA as a CAB for the acceptance of test data. Israel MOC – Recognized by MOC as a CAB for the acceptance of test data. Hong Kong OFCA – Recognized by OFCA as a CAB for the acceptance of test data. Vietnam MIC – Recognized by MIC as a CAB for the acceptance of test data. SCOPE For details on the Scopes of our Accreditations, please visit: http://www.nwemc.com/accreditations/ http://gsi.nist.gov/global/docs/cabs/designations.html Report No. TECO00244/53 MEASUREMENT UNCERTAINTY TMU.2014.12.03 Measurement Uncertainty When a measurement is made, the result will be different from the true or theoretically correct value. The difference is the result of tolerances in the measurement system that cannot be completely eliminated. To the extent that technology allows us, it has been our aim to minimize this error. Measurement uncertainty is a statistical expression of measurement error qualified by a probability distribution. A measurement uncertainty estimation has been performed for each test per our internal quality document WP 342. The estimation is used to compare the measured result with its "true" or theoretically correct value. The expanded measurement uncertainty (K=2) for each test is on each data sheet. Our measurement data meets or exceeds the measurement uncertainty requirements of the applicable specification; therefore, the test data can be compared directly to the specification limit to determine compliance. The calculations for estimating measurement uncertainty are based upon ETSI TR 100 028 (or CISPR 16-4-2 as applicable), and are available upon request. The following table represents the Measurement Uncertainty (MU) budgets for each of the tests that may be contained in this report. Test + MU - MU Frequency Accuracy (Hz) 0.0007% -0.0007% Amplitude Accuracy (dB) 1.2 dB -1.2 dB Conducted Power (dB) 0.3 dB -0.3 dB Radiated Power via Substitution (dB) 0.7 dB -0.7 dB Temperature (degrees C) 0.7°C -0.7°C Humidity (% RH) 2.5% RH -2.5% RH Voltage (AC) 1.0% -1.0% Voltage (DC) 0.7% -0.7% Field Strength (dB) 4.7 dB -4.7 dB AC Powerline Conducted Emissions (dB) 2.9 dB -2.9 dB Report No. TECO00245/53 FACILITIES REV 2015.2.19 California Labs OC01-13 41 Tesla Irvine, CA 92618 (949) 861-8918 Minnesota Labs MN01-08, MN10 9349 W Broadway Ave. Brooklyn Park, MN 55445 (612)-638-5136 New York Labs NY01-04 4939 Jordan Rd. Elbridge, NY 13060 (315) 554-8214 Oregon Labs EV01-12 22975 NW Evergreen Pkwy Hillsboro, OR 97124 (503) 844-4066 Texas Labs TX01-09 3801 E Plano Pkwy Plano, TX 75074 (469) 304-5255 Washington Labs NC01-05 19201 120 th Ave NE Bothell, WA 9801 (425)984-6600 NVLAP NVLAP Lab Code: 200676-0 NVLAP Lab Code: 200881-0 NVLAP Lab Code: 200761-0 NVLAP Lab Code: 200630-0 NVLAP Lab Code:201049-0 NVLAP Lab Code: 200629-0 Industry Canada 2834B-1, 2834B-3 2834E-1 N/A 2834D-1, 2834D-2 2834G-1 2834F-1 BSMI SL2-IN-E-1154R SL2-IN-E-1152R N/A SL2-IN-E-1017 SL2-IN-E-1158R SL2-IN-E-1153R VCCI A-0029 A-0109 N/A A-0108 A-0201 A-0110 Recognized Phase I CAB for ACMA, BSMI, IDA, KCC/RRA, MIC, MOC, NCC, OFCA US0158 US0175 N/A US0017 US0191 US0157 Report No. TECO00246/53 PRODUCT DESCRIPTION 2014-12-10 Client …

Text truncated - open the document above for the full version.

XMit 2015.01.14 OP 001.jpg OP 002.jpg EQUIVALENT ISOTROPIC RADTIATED POWER (EIRP) XMit 2015.01.14 DIRECT 001.jpg OP 001.jpg EMISSIONS BANDWIDTH XMit 2015.01.14 DIRECT 001.jpg OP 001.jpg SPURIOUS CONDUCTED EMISSIONS XMit 2015.01.14 DIRECT 001.jpg OP 001.jpg BAND EDGE COMPLIANCE XMit 2015.01.14 DIRECT 001.jpg IM 001.jpg INTERMODULATION XMit 2015.01.14 TEMP CH 001.jpg FREQUENCY STABILITY photo SE 001.jpg SE 002.jpg FIELD STRENGTH OF SPURIOUS EMISSIONS PSA-ESCI 2015.01.16 photo SE 003.jpg SE 004.jpg FIELD STRENGTH OF SPURIOUS EMISSIONS PSA-ESCI 2015.01.16 XMit 2015.01.14 DIRECT 001.jpg OP 001.jpg PEAK TO AVERAGE RATIO
