NOO-F0699-011InterReach Fusion� 700 MHz (Lower ABC), AWSMIMO HP

ADCP-77-044 x Issue 6 x November 2012 D-620616-0-20 Rev G InterReach Fusion ® Wideband Installation, Operation, and Reference Manual COPYRIGHT © 2012, TE Connectivity All Rights Reserved REVISION HISTORY ISSUEDATEREASON FOR CHANGE 17/2008First release 210/2008Add Fusion Wideband 1900/AWS product content 38/2009Add Fusion Wideband 700/AWS and 700 MIMO product content 45/2010Add Fusion Wideband 700 (Lower ABC) MIMO product content 59/2011Add Fusion Wideband 2600 MIMO product content 611/2012Add Fusion Wideband 700 ABC/AWS HP/AWS HP and Fusion Wideband 700 UC/AWS HP/AWS HP product content LIST OF CHANGES The technical changes incorporated into this issue are listed below. PAGEIDENTIFIERDESCRIPTION OF CHANGE Add Fusion Wideband 700 ABC/AWS HP/AWS HP and Fusion Wideband 700 UC/AWS HP/AWS HP product content TRADEMARK INFORMATION TE is a registered trademark and InterReach, InterReach Unison, InterReach Fusion, WAVEXchange, FlexWave are registered trademarks and trademarks of TE Connectivity. All other products, company names, service marks, and trademarks mentioned in this document or website are used for identification purposes only and may be owned by other companies. DISCLAIMER OF LIABILITY Contents herein are current as of the date of publication. TE reserves the right to change the contents without prior notice. In no event shall TE be liable for any damages resulting from loss of data, loss of use, or loss of profits and TE further disclaims any and all liability for indirect, incidental, special, consequential or other similar damages. This disclaimer of liability applies to all products, publications and services during and after the warranty period. This publication may be verified at any time by contacting TE’s Technical Support Team at 1-800-530-9960 (in U.S.A. or Canada) or +1-952-917-0761 (outside U.S.A. and Canada), or visit www.te.com/WirelessSupport. ADC Telecommunications, Inc. P.O. Box 1101, Minneapolis, Minnesota 55440-1101 In U.S.A. and Canada: 1-800-366-3891 Outside U.S.A. and Canada: (952) 938-8080 Fax: (952) 917-1717 TE Connectivity 541 E. Trimble Road, San Jose, California 95131-1224 USA In U.S.A. and Canada: 1-800-530-9960 Outside U.S.A. and Canada: +1-952-917-0761 InterReach Spectrum Expansion Module Group Installation Guideiii Proprietary text field. InterReach Fusion Wideband Installation, Operation, and Reference Manualiii D-620616-0-20 Rev GCONFIDENTIAL Table of Contents SECTION 1General Information . . . . . . . . . . . . . . . . . . . . . . 1-1 1.1 Firmware Release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 1.2 Purpose and Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 1.3 Conventions in this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 1.4 Standards Conformance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 1.5 Related Publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 SECTION 2 InterReach Fusion Wideband System Description 2-1 2.1 System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 2.2 System Hardware Description . . . . . . . . . . . . . . . . . . . . . . . . 2-3 2.3 System OA&M Capabilities Overview . . . . . . . . . . . . . . . . . 2-5 2.3.1 System Monitoring and Reporting . . . . . . . . . . . . . . . . . . . . . 2-6 2.3.2 Using Alarm Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6 2.4 System Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7 2.5 System Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8 2.6 System Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9 2.6.1 RF End-to-End Performance . . . . . . . . . . . . . . . . . . . . . . . . . 2-12 SECTION 3Fusion Wideband Main Hub . . . . . . . . . . . . . . . . 3-1 3.1 Fusion Wideband Main Hub Overview . . . . . . . . . . . . . . . . . 3-1 3.2 Fusion Wideband Main Hub Front Panel . . . . . . . . . . . . . . . . 3-4 3.2.1 Optical Fiber Uplink/Downlink Ports . . . . . . . . . . . . . . . . . . . 3-5 3.2.2 Communications RS-232 Serial Connector . . . . . . . . . . . . . . . 3-5 3.2.3 Main Hub LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5 3.3 Fusion Wideband Main Hub Rear Panel . . . . . . . . . . . . . . . . 3-8 3.3.1 Fusion Wideband Main Hub Rear Panel Connectors . . . . . . . 3-8 3.3.1.1 9-pin D-sub Connector . . . . . . . . . . . . . . . . . . . . . . . . . 3-8 3.3.1.2 N-type Female Connectors . . . . . . . . . . . . . . . . . . . . . . 3-9 3.4 Main Hub Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10 CONFIDENTIAL ivInterReach Fusion Wideband Installation, Operation, and Reference Manual D-620616-0-20 Rev G 3.5 Faults, Warnings, and Status Messages . . . . . . . . . . . . . . . . . 3-11 3.5.1 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11 3.5.2 View Preference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12 SECTION 4Fusion Wideband Expansion Hub 4-1 4.1 Expansion Hub Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 4.2 Expansion Hub Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3 4.2.1 75 Ohm Type F Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4 4.2.2 Manufacturing RS-232 Serial Connector . . . . . . . . . . . . . . . . . 4-4 4.2.3 Optical Fiber Uplink/Downlink Connectors . . . . . . . . . . . . . . 4-4 4.2.4 LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5 4.3 Expansion Hub Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8 4.4 Faults, Warnings, and Status Messages . . . . . . . . . . . . . . . . . . 4-9 4.5 Expansion Hub Specifications . . . . . . . . . . . . . . . . . . . . . . . 4-10 SECTION 5 Remote Access Unit . . . . . . . . . . . . . . . . . . . . . . 5-1 5.1 RAU Overview . . .…

Text truncated - open the document above for the full version.

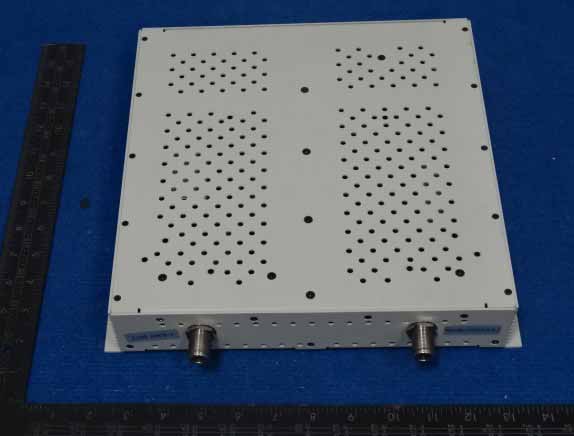

EXTERNAL PHOTOS

LABEL LOCATION This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference.

FCC1.1307(b)(1) &2.1091-RF EXPOSURE 1. Applicable Standard According to11310 and2.1091 (Mobile Devices)RF exposure is calculated. Frequency Range(Mhz) Electric Field Stength(V/m) Magnetic Field Stength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f²) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f=frequency in MHz *=Plane-wave equivalent power density 2.Prediction of MPE limit at given distance, equations from OET Bulletin 65, Edition 9701: S = (1.64 * P * G) / (4 * π * R²) (where PG = ERP) S = (P * G) / (4 * π * R²) (where PG = EIRP) Where: S = power density P= power input to antenna G= numeric gain of the antenna R= distance to the center of radiation of the antenna 700MHz Band: Maximum peak output power at antenna input terminal (dBm): 18 Maximum peak output power at antenna input terminal (mW): 63.1 Prediction distance (cm): 20 Prediction frequency (MHz): 722 Maximum antenna gain (dBd): 13.6 Maximum antenna gain (numeric): 22.9 Maximum RF output power (ERP, mW): 1450 Power density at predication frequency and distance (mW/cm²): 0.473 MPE limit for uncontrolled exposure at predication frequency (mW/ cm²): 0.48 2100MHz Maximum peak output power at antenna input terminal (dBm): 23 Maximum peak output power at antenna input terminal (mW): 199.5 Prediction distance (cm): 20 Prediction frequency (MHz): 2122.5 Maximum antenna gain (dBi): 10.75 Maximum antenna gain (numeric): 11.89 Maximum RF output power (EIRP, mW): 2372 Power density at predication frequency and distance (mW/cm²): 0.472 MPE limit for uncontrolled exposure at predication frequency (mW/ cm²): 1 3. Test Results The device is compliant with the requirement MPE limit for uncontrolled exposure.

Page 1 of 195 TEST REPORT Report No.: EM201200597 Application No.: ZJ00021997 Client: ADC Telecommunications, INC Address: P.O. Box 1101, Minneapolis, Minnesota Sample Description: InterReach Fusion® 700 MHz (Lower ABC), AWSMIMO HP Model: FSN-W4-702121-1-HP Test Location: EMC Laboratory of Guangzhou GRG Metrology and Test Co., Ltd. Test Specification: FCC PART 27 Issue Date: 2012-11-20 Test Result: Pass. Prepared By: Reviewed By: Approved By: David Li/ Test Engineer Jane Cao/ Engineer Gavin Wu / Manager Date:2012-11-20 Date:2012-11-20 Date:2012-11-20 Other Aspects: None Abbreviations: ok / P = passed; fail / F = failed; n.a. / N = not applicable The test result in this test report refers exclusively to the presented test sample. This report shall not be reproduced except in full, without the written approval of GRGT. GRG Metrology and Test Co., Ltd. Address: 163, Pingyun Road, West of Huangpu Avenue, Guangzhou, Guangdong, P.R. China Tel:+86-20-38699960 Fax:+86-20-38695185 Email: [email protected] http://www.grgtest.com Ver.:2.0/ 01. Jan. 2011 Report No.: EM201200597 Application No.: ZJ00021997 Page 2 of 195 FCC IDNOO-F0699-011 DIRECTIONS OF TEST 1. This station carries out test task according to the national regulation of verifications which can be traced to National Primary Standards and BIPM. 2. The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. 3. If there is any objection concerning the test, the client should inform the laboratory within 15 days from the date of receiving the test report. Report No.: EM201200597 Application No.: ZJ00021997 Page 3 of 195 FCC IDNOO-F0699-011 TABLE OF CONTENTS 1TEST SUMMARY .................................................................................................................................................... 4 2GENERAL INFORMATION .................................................................................................................................. 5 2.1 CLIENT INFORMATION ..................................................................................................................................... 5 2.2 MANUFACTURER ............................................................................................................................................... 5 2.3 BASIC DESCRIPTION OF EUT ........................................................................................................................... 5 2.4 STANDARDS APPLICABLE FOR TESTING...................................................................................................... 5 2.5 TEST LOCATION ................................................................................................................................................. 6 2.6 ACCREDITATION ................................................................................................................................................ 6 2.7 OTHER INFORMATION REQUESTED BY THE CUSTOMER ......................................................................... 6 3EQUIPMENTS USED DURING TEST .................................................................................................................. 7 FILTER ................................................................................................................................................................... 7 4. TEST RESULTS ......................................................................................................................................................... 9 4.1 EUT OPERATION ................................................................................................................................................. 9 4.2 TEST PROCEDURE & MEASUREMENT DATA ............................................................................................. 12 4.2.1 RF OUTPUT POWER .................................................................................................................................. 12 4.2.1.1 MEASUREMENT RECORD ................................................................................................................................. 14 4.2.2 CONDUCTED SPURIOUS EMISSIONS ...................................................................................................... 16 4.2.2.1 MEASUREMENT RECORD ................................................................................................................................. 19 4.2.3 BAND EDGE ................................................................................................................................................ 85 4.2.3.1 MEASUREMENT RECORD ................................................................................................................................. 87 4.2.4 RADIATED SPURIOUS EMISSIONS ........................................................................................................... 98 4.2.4.1 MEASUREMENT RECORD ............................................................................................................................... 102 4.2.5 OCCUPIED BANDWIDTH ........................................................................................................................ 103 4.2.5.1 MEASUREMENT RECORD ............................................................................................................................... 104 4.2.6 INTERMODULATION ............................................................................................................................... 170 4.2.6.1 MEASUREMENT RECORD ............................................................................................................................. 173 4.2.7 FREQUENCY STABILITY .......................................................................................................................... 188 4.2.7.1 MEASUREMENT RECORD ..................................…

Text truncated - open the document above for the full version.

Report No.: EM201200597 Application No.: ZJ00021997 Page 121 of 195 FCC IDNOO-F0699-011 700MHz-LTE-5M uplink (highest frequency )-Input 700MHz-LTE-5M uplink (highest frequency)- Output Report No.: EM201200597 Application No.: ZJ00021997 Page 122 of 195 FCC IDNOO-F0699-011 700MHz-LTE-10M downlink (lowest frequency)-Input 700MHz-LTE-10M downlink (lowest frequency)-Output Report No.: EM201200597 Application No.: ZJ00021997 Page 123 of 195 FCC IDNOO-F0699-011 700MHz-LTE-10M downlink (middle frequency)-Input 700MHz-LTE-10M downlink (middle frequency)- Output Report No.: EM201200597 Application No.: ZJ00021997 Page 124 of 195 FCC IDNOO-F0699-011 700MHz-LTE-10M downlink (highest frequency )-Input 700MHz-LTE-10M downlink (highest frequency)- Output Report No.: EM201200597 Application No.: ZJ00021997 Page 125 of 195 FCC IDNOO-F0699-011 700MHz-LTE-10M uplink (lowest frequency)-Input 700MHz-LTE-10M uplink (lowest frequency)- Output Report No.: EM201200597 Application No.: ZJ00021997 Page 126 of 195 FCC IDNOO-F0699-011 700MHz-LTE-10M uplink (middle frequency)-Input 700MHz-LTE-10M uplink (middle frequency)-Ouput Report No.: EM201200597 Application No.: ZJ00021997 Page 127 of 195 FCC IDNOO-F0699-011 700MHz-LTE-10M uplink (highest frequency )-Input 700MHz-LTE-10M uplink (highest frequency)- Output Report No.: EM201200597 Application No.: ZJ00021997 Page 128 of 195 FCC IDNOO-F0699-011 700MHz-LTE-15M downlink (lowest frequency)-Input 700MHz-LTE-15M downlink (lowest frequency)-Output Report No.: EM201200597 Application No.: ZJ00021997 Page 129 of 195 FCC IDNOO-F0699-011 700MHz-LTE-15M downlink (middle frequency)-Input 700MHz-LTE-15M downlink (middle frequency)- Output Report No.: EM201200597 Application No.: ZJ00021997 Page 130 of 195 FCC IDNOO-F0699-011 700MHz-LTE-15M downlink (highest frequency )-Input 700MHz-LTE-15M downlink (highest frequency)- Output Report No.: EM201200597 Application No.: ZJ00021997 Page 131 of 195 FCC IDNOO-F0699-011 700MHz-LTE-15M uplink (lowest frequency)-Input 700MHz-LTE-15M uplink (lowest frequency)- Output Report No.: EM201200597 Application No.: ZJ00021997 Page 132 of 195 FCC IDNOO-F0699-011 700MHz-LTE-15M uplink (middle frequency)-Input 700MHz-LTE-15M uplink (middle frequency)-Ouput Report No.: EM201200597 Application No.: ZJ00021997 Page 133 of 195 FCC IDNOO-F0699-011 700MHz-LTE-15M uplink (highest frequency )-Input 700MHz-LTE-15M uplink (highest frequency)- Output Report No.: EM201200597 Application No.: ZJ00021997 Page 134 of 195 FCC IDNOO-F0699-011 2100MHz-LTE-1.4M downlink (lowest frequency)-Input 2100MHz-LTE-1.4M downlink (lowest frequency)-Output Report No.: EM201200597 Application No.: ZJ00021997 Page 135 of 195 FCC IDNOO-F0699-011 2100MHz-LTE-1.4M downlink (middle frequency)-Input 2100MHz-LTE-1.4M downlink (middle frequency)- Output Report No.: EM201200597 Application No.: ZJ00021997 Page 136 of 195 FCC IDNOO-F0699-011 2100MHz-LTE-1.4M downlink (highest frequency )-Input 2100MHz-LTE-1.4M downlink (highest frequency)- Output Report No.: EM201200597 Application No.: ZJ00021997 Page 137 of 195 FCC IDNOO-F0699-011 2100MHz-LTE-1.4M uplink (lowest frequency)-Input 2100MHz-LTE-1.4M uplink (lowest frequency)- Output Report No.: EM201200597 Application No.: ZJ00021997 Page 138 of 195 FCC IDNOO-F0699-011 2100MHz-LTE-1.4M uplink (middle frequency)-Input 2100MHz-LTE-1.4M uplink (middle frequency)-Ouput Report No.: EM201200597 Application No.: ZJ00021997 Page 139 of 195 FCC IDNOO-F0699-011 2100MHz-LTE-1.4M uplink (highest frequency )-Input 2100MHz-LTE-1.4M uplink (highest frequency)- Output Report No.: EM201200597 Application No.: ZJ00021997 Page 140 of 195 FCC IDNOO-F0699-011 2100MHz-LTE-3M downlink (lowest frequency)-Input 2100MHz-LTE-3M downlink (lowest frequency)-Output Report No.: EM201200597 Application No.: ZJ00021997 Page 141 of 195 FCC IDNOO-F0699-011 2100MHz-LTE-3M downlink (middle frequency)-Input 2100MHz-LTE-3M downlink (middle frequency)- Output Report No.: EM201200597 Application No.: ZJ00021997 Page 142 of 195 FCC IDNOO-F0699-011 2100MHz-LTE-3M downlink (highest frequency )-Input 2100MHz-LTE-3M downlink (highest frequency)- Output Report No.: EM201200597 Application No.: ZJ00021997 Page 143 of 195 FCC IDNOO-F0699-011 2100MHz-LTE-3M uplink (lowest frequency)-Input 2100MHz-LTE-3M uplink (lowest frequency)- Output Report No.: EM201200597 Application No.: ZJ00021997 Page 144 of 195 FCC IDNOO-F0699-011 2100MHz-LTE-3M uplink (middle frequency)-Input 2100MHz-LTE-3M uplink (middle frequency)-Ouput Report No.: EM201200597 Application No.: ZJ00021997 Page 145 of 195 FCC IDNOO-F0699-011 2100MHz-LTE-3M uplink (highest frequency )-Input 2100MHz-LTE-3M uplink (highest frequency)- Output Report No.: EM201200597 Application No.: ZJ00021997 Page 146 of 195 FCC IDNOO-F0699-011 2100MHz-LTE-5M downlink (lowest frequency)-Input 2100MHz-LTE-5M downlink (lowest frequency)-Output Report No.: EM201200597 Application No.: ZJ00021997 Page 147 of 195 FCC IDNOO-F0699-011 2100MHz-LTE-5M downlink (middle frequency)-Input 2100MHz-LTE-5M downlink (middle frequency)- Output Report No.: EM201200597 Application No.: ZJ00021997 Page 148 of 195 FCC IDNOO-F0699-011 2100MHz-LTE-5M downlink (highest frequency )-Input 2100MHz-LTE-5M downlink (highest frequency)- Output Report No.: EM201200597 Application No.: ZJ00021997 Page 149 of 195 FCC IDNOO-F0699-011 2100MHz-LTE-5M uplink (lowest frequency)-Input 2100MHz-LTE-5M uplink (lowest frequency)- Output Report No.: EM201200597 Application No.: ZJ00021997 Page 150 of 195 FCC IDNOO-F0699-011 2100MHz-LTE-5M uplink (middle frequency)-Input 2100MHz-LTE-5M uplink (middle frequency)-Ouput Report No.: EM201200597 Application No.: ZJ00021997 Page 151 of 195 FCC IDNOO-F0699-011 2100MHz-LTE-5M uplink (highest frequency )-Input 2100MHz-LTE-5M uplink (highest frequency)- Output Report No.: EM201200597 Application No.: ZJ00021997 Page 152 of 195 FCC IDNOO-F0699-011 2100MHz-LTE-10M downlink (lowest frequency)-Input 2100MHz-LTE-10M downlink (lowest frequency)-Output Report …

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS
