NR3-032B0500TRUCK CRADLE- BT

032C0345 Truck Cradle User Manual FCC Information FCC ID: NR3-032B0500 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. Installation 1. Mount the cradle in the truck using the mounting hardware. 2. Connect the four pin TIM cable to the Truck Cradle port. 3. Connect the six pin printer cable to the Truck Cradle if installed.

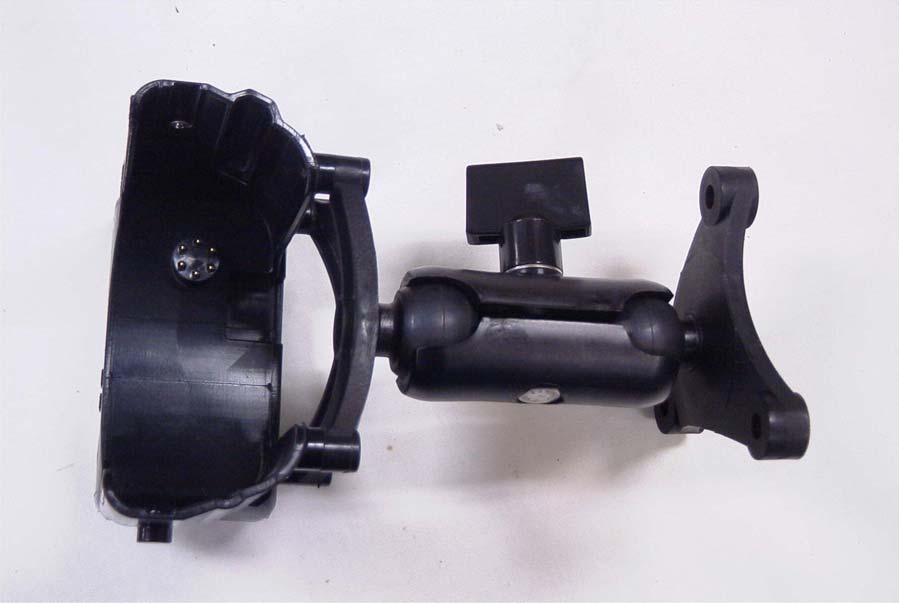

SYN-TECH SYSTEMS, INC. FCC ID: NR3-032B0500 EXTERNAL PHOTOS

INITIAL RELEASE 07-01-29 JATE DATE APPROVED DESCRIPTION REV ZONE REVISIONS - 1 2 3 4 5 6 7 8 D B A C DC B A R E V S H D W G N O . B 1 0 3 2 B 0 5 1 0 THIS DRAWING IS THE PROPERTY OF SYN-TECH SYSTEMS, INCIT IS LOANED UPON THE CONDITION THAT IT SHALL NOT BECOPIED OR REPRODUCED IN ANY MANER, OR BE SUBMITTEDTO OTHERS WITHOUT OUR WRITTEN CONSENT, OR USED INANY WAY DETRIMENTAL TO THE INTREST OF THIS COMPANY,AND SHALL BE RETURNED UPON DEMAND APPLICATION 032B0500 PDA NEXT ASSY USED ON DO N0T SCALE DRAWING MATERIAL CONTRACT NO. DRAWN CHECKED ENGR RELEASED DESIGN ACTIVITY APVLGOVT ACTIVITY APVL DATE ESB 07-01-29 DATEDATEDATEDATEDATE JATEJATE SYN-TECH SYSTEMS, INC LABEL,FCC, TRUCK CRADLE, TALLAHASSEE, FLORIDA SIZE CODE IDENT NO. SCALE 4/ 1 SHEET 1 OF 1 D 56672 032B0510 REV - UNLESS OTHERWISE SPECIFIED DIMENTIONS ARE IN INCHES TOLERANCES ON FRACTIONS +/- .__ ANGLES +/- 1 2 PL DEC +/- -- 3 PL DEC +/- --- 2 NOTE: 1 INTERPRET DRAWING IN ACCORDANCE WITH STANDARDS PRESCRIBED IN DOD-STD-100C2 MATERIAL: LABEL - 5 MIL PIGMENTED POLYESTER (MYLAR) SHEETING MATERIAL ADHESIVE BACKING - SCOTCH 3M #9505 HIGH STRENGTH ACRYLIC LAMINATING ADHESIVE PROTECTED BY PEEL OFF LINER COLORS: A - BLACK, COLOR #17038 OF FED-STD-595 B - BACKGROUND - NATURAL ALUMINUM . PART NO. 032B0510-1 FULL SIZE 07-01-2904-01-29 This device complies with part 15 of theFCC rules and industry Canada RSS-210.Operation is subject to the following twoconditions.1 - This device may not cause harmful interference,and2 - This device must accept any interference received,including interference that may cause undesired operation. FCC ID: NR3-032B0500 IC: 4479A-032B0500 1.375 .045 1.000 R .090 4X .060 This device complies with part 15 of theFCC rules and industry Canada RSS-210.Operation is subject to the following twoconditions.1 - This device may not cause harmful interference,and2 - This device must accept any interference received,including interference that may cause undesired operation. FCC ID: NR3-032B0500 IC: 4479A-032B0500

SYN-TECH SYSTEMS, INC. FCC ID: NR3-032B0500 INTERNAL PHOTOS

APPLICANT: SYN-TECH SYSTEMS, INC. FCC ID: NR3-032B0500 REPORT #:W:\S\SYN_NR3\1385UT6\Extra1385UT6\1385UT6TestReport.doc Page 1 of 16 FCC PART 15.247 AND INDUSTRY CANADA RSS-210 TEST REPORT APPLICANT SYN-TECH SYSTEMS, INC. 100 FOUR POINTS WAY TALLAHASSEE, FLORIDA 32305 TEL 850-878-2558 FCC ID NR3-032B0500 MODEL NUMBER 032B0500 PRODUCT DESCRIPTION BLUETOOTH TRUCK CRADLE DATE SAMPLE RECEIVED JUNE 30, 2006 DATE TESTED SEPTEMBER 8, 2006 TESTED BY JOSEPH SCOGLIO APPROVED BY MARIO DE ARANZETA TIMCO REPORT NO. 1385UT6TestReport TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM APPLICANT: SYN-TECH SYSTEMS, INC. FCC ID: NR3-032B0500 REPORT #:W:\S\SYN_NR3\1385UT6\Extra1385UT6\1385UT6TestReport.doc Page 2 of 16 TABLE OF CONTENTS LETTER OF INTRODUCTION...................................................... 3 EMC EQUIPMENT LIST.......................................................... 4 TEST PROCEDURE.............................................................. 5 POWER LINE CONDUCTED INTERFERENCE........................................... 6 NUMBER OF HOPPING CHANNELS.................................................. 7 DWELL TIME OF A HOPPING CHANNEL............................................. 9 20 dB BANDWIDTH............................................................ 10 POWER OUTPUT............................................................... 11 FIELD STRENGTH OF SPURIOUS EMISSIONS....................................... 12 FIELD STRENGTH OF SPURIOUS EMISSIONS (CONTINUED)........................... 13 METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS............................ 14 RADIATED SPURIOUS EMISSIONS INTO ADJACENT RESTRICTED BAND.................. 15 APPLICANT: SYN-TECH SYSTEMS, INC. FCC ID: NR3-032B0500 REPORT #:W:\S\SYN_NR3\1385UT6\Extra1385UT6\1385UT6TestReport.doc Page 3 of 16 LETTER OF INTRODUCTION September 8, 2006 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SYN-TECH SYSTEMS, INC. FCC ID: NR3-032B0500 To Whom It May Concern: The attached application is for a mobile device that employs a Bluetooth transceiver. The unit employs an internal antenna. Should you have any questions or require any further information with regards to this, please feel free to contact me. Sincerely, Mario R. de Aranzeta C.E.T. Engineer MRD/sh Encl. APPLICANT: SYN-TECH SYSTEMS, INC. FCC ID: NR3-032B0500 REPORT #: W:\S\SYN_NR3\1385UT6\Extra1385UT6\1385UT6TestReport.doc Page 4 of 16 EMC EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 Biconnical Antenna Eaton 94455-1 1057 CAL 12/12/05 12/12/07 Biconnical Antenna Eaton 94455-1 1096 CAL 10/11/06 10/11/08 Biconnical Antenna Electro-Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Blue Tower Quasi-Peak Adapter HP 85650A 2811A01279 CAL 4/13/05 4/13/07 Blue Tower RF Preselector HP 85685A 2926A00983 CAL 9/5/05 9/5/07 Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/13/05 4/13/07 LISN Electro-Metrics ANS-25/2 2604 CAL 10/5/06 10/5/08 LISN Electro-Metrics EM-7820 2682 CAL 4/28/05 4/28/07 Log-Periodic Antenna Eaton 96005 1243 CAL 12/14/05 12/14/07 APPLICANT: SYN-TECH SYSTEMS, INC. FCC ID: NR3-032B0500 REPORT #: W:\S\SYN_NR3\1385UT6\Extra1385UT6\1385UT6TestReport.doc Page 5 of 16 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. POWER LINE CONDUCTED INTERFERENCE: The procedure used was ANSI C63.4-2003 using a 50uH LISN. Both lines were observed with the DUT transmitting. The bandwidth of the spectrum analyzer was 10 kHz with an appropriate sweep speed. BANDWIDTH 20 dB: The measurements were made with the spectrum analyzer's resolution bandwidth (RBW) = 1 MHz and the video bandwidth (VBW) = 3 MHz and the span set as shown on plot. POWER OUTPUT: The device under test has an integral antenna and the power was measured radiated. ANTENNA CONDUCTED EMISSIONS: The RBW = 100 kHz, VBW = 300 kHz and the span set to 10.0 MHz and the spectrum was scanned from 30 MHz to the 10 th Harmonic of the fundamental. Above 1 GHz the resolution bandwidth was 1 MHz and the VBW = 3 MHz and the span to 50 MHz. RADIATION INTERFERENCE: The test procedure used was ANSI C63.4-2003 using an Agilent spectrum receiver with pre-selector. The bandwidth (RBW) of the spectrum receiver was 100 kHz up to 1 GHz and 1 MHz above 1 GHz with an appropriate sweep speed. The VBW above 1 GHz was 3 MHz. The analyzer was calibrated in dB above a microvolt at the output of the antenna. ENVIRONMENTAL: The environmental conditions in the laboratory were 25 ̊C and 50 % relative humidity APPLICANT: SYN-TECH SYSTEMS, INC. FCC ID: NR3-032B0500 REPORT #: W:\S\SYN_NR3\1385UT6\Extra1385UT6\1385UT6TestReport.doc Page 6 of 16 POWER LINE CONDUCTED INTERFERENCE RULES PART NO.: 15.107(a), RSS-310 8.3.1 REQUIREMENTS: QUASI-PEAK AVERAGE 0.15 – 0.5 MHz 66-56 dBuV 56-46 dBuV 0.5 – 5.0 56 46 5.0 – 30.0 60 50 TEST PROCEDURE: ANSI C63.4-2003. The spectrum was scanned from .15 to 30 MHz. TEST DATA: Not applicable this device. APPLICANT: SYN-TECH SYSTEMS, INC. FCC ID: NR3-032B0500 REPORT #: W:\S\SYN_NR3\1385UT6\Extra1385UT6\1385UT6TestReport.doc Page 7 of 16 NUMBER OF HOPPING CHANNELS RULES PART NO.: 15.247(a)(1), RSS-210 Annex 8 REQUIREMENTS: The number of hops is 79 hops, the requirement in the 2400 – 2483.5 MHz band is a minimum of 75 hops. NUMBER OF HOPPING CHANNELS APPLICANT: SYN-TECH SYSTEMS, INC. FCC ID: NR3-032B0500 REPORT #: W:\S\SYN_NR3\1385UT6\Extra1385UT6\1385UT6TestReport.doc Page 8 of 16 CHANNEL SEPARATION RULES PART NO.: 15.247(a)(1), RSS-210 Annex 8 REQUIREMENTS: The channel separation is 1 MHz CHANNEL/CARRIER …
